Features:
Thank you for choosing our LED light curing machine. Thisinstrument takes the high power pure blue LED as light source. It's thenew light curing machine which used with enhanced modespot opticalfiber light sticks.
1.LED light curing machineadoptsthe light-emitting diodes Blue-ray, it cancure the resin with the wavelength of 420-480nm, and be used to repairthe teeth in the department of stomatology;
2.There are three solidification working light modes: strong light mode, flashing light mode, gradual light mode.
3.The light-emitting diodeshas long life, which can greatly reduce the costs of future maintenanceof the machine;
4.Its does not produce any heat when running, so no needto cool it with fan, thus, it is free from the annoyance of noise andvibration of traditional machines;
5.Thehigh capacity lithium ion batterycan lastabout130-200 times after being fully charged(4-8 hours).
6.Intelligentbattery detection circuit function:when batteryis low, itwillalarm and the light will flash.
7.Lightweight and two-stage design, first low-lightirradiation, and then glare rapid curing.
8.This can inhibit the excessive contraction of the resin surface, avoidcracks between cavities edge.
Operation

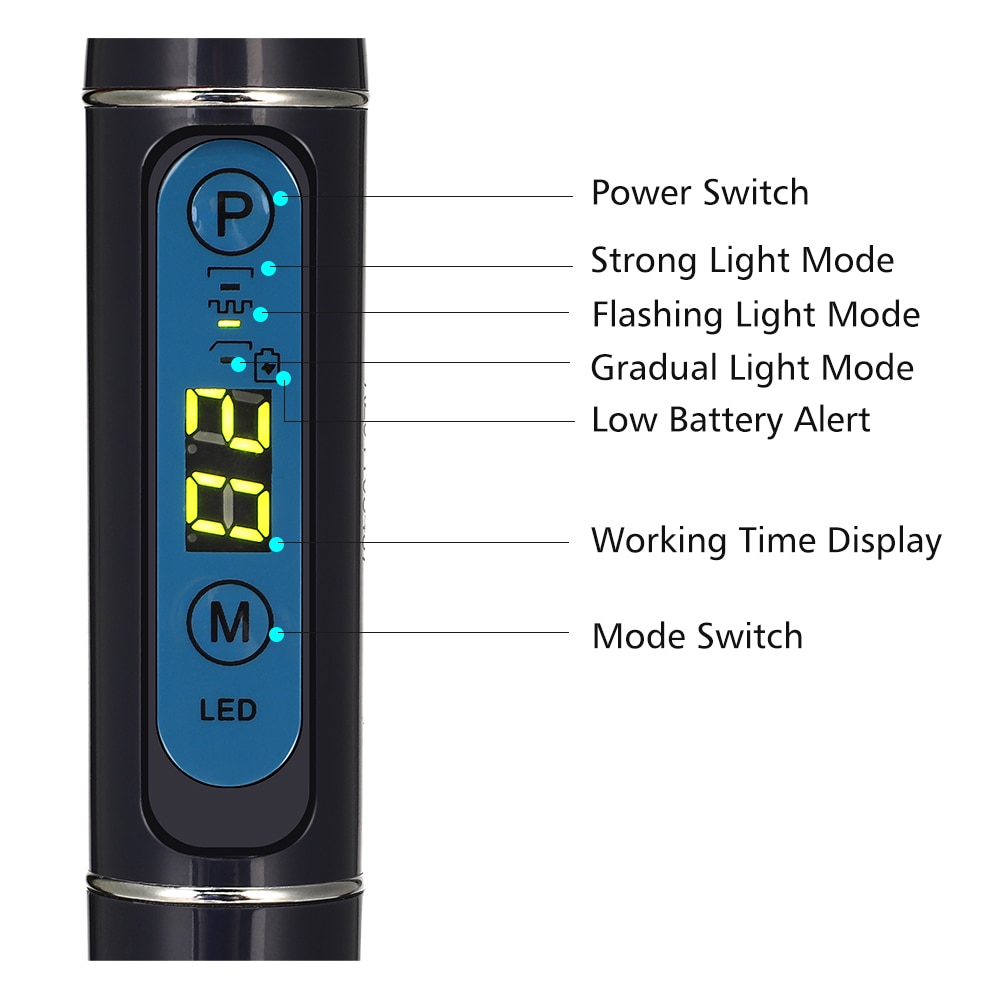

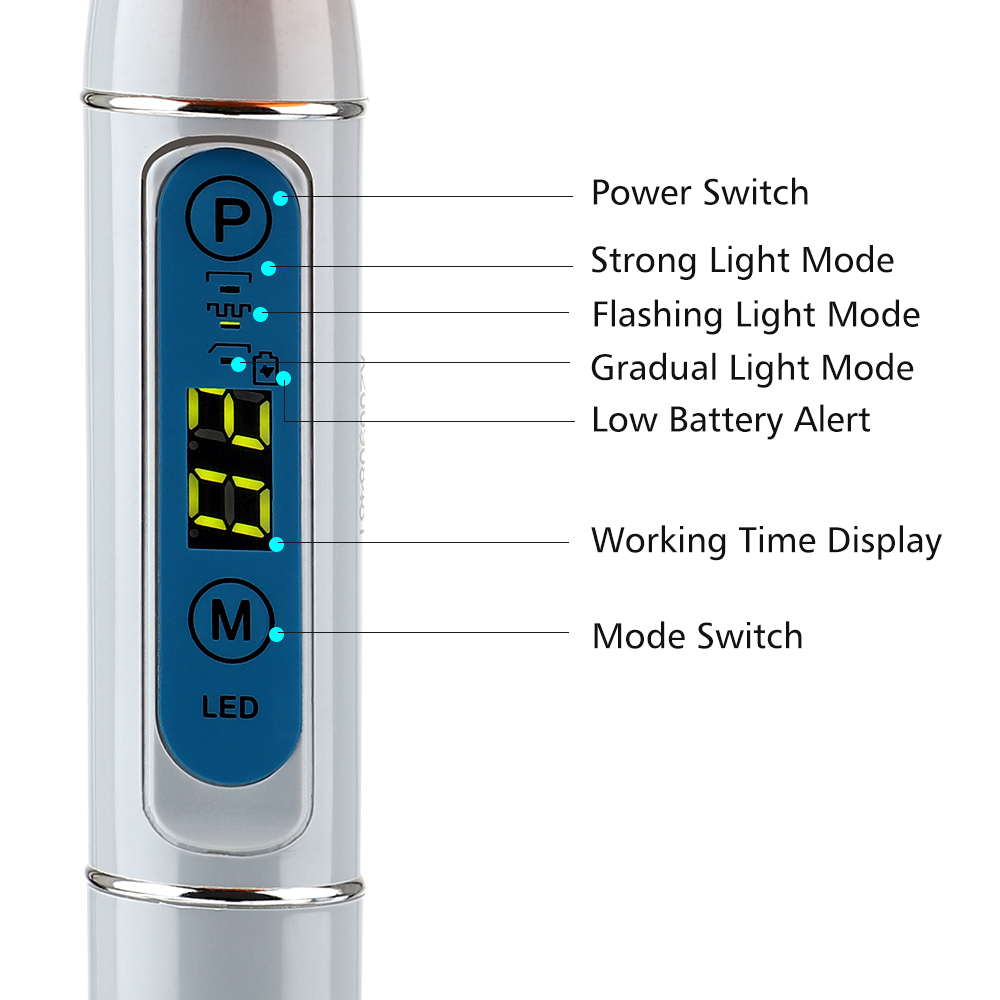

1. You can set working modesand working time(5s-40s)on this machine .
2. working time setting
Press the"M" button for a while, when hear"di di"and light shine,press"P" button to choose the time, 5s- 40s is available. Whenyouhear "di di" againand light stopping shinning,thetime setting is done.
3. Working mode setting
Press button "M"to choose working modes, choose the mode you need.
Technical data:
Battery voltage: 3. 7V
Package:230×172×53mm
Suitable temperature:5℃~50℃
Gross Weight: 0.57Kg
input Voltage: 110V-240VAC, 50-60HZ
Relative humidity: < 80%
Solidify time and depth 5s/3mm
Output Voltage: DC4.2V
Light wavelength: 420-480nm

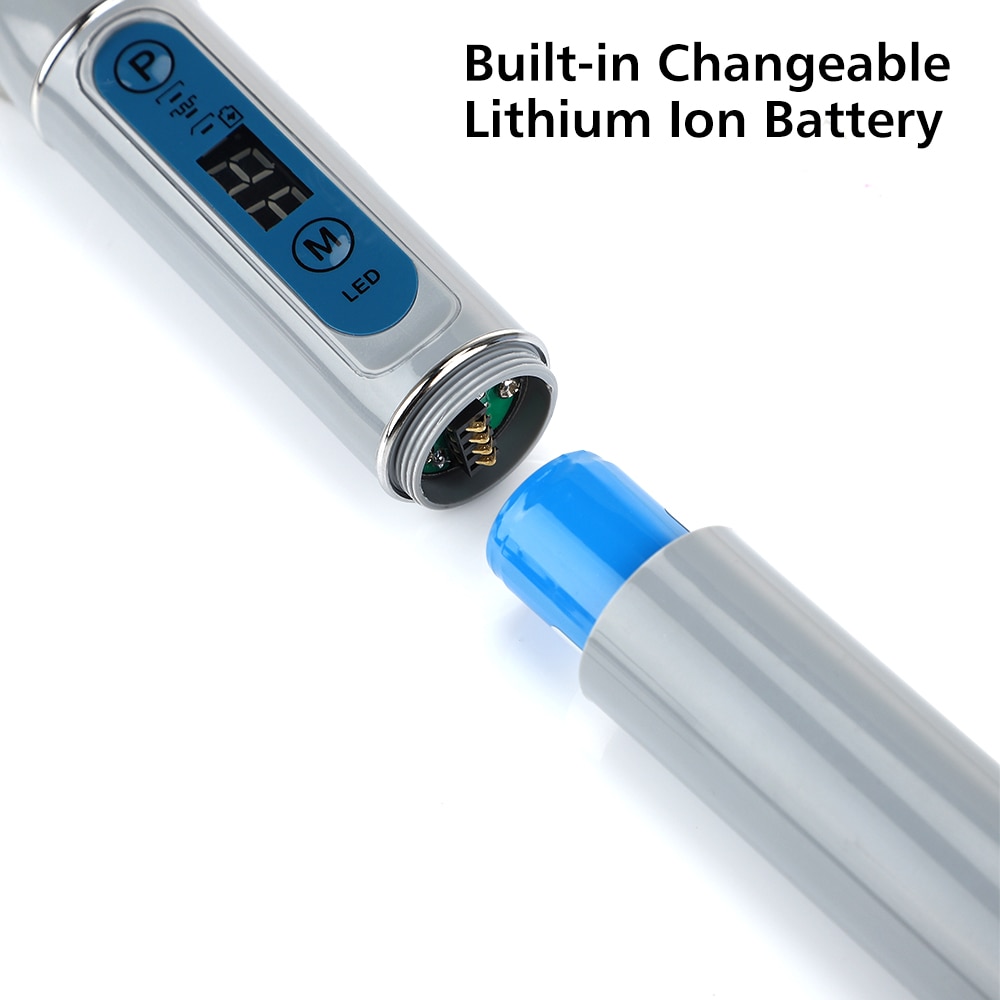

Battery: Lithium-ion battery
Capability of Battery: 1500mAh
Light intensity: 1200-2000mw/cm

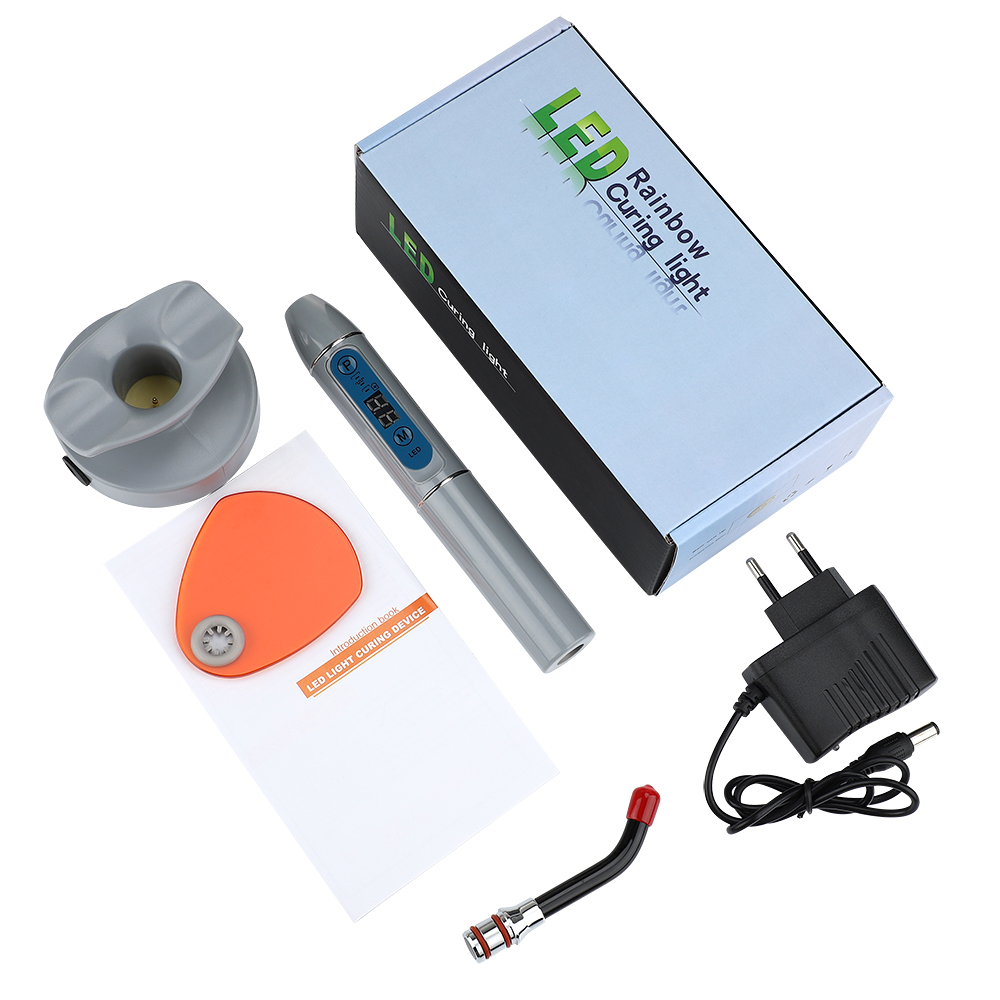

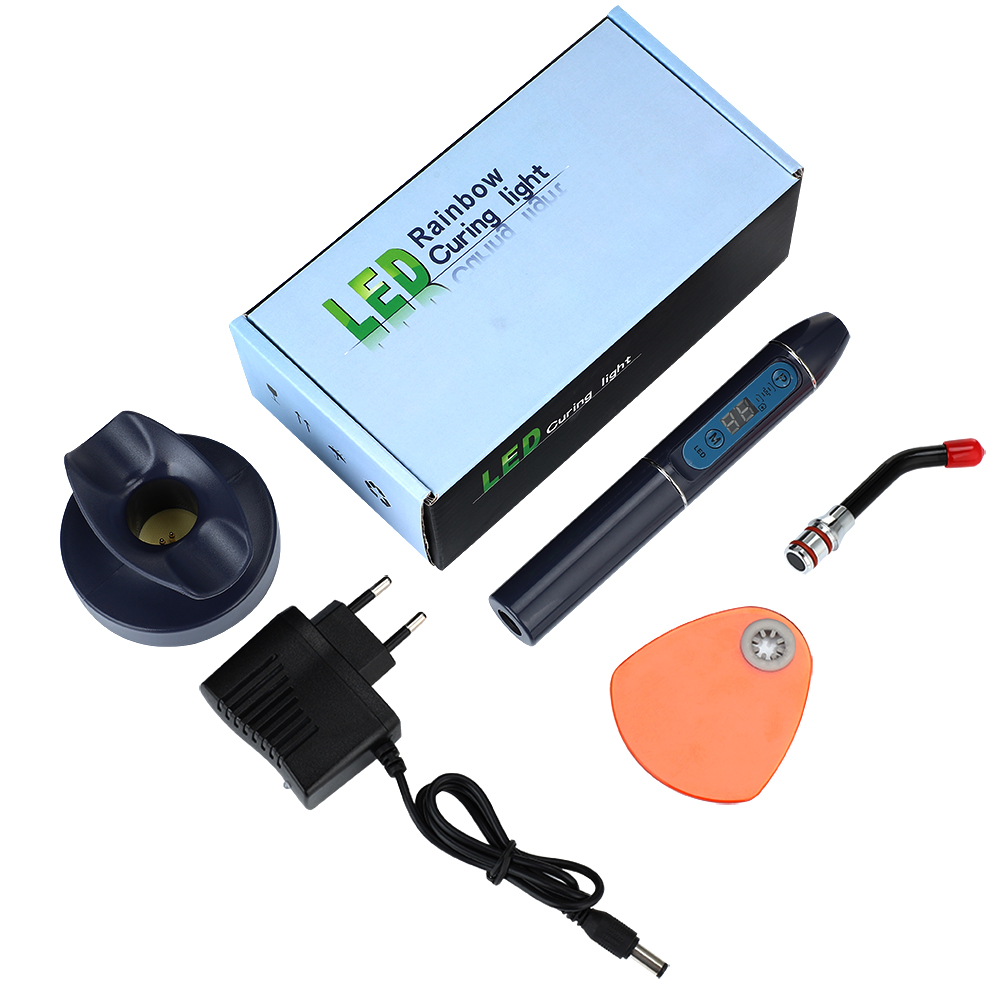

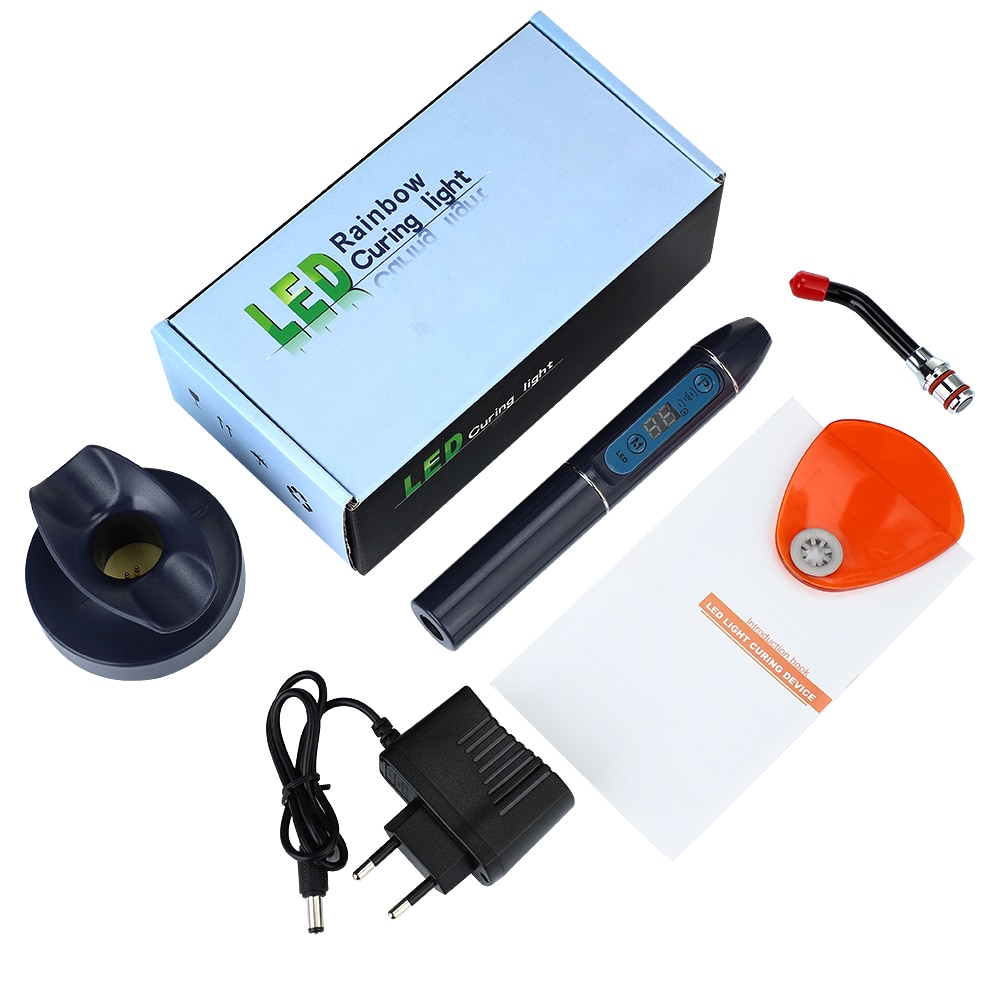

Package list:
1* Working Head
1* Main Body

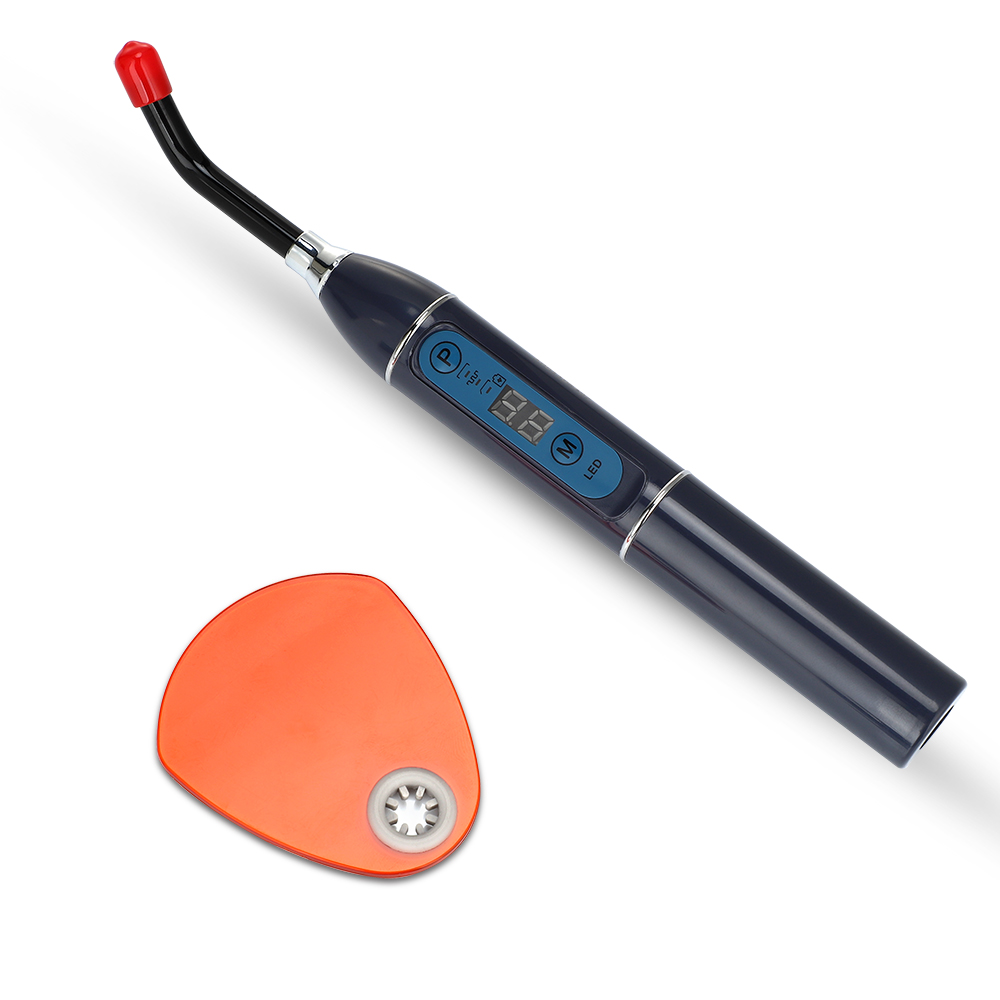

1* Light Protector

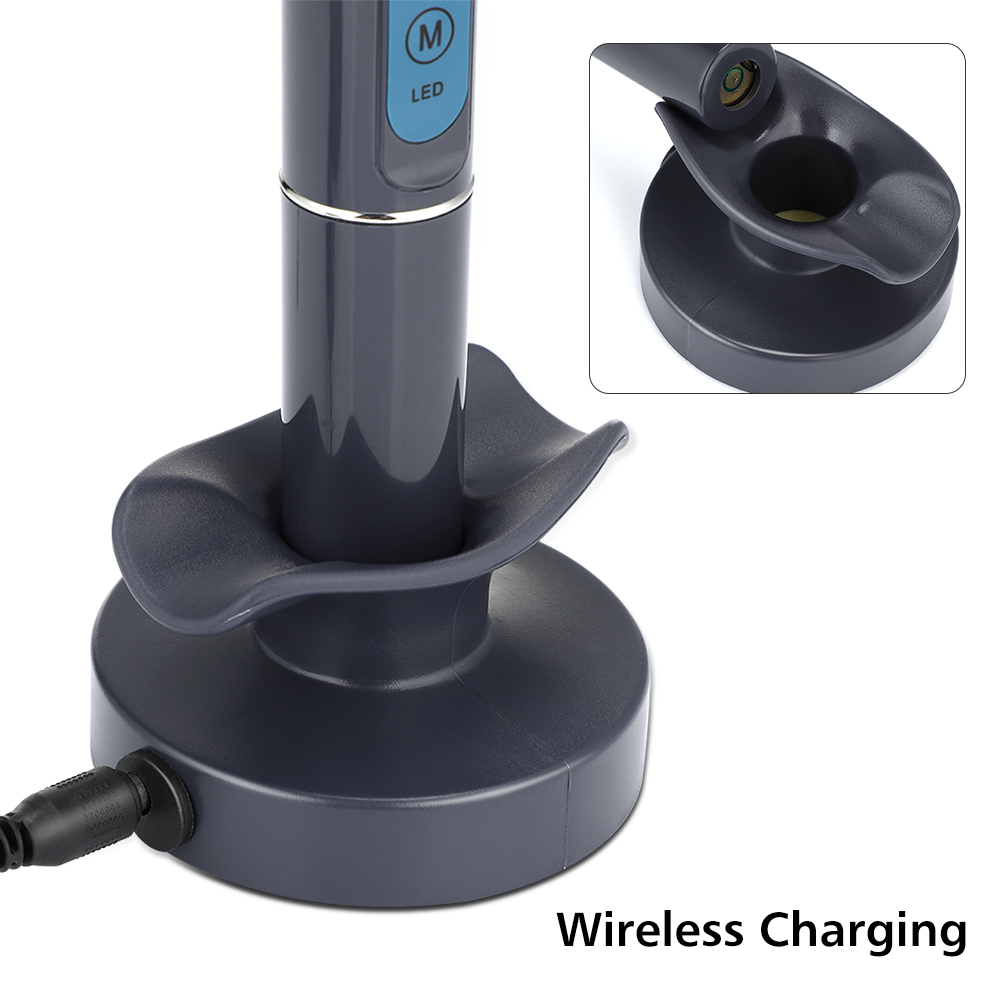

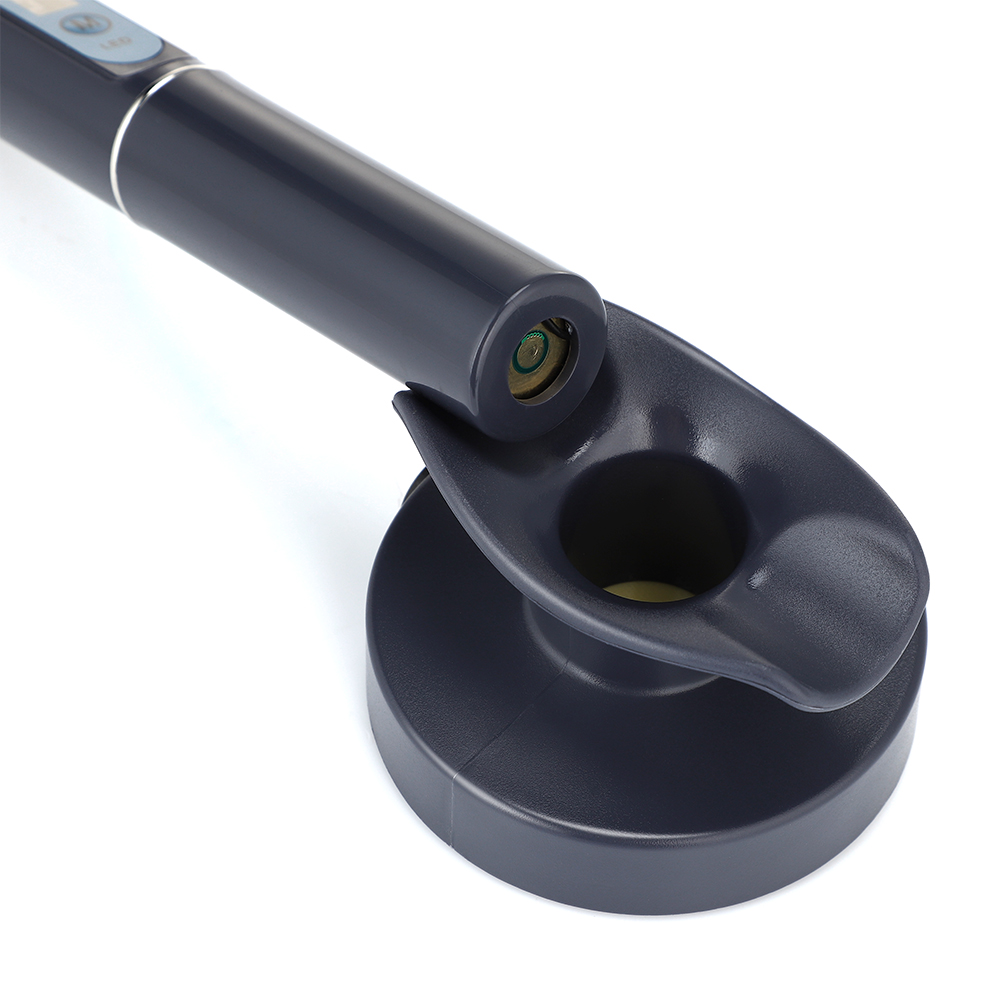

1* Charging Base
1* Adapter
1* User Manual
