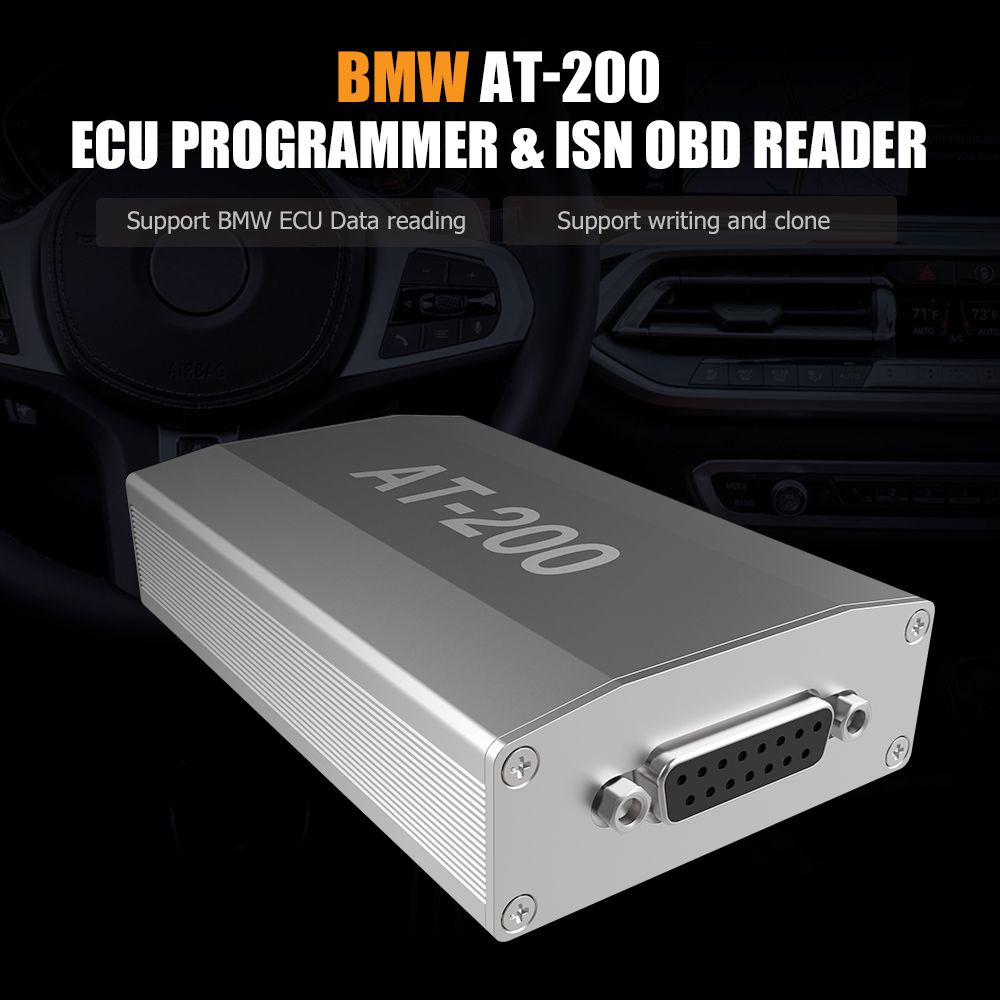

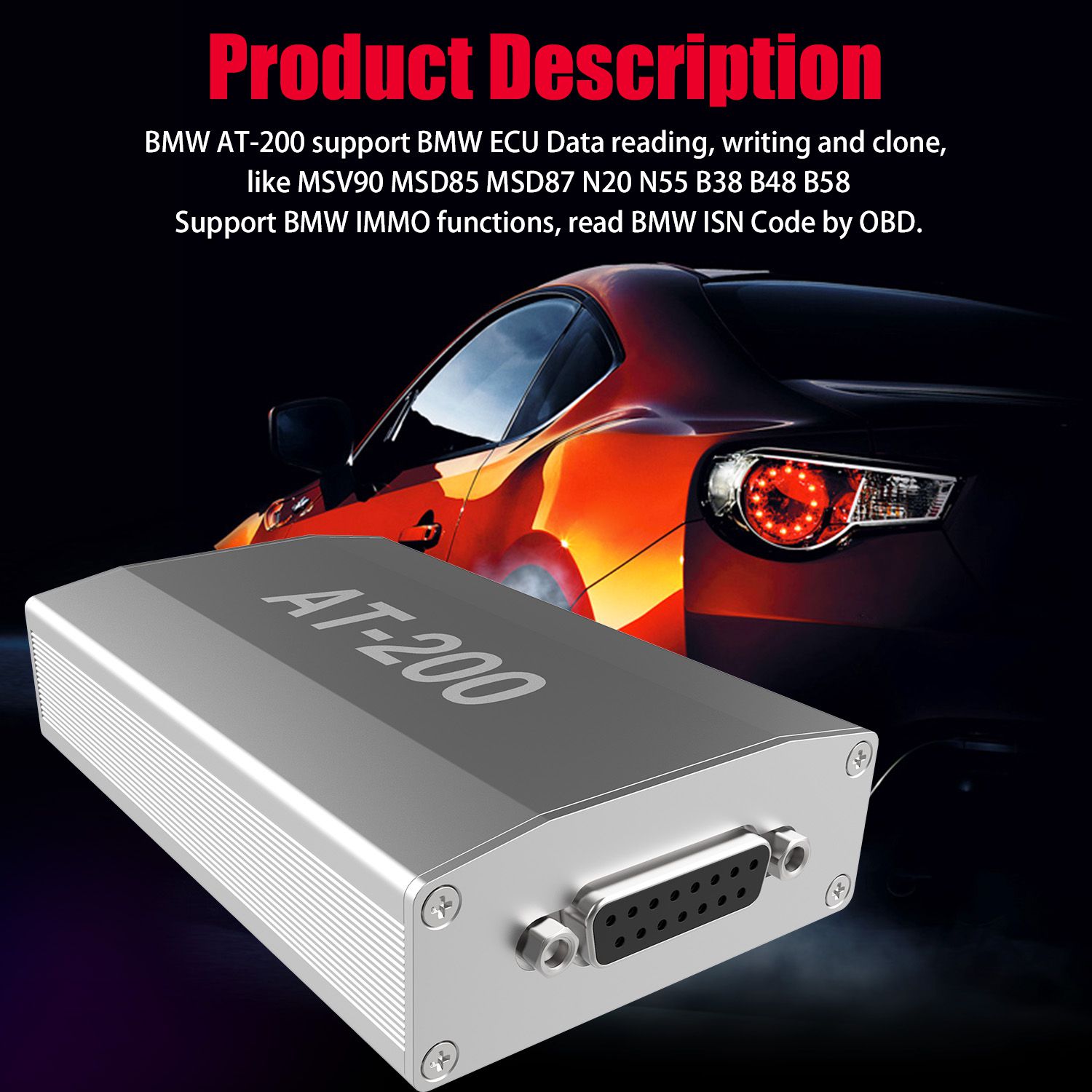

Top 8 Reasons to Get BMW AT-200:
1. Auto ECU Programmer for repair necessary--Support BMW ECU Data reading, writing and clone.
Effectively solve the problem of replacing the second-hand computer after the damage of BMW ECU control unit, just need to read the original computer data and then clone it.
Support almost all the BMW ECU model for reading and writing: MSV90 MSD85 MSD87 N20 N55 B38 B48
Successfully make up the market for BMW ECU reading and writing equipment, save you high equipment costs.
2. Auto locksmith necessary-Support BMW IMMO functions, Read BMW ISN Code by OBD
Quickly solve the problem for data collection of bmw all key lost.
With more stable and efficient unremovable functions.
If you want to do all key lost for BMW 3 Series 5 Series 7 Series X5 X6 GT535 Six-cylinder engine, must need ISN code to program the keys.
3. Can be used together with Yanhua Mini ACDP, CGDI BMW , Xhorse VVDI, AP and other equipment to program keys, and save your money.
(The cost of similar equipment is very expensive).
4. With stable and effictive functions by professional quality test. and easy to operate and quick to start.
5. Will add Mercedes-Benz 271 Audi Volkswagen 06J and other ecu types in next updates.
6. Original from CGDI and Update Online.
7. Multi-Language: English, French, Spanish, Polish, Traditional Chinese and Simplified Chinese
8.With new update, AT-200 not only support BMW ECU but also support over three thousands of ECUs like KTAG.
BMW AT-200 Update Information:
AT200 V1.8.3 Update Date: 2021-04-29
1.Added Mercedes EGS clone models:
VGS-FDCT(TC1766), VGS2-FDCT(TC1784), VGS2-FCVT(TC1766): read and write DFLASH, EXT DFLASH, PFLASH
2. Added Bosch Platform(12 types):
EDC17C73, EDC17CP05, EDC17CP18, M17.8.42, ME17.0.3, ME17.1.1, ME17.1.6, ME17.8.32, ME17.9.23, ME17.9.55, MED17.1.12, MEVD17.4.4
3. Added Bosch Boot(98 types):
EDC17C06, EDC17C08, EDC17C10, EDC17C11, EDC17C18, EDC17C41, EDC17C42, EDC17C43, EDC17C46, EDC17C47, EDC17C49, EDC17C50,
EDC17C53, EDC17C54, EDC17C55, EDC17C56, EDC17C57, EDC17C58, EDC17C59, EDC17C60, EDC17C63, EDC17C64, EDC17C66, EDC17C69 ver2,
EDC17C70, EDC17C74 ver1, EDC17C74 ver2, EDC17C76, EDC17C79, EDC17C83, EDC17C84, EDC17CP01, EDC17CP02, EDC17CP04, EDC17CP06,
EDC17CP07, EDC17CP11, EDC17CP14, EDC17CP15, EDC17CP16, EDC17CP19, EDC17CP20, EDC17CP24, EDC17CP27, EDC17CP37, EDC17CP42,
EDC17CP44, EDC17CP45, EDC17CP46, EDC17CP47, EDC17CP48, EDC17CP49, EDC17CP50, EDC17CP52, EDC17CP54, EDC17CP55, EDC17CP57,
EDC17CP58, EDC17CP60, EDC17CP62, EDC17CP68, EDC17CP74, EDC17CV41, EDC17CV42, EDC17CV44, EDC17CV52, EDC17CV54, EDC17U05,
MED17.0.1, MED17.0.7, MED17.0, MED17.1.1, MED17.1.11, MED17.1.21, MED17.1.6, MED17.1.61, MED17.2, MED17.3.1, MED17.3.3, MED17.3.4,
MED17.3.5, MED17.4, MED17.4.4, MED17.5.1, MED17.5.2, MED17.5.20, MED17.5.21 ver1, MED17.5.21 ver2, MED17.7.1, MED17.7.2, MED17.7.3.1,
MED17.7.3, MED17.7.8, MED17.8.3, MED17.8.32, MED17.9.30, MED17.9.63, MED17.9.7
4. Added ECU(BMW)read and write ISN: MEV17.2.1
5. Added ECU(BMW)read and write ISN, VIN: MEVD17.2.8
6. Added ECU(Audi, Seat, Skoda, Volkswagen(VW))read and write VIN: MED17.5
7. Added ECU(Ducati, Hyundai, Kia)read and write VIN: ME17.9.21, ME17.9.21.1, MEG17.9.21
8. Added ECU(Jaguar, Land Rover, Lincoln)read and write VIN: MED17.0
9. Fix some bugs and optimize software performance
AT200 V1.8.1 Update Date: 2020-11-21
1. Added Bosch Boot mode:
ME17.5.22, MED17.1, MED17.2, MED17.5.5, MED17.5.25, MED17.5, MEV17.2.2, MEV17.2, MEVD17.2.2, MEVD17.2.3, MEVD17.2.4, MEVD17.2.5, MEVD17.2
2. Added ECU(Audi, Bentley, LaMBorghini, Porsche, Seat, Skoda, Volkswagen(VW)) read and write VIN:
ME17.5.6, MED17.1.1, MED17.1.6, MED17.5.2, MED17.5.25, EDC17CP44, EDC17C64, ME17.5.22
3. Fix some bugs and optimize software performance
AT200 V1.8.0 Update Date: 2020-9-19
1. Added Audi_VL381: read and write DFLASH, EXT DFLASH, PFLASH
2. Added BMW B48(MG1CS024 TC298TP/MG1CS201 TC298TP): read ISN; read and write EEPROM, FLASH
3. Added CONTINENTAL/SIEMENS Boot mode: Backup Data and Restore Data
(3.1) BMW: MSV80, MSV90, MSD80, MSD81, MSD85, MSD87
(3.2) Mercedes: SIM271DE, SIM271KE
4. Added 06J engine boot mode: read password, read and write EEPROM, FLASH, Ext FLASH
(4.1) ME17.2.1, MED17.1.6, MED17.5.2
5. Added Bosch number search button: enter Bosch nuMBer to jump to the system
6. Fix some bugs and optimize software performance
AT200 V1.7.4 Update (2020-8-13)
1. Add Polish language
2. Add DQ200 (TC1766/TC1784): Read and write DFLASH, EXT DFLASH, PFLASH (Need authorization)
3. Add ST10 boot mode (Need authorization)
(3.1) Add M7 (ST10F275) boot mode: read and write EEPROM, read and write FLASH
(3.2) Add ME7.8.8 (ST10F275) boot mode: read and write EEPROM, read and write FLASH
4. Add BOSCH TC series engine file verification (you can choose whether to verify the correction and write the file)
5. Add ECU (BMW / Mini) to read and write ISN, VIN: EDC17C06
6. Add 'Bosch NuMBer Search' button
7. Fix the problem of reading and writing external FLASH of BOSCH TC series ecu
8. Fix TC1728 read and write issues
9. Fix some bugs and optimize software performance
10. Update AT200 Chinese help file
11. Volkswagen Bosch MED17 series ECU Clone
12. Volkswagen 06J ECU Clone
13. Solve the automatic data verification of Bosch ecu
Kindly note these authorizations are PAID service:
Volkswagen Bosch MED17 Series ECU Clone: 199USD. Buy this one Get Free DQ200 Read/Write Data and BOSCH ST01(Boot) Read/Write Data.
If you need DQ200 Read/Write Data only, price $69.
AT200 V1.7.3 Update (2020-06-08)
1. Add ME17.8.8 (TC1728)boot mode: Identify read password, read and write Dflash/Pflash (Need to authorize)
2. Add ECU (BMW/Mini)read and write ISN, Vin: EDC17CP02
3. Add "Check Update" Button
4. Fix some bugs and optimize software performance.
AT200 1.7.1 Update (2020-04-24)
1.Add BMW B48 B58 Read ISN,read & write EEPROM,FLASH
2.Add the ECU type of TC1796
3.Add EDC17C50 Read ISN
AT200 V1.7.0 Update (2020-03-20)
Support online update to newest version.
1. Software interface optimization and upgrading:
1.1. Wiring diagram display
1.2. Font size
1.3. Menu display (classified display, consolidated display)
1.4. Added search function
1.5. Added help button
2. Added the engine type:
2.1. Added TC1766: Can-Am, KTM, Piaggio;
2.2. Added TC1767: Lincoln;
2.3. Added TC1797: Artec, Fendt, New Holland;
3. Repair some Bosch engine write abnormal problems
4. Optimized car diagram:BOSCH EDC17C10, BOSCH EDC17C41, BOSCH EDC17CP45, BOSCH EDC17CP48 ver2, BOSCH EDC17CP48, BOSCH MED17.9.3
5. Added Traditional Chinese language
AT200 V1.6.1 Update (2019-11-19):
1. Added MSV80 read ISN, write ISN, Backup Data and Restore Data
2. Added MSD80/D81/D85/D87/MSV90 write ISN
3. Added the engine type of the TC1766:
Alfa Romeo, Audi, BMW, Citroen, Dacia, Dodge, Ford, Hyundai, Indian, Kia, Lada, Lancia, Nissan, Mini, Opel, Peugeot, Polaris, Renault,
Saab, Sea Doo, Seat, Skoda, Subaru, Suzuki, Toyota, UAZ, Vauxhall, Volkswagen (VW)

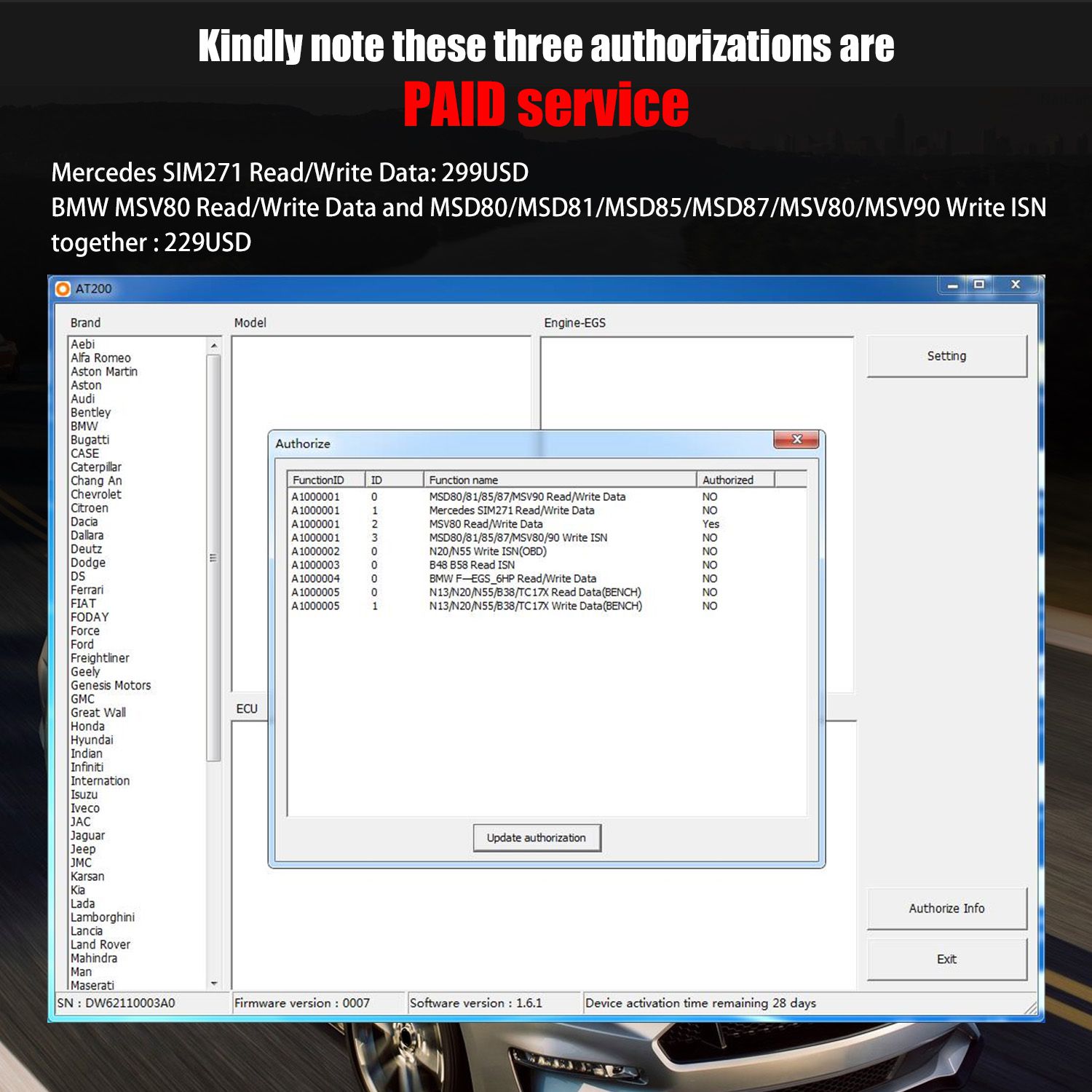

Kindly note these three authorizations are PAID service:
Mercedes SIM271 Read/Write Data: 299USD
BMW MSV80 Read/Write Data and MSD80/MSD81/MSD85/MSD87/MSV80/MSV90 Write ISN together : 229USD
AT-200 Stunning V1.5.0 Upgrade (Set 11th, 2019)
1. Upgrade B38 read and write ISN copy clone
2. Upgrade 1272 car series + ECU
3. Support Mercedes-Benz/BMW/Audi/Off-road vehicles/Porsche and more
4. Support MSN90/N20/N55/N13/MSD85/MSD87, BMW 7 Series 6HP VGS clone and BWM ISN code reading, including B48 B58 F Series/N20 /N55 /B58 /MSV90
BMW AT200 Newest Update Note v1.3.1(08.21.2019)
Support data cloning of 1272 different ECU
Support Mercedes Benz, BMW, Audi,landrover,porshe etc .
Support data clong of MSN90 N20 ,N55,N13,MSD85 MSD87, BMW7 series 6 HP VGS, and suppoet ISN code reading of BMW including B48 F series, N20, N55, B58, MSV90,B48 etc. The best price and amazing cost effective.
BMW AT-200 Software Latest Version: V1.3.0!!!
1. Add function for N13 N20 N55 Platform mode read ISN;
2. Optimized B48 read ISN function;
3. EGS_6HP Increased programming status judgement.
When you update BMW AT-200 to V1.3.0 and newer, please change the diagram connection as below:

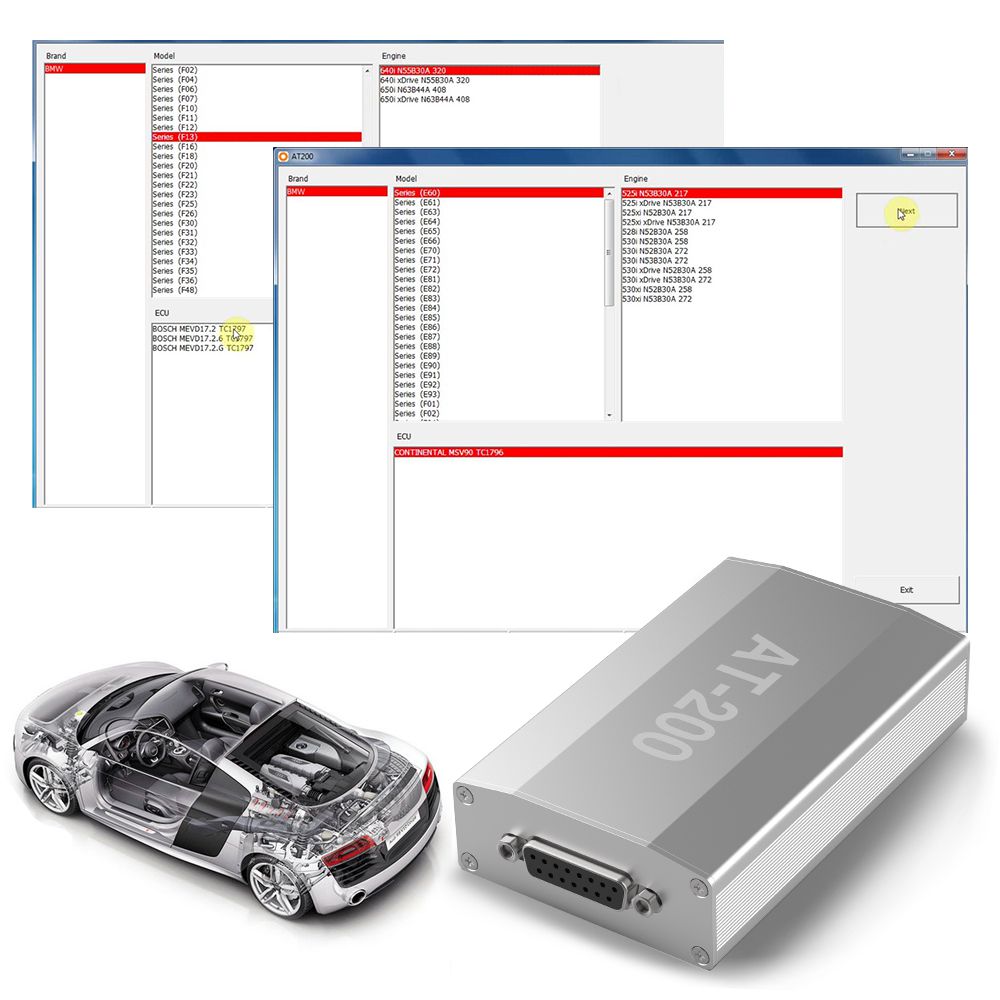

BMW AT-200 Software Display:
BMW AT-200 Support ECU List with V1.5.0 Version:
| TC1793 | |||||
| Car | Name | Series | Engine | ECU | ECU |
| Alfa Romeo | 4C | 960 | 1750 TBI 960.A1.000 240 | BOSCH MED17.3.3 | |
| Giulia | 952 | 2900 Twin Turbo 670050436 510 | BOSCH MED17.3.5 | ||
| 2200 Multijet 55266388 150 | BOSCH EDC17C69 ver3 | ||||
| 2200 MUltijet 55266388 136 | BOSCH EDC17C69 ver3 | ||||
| 2200 MUltijet 55266388 209 | BOSCH EDC17C69 ver3 | ||||
| Giulietta | 940 | 1750 TBI 960.A1.000 240 | BOSCH MED17.3.3 | ||
| 2000 JTDM 2 940.B4.000 175 | BOSCH EDC17C69 ver1 | ||||
| Stelvio | - | 2900 Twin Turbo 670050436 510 | BOSCH MED17.3.5 | ||
| Aston | Vantage | IV | 4000 M177 510 | BOSCH MED17.7.5 | |
| Audi | A3 | 8P | 1400 TFSI e-tron CUKB 150 | BOSCH MED17.1.21 | |
| A4 | B9 | 2000 TFSI quattro CPMB 220 | BOSCH MED17.1.10 | ||
| 2000 TFSI quattro flexible fuel CPMB 220 | BOSCH MED17.1.10 | ||||
| 2000 TFSI 190 | BOSCH MED17.1.10 | ||||
| A5 | 8F/8T | 2000 TFSI quattro CPMB 220 | BOSCH MED17.1.10 | ||
| 2000 TFSI quattro flexible fuel CPMB 220 | BOSCH MED17.1.10 | ||||
| A6 | C7 | 3000 TDI 218 | BOSCH EDC17CP54 | ||
| 3000 TDI quattro 218 | BOSCH EDC17CP54 | ||||
| A7 | 4G | 3000 TDI 313 | BOSCH EDC17CP54 | ||
| 3000 TDI Ultra | BOSCH EDC17CP54 | ||||
| Q5 | 8RB | 2000 TFSI quattro CPMB 220 | BOSCH MED17.1.10 | ||
| 2000 TFSI quattro flexible fuel CPMB 220 | BOSCH MED17.1.10 | ||||
| Q7 | 4M | 3000 TDI CRTD 272 | BOSCH EDC17CP54 | ||
| 3000 TDI Ultra CRTE 218 | BOSCH EDC17CP54 | ||||
| 3000 TDI Ultra CZZA 218 | BOSCH EDC17CP54 | ||||
| BMW | all bikes | - | all engines | BOSCH ME17.2.4 | |
| 1 | F20 | 116i B38B15A 109 | BOSCH MEVD17.2.3 | ||
| 118i B38B15A 170 | BOSCH MEVD17.2.3 | ||||
| F21 | 116i B38B15A 109 | BOSCH MEVD17.2.K | |||
| 118i B38B15A 170 | BOSCH MEVD17.2.K | ||||
| 2 | F22 | 218i B38B15A 136 | BOSCH MEVD17.2.3 | ||
| 220i B48A20A 192 | BOSCH MEVD17.2.3 | ||||
| 218i B38B15A 136 | BOSCH MEVD17.2.3 | ||||
| 220i B48A20A 192 | BOSCH MEVD17.2.3 | ||||
| F23 | 218i B38B15A 136 | BOSCH MEVD17.2.K | |||
| 220i B48A20A 192 | BOSCH MEVD17.2.K | ||||
| 218i B38B15A 136 | BOSCH MEVD17.2.K | ||||
| 220i B48A20A 192 | BOSCH MEVD17.2.K | ||||
| F45 | 216i B38A15A 102 | BOSCH MEVD17.2.3 | BOSCH MEVD17.2.K | ||
| 218i B38A15A 136 | BOSCH MEVD17.2.3 | BOSCH MEVD17.2.K | |||
| 225xe B38A15A 224 | BOSCH MEVD17.2.3 | BOSCH MEVD17.2.K | |||
| 220i B48A20A 192 | BOSCH MEVD17.2.3 | BOSCH MEVD17.2.K | |||
| F46 | 216i B38A15A 102 | BOSCH MEVD17.2.3 | BOSCH MEVD17.2.K | ||
| 218i B38A15A 136 | BOSCH MEVD17.2.3 | BOSCH MEVD17.2.K | |||
| 220i B48A20A 192 | BOSCH MEVD17.2.3 | BOSCH MEVD17.2.K | |||
| 3 | F30 | 320d 184 | BOSCH EDC17C76 | ||
| 320d xDrive 184 | BOSCH EDC17C76 | ||||
| 318i B38B15A 136 | BOSCH MEVD17.2.3 | BOSCH MEVD17.2.K | |||
| F31 | 320d 184 | BOSCH EDC17C76 | |||
| 320d xDrive 184 | BOSCH EDC17C76 | ||||
| 318i B38B15A 136 | BOSCH MEVD17.2.3 | BOSCH MEVD17.2.K | |||
| F34 | 320d 184 | BOSCH EDC17C76 | |||
| 320d xDrive 184 | BOSCH EDC17C76 | ||||
| 4 | F32 | 418i B38B15A 136 | BOSCH MEVD17.2.3 | BOSCH MEVD17.2.K | |
| F36 | 418i B38B15A 136 | BOSCH MEVD17.2.3 | BOSCH MEVD17.2.K | ||
| 5 | F07 | 535d 258 | BOSCH EDC17C76 | ||
| 535d xDrive 258 | BOSCH EDC17C76 | ||||
| F10 | 535d 258 | BOSCH EDC17C76 | |||
| 535d xDrive 258 | BOSCH EDC17C76 | ||||
| F11 | 535d 258 | BOSCH EDC17C76 | |||
| 535d xDrive 258 | BOSCH EDC17C76 | ||||
| X1 | F48 | 16i sDrive B38A15A 136 | BOSCH MEVD17.2.3 | BOSCH MEVD17.2.K | |
| 25i xDrive B48A20B 231 | BOSCH MEVD17.2.3 | BOSCH MEVD17.2.K | |||
| X3 | F25 | 20d xDrive N47D20C 184 | BOSCH EDC17C76 | ||
| X5 | F15 | 30d xDrive N57D30A 258 | BOSCH EDC17C76 | ||
| i | I12 | i8 B38K15A 362 | BOSCH MEVD17.2.3 | BOSCH MEVD17.2.K | |
| Chang An | SC7143C | - | 1400 Turbo K14C 140 | BOSCH MED17.9.63 | |
| Citroen | C4 | B71 | 1600 BlueHDi BHZ 120 | BOSCH EDC17C60 | |
| C4 Cactus | I | 1600 HDi 110 | BOSCH EDC17C60 | ||
| C4 Grand Picasso | B78 | 1560 BHZ 120 | BOSCH EDC17C60 | ||
| 1600 THP 5GY(EP6FDTM) 163 | BOSCH MED17.4.4 | ||||
| 1600 THP 5GZ(EP6FDT) 165 | BOSCH MED17.4.4 | ||||
| C4 Picasso | B78 | 1560 BHZ 120 | BOSCH EDC17C60 | ||
| DS3 | A55 | 1600 BlueHDi BHZ 120 | BOSCH EDC17C60 | ||
| 1600 THP 5GZ(EP6FDT) 165 | BOSCH MED17.4.4 | ||||
| A56 | 1600 BlueHDi BHZ 120 | BOSCH EDC17C60 | |||
| DS4 | B75 | 1600 BlueHDi BHZ 120 | BOSCH EDC17C60 | ||
| 1600 HDi 90 | BOSCH EDC17C60 | ||||
| 1600 HDi 110 | BOSCH EDC17C60 | ||||
| DS5 | B81 | 1600 BlueHDi BHZ 120 | BOSCH EDC17C60 | ||
| 1600 HDi 90 | BOSCH EDC17C60 | ||||
| 1600 HDi 110 | BOSCH EDC17C60 | ||||
| 1600 THP 5GZ(EP6FDT) 165 | BOSCH MED17.4.4 | ||||
| DS | DS3 | A55 | 1600 BlueHDi BHZ 120 | BOSCH EDC17C60 | |
| DS4 | B75 | 1600 BlueHDi BHZ 120 | BOSCH EDC17C60 | ||
| DS5 | B81 | 1600 BlueHDi BHZ 120 | BOSCH EDC17C60 | ||
| Dallara | Stradale | I | 2300 YVD 400 | BOSCH MED17.3.5 | |
| FIAT | 500 X | 334 | 1600 Multijet 2 120 | BOSCH EDC17C69 ver2 | |
| Doblo | 334 | 1600 Multijet 2 263.A8.000 105 | BOSCH EDC17C69 ver2 | ||
| Toro | 334 | 2000 16v MJET 4x4 ECD 170 | BOSCH EDC17C69 ver2 | ||
| 334 | 2000 Multijet ECD 170 | BOSCH EDC17C69 ver2 | |||
| Ferrari | 488 | I | 3900 V8 GTB F154CB 670 | BOSCH MED17.3.5 | |
| 3900 V8 Spider F154CB 670 | BOSCH MED17.3.5 | ||||
| California T | I | 3900 V8 Twin Turbo Turbo F154CB 560 | BOSCH MED17.3.5 | ||
| Ford | B-Max | II | 1500 TDCi XUJA 75 | BOSCH EDC17C70 | |
| 1500 TDCi XUJB 75 | BOSCH EDC17C70 | ||||
| 1500 TDCi XVJA 95 | BOSCH EDC17C70 | ||||
| 1500 TDCi XVJB 95 | BOSCH EDC17C70 | ||||
| C-Max | DXA | 1500 TDCi ECOnetic AEDA 105 | BOSCH EDC17C70 | ||
| 1500 TDCi XWDA 120 | BOSCH EDC17C70 | ||||
| 1500 TDCi XWDB 120 | BOSCH EDC17C70 | ||||
| 1500 TDCi XXDA 95 | BOSCH EDC17C70 | ||||
| Ecosport | JK8 | 1500 TDCi XVJD 120 | BOSCH EDC17C70 | ||
| Fiesta | Jx8 | 1500 TDCi XUJA 75 | BOSCH EDC17C70 | ||
| 1500 TDCi XUJB 75 | BOSCH EDC17C70 | ||||
| 1500 TDCi XVJA 95 | BOSCH EDC17C70 | ||||
| 1500 TDCi XVJB 95 | BOSCH EDC17C70 | ||||
| Focus | DY | 1500 TDCi ECOnetic AEDA 105 | BOSCH EDC17C70 | ||
| 1500 TDCi XWDA 120 | BOSCH EDC17C70 | ||||
| 1500 TDCi XWDB 120 | BOSCH EDC17C70 | ||||
| 1500 TDCi XXDA 95 | BOSCH EDC17C70 | ||||
| 1500 TDCi XVDC 95 | BOSCH EDC17C70 | ||||
| 1500 TDCi XVDD 95 | BOSCH EDC17C70 | ||||
| Mondeo | V | 1500 TDCi UGCC 120 | BOSCH EDC17C70 | ||
| 1500 TDCi ECOnetic XUCA 120 | BOSCH EDC17C70 | ||||
| Tourneo | - | 1500 TDCi XUCC 75 | BOSCH EDC17C70 | ||
| 1500 TDCi XUCD 75 | BOSCH EDC17C70 | ||||
| 1500 TDCi XUGA 75 | BOSCH EDC17C70 | ||||
| 1500 TDCi XVCA 95 | BOSCH EDC17C70 | ||||
| 1500 TDCi XVCB 95 | BOSCH EDC17C70 | ||||
| 1500 TDCi XVCC 95 | BOSCH EDC17C70 | ||||
| 1500 TDCi XVGC 101 | BOSCH EDC17C70 | ||||
| 1500 TDCi XWGA 120 | BOSCH EDC17C70 | ||||
| 1500 TDCi XWGB 120 | BOSCH EDC17C70 | ||||
| Transit | VIII | 1500 TDCi XUCC 75 | BOSCH EDC17C70 | ||
| 1500 TDCi XUCD 75 | BOSCH EDC17C70 | ||||
| 1500 TDCi XUGA 75 | BOSCH EDC17C70 | ||||
| 1500 TDCi XVCA 95 | BOSCH EDC17C70 | ||||
| 1500 TDCi XVCB 95 | BOSCH EDC17C70 | ||||
| 1500 TDCi XVCC 95 | BOSCH EDC17C70 | ||||
| 1500 TDCi XVGC 101 | BOSCH EDC17C70 | ||||
| 1500 TDCi XWGA 120 | BOSCH EDC17C70 | ||||
| 1500 TDCi XWGB 120 | BOSCH EDC17C70 | ||||
| 1500 TDCi XXGA 101 | BOSCH EDC17C70 | ||||
| Honda | CR-V | RM | 1600 i-DTEC N16A2 120 | BOSCH EDC17C58 | |
| 1600 i-DTEC N16A4 160 | BOSCH EDC17C58 | ||||
| 1600 i-DTEC 4WD N16A4 160 | BOSCH EDC17C58 | ||||
| Civic | FB | 1600 i-DTEC N16A1 120 | BOSCH EDC17C58 | ||
| 1600 i-DTEC BiTurbo 160 | BOSCH EDC17C58 | ||||
| 2000i Type R K20C1 306 | BOSCH MED17.9.3 | ||||
| 1800 i-VTEC R18Z4 141 | BOSCH MED17.9.3 | ||||
| FK | 1600 i-DTEC N16A1 120 | BOSCH EDC17C58 | |||
| 1600 i-DTEC BiTurbo 160 | BOSCH EDC17C58 | ||||
| 2000i Type R K20C1 306 | BOSCH MED17.9.3 | ||||
| 2000i Type R K20C1 320 | BOSCH MED17.9.3 | ||||
| 1000 VTEC P10A2 129 | BOSCH MED17.9.3 | ||||
| 1800 i-VTEC R18Z4 141 | BOSCH MED17.9.3 | ||||
| FC | 2000i Type R K20C1 320 | BOSCH MED17.9.3 | |||
| 1000 VTEC P10A2 129 | BOSCH MED17.9.3 | ||||
| HR-V | RU | 1600 i-DTEC N16A3 120 | BOSCH EDC17C58 | ||
| Hyundai | Grandeur | HG | 2200 E-VGT EU6 202 | BOSCH EDC17C57 | |
| Tucson | iX | 1700 CRDi D4FD 116 | BOSCH EDC17C57 | ||
| i40 | I | 1700 CRDi 141 | BOSCH EDC17C57 | ||
| Isuzu | D-MAX | - | 1900 RZ4E 150 | BOSCH EDC17C83 | |
| Jaguar | F | X152 | 2000 D 204PT 180 | BOSCH MED17.9 | |
| 2000 D AWD 204PT 180 | BOSCH MED17.9 | ||||
| XE | X260 | 2000 163 | BOSCH EDC17CP55 | ||
| 2000 185 | BOSCH EDC17CP55 | ||||
| 2000 20d 204PT 180 | BOSCH MED17.9 | ||||
| 2000 E-PERFORMANCE 204PT 163 | BOSCH MED17.9 | ||||
| XF | X260 | 2000 20d 204PT 180 | BOSCH MED17.9 | ||
| 2000 20d AWD 204PT 180 | BOSCH MED17.9 | ||||
| 2000 E-PERFORMANCE 204PT 163 | BOSCH MED17.9 | ||||
| Jeep | Cherokee | KL | 2200 CRD 4x4 185 | BOSCH EDC17C69 ver2 | |
| 2200 CRD 4x4 200 | BOSCH EDC17C69 ver2 | ||||
| Renegade | - | 2200 CRD 4x4 170 | BOSCH EDC17C69 ver2 | ||
| Wrangler | JK | 2800 CRD 200 | BOSCH EDC17C69 ver2 | ||
| Kia | Crarnival | II | 2200 E-VGT EURO6 202 | BOSCH EDC17C57 | |
| Rio | III | 1400 CRDi D4FC 90 | BOSCH EDC17C57 | ||
| Sorento | UM | 2000 CRDi D4HA 185 | BOSCH EDC17C57 | ||
| BL | 2000 E-VGT EURO6 186 | BOSCH EDC17C57 | |||
| 2000 E-VGT EURO6 202 | BOSCH EDC17C57 | ||||
| Stinger | - | 2200 CRDi 200 | BOSCH EDC17C57 | ||
| Land Rover | Discovery | Sport | 2000 TD4 AWD AJ200 150 | BOSCH MED17.9 | |
| 2000 TD4 AWD AJ200 180 | BOSCH MED17.9 | ||||
| Evoque | LV | 2000 TD4 AWD AJ200 150 | BOSCH MED17.9 | ||
| 2000 TD4 AWD AJ200 180 | BOSCH MED17.9 | ||||
| 2000 Cabrio TD4 AWD AJ200 150 | BOSCH MED17.9 | ||||
| 2000 Cabrio TD4 AWD AJ200 180 | BOSCH MED17.9 | ||||
| 2000 TD4 eD4 AJ200 150 | BOSCH MED17.9 | ||||
| Rang Rover | Sport | 3000 TDV6 Euro5 258 | BOSCH EDC17CP55 | ||
| IV | 3000 TDV6 255 | BOSCH EDC17CP55 | |||
| 3000 TDV6 245 | BOSCH EDC17CP55 | ||||
| 4400 SDV8 334 | BOSCH EDC17CP55 | ||||
| Maserati | Levante | - | 3000 V6 670031346 349 | BOSCH MED17.3.5 | |
| 3000 V6 4WD 670031346 430 | BOSCH MED17.3.5 | ||||
| Mercedes | C | W205 | 180 CDI BlueTEC OM626.951 116 | BOSCH EDC17C66 | |
| 200 CDI BlueTEC OM626.951 136 | BOSCH EDC17C66 | ||||
| 63 AMG M177.980 476 | BOSCH MED17.7.5 | ||||
| 63 AMG S M177.980 510 | BOSCH MED17.7.5 | ||||
| CLS | W219 | 350 CDI EU6 250 | BOSCH EDC17C57 | ||
| E | W212 | 350 3000 CDI 258 | BOSCH EDC17C57 | ||
| GLC | W253 | 250d OM 651.921 204 | BOSCH EDC17C57 | ||
| GLE | W166 | 250d OM 651.960 204 | BOSCH EDC17C57 | BOSCH EDC17C60 | |
| 350d 4MATIC OM642.826 258 | BOSCH EDC17C57 | ||||
| 250d 4MATIC OM651.960 204 | BOSCH EDC17CP60 | ||||
| GLS | W166 | 350d OM642.826 258 | BOSCH EDC17C57 | ||
| GT | C190 | 4000 V8 AMG GT M178.980 462 | BOSCH MED17.7.5 | ||
| 4000 V8 AMG GT-R M178.980 585 | BOSCH MED17.7.5 | ||||
| 4000 V8 AMG GT-S M178.980 510 | BOSCH MED17.7.5 | ||||
| M | W166 | 250 BlueTEC 4MATIC OM651.960 204 | BOSCH EDC17CP60 | ||
| S | W222 | 350 3500 BlueTEC | BOSCH EDC17CP57 | ||
| V | W447 | 114 CDI OM 651.950 136 | BOSCH EDC17C66 | ||
| 116 CDI OM 651.950 150 | BOSCH EDC17C66 | ||||
| 119 CDI BlueTEC OM 651.950 190 | BOSCH EDC17C66 | ||||
| 200 CDI OM 651.950 136 | BOSCH EDC17C66 | ||||
| 220 CDI OM 651.950 163 | BOSCH EDC17C66 | ||||
| 250 CDI BlueTEC OM 651.950 190 | BOSCH EDC17C66 | ||||
| 109 CDI OM622.951 88 | BOSCH EDC17C66 | ||||
| 109 CDI OM622.951 114 | BOSCH EDC17C66 | ||||
| Valente | W447 | 114 CDI OM 651.950 136 | BOSCH EDC17C66 | ||
| 116 CDI OM 651.950 150 | BOSCH EDC17C66 | ||||
| 119 CDI BlueTEC OM 651.950 190 | BOSCH EDC17C66 | ||||
| 109 CDI OM622.951 88 | BOSCH EDC17C66 | ||||
| 109 CDI OM622.951 114 | BOSCH EDC17C66 | ||||
| Viano | W639 | 114 CDI OM 651.950 136 | BOSCH EDC17C66 | ||
| 116 CDI OM 651.950 150 | BOSCH EDC17C66 | ||||
| 119 CDI BlueTEC OM 651.950 190 | BOSCH EDC17C66 | ||||
| 109 CDI OM622.951 88 | BOSCH EDC17C66 | ||||
| 109 CDI OM622.951 114 | BOSCH EDC17C66 | ||||
| W447 | 114 CDI OM 651.950 136 | BOSCH EDC17C66 | |||
| 116 CDI OM 651.950 150 | BOSCH EDC17C66 | ||||
| 119 CDI BlueTEC OM 651.950 190 | BOSCH EDC17C66 | ||||
| 119 CDI BlueTEC OM 651.950 190 | BOSCH EDC17C66 | ||||
| 109 CDI OM622.951 88 | BOSCH EDC17C66 | ||||
| 109 CDI OM622.951 114 | BOSCH EDC17C66 | ||||
| 116 CDI OM 651.950 163 | BOSCH EDC17C66 | ||||
| Mini | Clubman | F54 | Cooper 1500 B38A15A 136 | BOSCH MEVD17.2.3 | BOSCH MEVD17.2.K |
| One 1500 B38A15A 102 | BOSCH MEVD17.2.3 | BOSCH MEVD17.2.K | |||
| Cooper S B48A20A 192 | BOSCH MEVD17.2.3 | BOSCH MEVD17.2.K | |||
| Cooper S ALL4 B48A20A 192 | BOSCH MEVD17.2.3 | BOSCH MEVD17.2.K | |||
| Cooper S | F56 | 2000T XM71 192 | BOSCH MEVD17.2.3 | ||
| 2000T XM71 192 | BOSCH MEVD17.2.K | ||||
| Mini | F55 | One 1200 B38A12A 75 | BOSCH MEVD17.2.3 | ||
| One 1200 B38A12A 102 | BOSCH MEVD17.2.3 | ||||
| Cooper 1500 B38A15A 136 | BOSCH MEVD17.2.3 | ||||
| Cooper S B48A20A 192 | BOSCH MEVD17.2.3 | ||||
| One 1200 B38A12A 75 | BOSCH MEVD17.2.K | ||||
| One 1200 B38A12A 102 | BOSCH MEVD17.2.K | ||||
| Cooper 1500 B38A15A 136 | BOSCH MEVD17.2.K | ||||
| Cooper S B48A20A 192 | BOSCH MEVD17.2.K | ||||
| F56 | One 1200 B38A12A 75 | BOSCH MEVD17.2.3 | BOSCH MEVD17.2.K | ||
| One 1200 B38A12A 102 | BOSCH MEVD17.2.3 | BOSCH MEVD17.2.K | |||
| Cooper 1500 B38A15A 136 | BOSCH MEVD17.2.3 | BOSCH MEVD17.2.K | |||
| Cooper S B48A20A 192 | BOSCH MEVD17.2.3 | BOSCH MEVD17.2.K | |||
| JCW 2000 B48A29B 231 | BOSCH MEVD17.2.3 | BOSCH MEVD17.2.K | |||
| F57 | One 1200 B38A12A 102 | BOSCH MEVD17.2.3 | BOSCH MEVD17.2.K | ||
| Cooper 1500 B38A15A 136 | BOSCH MEVD17.2.3 | BOSCH MEVD17.2.K | |||
| Cooper S B48A20A 192 | BOSCH MEVD17.2.3 | BOSCH MEVD17.2.K | |||
| JCW 2000 B48A29B 231 | BOSCH MEVD17.2.3 | BOSCH MEVD17.2.K | |||
| Peugeot | 2008 | A94 | 1560 BHZ 120 | BOSCH EDC17C60 | |
| 208 | A9 | 1560 BHZ 120 | BOSCH EDC17C60 | ||
| 1600 THP 5GZ(EP6FDT) 165 | BOSCH MED17.4.4 | ||||
| 1600 THP GTI 210 | BOSCH MED17.4.4 | ||||
| 3008 | T8 | 1560 BHZ 120 | BOSCH EDC17C60 | ||
| 1600 THP 5GZ(EP6FDT) 165 | BOSCH MED17.4.4 | ||||
| 308 | T9 | 1600 BlueHDi BHZ 120 | BOSCH EDC17C60 | ||
| 1600 BTP 5GY(EP6FDTM) 163 | BOSCH MED17.4.4 | ||||
| 1600 BTP 5GY(EP6FDTM) 205 | BOSCH MED17.4.4 | ||||
| 5008 | T8 | 1560 BHZ 120 | BOSCH EDC17C60 | ||
| 508 | W2 | 1600 BLueHDi BHZ 120 | BOSCH EDC17C60 | ||
| Seat | Leon | 5F | 1400 TSI CUKB 150 | BOSCH MED17.1.21 | |
| Suzuki | New SX4 | - | 1400 Turbo K14C 140 | BOSCH MED17.9.63 | |
| S-Cross Fengyu | - | 1400 Turbo K14C 140 | BOSCH MED17.9.63 | ||
| SX4 Crossvoer | - | 1400 Turbo K14C 140 | BOSCH MED17.9.63 | ||
| SX4 S-Cross | - | 1400 Turbo K14C 140 | BOSCH MED17.9.63 | ||
| Swift | SHVC | 998 K10C 111 | BOSCH MED17.9.63 | ||
| Vitara | - | 1600 Multijet 2 120 | BOSCH EDC17C69 ver2 | ||
| 1400 Turbo K14C 140 | BOSCH MED17.9.63 | ||||
| Toyota | Proace | MDZ2xx | 1600 120 | BOSCH EDC17C60 | |
| Volkswagen(VW) | Amarok | S6 | 3000 TDI DDXA 163 | BOSCH EDC17CP54 | |
| 3000 TDI 4Motion DDXA 163 | BOSCH EDC17CP54 | ||||
| 3000 TDI 4Motion DDXB 204 | BOSCH EDC17CP54 | ||||
| 3000 TDI 4Motion DDXC 224 | BOSCH EDC17CP54 | ||||
| 3000 TDI 4Motion DDXD 224 | BOSCH EDC17CP54 | ||||
| S7 | 3000 TDI DDXA 163 | BOSCH EDC17CP54 | |||
| 3000 TDI 4Motion DDXA 163 | BOSCH EDC17CP54 | ||||
| 3000 TDI 4Motion DDXB 204 | BOSCH EDC17CP54 | ||||
| 3000 TDI 4Motion DDXC 224 | BOSCH EDC17CP54 | ||||
| 3000 TDI 4Motion DDXD 224 | BOSCH EDC17CP54 | ||||
| Crafter | - | 2000 BiTDI 202 | BOSCH EDC17CP54 | ||
| Golf | VII | 1400 GET CUKB 150 | BOSCH MED17.1.21 | ||
| Jetta | VI | 1400 TSI CUKB 122 | BOSCH MED17.1.21 | ||
| TC1793S | |||||
| Car | Name | Series | Engine | ECU | ECU |
| Audi | A3 | 8V | 2000 TDI 150 | BOSCH EDC17C74 ver1 | |
| 2000 TDI quattro 150 | BOSCH EDC17C74 ver1 | ||||
| 2000 TDI quattro 184 | BOSCH EDC17C74 ver1 | ||||
| A4 | B9 | 1400 TFSI CVNA 150 | BOSCH MED17.1.61 | ||
| A5 | 8F/8T | 2000 DEUA 150 | BOSCH EDC17C74 ver2 | ||
| A8 | D4 | 6300 W12 FSI quattro CTNA 500 | BOSCH MED17.1.61 | BOSCH MED17.1.61 MASTER/SLAVE | |
| A8L | D4 | 6300 W12 FSI quattro CEJA 500 | BOSCH MED17.1.61 | BOSCH MED17.1.61 MASTER/SLAVE | |
| 6300 w12 FSI quattro CTNA 500 | BOSCH MED17.1.61 | BOSCH MED17.1.61 MASTER/SLAVE | |||
| Q2 | GAB | 2000 TDI DFGA 150 | BOSCH EDC17C74 ver1 | ||
| 2000 TDI quattro DFGA 150 | BOSCH EDC17C74 ver1 | ||||
| Q5 | FYB | 2000 DETA 190 | BOSCH EDC17C74 ver2 | ||
| RS3 | 8V | 2500 RS DAZA 400 | BOSCH MED17.1.62 | ||
| 2500 RS quattro DAZA 400 | BOSCH MED17.1.62 | ||||
| TT | FV | 2500 RS DAZA 400 | BOSCH MED17.1.62 | ||
| 2500 TFSI RS quattro DAZA 400 | BOSCH MED17.1.62 | ||||
| 2500 RS quattro DAZA 400 | BOSCH MED17.1.62 | ||||
| Bentley | Bentayga | - | 2000 DDKA 238 | BOSCH MED17.1.62 MASTER/SLAVE | |
| Bugatti | Veyron | 16.4 GSV | 8000 CYHA 1200 | BOSCH MED17.1.12 MASTER/SLAVE | |
| Ford | F-150 | XIII | 3000 V6 Powerstroke 258 | BOSCH EDC17CP65 | |
| F-250 | XIII | 6700 V8 Powerstroke 446 | BOSCH MED17.1.62 | ||
| Genesis Motors | EQ900 | - | 5000 GDI G8BE 413 | BOSCH MED17.9.30 | |
| 5000 GDI HTRAC G8BE 413 | BOSCH MED17.9.30 | ||||
| G90 | - | 5000 GDI G8BE 413 | BOSCH MED17.9.30 | ||
| 5000 GDI HTRAC G8BE 413 | BOSCH MED17.9.30 | ||||
| Hyundai | Equus | VI | 5000 GDI V8 G8BE 430 | BOSCH MED17.9.30 | |
| Genesis | DH | 5000 GDI V8 G8BE 425 | BOSCH MED17.9.30 | ||
| Veracruz | I | 3000 CRDI 4x4 D6EB 260 | BOSCH EDC17CP62 | ||
| ix55 | I | 3000 CRDI 4x4 D6EB 260 | BOSCH EDC17CP62 | ||
| Jaguar | E-Pace | X450 | 2000 Ingenium 300 | BOSCH MED17.9.9 | |
| 2000 Ingenium 250 | BOSCH MED17.9.9 | ||||
| F-Pace | X761 | 2000 Ingenium 240 | BOSCH MED17.9.9 | ||
| F-type | X152 | 2000 Ingenium 300 | BOSCH MED17.9.9 | ||
| XE | - | 2000 Ingenium 200 | BOSCH MED17.9.9 | ||
| 2000 Ingenium 240 | BOSCH MED17.9.9 | ||||
| 2000 Ingenium 250 | BOSCH MED17.9.9 | ||||
| 2000 Ingenium 300 | BOSCH MED17.9.9 | ||||
| XEL | - | 2000 Ingenium 200 | BOSCH MED17.9.9 | ||
| 2000 Ingenium 240 | BOSCH MED17.9.9 | ||||
| 2000 Ingenium 250 | BOSCH MED17.9.9 | ||||
| 2000 Ingenium 300 | BOSCH MED17.9.9 | ||||
| XF | X260 | 2000 Ingenium 240 | BOSCH MED17.9.9 | ||
| XFL | X260 | 2000 Ingenium 240 | BOSCH MED17.9.9 | ||
| Kia | K9 | - | 5000 GDI V8 G8BE 425 | BOSCH MED17.9.30 | |
| K900 | - | 5000 GDI V8 G8BE 425 | BOSCH MED17.9.30 | ||
| Mohave | I | 3000 e-VGT 2WD D6EB 260 | BOSCH EDC17CP62 | ||
| 3000 e-VGT 4WD D6EB 260 | BOSCH EDC17CP62 | ||||
| Quoris | - | 5000 GDI V8 G8BE 425 | BOSCH MED17.9.30 | ||
| Land Rover | Velar | - | 2000 Ingenium 300 | BOSCH MED17.9.9 | |
| McLaren | 720S | - | 4000 Twin Turbo M840T 720 | BOSCH ME17.8.3.3 | |
| Mercedes | A | W177 | 2000 M260DE20AL 190 | BOSCH MED17.7.7 | |
| 2000 M260 224 | BOSCH MED17.7.7 | ||||
| 2000 M260 306 | BOSCH MED17.7.7 | ||||
| B | W247 | 2000 M260DE20AL 190 | BOSCH MED17.7.7 | ||
| 2000 M260 224 | BOSCH MED17.7.7 | ||||
| 2000 M260 306 | BOSCH MED17.7.7 | ||||
| C | W205 | 1500 M264 197 | BOSCH MED17.7.7 | ||
| 2000 M264DE20L 258 | BOSCH MED17.7.7 | ||||
| CLA | C118 | 2000 M260DE20AL 190 | BOSCH MED17.7.7 | ||
| 2000 M260 224 | BOSCH MED17.7.7 | ||||
| CLS | C257 | 2000 M264DE20LA 299 | BOSCH MED17.7.7 | ||
| E | W213 | 2000 M264DE20LA 299 | BOSCH MED17.7.7 | ||
| Seat | Arona | KJ7 | 1000 TSI DKJA 116 | BOSCH MED17.1.27 | |
| Ibiza | 6P | 1000 TSI DKJA 116 | BOSCH MED17.1.27 | ||
| Leon | 5F | 2000 TDI FR 184 | BOSCH EDC17C74 ver1 | ||
| Skoda | Fabia | NJ | 1000 TSI DKJA 116 | BOSCH MED17.1.27 | |
| Kodiaq | NS7 | 2000 TDI DFGA 150 | BOSCH EDC17C74 ver1 | ||
| 2000 TDI 4x4 DFGA 150 | BOSCH EDC17C74 ver1 | ||||
| Superb | 3V | 1600 TDI DCXA 120 | BOSCH EDC17C74 ver1 | ||
| 2000 16v TDI(CR) 190 | BOSCH EDC17C74 ver1 | ||||
| 2000 16v TDI 4x4(CR) 190 | BOSCH EDC17C74 ver1 | ||||
| 3V3 | 2000 CRLB 150 | BOSCH EDC17C74 ver1 | |||
| Volkswagen(VW) | Arteon | 3H7 | 2000 DFHA 190 | BOSCH EDC17C74 ver1 | |
| 2000 TDI 4Motion DFHA 190 | BOSCH EDC17C74 ver1 | ||||
| Golf | BQ1 | 2000 GTD DGCA 184 | BOSCH EDC17C74 ver1 | ||
| BV5 | 2000 GTD DGCA 184 | BOSCH EDC17C74 ver1 | |||
| VII | 1600 TDI | BOSCH EDC17C74 ver1 | |||
| Passat | B8 | 1600 TDI DCXA 120 | BOSCH EDC17C74 ver1 | ||
| 2000 TDI 150 | BOSCH EDC17C74 ver1 | ||||
| 2000 BiTDI CUAA 240 | BOSCH EDC17CP74 | ||||
| Polo | 6C1 | 1000 TSI DKJA 116 | BOSCH MED17.1.27 | ||
| T-Roc | A11 | 2000 TDI DFFA 150 | BOSCH EDC17C74 ver1 | ||
| 2000 TDI 4Motion DFHA 150 | BOSCH EDC17C74 ver1 | ||||
| Teramont | - | 2500 TSI DDKA 299 | BOSCH MED17.1.62 | ||
| Tiguan | AD1 | 2000 TDI DFGA 150 | BOSCH EDC17C74 ver1 | ||
| 2000 TDI 4Motion DFGA 150 | BOSCH EDC17C74 ver1 | ||||
| 2000 TDI DFGC 116 | BOSCH EDC17C74 ver1 | ||||
| Touareg | 7P | 3000 TFSI Hybrid | BOSCH MED17.1.61 | ||
| Transporter | T6 | 2000 BiTDI CUAA 240 | BOSCH EDC17CP74 | ||
| Up | 122 | 1000 GTI DKRA 116 | BOSCH MED17.1.27 |
![[Full Version] V2022.12.1 KT200 ECU Programmer Master Version Support OBD BOOT BDM JTAG & ECU Maintenance/ DTC Code Removal With Free Damaos](/upload/pro/kt200-ecu-programmer-master-full-version-200.jpg)
