Original Autel MaxiIM IM508 Plus XP400 Pro with APB112 and G-BOX2 Full Kit

Product Highlights

• 100% Original Autel Brand.
• One Year Free Update online on Autel Official Website. After one year it will cost $350 only. Check Autel MaxiIM IM508 One Year Update Service.
• Global Version – No IP Blocking Problem.
• Android Operating System for fast boot-up and multitasking.
• Function IMMO+ Diagnose: Powerful coMBination of Key Programming, all system diagnostics, and advanced maintenance services.
• Vehicle Supported: Powerful OE-level diagnostics for more than 80 US, Asian, and European makes and models.
• Advanced maintenance services including EPB, DPF, SAS, Oil reset, BMS, and TPMS sensor ID relearn.
• Language support for both Diagnosis and IMMO Menu: English, French, German, Spanish, Portuguese, Italian, Dutch, Polish, Swedish, Korean, Japanese, Russian, and Traditional Chinese.
• Autel IM508 Plus XP400 Pro equals IM608 Pro in terms of IMMO functions. With IM508, XP400 Pro, APB112, and G-BOX2, this full kit can cover 95% of the cars for Key Programming function worldwide.

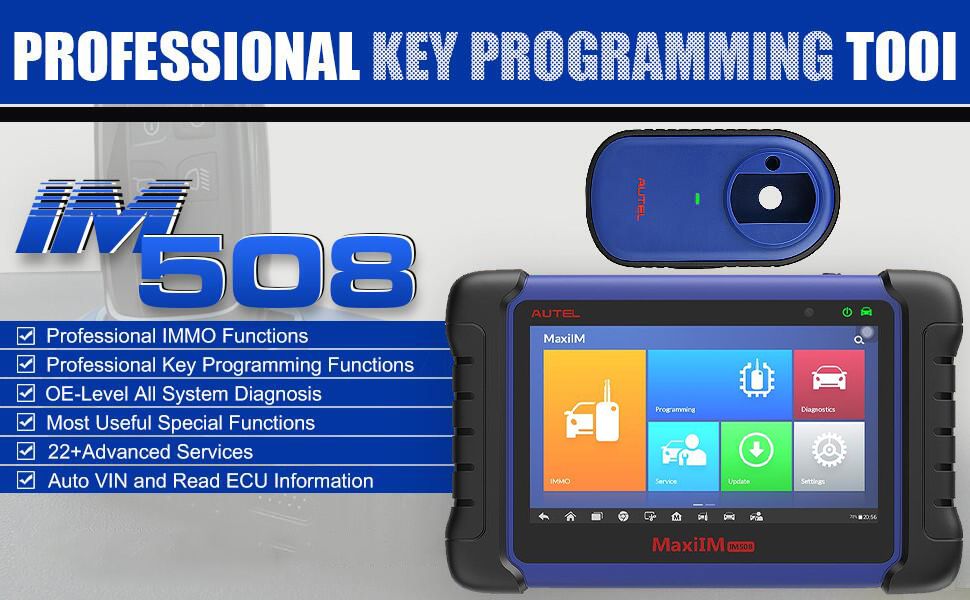

Autel MaxiIM IM508 is a fast, easy-to-use, and ultraportable immobilizer and Key Programming device. The Android-based touchscreen tablet features a powerful quad-core processor, intuitive design, and straightforward interface. Equipped with the XP200 Key Programmer, IM508 is capable of providing extraordinary service functions for the immobilizer system. Together with the ability to quickly diagnose all modules of the majority of makes and models on the market, IM508 provides you with superior special functions. IM508 is the perfect solution for shops and technicians who demand affordable and powerful IMMO and diagnostic services.

Autel MaxiIM IM508 Function List

• All Systems Diagnostics
• AutoVIN / AutoScan
• Read / Erase Codes
• View, Record, Playback Live Data
• View Freeze Frame Data
• Shop and Data Manager Applications
• Key Read / Write
• EEPROM / MCU Read / Write
• Read PIN / CS (all key lost)
• Key Generation
• Key Learning
• Remote Learning
• Backup / Restore IMMO Data
• IMMO ECU Reset / Adaptation
• IMMO ECU Refresh / Coding
• BMW FEM / BDC Key Learning and ECU Adaptation
• VW / AUDI MQB Key Learning, 48 Transponder (96-bit) Add Key, All Key lost, A6 all key lost, and More

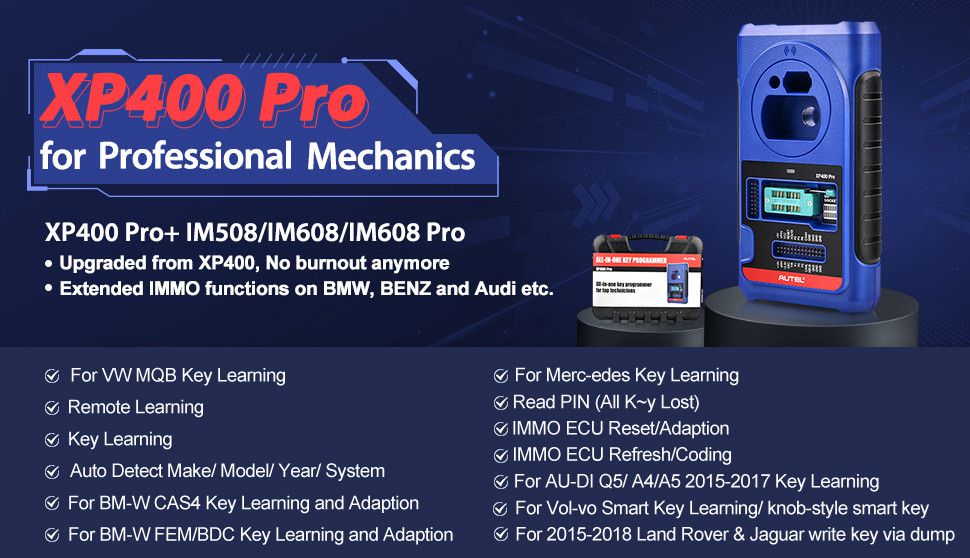

Autel XP400Pro is a replacement for XP400. It adds more functionality for BMW, Mercedes-Benz, as well as EEPROM reading. With the new protocols, the end-user will be able to read over 2000 types of chips, components, and devices—including EEPROM and MCU read, additional Odometer Read/Write, and more. Also added are functions for EWS3, W209, NEC, and more.

Autel XP400 Pro Highlights

• XP400 Pro is an Advanced All-in-One Key Programmer.
• One Year Free Update Online on Autel Official Website.
• Compatible with Autel IM508 and Autel IM608, as well as IM100 and IM600.
  (Notice: XP400Pro is compatible with IM100 / IM600. The only limitation when used with IM100 and IM600 is the absence of 4-channel Labscope software and AutoAuth.)
• Supports Key Renewal on 11 Key Types with Additional Adapters – IMKPA, Key Programming Accessories Kit.
  Please note that the product does NOT support Read/Write IC Card function. The "IC Card Induction Area" was also removed from XP400 Pro.

Why You Need XP400 Pro

• Expanded EEPROM functions for more component access
• 170+ types of Odometer component reading functions
• 180+ Immobilizer ECU component types
• 40+ Engine ECU component types
• 2000+ MCU component types
• 440+ EEPROM component types
• Compatible with IM508 and IM608
• Includes 1-Year Warranty
• Free Software Updates for Life of Tool

Advanced Key Programming Vehicle Coverage (When CoMBined with XP400 Pro)

Mercedes-Benz

• One-tap Key Programming via OBD
• 3rd Generation IMMO CAN-Line/K-Line Add Key, all key lost

BMW

• Smart IMMO Programming (support EWS3/4, CAS 1/2/3/4, FEM/BDC)
• Add Key / all key lost

Volkswagen / Audi

• One-tap Online Programming
• Add Key / all key lost Via OBD for 2013–2020 Models

GM

• Read IMMO Password, Add Key / all key lost up to 2020

Ford

• Add Key / all key lost (No PIN Needed) up to 2020

Mazda

• Add Key / all key lost (No PIN Needed) up to 2020

FCA

• Read IMMO Password, Add Key / all key lost up to 2020

Renault

• Add Key / all key lost (No PIN Needed) up to 2020

Land Rover / Jaguar

• Add Key / all key lost up to 2019

Volvo

• Semi-smart Key Learning via OBD up to 2018
• Smart / Blade / Fobik Key Learning via Dump

Comparison Table: XP400 vs. XP400 Pro vs. Xhorse VVDI Prog

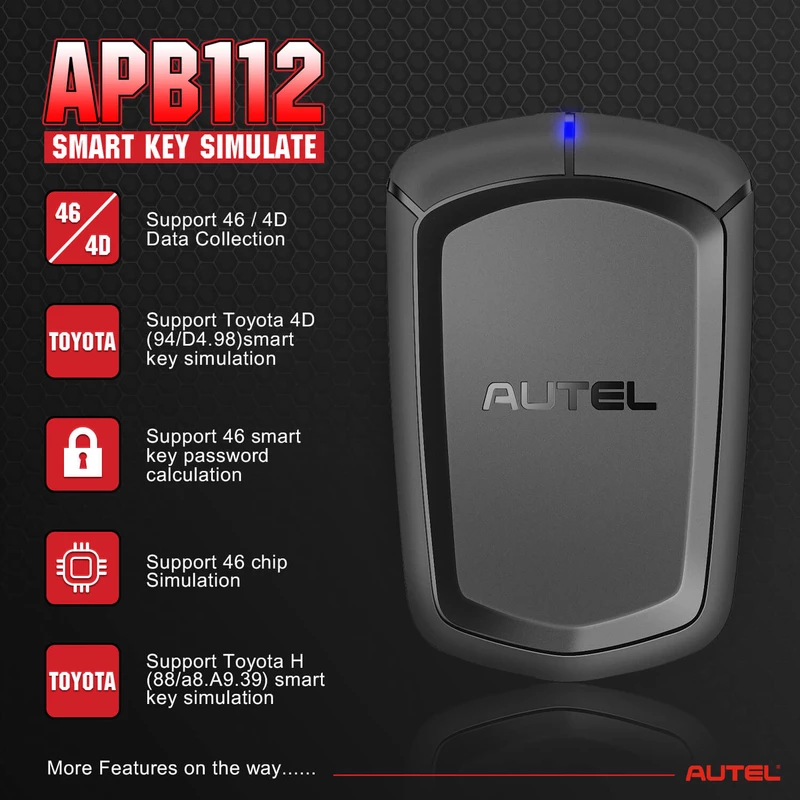

Autel APB112 smart key simulator is used to collect the data sent from the ignition coil, aiming to identify ignition coil troubles and decode the data of the vehicle key chip. It can also simulate the vehicle key chip.

What Autel APB112 Can Do for You?

1. Smart key simulator
2. Compatible with IM508 and IM608
3. 46, 4D data collection
4. 46 smart key password calculation
5. 46 chip simulation
6. Toyota 4D (94/D4, 98) smart key simulation
7. Toyota H (88/A8, A9, 39) smart key simulation
8. Collects data from the ignition coil
9. Identify ignition coil troubles
10. Decode vehicle key chip data
11. Simulate vehicle key chip (e.g., 4D chip)
12. Must be used with an Autel diagnostic tool
13. Toyota / Lexus smart key all key lost
14. Chip decoding (Hyundai 46)

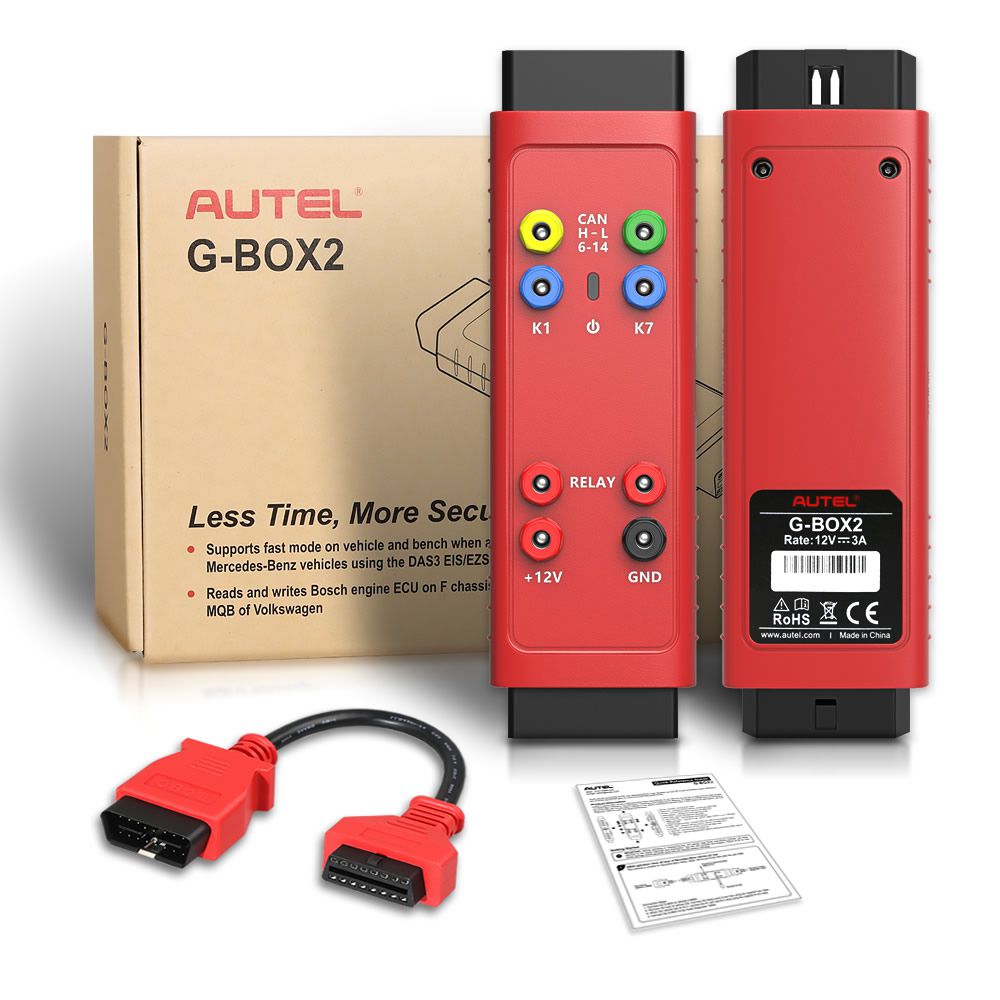

Autel G-BOX2 Function List

1. Support Mercedes Benz all key lost, faster calculate password
2. Work together with both IM608 or IM508 with XP400
3. Used for Faster Mercedes ECU data and EIS password calculation
4. Mercedes DAS3 can EIS/EZS all keys lost
5. Reduces reading time of W204 ECU data & W207 EIS by over 85%
6. No need to remove and reinsert the key for W221 & W164 after 2009 Models

Package List

Autel MaxiIM IM508

• Autel MaxiIM IM508 Tablet
• XP200 Key Programmer
• AAC001–MED17 Cable
• Honda-3 Adaptor
• KIA-20 Adaptor
• KIA-10 Adaptor
• Mazda-17 Adaptor
• USB External Power Adapter
• Carrying Case
• Main cable
• Quick guide
• Mini USB Cable
• Carry Case

What's Included with the Autel XP400Pro

• 1 x XP400 Pro Main Unit
• 1 x APB129 – EEPROM Adapter
• 1 x APA002 – EEPROM Socket
• 1 x APB125 – Mercedes Infrared Collector
• 1 x APB103 – MCU_PLCC52 Adapter
• 1 x APB104 – MCU_FQFP64 Adapter
• 1 x APB105 – MCU_FQFP80 Adapter
• 1 x APB106 – MCU_FQFP112 Adapter
• 1 x APB107 – MCU_FQFP144 Adapter
• 1 x APB108 – MCU_FQFP176 Adapter
• 1 x APB109 – MCU_FQFP32 Adapter
• 1 x APB110 – MCU_FQFP48 Adapter
• 1 x APB111 – MCU_SO28 Adapter
• 1 x APA101 – Spare Signal Cable
• 1 x APC101 – USB Cable (Standard USB – Type B USB)
• 1 x APA103 – EEPROM Clamp
• 1 x APA107 – ECU Cable
• 1 x APA108 – MCU Cable
• 1 x APA109 – MC9S12 Cable
• 1 x Dupont Line

What's Included with the Autel G-Box2

• 1pc x Autel G-BOX2
• 1pc x DB15 Cable
• 1pc x K-Line Cable
• 1pc x Fuse Cable
• 2pcs x Fuse (5A)
• 2pcs x Clamp Cable
• 1pc x OBDII Extension Cable
• 1pc x Quick Reference Guide

What's Included with the Autel APB112 Simulator

• 1pc x APB112 Smart Key Simulator
• 1pc x USB cable

Notice: No Carton Box for APB112.
