Original Autel XP400 PRO Key and Chip Programmer Plus Autel IMKPA Expanded Key Programming Accessories Kit for Renew & Unlock

Autel XP400 PRO Key and Chip Programmer with Autel IMKPA Expanded Key Programming Accessories Kit – Renew & Unlock

Important Notice:

• The XP400 Pro is an advanced all-in-one key programmer.
• Includes one year of free online updates via the Autel official website.
• Compatible with Autel IM508, IM608, IM100, and IM600 (Note: When used with IM100 or IM600, 4-channel Labscope software and AutoAuth functions are not available).
• Supports key renewal for 11 key types using additional adapters from the IMKPA Key Programming Accessories Kit.
• Please note: This product does NOT support Read/Write IC Card functionality. The "IC Card Induction Area" has been removed from the XP400 Pro.

Autel XP400 PRO Key and Chip Programmer + IMKPA Accessories Kit

Product Description

The Autel MaxiProgrammer XP400 Pro is engineered to seamlessly integrate with Autel IM series tablets such as the IM608 and IM608 Pro, empowering automotive technicians with comprehensive vehicle Key Programming capabilities. With its upgraded performance, the XP400 Pro enhances the MaxiIM IM608 Pro into a leading diagnostic and programming solution, combining OE-level immobilizer programming, ECU diagnostics, and advanced service functions in a powerful Android-based 10.1-inch touchscreen tablet platform.

The Autel IMKPA Key Programming Accessories Kit expands the functionality of the XP400 Pro by providing 12 specialized adapters. This kit enables read, write, and erase operations for critical systems including Mercedes Benz ESL_W209/W906 data, Mercedes NEC key learning, BMW EWS3 key programming, and key unlocking for Volkswagen, Audi, BMW, and Benz vehicles.

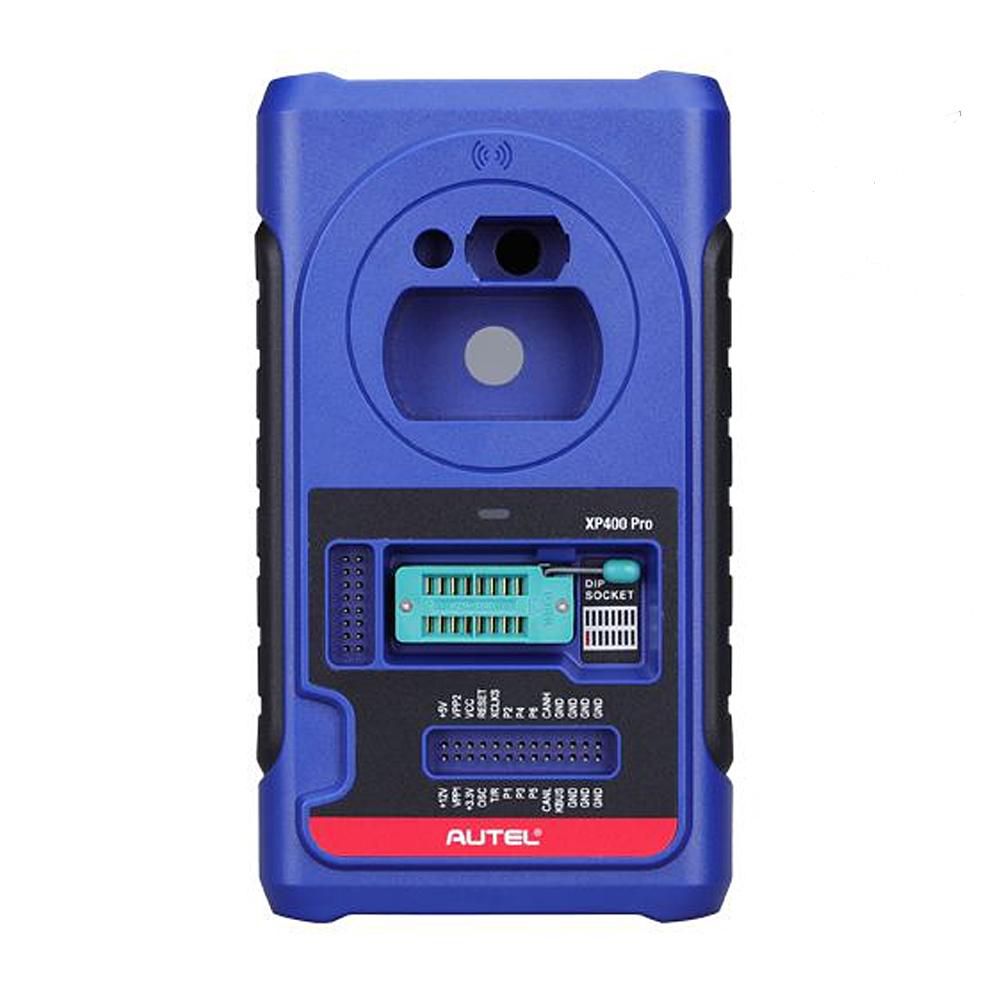

Key Features of Autel XP400 Pro

• Read transponder data, including Mercedes Benz infrared smart keys, and generate exclusive keys.
• Read and write on-board EEPROM chip data, MCU, and ECU chip information.
• Process remote control transponder data and detect key frequency accurately.
• Fully compatible with Autel IM series diagnostic tablets and computers running supported key programming software for fast and precise data transfer.

Advanced All-in-One Key Programming Capabilities

• Expanded EEPROM functions for broader component access
• Supports reading of 1,700+ odometer components
• Covers 180+ immobilizer ECU types
• Supports 40+ engine ECU components
• Access to 2,000+ MCU component types
• Compatible with 440+ EEPROM component types
• Works with Autel IM508 and IM608 tablets
• Includes 1-year warranty and lifetime free software updates

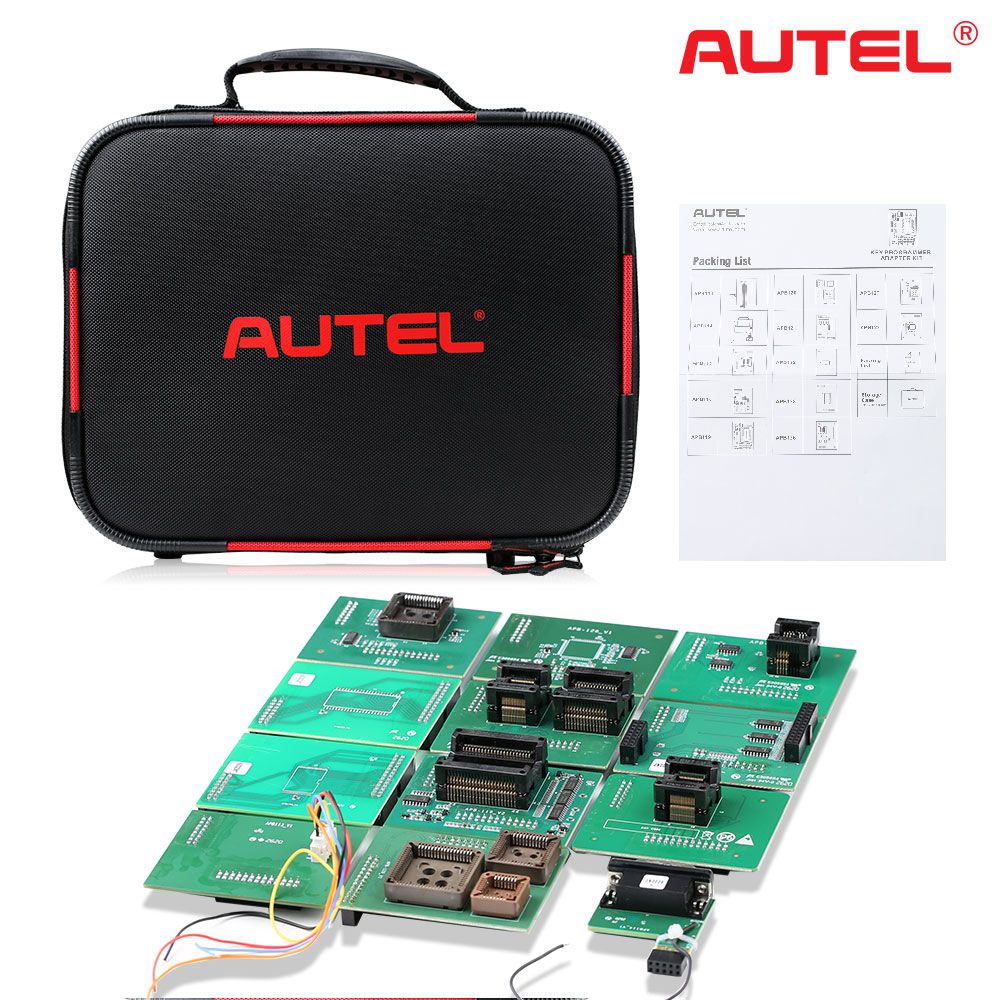

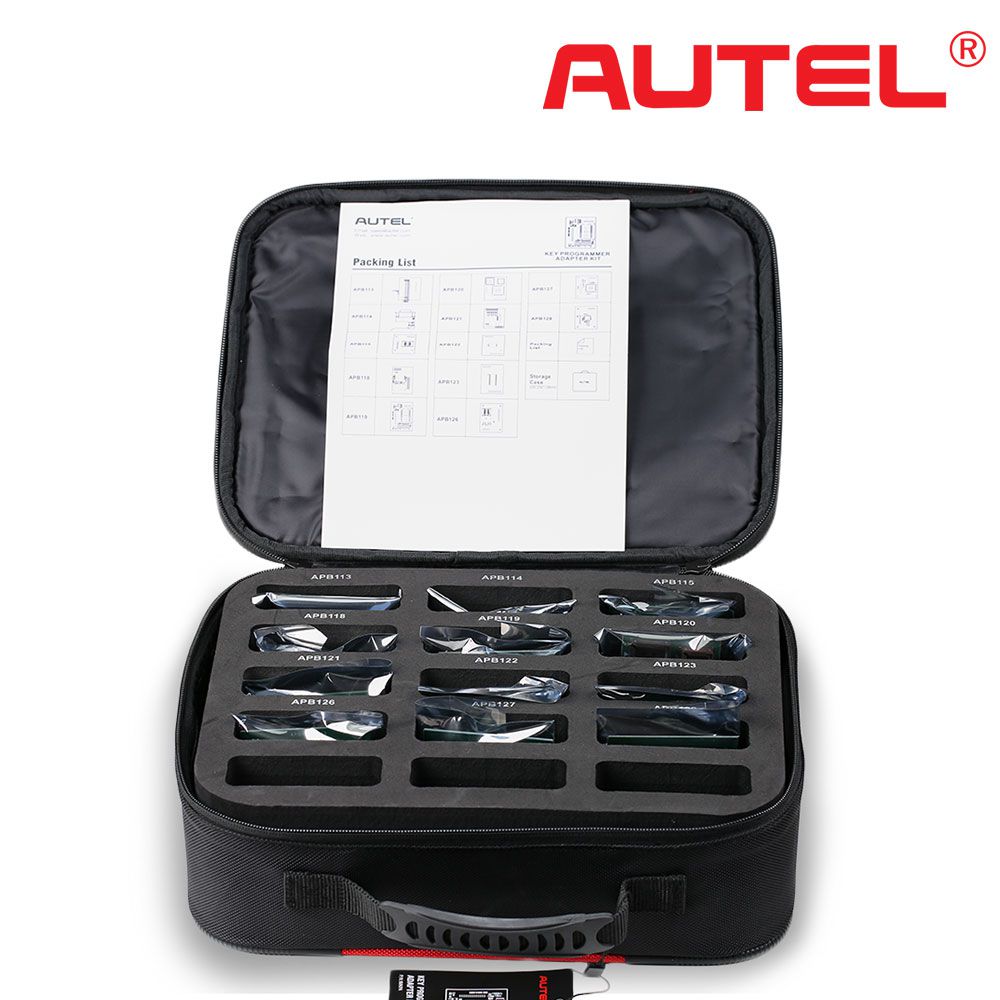

IMKPA Expanded Key Programming Accessories Kit

• Enables over 10 types of key unlock operations
• Supports BMW EWS3 key learning
• Enables Mercedes Benz NEC key learning
• Read, write, and erase functionality for Benz ESL_W209
• Designed for use with IM508 and IM608 when paired with XP400 Pro

Technical Specifications – XP400 Pro

• Operating Temperature: -10℃ ~ 70℃ (14℉ ~ 158℉)
• Storage Temperature: -20℃ ~ 85℃ (-4℉ ~ 185℉)

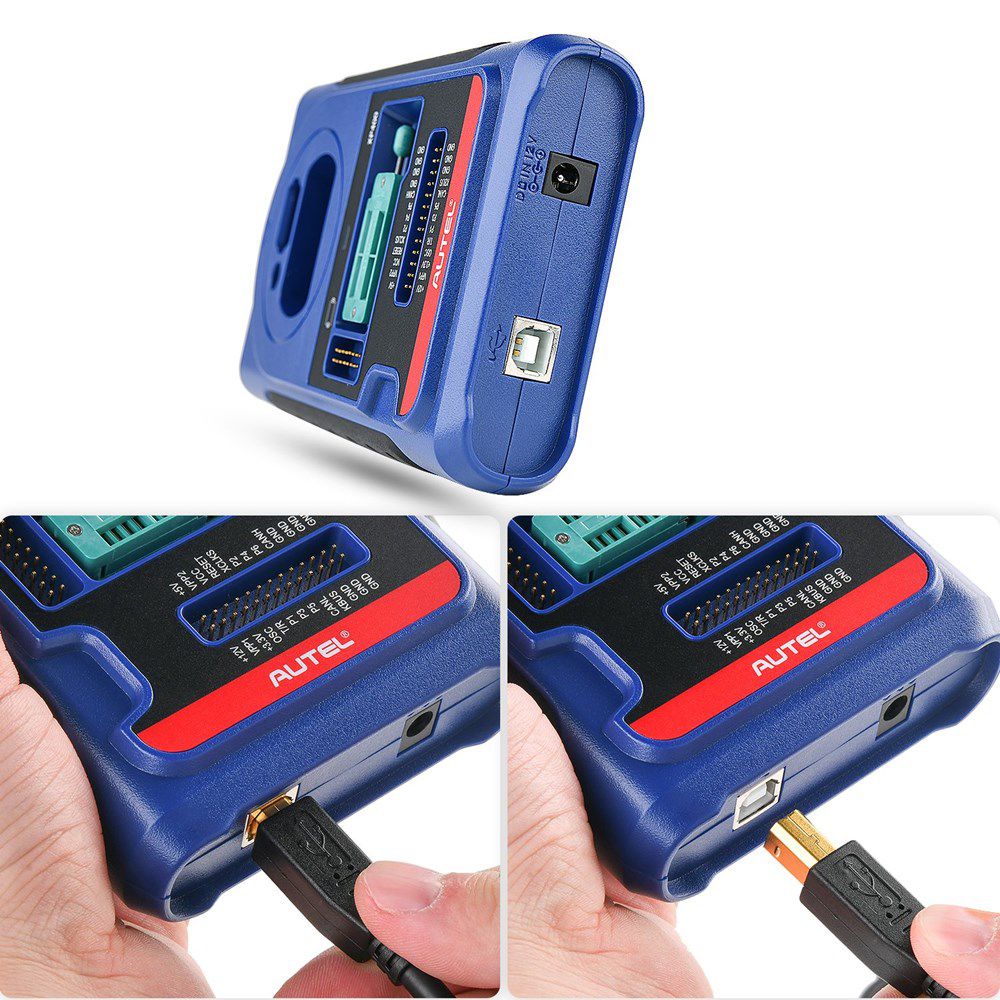

• Port Types: B-USB, DB26, DC12
• Input Voltage: 5 VDC, 12 VDC
• Operating Current: < 500 mA
• Maximum Power Consumption: 2.5 W

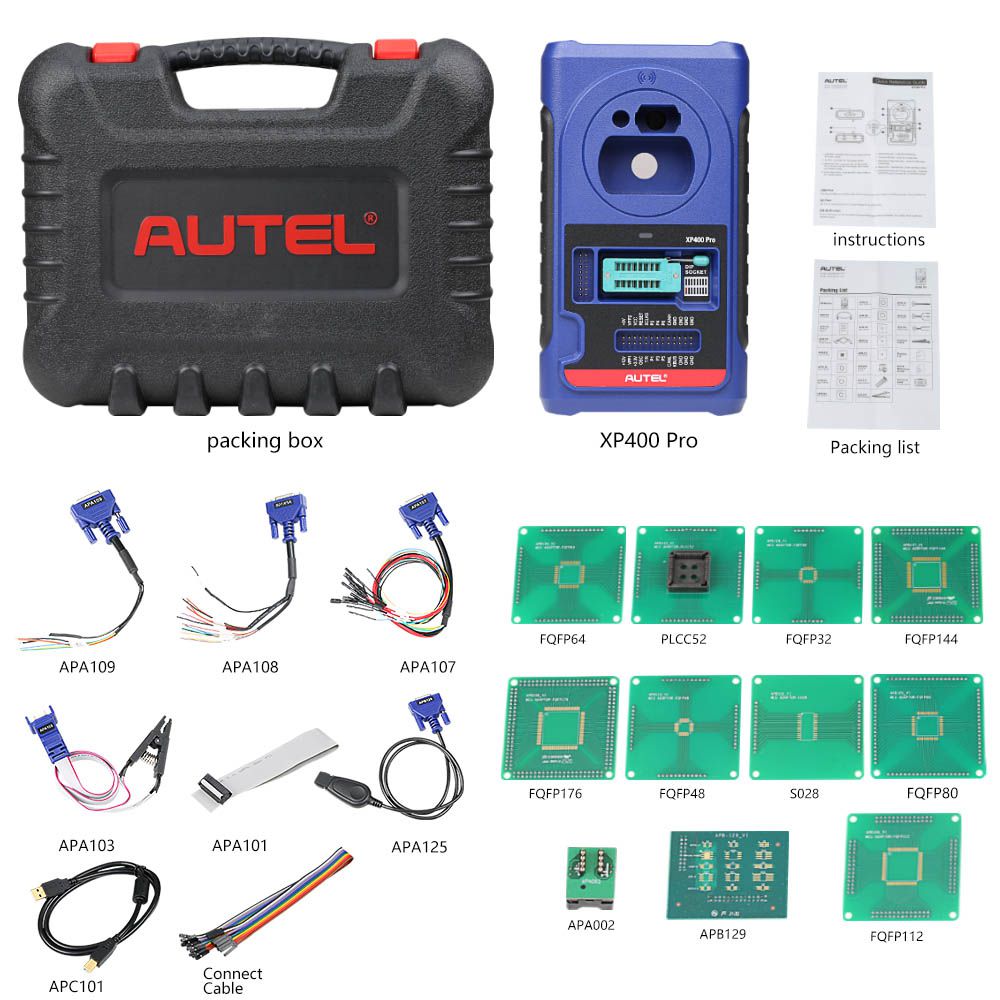

Package Contents

• 1 x XP400 Pro Main Unit
• 1 x APB129 – EEPROM Adapter
• 1 x APA002 – EEPROM Socket
• 1 x APB125 – Mercedes Infrared Collector
• 1 x APB103 – MCU_PLCC52 Adapter
• 1 x APB104 – MCU_FQFP64 Adapter
• 1 x APB105 – MCU_FQFP80 Adapter
• 1 x APB106 – MCU_FQFP112 Adapter
• 1 x APB107 – MCU_FQFP144 Adapter
• 1 x APB108 – MCU_FQFP176 Adapter
• 1 x APB109 – MCU_FQFP32 Adapter
• 1 x APB110 – MCU_FQFP48 Adapter
• 1 x APB111 – MCU_SO28 Adapter
• 1 x APB113 – PCF79XX Adapter (Optional)
• 1 x APB114 – EWS3 Adapter (Optional)
• 1 x APB115 – NEC Adapter Plate (Optional)
• 1 x APB118 – NEC Steering Lock Adapter (Optional)
• 1 x APB119 – TB28FXXX Adapter (Optional)
• 1 x APB120 – TMS370 Adapter (Optional)
• 1 x APB121 – AM29FXXX Adapter Plate (Optional)
• 1 x APB122 – AM29FXXX Adapter 1 (Optional)
• 1 x APB123 – AM29FXXX Adapter 2 (Optional)
• 1 x APB126 – M35080&D80 Adapter (Optional)
• 1 x APB127 – MC68HC(7)05BXX Adapter (Optional)
• 1 x APB128 – MC68HC05X32 Adapter (Optional)
• 1 x APA101 – Spare Signal Cable
• 1 x APC101 – USB Cable (Standard USB – Type B USB)
• 1 x APA103 – EEPROM Clamp
• 1 x Dupont Line
• 1 x APA107 – ECU Cable
• 1 x APA108 – MCU Cable
• 1 x APA109 – MC9S12 Cable
