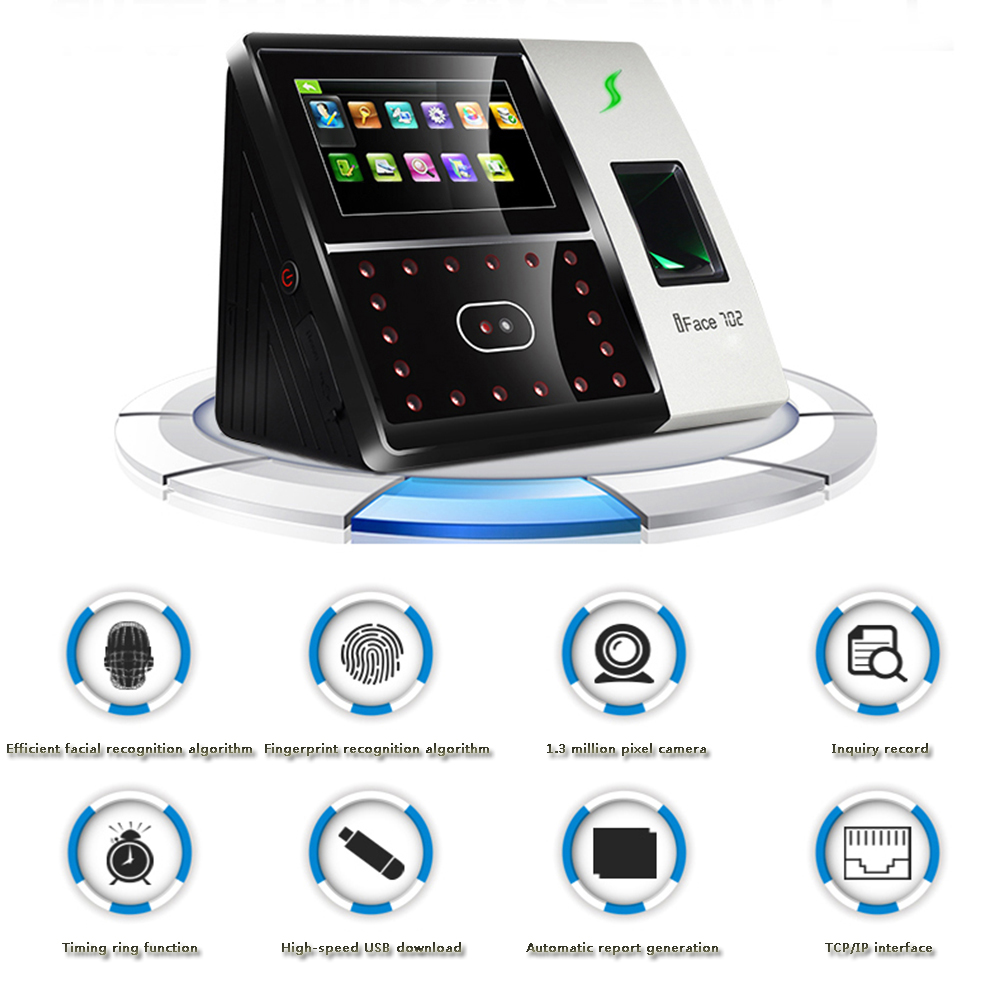

Features:
| 1 | Elegant ergonomic design |
| 2 | 6 user-defined function keys |
| 3 | Optional extendable scheduled-bell |
| 4 | Multi-Bio 600 high-speed processor |
| 5 | Web server management software via IE browser |
| 6 | 4.3 TFT touch screen is user-friendly and very intuitive |
| 7 | ZKFinger10.0 fingerprint recognition algorithm for face mix |
| 8 | ZEM600 multimedia development platform, large capacity, fast |
| 9 | Identification methods include Face, Fingerprint/RFID and/or Password |
| 10 | Contact relays for door access control (wires to door strike or 3rd party panel |
| 11 | Infra-red optical system enables user-identification in poorly lit environments |
| 12 | Wiegand Output for connections to 3rd access control panels,As ACB001 002 004 series |
| 13 | Built-in contacts for 3rd party electric lock as EL-600ST, door sensor, alarm, exit button. |

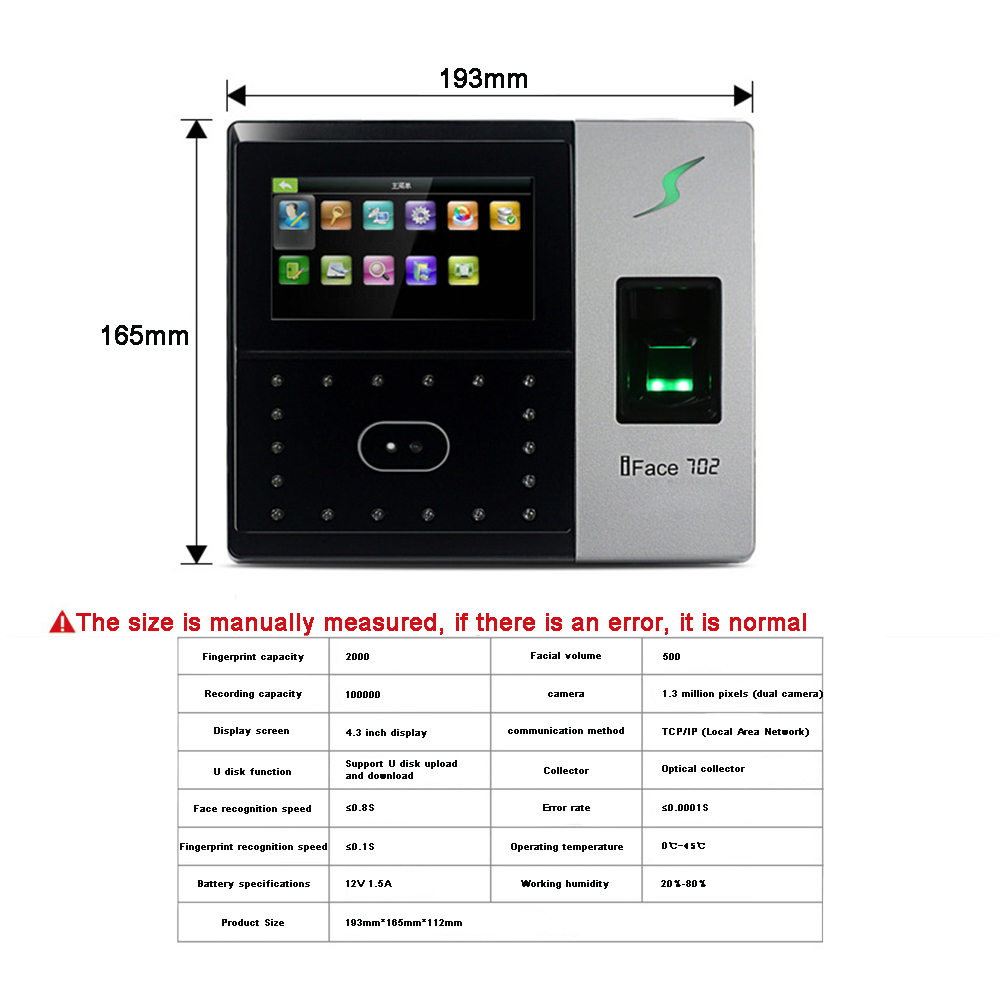

Specifications:
| 1 | Face capacity | 400 |
| 2 | Logs capacity | 100,000 |
| 3 | ID Card capacity | 10,000 |
| 4 | Wiegand Signal | Output |
| 5 | Power supply | 12V3A |
| 6 | Verification Speed | ≤2 sec |
| 7 | Operating temp | 0°C- 45 °C |
| 8 | OperatingHumidity | 20%-80% |
| 9 | Fingerprintcapacity | 3000 |
| 10 | CPU | ZK Multi-Bio CPU 630 MHz |
| 11 | Display | 4.3’’ TFT touch screen |
| 12 | Memory | 256M Flash, 64M SDRAM |
| 13 | Algorithm Version | ZK Finger 10.0 |
| 14 | Communication | TCP/IP,RS232/485 Two USB-Host |
| 15 | Camera | High Resolution Infrared Camera |
| 16 | Fingerprint | Sensor ZK ,Optical Fingerprint Sensor without film |
| 17 | Hardware | Platform ZEM600 Multi-Medium Development Platform |

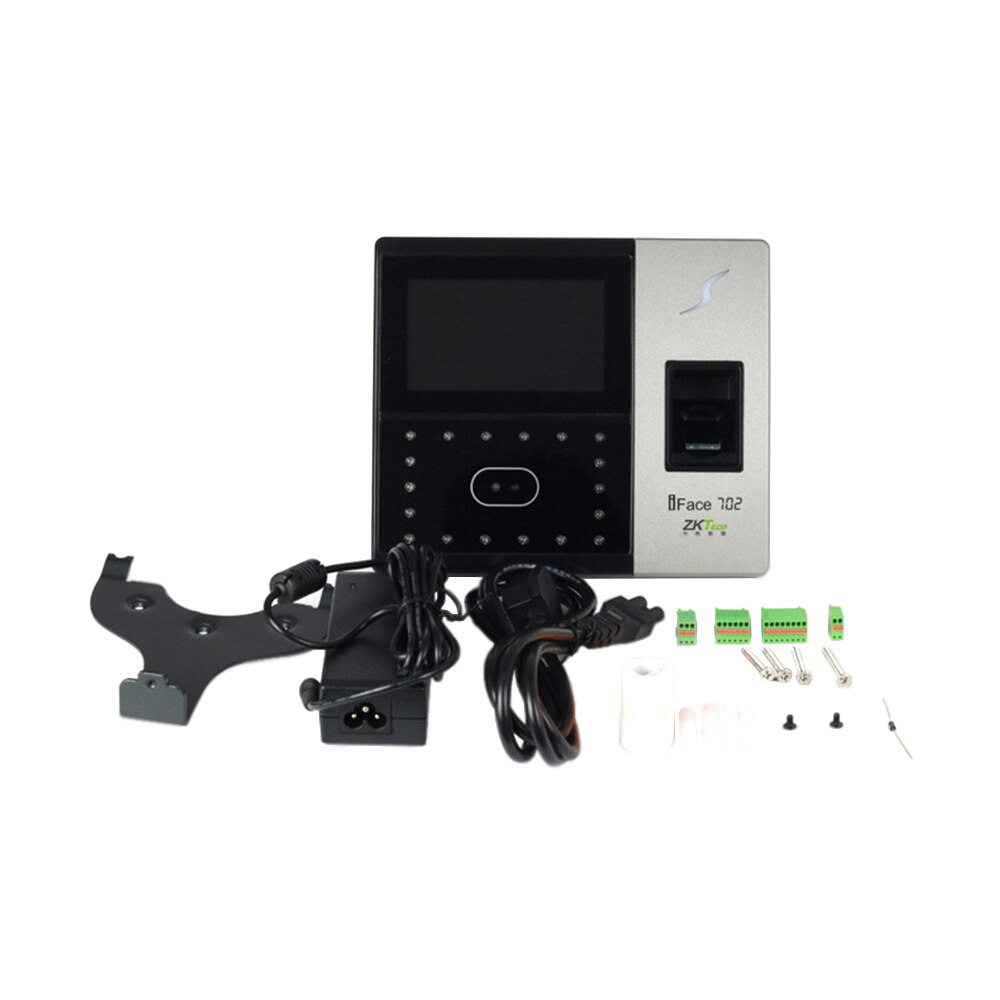

Accessories:
Face recognition fingerprint machine*1
Screw pack*1
Manual *1
Power *1
