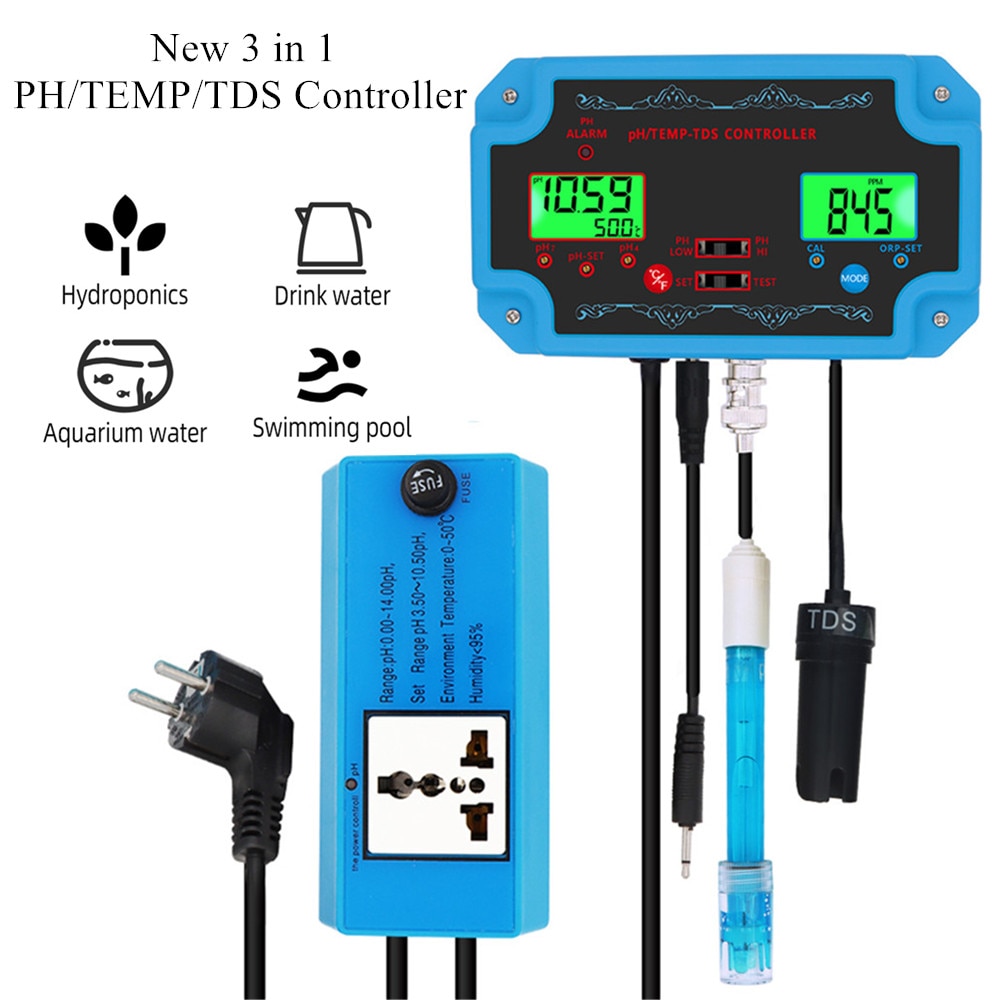

New 3 in 1 PH/TEMP/TDS Controller Water Quality Detector pH Controller with Electrode BNC Type Probe Tester for Aquarium
Features:
1.Widely used to test the pH / Temperature / TDS (Total Dissolved Solids) of water.
2.With relay output power socket, you can control the pH value according to your requirements.
3.You can replace the fuse easily and fast with external replacement. Detachable and replaceable pH electrode.

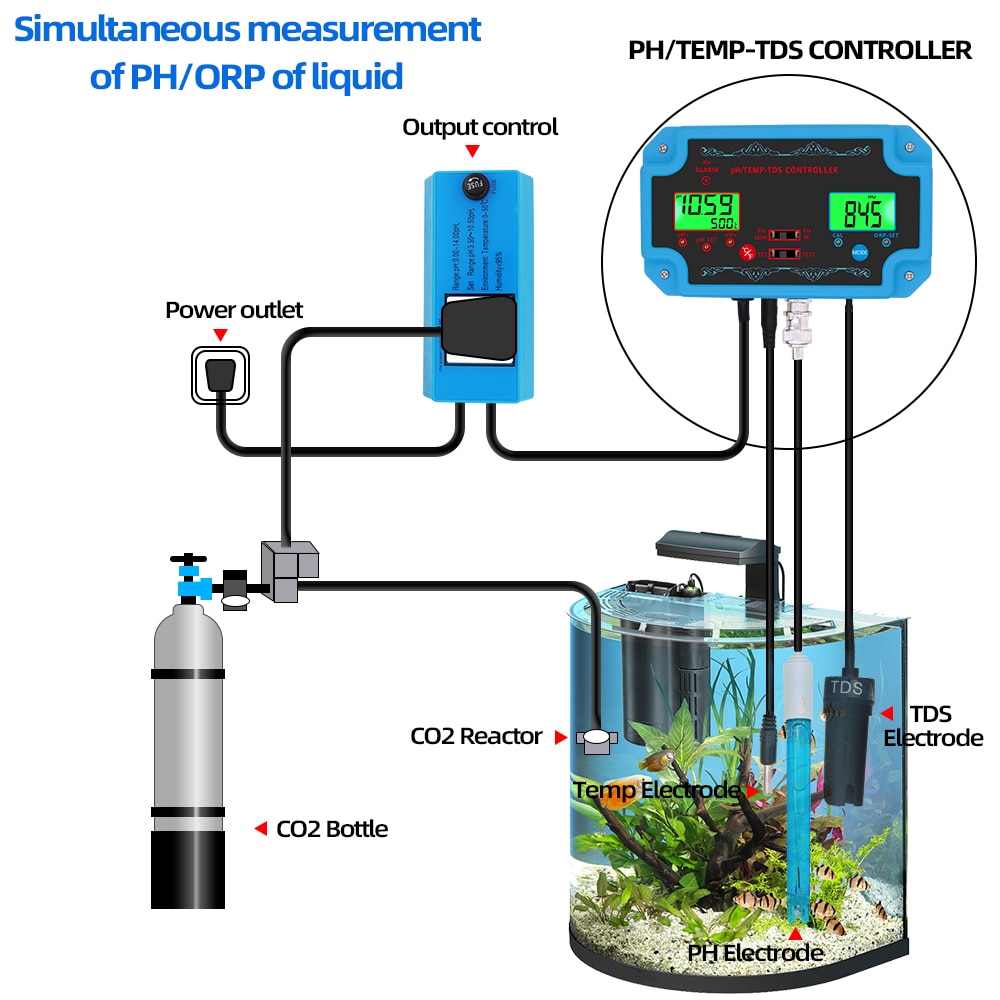

4.With power plug for air outlet stone, oxygen pumps, carbon dioxide regulators, solenoid valves and other pH control devices.

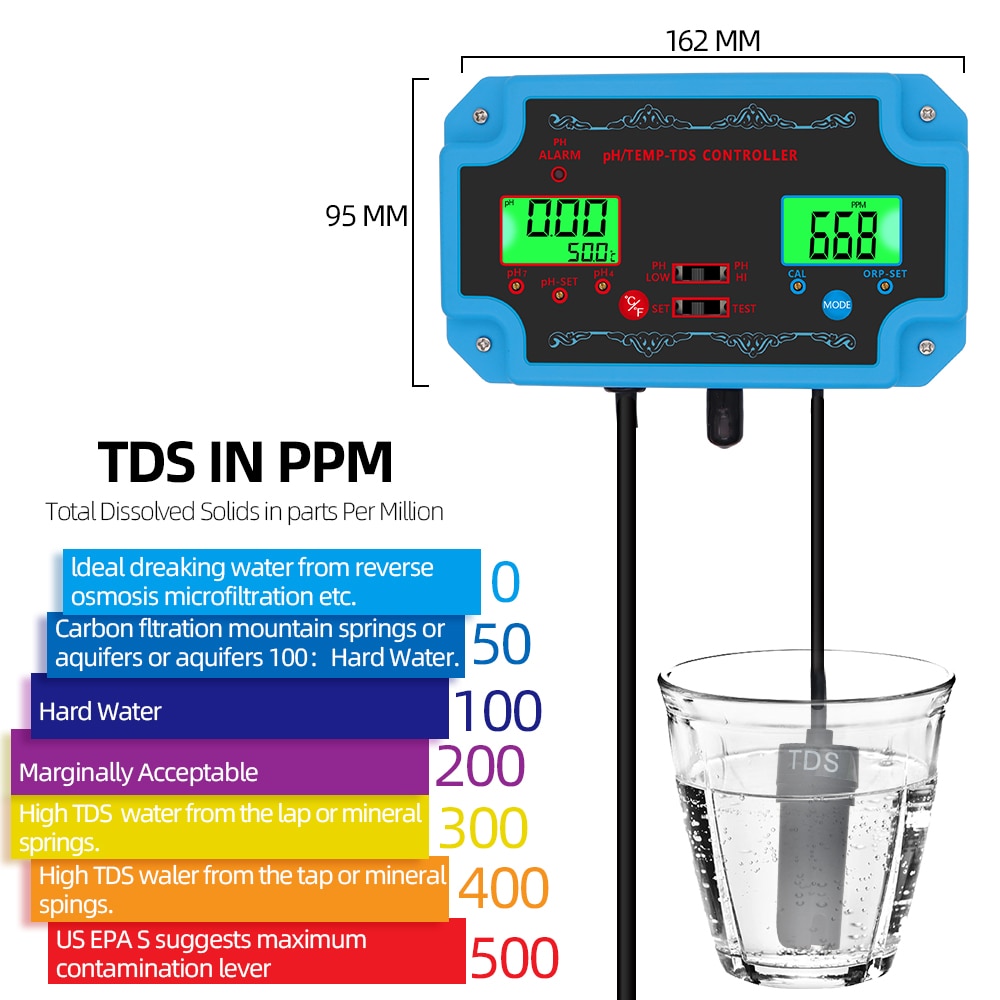

5.Test the TDS with both PPT and PPM units at will.
6.Easy calibration of pH/TDS with just a mini-screwdriver and automatic temperature compensation.
7.Clear LCD with backlight, 3 results displayed simultaneously. Easy to use and provide instant display of results.
8.Test temperature in ° / °(switchable units) and can online monitor and control pH for a long time.
9.Apply in water sources, soil-free growing, aquarium, hydroponics, laboratory, spas, environment water, swimming pools, water purification systems, etc.
Specification:
Measure Range: pH: 0.00-14.00PH
TDS: ppm: 0-1999ppm; ppt: 0~19.99PPT
TEMP: -50°C-70°C(-58°F-158°F)
Resolution: PH: 0.01PH
TDS: 1ppm; 0.01PPT
TEMP: 0.1°C(0.2°F)
Accuracy: PH: ±0.1PH
TDS: ±2%F.S
TEMP: ±1.0°C(±2°F)
Set Range: pH 3.50pH～10.50pH
Power: AC230V(AC110V)
Operating Temperature: 0°C~50℃
Dimensions: 1.160*106*40mm
Relay Contact: 5A/250VAC
Weight: 680g
Operation:
1. Connecting AC power supply(Make sure the corect).
2. Connecting the pH electrode、TEMP electrode into relative electrode socket.
3. Remove the protective cap,clean the electrode with distilled water,put pH electrode,TDS electrode, temperature electrode,into liquid which is to be test. and stir lightly.Wait until the digital is stable'read the final value.
Cautions:
1.While testing please stir electrodes,and avoid the bubbles on it. Else it will affect the result.
2.If the error is too big or TDS value is not going back to 0, dip TDS electrode into ethyl alcohol and shake for 5-10 seconds to wash the electrode.

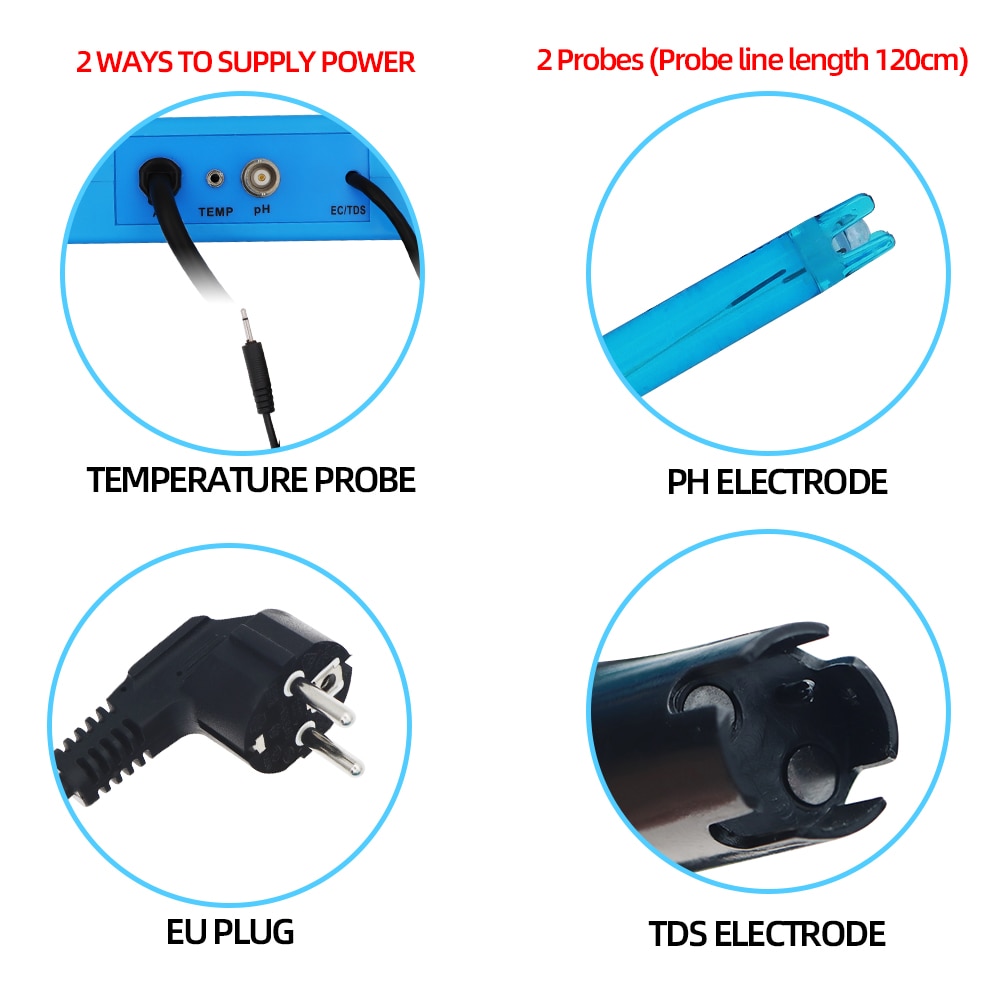

Product include:
1 * 3 in 1 Water Quality Tester with TDS Electrode
1 * pH Electrode
1 * Temperature Electrode
2 * Suction Cups
4 * Self-tapping Screws
1 * Mini Screwdriver
1 * User Manual
