12V 24V CTB007 CAN Tester 16 Pin Break Out Box Detection CAN Bus Circuit Tester Vehicle Diagnosis On-Board Diagnostics Tester

Description:
This is a CAN circuit tester that compatible with 12 and 24 volt systems, 16 pins design can achieve quick connect when during the vehicle maintenance diagnosis. If you are looking for this tool, come and have a try, it will not let you down.

Features:
This is a CAN circuit tester that compatible with 12 and 24 volt systems, has a wide applications.

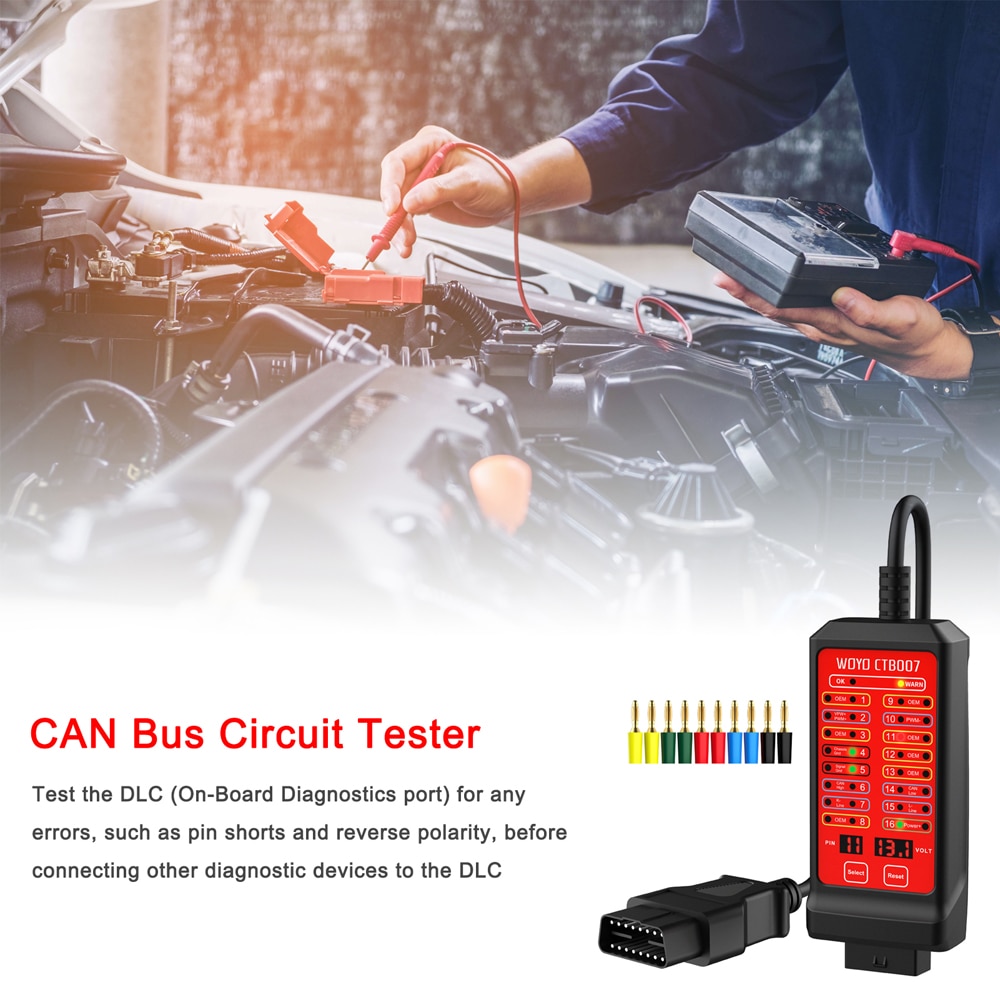

Test the DLC (On-Board Diagnostics port) for any errors, such as pin shorts and reverse polarity, before connecting other diagnostic devices to the DLC.
Real-time display of communication signals (such as communication protocol signals) on the assigned pins, which can quickly locate faults and replace the voltage measurement function of digital multimeters.

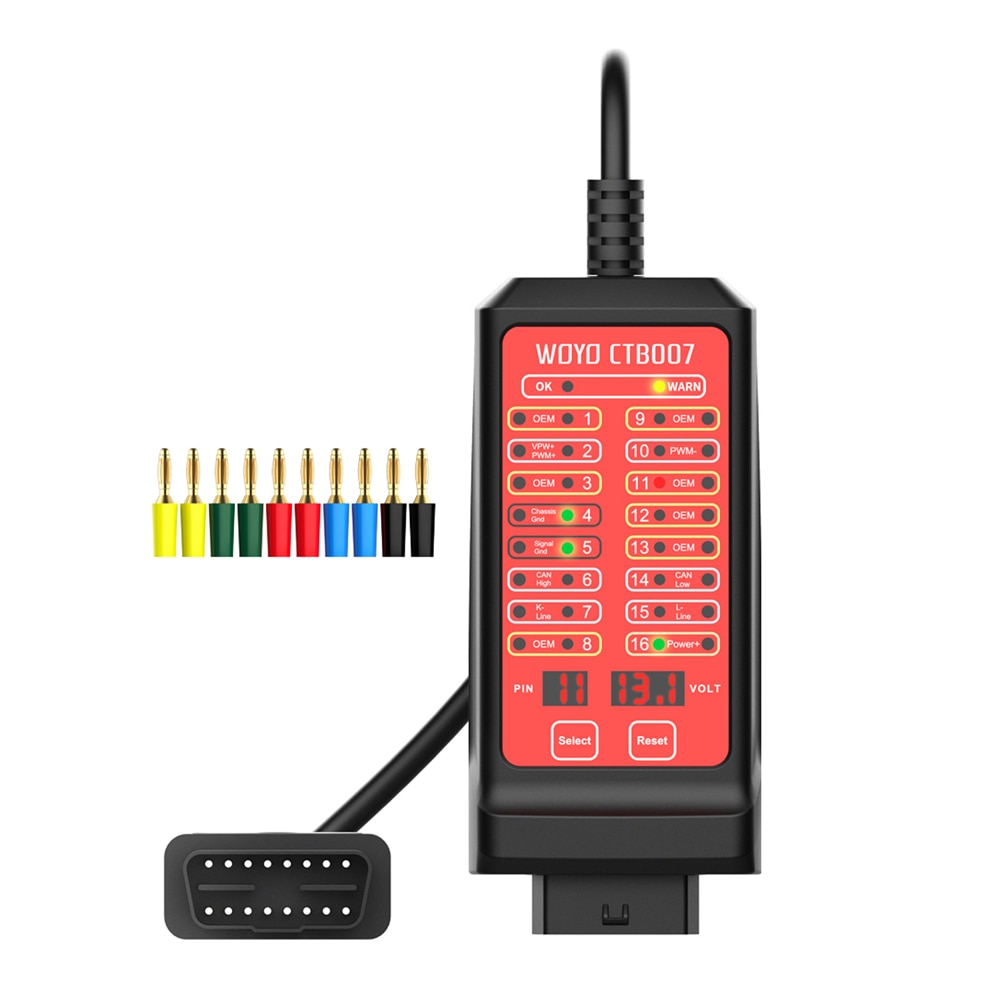

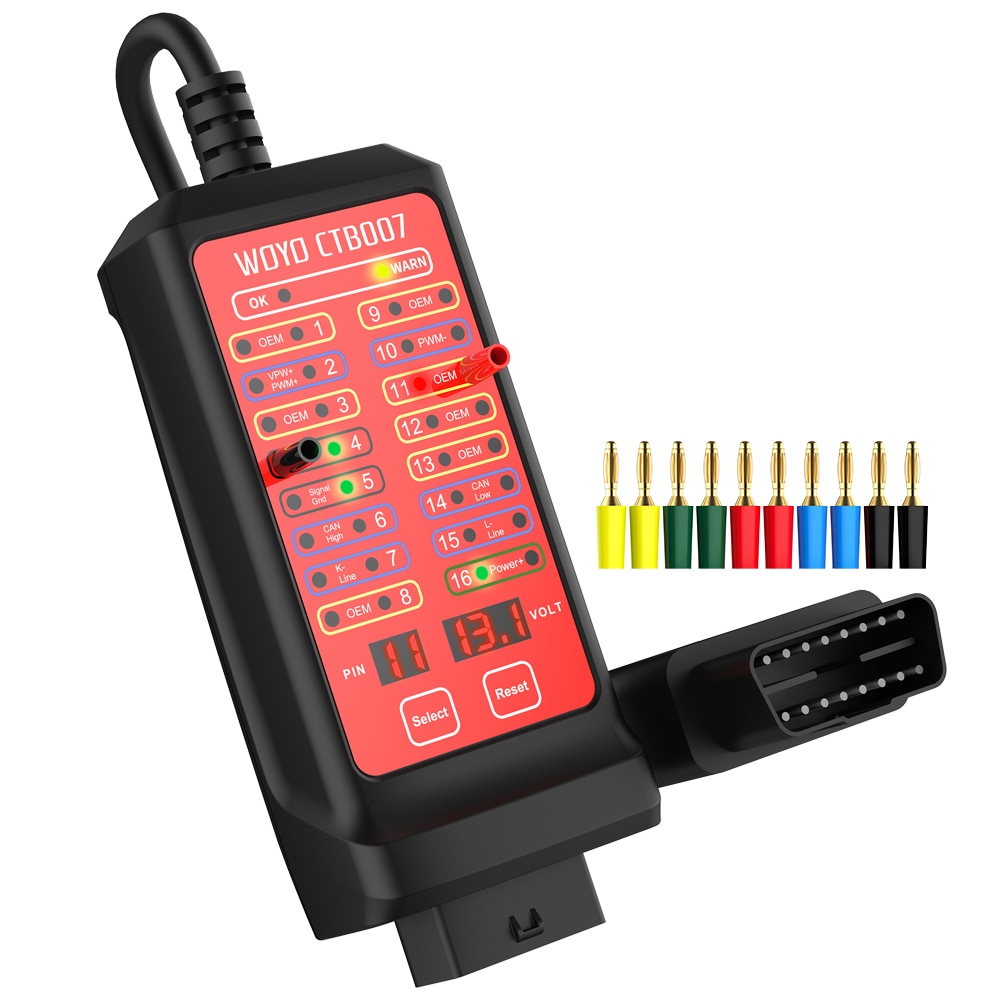

16 Pin Design: Quickly connect 16 pins during vehicle maintenance and diagnosis.
Monitor the On-Board Diagnostics input voltage when burning the module, and alarm for high and low voltage.

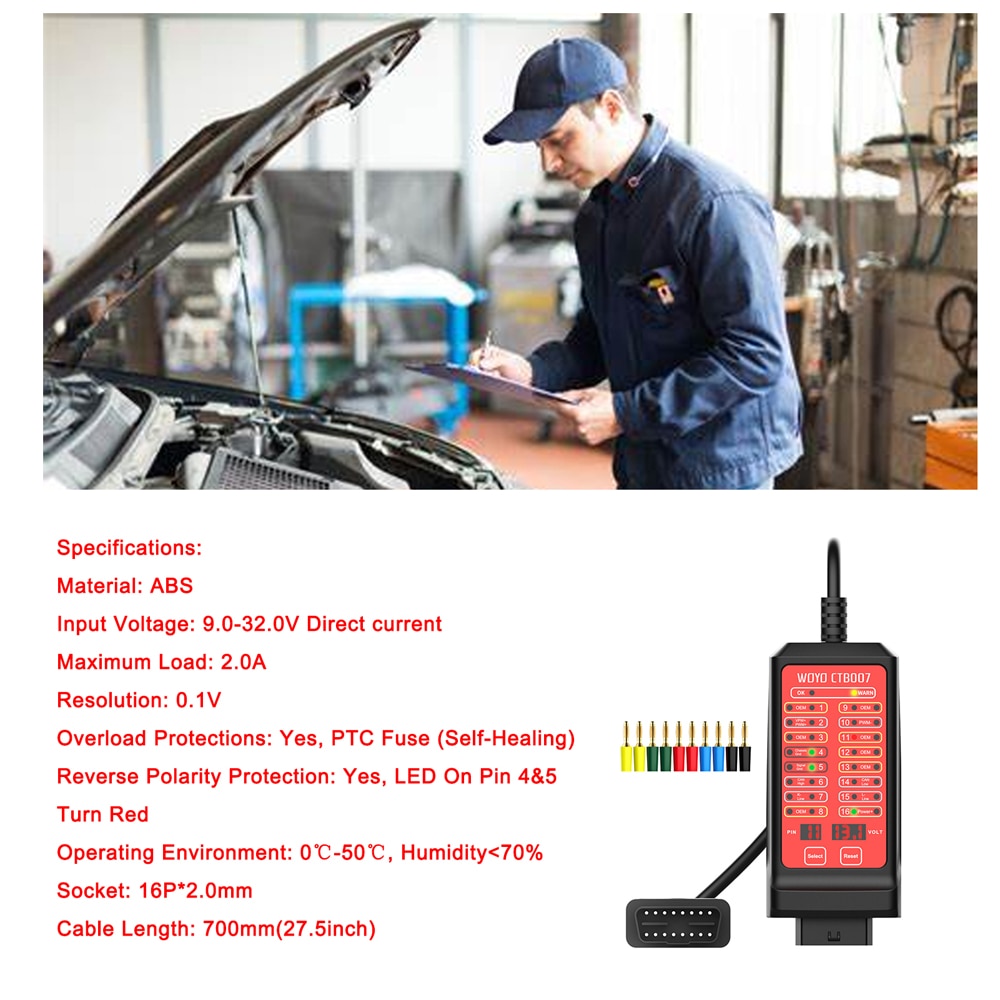

Specifications:
Material: ABS
Input Voltage: 9.0-32.0V Direct current

Maximum Load: 2.0A
Resolution: 0.1V
Overload Protections: Yes, PTC Fuse (Self-Healing)
Reverse Polarity Protection: Yes, LED On Pin 4&5 Turn Red
Operating Environment: 0℃-50℃, Humidity<70%
Socket: 16P*2.0mm
Cable Length: 700mm(27.5inch)
Package size: 190 * 130 * 47mm / 7.5 * 5.1 * 1.9in
Package weight: 350g / 12.3ounce

Packing list:
1 * CAN Bus Circuit Tester
