Original Launch EZdiag M-Diag Lite OBDII Code Reader for IOS/Android X431 IdiagEasydiag Replacement

Launch EZdiag M-Diag Lite OBDII diagnostic tool ,is small and portable ,but powerful function,including special function.It is for IOS/Android devices.
Item No. COBD2949 Price Down Notice
Out of Stock
Price:
US$289.00/ piece
Discount Price:
US$258.79/ piece 10%
Quantity:

Shipping:
Express Shipping Service
Estimated delivery time: 3-15 working days.See details »
Returns:
Return for refund within 7 days,buyer pays return shipping.Read details »
Support:
Online Chat WhatsApp Skype Ask a question

Original Launch EZdiag M-Diag Lite OBDII Scanner for IOS Android With Built-in Bluetooth

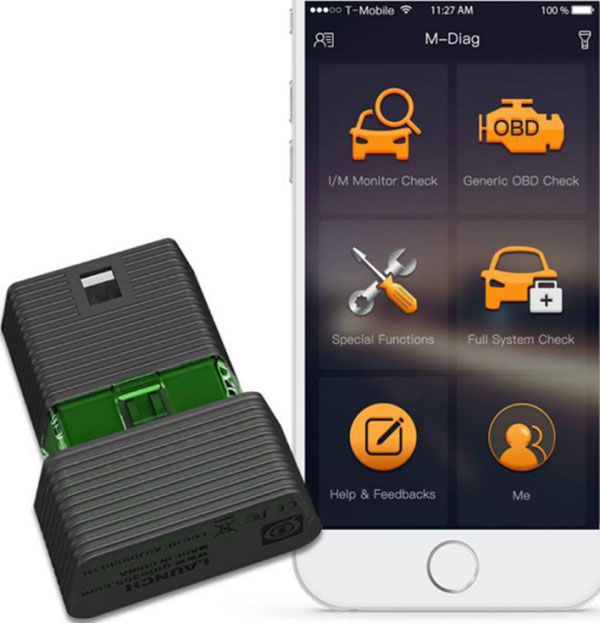

Launch M-Diag connection


Launch X431 M-diag Lite Language : English, Chinese, Spanish, French

Launch X431 M-diag Lite Update: update at Launch golo official site: www.goloiov.com

Small and portable
Light and small OBDll device, easy to handle;
Plug and play through Bluetooth connection with smart phone

Widest carline software coverage

Supports the generic OBD, CAN bus, and proprietary protocols of over70 car manufacturers and2, 500 car models;
Support multiple special function software and actuation tests incl. Oil / Service reset, ABS bleeding, IMMO & key programming, throttle body adaptation, brake pads, steering angle reset, battery matching, DPF regeneration, Injector coding

Economical but powerful
Options to purchase manufacturer specific carline software based on needs
Full-system diagnostics including bl-directional capabilities

LAUNCH M-Diag Lite Features

I/M Readiness Monitor
Read/clear DTC’s
Read Freeze Frame Data
Read and Graph Data Stream PID’s
Full System Scan *
Actuation Tests *
Special Functions added*

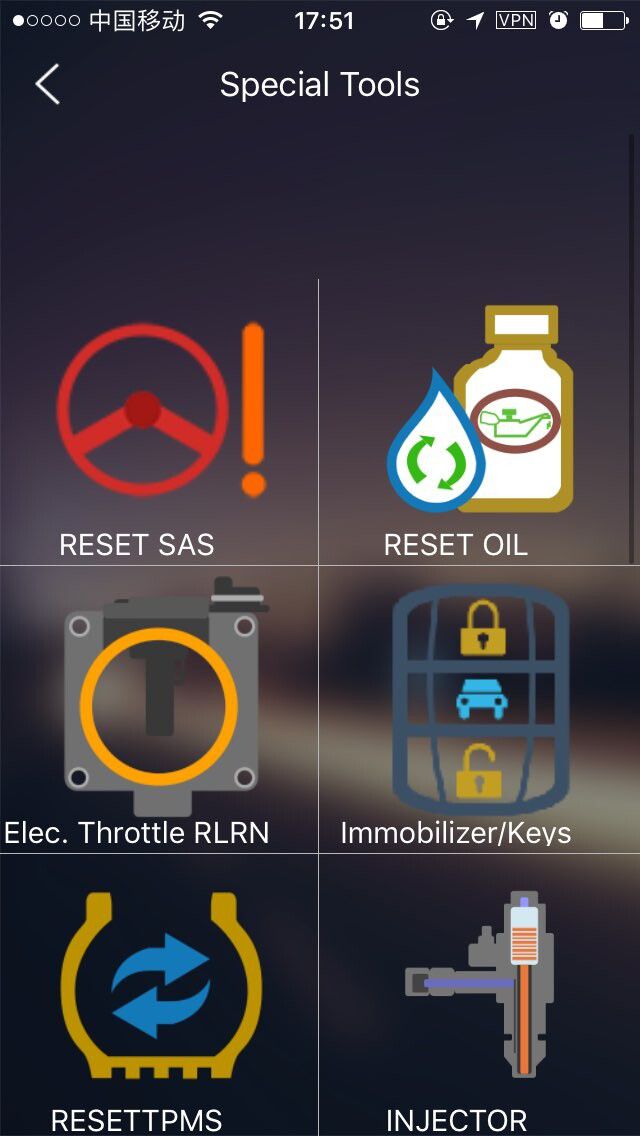

launch-m-diag-special-functions-1

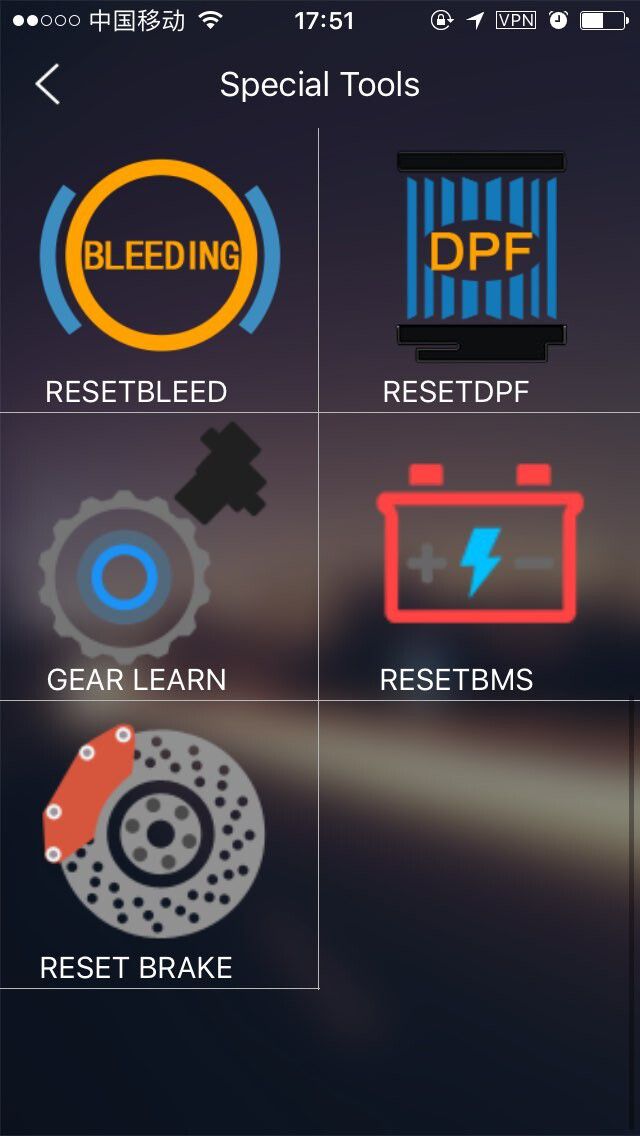

launch-m-diag-special-function-2
* with manufacturer specific carline software

Launch M-Diag Lite Software List:
Product Software for Vehicles Grade Software Number Detailed vehicle brands and software Price/Unit (USD) Update Price (USD)/Unit
M-Diag Least Expensive Vehicles 17 GAZ, VAZ, Great Wall, Chery, Daihatsu, Suzuki, Isuzu, BYD, PROTON, Luxgen, PERODUA, Daewoo, Guangzhou Automobile Trumpchi, Geely 34.95
28.95
Economy Vehicles 30 Hyundai, Kia, Mitsubishi, SUBARU, Mazda, Nissan, Toyota, Renault, Dodge, DACIA, Ford, Chevrolet, GM, Holden, Peugeot, SAAB, SMART, Volkswage, Fiat, ROVER, Opel, Vauxhall, SKODA, Citroen, SEAT, Honda, Buick, Chrysler, Jeep, Ssangyong 39.95
32.95
Luxury Vehicles 24 Mercedes-Benz commercial vehicles, AUDI, BMW, Mini, Rolls Royce, Porsche, Mercedes, Maybach, Bentley, Bugatti, Abarth, Lancia, Romeo, Volvo, Jaguar, Land Rover, Acura, Lexus, Infiniti, Lincoln, Cadillac, Maserati, Ferrari, Aston Martin 49.95 40.95
Special function 12 IMMO & key programming, Odometer ajustment, Oil / Service reset, ABS bleeding, TPS throttle body adaptation, brake pads, steering angle reset, battery matching, DPF regeneration, Injector coding, Tire Pressure Warning Light Reset, gear learning 39.95
32.95

Only when you register Launch M-Diag, you can see Tata, Maruti, Mahindra, Holden and Proton car brands.

Warm Notice:

Launch X431 M-Diag Lite Auto Diag scanner does not come with software in the package, only hardware.
But you can sign up on M-Diag APK.

M-Diag Lite available on the Apple App Store & Google Play Store:
Launch M-Diag qr code

LAUNCH M-Diag Lite Specs:

Vehicle port Standard OBDII port
Bluetooth BT 2.0
Typical power consumption (12V) quiescent current 25mA
Device operating current 35mA
Operating Temperature -20 to 55℃ ( -4 to 131°F )
Storage Temperature -30 to 70℃ ( -22 to 158°F )
Storage humidity < 80%
Operating humidity < 60%
Dimensions 48mm × 24mm × 65mm
Net Weight 55g
Operating voltage Vehicle battery DC entry 9 to 15V

Package List:

1pc x M-Diag Lite Connector
1pc x Password Paper
1pc x M-Diag Lite Quick Start

Launch M-Diag Lite OBDII Scanner Registration & Activation Guide

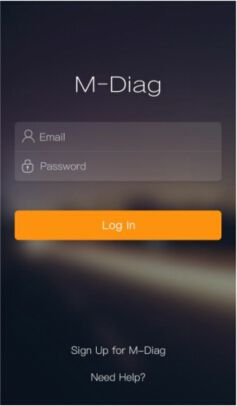

1.Launch M-Diag Lite User registration and login

Enter your email address to apply for a user account
launch-m-diag-lite-1

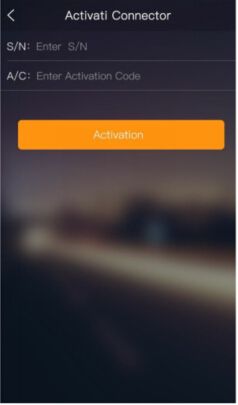

2.Launch M-Diag Lite device activation
Enter the S/N and A/C(Activation Code)in the password envelope to active the M-Diag device.
launch-m-diag-lite-2
3.Launch M-Diag device installation

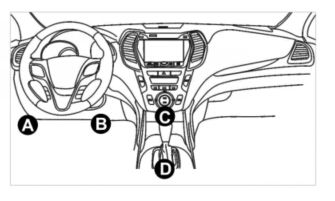

Step 1:Find the OBDII port,which is usually located underneath the dashboard;
Step 2:Plug the M-Diag into the OBDII port of the vehicle and the LED indicator will light up to show the operating status.
launch-m-diag-lite-3
Note:
1.Remove the M-Diag device after using.Do not leave it in the OBDII port.
2.Turn off the ignition before plugging or unplugging the M-Diag device.

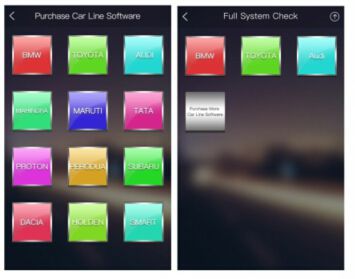

4.Purchase diagnostic software

Step 1:TAP ON "Purchase more car line software" to eter the car line software list.
Step 2:Select the car line software,tap on the vehicle icons to see more car line software details.
Step 3:Tap on "Purchase" to enter the purchase confirmation page.
Step 4:Tap on "Pay" and follow the instructions to complete payment.
Step 5:Enter the car line software download page after payment complete.
launch-m-diag-lite-4
