ANENG 618A/618B/618C Digital Multimeter Smart Touch DC Analog Bar True RMS Auto Tester Professional Transistor Capacitor NCV Testers Meter

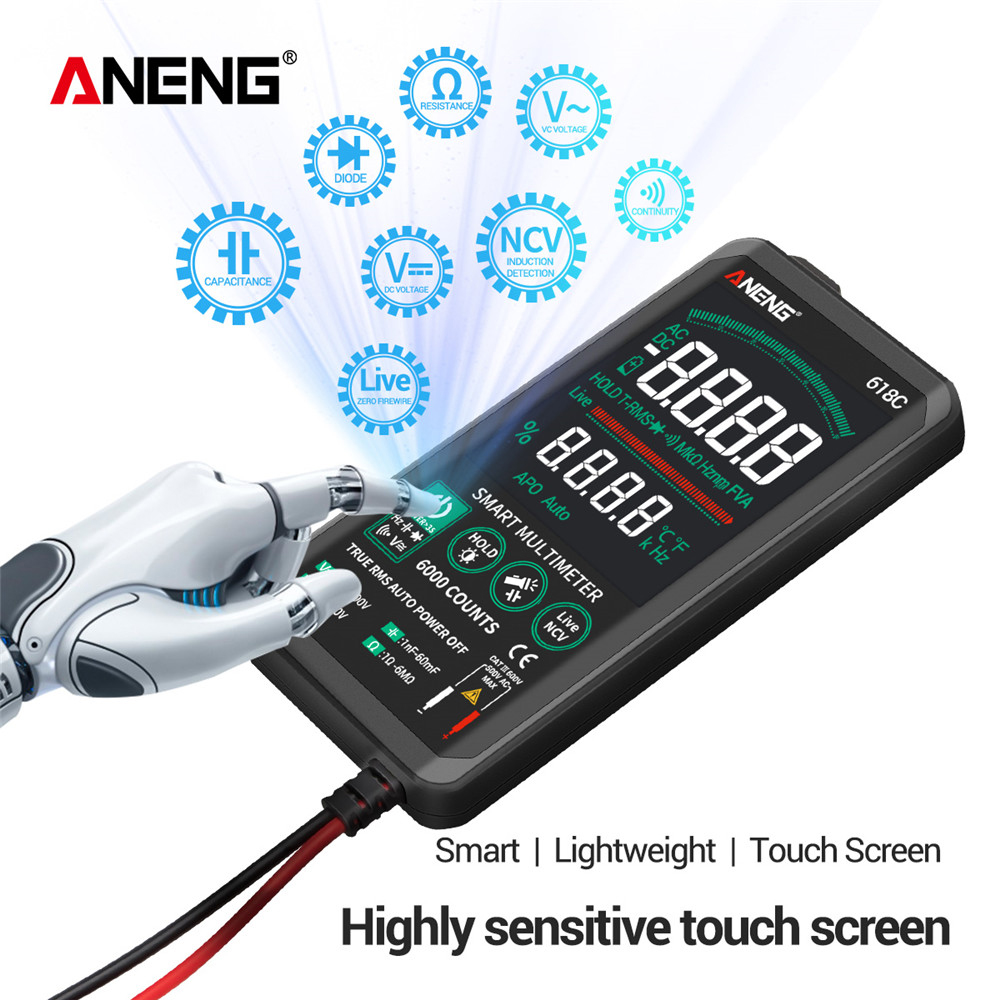

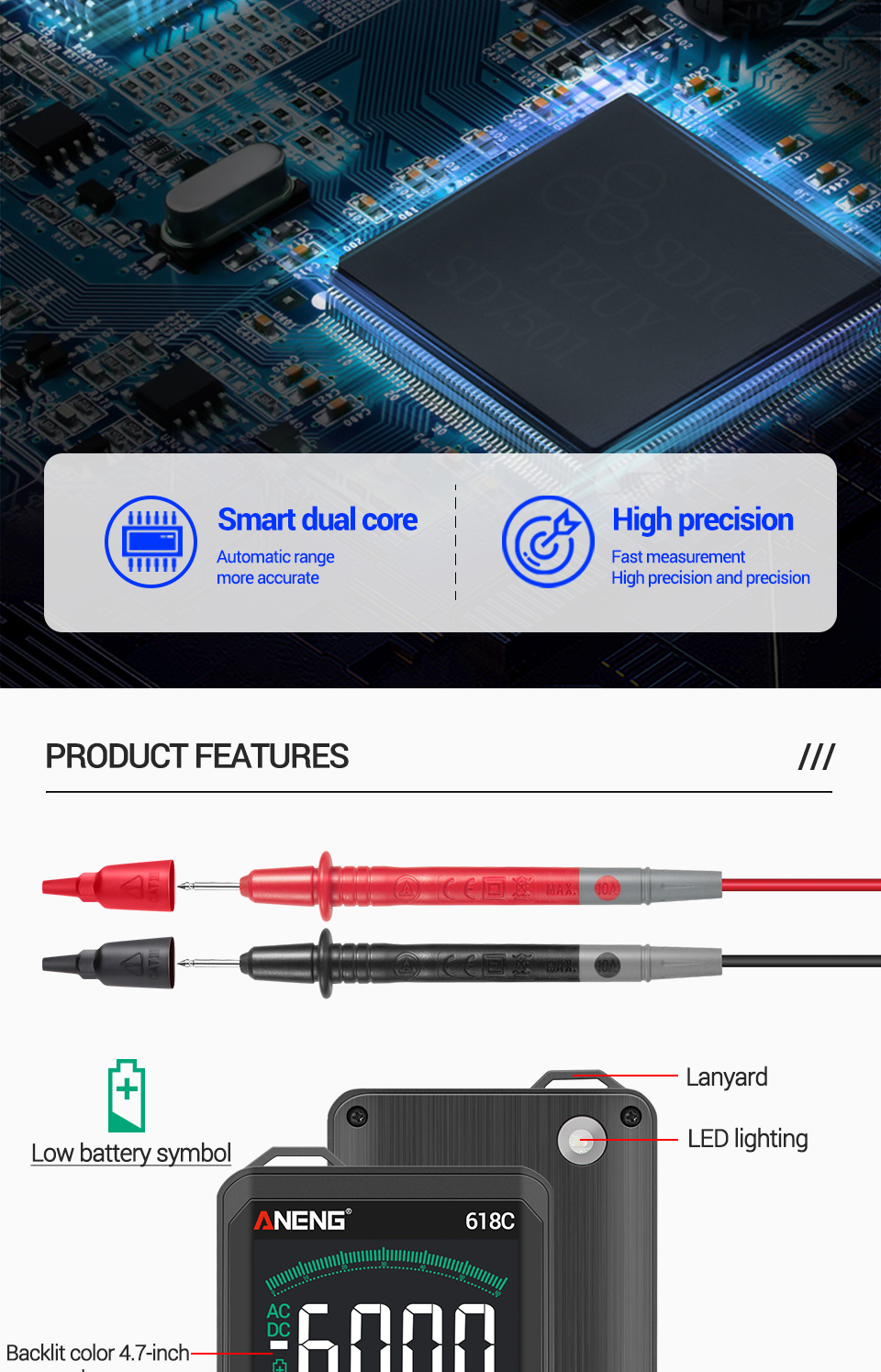

618C is a brand new multimeter with a color touch screen, the screen is triple display LCD; main display, sub display, analog bar; the interface is simplified, Manual/Auto recognition measurement, and the measurement accuracy is high; the multimeter is small in size , easy to carry.

Features:
1-1. Display mode: triple display LCD; main display, sub display, analog bar;
1-2. Maximum display: 5999 (5 5/6) bit automatic polarity display;
1-3. Measurement method: double integral A/D conversion;
1-4. Sampling rate: about 3 times per second;
1-5. Over range display: The highest position shows "OL";
1-6.Continuous power operation function;
1-7. Low voltage display
1-8. Working environment:(0～40)℃,relative humidity＜80%;
1-9. Power: AAA 2* 1.5V battery(Not included);

Specifications:
2-1. Accuracy: ±(a% of reading + least significant digit), to ensure accuracy Ambient temperature: (23±5)℃, relative humidity <75%

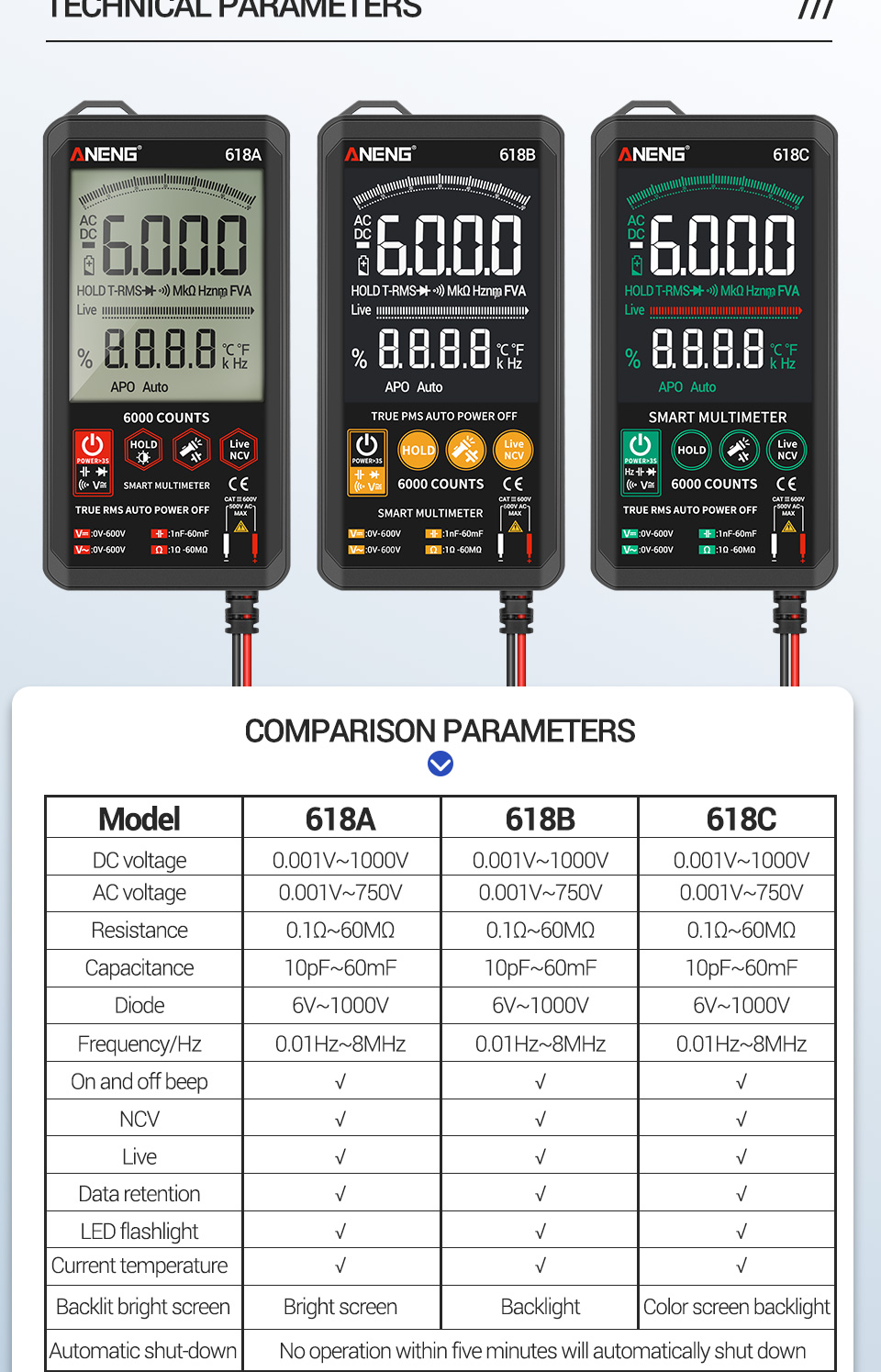

2-2. Performance (Note "▲" indicates that the meter has this function)

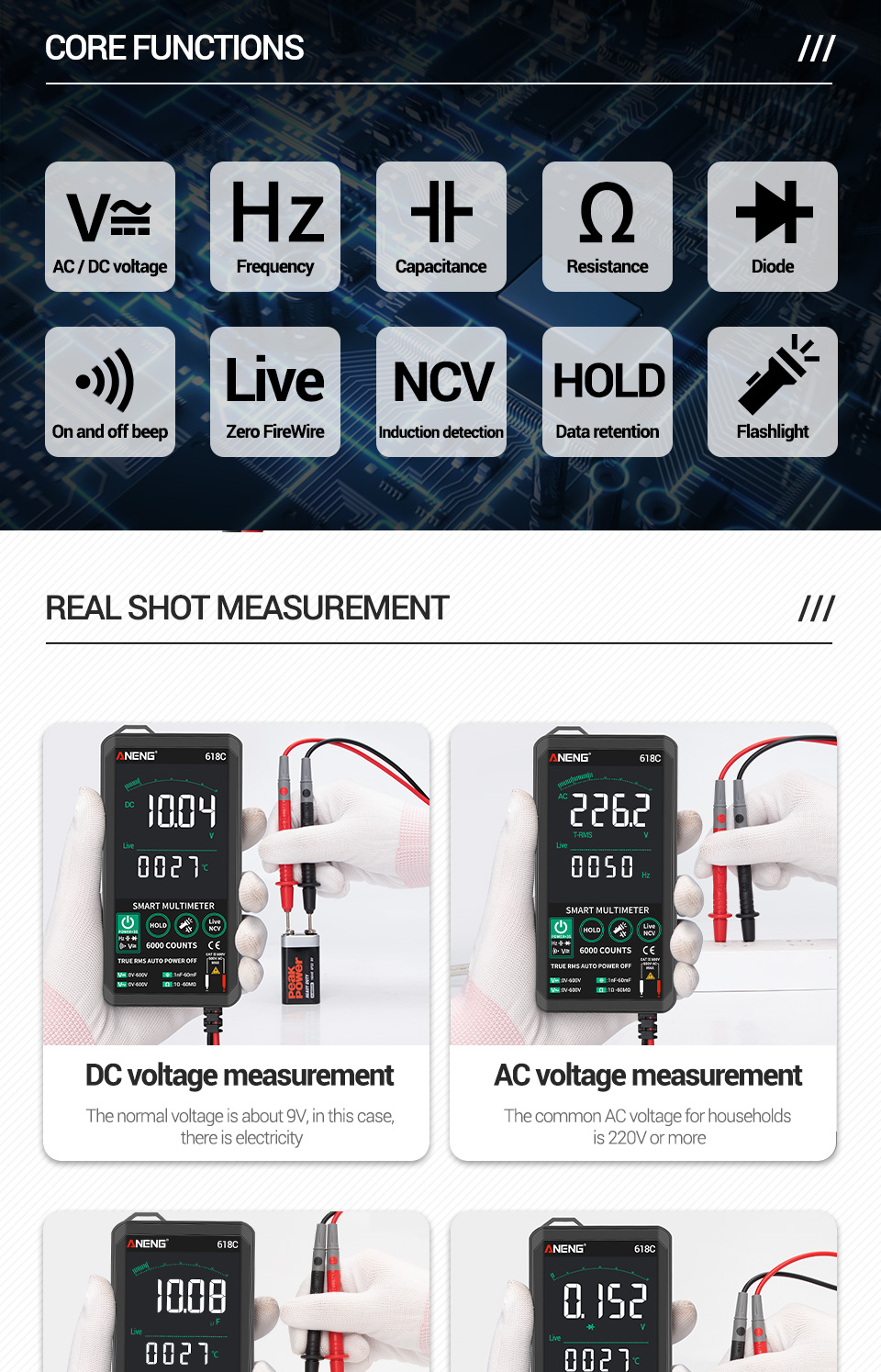

Function	618A	618B	618C
DC voltage DCV	▲	▲	▲
AC voltage ACV	▲	▲	▲
Resistor	▲	▲	▲
Diode / On-Off Test / Capacitor	▲	▲	▲
Frequency F	▲	▲	▲

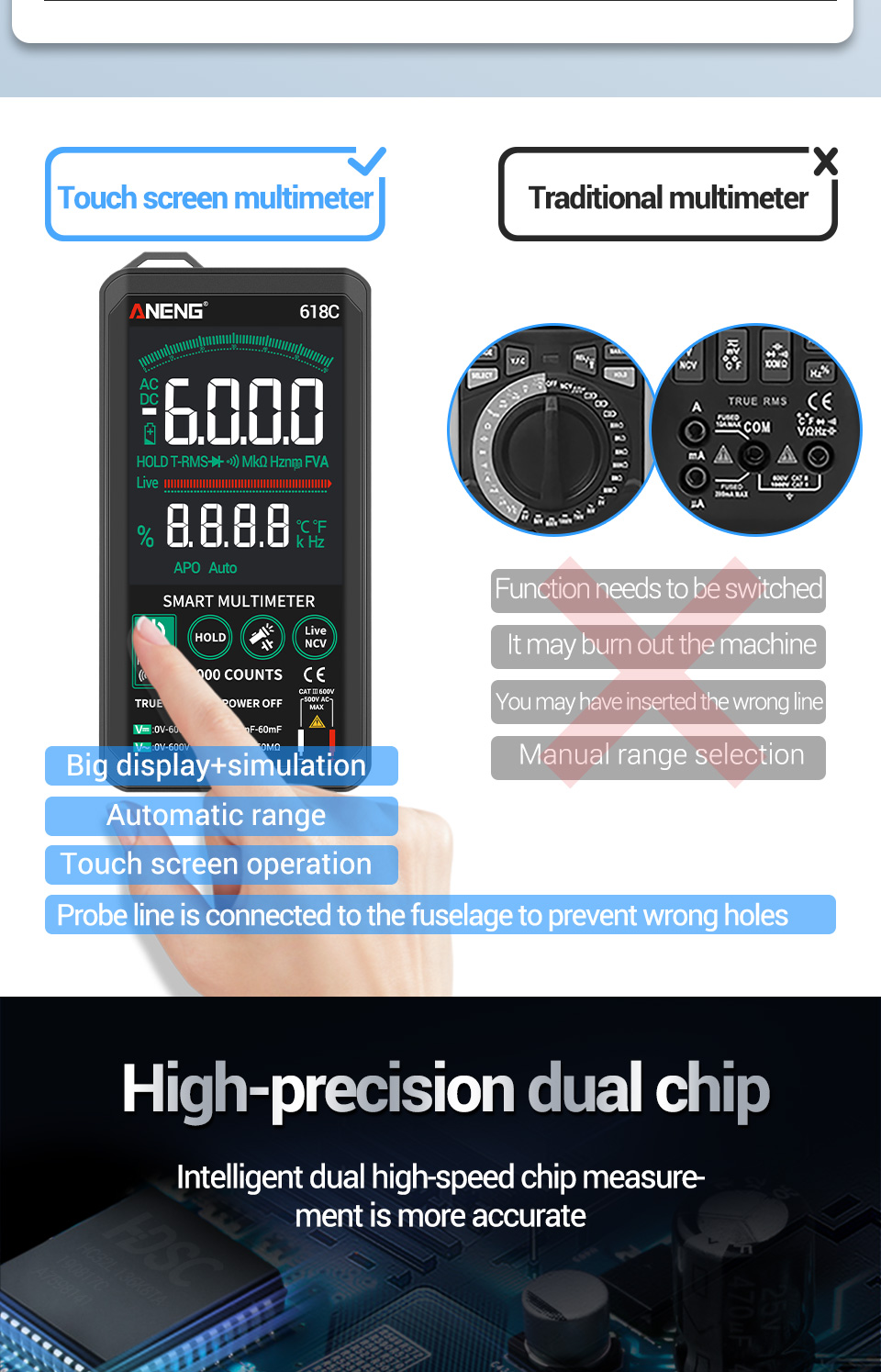

Touch key	▲	▲	▲
Continuous power operation	▲	▲	▲

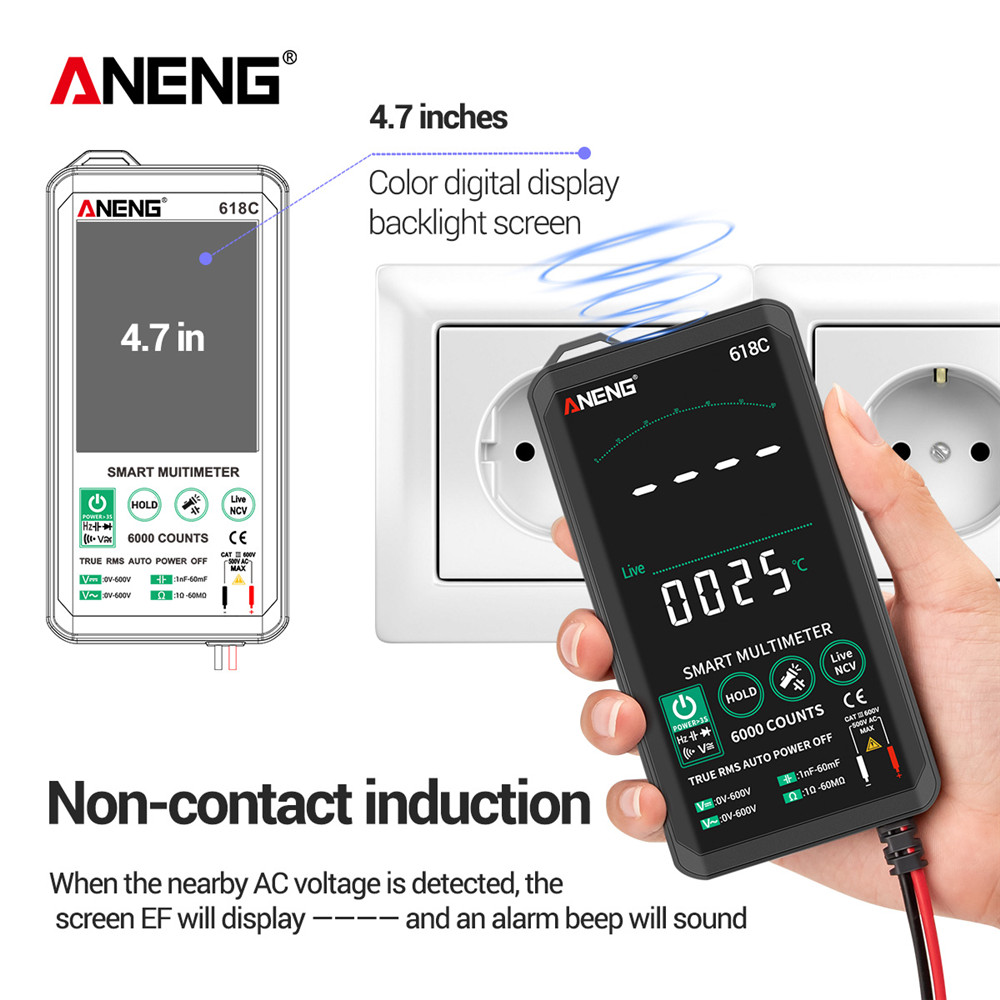

NCV	▲	▲	▲

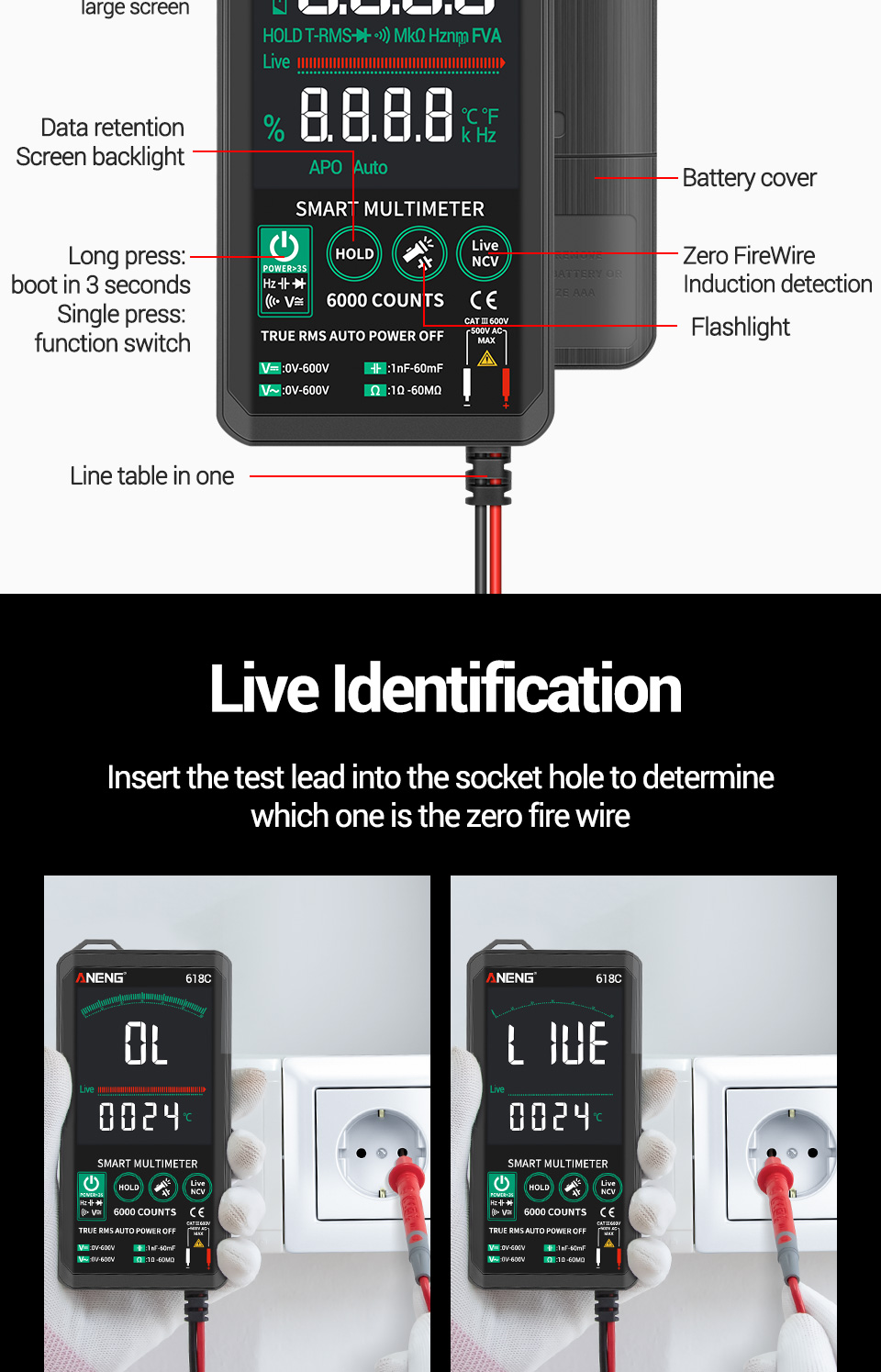

Zero line / Fire line test	▲	▲	▲
Full unit symbol	▲	▲	▲
Backlight manual/Auto off	▲	▲	▲
True RMS measurement	▲	▲	▲
Temperature(℃/℉)	▲	▲	▲

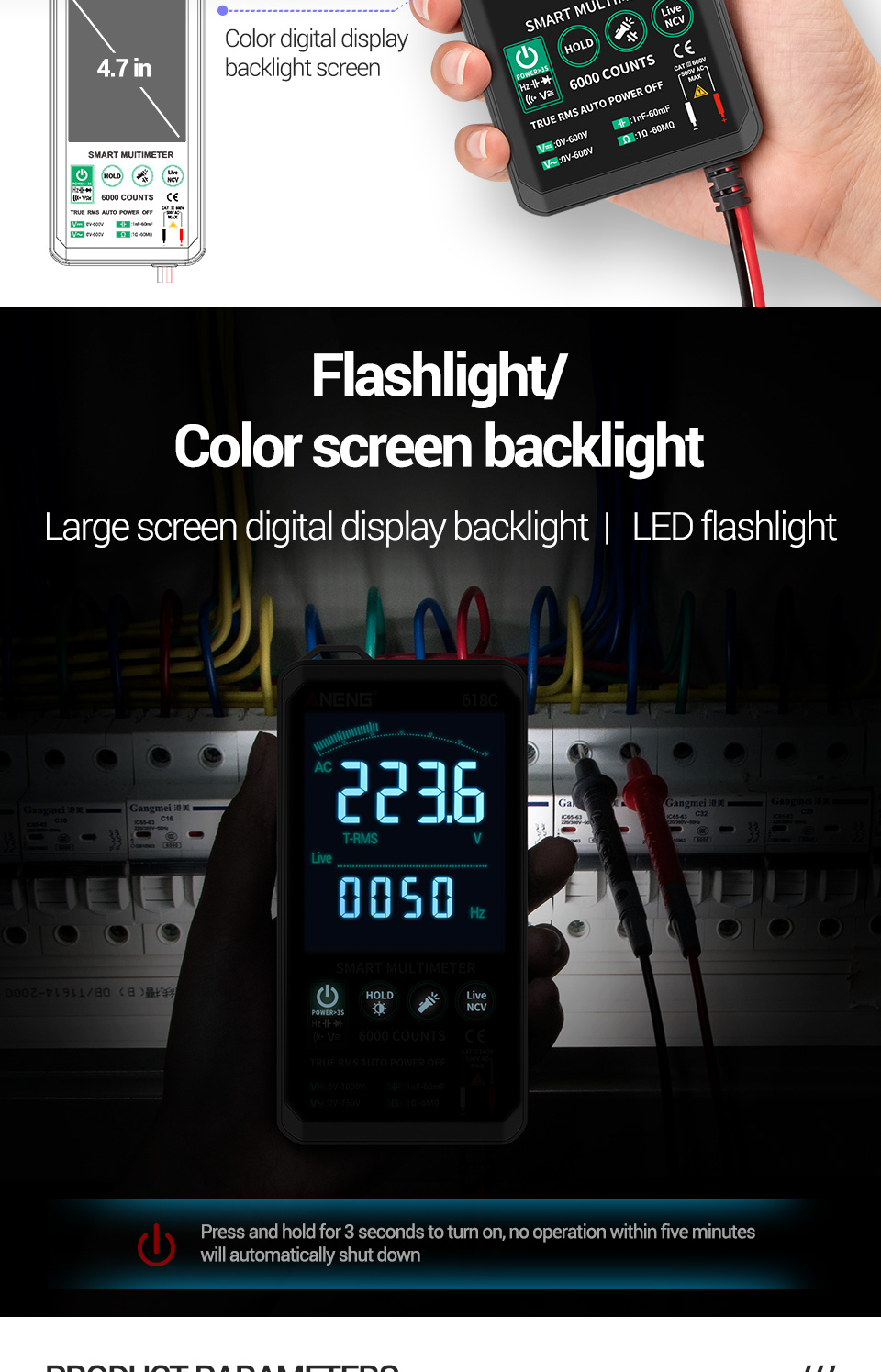

Flashlight lighting	▲	▲	▲

	Range	Accuracy
DCV / ACV	6V/60V/600V	±(0.5%+3)
DCV / ACV	DC1000V/AC750V	±(0.8%+10)
Resistance	600Ω	±(0.8%+5)
	6kΩ/60kΩ/600kΩ/6MΩ	±(0.8%+3)
	60MΩ	±(2.5%+3)
Capacitance	10nF/100nF /1uF/10uF/100uF/1mF/10mF	±(3.5%+20)
	60mF	±(5%+3)
Frequency	10Hz/100Hz/1kHz/10kHZ/100kHz/1MHz/10MHz(only 618C)	±(0.1%+3)

Packing List:
1 * 618A/B/C Multimeter with Test Leads

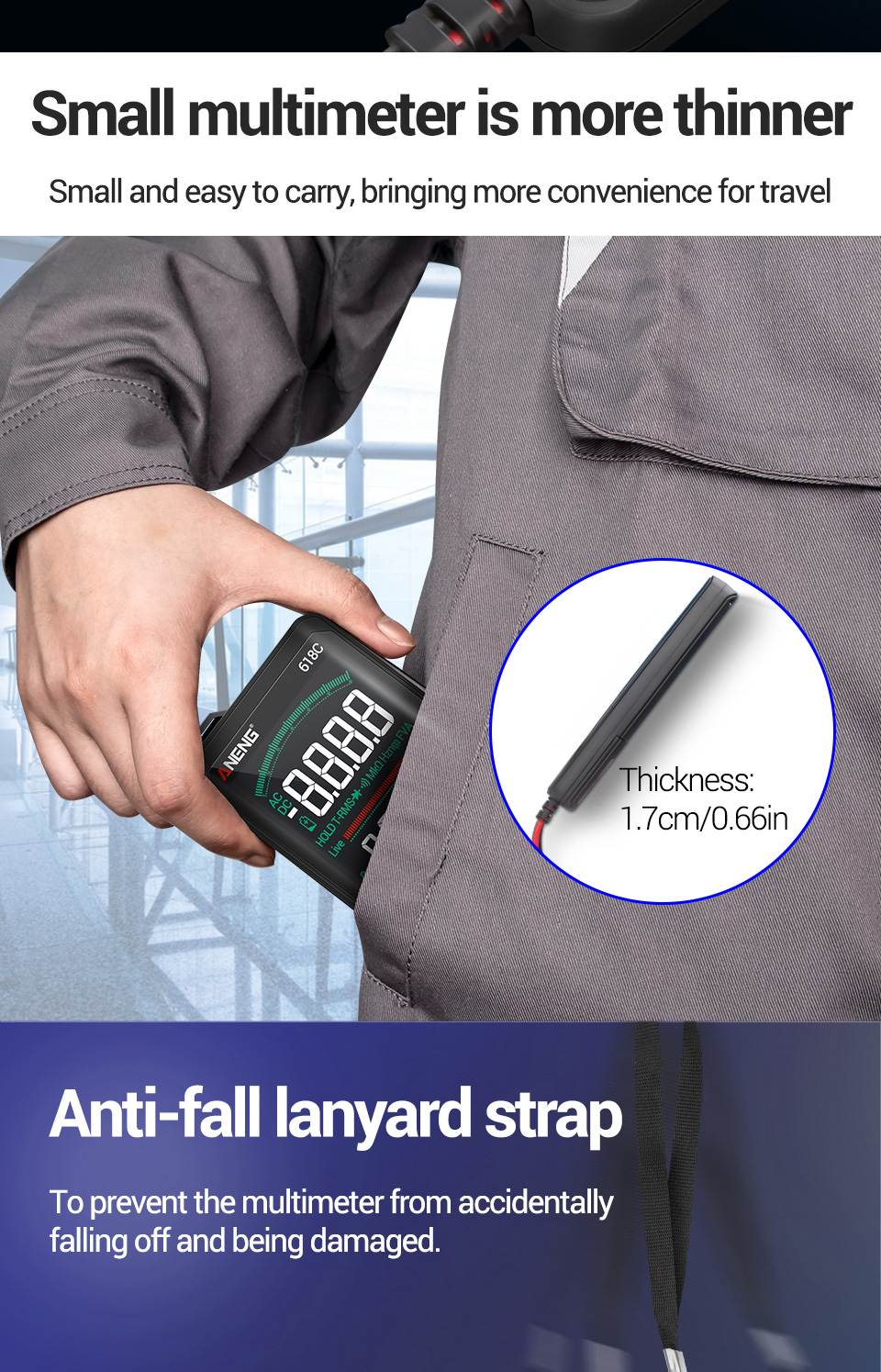

1 * Lanyard
1 * User Manual
