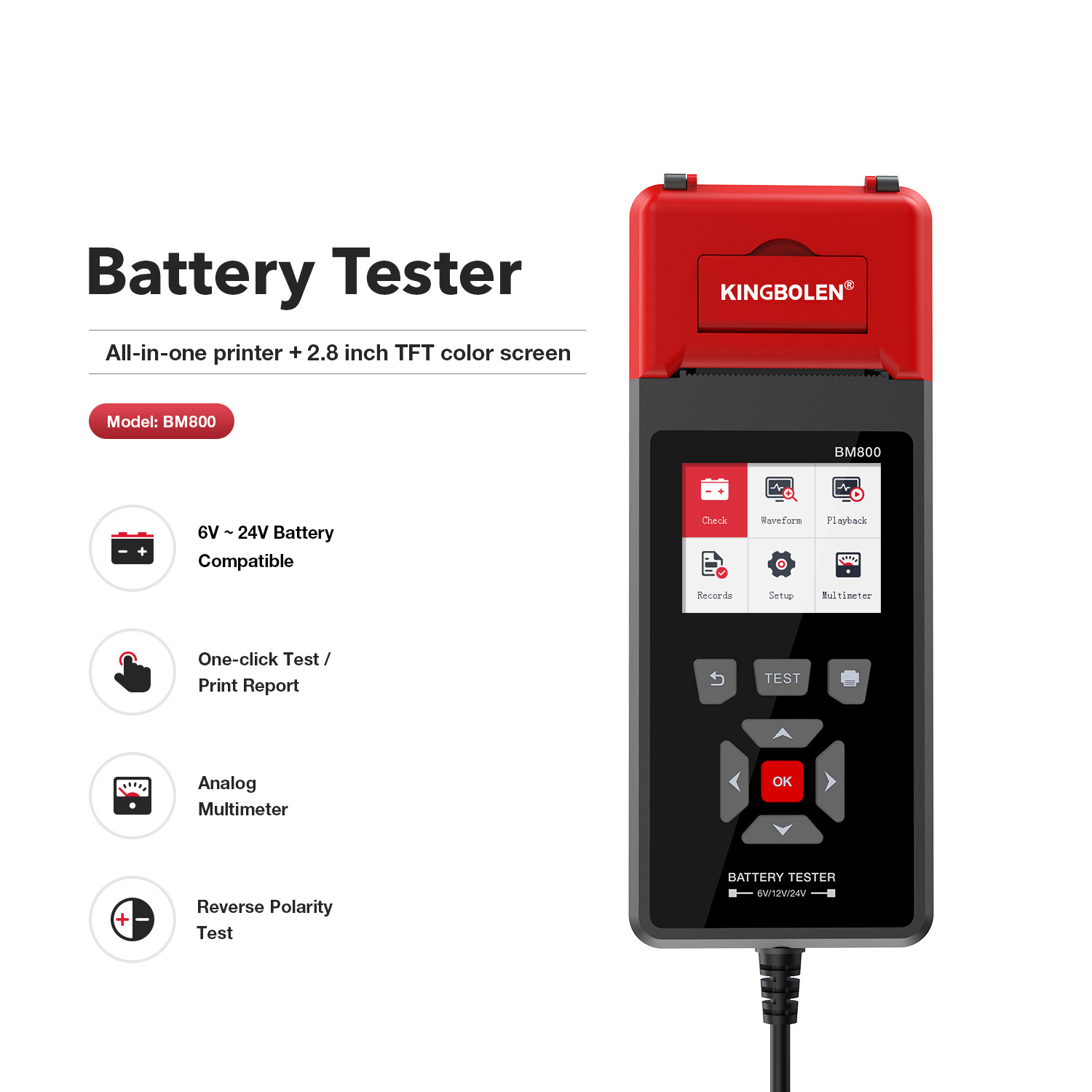

BM800 Color Screen Professional Car Battery Tester with Printer 6V 12V 24V Voltage Charger Analyzer Charging Cricut Load Tools
BM800 is the most high-end battery diagnostic equipment with printer function that we have launched at present, with powerful functions and simple operation.
1. 【Powerful Diagnostic Function】BM800 support Battery Test, Startup Test, Charging Test, Load Test, Waveform Test , Battery Life and Power Test, Waveform Monitoring, Waveform Playback, 10 Waveform Record, Screenshots Function, Theme Selection, Battery Multimeter, Built-in Clock, Built-in Printer, Custom info Input, One-click Test, One-click Print, Reverse Polarity Test, Life-time Upgrade.
2.【Color Screen & One-Click Data Printing】With built-in thermal printer, you can get a diagnostic receipt in seconds and share it with your customers, which only needs one press. With its color screen and unique pattern design, it will be easier to view data.
3. 【Support 10 languages】Russian, Portuguese, English, German, French, Spanish, Italian, Japanese, Polish, Chinese to meet your different needs.
4. 【Multi-language printing】BM800 not only supports diagnosis in 10 languages, but also supports printing in 10 languages.
5.【Reverse Polarity Test】BM800 does not distinguish between positive and negative poles, and can perform reverse connection test.
6. 【Real-time display of voltage fluctuations】you can view the current, minimum, and maximum voltages.

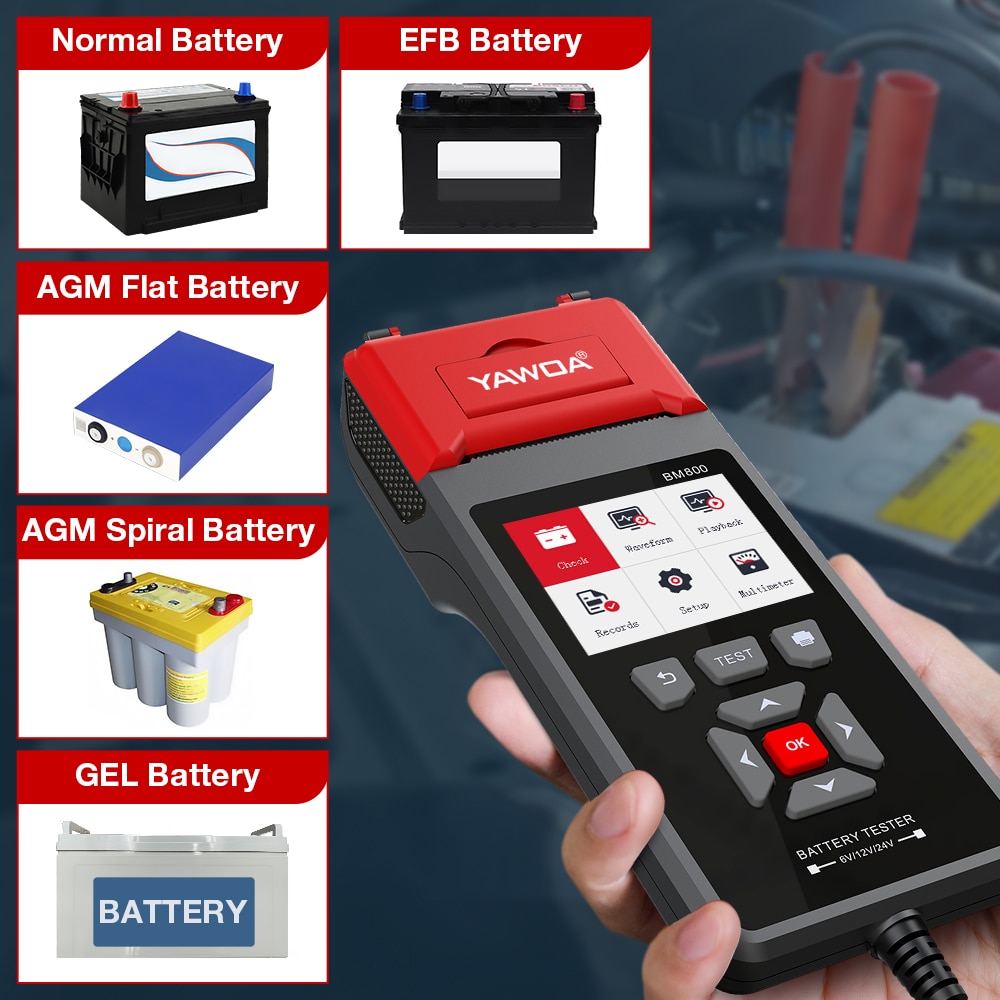

7. 【Support a variety of batteries】BM800 car battery tester support regular flooded, AGM flat plate, AGM spiral, GEL and deep cycle batteries.
8. 【Support 10 standards】CCA BCI CA MCA JIS DIN IEC EN SAE GB
9. 【Life-time Free Update】It support life-time Free Update
10.【Durable Case packaging】BM800 comes with durable box packaging, you can better protect your equipment.
BM800 not only supports diagnosis in 10 languages, but also supports printing in 10 languages. It is more intuitive and efficient than other devices that only print in one language.
* lf the starting voltage reading is greater than 9.6v ( for a 24V system, the reading is greater than16V ) , it means that the walking system is good.
* lf the starting voltage reading is less than 9.6v ( for a 24V system, the reading is less than 16V ), it means there is a problem with the starting system.
* Please check related parts such as connection points, wires and starters, and battery terminals forcorrosion.
* lf the voltage reading is greater than 15.0V ( for a 24V system, the reading is greater than 30.00-v ), please check the voltage regulator.
* lf the voltage reading is less than 13.3V ( for a 24V system, the reading is less than 26.60V), please check the connection points, wires and engine.
it is recommended to replace the Battery when the Battery life is less than 45%.
Check whether the battery has enough load capacity to run all electrical equipment such as playing car music etc.
This handy auto battery analyzer makes sure your summer road trips won’t end on a flat.

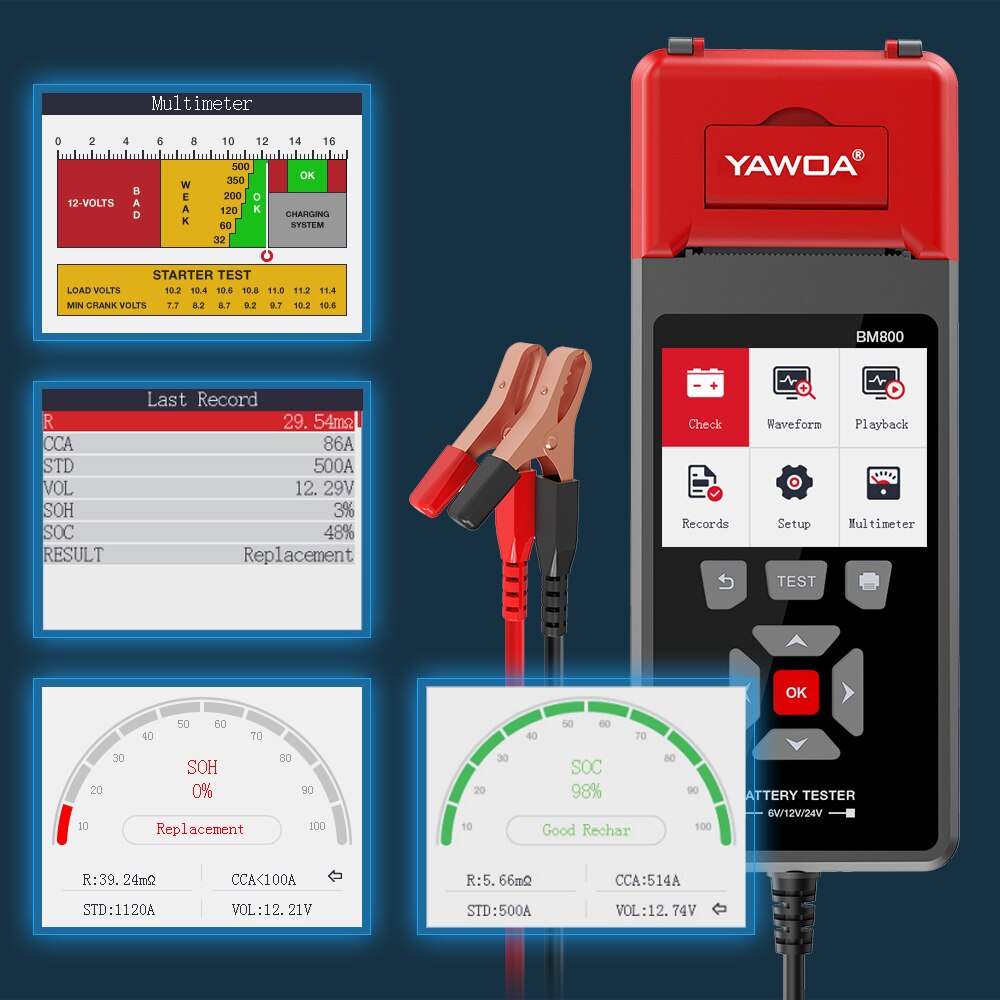

Simple and clear UI interface design, better experience during use
BM800 does not distinguish between positive and negative poles. Even if the positive and negative poles are connected incorrectly, the diagnosis can be carried out normally, and the battery and equipment will not be damaged.

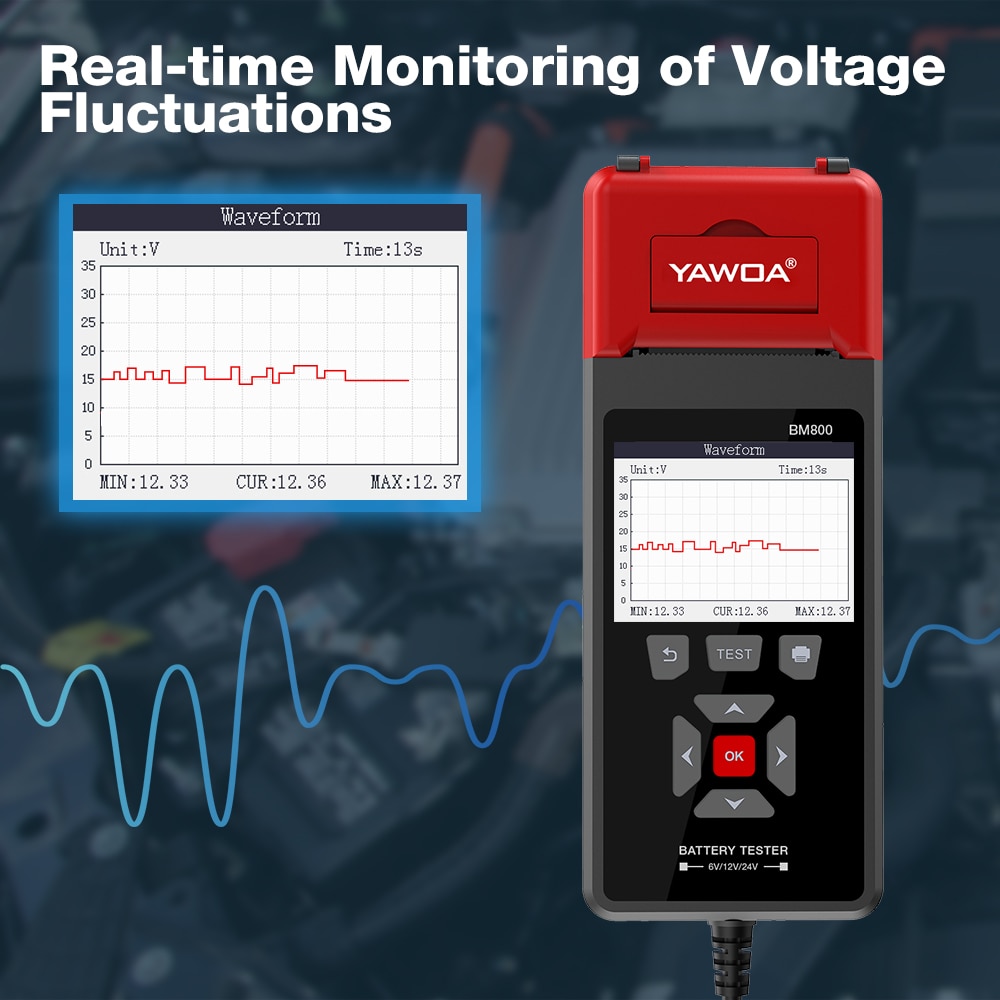

Real-time display of voltage fluctuations, you can view the current, minimum, and maximum voltages.
1. Automatic Storage: Can store 10 waveform monitoring records.
2. Waveform Feedback: Can view saved waveform data.
3. One-click clear: Delete all saved waveform data.

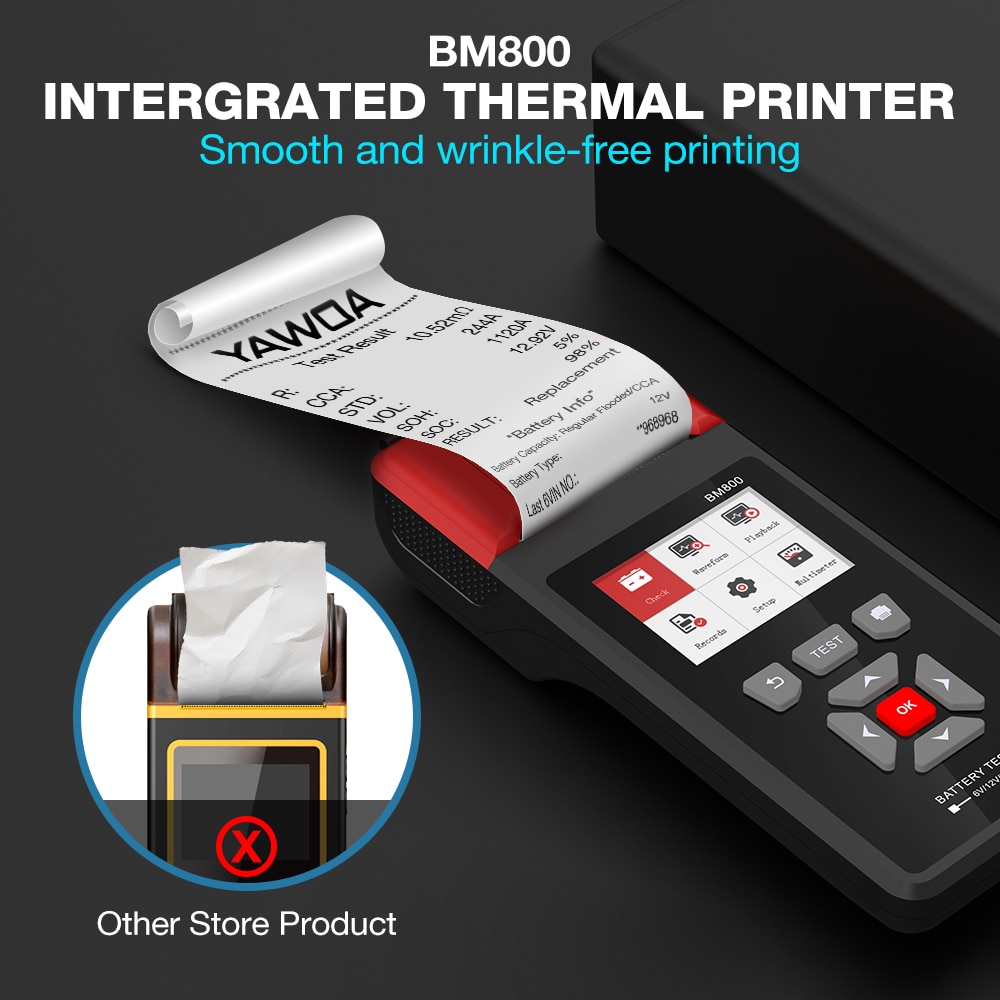

Support One-Click Printing: The built-in printer allows you to see battery information at a glance. Free three rolls of thermal paper. Simple operation, data visualization.
The special design inside the BM800 makes the printing function smoother.

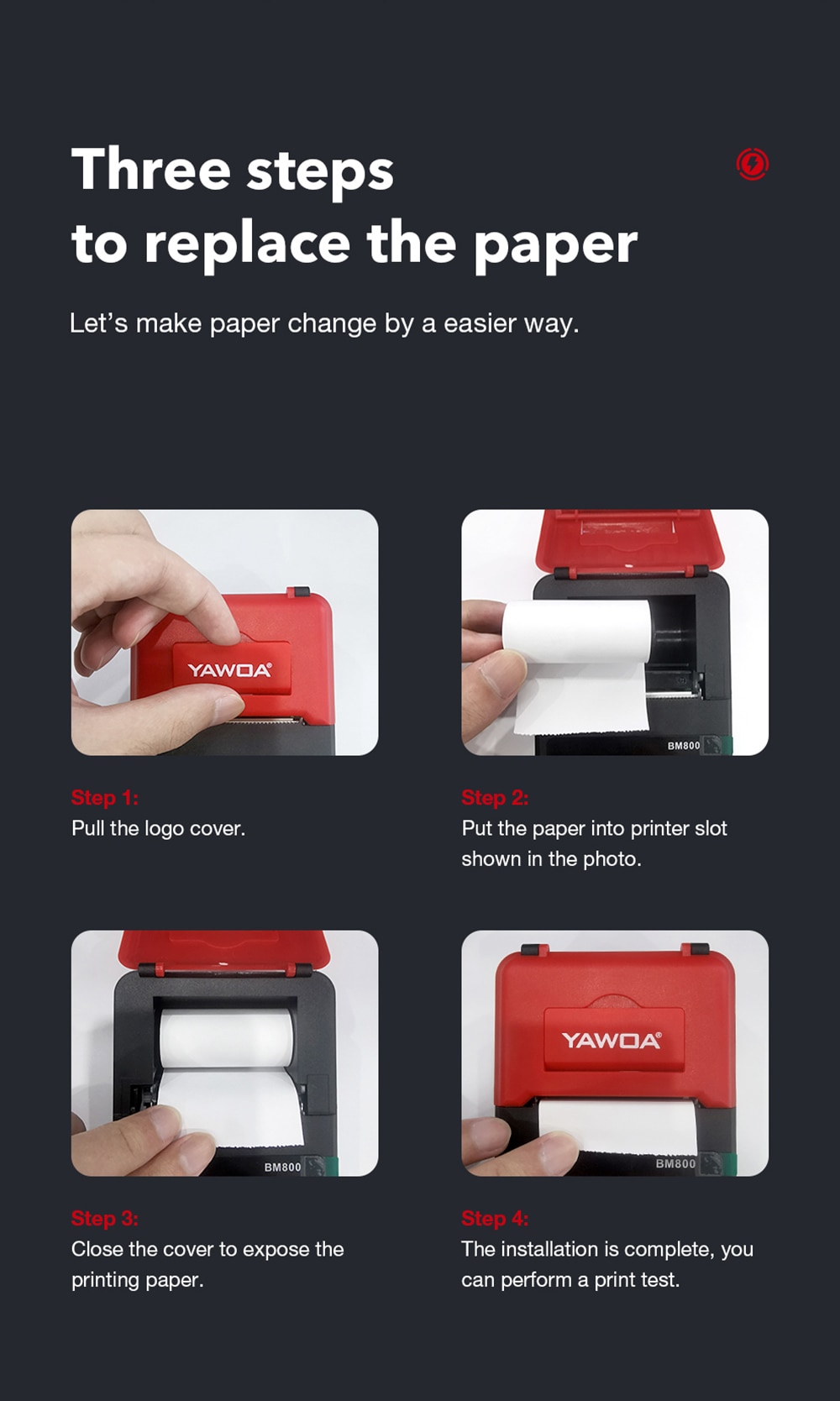

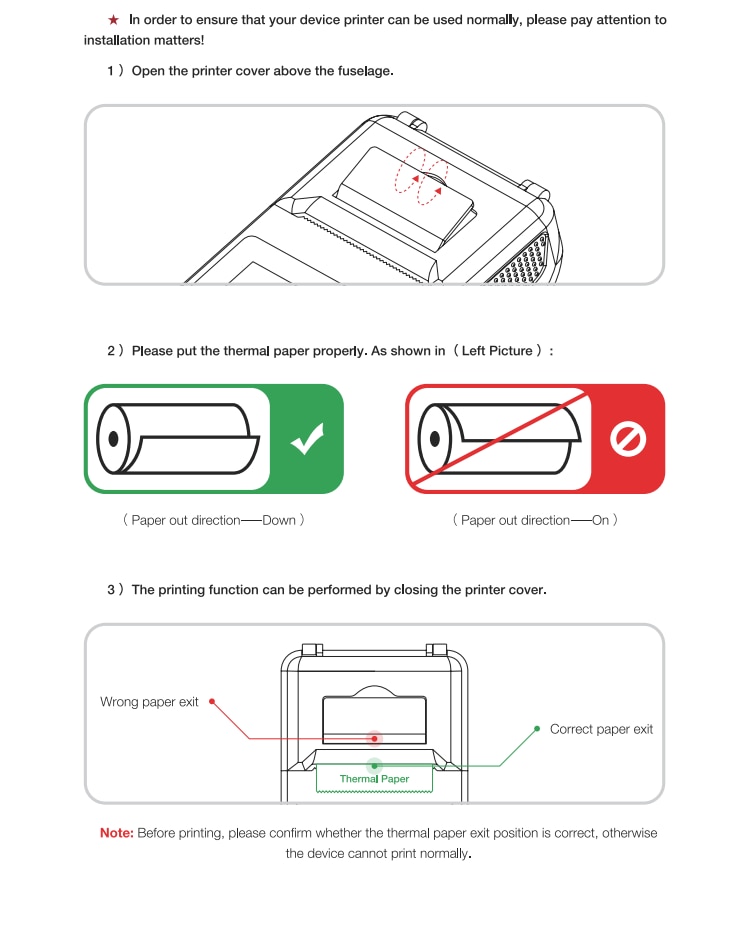

Step 1: Pull the logo cover
Step 2: Put the paper into printer slot shown in the photo.
Step 3: Close the cover to expose the printer paper.
Step 4: The installation is complete, you can perform a print test.

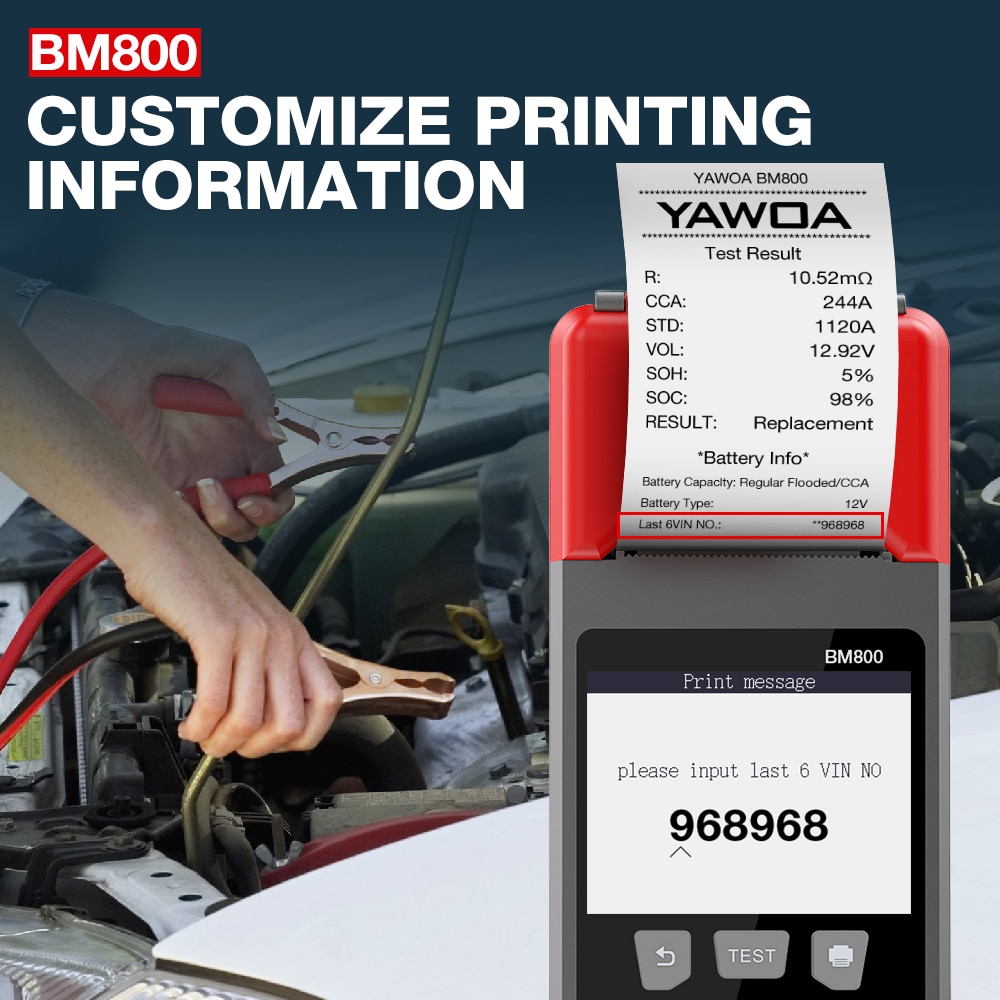

BM800 Custom printed information can be used to differentiate between different vehicle test results.
For example, a car mechanic can enter the license plate number on the device, and then print the test results. There will be license plate number information on the printed paper to prevent the test results of different vehicles from being mixed.
Just copy the upgrade files into the removable disk to finish the upgrade.
Multiple vehicle applications – passenger motorcycle, cars and duty Trucks
* Tests batteries from rated from 100 to 2000CCA.
* BM800 Battery Analyzer is dedicatedly developed to test 6V & 12V& 24V regular flooded, AGM flat plate, AGM spiral and gel batteries and 12V & 24V starting and charging system. It provides a quick, easy and affordable solution for technicians to check battery health and detect faults of starting and charging system.

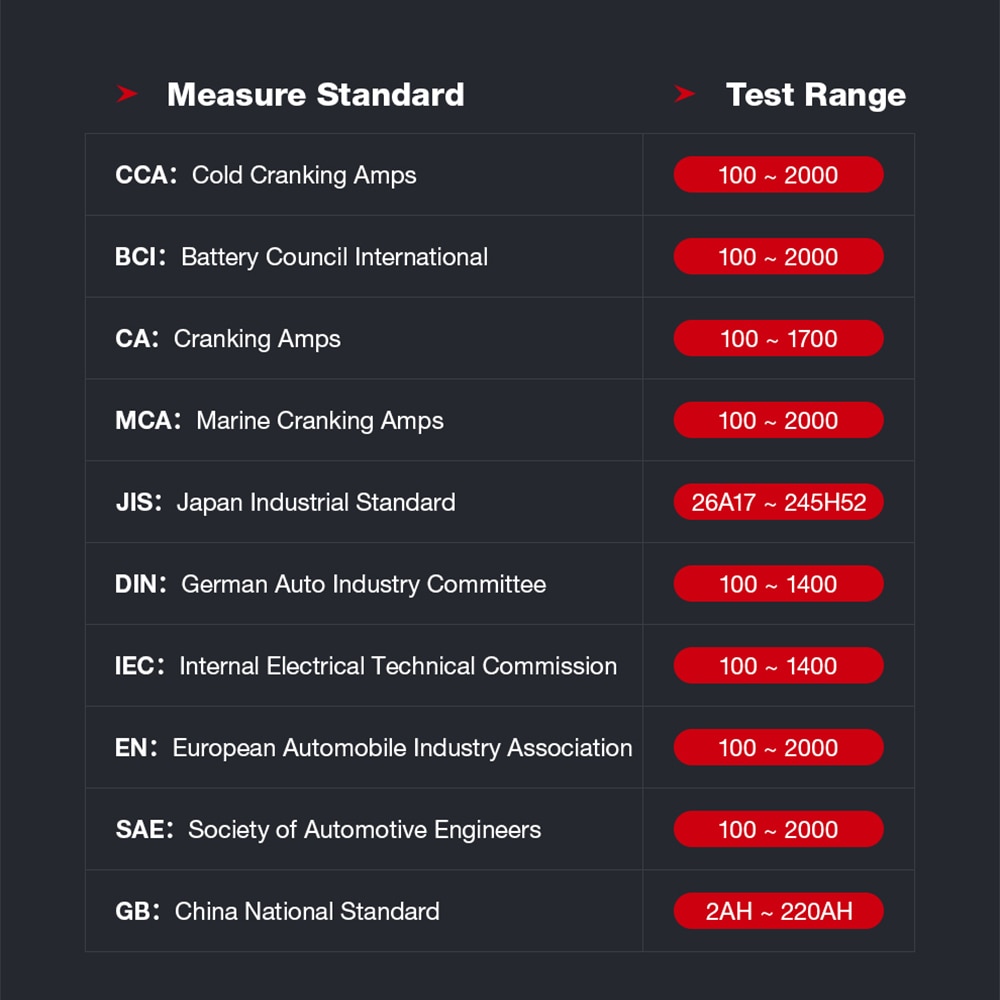

Geometry supports all current common battery standards, and a wide range of tests can meet your various needs.
● CCA (100 - 2000 )
● IEC (100 - 1400 )
● EN (100 - 2000 )
● DIN (100 - 1400 )
● CA (100 - 2000 )
● BCI (100 - 2000 )
● MCA (100 - 2000 )
● SAE (100 - 2000 )
● GB (2AH - 220AH ) Important breakthrough
● JIS (26A17 - 245H52 )

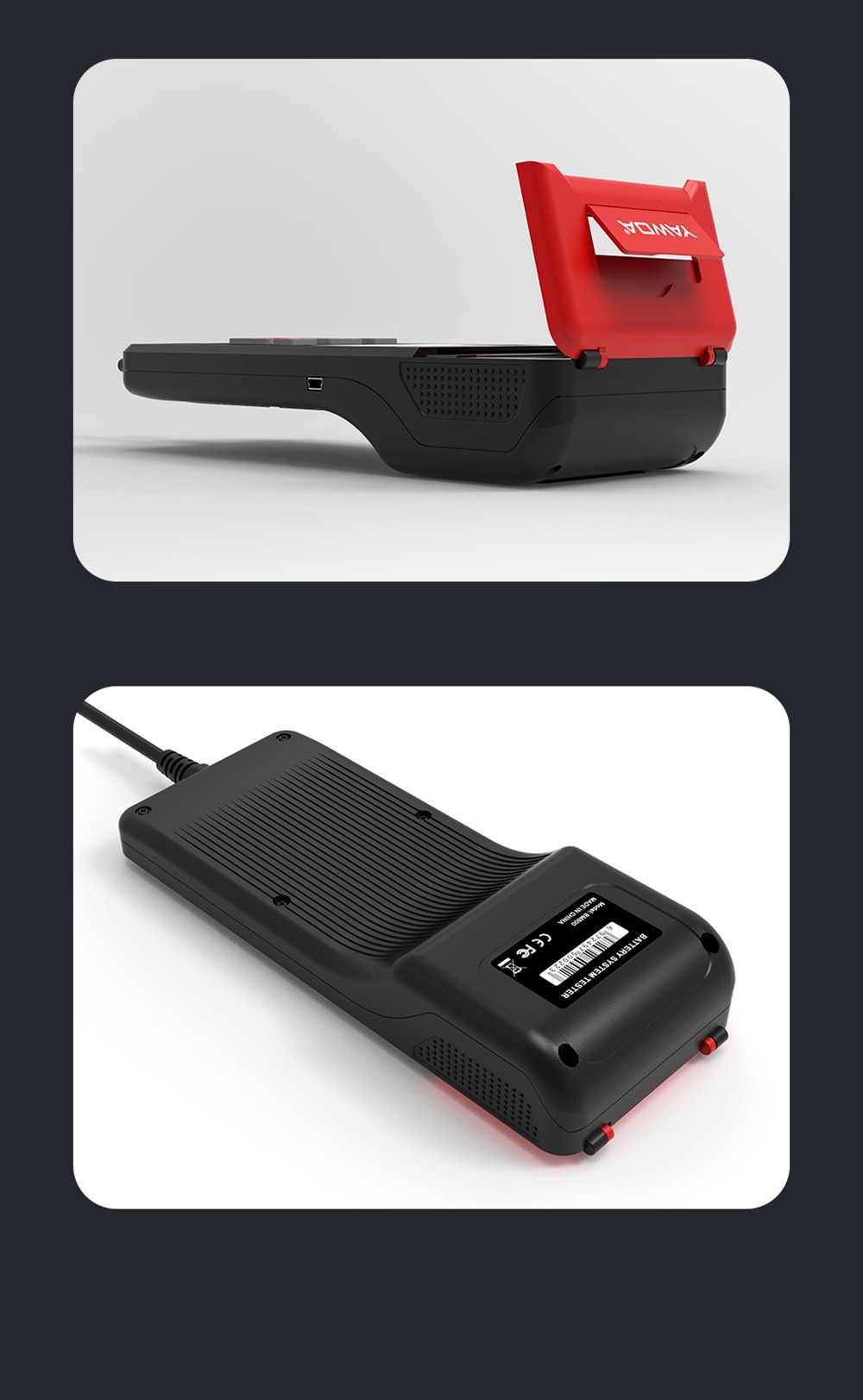

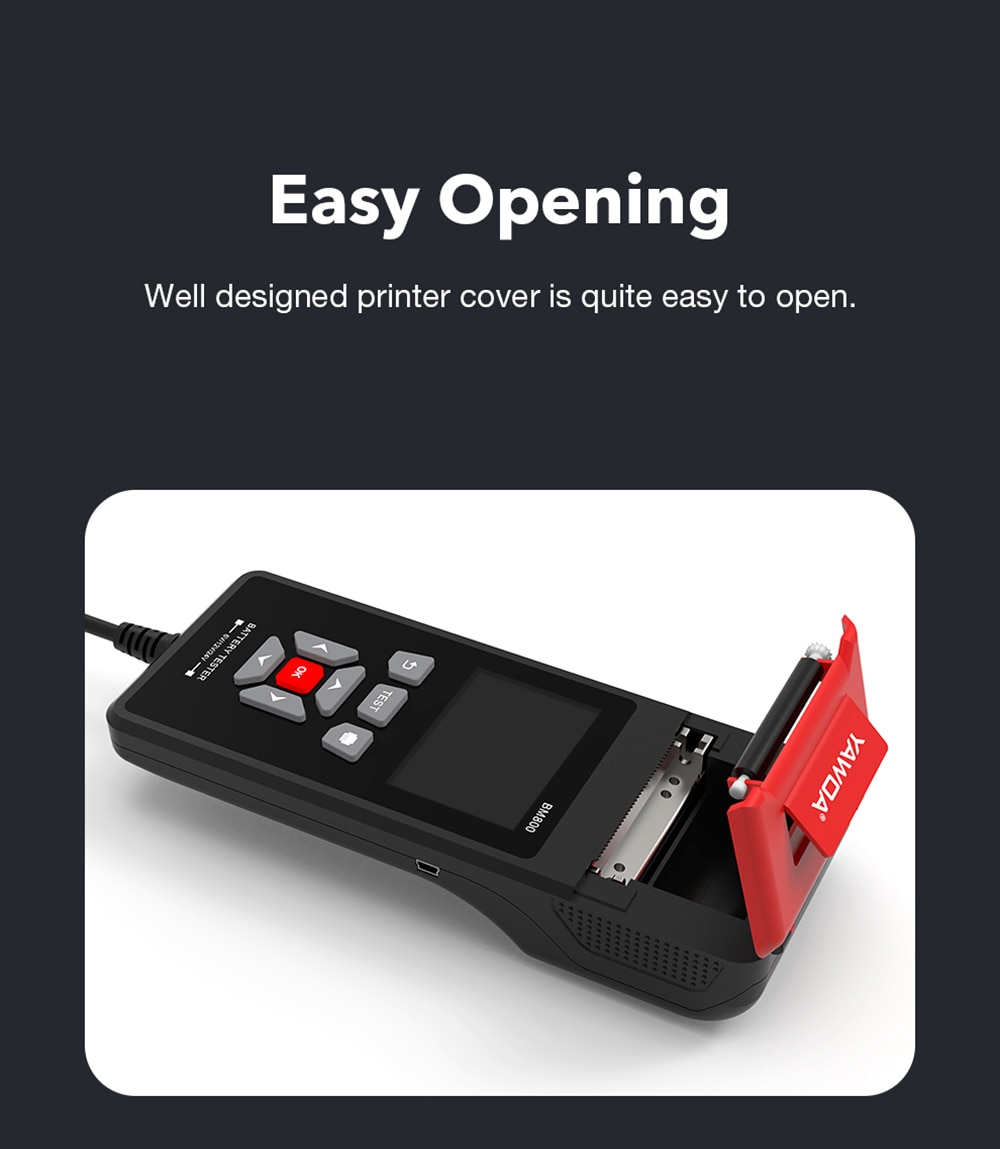

Well designed printer cover is quite easy to open.

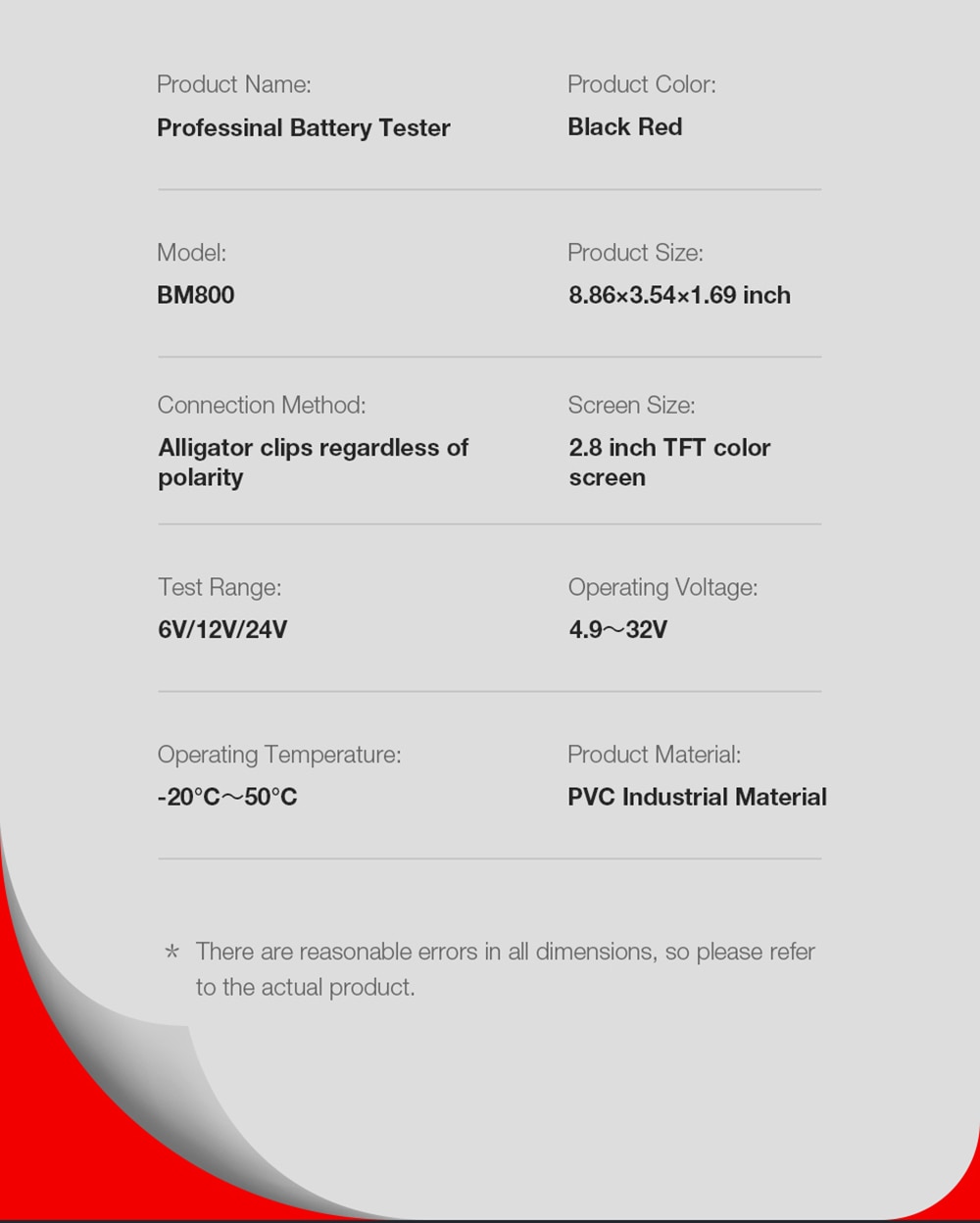

Model: BM800

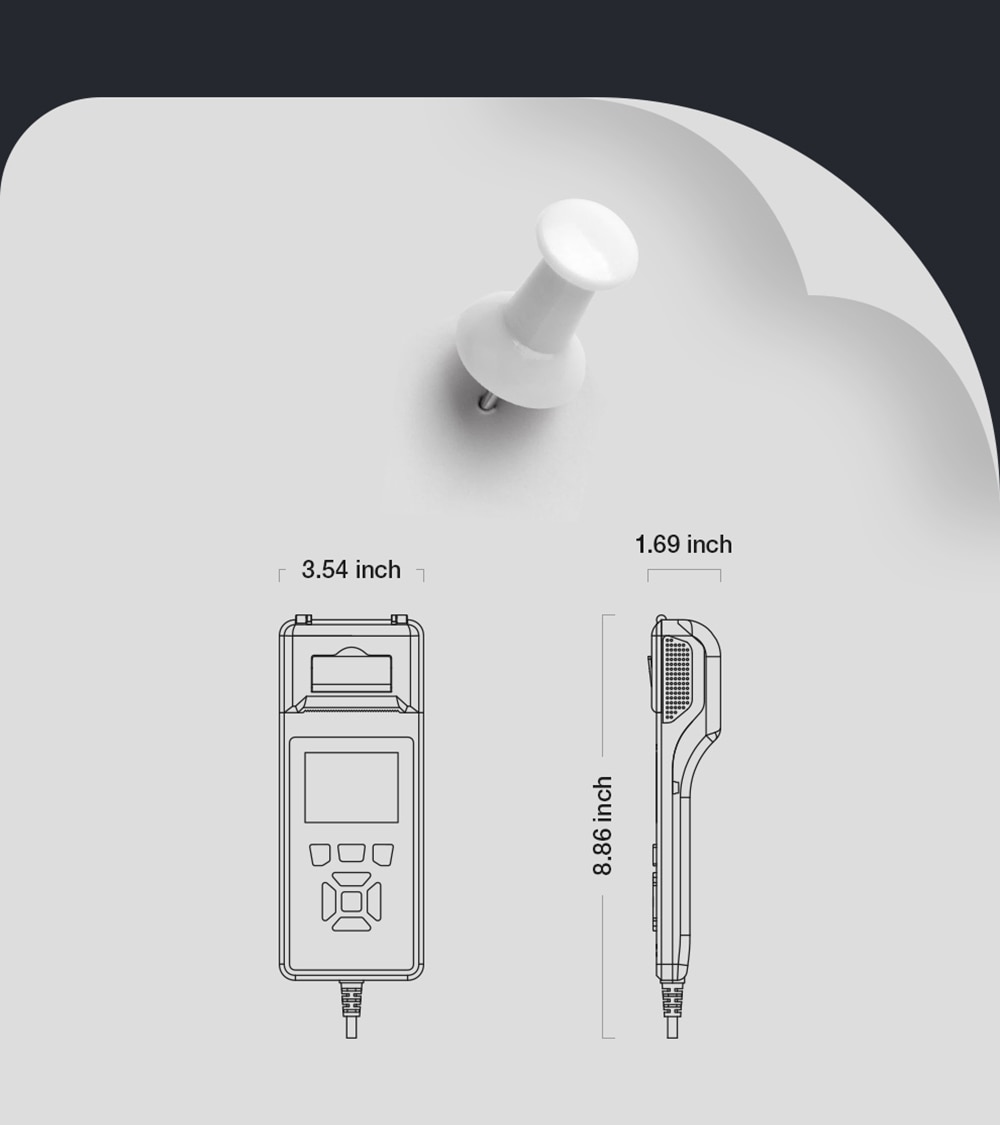

Product Size: 8.86*3.54*1.69 inch
Screen Size: 2.8inch TFT color Screen
Connection Method: Alligator clips regardless of polarity
Test Range: 6V 12V 24V
Operating Voltage：4.9-32V
Operating Temperature : -20℃-50℃
Product Material: PVC Industrial Material

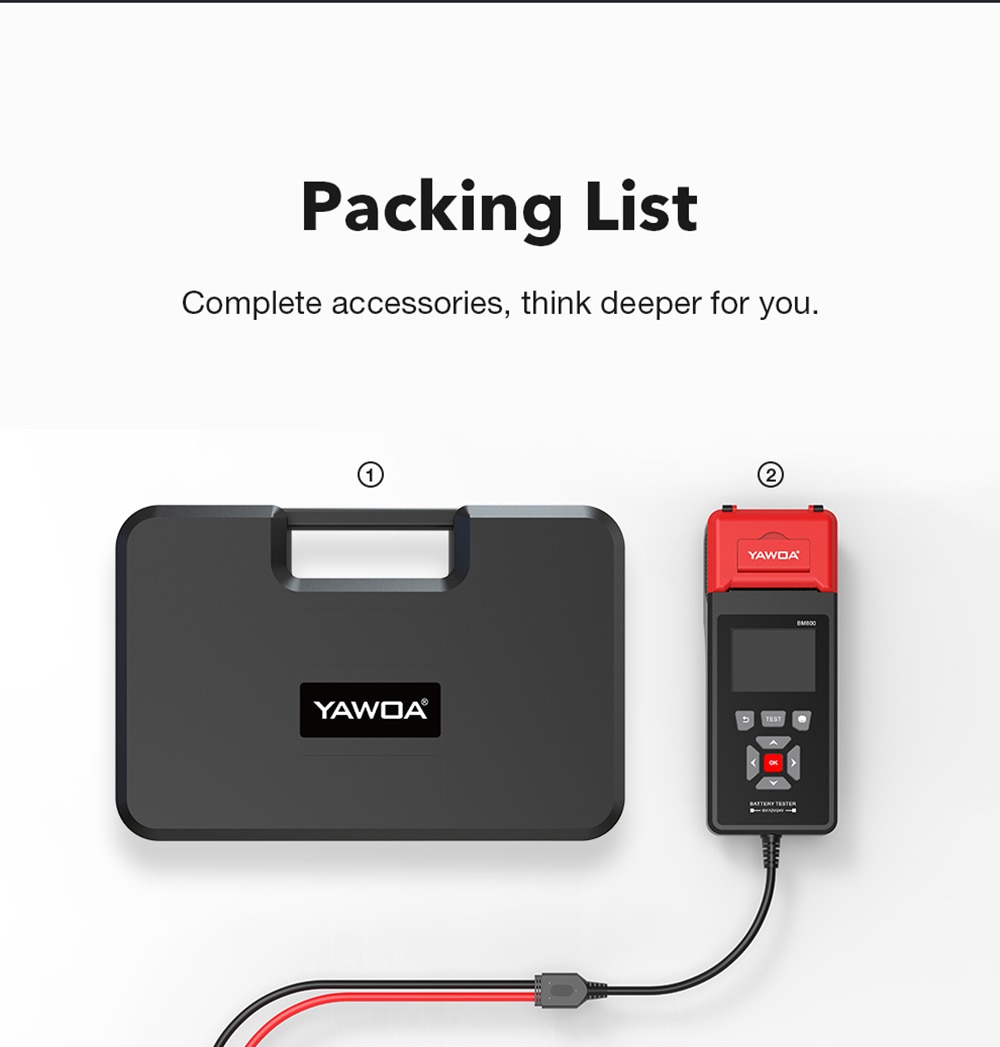

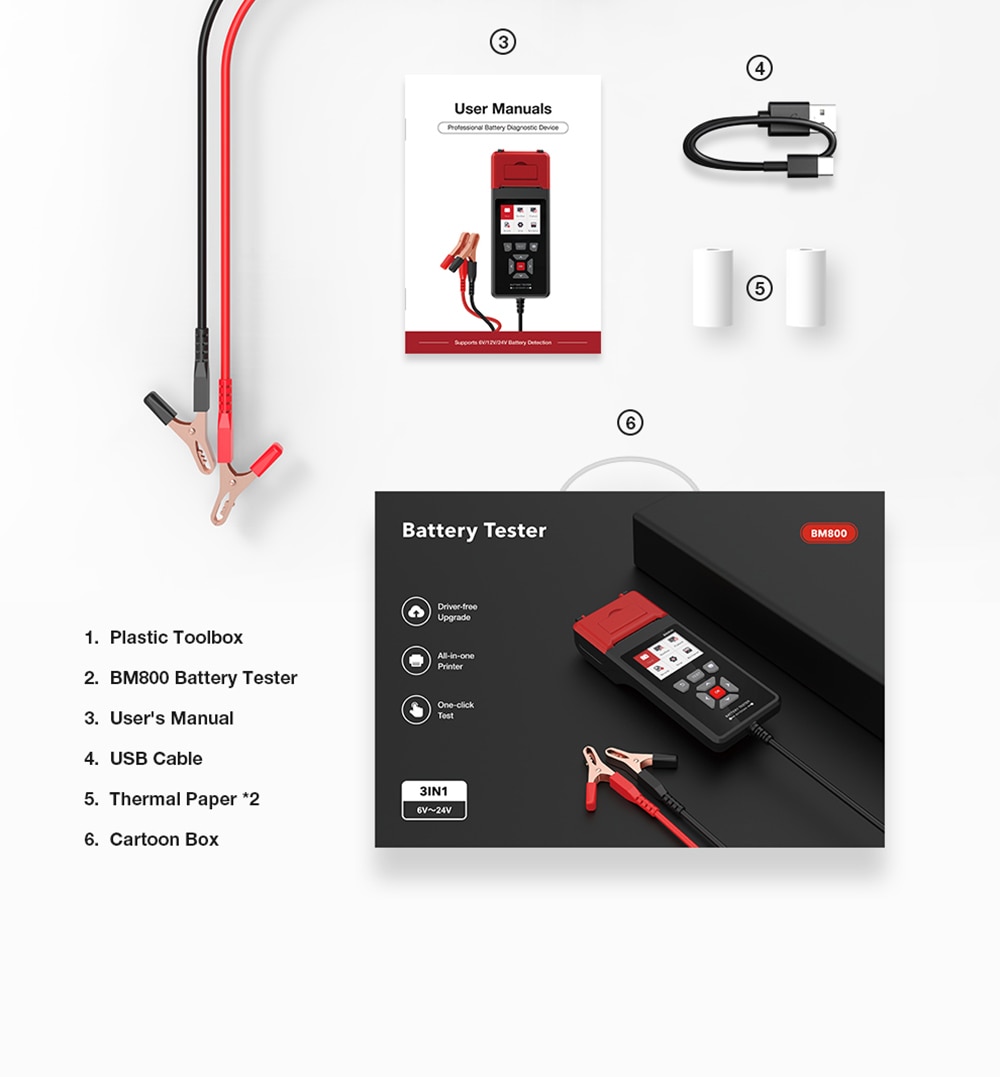

1 x Battery Analyzer BM800 Main Unit
1 x User's Manual
1 x Cartoon Box
1 x Plastic Box
1 x USB Cable
3 x Thermal Paper (Noted: One of the volumes has been installed in the BM800 mainframe.)
