XPROG-M ECU Programmer with Full Adapters and Multiple Software Versions (V5.55–V6.26)

Important Usage Instructions for XPROG-M V5.84

1. You are not allowed to use this newest dongle to update the older version Xprog to V5.84.
2. Close all computer anti-virus software. Otherwise, the X-prog software may be terminated.
3. Disconnect from the internet. Internet connectivity may damage the hardware.

XPROG-M V5.84 Authorizations

• AUTH-0001: Motorola HC05 family authorization (read/write EEPROM)
• AUTH-0002: Motorola HC08 family authorization (read/write EEPROM)
• AUTH-0003: Motorola HC11 family authorization (read/write EEPROM)
• AUTH-0004: Motorola HC12, 9S12 family authorization (read/write EEPROM and flash memory)
• AUTH-0005: Texas Instruments TMS370/TMS374 family authorization (read/write EEPROM)
• AUTH-0006: Motorola HC05Bxx and HC05Xxx family bypass security authorization (read/write secured EEPROM and flash memory)
• AUTH-0007: ST M35080 authorization (Read/Write/Erase device to delivery state)
• AUTH-0008: BMW EWS3 authorization
• AUTH-0009: ATMEGA family authorization (read/write EEPROM and flash memory)
• AUTH-0010: MB ZGS001 authorization
• AUTH-0011: Motorola HC11EA9/E9 bypass security authorization (bypass security bit and read EEPROM and RAM memory)
• AUTH-0012: National CR16 authorization (read/write EEPROM memory)
• AUTH-0014: ST7, ST10 family authorization (read/write internal flash)
• AUTH-0015: MPC5xx authorization (automatically detects MPC5xx, M95xxx device type, flash, external flash, and configuration memory size)
• AUTH-0018: Motorola HC12, HC912, MC9S12, MC9S12X bypass security authorization (read/write secured EEPROM and flash memory)
• AUTH-0020: ARM (Micronas, ...) Family authorization (read/write internal flash and external serial EEPROM)
• AUTH-0021: ARM (Micronas, ...) Family bypass security authorization (read/write secured and non-secured internal flash and external serial EEPROM; view/change mileage, Chassis number (VIN), serial nuMBer, and PIN code)
• AUTH-0023-1: MAC7xxx
• AUTH-0023-2: XC23xx
• AUTH-0024-1: MC9S12Cxx
• AUTH-0024-2: MC9S12XE
• AUTH-0024-3: 9S12XE SECURITY
• AUTH-0024-4: MC9S12HA/HY/P
• AUTH-0025-1: MPC/SPC5xxx Authorized 2016/3/13
• AUTH-0027-1: HC(S)908 update Authorized 2016/3/13
• AUTH-0027-2: HC(S)908 security Authorized 2016/3/13
• AUTH-0028-1: Renesas V850 Authorized 2017/10/9
• AUTH-0028-2: Renesas SuperH Authorized 2017/10/9

XPROG-M V5.84 Adapters

• ADP-0001: TMS370 PLCC28 programming adapter
• ADP-0002: TMS370 PLCC44 programming adapter
• ADP-0003: TMS370 PLCC68 programming adapter
• ADP-0004: Motorola HC05B/X PLCC52 programming adapter
• ADP-0005: Motorola HC05B/X QFP64 programming adapter
• ADP-0006: ST M35080 in-circuit programming adapter
• ADP-0008: TMS374 family in-circuit programming adapter
• ADP-0009: MC68HC05V12 programming adapter
• ADP-0010: TMS374 on-board programming adapter
• ADP-0011: HC11EA9/E9 programming adapter
• ADP-0017: HC(S)12 BDM / ARM Micronas in-circuit programming/bypass security adapter
• Additional adaptor for 5M48H P-Flash
• ADP-0019 Rev.A
• EWS3 adaptor
• EEPROM adaptor
• QFP28 adaptor
• QFP64 adaptor
• QFP80 adaptor
• QFP112 adaptor
• QFP144 adaptor

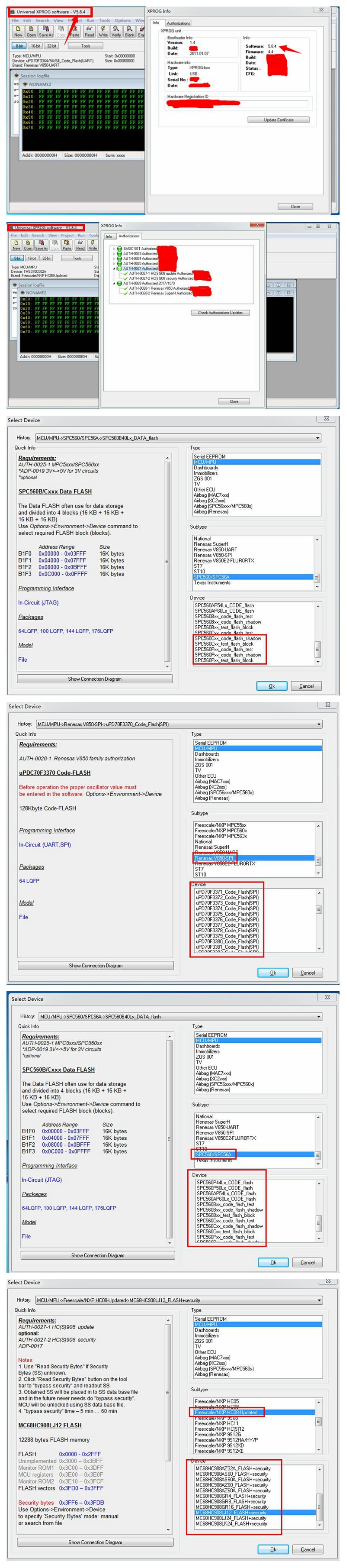

XPROG-M V5.84 Software Display

Why Choose Us

• Uninstall all old versions of XPROG-M or XPROG Box software before installing V5.84 software. Our XPROG-Box hardware is not compatible with other lower or higher version software; otherwise, the hardware will be damaged and will lose its Warranty.
• Never attempt to UPDATE online—the hardware will be damaged, and you will lose its Warranty.

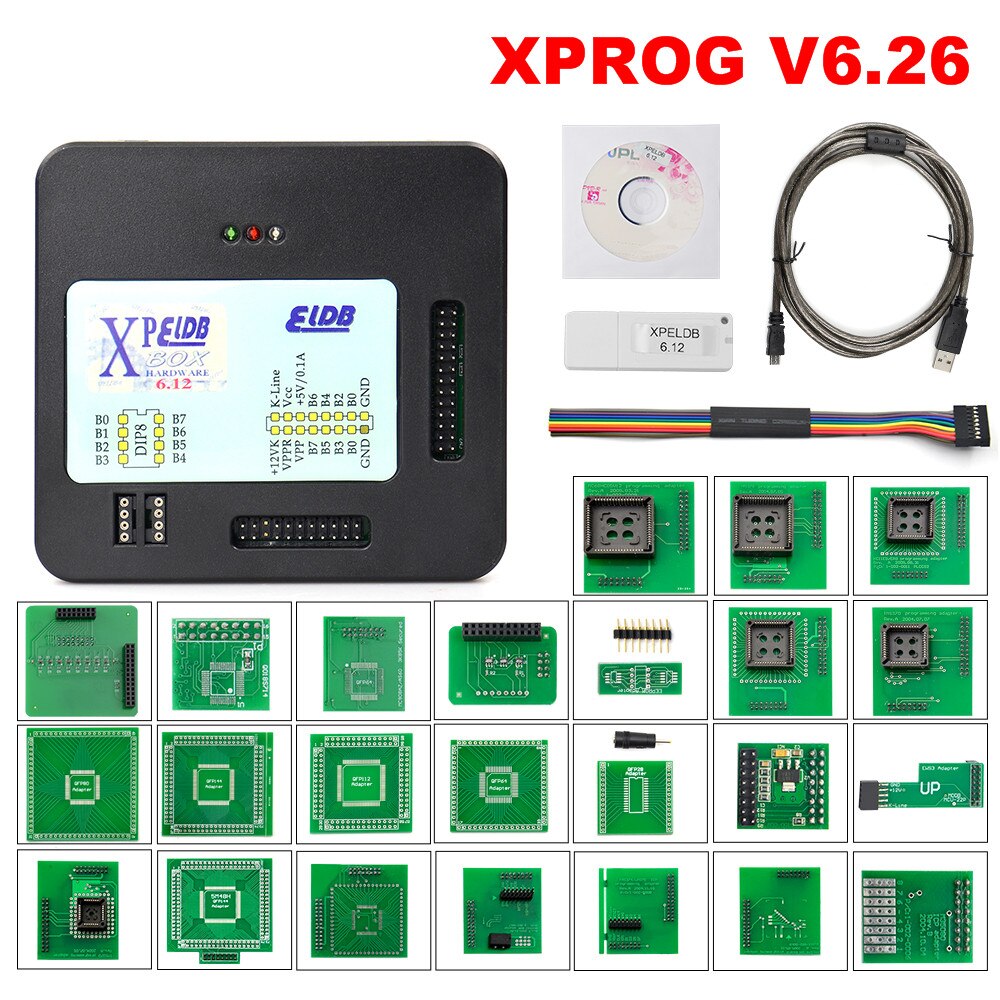

Package Includes

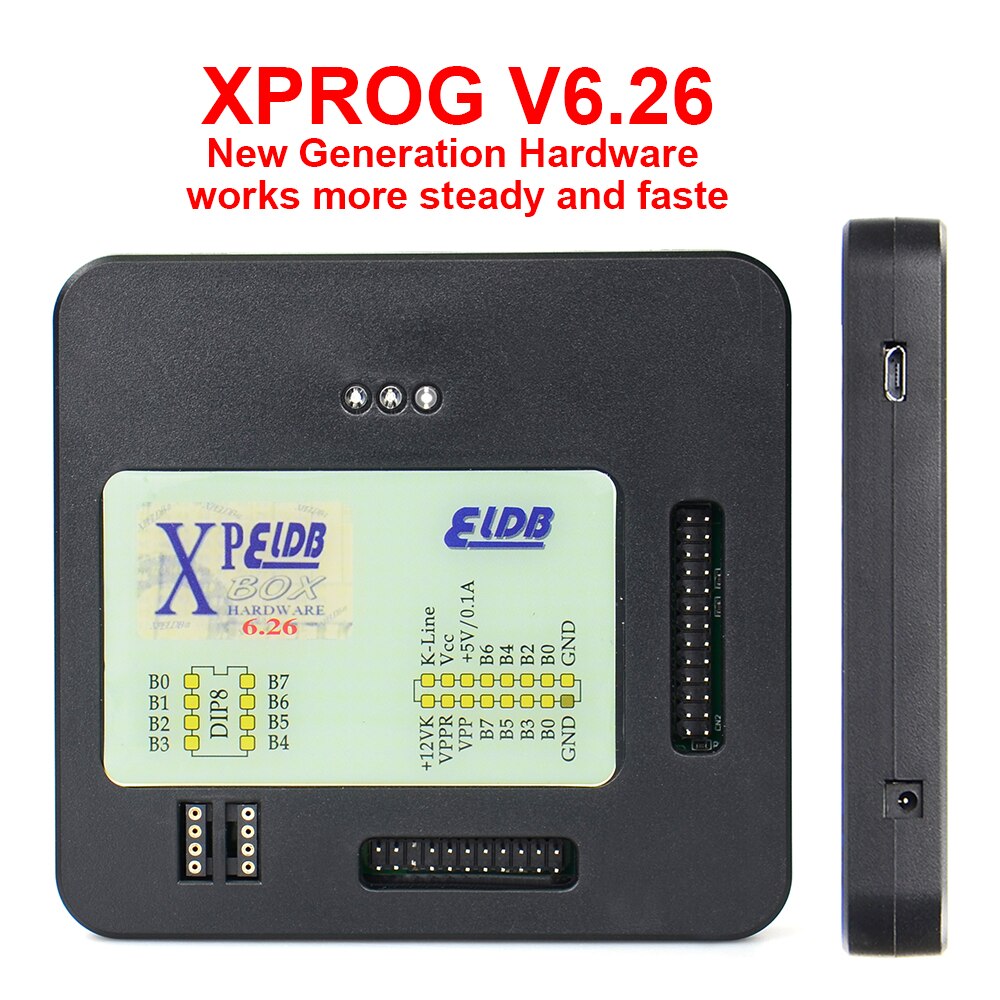

• 1 pc × XPROG-Box Hardware (Aluminum Enclosure)
• 20 pcs × Adapters Set
• 1 pc × USB Cable
• 1 pc × USB Dongle
• 1 pc × CD with XPROG-Box Software (versions 5.55, V5.70, V5.72, V5.74, V5.75, V5.84)

Product Images
