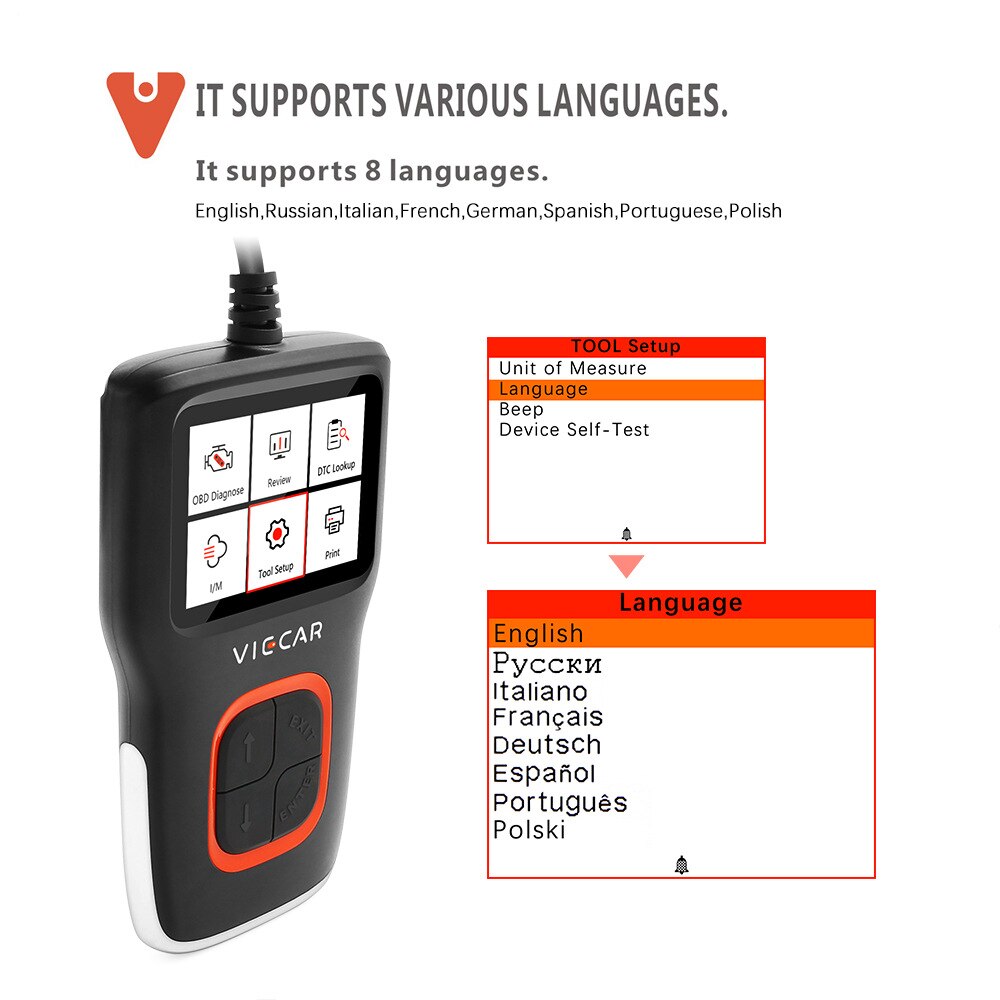

The device has two versions, one is in 8 languages:
A. Britain, Russia, Italy, France, Germany, Spain, Portugal, Poland
B. English, Russian, Italian, French, German, Spanish, Portuguese, Chinese
At present, our shipments are all A language version, if you need B version, you can consult customer service
Viecar VP101 Code Reader Full agreement Auto Scanner Tool
1. Product Introduction
VP101 is a CAN OBDII / EOBD code reader is the simplest and fastest solution to OBD faults. When diagnosing inspection engine problems, it provides accurate information and accurate judgments. It quickly and effectively solves OBD2 / EOBD faults on today's vehicles. problem.
Breaking the conventional car OBD reading card concept, from a new definition, it also has a 2.8-inch TFT color screen and functions for I / M preparation testing, has a stylish appearance, creates a first-class material feel, is not a simple car reading code Card fault detector is the perfect tool that mechanics can't wait for.

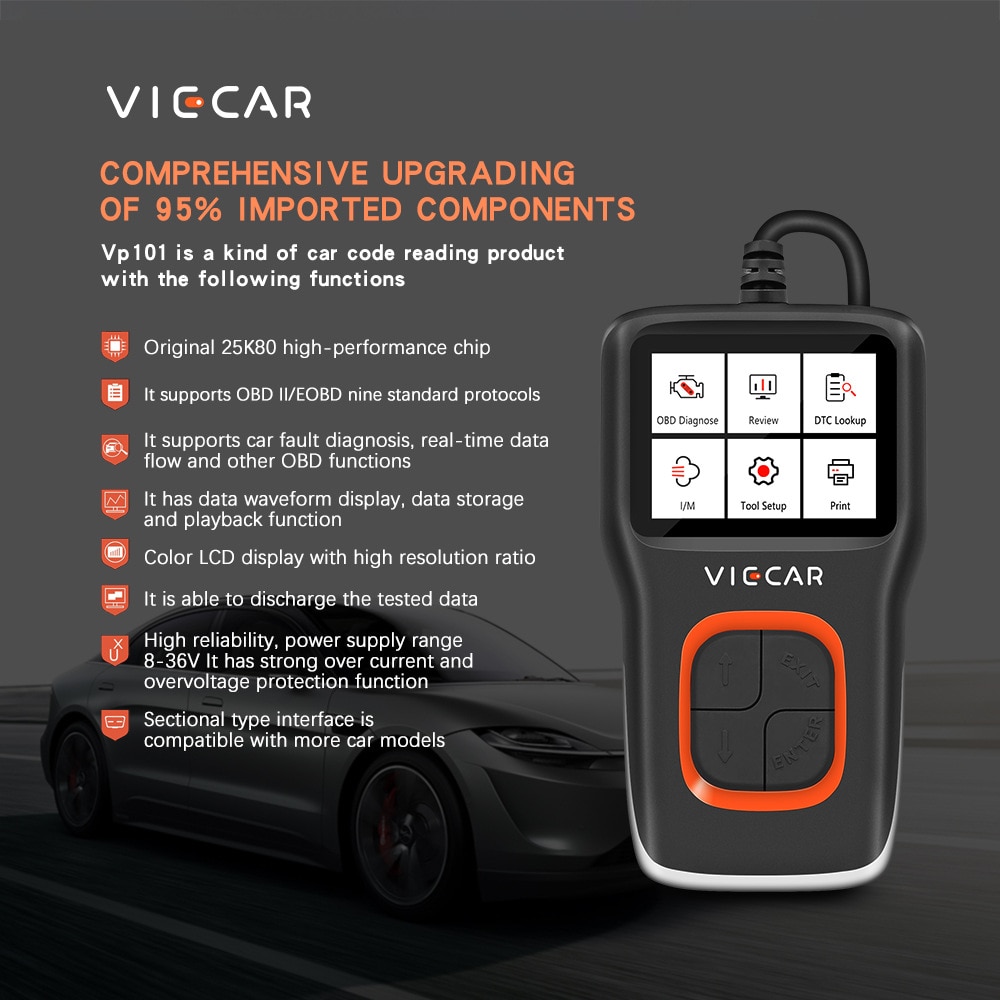

2. Product function
1. Support nine standard protocols of OBD II / EOBD;
2. Support OBD functions such as vehicle fault diagnosis and real-time data flow;
3. With data waveform display, data storage and playback functions;
4. Data with emission testing
5. Color LCD display with high resolution;
6. Good reliability, wide supply voltage range 8 ~ 36V, with stronger overcurrent and overvoltage protection functions;
7. Support 8 languages

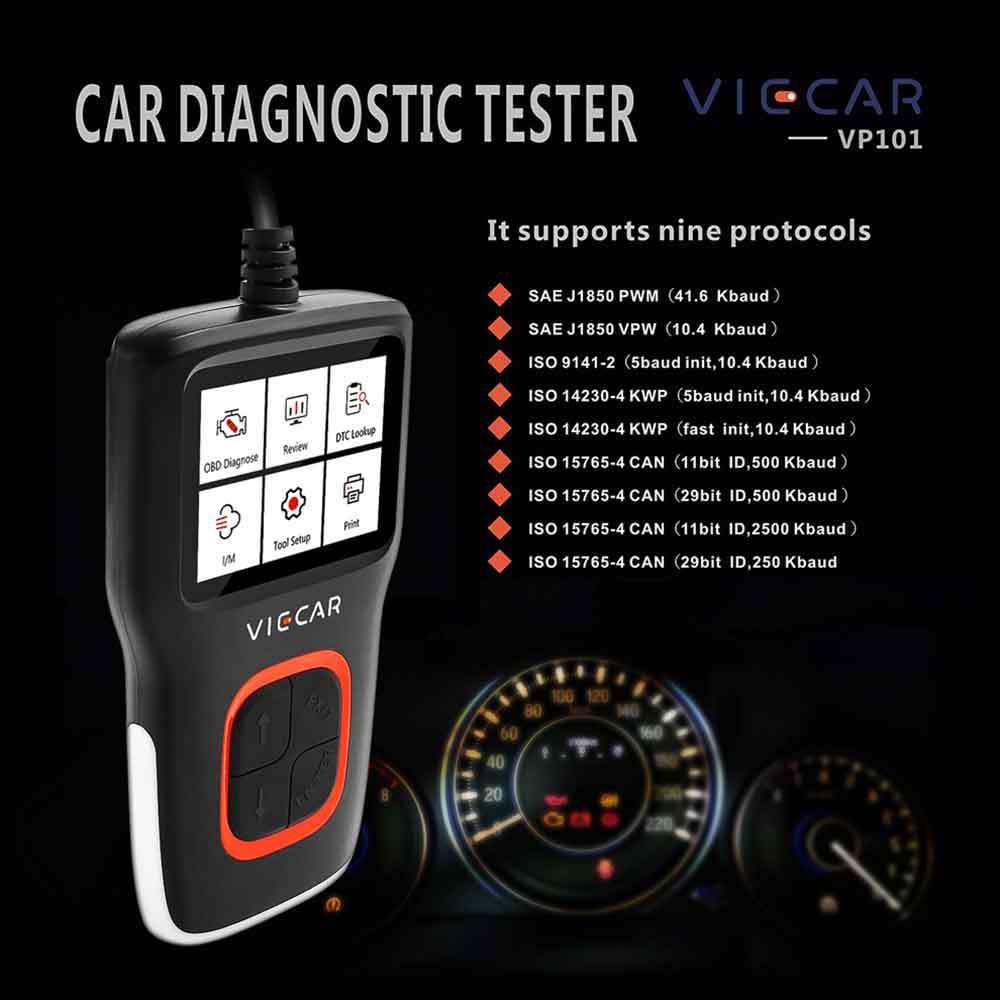

3. Support Agreement:
1.SAE J1850 PWM (41.6Kbaud)
2.SAE J1850 VPW (10.4Kbaud)
3.ISO9141-2 (5 baud init, 10.4Kbaud)
4.ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5.ISO14230-4 KWP (fast init, 10.4 Kbaud)
6.ISO15765-4 CAN (11bit ID, 500 Kbaud)
7.ISO15765-4 CAN (29bit ID, 500 Kbaud)
8.ISO15765-4 CAN (11bit ID, 250 Kbaud)
9.ISO15765-4 CAN (29bit ID, 250 Kbaud)

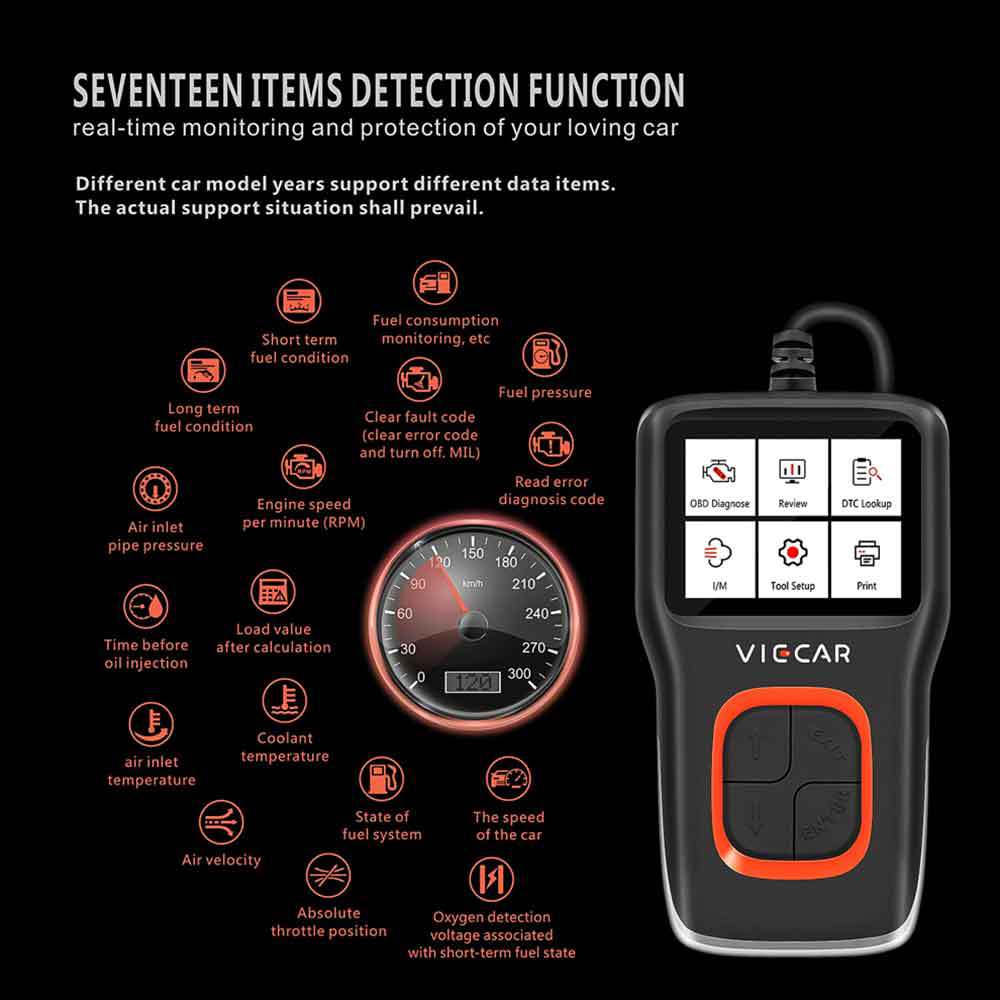

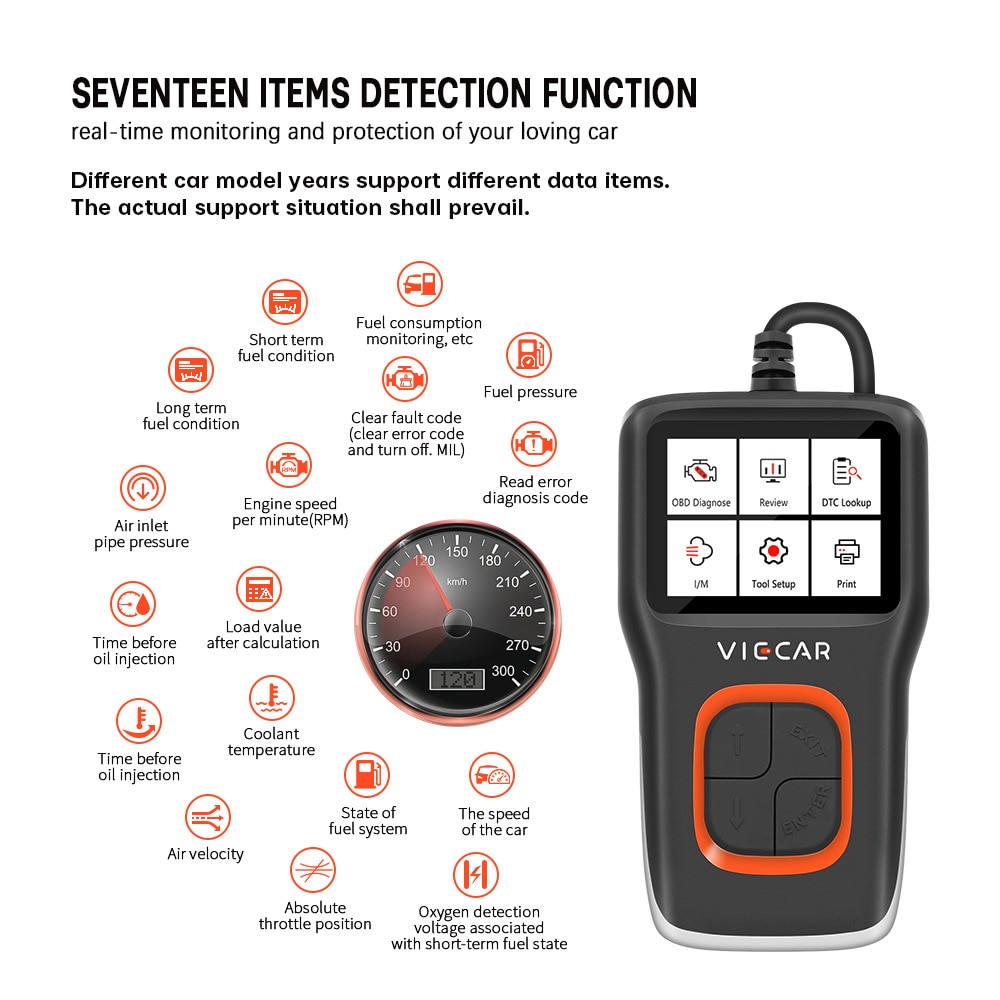

4. Supported vehicle data
1. Read the error diagnosis code
2. Clear the fault code (clear the error code and turn off the MIL)
3. Engine speed per minute (RPM)
4. The calculated load value
5. Coolant temperature
6. Fuel system status
7. Speed
8. Short-term fuel situation
9. Long-term fuel situation
10. Intake manifold pressure
11. Fuel injection advance time
12. Intake air temperature
13. Air flow speed
14. Absolute position of throttle
15. Oxygen detection voltage associated with short-term fuel status
16. Fuel system status
17. Fuel pressure
18. Fuel consumption monitoring, etc.
Remarks: The number of data items supported varies by model year, and the actual support situation prevails.

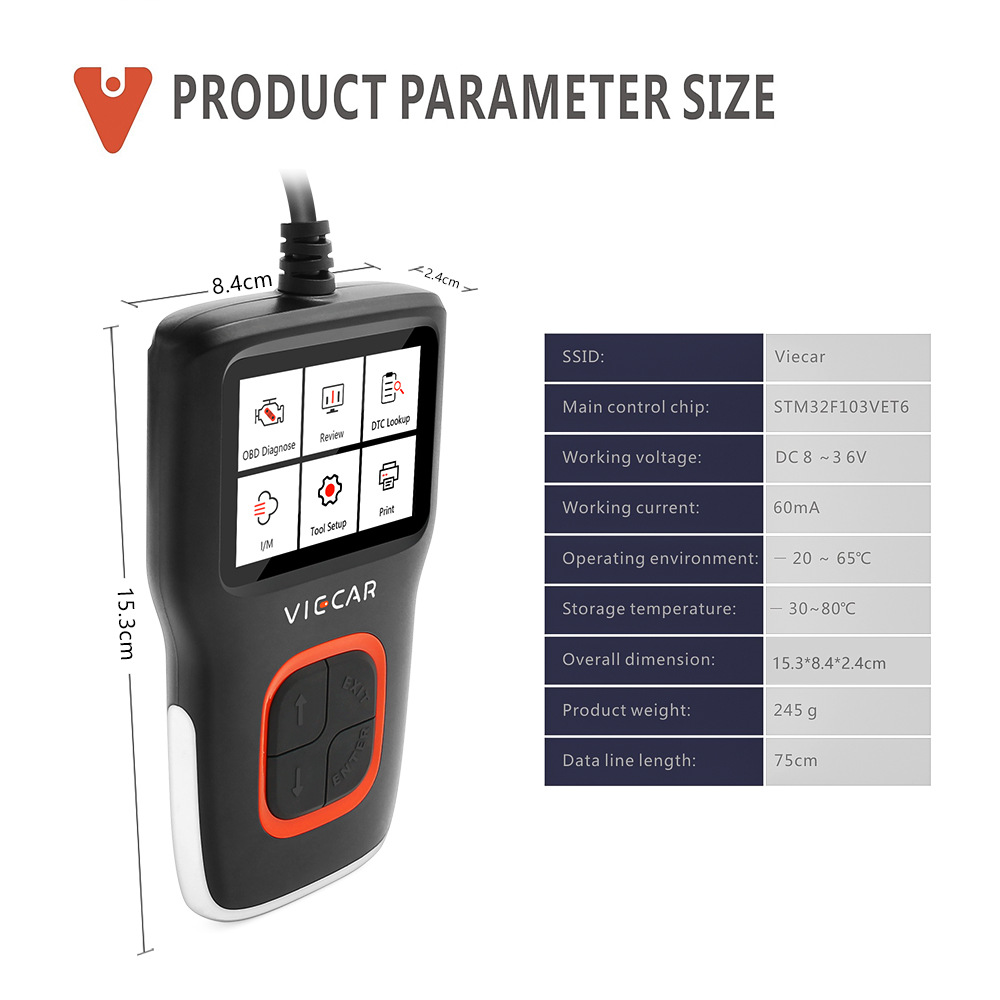

5. Introduction of hardware performance parameters:
Main control chip: STM32F103VET6
Software platform: Support Windows
Working voltage: DC 8～36V
Working current: 50mA
Standby current: 5mA
Operating environment: -20～65 ℃
Storage temperature: -30～80 ℃
Dimensions: 154.5 * 85 * 24mm
6.matters needing attention
The product is not compatible with new energy vehicles, hybrid vehicles, diesel vehicles, not OBD2 agreement models
