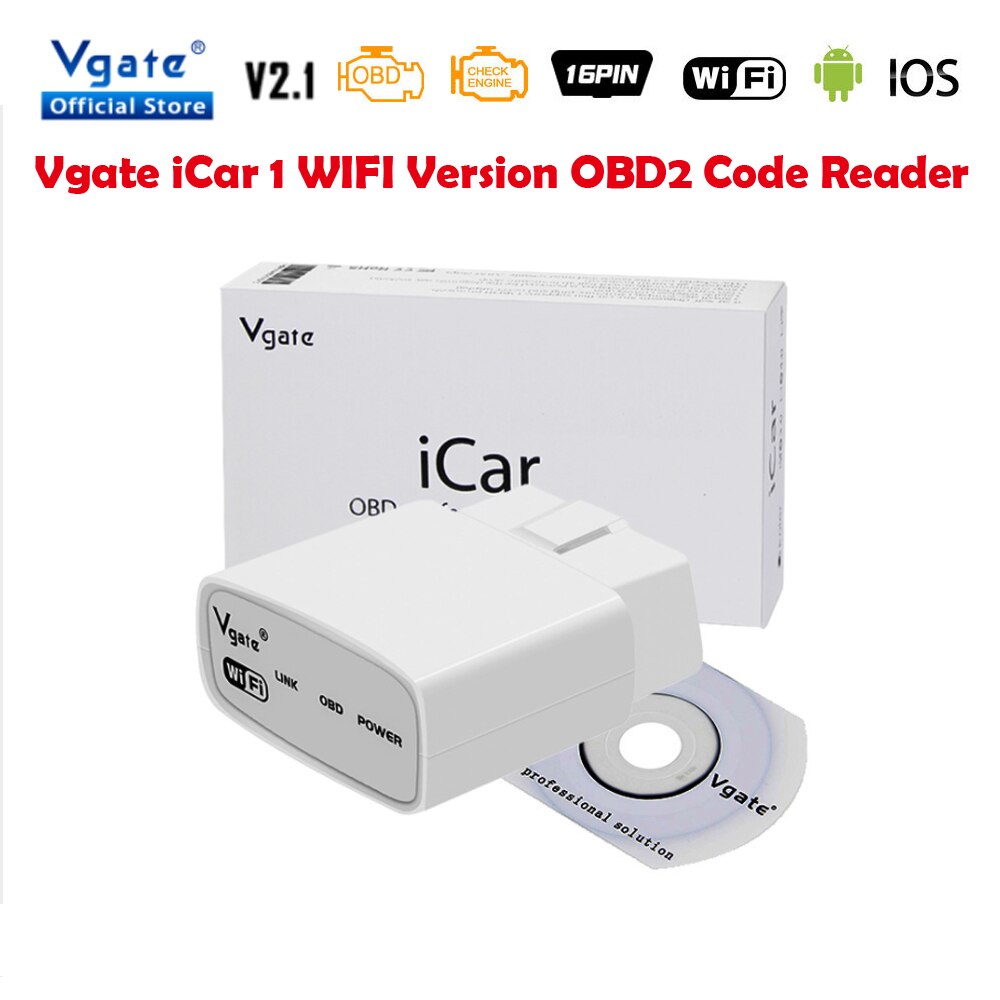

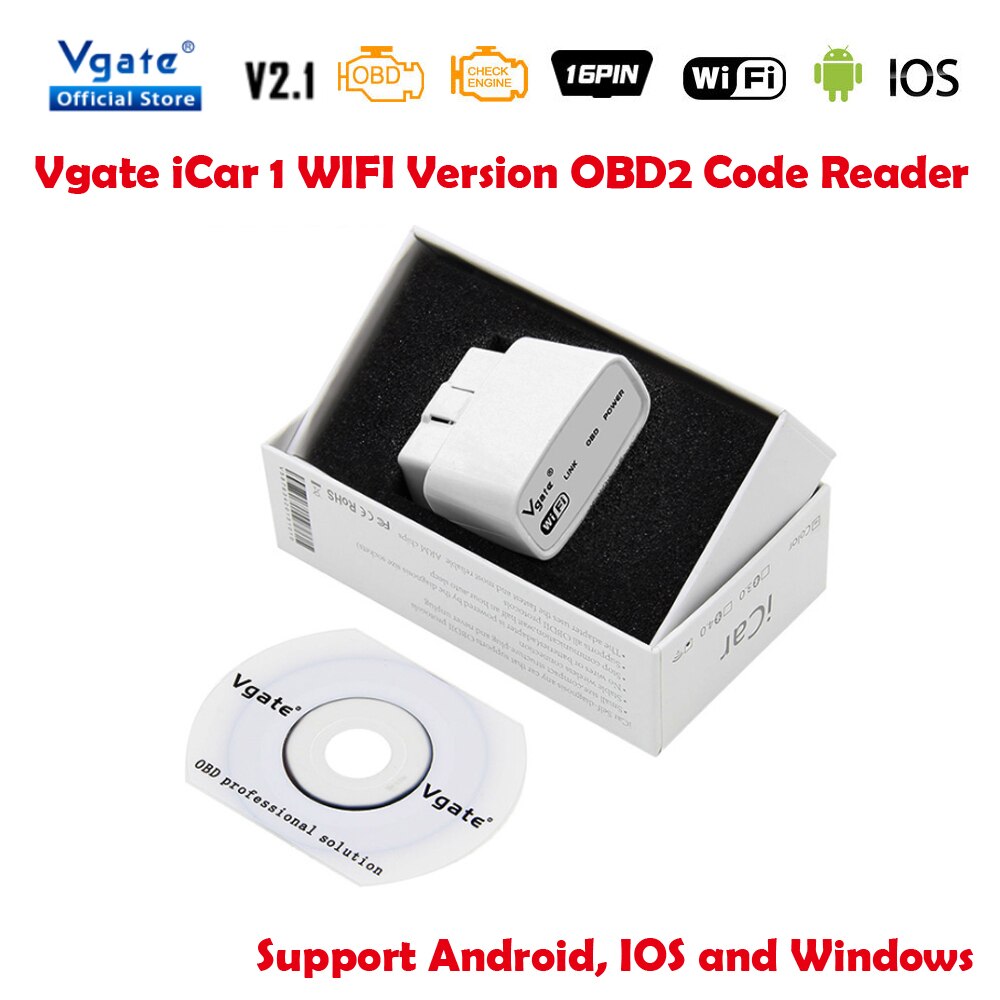

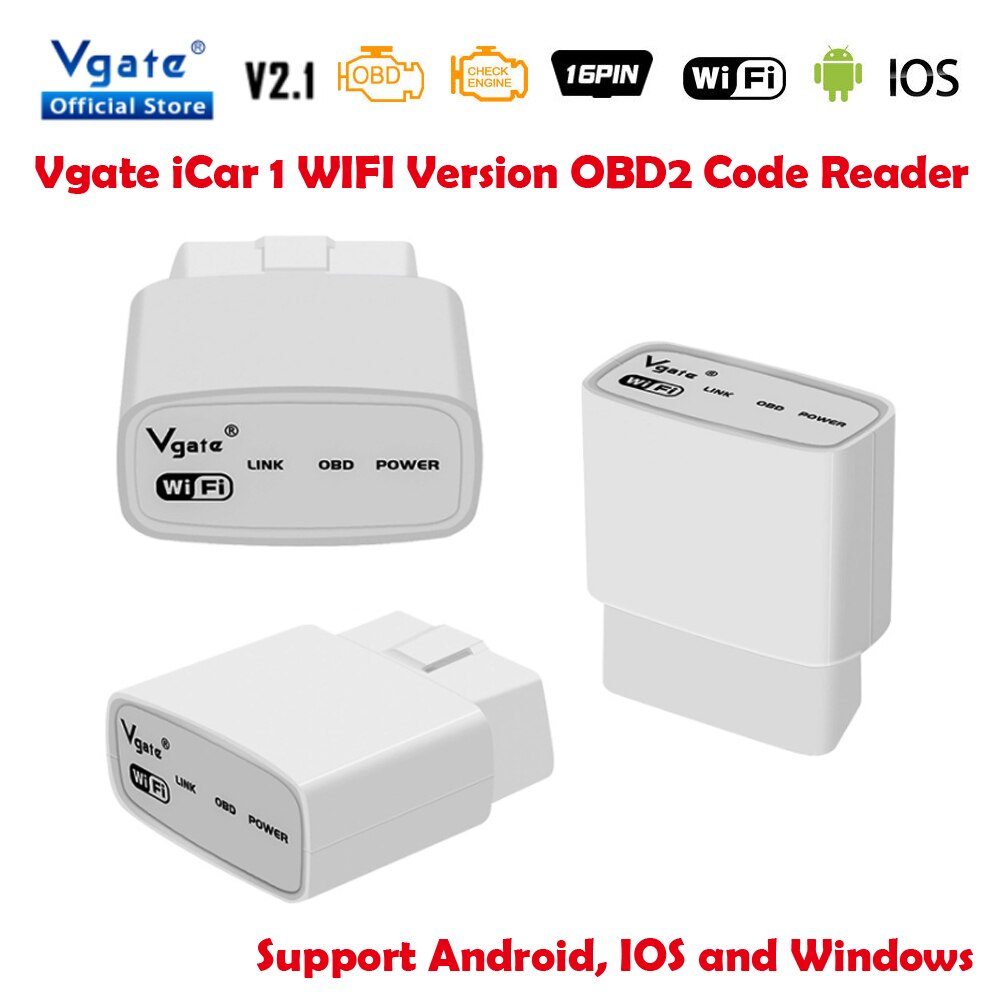

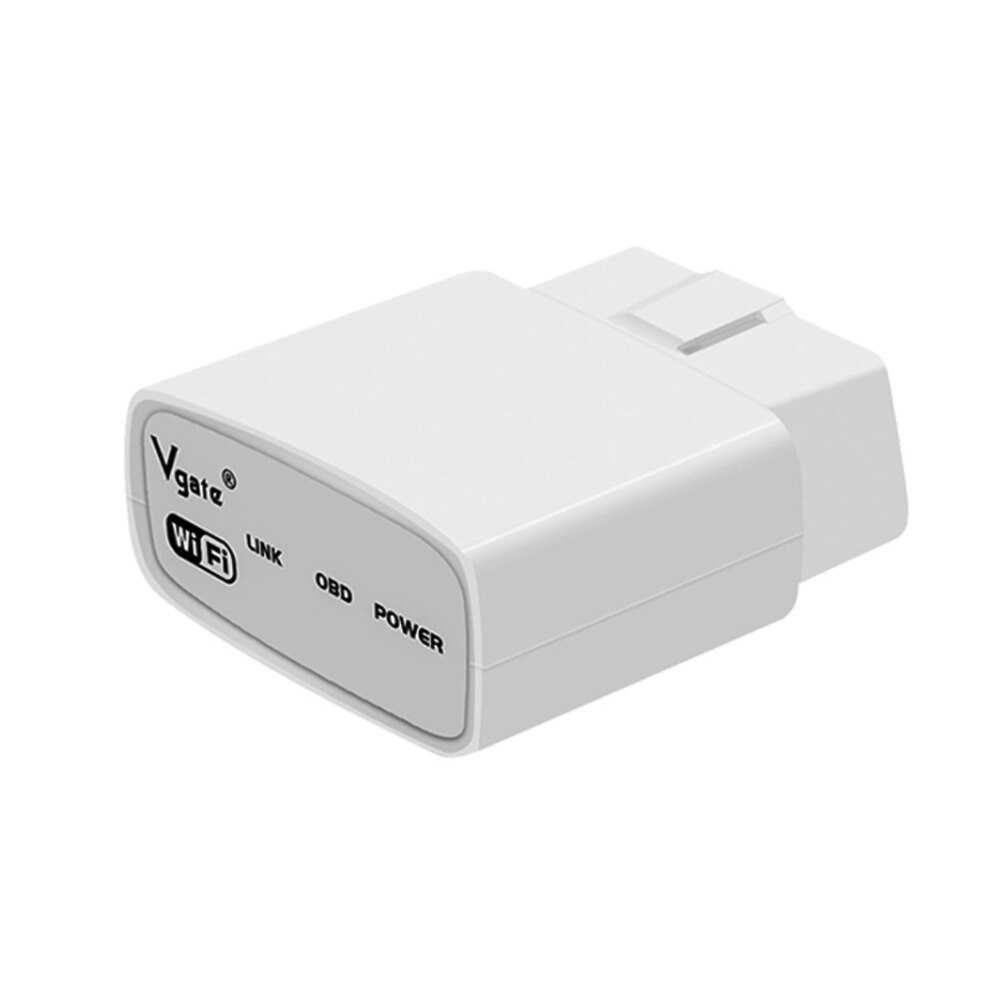

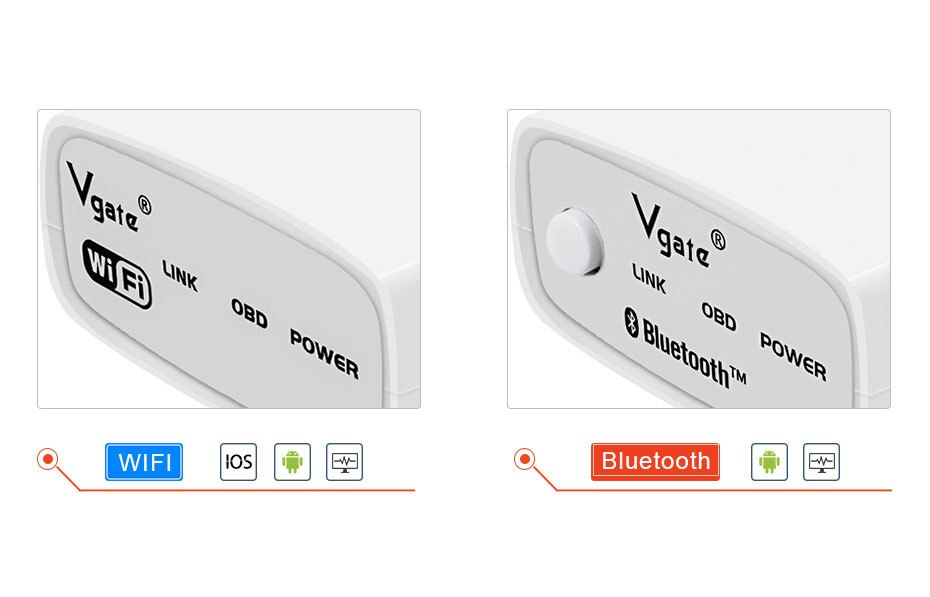

Vgate iCar 1 WIFI/Bluetooth Version OBD2 Code Reader iCar1 supports OBDII protocols, this version support Android, IOS and Windows.
VGATE WIFI OBD Multiscan ICAR ELM327 car diagnostic adapter supports all OBD-II self-diagnostic systems and the detection of compatible communication protocols. Its function dunks 1. Read general and automobile manufacturer specific diagnostic fault codes and display their definitions (software contains more than 3000 fault codes) 2. Clear the fault codes and turn off the engine (engine) fault alarm indicator 3. Read the real-time dynamic data flow of the engine: engine speed, calculated load value, coolant temperature, fuel system status, vehicle speed, short-term fuel correction, long-term fuel correction, intake manifold pressure, timing advance, intake temperature, air flow, throttle Valve opening, oxygen sensor voltage/short-term fuel fine-tuning, fuel pressure, etc.
Top 11 Reasons to Get VGATE Wifi ELM327:
1. Software Version: V2.1
Hardware version: V2.1
2. Support for Android PC for iPhone and for iPad
3. Fully compatible with ELM327 V1.4b.

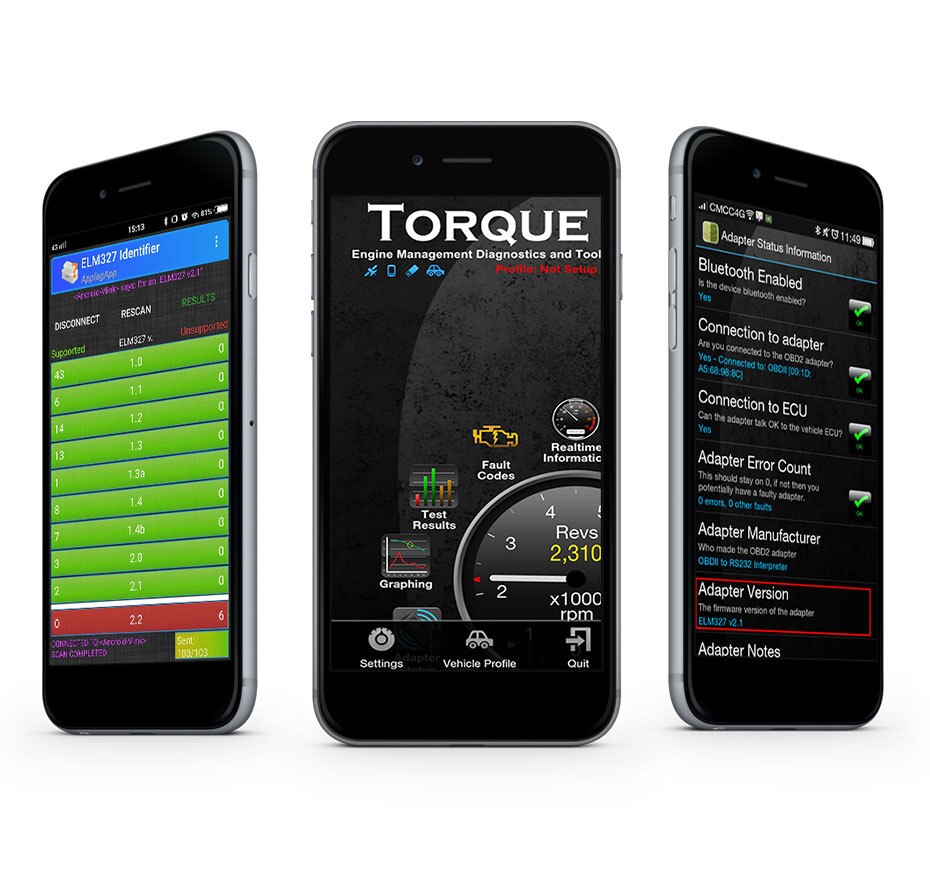

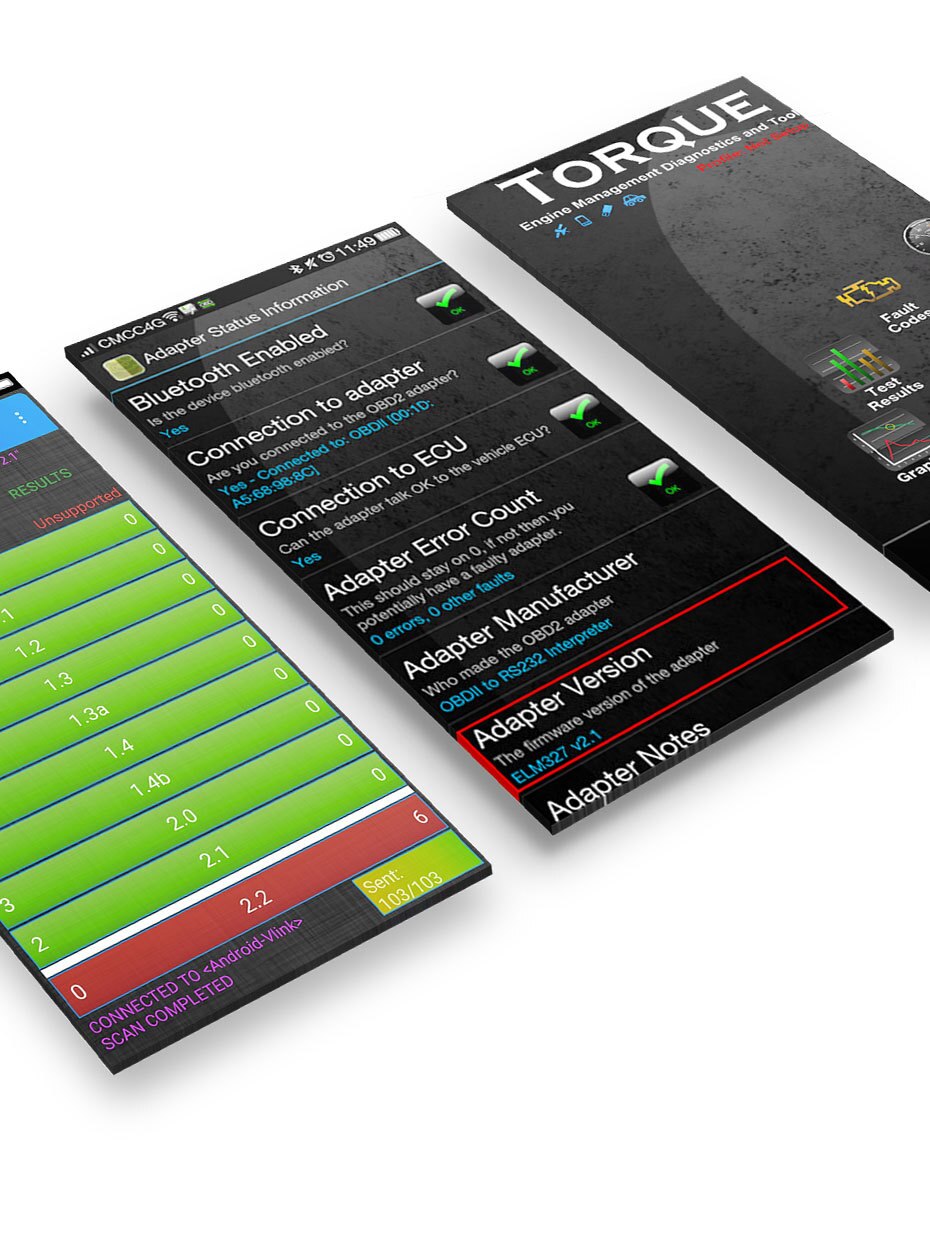

4. All ELM327 supported software are available to use.
5. Faster than ELM327 four times or higher. (ELM327 is RISC 8bit 44MHz MCU, iCar is ARM 16bit MCU)
6. Built in power switch.
7. Low standby power consumption sleep mode.
8. Lower power consumption than ELM327
9. LED indicator is in the front side toward user for easier check of linking status.
10. Support J1939 protocol more than ELM327.
11. WiFi 802.11 b / g and encrypted for better security.

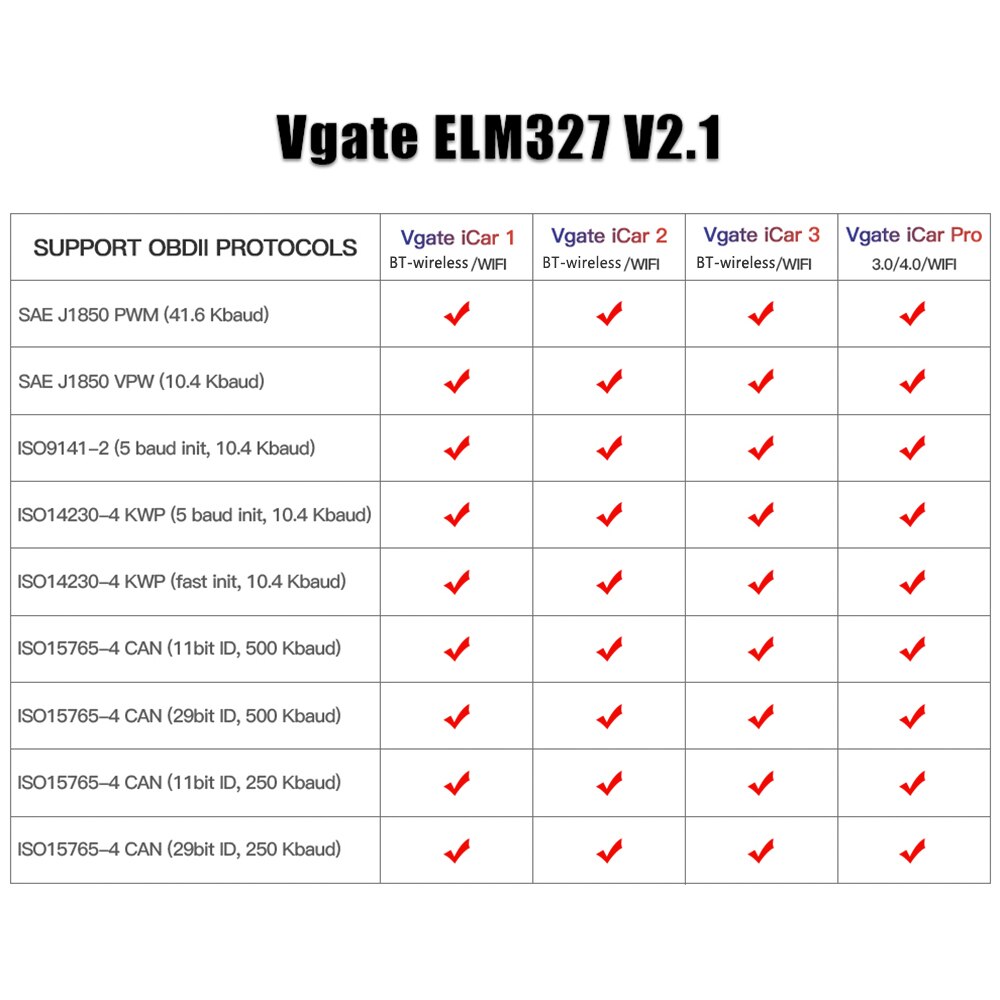

Support OBDII / EOBD2 Protocols:
SAE J1850 PWM(41.6 Kbaud)
SAE J1850 VPW(10.4 Kbaud)
ISO9141-2(5 baud init,10.4 Kbaud)
ISO14230-4 KWP(5 baud init,10.4 Kbaud)
ISO14230-4 KWP(fast init,10.4 Kbaud)
ISO15765-4 CAN(11bit ID,500 Kbaud)
ISO15765-4 CAN(29bit ID,500 Kbaud)
ISO15765-4 CAN(11bit ID,250 Kbaud)
ISO15765-4 CAN(29bit ID,250 Kbaud)
SAE J1939 CAN(29bit ID,250* Kbaud)
USER1 CAN(11*bit ID,125* Kbaud)
USER2 CAN(11*bit ID,50* kbaud)

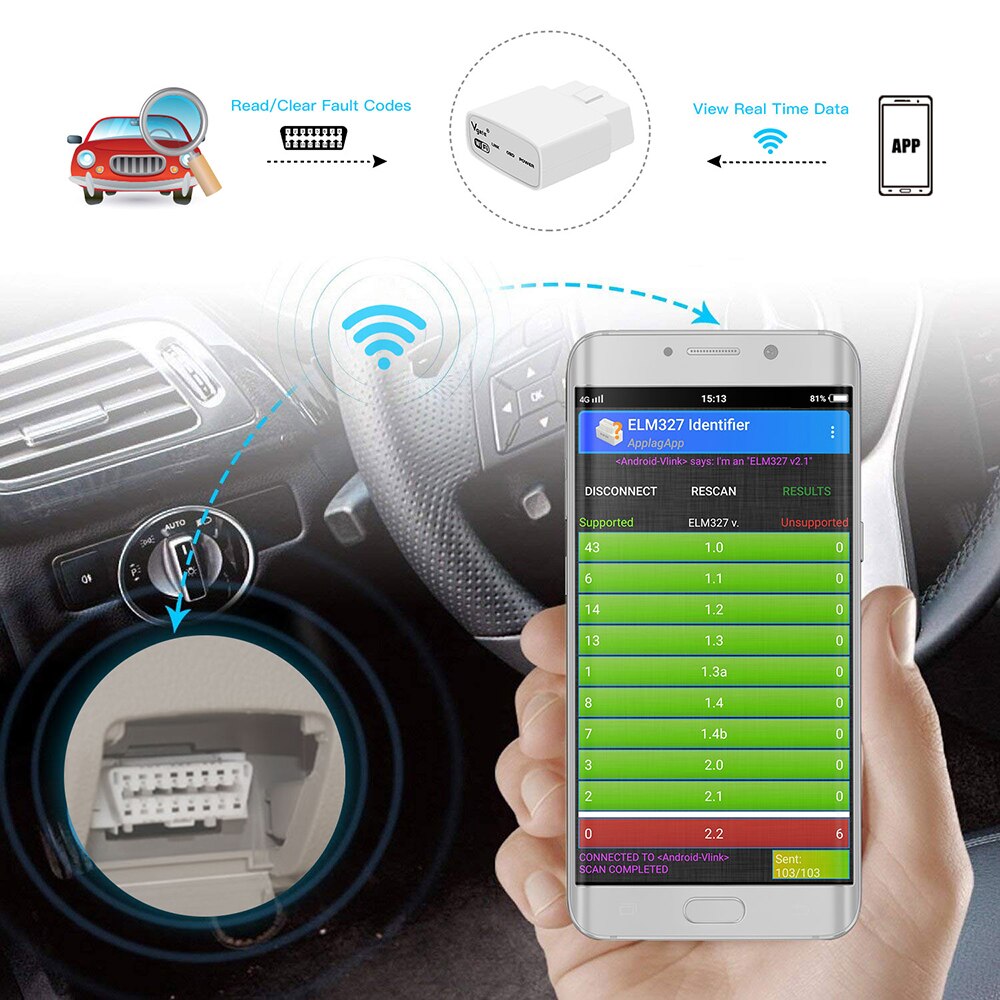

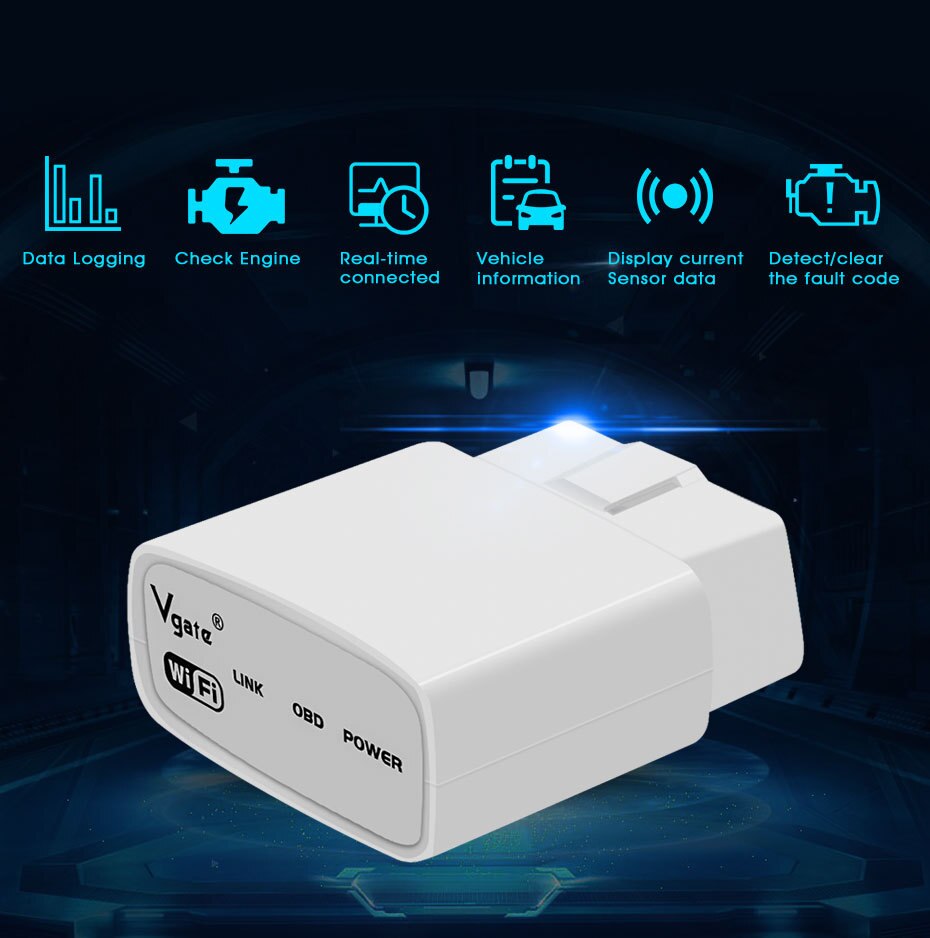

Functions:
1. Read more than 3000 car manufacturers' stand DTC and private DTC (diagnostic trouble codes) and its meaning.
2. Clear DTC, turn off dashboard MIL 'Check Engine' Light
3. Display sensor data, including:
Engine RPM
Load
Coolant Temperature
Fuel Status
Vehicle speed
Intake Manifold pressure (MAF / MAP)
Timing Advance
Intake Air Temperature
Air Flow Rate
Absolute Throttle Position
Oxygen sensor voltage / short term fuel trim
Fuel Pressure
Product Specifications:
OBDII decode chip: ARM 16bit MCU
Firmware: ELM327 Version 1.4b compatible
Transfer baud rate: 4800/9600/10400/38400 / 500K
Input interface: OBDII male 16pin
Output interface: Wifi 802.11 b / g

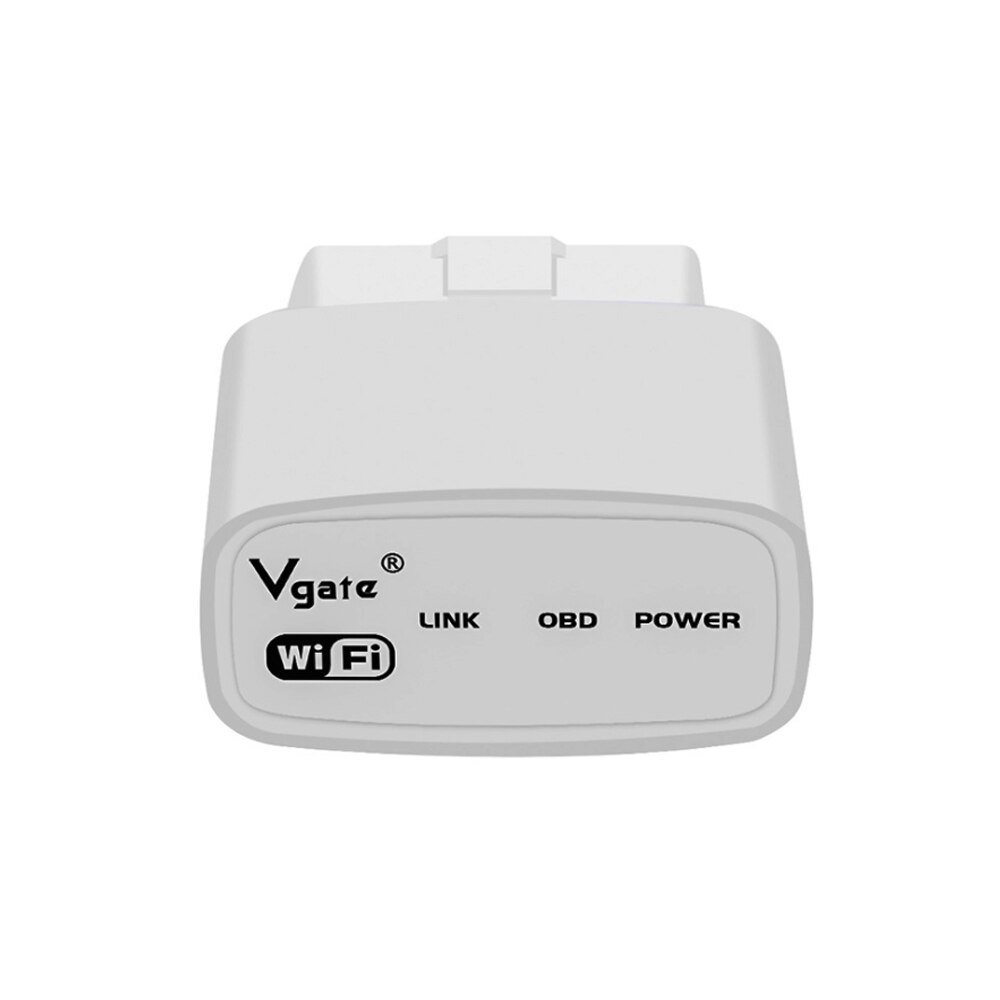

LED Indicator: Power (red) / OBD (green) / Link (blue) (PC or smart phone)
Operating Voltage: 12V, including over voltage / shortage protection
Nominal Idle current: 45mA
Net Weight: 31g
Gross Weight: 60g
Wire Length: 0 cm
SSID: BUYOBD
Password: See item label
IP: 192.168.0.10
HTTP local port: 35000
Encryption: WEP128
Power: supplied by car OBD socket
OBDII 16-Pin DLC Definition:
1. n / a
2. Bus + (SAE J1850 PWM, VPW)
3. n / a
4. Battery -
5. Signal -
6. CAN High (ISO 15765-4)
7. K Line (ISO 9141-2, SAE J2234)
8. n / a
9. ?n /a
13. n / a
14. CAN Low (ISO 15765-4)
15. L line (ISO 9141-2, ISO 14230-4)
16. Battery +
Only pins 2, 4, 5, 6, 7, 10, 14, 15, 16 defined by above standards read data.
Other customized pins are not supported.
Please confirm OBDII label located under front engine hood.
n / a
10. Bus - (SAE J1850 PWM, VPW)
11. n / a
12. n / a
13. n / a
14. CAN Low (ISO 15765-4)
15. L line (ISO 9141-2, ISO 14230-4)
16. Battery +
Only pins 2, 4, 5, 6, 7, 10, 14, 15, 16 defined by above standards read data.
Other customized pins are not supported.
Please confirm OBDII label located under front engine hood.

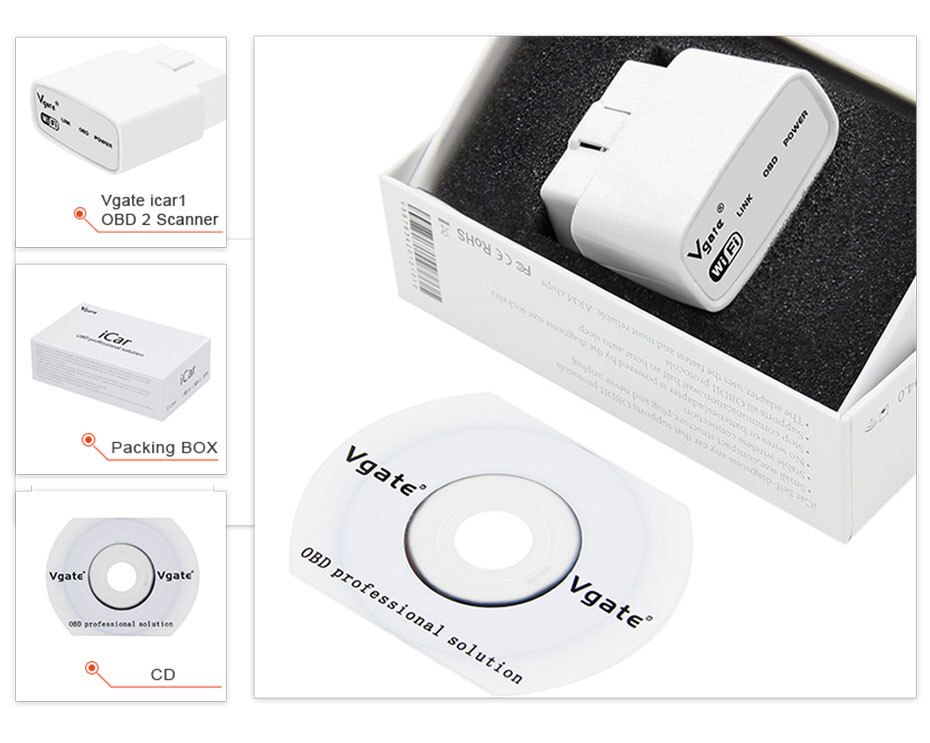

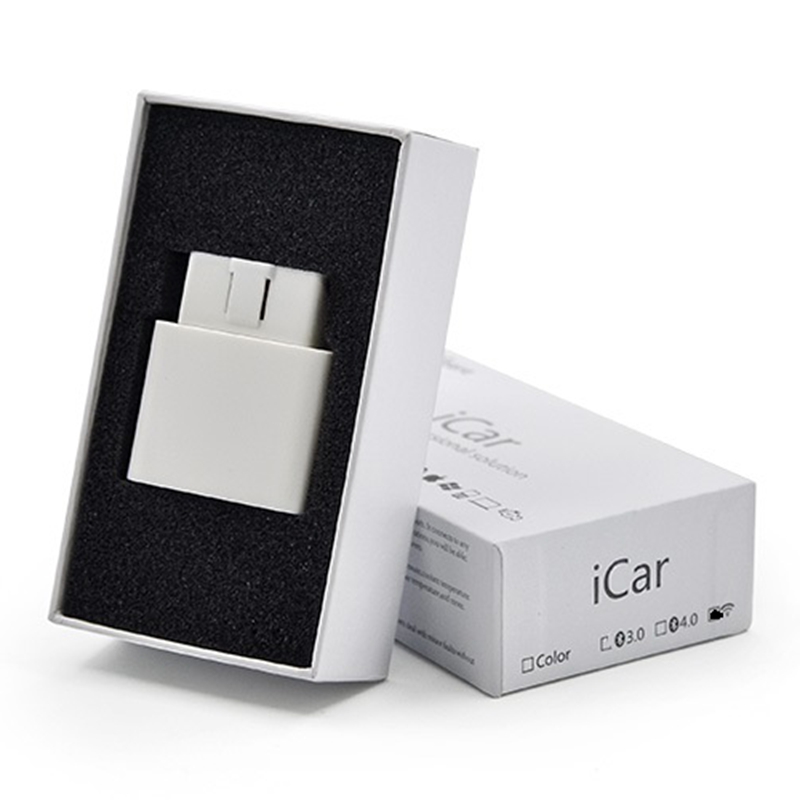

Package List:
1pc x Vgate iCar 1 (WIFI Version)
1pc x User's Manual
1pc x Color box
