Description:
Features:
100% brand new and high quality.

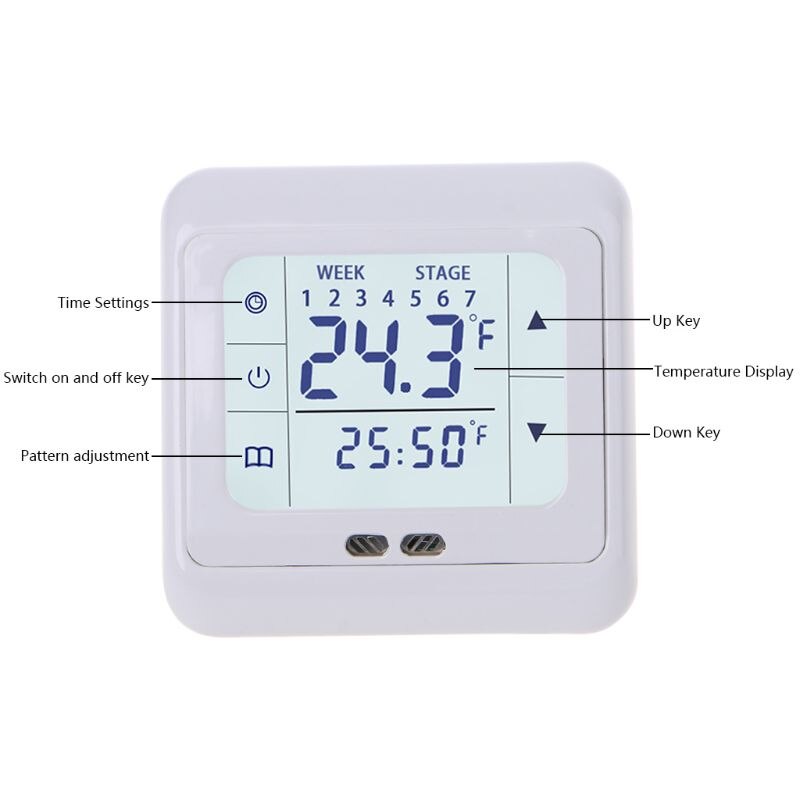

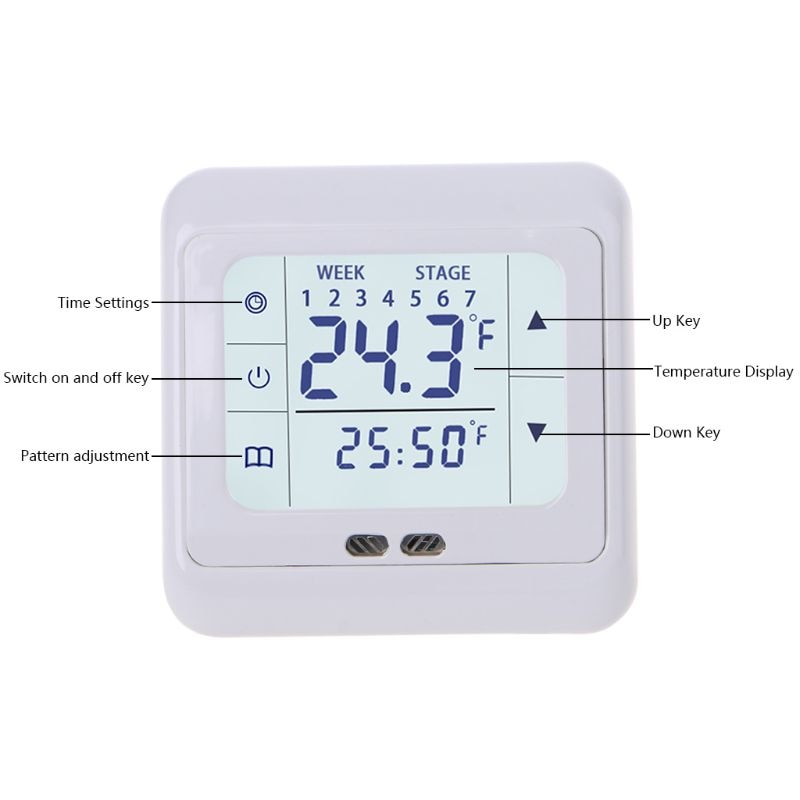

Touch Screen,Easy operation and utility.
Large LCD display with white backlight.
Kinds of periods of time modes. 5+2 / 6+1 / 7days.
Setting daily 6 periods of time and the setting temperature.
High reliability and powerful anti-jamming.
The clock continues when power fail and it won’t affect the period of time settings.
Mini size junction box and suitable for the entire world.
Come With 3M Extra sensor cabel.
Specifications:
Technical Data:

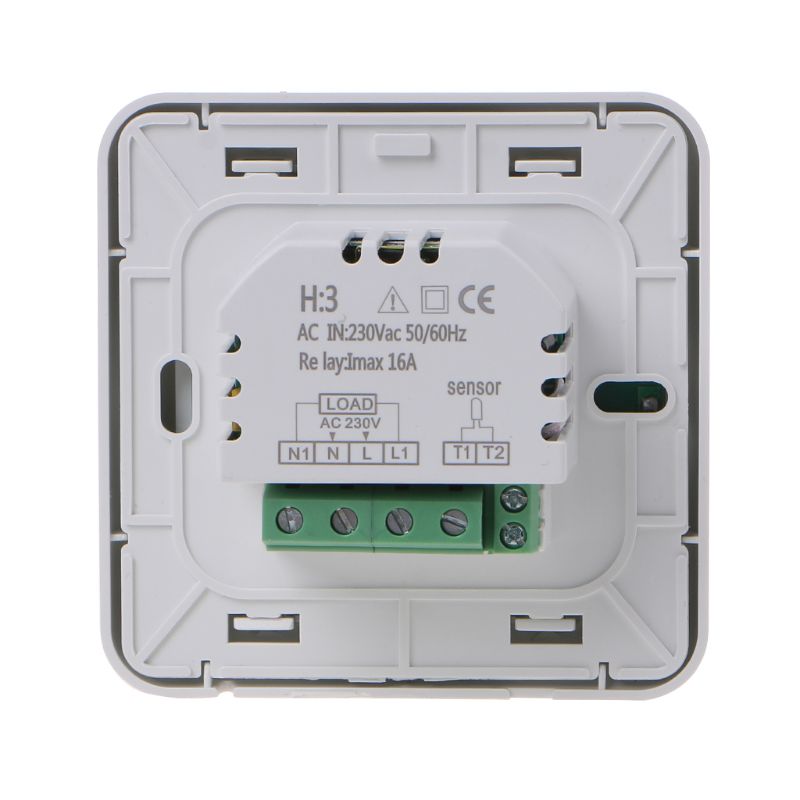

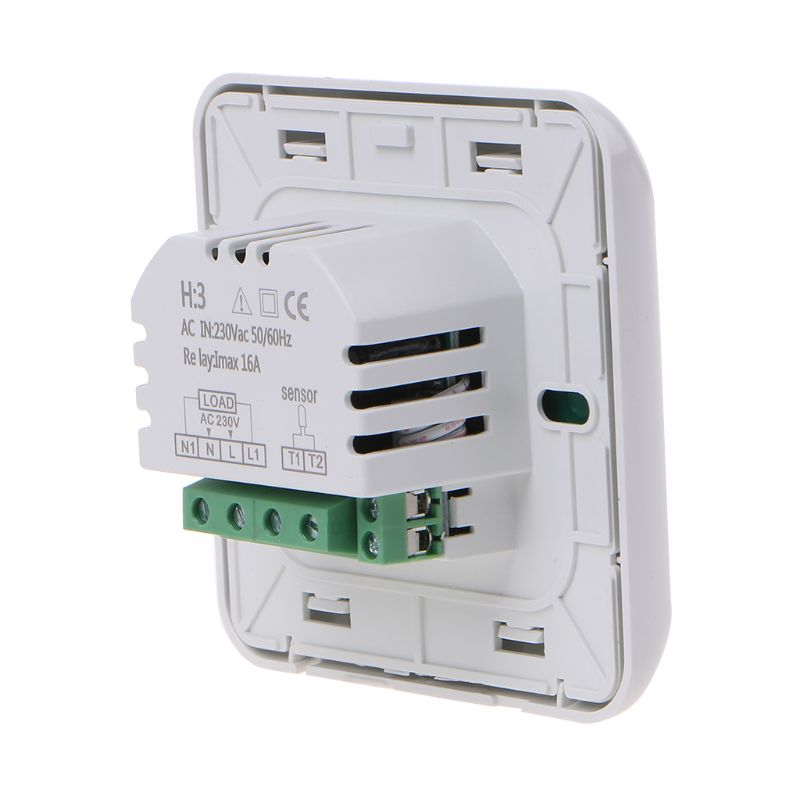

- Power Supply: 220VAC ±10% 50/60 Hz
- Maximum switch power: 3600W.
- Maximum switch rating of 16A
- Internal sensor setting range: 5 - 35°C (programmable)
- Internal sensor measurement range: 0 - 40°C
- External sensor measurement range: 0 - 90°C
- Display Type: touch LCD screen, display area size: 60 x 45 mm
- Inside Sensor: NTC B=3380 10k @25degrees Celsius
- Extra Sensor: Length=3M NTC B=3380 10k @25degrees Celsius
- Setting Unit: 0.5°C / step
- Indication Accuracy: 0.1°C

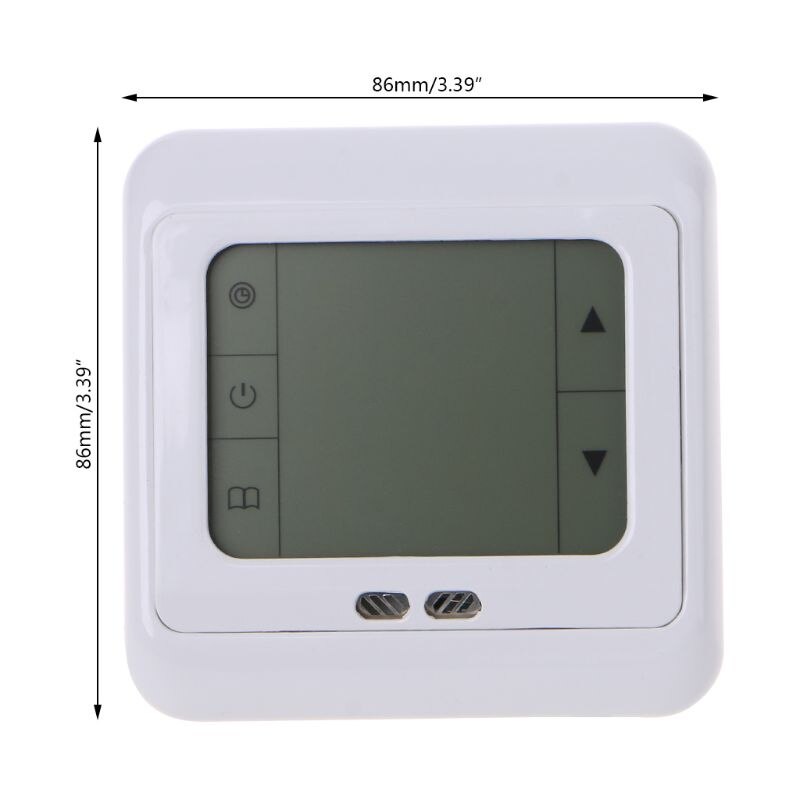

- Inner Box Size : 100 x 100 x 60 mm
More details see in:
User manual in English: http://milantrend.com/BYC07.pdf
Руководство пользователя: milantrend.com/eBay/Alice+Yao/C07+Russian.doc
- leitfaden für den Benutzer: http://milantrend.com/BYC07HDE.doc
Note:
Transition: 1cm=10mm=0.39inch.
Please allow 0-5mm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

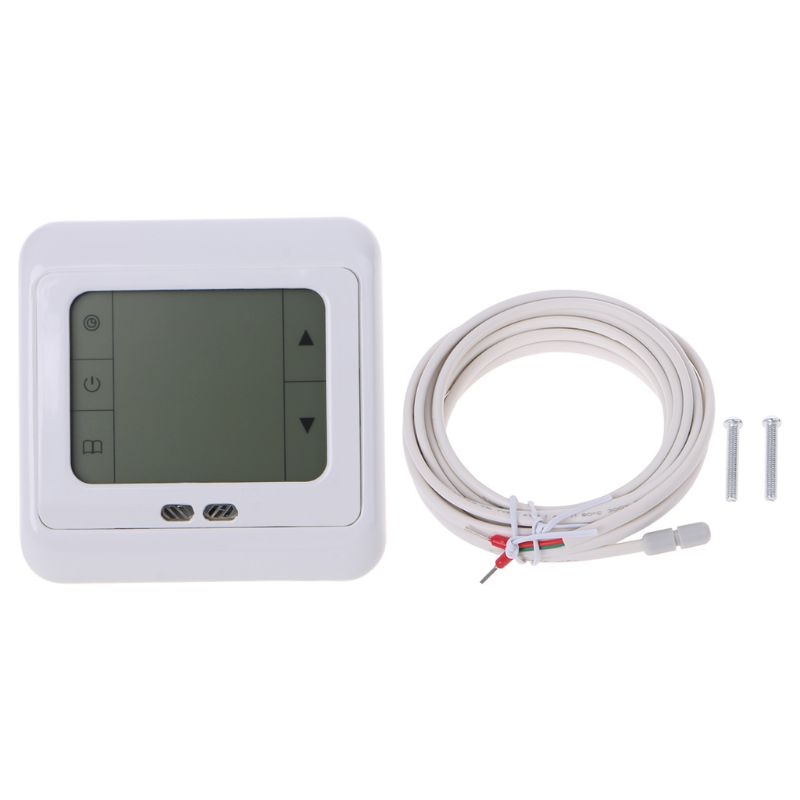

Package includes:

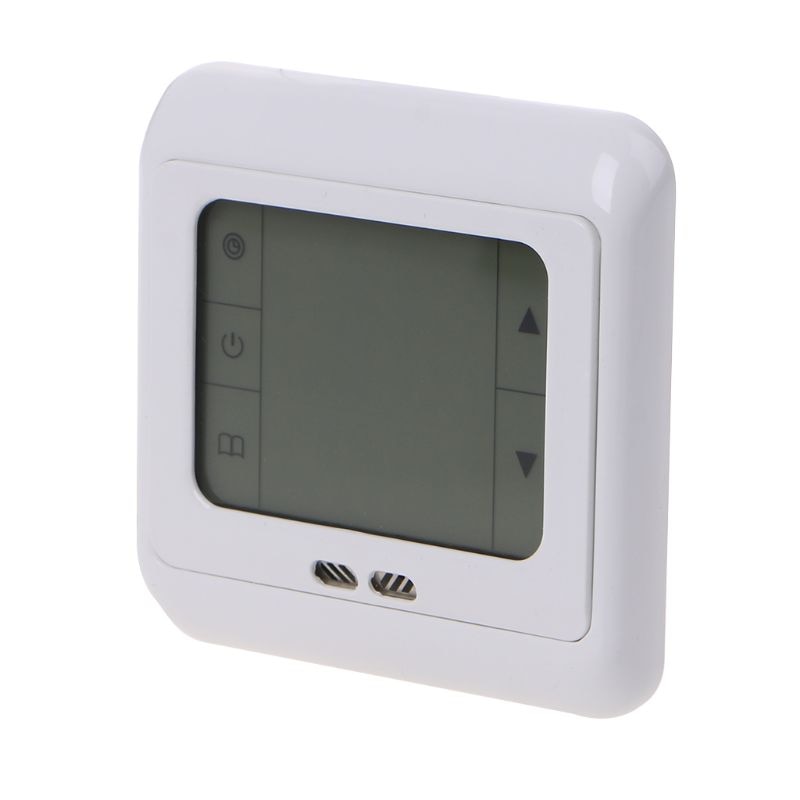

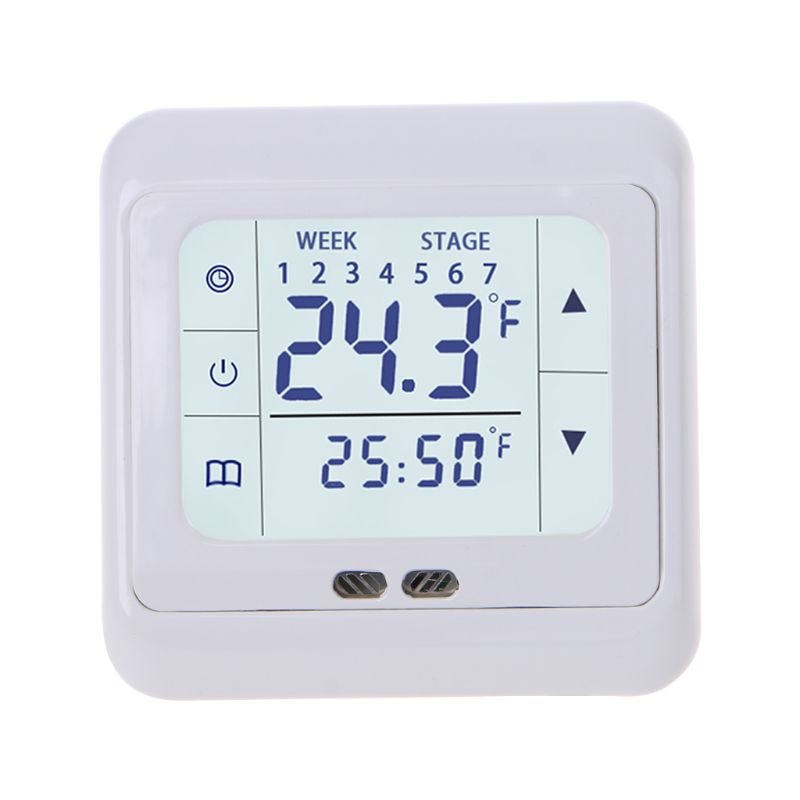

1 X Thermostat with backlight.

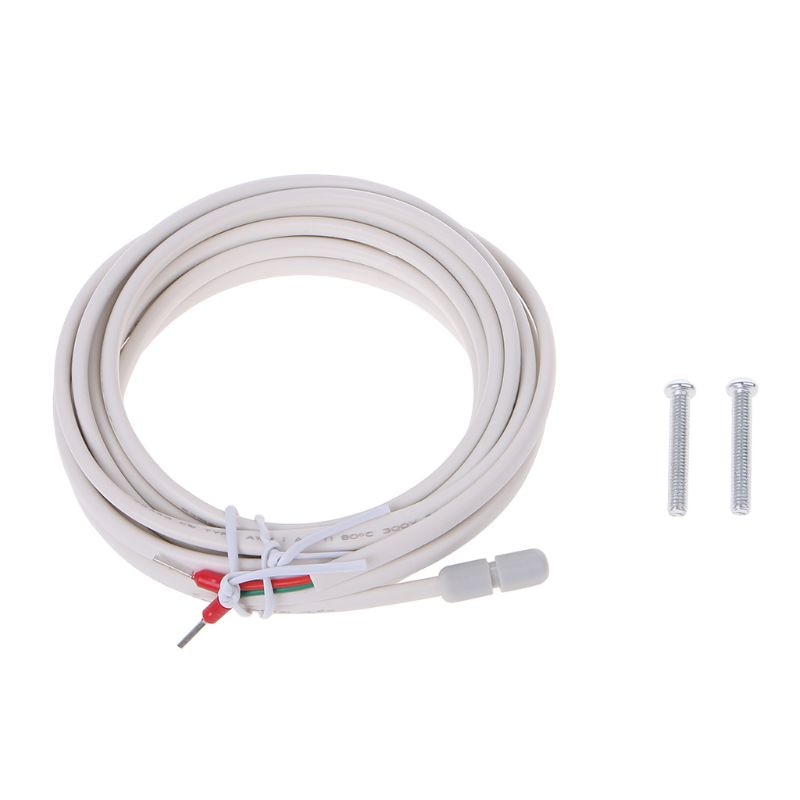

1 X 3m sensor cable.
2 X Mounting screws.
1 X User Manual (in English)
PS: The standard package contains English user manual only, we don't produce a manual in any other languages, or you can download the above website link to print it by yourself.
