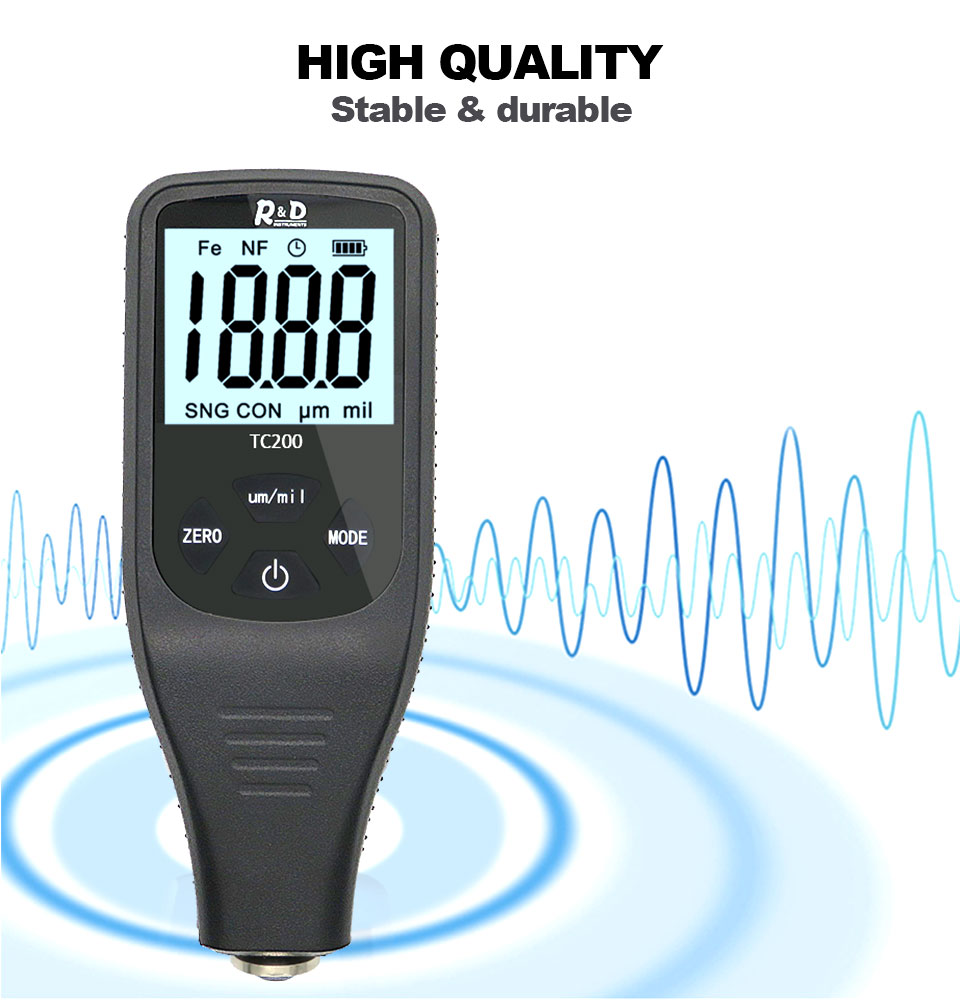

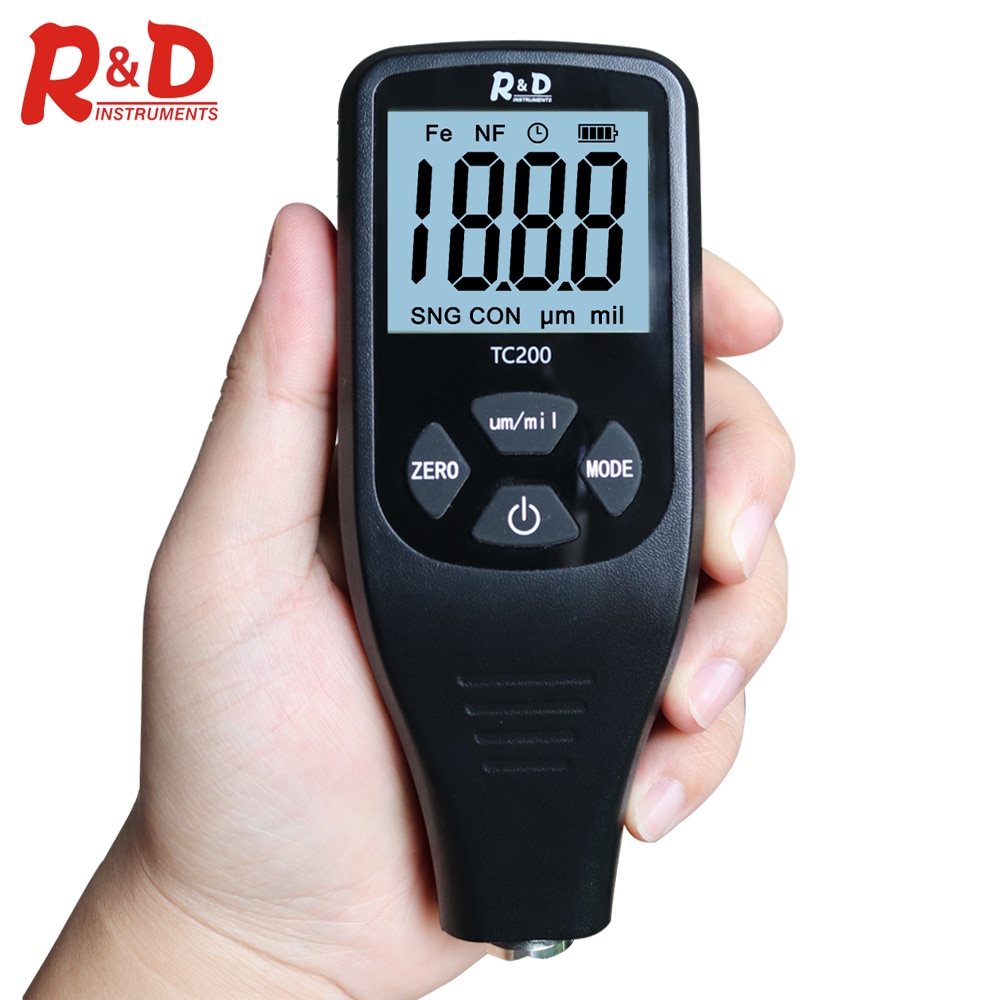

TC200 Car Coating Thickness Gauge Backlight LCD Film measurement composite Auto Car Paint Thickness Meter withUS RU Manual Fe/NF

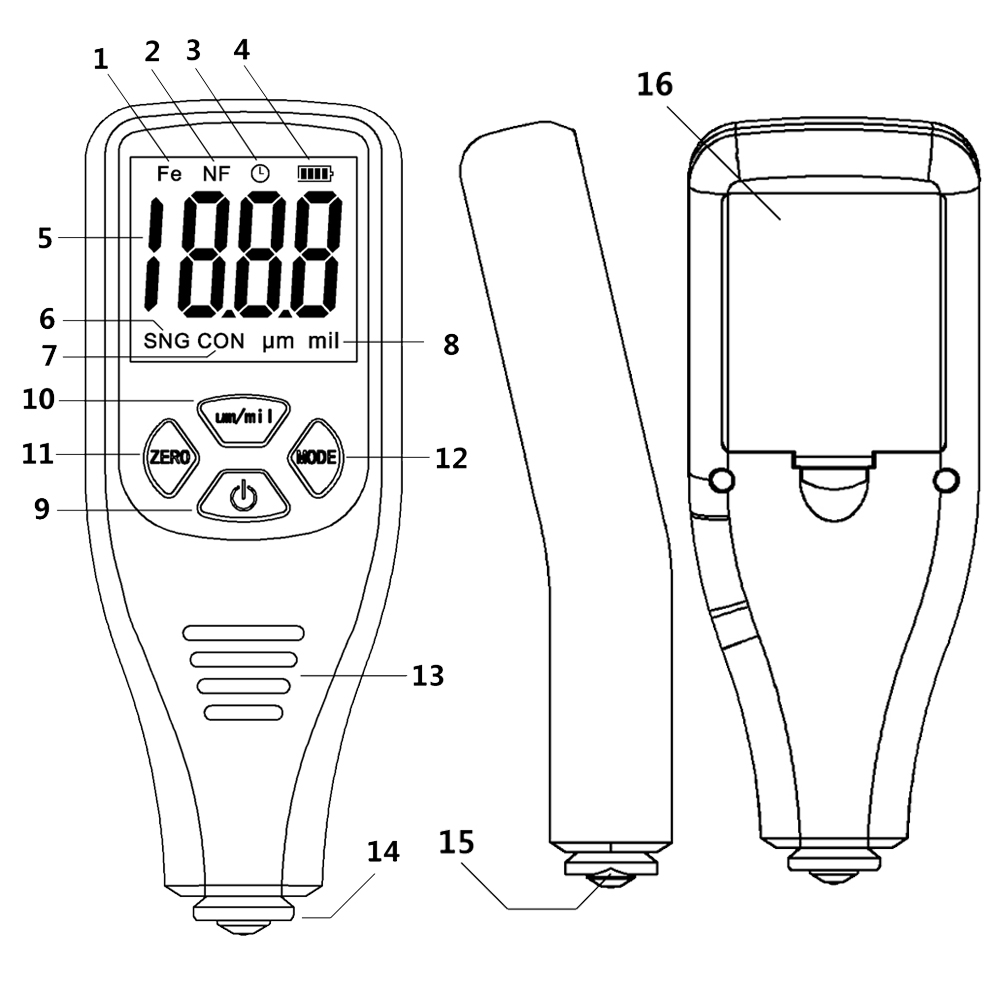

Description：

1. Fe--Magnetic substrate indicator: Steel/Iron
2. NF--Non-magnetic substrate indicator: Copper/Aluminum
3. Auto power off flag, auto power-off in 5 minutes with no-operation
4. Battery level indicator

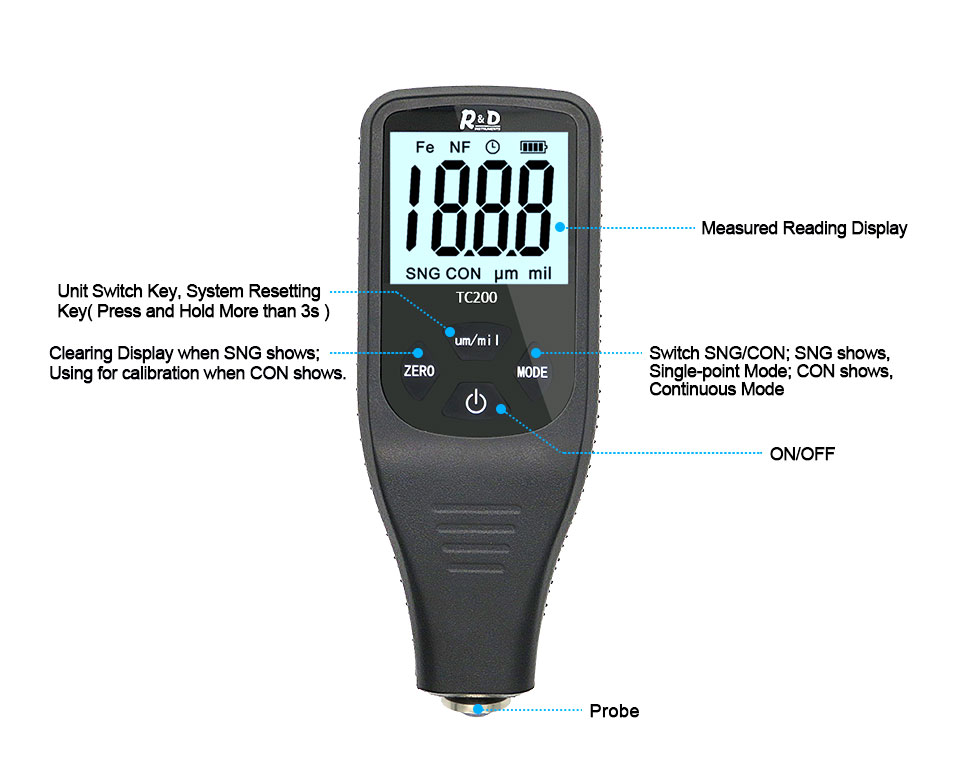

5. Measured Reading Display
6. SNG: Single Measurement Mode
7. CON: Continuous Measurement Mode
8. Unit: um, mil
9. ON/OFF
10. um/mil: Unit Switch Key, System Resetting Key( Press and Hold More than 3s )
11. ZERO: Clearing Display when SNG shows;
Using for calibration when CON shows.
12. MODE: Switch SNG/CON; SNG shows, Single-point Mode; CON shows, Continuous Mode

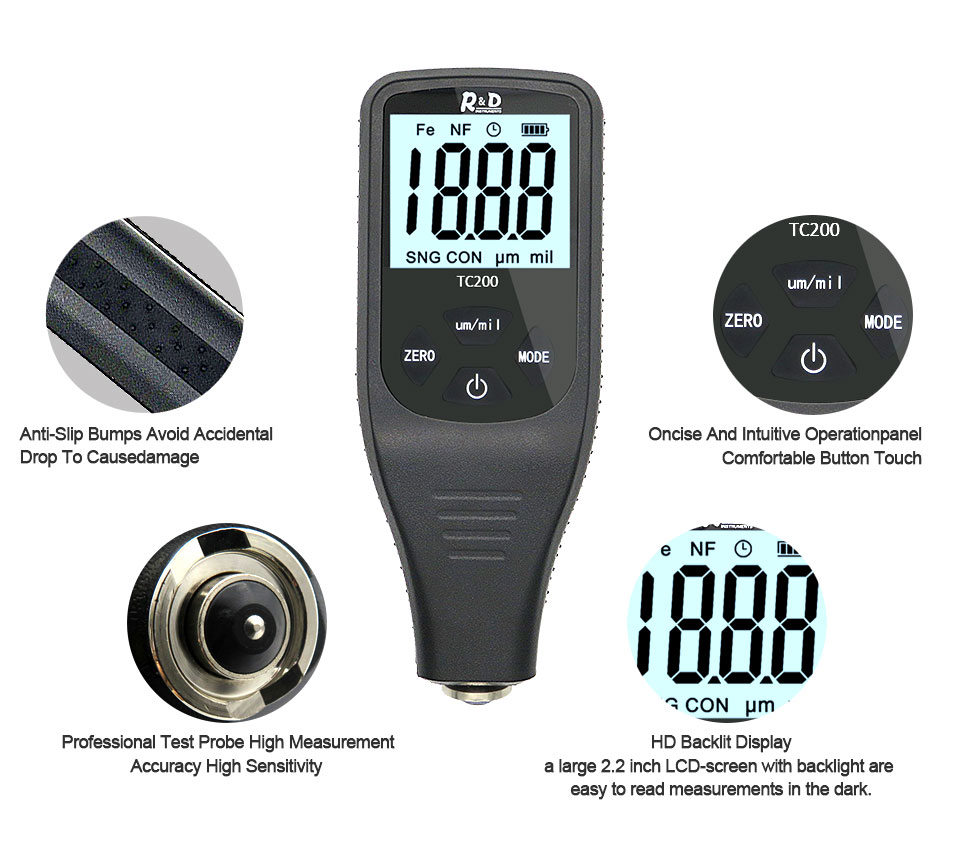

13. Anti-Skid Slot
14. Probe
15.V-Groove

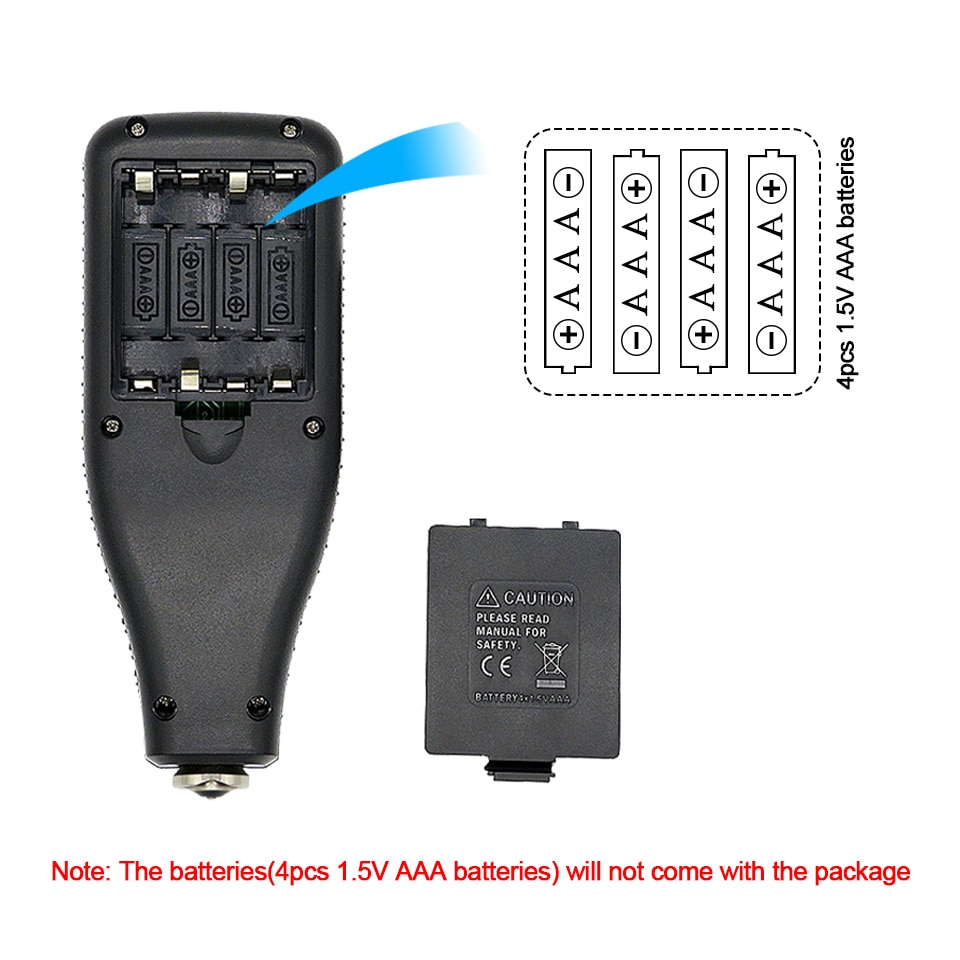

16. Battery Compartment

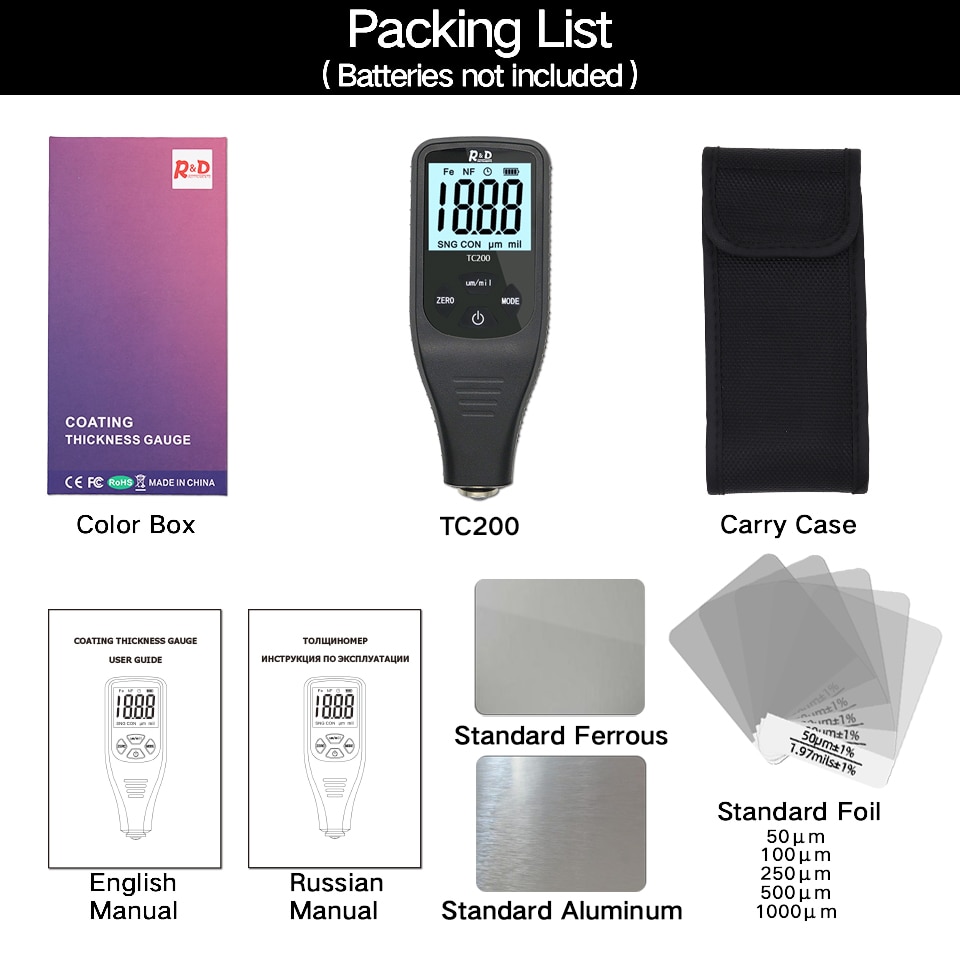

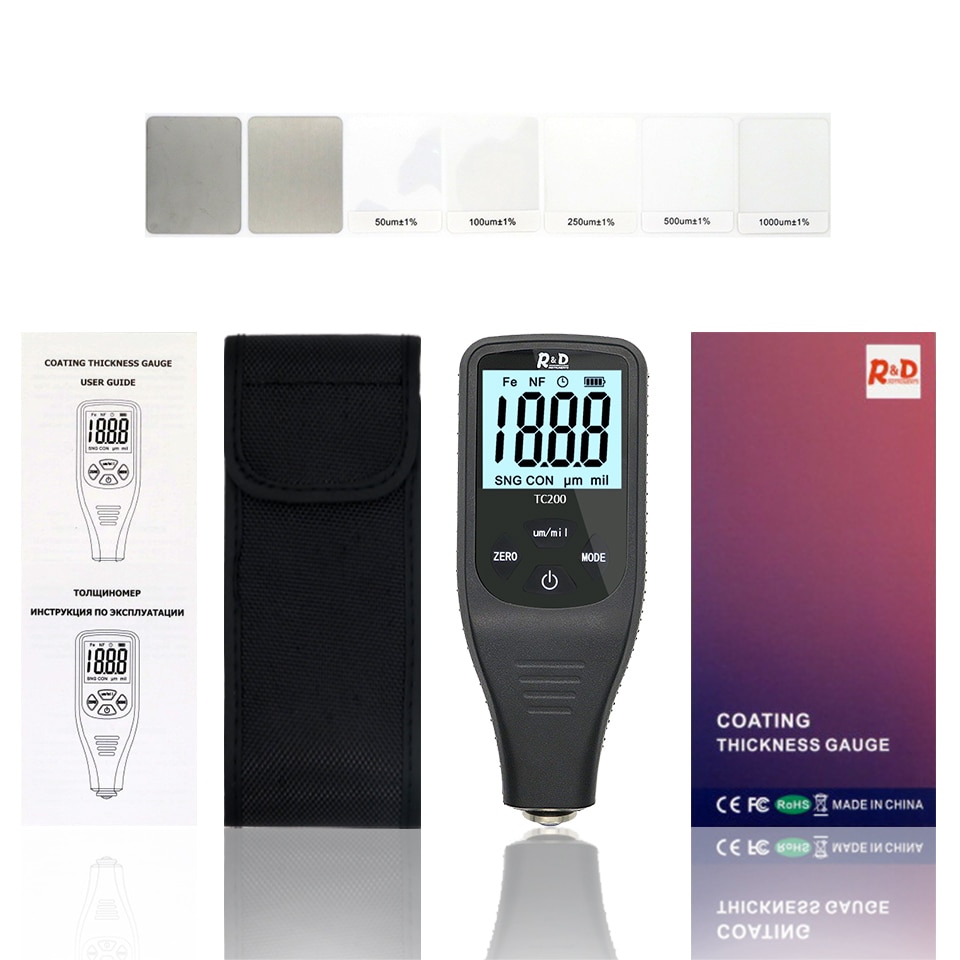

Package List: （Batteries not included）

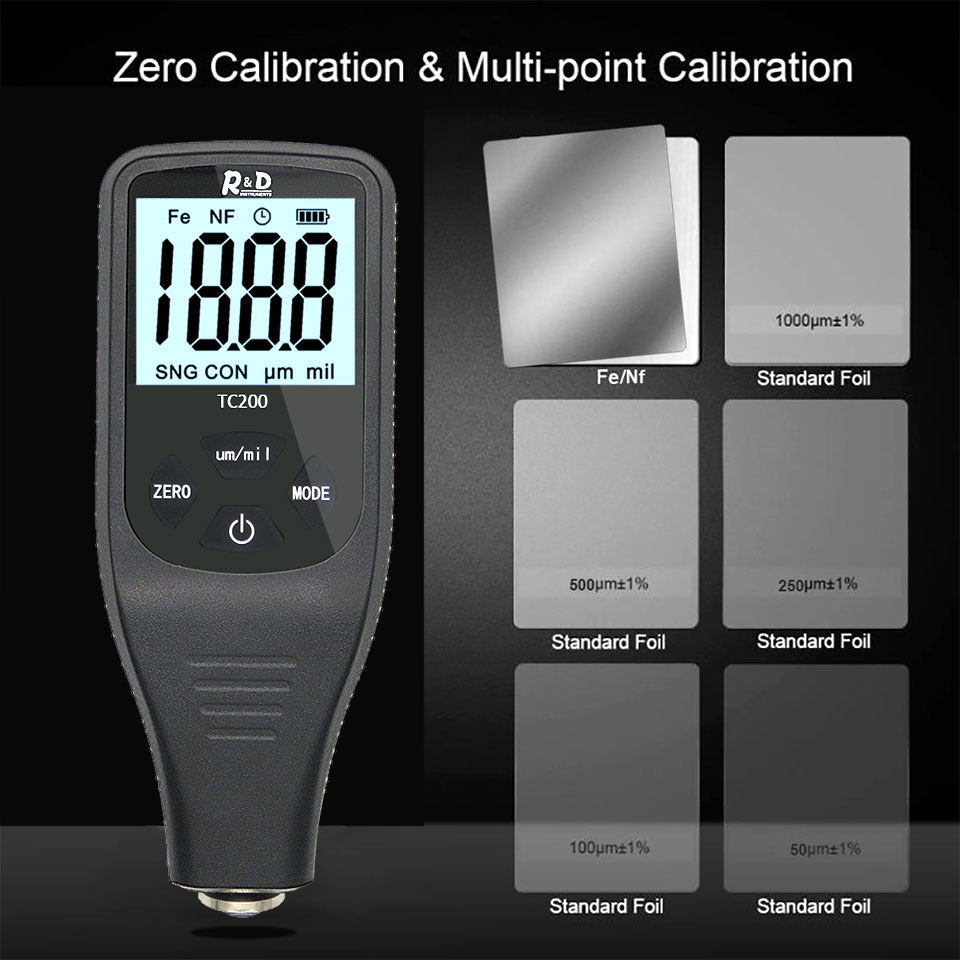

Coating Thickness Gauge* 1
Substrate* 2
Standard foil* 5
English manual* 1
Russian manual * 1
Protective cover*1

Question 1: Are the TC100, GM998, and TC200 thickness gauges iron and aluminum dual-purpose models?

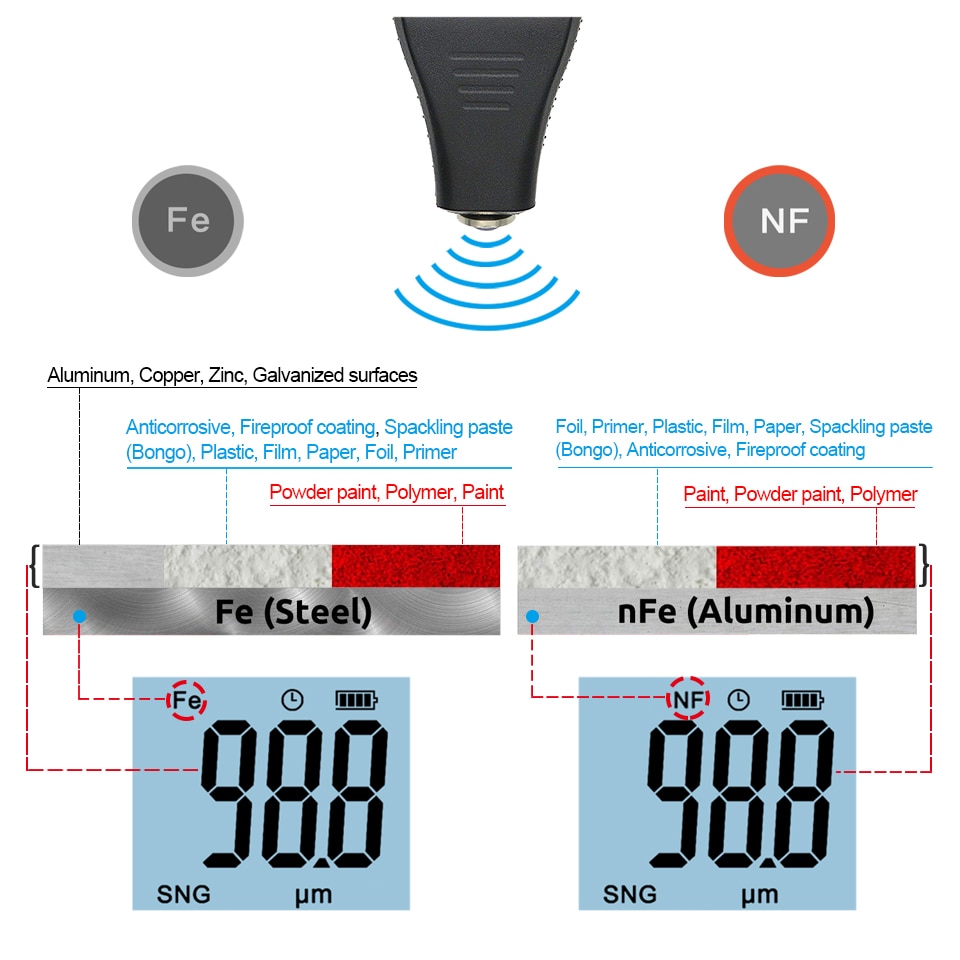

Answer: Yes, it can automatically identify the iron or aluminum substrate, the screen quickly displays the substrate material, Fe stands for ferromagnetic substrate, and NF stands for non-ferromagnetic materials, such as aluminum, aluminum alloy, copper, etc.

Question 2: Can TC100, GM998, TC200 thickness gauges measure the thickness of metallic paint

Answer: Yes, whether it is ordinary paint or metallic paint, the paint thickness can be accurately measured.

Question 3: What is the resolution and range of the TC100, GM998, and TC200 thickness gauges?

Answer: The minimum resolution is 0.1um, and the resolution above 100um is 1um. Range: 0.1 ~ 1500um.

Question 4: Does the TC100, GM998, TC200 thickness gauge have a backlight function?

Answer: TC100 does not have backlight, GM998 and TC200 have backlight function.

Question 5: Are the TC100, GM998, and TC200 thickness gauges equipped with dry batteries?

Answer: Due to the restrictions of international logistics, there is no battery, and the battery needs to be purchased by the customer.

Question 6: Can TC100, GM998, TC200 thickness gauges measure the thickness of galvanized layer, nickel plated layer, gold plated layer, metal oxide layer, anodized layer, etc.?

Answer: Yes, please rest assured to buy.

Question 7: Can TC100, GM998, TC200 thickness gauges measure the thickness of paint on plastic surfaces?

Answer: No, the thickness of the electroplated layer on the plastic surface or the thickness of the paint requires other types of instruments to measure. It is not in the scope of application of the coating thickness gauge. I hope I can help you, thank you.
