Main Features
.Cardioid Pattern, Accurate Sound Pickup
.Digital / Analog Output Mode Switch, Universal for Camera and Smartphone
.Stepless Gain Control with Preamp in Digital Mode
.Support Real-time Monitor in Digital Mode
.No Power Driven, Plug and Play
.Professional Shock-mount, E effective Shock Absorption
.Full Metal Material, Super Shielding
Notice
1.When working with devices with USB-A and Lightning interface in digital mode, it is necessary topurchase relevant audio output cable or audio adapter cable by yourself
2.Some smartphones with USB-C interface are incompatible in digital mode, such as ViVO andOPPO

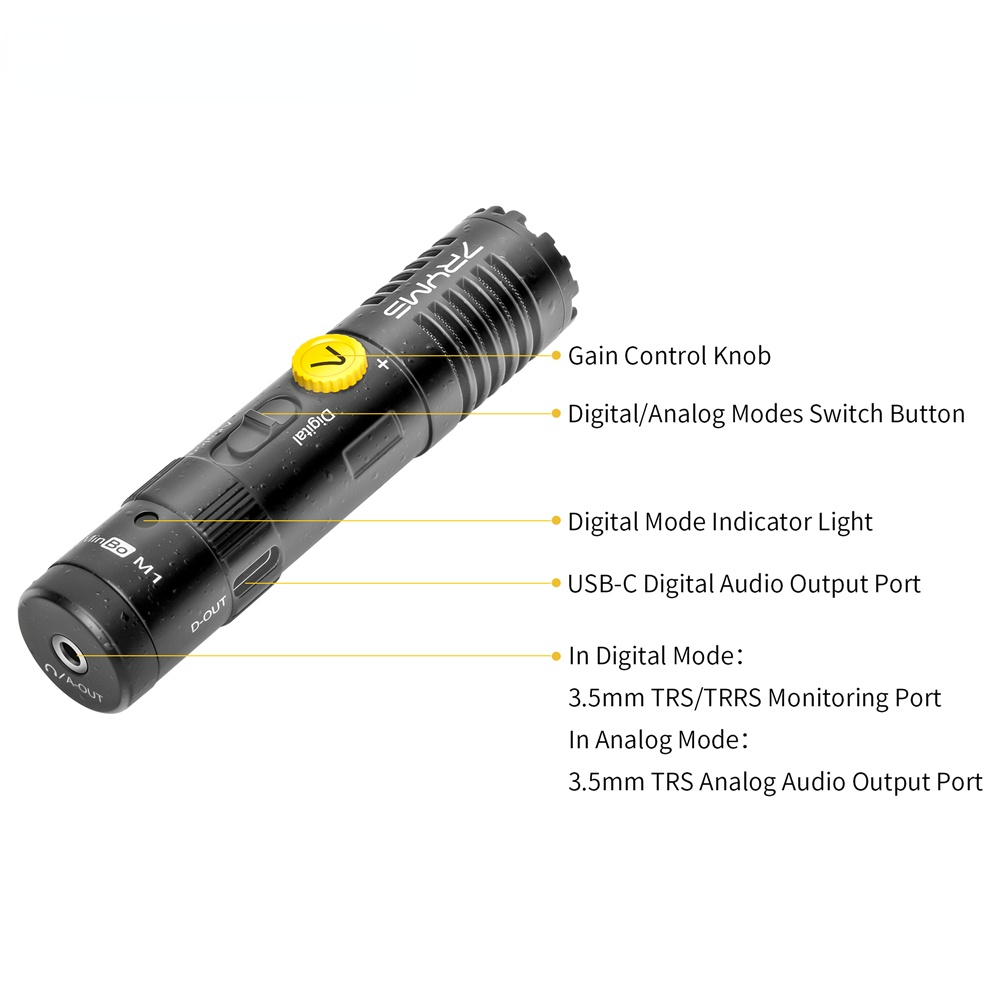

3.When working in digital mode, the 3.5mm TRS audio output port is intelligently identified as themonitoring port, the gain control knob and digital mode indicator light are available only in digitalmode

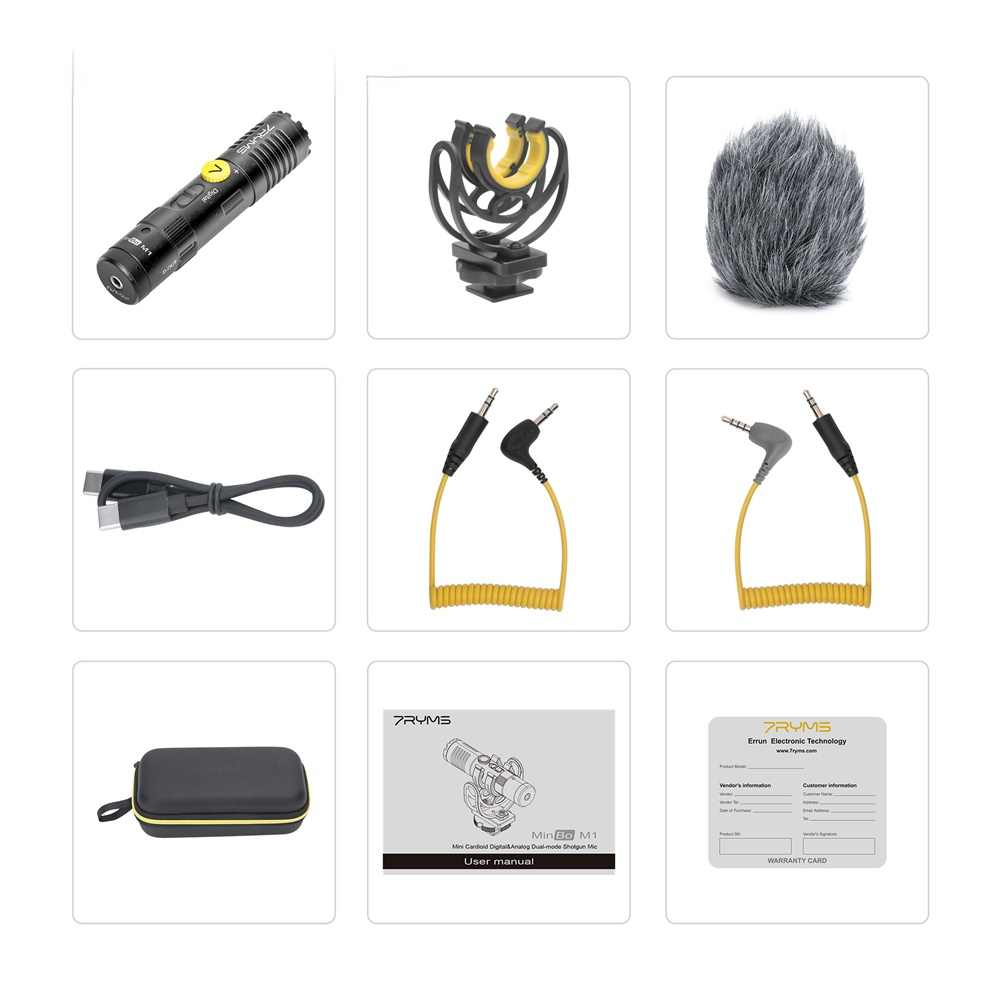

Item Check List
1.Microphone
2. Shock Mount
3. 3.5mm TRS - TRS Audio Cable
4. 3.5mm TRS - TRRS Audio Cable
5. USB C-USB C Audio Cable
6. Wind Muff
7. Carry Case
8. User Manual
9. Warranty Card
Specification
| Polar Pattern | Cardioid Pattern |
| Frequency Response | 60Hz ~ 20kHz |
| S/N | >60dB |
| Maximum SPL | >100dB |
| Receiving Sensitivity | Analog: -35±2dB |
| Working voltage | 4.75V ~ 5.25V |
| Output Interface | 3.5mm TRS & USB-C Interface |
| Dimension | Ф 22mm * L42mm |
| Net Weight | 35g |
| Operating Temperature | 0℃ ~ 50℃ |
| Storage Temperature | -20℃ ~ 60℃ |
