Description:
The COMICA LINKFLEX AD3 is a Two-channels XLR / 6.35mm / 3.5mm Audio Preamp Mixer / Adapter / Interface for shooting videos with any camera and smartphone. It is designed with functions of ‘Support 2-Channels Audio Input’, ‘Mic/Phone Two Way Audio Monitor’, ‘Audio Preamp and Gain Control’, ‘48V Phantom Power Output’, ‘Belt-clamp and Magic-tape Design’, etc., It provides a compact audio mixing solution.
Main Features:
1. Support 2-Channels Audio Input
2. XLR / 3.5mm / 6.35mm(For Instrument like Guitar etc.,) Audio Adapter Interface
3. Universal for Camera and Smartphone
4. Support 48V Phantom Power Output
5. Audio Preamp and Gain Control
6. Mic / Phone Two Way Audio Monitor
7. Belt-clamp and Magic-tape Design at the Bottom
LINKFLEX AD3 Audio Preamp Amplifier makes your recording work easier by connecting the interface of 3.5mm or XLR microphone and the interface of 6.35mm instrument (such as guitar, etc.) to smartphone and camera.

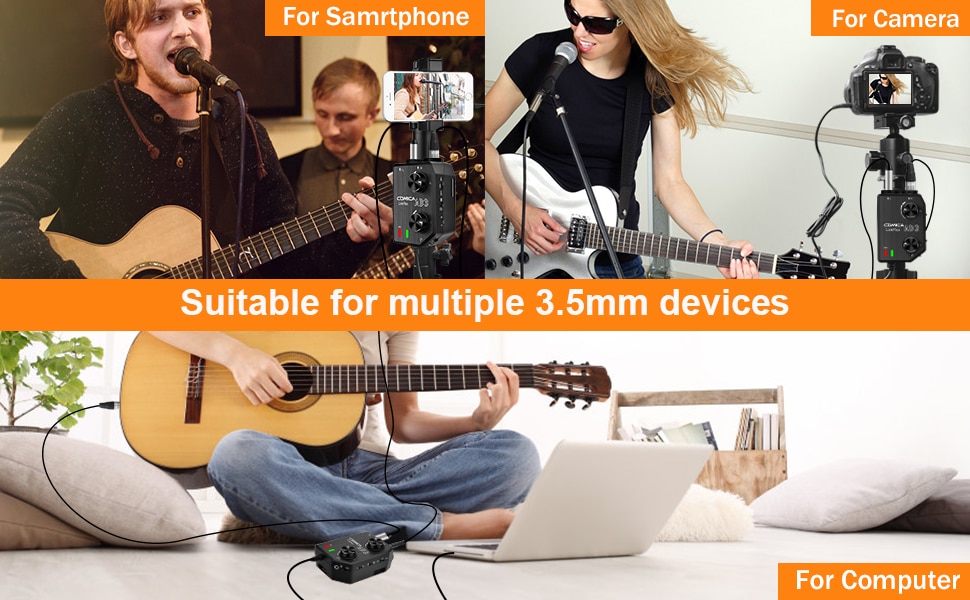

This Audio Preamp Amplifier is suit for multiple 3.5mm devices, like camera and smartphone and easy to switch between the two modes, and also suit for PC.

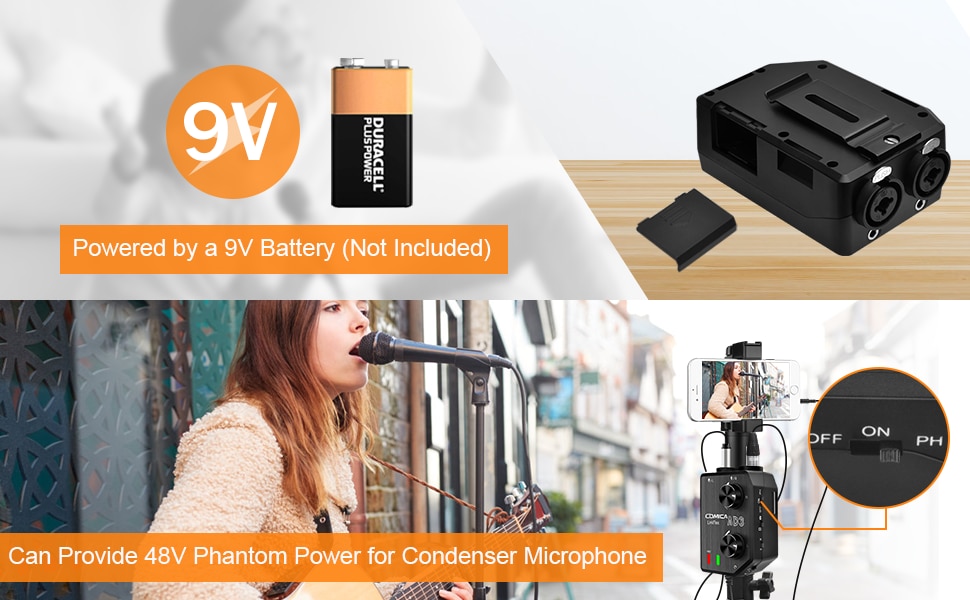

After installing the 9V battery, LINKFLEX AD3 is able to supply 48V phantom power for other devices.
The left and right channel gain-control knobs make it easy to set precise levels and meet your needs then bring you a great audio performance.

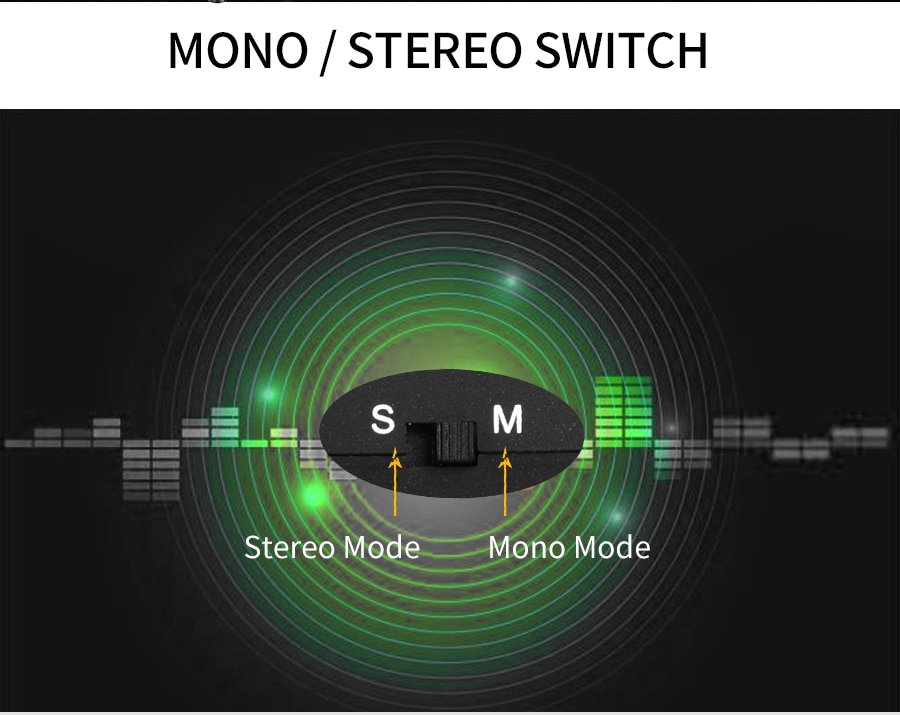

There are stereo and mono modes multiple output options to meet your different requirements.
LINKFLEX AD3 Audio Preamp Adapter effectively support microphone real-time monitoring and smartphone play back monitoring.

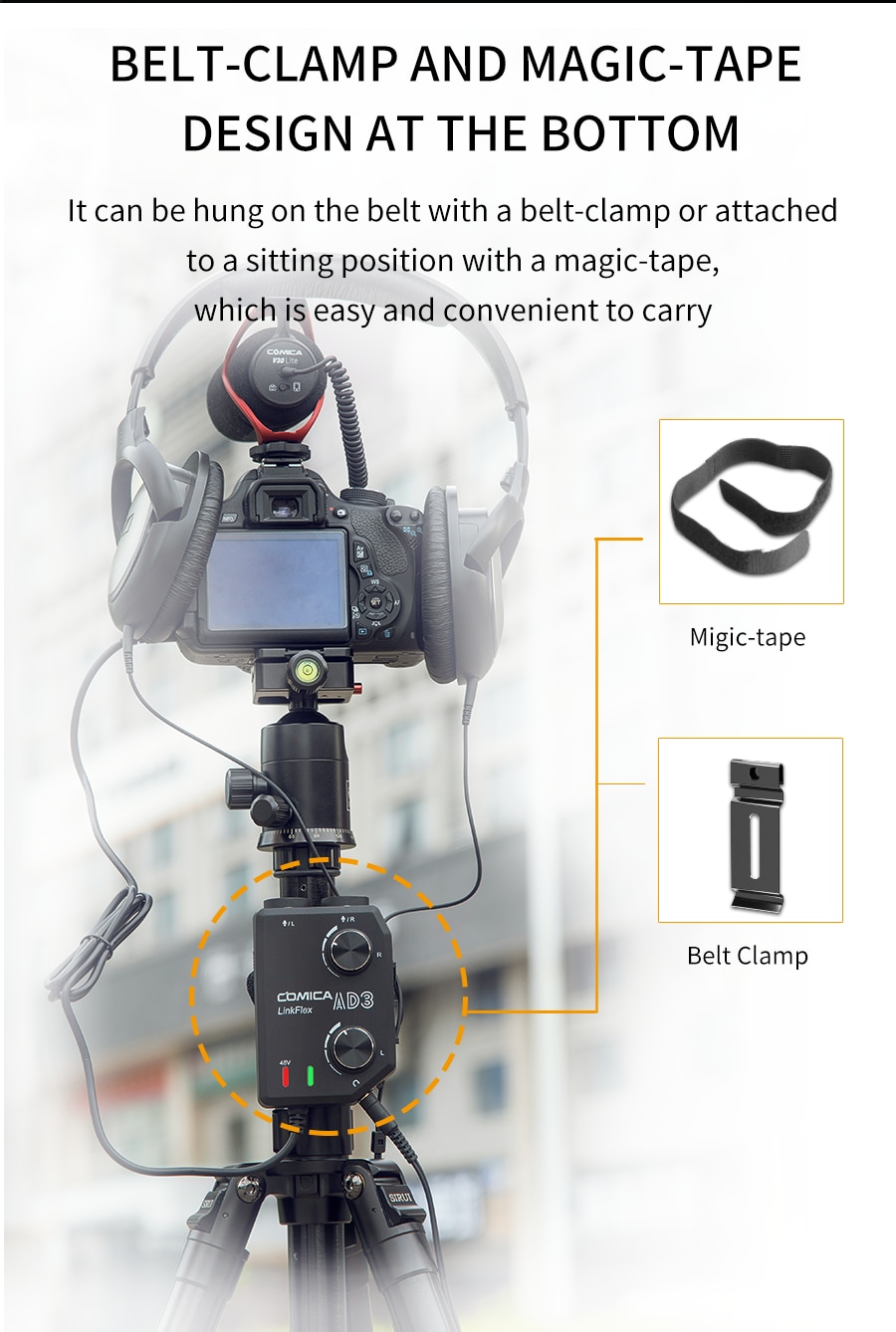

This audio Preamp Adapter can be hung on the belt with a belt-clamp, which is portable and easy to carry.

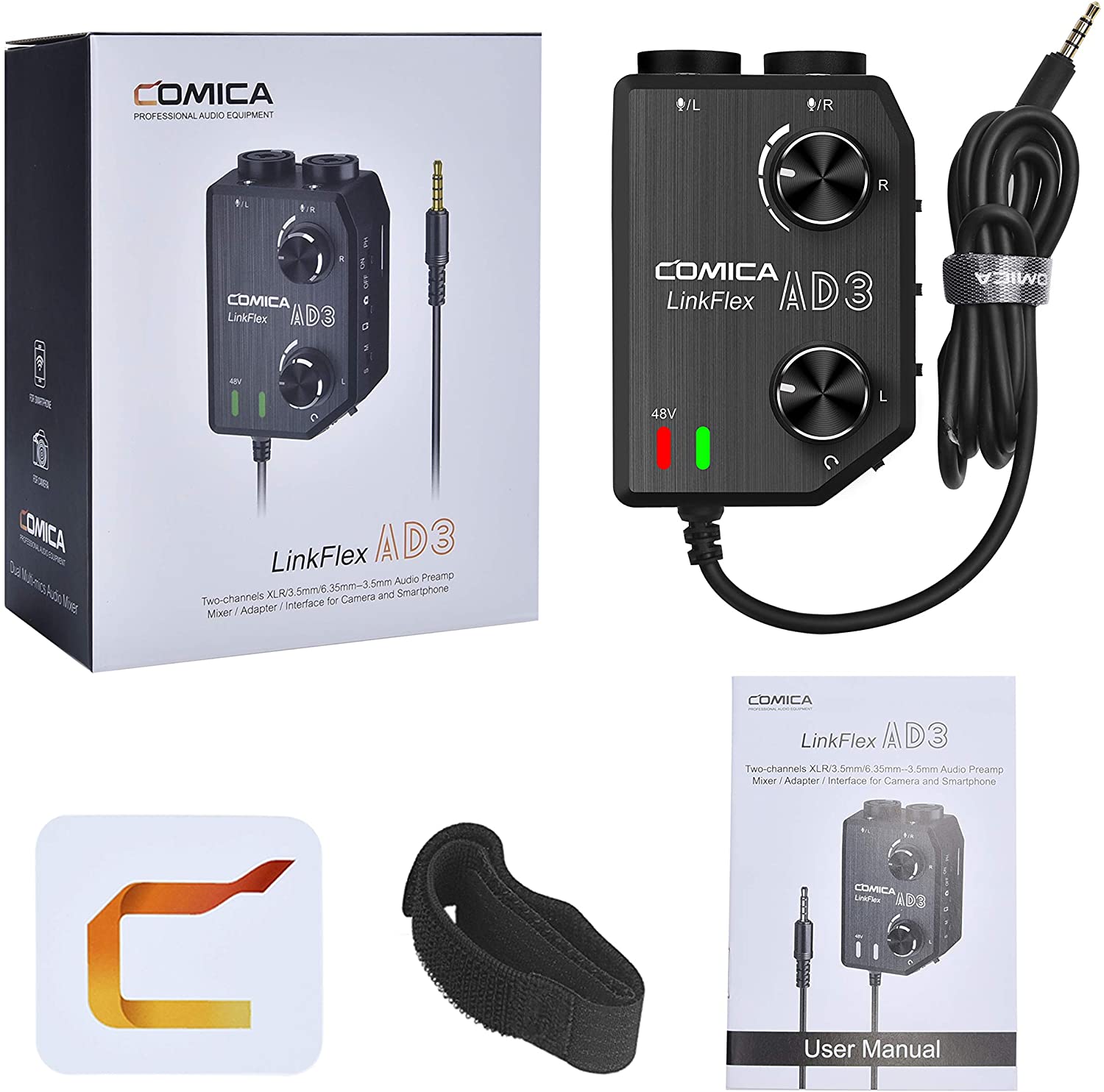

Package Contents:
1. Audio Adapter / Interface
2. Belt Clamp
3. Magic-tape
4. User Manual
5. Warranty Card
Notice:
1. When used with smartphone, please purchase separate audio cable adapter with corresponding interface.
a. For the Android system smartphone, the microphone works well in default audio mode, but default video mode will happen with incompatibility trouble while working with some smartphone; (Then we suggest you try the 3rd party’s video APP);
b. For the iOS system phone, the microphone works well in all default audio mode , video mode, and 3rdparty’s APP.
2. This product belongs to high-precision instruments, please avoid falling, collision or pounding.
3. Do not use this equipment in the vicinity of heat source or interference source, such as radiator, oven, refrigerator or air conditioner.
4. Please keep the product in a dry environment.
5. Do not use the equipment in rain or in a damp environment, otherwise there will be a risk of the circuit.
Specification:
| Input | XLR x 2(L/R), 6.35mm x 2(L/R), 3.5mm x 2(L/R) |
| Output | 3.5mm audio output, 3.5mm headphone output |
| Frequency Response | 20Hz~20kHz, ±1dB |
| Gain Range | Maximum increase +20dB |
| THD+Noise | <0.02%, RL=2kΩ, f=20Hz~20kHz,Vo=1Vrms |
| Battery | 9V 6LR61/6F22 x 1 |
| Size | 70 x 53 x 102mm |
| Net Weight | 159g |
| Working Temperature | 0℃ ~ +50℃ |
| Storage Temperature | -20℃ ~ +60℃ |
