KOLSOL TS61 Tire Pressure Monitoring System TPMS, Wireless Real-time Cigarette Lighter Plug TPMS and Temperature Gauge with 4 DIY External Sensor

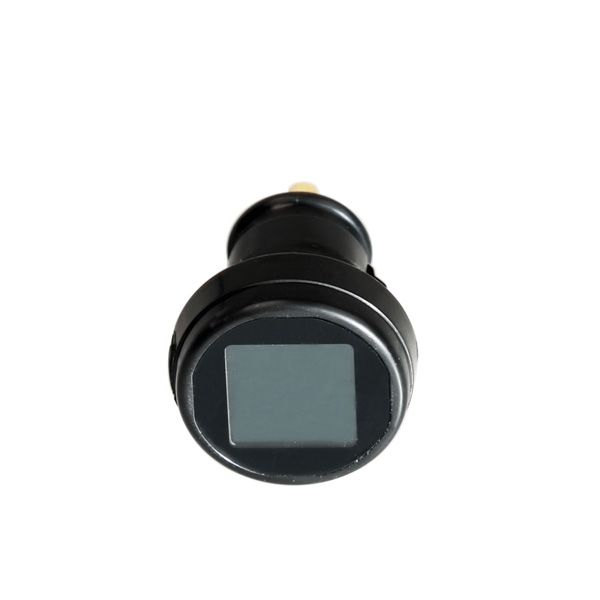

Product Features:LCD display (LCD size 17 x 17mm)
Valve diameter: 7mm
Pressure units: PAR/PSI
Working temperature: -20℃~ 80℃
Storage temperature: -30℃ ~ 85℃
Input Voltage: DC 12 ~ 24V
Pressure Range:0-3.5Bar/0-50psi
Sensor battery: CR1632
Temperature unit: C

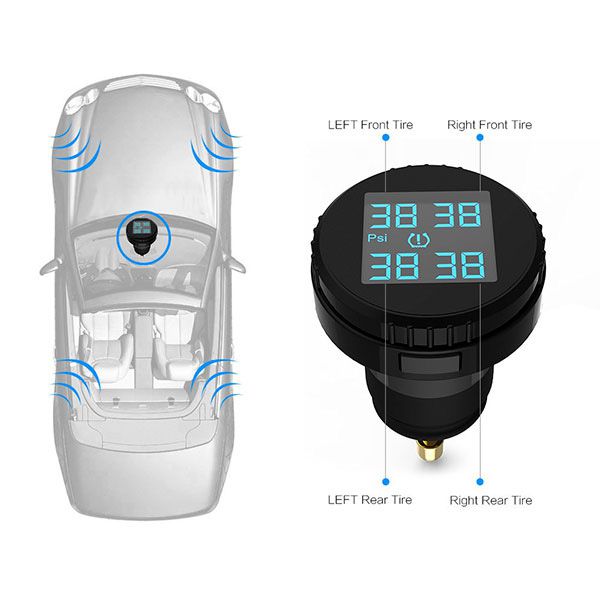

Simultaneously display 4 tire pressure or temperature
Temperature, excessive pressure alarm, emergency leak alarm
Connected to cigarette lighter(DC 12V)
Wireless connection
Specifications:
Color: black
Dimension:
Receiver: approx. 38 ( height) x 33 ( diameter )mm
Sensor: approx.7 ( height ) x 0 ( diameter )mm
Certificates : CE , RoSH(attachment)
Tips for Sensors Installation:
1. Be gentle to the valve stem when screwing the sensors. It's best to pinch the valve stem with one hand and then screw sensors with the other hand.
2. Turn on the monitor first before installing the sensors so that the monitor can receive the sensor data on time.
3. Ensure no air leakage over after installed and may use soapy water for testing if necessary.
Sensor Installation Instruction:

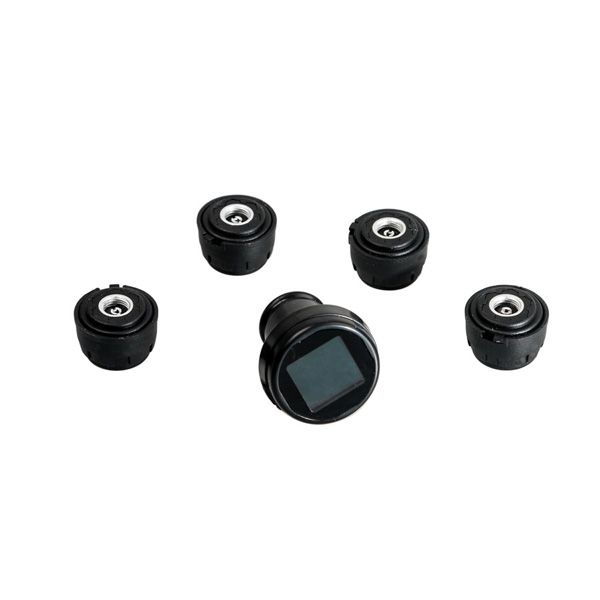

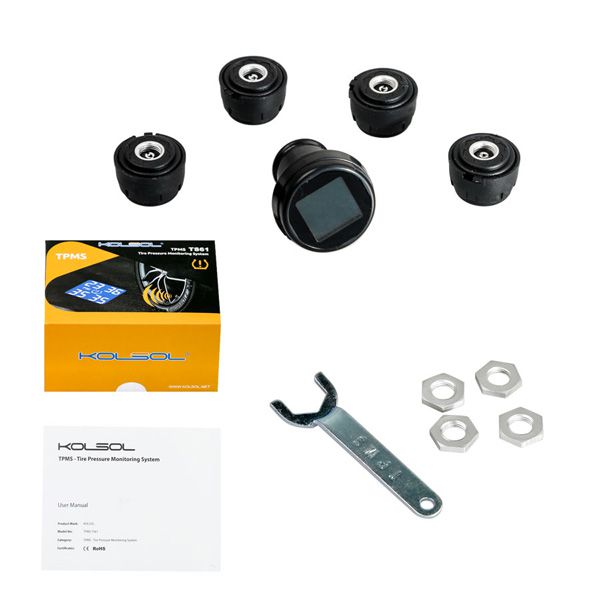

Package includes:

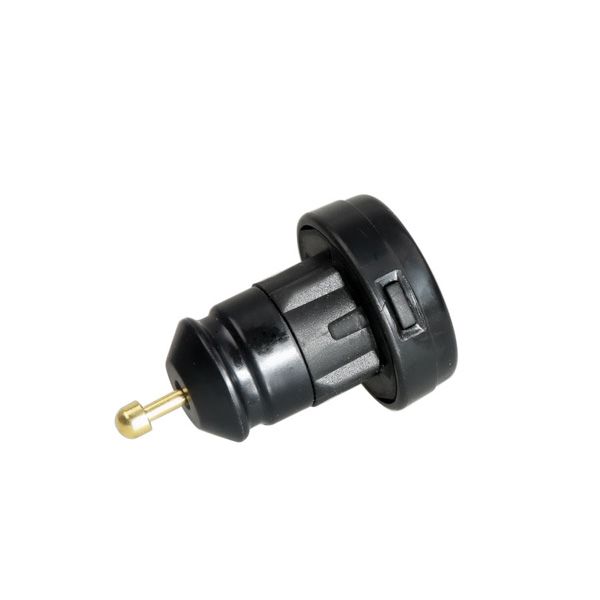

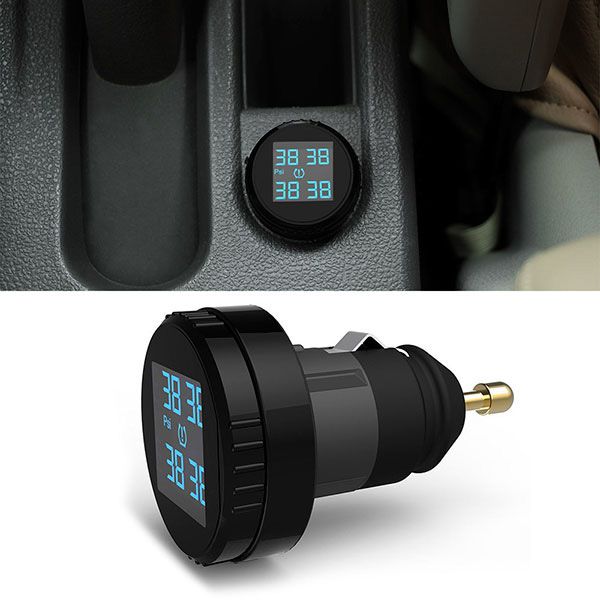

1 x Receiver ( Cigarette Lighter Real )

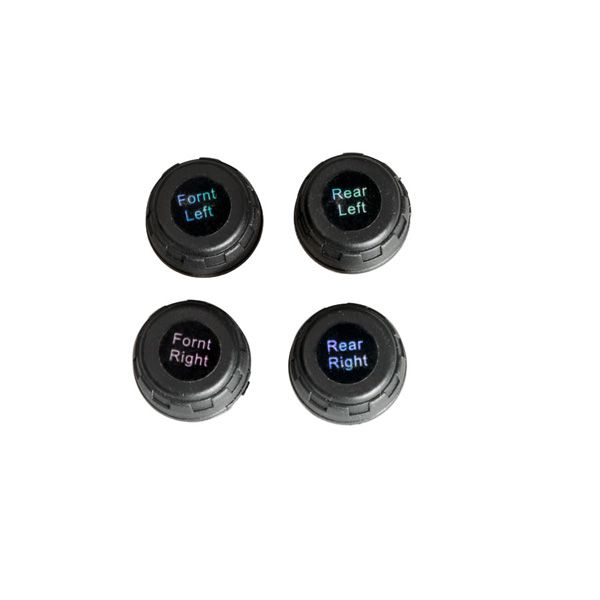

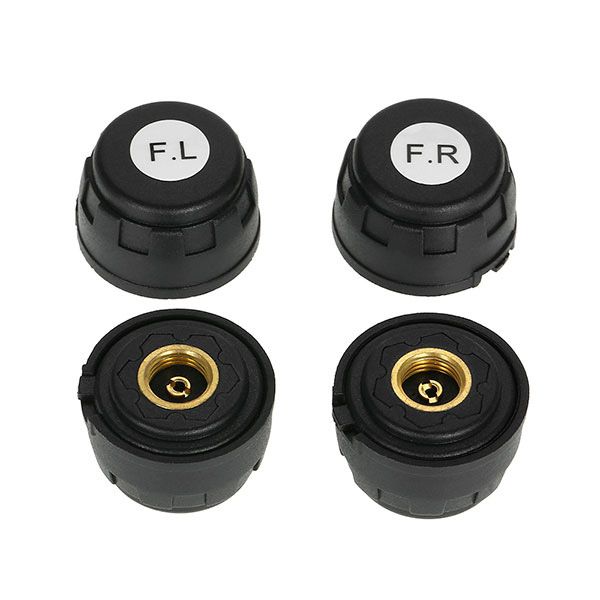

4 x Sensor ( External Sensors )

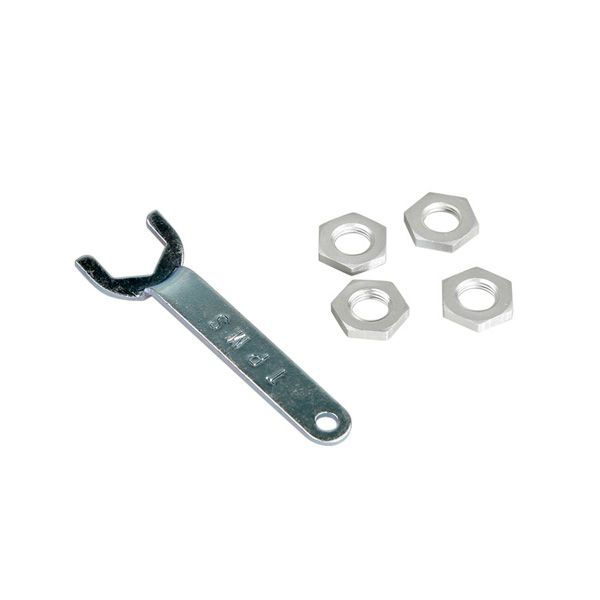

1 x spanner ( for lock/unlock sensur )
1 x English instruction manual '
