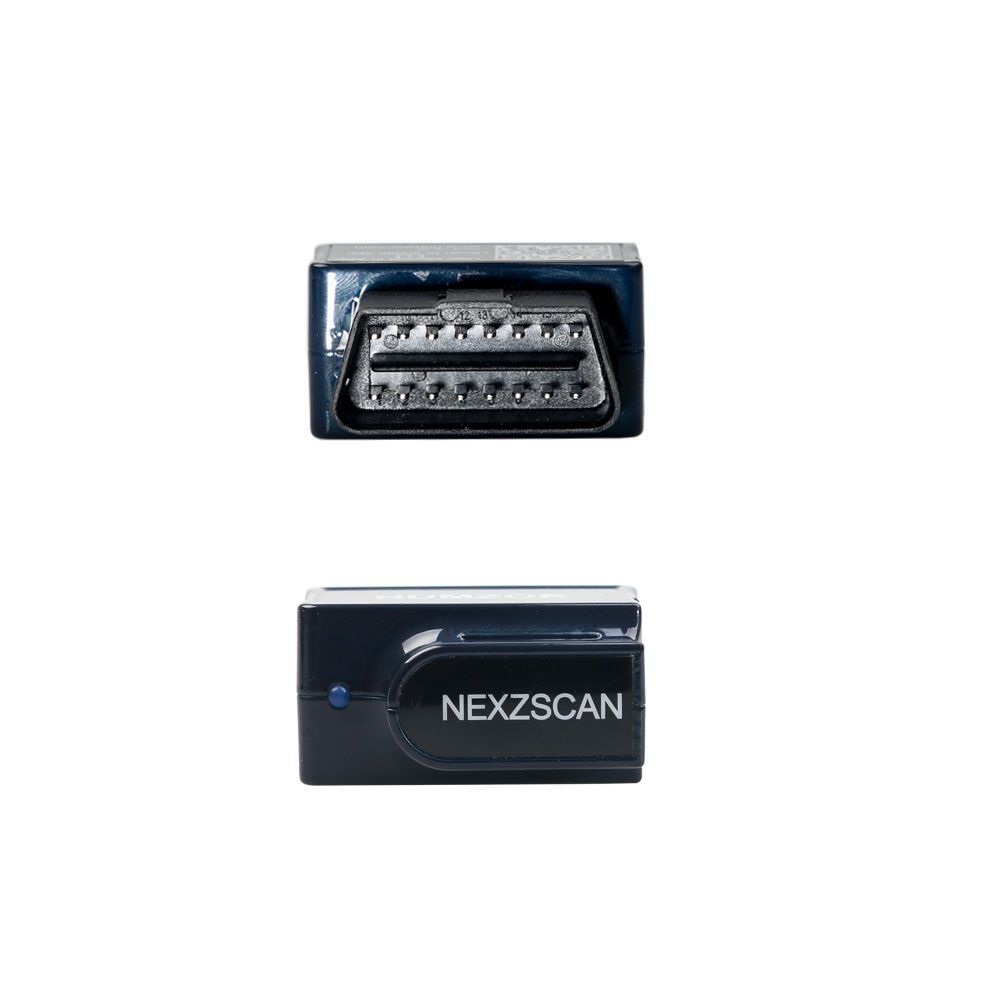

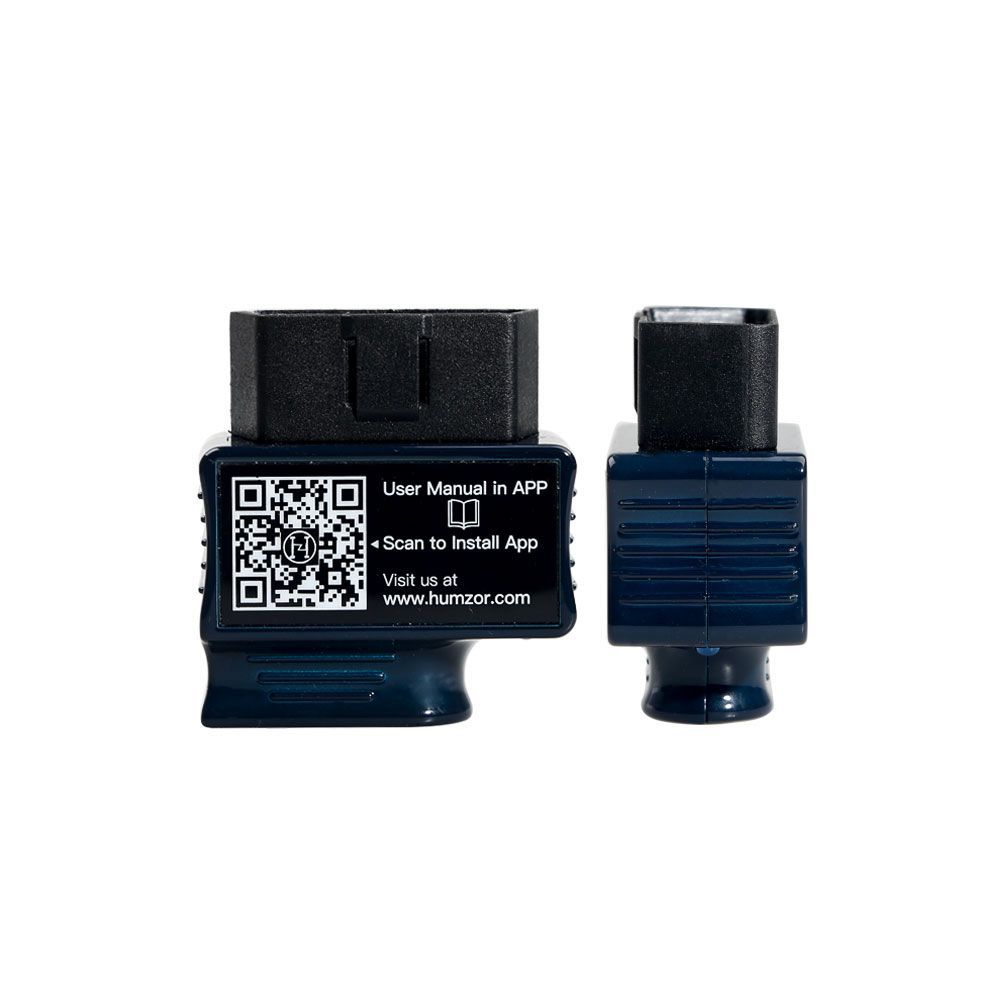

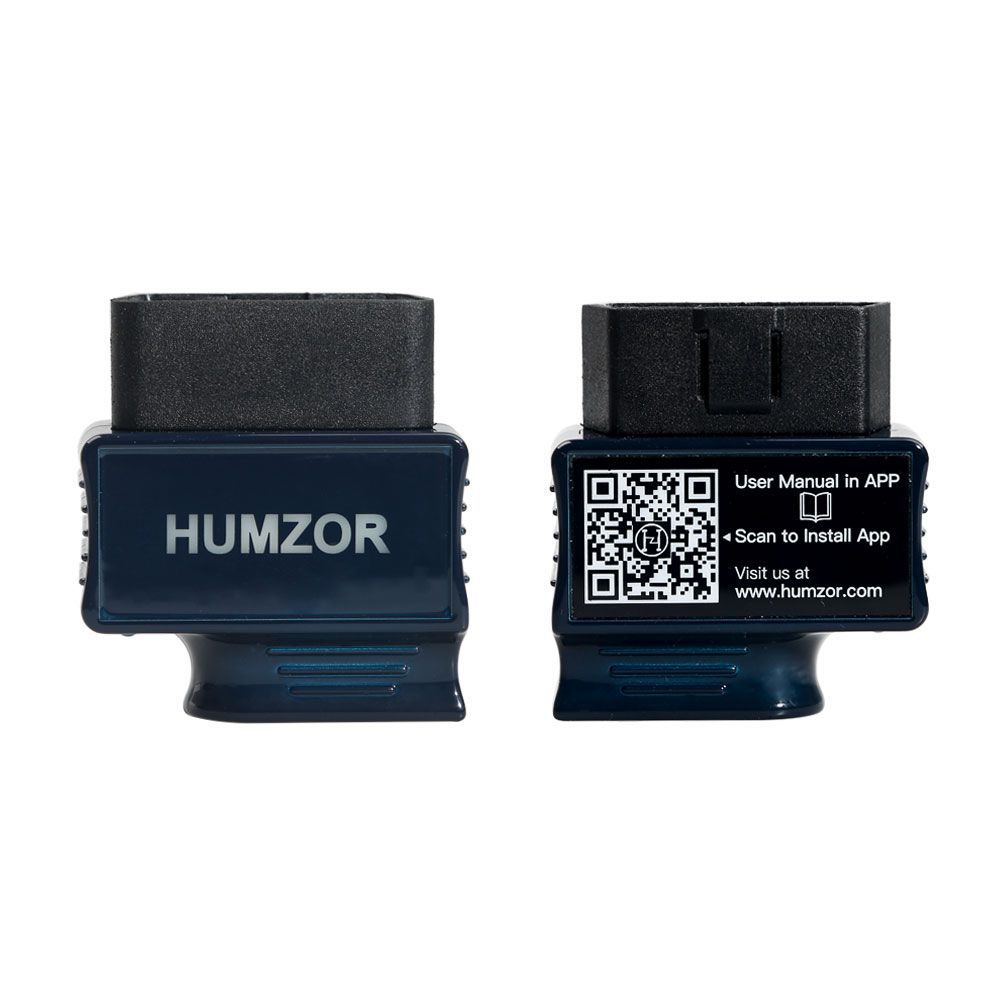

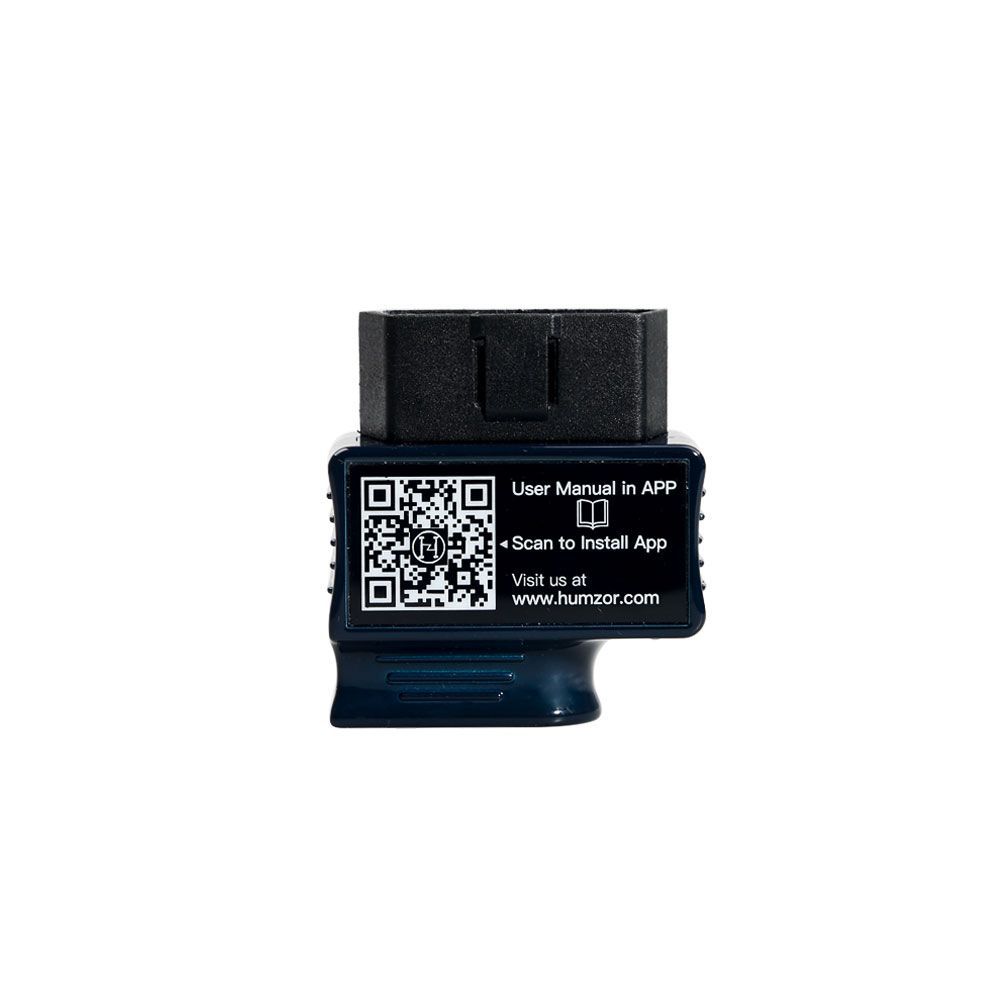

HUMZOR NEXZSCAN New Generation Code Reader
NexzScan New Generation Code Reader is Coming!
NexzScan New Generation Code Reader is Coming!
With NexzScan and your smartphone in hand, you can master the Check Engine Light.
High Cost-effective Device: Compared with the handheld tools and other scanners, NexzScan is designed with the character of higher cost-effective, more customized and user-friendly, saving you both time and money.
Enhanced OBD Diagnosis: Fully covers OBD diagnosis Mode 01-0A, not only includes read & clear codes, freeze frame, but O2 Sensor, Smog Check, Battery Test, etc. are added.
Powerful Database: Exclusively provides more than 40，000 kinds DTC definition & vehicle information query, greatly exceeds the similar products in market.
Customized Live Data: Diversified live data display method: digital, dashboard and graph display. Meanwhile, you can merge multi-parameters in one graph and see how they affect each other, fully provide you with clear and efficient scanning result.
Detailed DTC Report: For each DTC, the code definition as well as possible causes are listed clearly by simple and easy-to-understand explanation instead of confusing terms.
One-Key Update in App: No PC, no USB, no SD card are needed. Click the upgrade information and update it into the latest version within the App in time.
NEXZSCAN Product Features
iOS/Android System Available: Powerfully supports iOS and Android systems.
Bluetooth Connection: High speed Bluetooth 4.2 connection method.
Wide Vehicle Coverage: Works on any gasoline car (Japan, Canada, US, EU, etc.)with standard OBD2 DLC after 2000 till now (OBD2, CAN).
Support all Standard OBD2 Protocols: SAE_J1850(PWM,VPW), ISO_9141-2, ISO_14230-4(KWP, KWP-FAST), ISO_15765-4(CAN, CAN-B,CAN-C,CAN-D), SAE_J1939(CAN).
Supports Multi ECU Code Reading: from7E8 to 7EF（including Engine, Transmission and other control modules）.
Clear and Visualized User Interface: provides you with easy-to-operate and comfortable experience.
Elegant Appearance: shells with environmental protection materials, designed with the technology of anti-drop and dust-proof.
LED indicator: real-time obtaining test status, data interaction status and Bluetooth connection status.
NEXZSCAN Function Description
OBD Diagnosis
Read and Clear Codes: Read and clear engine codes. Stored, Pending and Permanent for all makes.
Freeze Frame: A snapshot of the vehicle when the code is stored.
Live Data: DIY diversified PID display methods and multi-parameters comparison.
O2 Sensor: Check the vehicle O2 sensor values.
Smog Check: Check if the vehicle is ready for a smog or emissions test.
MIL Status: Diagnose the car when the Malfunction Indicator Lamp is on.
Mode 6: Advanced test results (like misfire counts) for on-board diagnostic system monitors.
Battery Test: Show battery voltage and comment battery status.
Discover：
Created with powerful technical support--Remote Assistance, Data Manage, Data Playback module allow you get timely help.
Me
Continuously listen to your feedback and turn it into our product's upgrade.
5.Specifications
Communication Bluetooth 4.2
Dimensions 53mm*47mm*25mm
Support Protocols ISO 9141-2，ISO14230-4KWP, ISO 15765-4, SAE J1850-VPW, SAE J1850-PWM
Operating System iOS & Android phone
Operating Current 0.24A
Minimum Starting Voltage 7.9V
Maximum Operating Voltage 30V
Operating Temperature –20℃~40℃
Storage Temperature –30℃~70℃

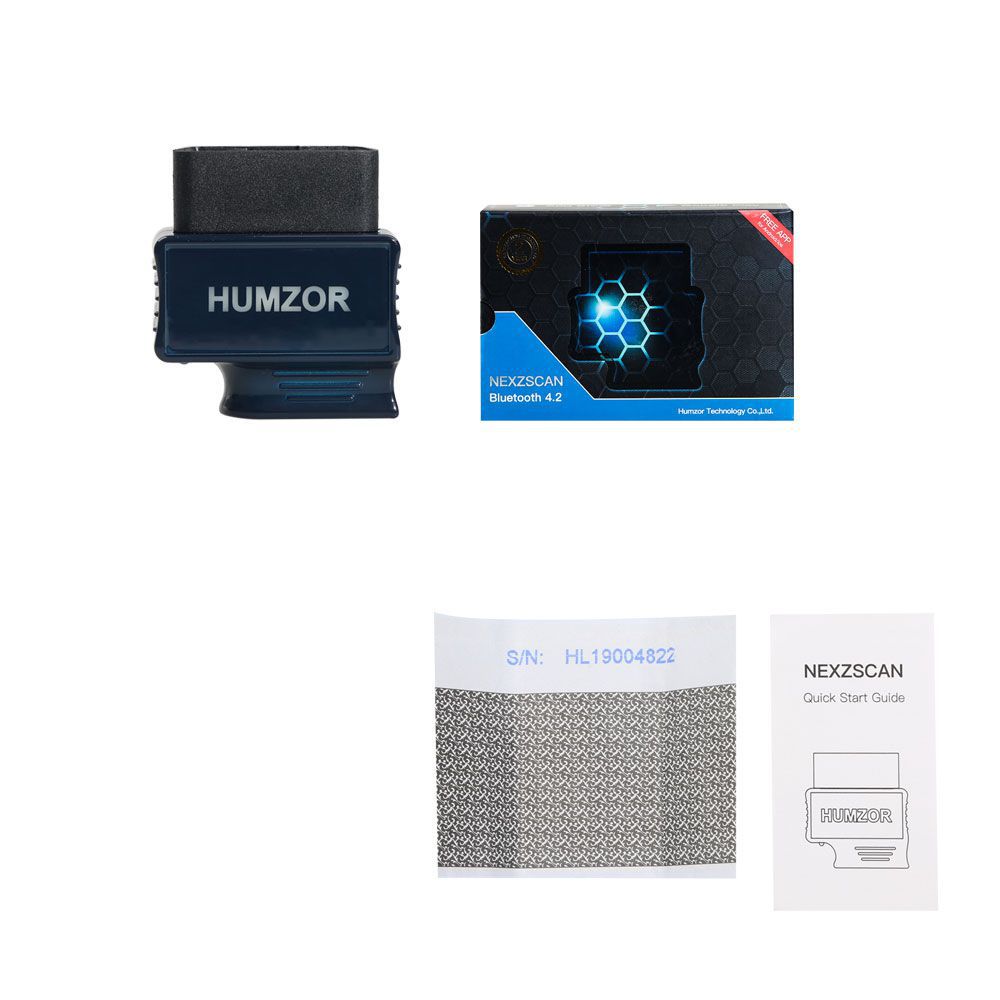

Package includes:
Package includes:
1pc x HUMZOR NEXZSCAN New Generation Code Reader
