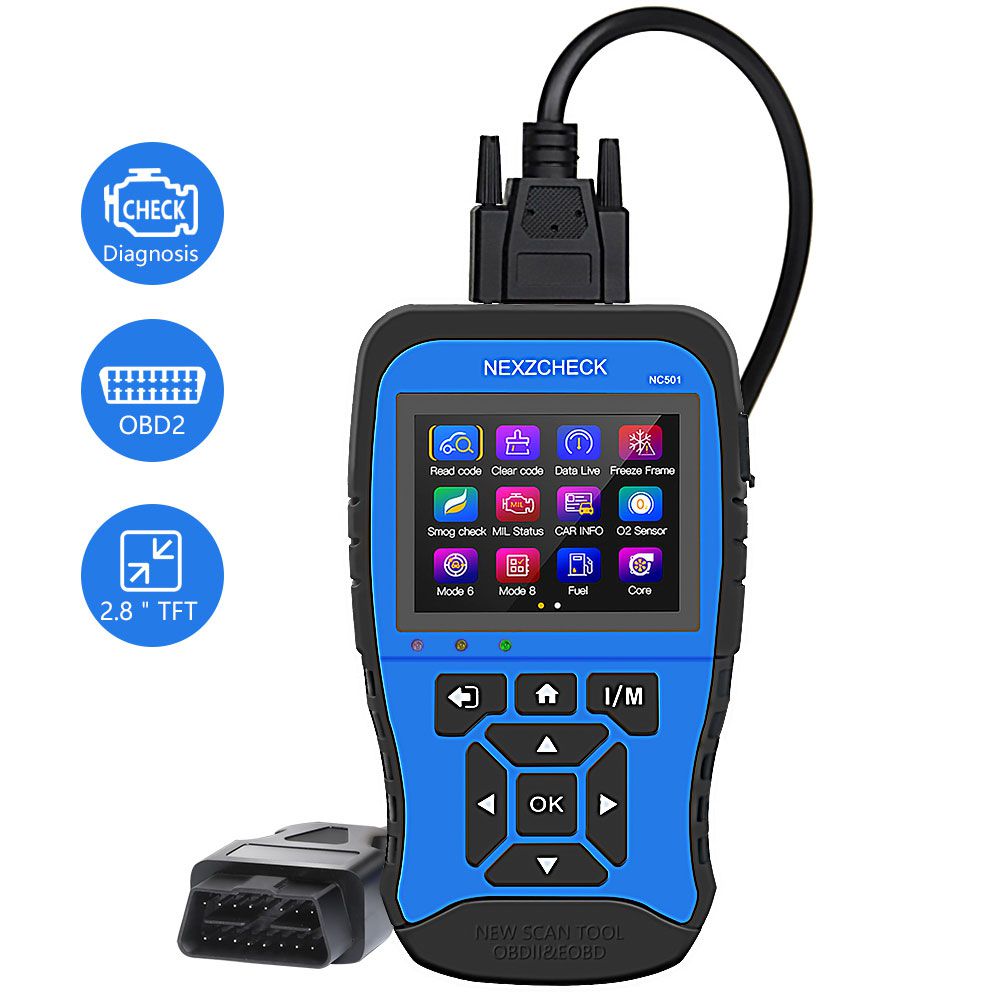

HUMZOR NexzCheck NC501 OBD2 & EOBD Scanner for Universal Vehicles

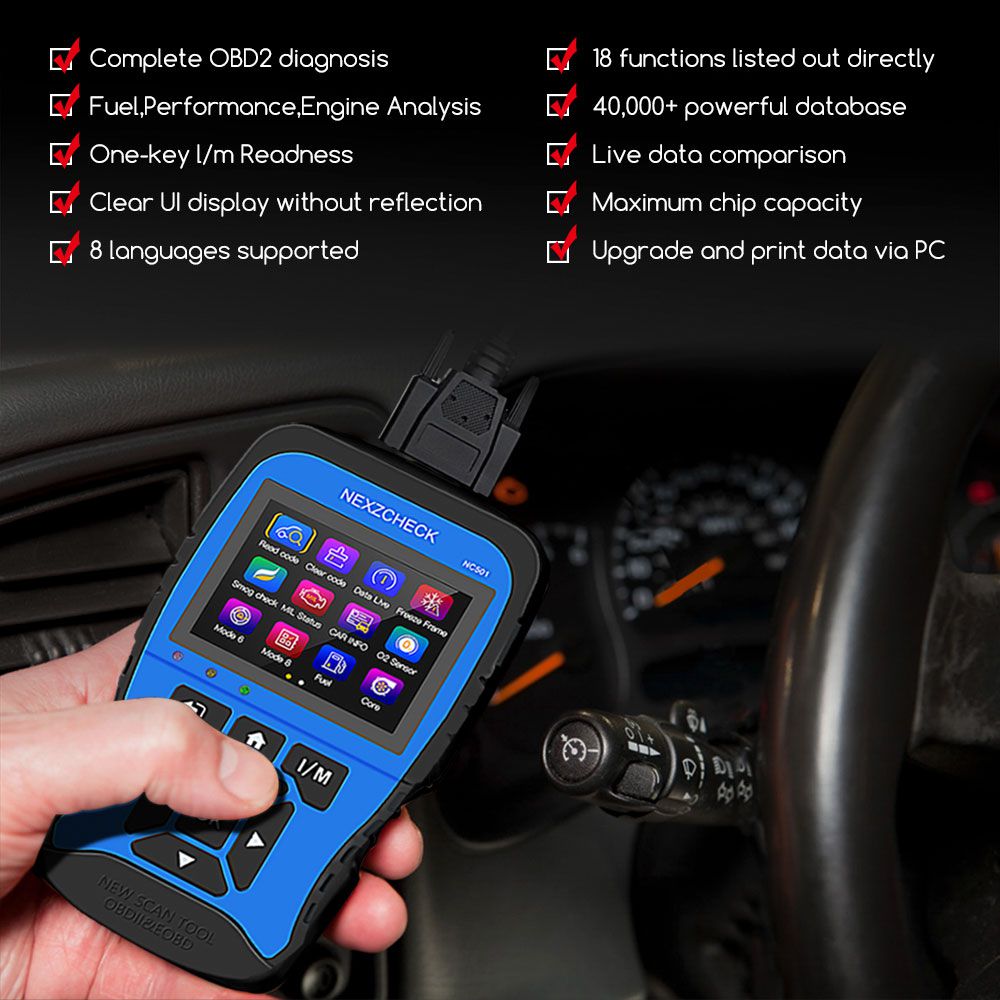

Highlights
- Enhanced OBD2 Diagnosis: Fully covers OBD2 diagnosis modes—read/clear codes, live data, freeze frame, O2 sensor, Mode 6, Mode 8, and MIL status.
- 18 Functions Available: Battery Test, Fuel Analysis, Performance Analysis, Engine Analysis.
- Powerful Database: Exclusively supports 40,000+ DTCs, leading the industry.
- Wide Vehicle Coverage: Works on almost all gasoline cars with standard OBD2 16-pin connectors.
- One-Key I/M Readiness: Independent button for quick access to diagnostic functions.
- Live Data Visualized Comparison: Supports four-parameter comparison and records live data for later review.
- 2.8’’ TFT Color Screen, Clear UI: Highly visual interface with anti-glare visibility under sunlight.
- Maximum Chip Capacity, Fastest Diagnosis: Delivers rapid diagnostic performance.
Introduction
The NexzCheck NC501 OBD2 Scan Tool offers everything other diagnostic tools do—and more. It not only reads and clears engine fault codes but also includes enhanced functions for deeper inspection, making car repair easier. All 18 functions are clearly displayed on the interface for intuitive, visual operation that meets comprehensive diagnostic needs.
Key Features
- Supports all OBD2 functions—turn off the Check Engine Light with one device.
- Compatible with nearly all standard OBD2/EOBD protocol gasoline vehicles.

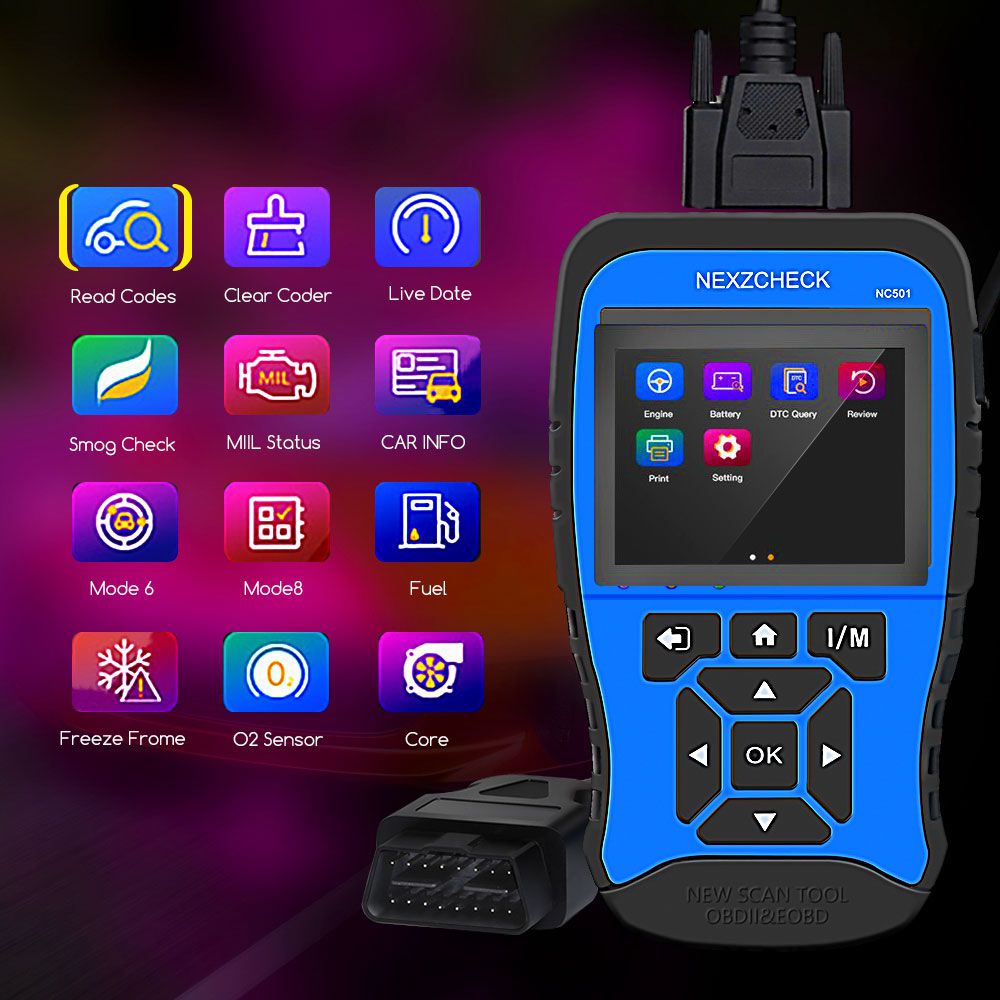

- 18 functions displayed directly—no need to navigate repetitive submenus.
- 40,000+ DTC database enables detailed code lookup with clear descriptions.
- Four-parameter live data comparison with recording capability for later review.
- Retrieves generic, manufacturer-specific, and pending diagnostic trouble codes.
- One-click I/M Readiness for instant access to emissions diagnostics.
- Fastest diagnosis speed powered by maximum chip capacity.
- Multi-language support, lifetime software upgrades, and PC-based data printing via USB.
OBD2 Diagnostic Capabilities
Don’t worry about the Check Engine Light—make car repair easier with comprehensive diagnostics.
- Read and Clear Codes: Reads and clears engine codes—including generic, manufacturer-specific, and pending codes.
- Live Data: Reads and records real-time sensor data with support for four-parameter comparison.
- Freeze Frame: Captures a snapshot of engine conditions at the moment the MIL illuminated.
- O2 Sensor: Monitors vehicle oxygen sensor values.
- Mode 6: Provides advanced test results (e.g., misfire counts) from on-board diagnostic system monitors.
- Mode 8 (Component Test): Initiates leak tests for the vehicle’s EVAP system.
- I/M Readiness: Verifies emission system status on OBD2-compliant vehicles.
- Battery Test: Displays battery voltage and assesses battery condition.
- Smog Check: Confirms whether emissions-related systems are operational and ready for inspection.
- MIL Status: Indicates if the Malfunction Indicator Lamp (emission warning light) is active due to detected issues.
- Vehicle Info: Retrieves vehicle make, model year, VIN, and other details.
- Fuel Analysis: Displays vehicle fuel economy metrics.
- Core Analysis: Shows overall vehicle performance data.
- Engine Analysis: Presents detailed engine operating parameters.
One-Click I/M Readiness Key
Provides instant access to emissions readiness status for complete vehicle exhaust testing.
Live Data Display
Four-parameter comparison clearly illustrates how parameters interact, boosting diagnostic efficiency.

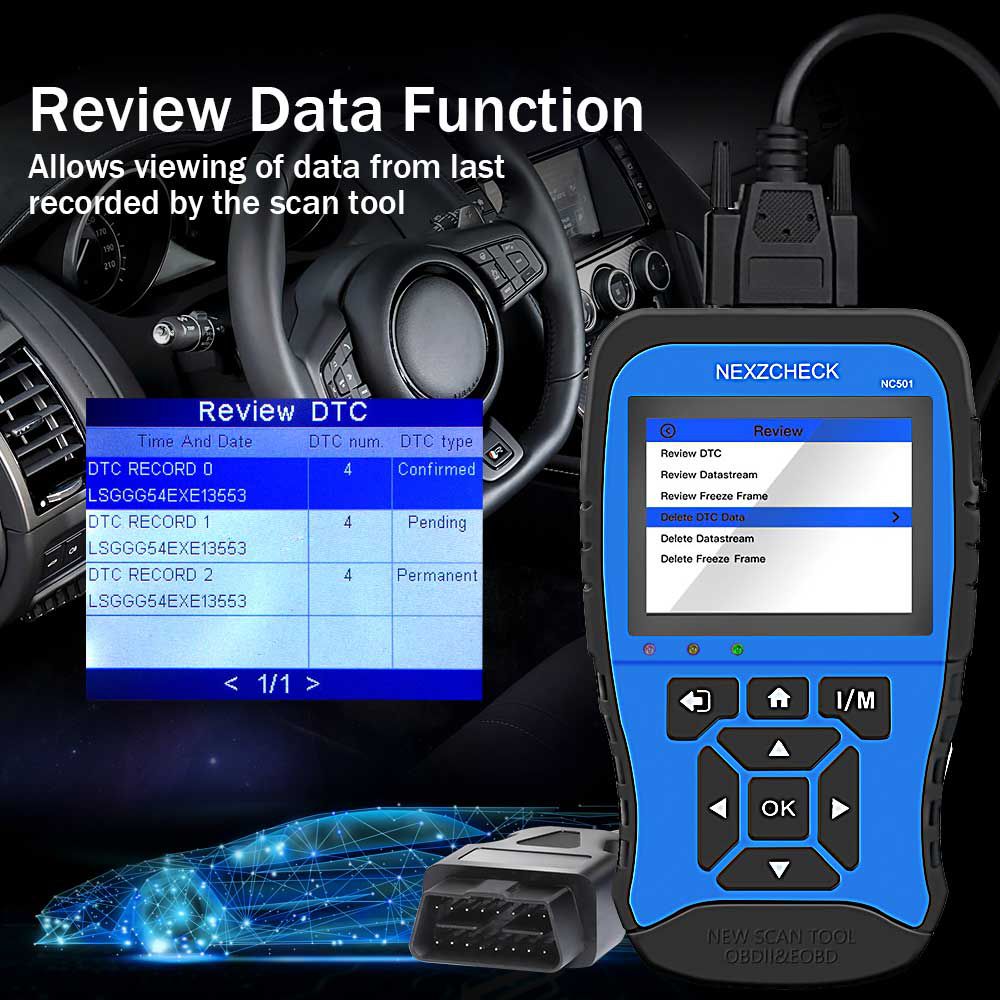

Review Data
View data recorded during the last diagnostic test performed by the scan tool.
DTC Query
Access a database of over 40,000 DTCs for online code lookup.
Update & Print Data
Update to the latest software version and print stored diagnostic data via PC using the included USB cable.
Specifications

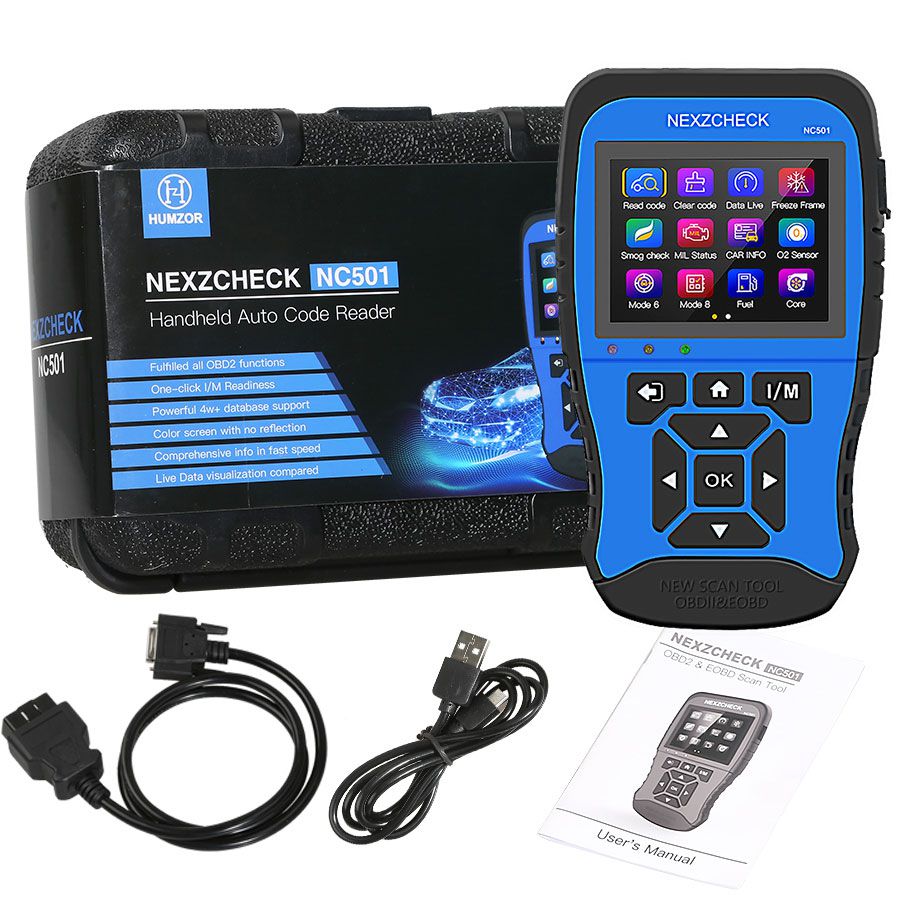

Package Includes
- 1 pc × HUMZOR NexzCheck NC501
- 1 pc × User's Manual
- 1 pc × USB Cable
- 1 pc × OBD Cable
