Hantek 1008A 8 Channel PC Oscilloscope/DAQ/8CH Generator

Cost-effective 8 channels oscilloscope for vehicle testing; 2.4MSa/s, 12bits; DAQ card function; 8 channels programmable generator which can analog signals of crankshaft, camshaft etc.
Item No. COBD23475
5 stars, 9 reviews.
Out of Stock
Price:
US$799.00/ piece
Discount Price:
US$685.90/ piece 14%
Option:
Quantity:

Shipping:
Express Shipping Service
Estimated delivery time: 3-15 working days.See details »
Returns:
Return for refund within 7 days,buyer pays return shipping.Read details »
Support:
Online Chat Ask a question
Description

Hantek 1008A 8CH PC Oscilloscope/DAQ/8CH Generator

Top 3 Reasons to Get 1008A 8CH PC Oscilloscope/DAQ/8CH Generator:

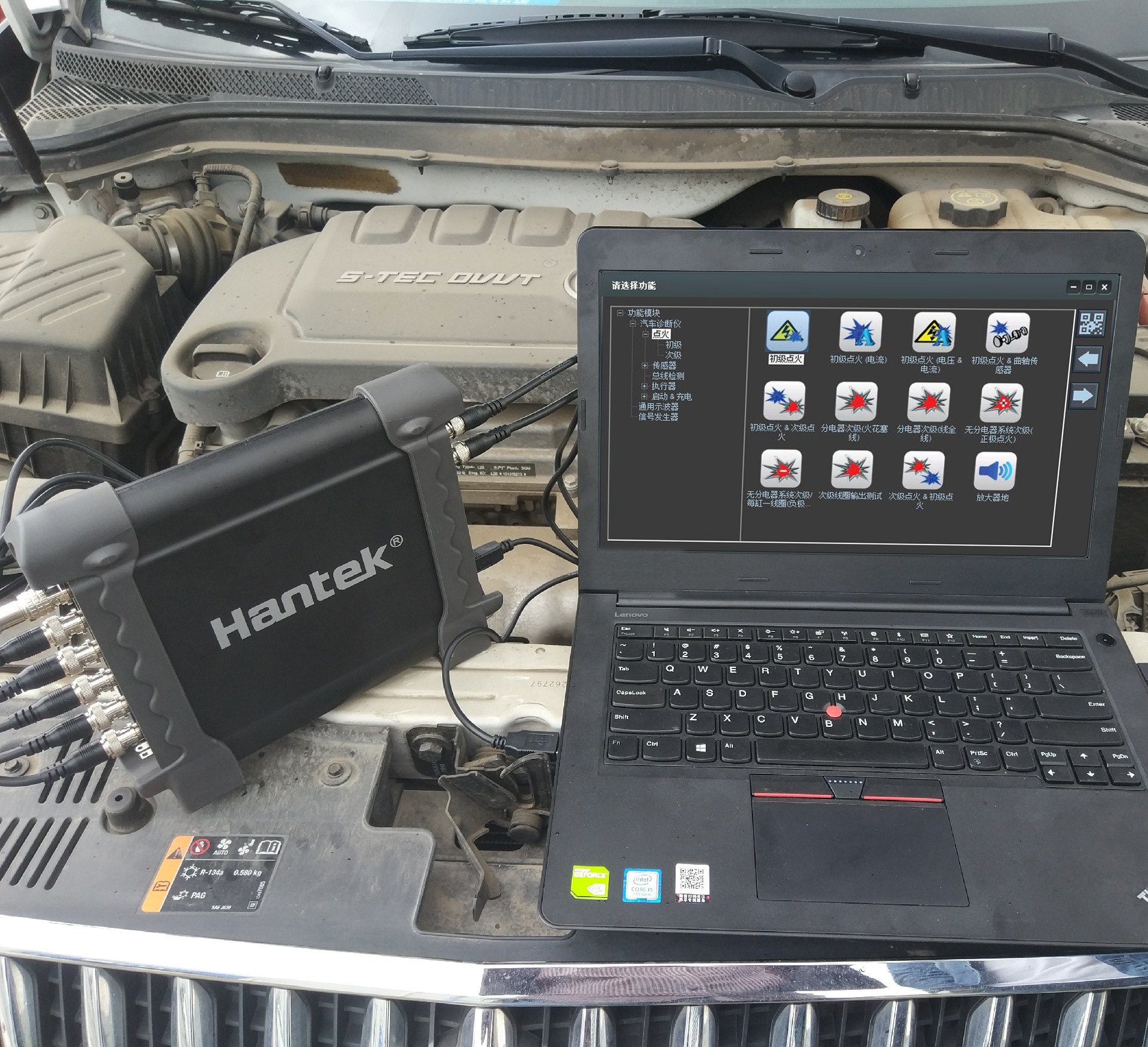

1. Highly efficient and cost-effective; 8 channels oscilloscope for vehicle testing
2. 2.4MSa/s real time sampling rate, 12bit vertical resolution; DAQ card function
3. 8 channels programmable generator which can analog signals of crankshaft, camshaft etc.

1) Oscilloscope
8 channels oscilloscope, 2.4MSa/s real time sampling rate
12 bits vertical resolution, spectrum analysis function

2) Programmable Generator
8 channels programmable generator
Can analog signals of crankshaft, camshaft etc.

3) Others
USB 2.0 interface plug and play, and no need extra power supply;
More than 20 types of automatic testing function, a similar interface with benchtop oscilloscope, easy to use;
Software support: Windows NT, Window 2000, Windows XP, VISTA, Windows 7, Windows 8.

Hantek 1008A 8CH PC Oscilloscope/DAQ/8CH Generator Parameters:

Model Hantek1008
Oscilloscope Mode
Vertical System
Analog Channel 8
Input Impedance Resistance: 1MΩ
Input Sensitivity 10mV/div to 5V/div
Input Coupling DC
Resolution 12 bits
Horizontal System
Memory Depth 4K
Max. Input 400V (DC+AC Peak)
Real-Time Sampling Rate 2.4MSa/s
Time BaseRange
1ns/div to 20000s/div(1-2-5sequences)
Time Base Precision ±50ppm
Trigger System
Time Base Range 1ns/div to 20000s/div(1-2-5sequences)
Time Base Precision ±50ppm
Trigger Source CH1, CH2,CH3,CH4, CH5, CH6,CH7,CH8
Trigger Mode Edge
X-Y Mode
X-Axis Input CH1
Y-Axis Input CH2
Cursors and Measurement
Voltage Measurement Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase,Vavg, Vrms, Vcrms, Preshoot, Overshoot
Time Measurement Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle
Cursors Measurement Horizontal ,Vertical, Track, Auto Measure Modes
Waveform Signal Process +,- , x,÷, FFT, Invert
Voltage Range 10mV to 5V/div @ x 1 probe
100mV to 50V/div @ x 10 probe
10V to 5000V/div @ x 1000 probe
100V to 50000V/div @ x 10000 probe
200mV to 100V/div @ 20:1
Current Range 100mA to50.0A/div @ CC65(20A)
1000mA to500.0A/div @ CC65(65A)
1A to100.0A/div @ CC650(60A)
1A to200.0A/div @CC1100(100A)
10A to2000.0A/div @CC1100(1100A)
FFT Rectangular, Hanning, Hamming, Blackman Window
Math Addition, subtraction, multiplication, division
Programmable Generator
Channel 8
Output Level LVTTL
Frequency Range 0-250kHz
Interface USB 2.0(Full Speed)
Power No need extra power supply
Size & Weight 185 x 150 x 27 (mm); 0.35kg

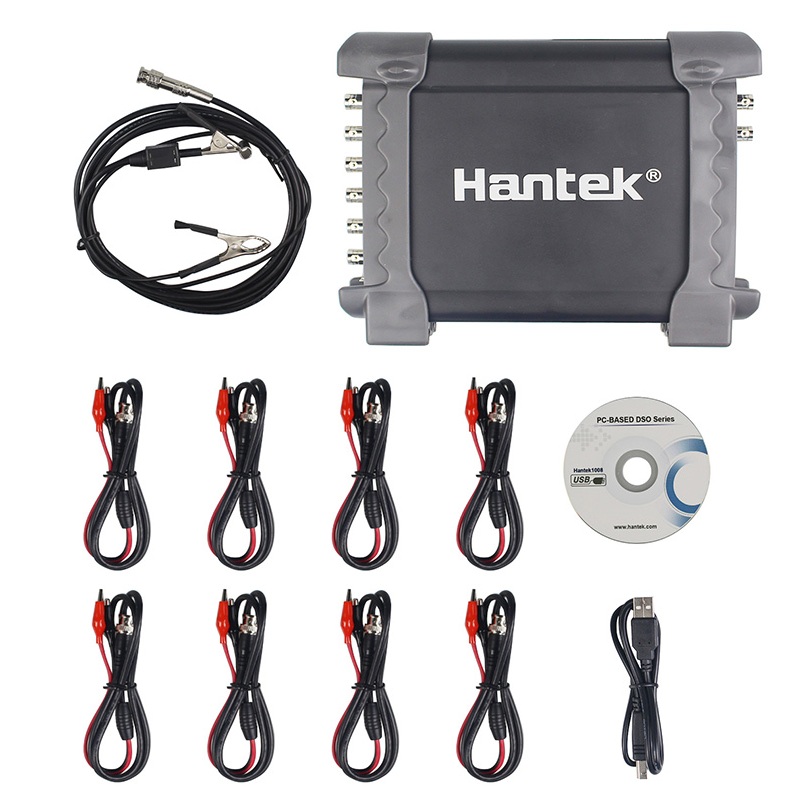

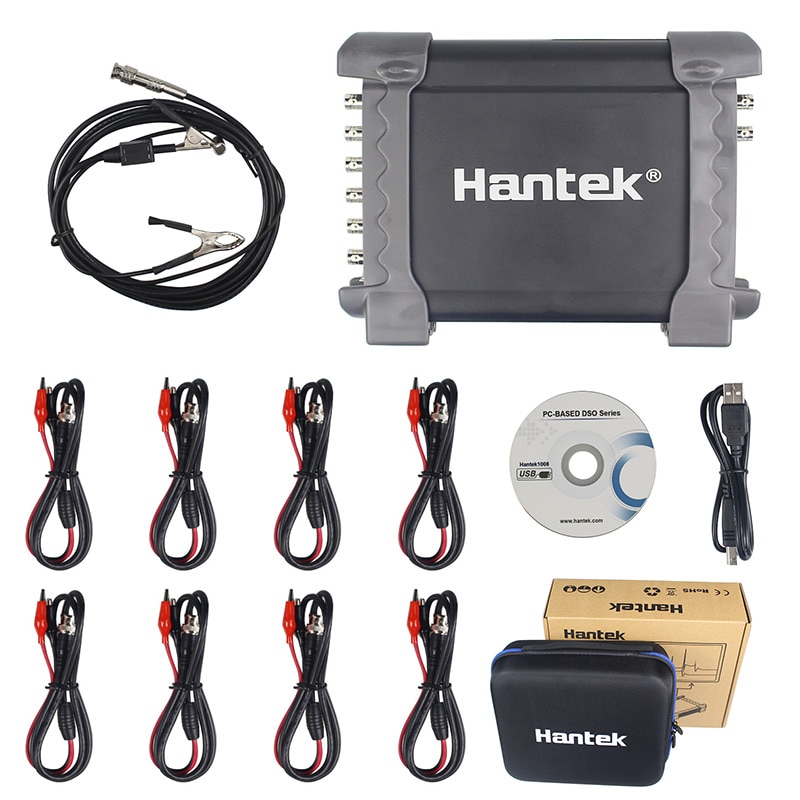

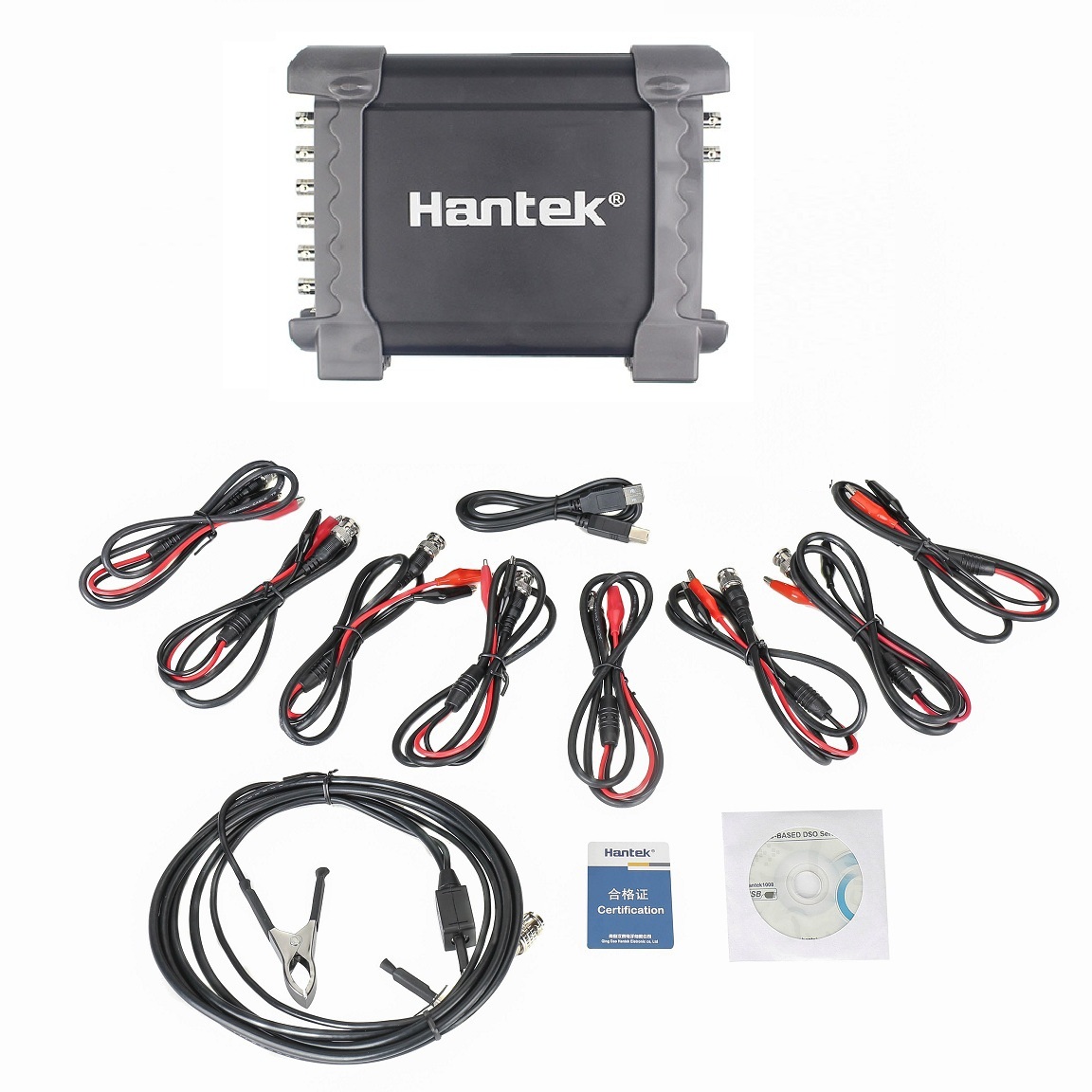

Package including:

1pc x 8CH USB Auto Scope/DAQ/8CH Generator
1pc x USB Cable

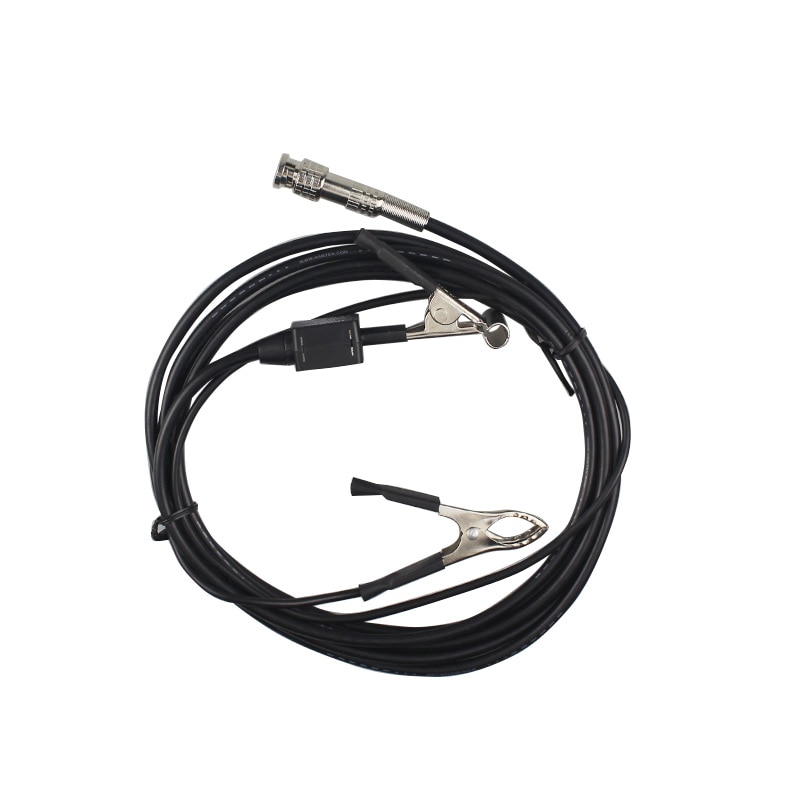

4pc x Connect cable
4pc x BNC Connector
1pc x CD for English software
