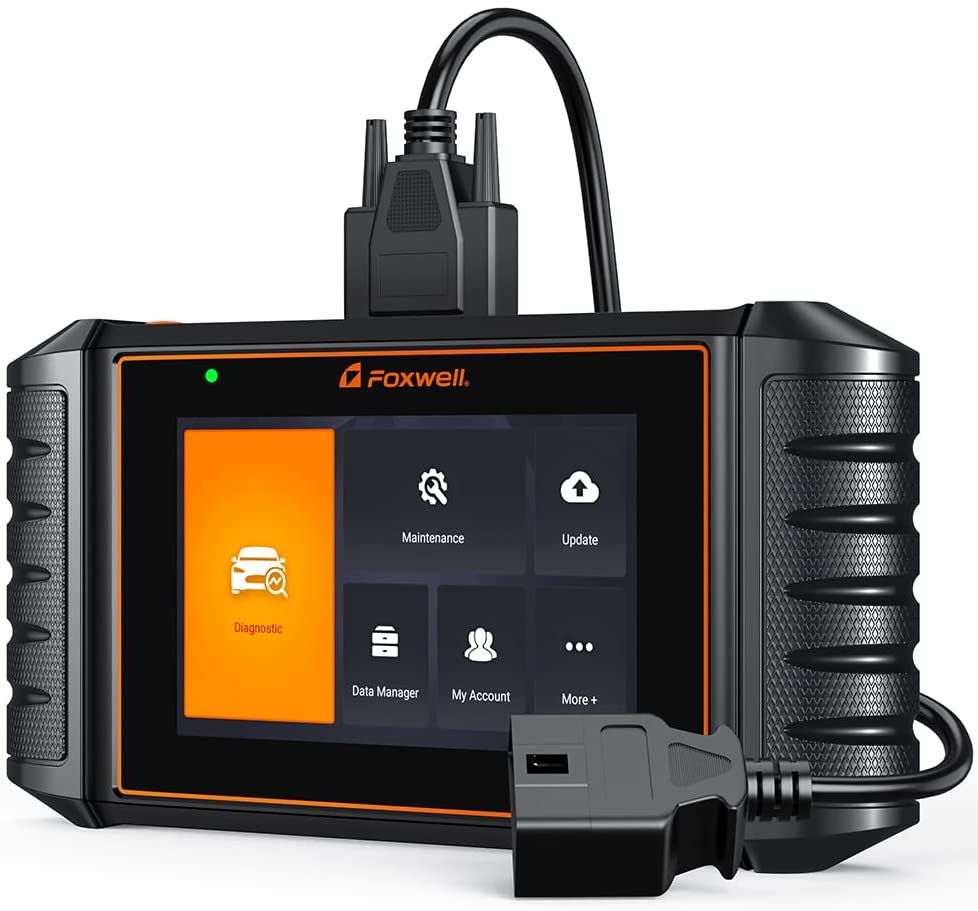

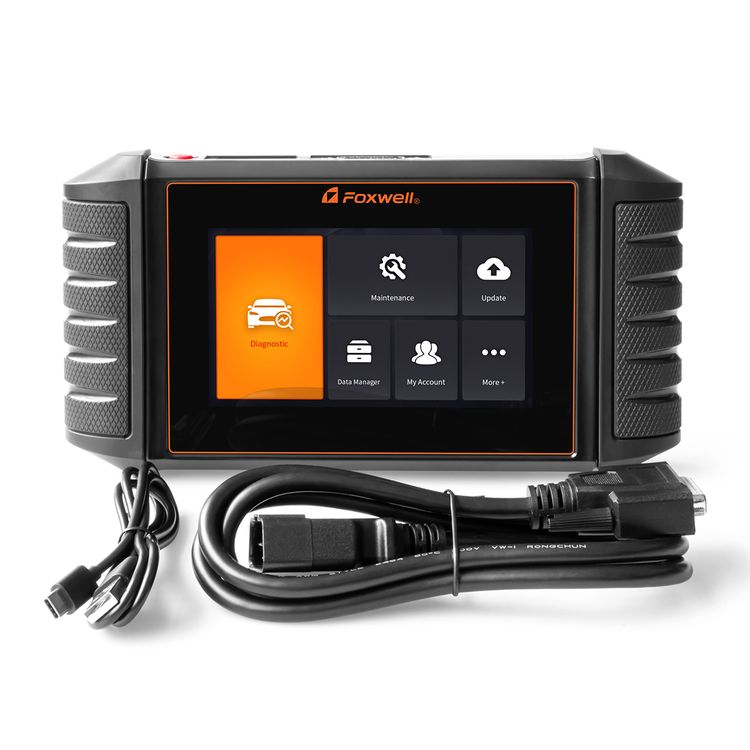

Foxwell i50Pro is newly developed diagnostic scanner with Andorid 9.0 operating system. It offers techinicians and enthusiasts an easy and affordable solution to pinpoint troubles of all electronic modules on major American, Asian and European makes. Besides, it can supports the most common required service functions including Oil Reset, EPB, TPS, SAS, TPMS , DPF, Injector and ABS Bleeding etc..
| Features and Benefits |
| 01. Features a 5.5'' TFT Capacitive LCD Touchscreen that will respond to glove use |
| 02. Fast boot up and multitasking based on Andorid 9.0 operating system |
| 03. Provides easy diagnosis on multiple vehicle makes |
| 04. Works on both OBDI and OBDII vehicles including the latest 2020/2021 models |
| 05. Identifies cars quickly and easily with one-key VIN reading |
| 06. Reads and clears codes of all electronic modules |
| 07. Supports the most common required service functions including Oil Reset, EPB, TPS, SAS, TPMS , DPF, Injecotr and ABS Bleeding etc. |
| 08. Shows live sensors data and provides data graphing |
| 09. Merges PID graphs for easy and intuitive diagnosis |
| 10. Displays freeze frame data |
| 11. Retrieves ECU information |
| 12. Multilingual menu options and code definitions |
| 13. One Touch Update via WIFI makes the scanner keep the latest system status at all times |
| 14. One Touch Complaint allows for quicker and more accurate fixes for your diagnostic troubles and bugs |
| 15. Instant support available from our technical team by teamviewer remote control |
| Item | Description |
| Screen | 5.5’’ diagonal, daylight readable color LCD screen; 1280*720 pixel |
| Operation System | Android 9.0 |
| CPU | Quad-Core 1.3GHz |
| Memory | 1GB DDR4 |
| SSD Hard drive | 32GB |
| Communication interface | Built-in WIFI 802.11 b/g/n Wireless LAN |
| USB2.0 OTG/standard USB 2.0 HOST | |
| v2.1+EDR; 4.0 Low Energy (LE) (10-20 m) | |
| Built-in Battery | 4000mAh, Lithium-polymer battery, chargeable via 5V USB power supply |
| Protocols | ISO9141-2, ISO14230-2, ISO15765-4, K/L lines, Double K Line SAE-J1850 VPW,SAE-J1850PWM,CAN ISO 11898, High-speed, Middle-speed, Lows-peed and Single wire CAN, KW81, KW82, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6, SAE J1939, SAE J1939, SAE J1708,Fault-Tolerant CAN |
| Working Temperature | -10 to 70°C |
| Storage Temperature | -20 to 80°C |
| Operating Humidity | 5%-95% Non-Condensing |
| Dimensions | 236*124*38mm (L*W*H) |
| Weight | 0.87kg (Main unit) |
