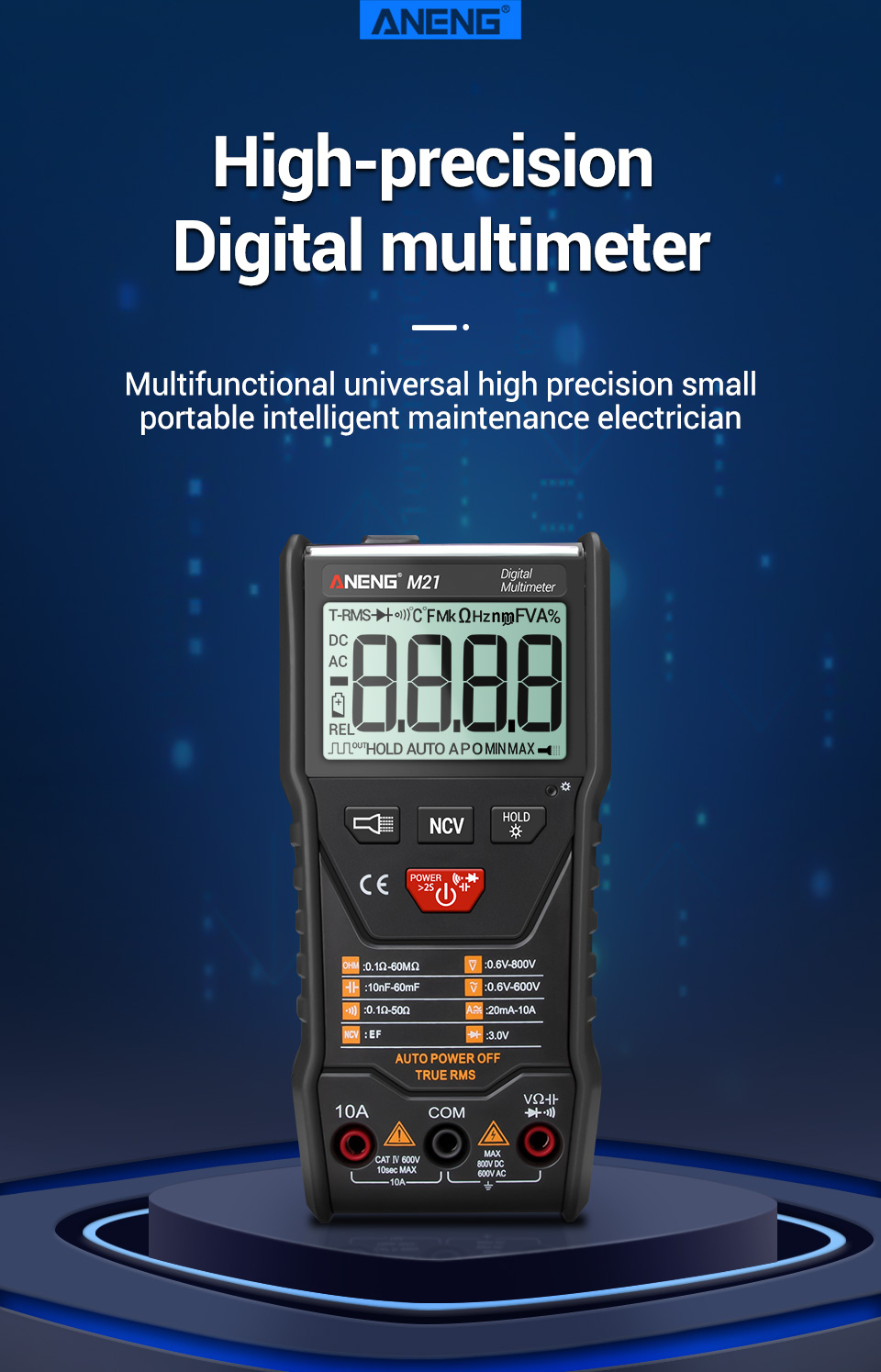

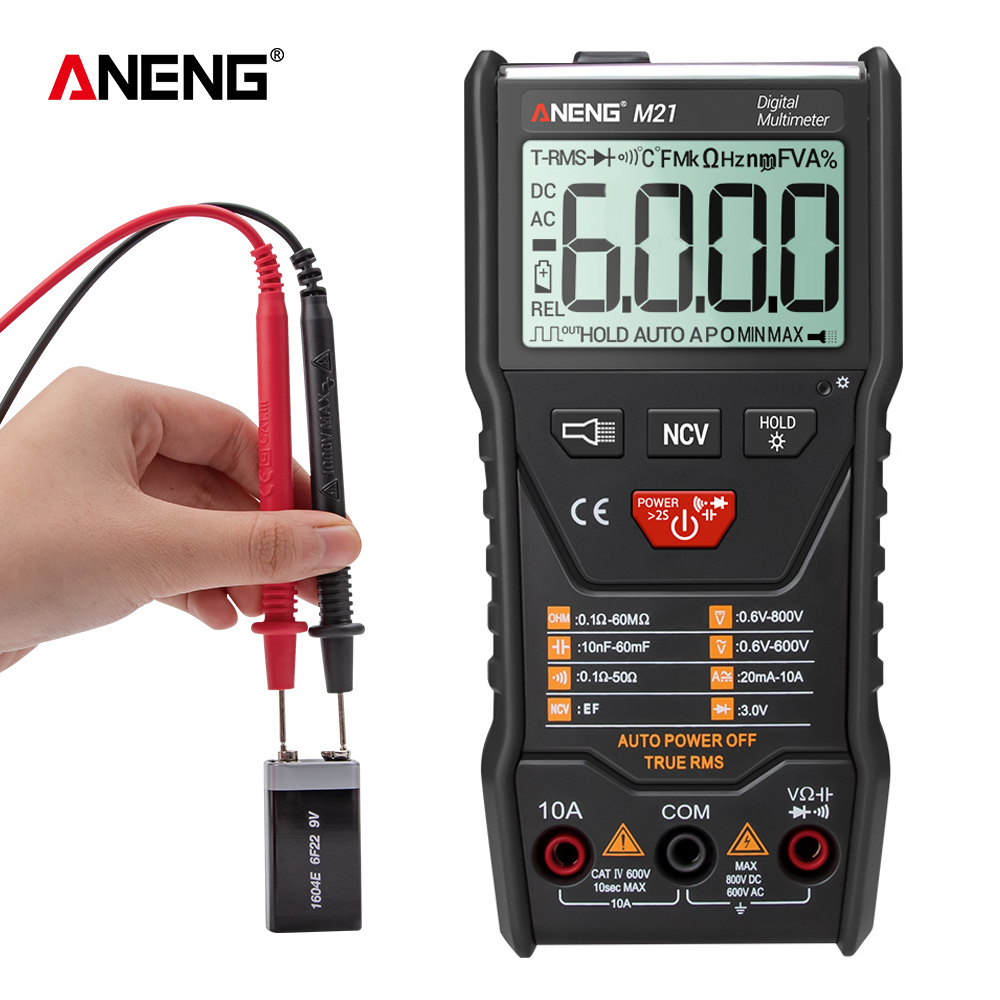

ANENG M21
6000 Counts Backlight Digital Multimeter
Introduction:

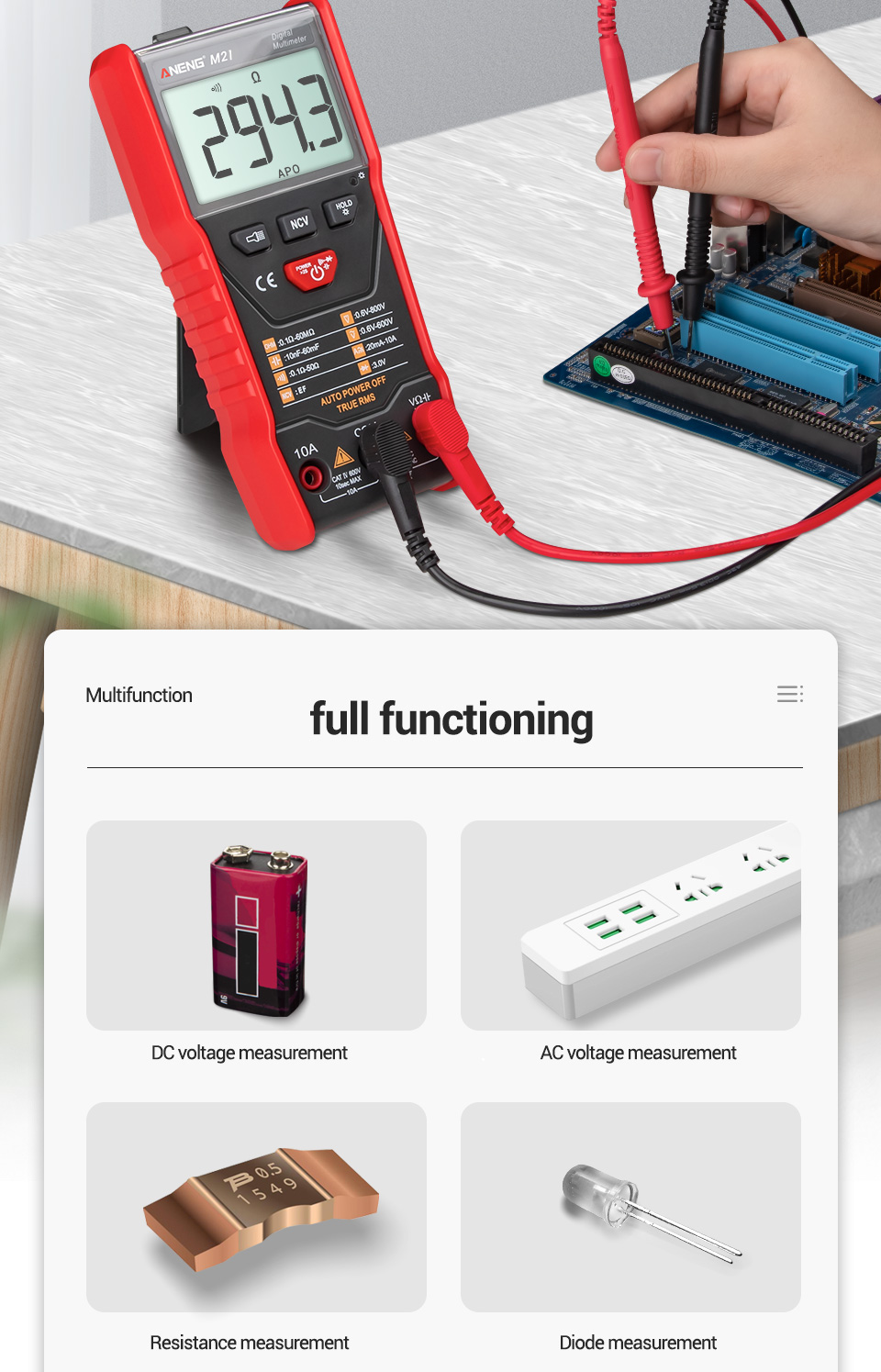

This series of instruments available for automatic identification of DC voltage and AC voltage, DC current 1OA, resistance, does not require any switching, can manually switch to measure capacitors, diodes, continuity testing, and other parameters, is a superior performance tools and instruments, It is an ideal tool for laboratories, factories, radio enthusiasts and families.
Specification:

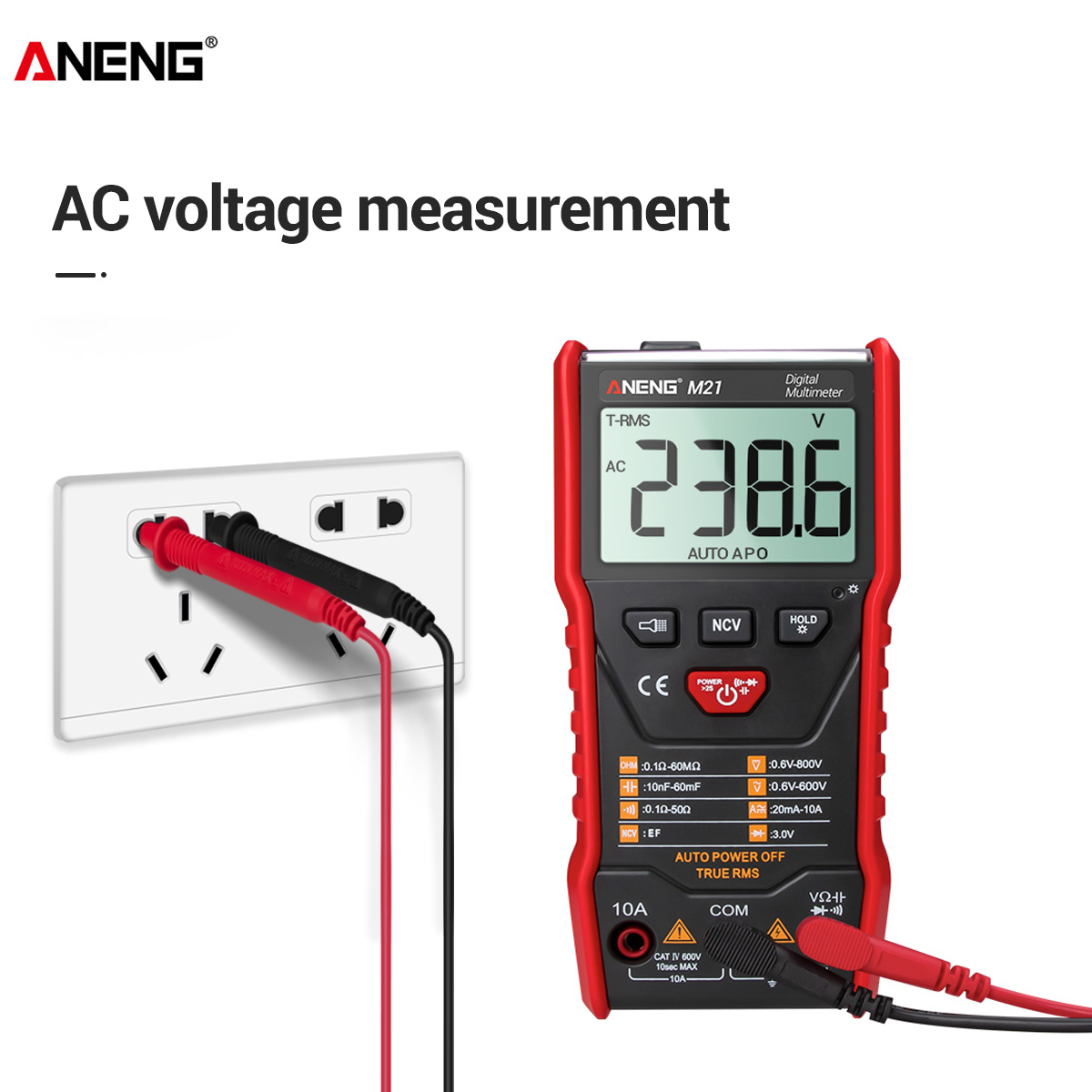

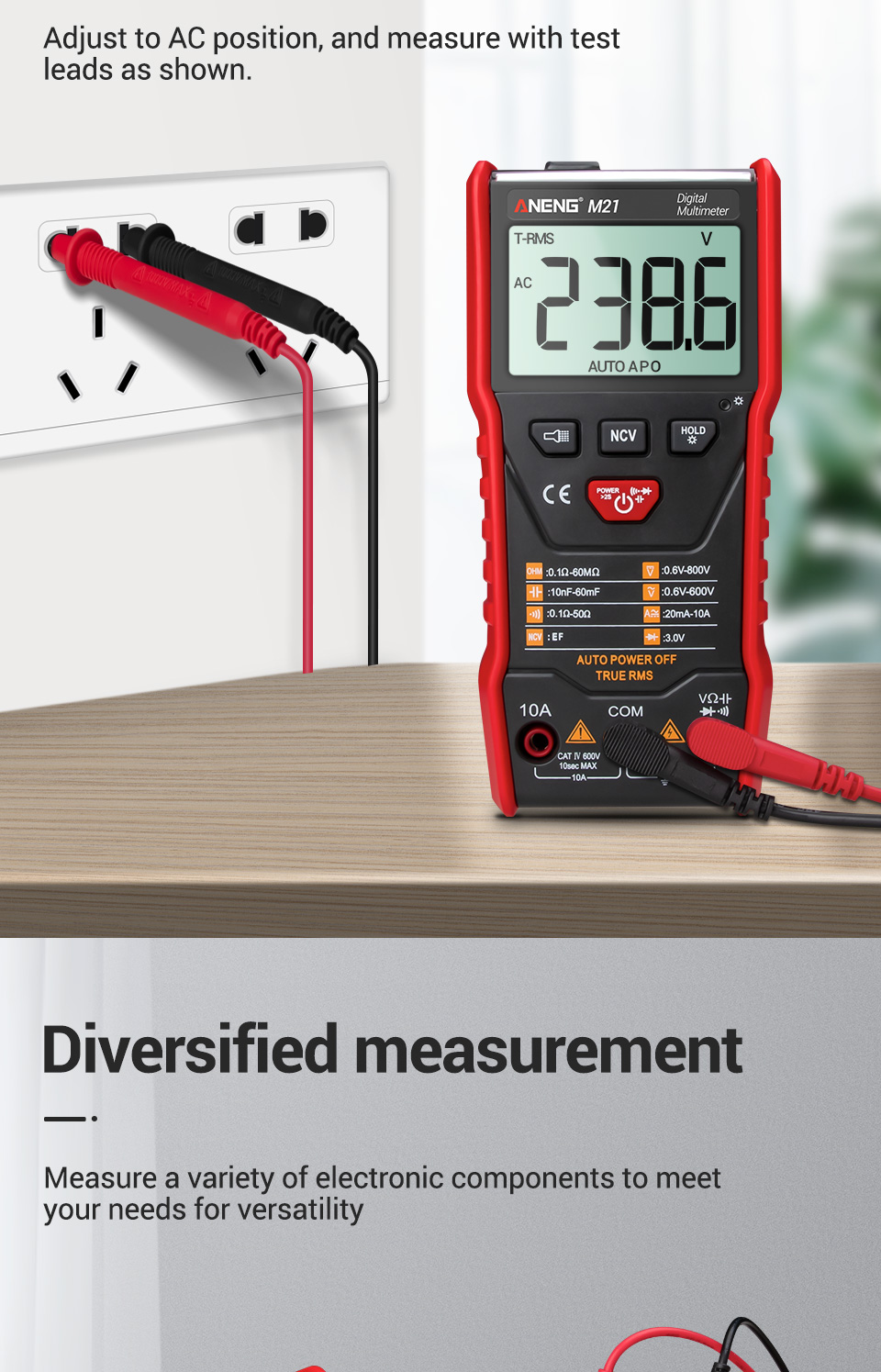

1.DC voltage / AC voltage automatic scanning test (DCV / ACV)
| Accuracy Range | 6000counts | Resolution |
| DC/AC6V | ±(0.5%+3) | 0.001V |
| DC/AC60V | 0.01V | |
| DC/AC600V | 0.1V | |
| DC1000V/AC750V | ±(0.8%+10) | 1V |
2.Resistance(Ω)
| Accuracy Range | 6000counts | Resolution |
| 600Ω | ±(0.8%+5) | 0.1Ω |
| 6kΩ | ±(0.8%+3) | 1Ω |
| 60kΩ | 10Ω | |
| 600kΩ | 100Ω | |
| 6MΩ | 1kΩ | |
| 60MΩ | ±(2.5%+3) | 10kΩ |
3.Capacitance(C)
| Accuracy Range | 6000counts | Resolution |
| 10nF | ±(3.5%+20) | 10pF |
| 100nF | 100pF | |
| 1uF | 1nF | |
| 10uF | 10nF | |
| 100uF | 100nF | |
| 1mF | 1uF | |
| 10mF | 10uF | |
| 60mF | ±(5%+3) | 100uF |
4.AC and DC current (DC/ACV A)
| Accuraacy Range | 6000counts | Resolution |
| 6A | ±(2%+30) | 0.001A |
| 10A | 0.01A |

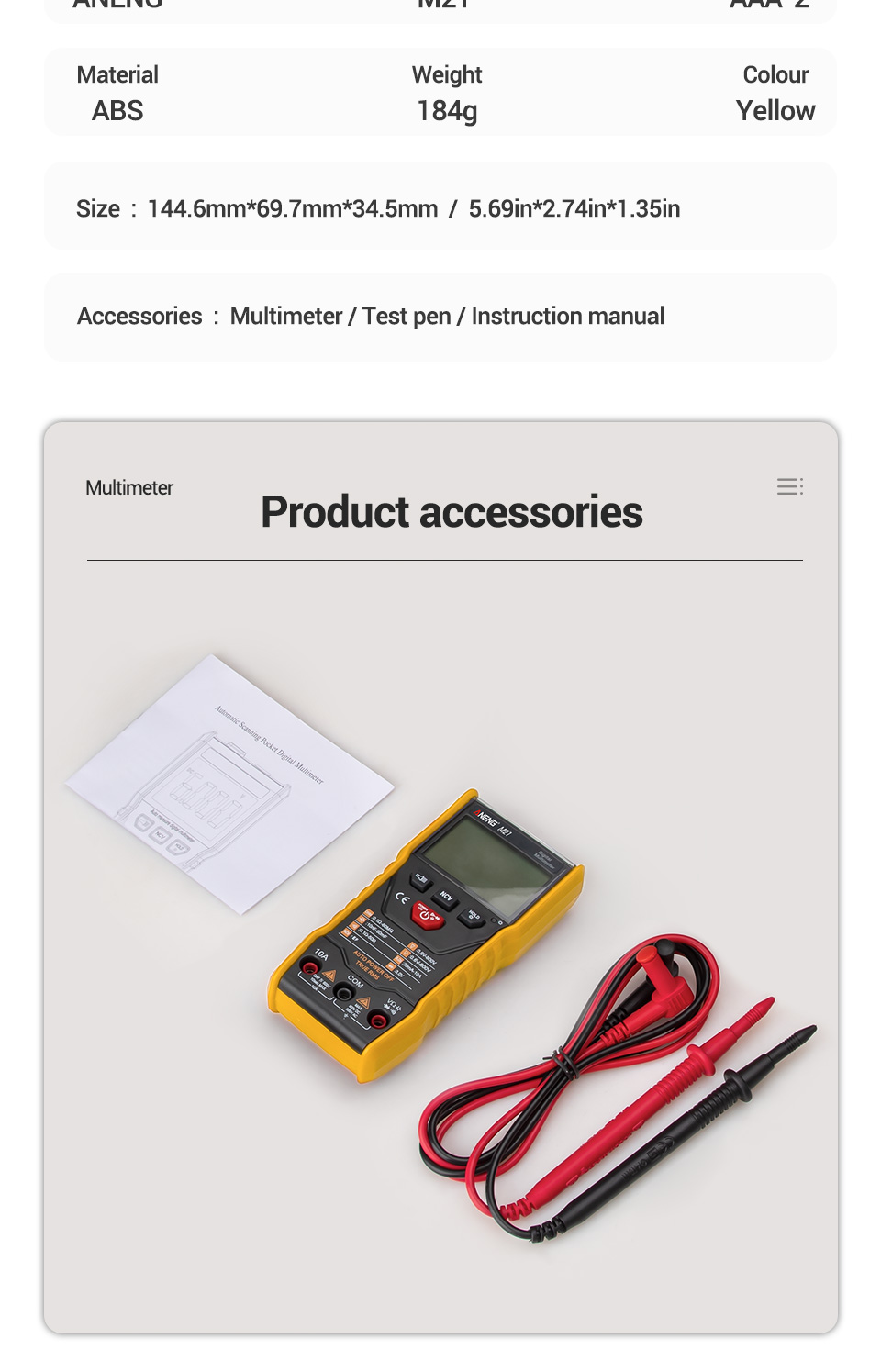

Package:
1* Multimeter
1* manual
1 pair of pen
