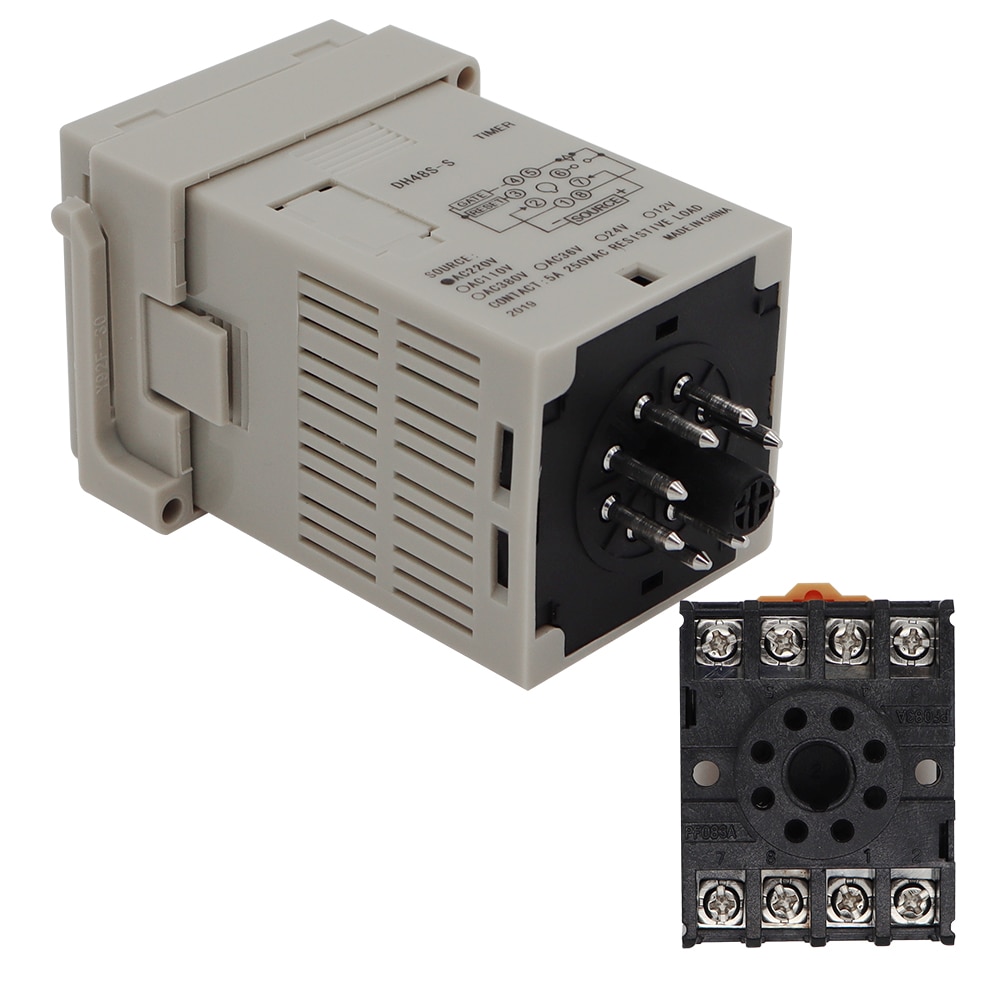

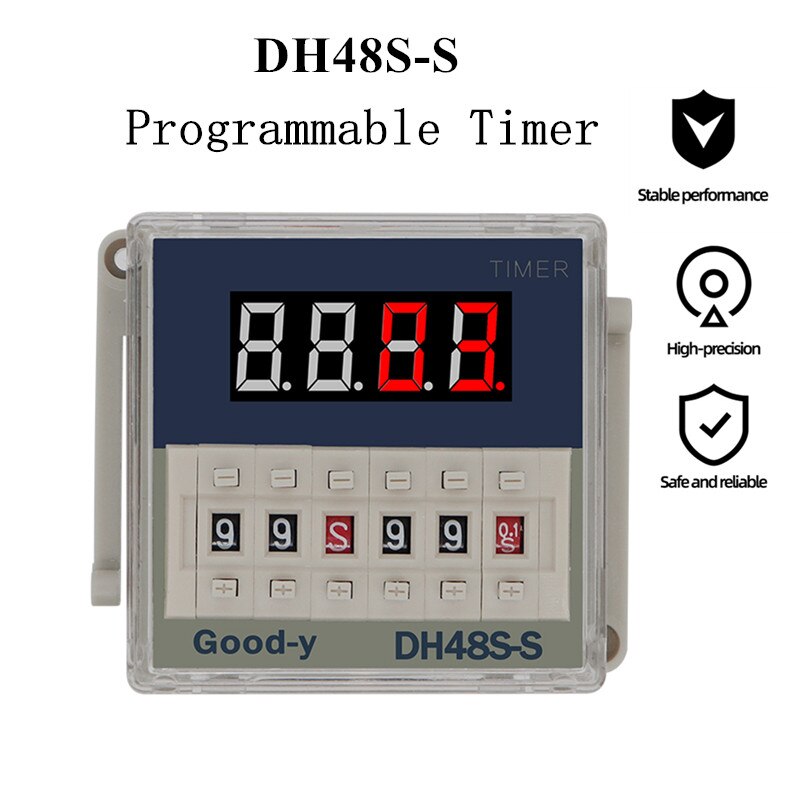

DH48S-S Programmable Timer 0.1s-990h Repeat Cycle SPDT Time Switch Relay time relay cycle control with Socket Base DH48S Din Rail
AC 110V 220V DC 12V 24V
DH48S-S digital display time reply is a kind of circular delay tupe rime reply suitable for control circuit with operationg supply voltage below and including 380V AC 50/60Hz or DC operating supply voltage of 220V,and it's made as time delay component to make or break circuit according to preset time.This product uses large intergrated circuit as a processor and owns excellent EFT and ESD anti-intereerence performance .

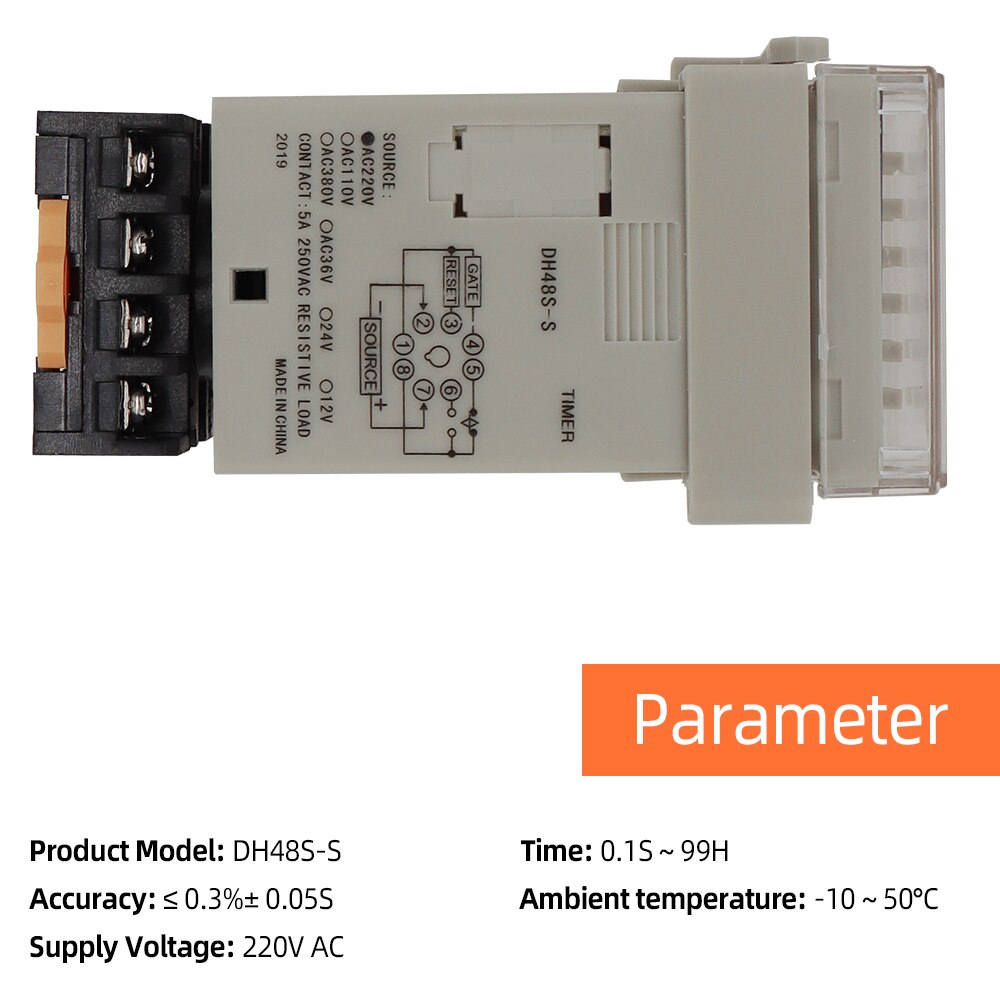

Specifications:
-
Model number:DH48S-S-1Z
-
Supply voltage:220V, 110V or 380V AC, 50/60 Hz; 24V DC/AC, 12V DC, Multi Voltage 24-240V AC
-
Tolerance:-15% ... 10% at AC and -10% ... 10% at DC of rated supply voltage
-
Power consumption:2W max
-

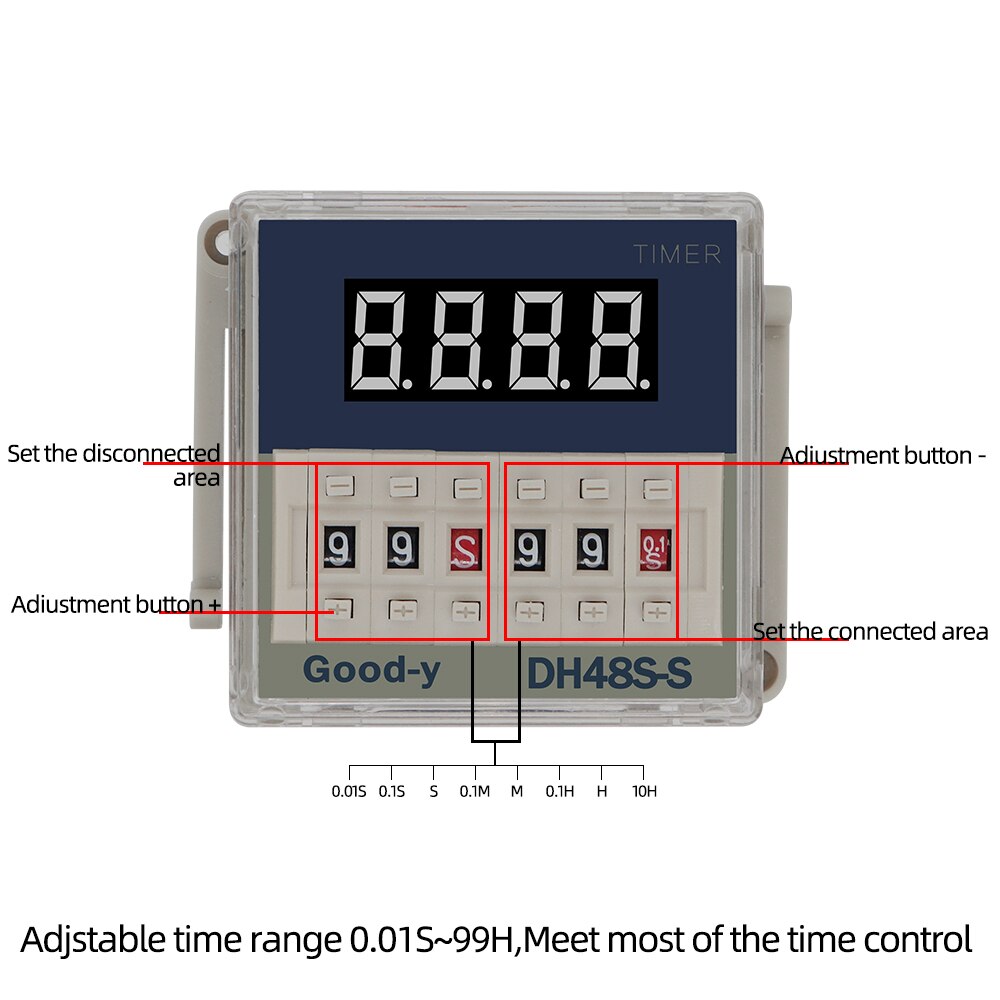

Setting method:Dial switch
-
Indication method:8-segment 4-digital display
-
External dimensions:48x48x97.4 mm
-
Perforate dimensions:45 10x45 10 mm
-
Contact rating:3A@250Vac, 5A@28Vdc
-
Repeat accuracy:±0.3%, ±0.05 sec
-
Setting error:±0.5%, ±0.05 sec
-
Termination:8 pins
-
Mounting:Panel or Din Rail mounted
-
Matched socket:PF083A
-
Operating temperature:0 to 50 °C (32 to 122 °F)
-
Operating humidity:95% RH max, non-condensing
Instructions:
-
Preset delay value, and then the use of power
-
When the preset is finished, the cover is covered with a protective cover.
-

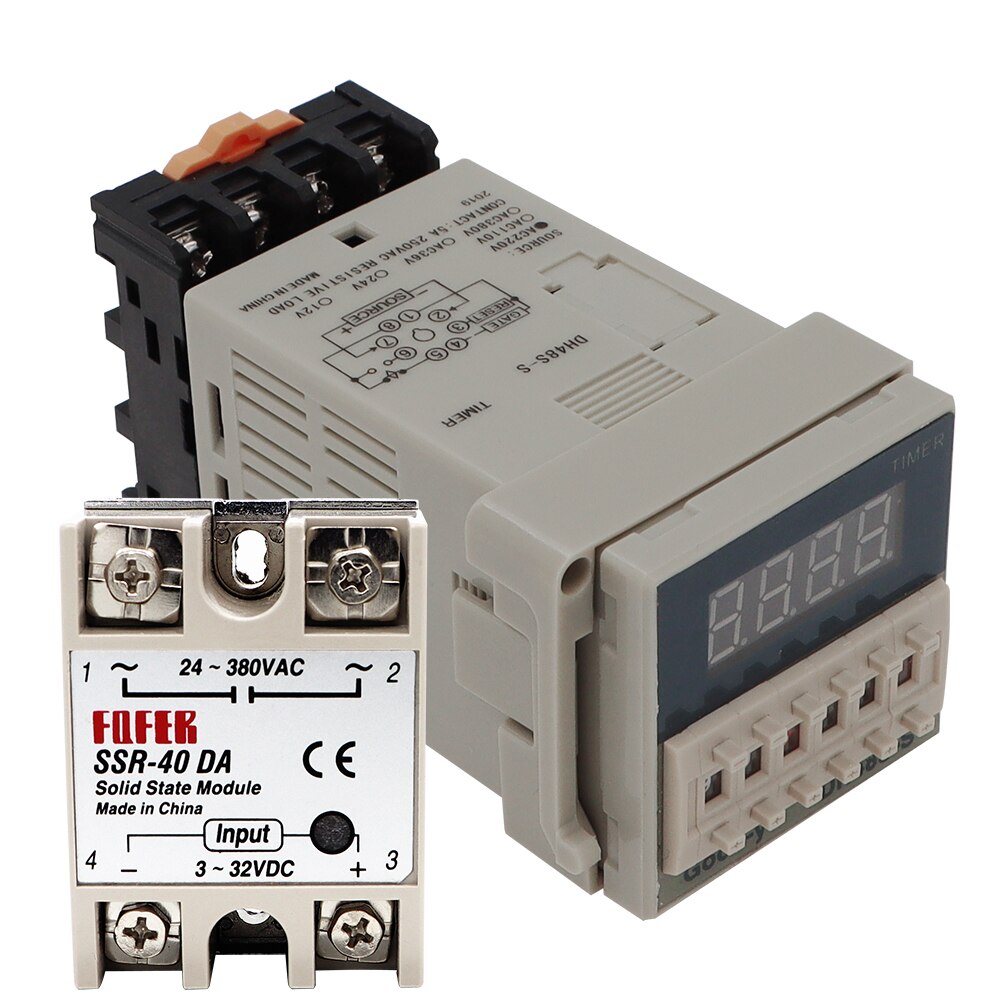

Drive larger current to be used with AC contactor
-

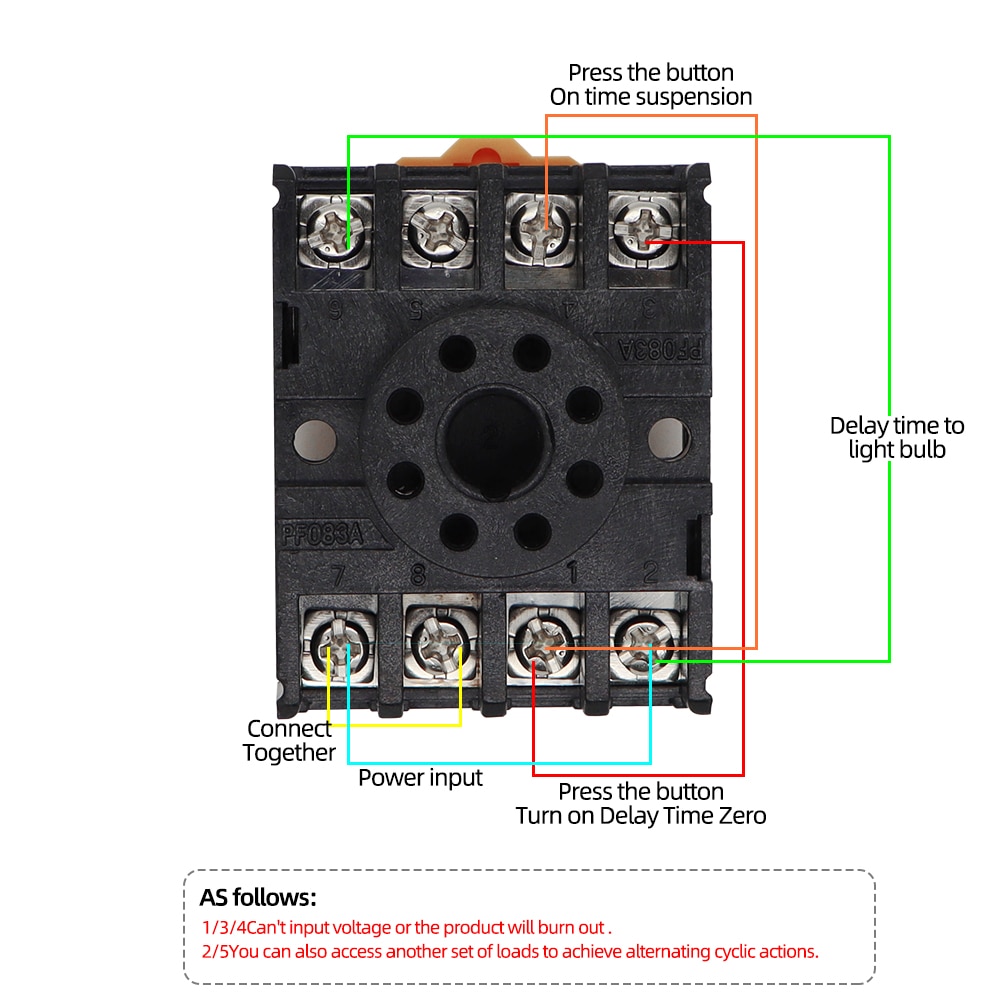

At any time when the reset function is connected to the 1,3 terminal, the contact
-
will be restored to its original position, and it will start from 0 after disconnection.
-
Reset and pause wire, please use the shielded wire
-
Pause and reset terminal voltage
