Description:

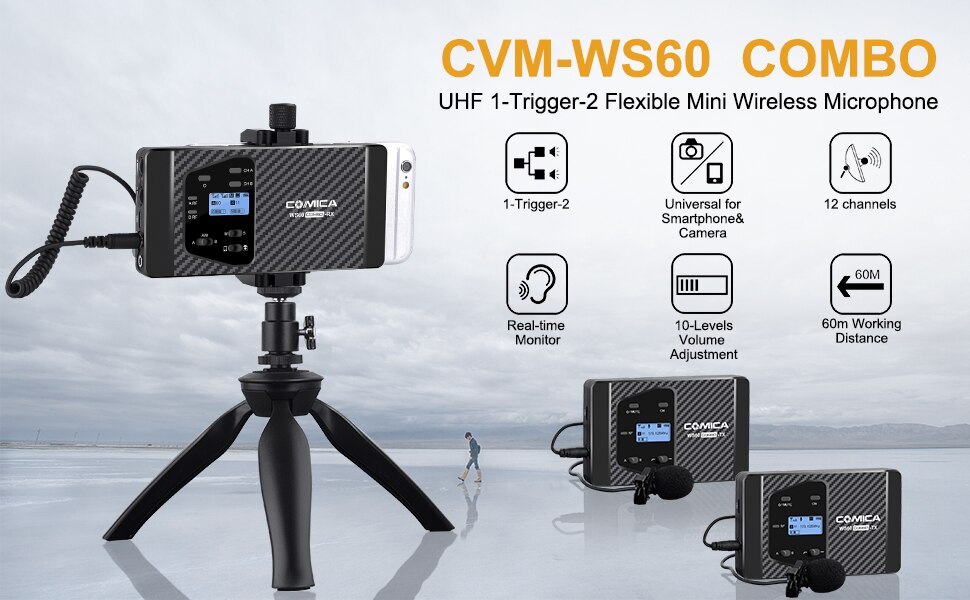

COMICA WS60 COMBO is a Flexible Mini wireless microphone with dual-transmitter triggered by one receiver, which charged by three AAA batteries; It utilizes UHF wireless FM technology and LCD high-resolution lattice screen, 10-level adjustable volume, and is integrated into LCF(Low cut filter), Stereo/Mono switchable audio mode, MIC/LINE IN Input Mode Automatically, Smartphone/Camera Mode Switch, Sound pick up dynamic display and other functions; Meanwhile the high-quality microphone comes with strong shielding anti-noise performance equals broadcast level.
Main Features:
1.1-Trigger-2, Universal for Smartphone & Camera

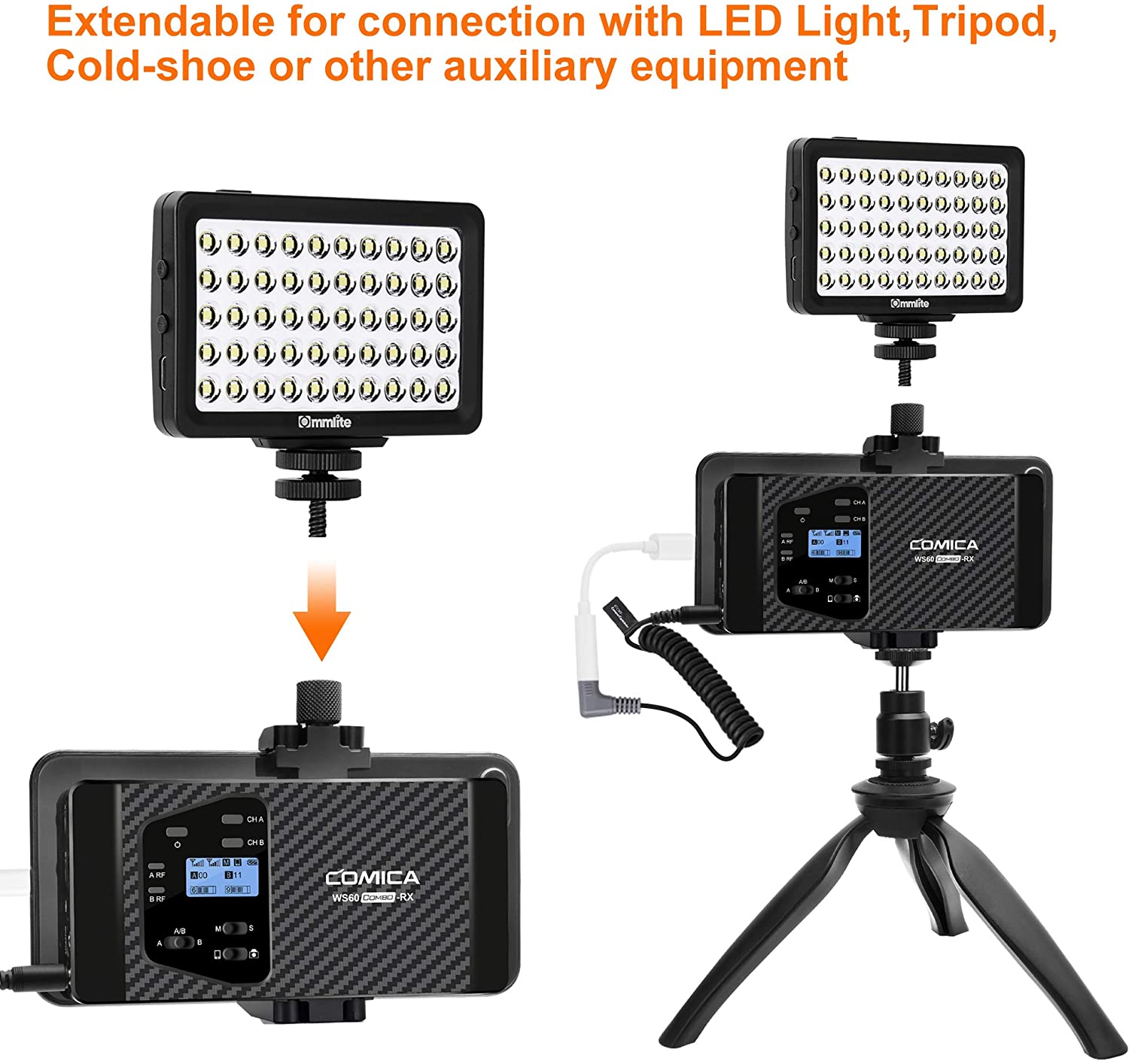

2.Built-in Smartphone Holder Design, Flexible and Convenient
3.Mini and Compact, Working Distance Up to 60m (Open Area 60m, 30m in Area with Obstacle)
4.12 Channels for Multiple Devices Work Together
5.M/S Switch, 10-Levels Gain Adjustment, Muting Functions
6.Real-time Monitor
7.Built-in Rechargeable Lithium Battery
8.Volume Dynamic Monitor
9.Lattice LCD Display, High Resolution
Purchase Options:

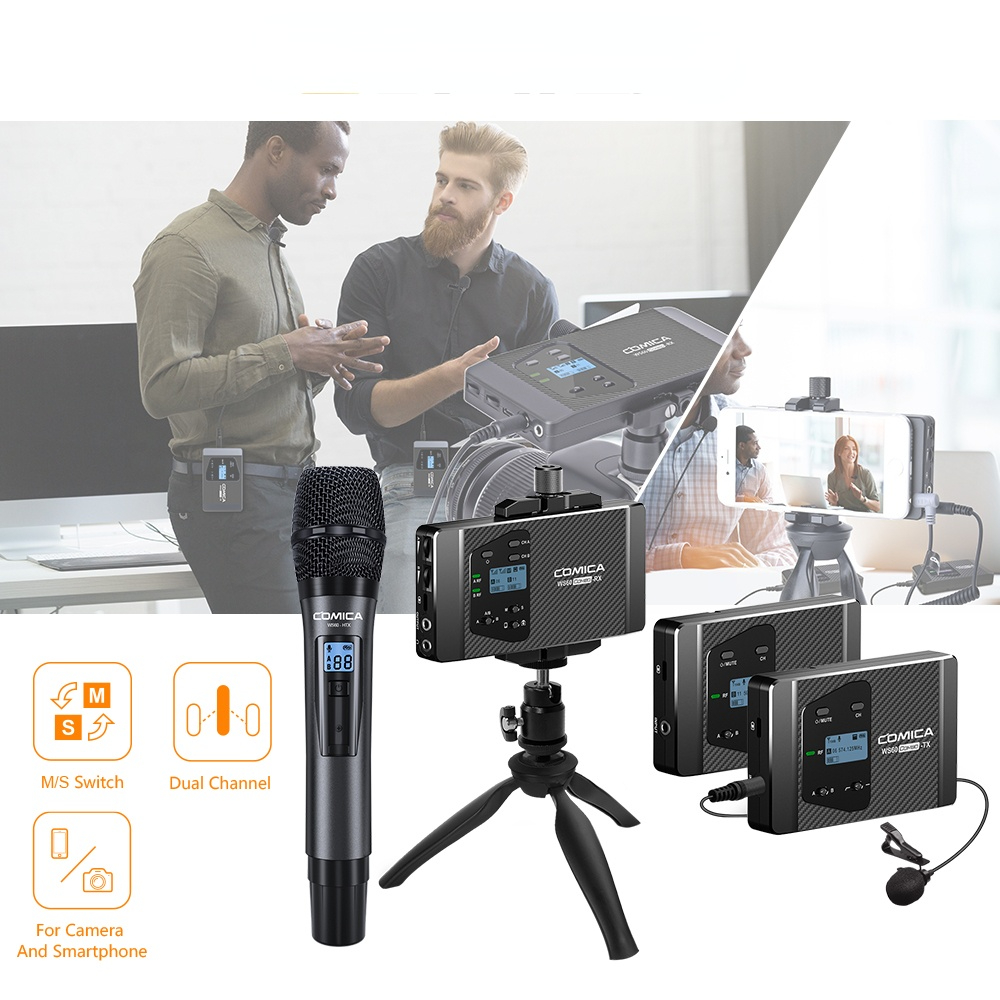

1.WS60 COMBO= 2TX + RX
2.WS60 HTX
Packing List:
WS60 COMBO:
1.Lavalier Transmitter(TX)X 2
2.Receiver(RX)X 1
3.3.5mm Mic Audio Input Cable X 2
4.3.5mm TRRS -3.5mm TRRS Audio Output Cable
5.Belt Clip X 2
6.Wind Muff X 2
7.Portable Case
8.Ball Head
9.Tabletop Tripod
10.USB-C Charging Cable
11.User Manual
12.Warranty Card
WS60 HTX:
1.Hand-held Transmitter (HTX)
2.User Manual
3.Warranty Card
Notice:
1.Transmitter should be used more than 20cm from Receiver, when the distance is less than 20cm, Receiver’s wireless signal receiving part will take protect action to shut down wireless signal receiving, then audio may be intermittent, which is normal.
2.In the case of stereo/mono mode switch, please preset the mode before using to avoid the transient interference caused by switching during usage.
3.The product utilizes TRRS-TRRS output cable, different with most TRS-TRS, or TRS-TRRS output cables in the marketplace, cannot use it universally.
4.The working distance will be affected by the surrounding environment. Please try to keep the environment open without interference during usage.
5.Do not use this equipment in the vicinity of heat source or interference source, such as radiator, oven, refrigerator or air conditioner, smartphone, intercom or next to the WIFI AP.
6.For Smartphone users, please set to ‘Flight Mode’ during the usage to avoid incoming call interference. (It does not support the partial default audio mode of android systems, the third-party APP is recommended to be used in this case)
7.Please keep this product in dry environment.
8.Do not expose the device in rain or humid environment, otherwise there will be a danger of short circuit.
Specification:
Lavalier Transmitter (TX)
Channel: 12
Duration: 8 hours
Antenna: Built-in Antenna
Stray Radiation: <-60dBc
Sound Delay: <20ms
Audio Distortion: <0.5%
Signal/Noise: >65dB
Audio Input Socket: 3.5mm TRS
Battery: Li-po Battery 1150mAh 3.7V
Dimension: 104×65.2×18mm
Working Temperature: 0℃~+50℃
Storage Temperature: -20℃~+60℃
Hand-held Transmitter (HTX)
Channel: 12
Duration: 4 hours
Signal/Noise: >65dB
Antenna: Built-in PCB Antenna
Stray Radiation: <-60dBc
Sound Delay: <20ms
Audio Distortion: <0.5%
Battery: AA Batteries ×2pcs
Dimension: Φ 3.5 (MA5X)×248mm
Working Temperature: 0℃~+50℃
Storage Temperature: -20℃~+60℃
Receiver (RX)
Channel: 12
Duration: 8 hours
Antenna: Built-in Antenna
Sensitivity: -90dBm
Sound Delay: <20ms
Audio Distortion: <0.5%
Radiation Response: 20Hz~18KHz
Signal/Noise: >65dB
Audio Output Socket: 3.5mm TRRS
Monitor Interface: 3.5mm TRS/TRRS
Battery: Li-po Battery 1150mAh 3.7V
Dimension: 134.5×65.4×18mm
Working Temperature: 0℃~+50℃
Storage Temperature: -20℃~+60℃

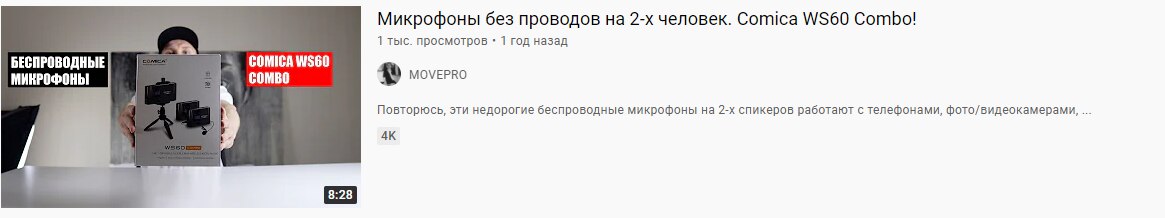

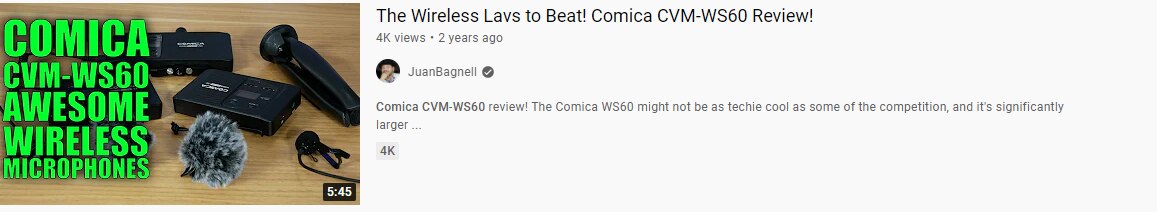

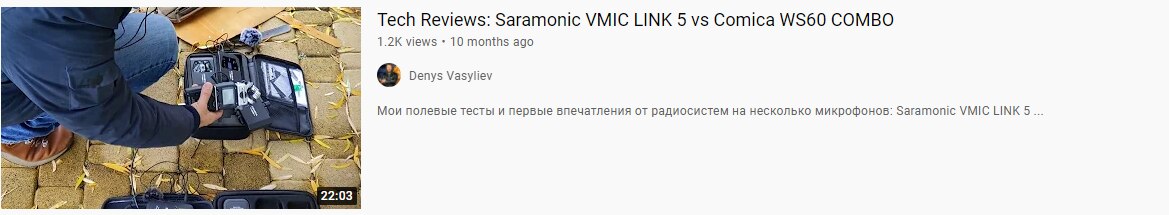

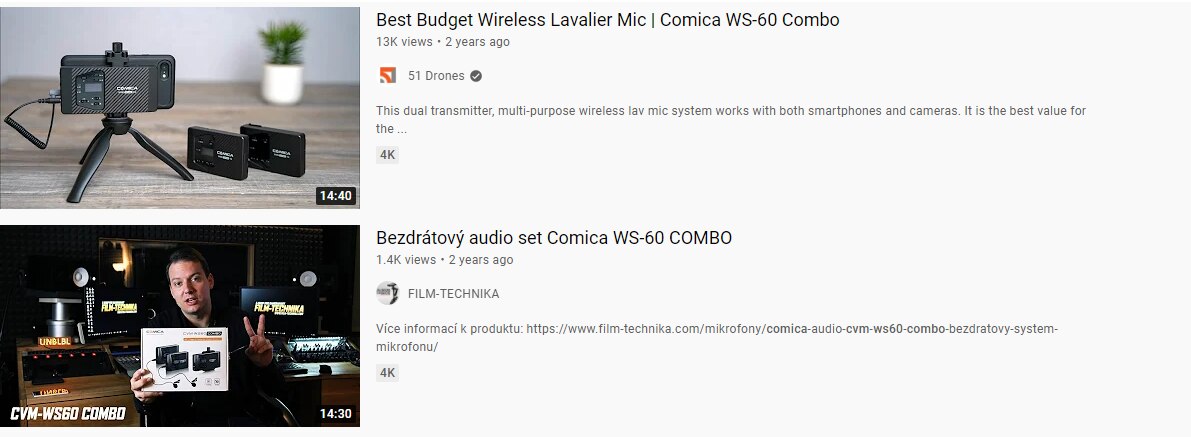

Know more about it on Youtube--Search for "COMICA CVM-WS60 COMBO"
