Main Features
. 2.4G Digital Wireless, Global Free Frequency
. Dual Transmitters Triggered by One Receiver
. Visual Power, Audio Dynamic Monitor and Other Display Functions
. Internal and External MIC Two Input Modes
. Mono/Stereo Switchable Output Modes
. Real-time Audio Monitor
. Broadcasting Quality Audio
. RF Technology, Auto Freq. Adjustment, Stable Transmission
. Low Latency < 20ms
. Working Range Up to 50m

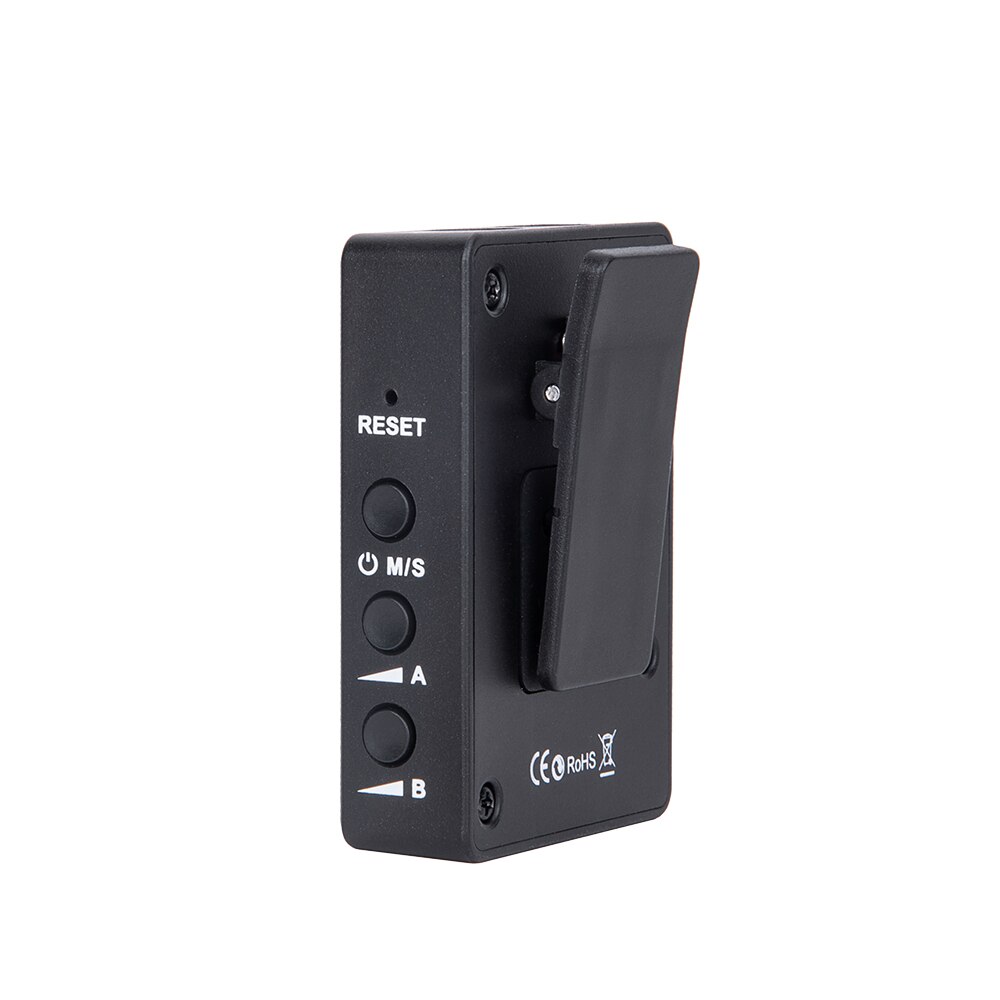

. Designed with Multi-functional Belt Clip and Compact
Notice
.Due to 2.4G wireless characteristics, please keep face to face when use it, and don’t turn your back to the receiver,otherwise it is easy to generate breakpoints, which is a normal phenomenon.
.Don't block the antenna position to avoid any poor signal generated.
.Please attention that it can not realize STEREO function when in one-trigger-one mode.
.When using on mobile phone, please turn of WIFI and Bluetooth to avoid 2.4G wireless interference.
.This product belongs to high-precision instruments, please avoid falling, collision or pounding.
.Do not use this equipment in the vicinity of heat source or interference source, such as radiator, oven, refrigerator or air-conditioner, smartphone or next to the WIFI AP.
.If the pick-up distance is close or when used outdoors, please put on the wind muff to prevent sound burst or reduce wind noise.
.Do not use the equipment in rain or in a damp environment to avoid short-circuit danger.
.Please keep the product in a dry environment.

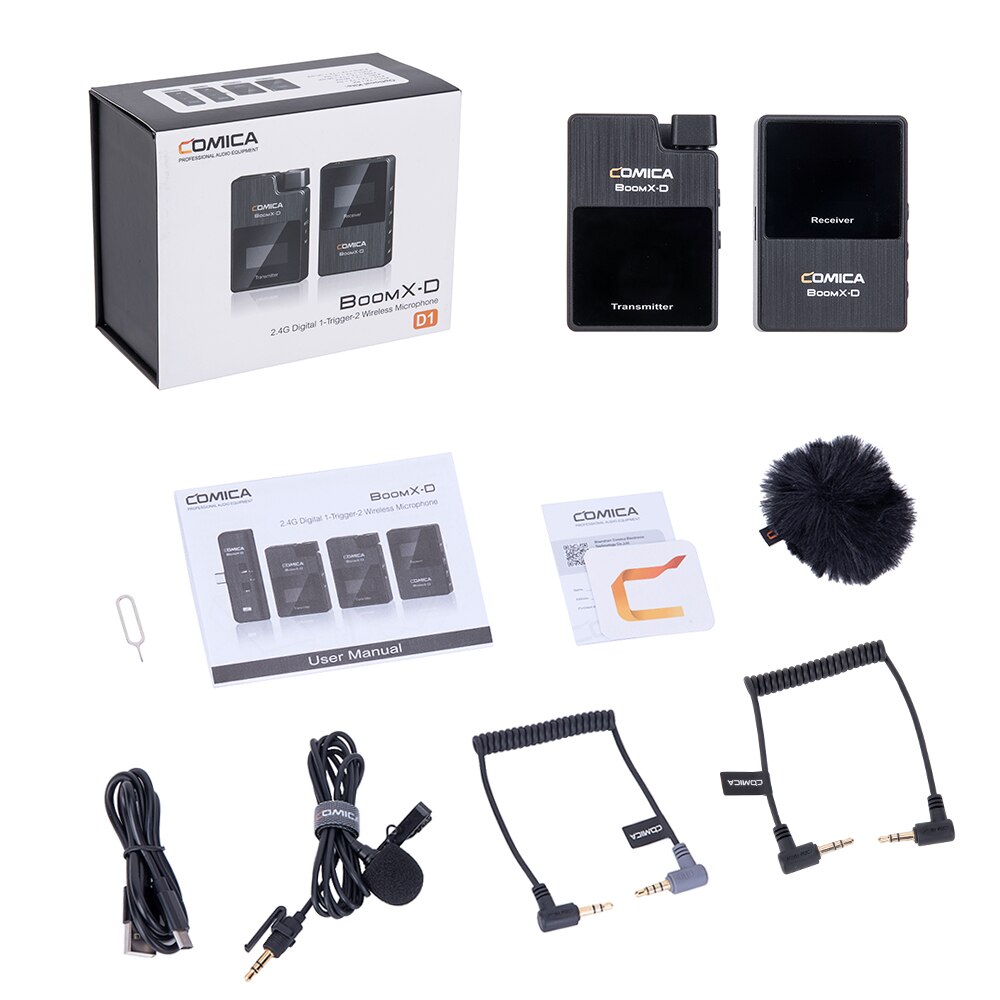

Packing List
Main Parts:
Transmitter(TX)
Receiver (RX)
Accessories:
①3.5mm Mic Audio Input Cable
②Wind Muff
③3.5mm TRS-TRRS Audio Cable
④3.5mm TRS-TRS Audio Cable
⑤USB A-USB C Charging Cable
⑥Reset Pin
⑦User Manual
⑧Warranty Card
Specification

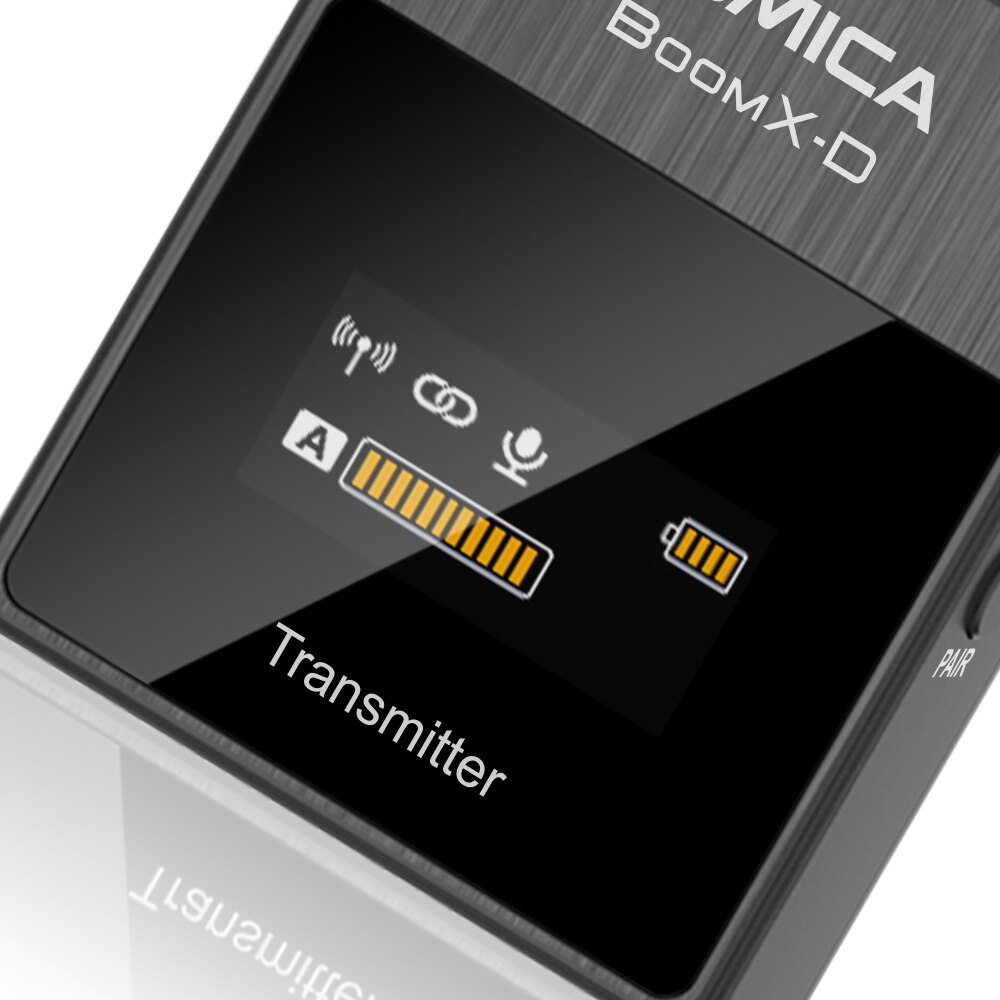

Transmitter (TX)
Wireless Band | 2400 ~ 2483.5MHz |
Transmitting Power | +10dBm |
Receiving Sensitivity | -86dBm |
Antenna | PCB Antenna |
Polar Pattern | Omnidirectional |
Frequency Response | 80Hz ~ 20kHz |
Sound Delay | <20ms |
External Mic Input Interface | 3.5mm TRS |
Battery | Built-in Li-ion Battery 300mAh 3.7V |
Battery Life | 5 Hours |
Net Weight | 29g |
Dimension | 39 x 22 x 55mm |
Operating Temperature | 0℃ ~ 50℃ |

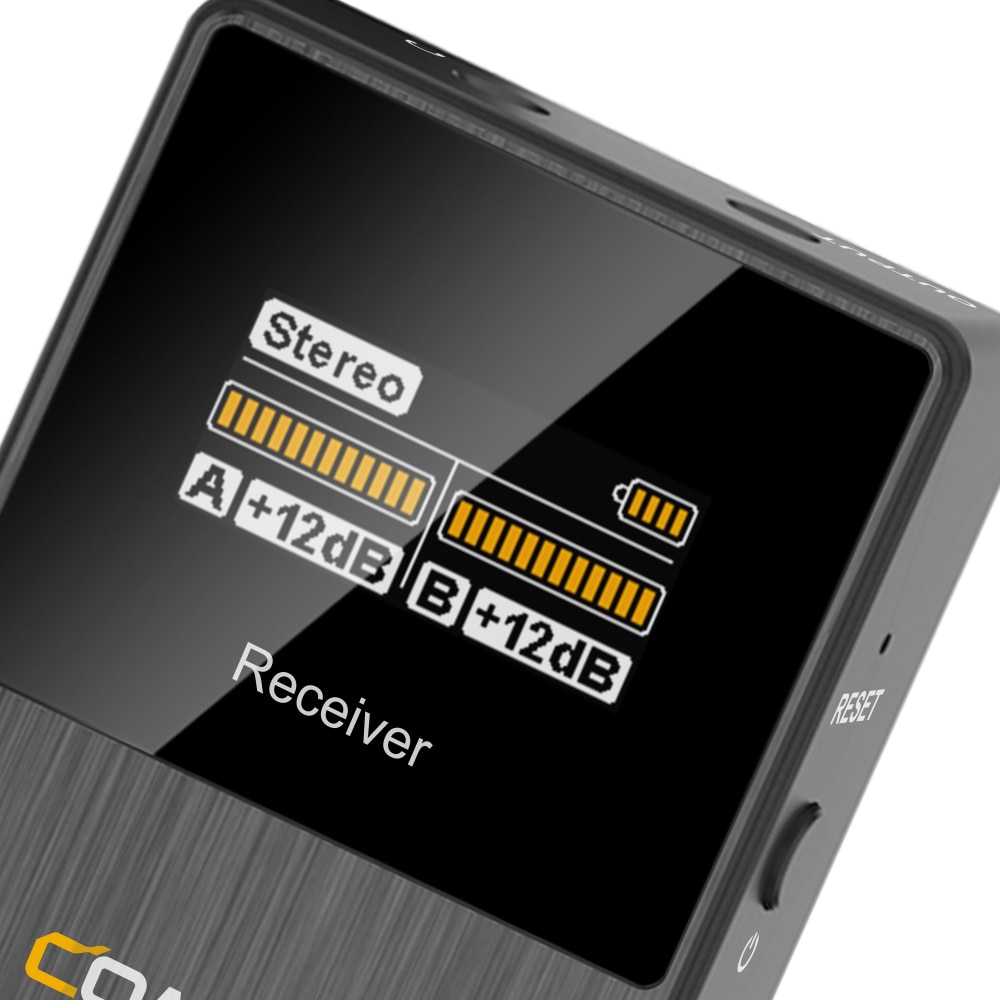

Receiver (RX)
Wireless Band | 2400 ~ 2483.5MHz |
Transmitting Power | +10dBm |
Receiving Sensitivity | -86dBm |
Antenna | PCB Antenna |
Audio Output Amplitude | +0dB ~ +12dB |
Sound Delay | <20ms |
Audio Output Interface | 3.5mm TRS |
Monitor Interface | 3.5mm TRS/TRRS |
Battery | Built-in Li-ion Battery 300mAh 3.7V |
Battery Life | 5 Hours |
Net Weight | 29g |
Dimension | 39 x 22 x 55mm |
Operating Temperature | 0℃ ~ 50℃ |
