Product Brief
CIT800multifunction of common rail injector tester can accurately and effectively, to imitate ECU drive signal for each work condition of injector, such as pre injection, emission point, full load point conditions. Can drive a variety of brands, For Bossch injector,for Densoo,for Delphii and Piezo common rail injector.
CIT800multifunction of common rail injector tester using the simple operation, can meet the detection of common rail injector combination and ordinary nozzle tester. To effectively reduce the investment threshold of repair equipment. The detector has the advantages of small size and convenient carrying can provide customers the way detection and repair of common rail injector, can greatly improve the work efficiency.
Common rail injector tester is a easy operated tool, could do the test with the injector hand pumps. It's small size and light weight, could meet the requires from repairman on the simple device of testing.
Technical Parameters:

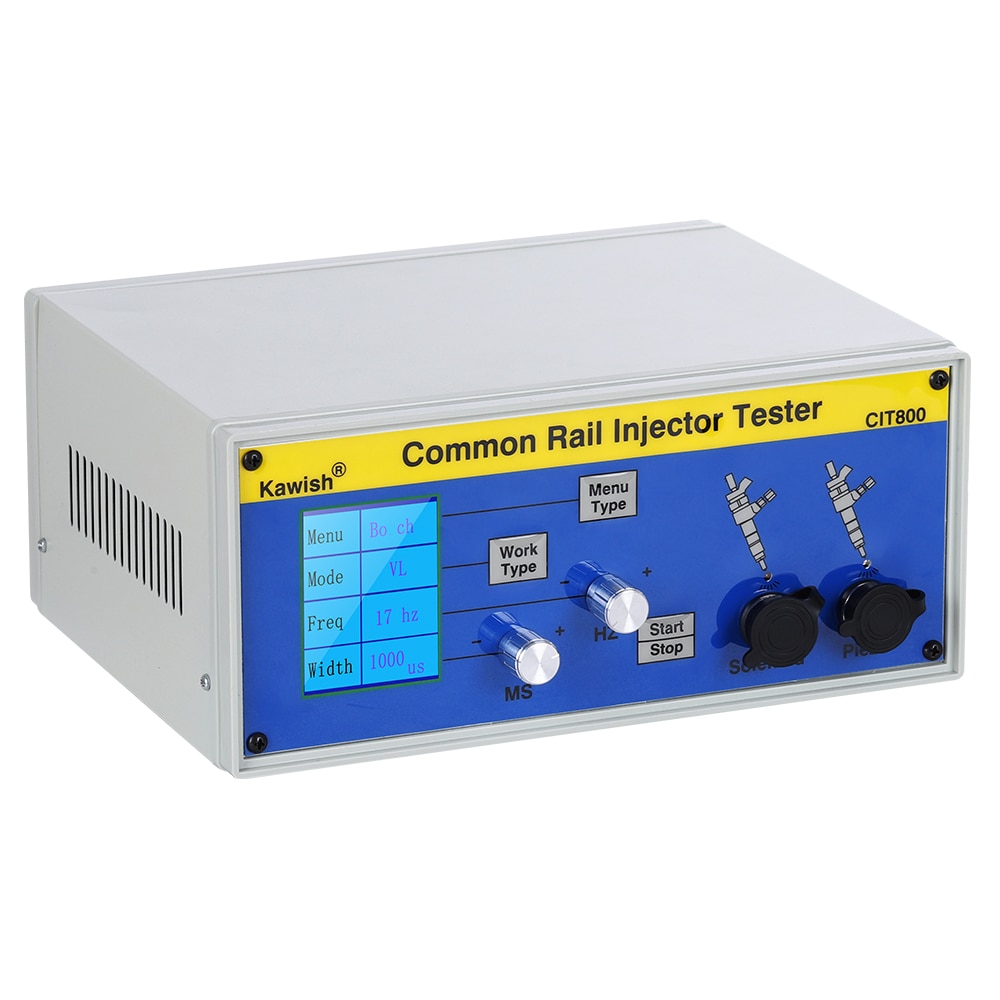

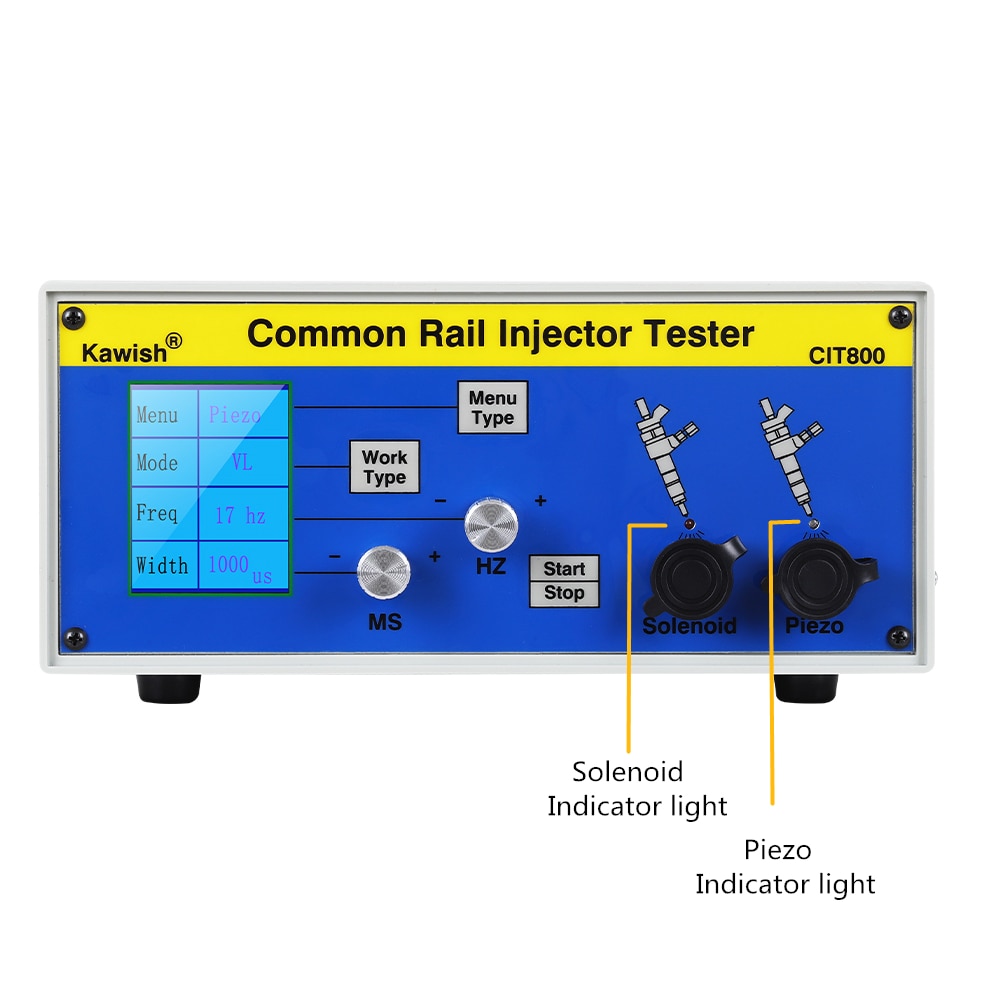

Produce Model: CIT800

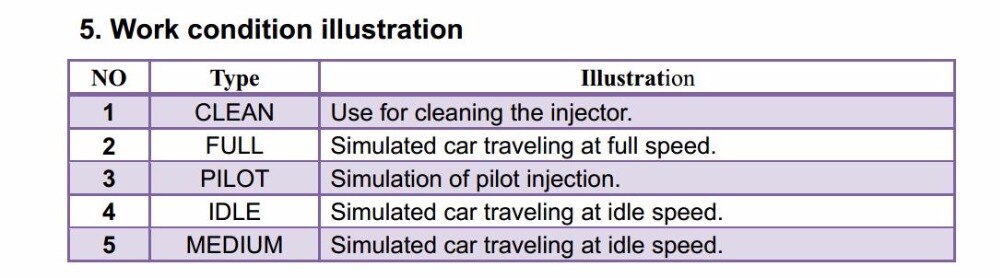

Testing Range: atomization, pilot, emission and full load condition.
Test Injectors: for Boscch, for Densso, for Delphii common rail injector,and Piezo injector
Working Voltage: AC110V-AC220V
Working Temperature: -30C°--70C°
Size: 110*260*200mm

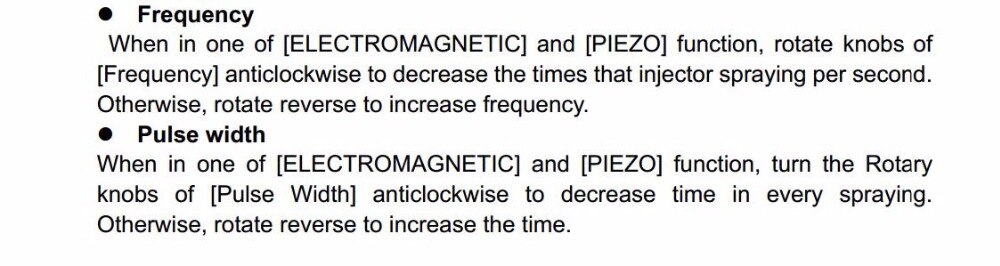

Adjustable Width: 100us - 6 MS
Adjustable Frequency: 1-30HZ(Solenoid Injector)1-20HZ(Piezo Injector)

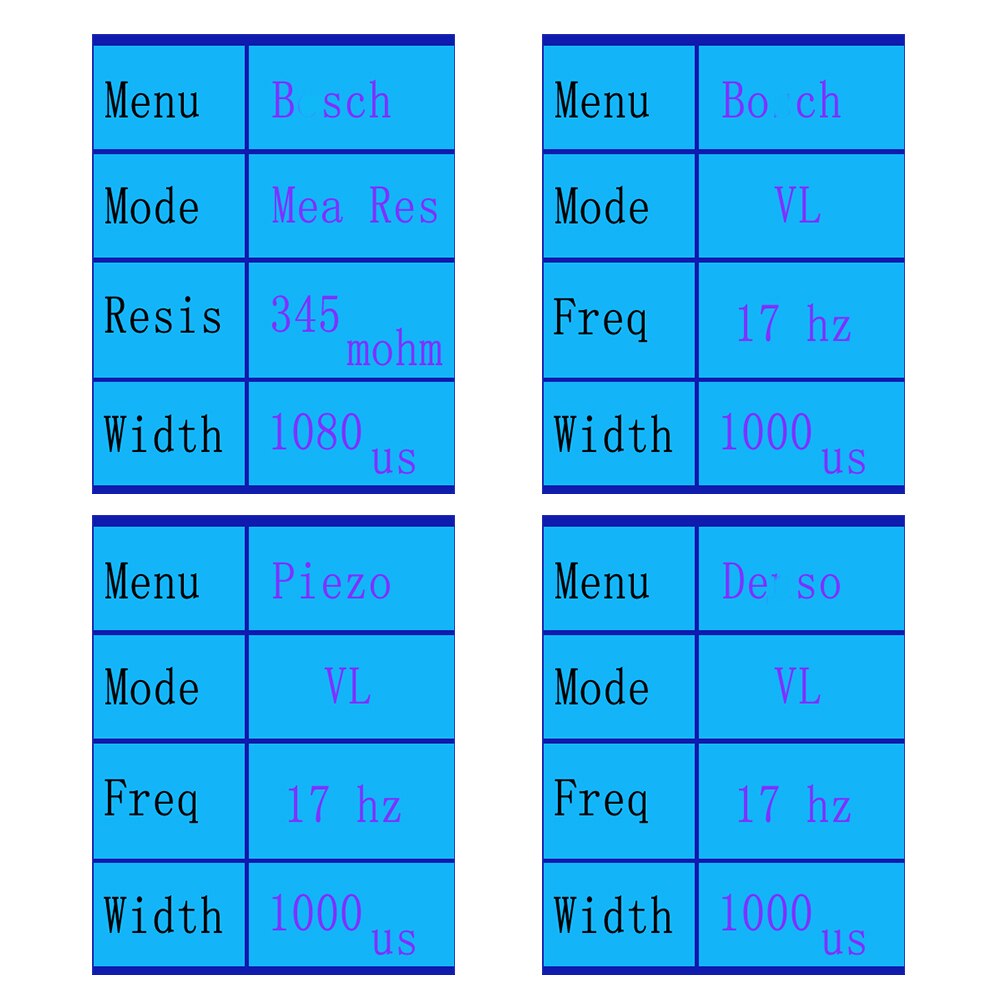

Other function :Measuring Solenoid injector impedance
Safeguard: 1,Protection fuse use in Power In 2,Hardware protection circuit 3,Software protection,4,Out connector safety protection
