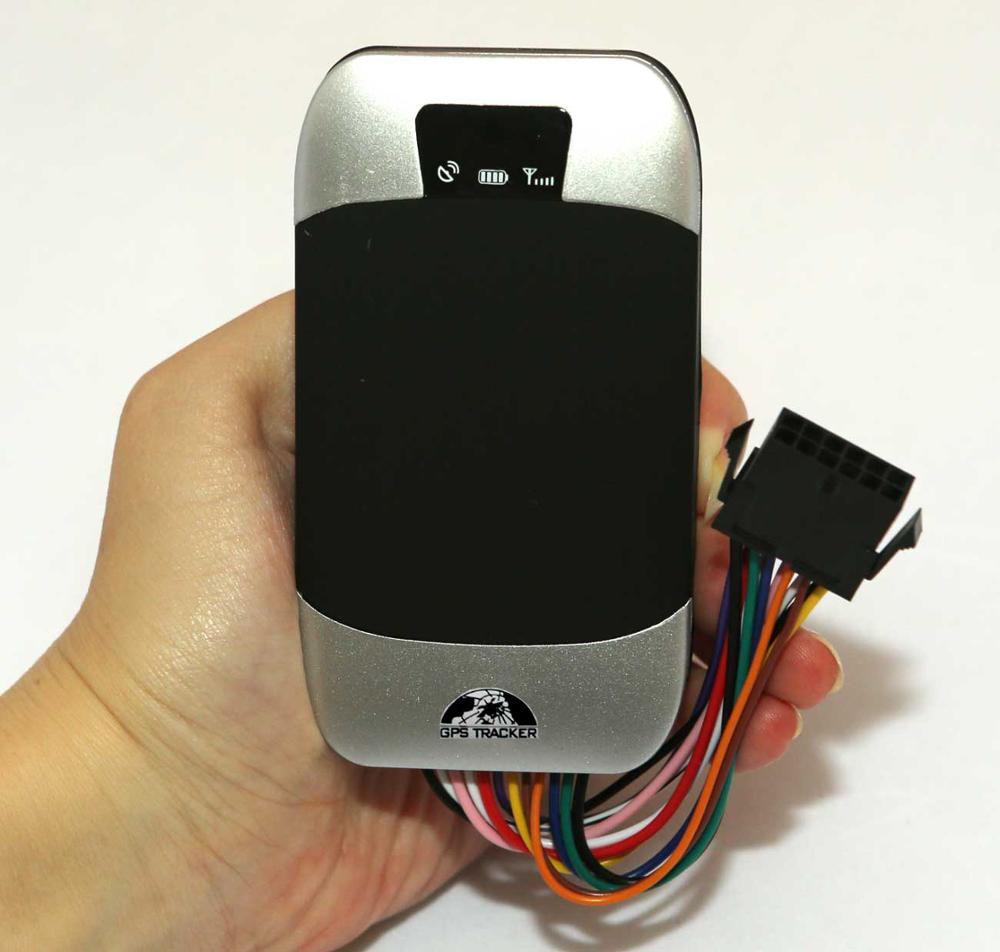

Coban gps tracker 303g Mini spy car vehicle gps tracker free web Platform Service
- Condition:
NO Retail Box. Packed Safely in Bubble Bag. if you need the retail box, please contact me
Color: Black
Size: 8.9cmx5.0cmx1.6cm(3.5/'/'x1.97/'/'x0.63/'/')
Weight: 65g - Support :
Working Based on existing GSM/GPRS network and GPS satellites, this product can locate and monitor any remote targets by SMS or internet.
Handheld and Vehicle purpose.
Built-in GSM, GPS antenna, compact, elegant appearance.
Support GPS and LBS (Location based service) double tracking solutions.
Support SMS/GPRS/Internet Network data transmission (GPRS/Internet instructions includes in CD in package)
Support configure the settings remotely
Set multiple functions of security, tracking, monitoring surveillance, emergency alarms and management in its entirety.

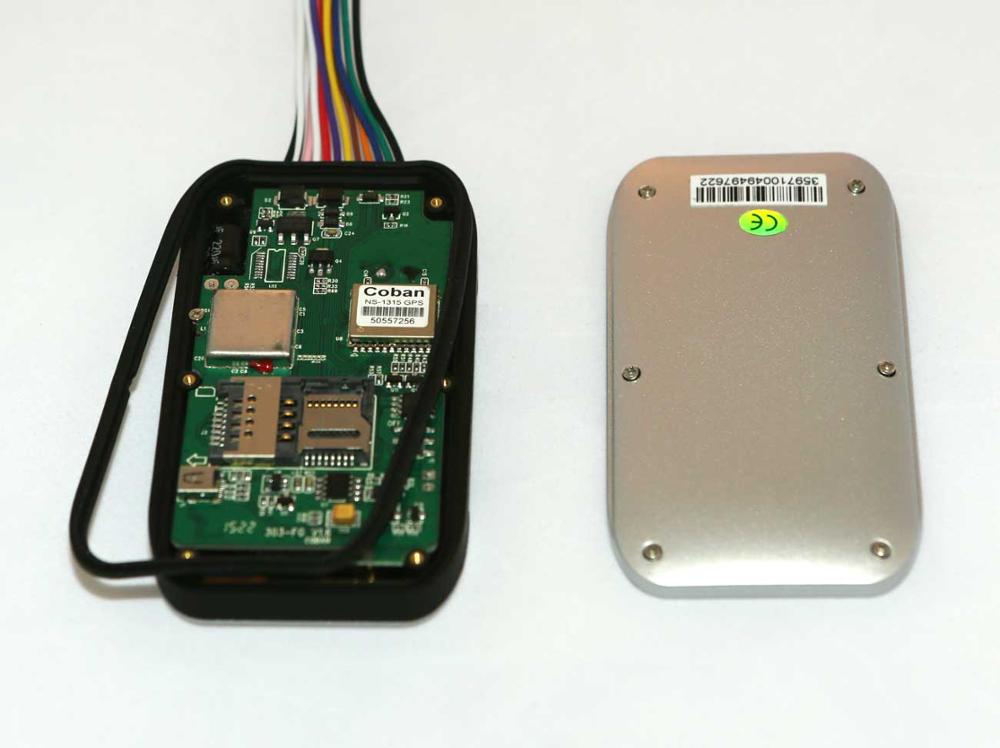

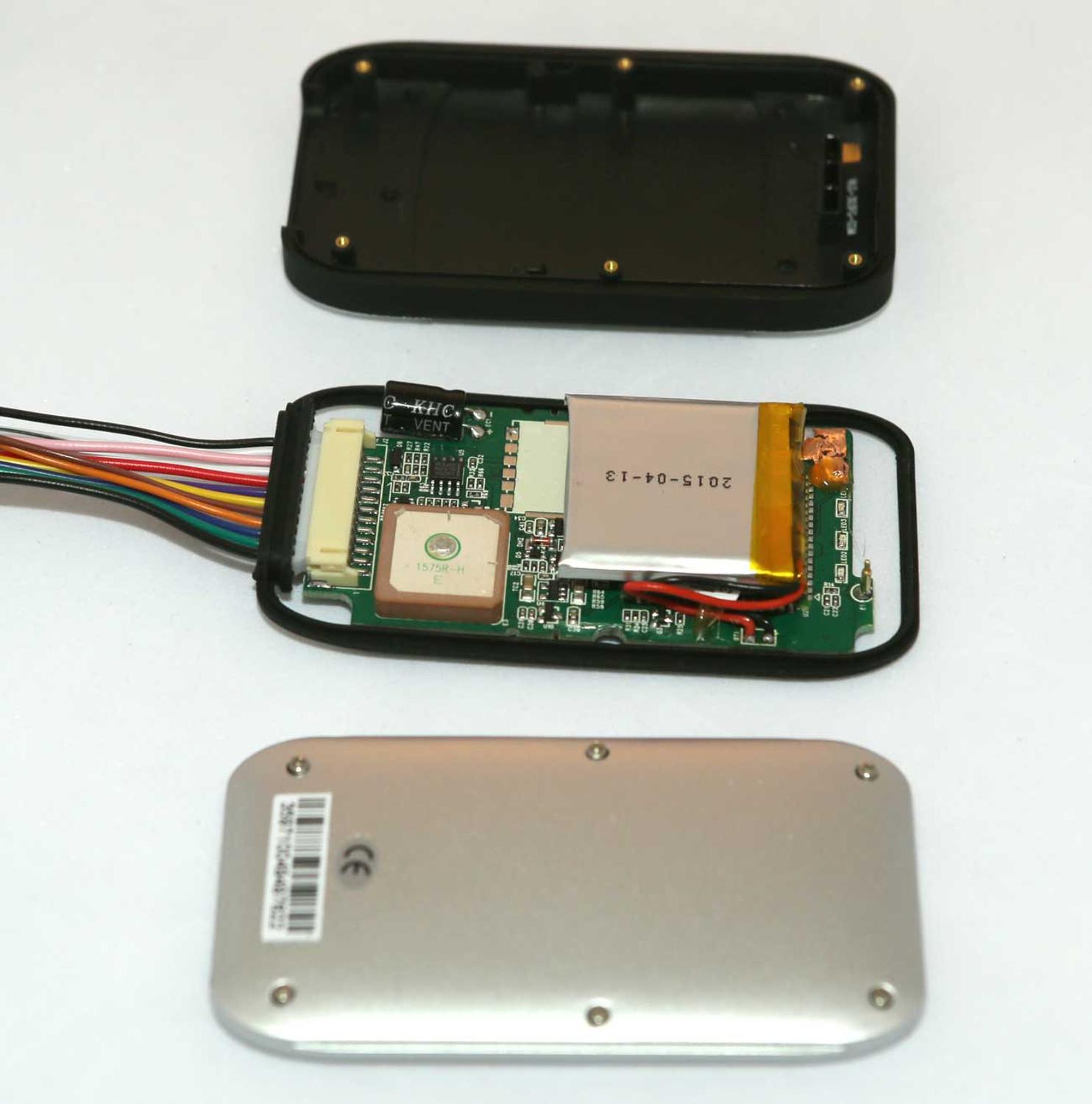

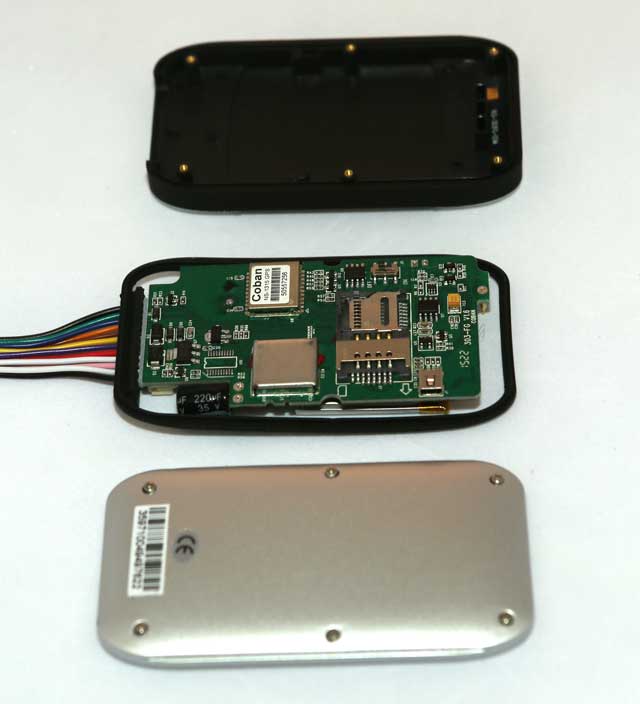

Used widely for person, vehicle and other moving objects tracking. - Hardware Description:
- Specifications:
Content
Specification
DIM
8.9×5.0×1.6cm
Weight
65g
Network
GSM/GPRS
Band
850/900/1800/1900Mhz
GPS sensitivity
-159dBm
GPS accurancy
5m
GPS start time
Cold status 45s
Warm status 35s
Hot status 1sCar power supply
12 V -24V
Back up battery
Chargeable 3.7V 500mAh Li-ion battery
Storage Temp
-40°C to +85°C
Operation Temp.
-20°C to +65°C
5%--95% non-condensing
- Features:
1.Input sim card, Turn on the device, Support to set 5 admin number monitor the GPS device.
2. Single Locating
3. Auto track continuously
* Track with limited times upon time interval
* Smart track upon time and distance interval
4. Location based service (LBS)
5. Automatic update positions of vehicle turns
The tracker will update the positions automatically to web server once the vehicle changing driving direction over pre set angle value to form a smooth trajectory consistent with the actual road, this function works only in GPRS mode.6.Absolute street address by SMS
7. Track mode
8. Monitor
9. GPS drift suppression
10. External power off alarm(suitable B,F,G model)
11. Storage
12. Data load
13. SOS Alert
14. GPS blind Spot alert
15. Movement alert
16. Geo-fence
17. Multi-area management
18. Low battery alarm
19. Sleep Mode
20. Forward the third parties/' message
21. Charges Inquiry22.Cut off oil/power system(suitable F,G model)
23.Function of Remote controller(ONLY for GPS303D)
24. ACC working alarm(Suitable B,F,G model)25. Door Alarm (Suitable F,G model)
26.Fuel alarm(Suitable F,G model)
27.Alarm without GSM network service(suitable F,G model)
28.TCP/UDP Switch
29. Configure parameters by USB
Find the USB cable in the package to connect tracker with computer, open the memory of the tracker, find and open the initial configuration file with notepad, operate according the instructions.
Note: Correct password is needed every time you configure the tracker.
30.Terminal(Local)time setting31.TCP/UDP Switch
31.Reset
Send SMS /'/'reset+password/'/' to tracker, it will reply /'/' reset ok/'/', the GSM and GPS module of the tracker will be reset.
32.Less GPRS Traffic
GPS303 has A,B,F,G version,check the following compare sheet,choose the suitable one from our ebay store,thanks!

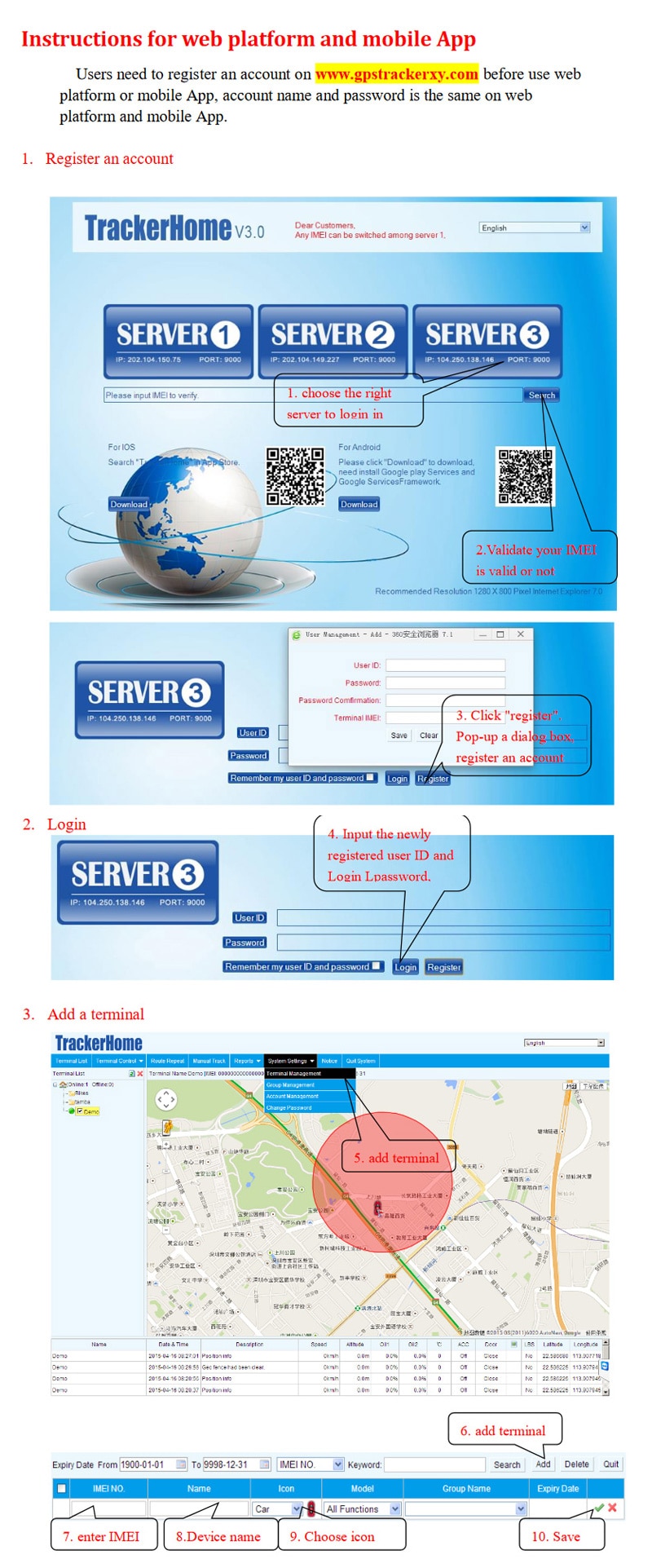

Web platform and PC installation tracking software:a. Web based platform www.gpstrackerxy.com Configuration IP: 202.104.150.75 Port: 9000. Please check /'/'software platform
user manual/'/' included in the CD for detailed operation information.b. PC based installation tracking software user manual included in the CD in package, it is free for using!
Display Position On Google Maps:

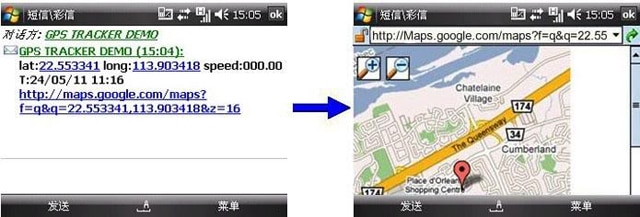

1. View map on the cell phone screen:

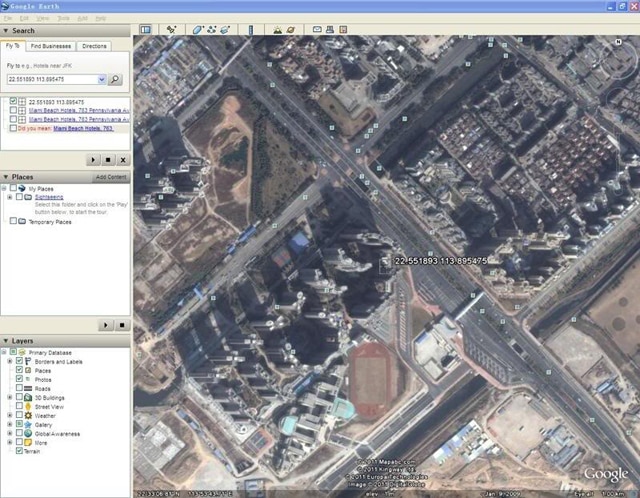

2. Check Position in Google Earth:

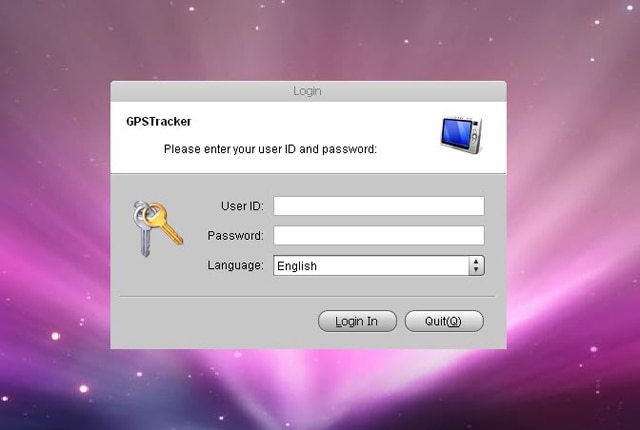

3. Free PC Real-time tracking software, which is for you to set up your own tracking platform:

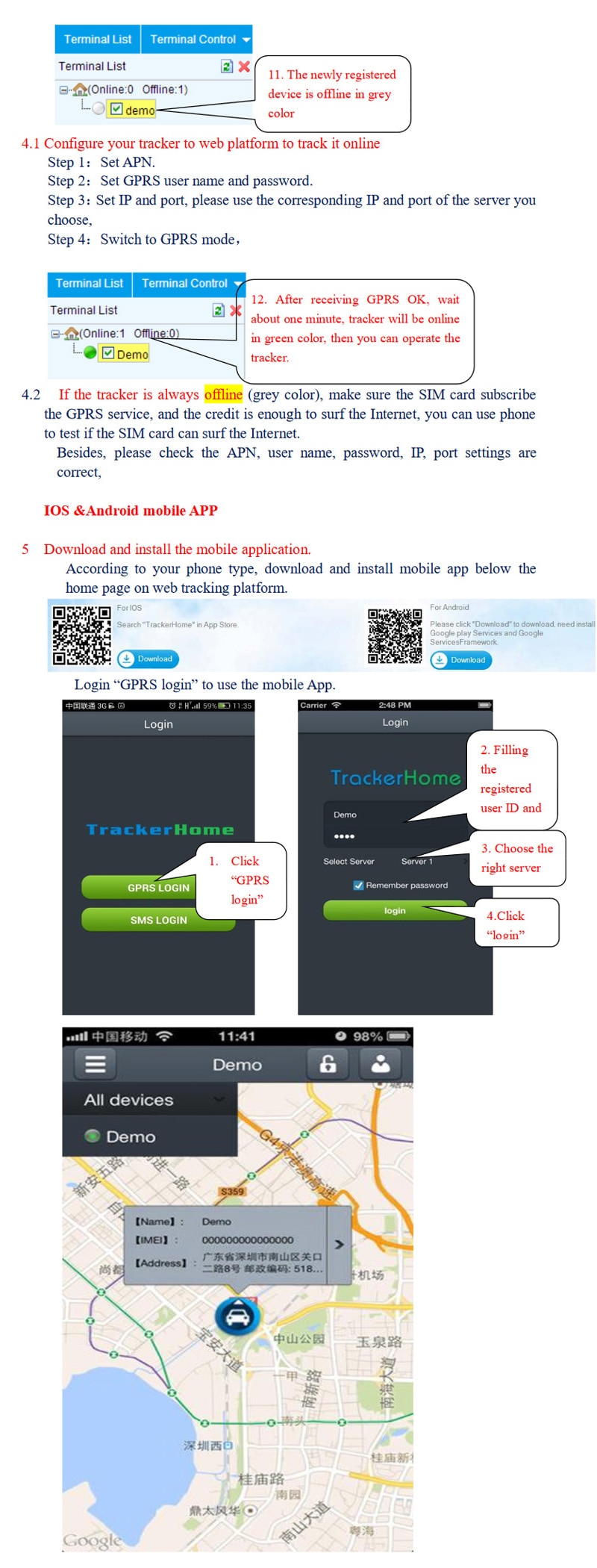

4. Web tracking software for tracking all your vehicles Live and Real-time, can send commands, cut off power, set Geo- fence, movement area from this web platform:
www.gpstrackerxy.com
User: demo

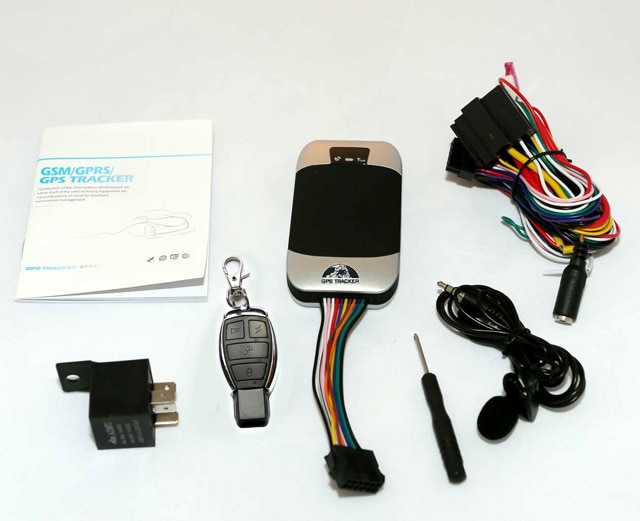

Password: 8888. - Package included:

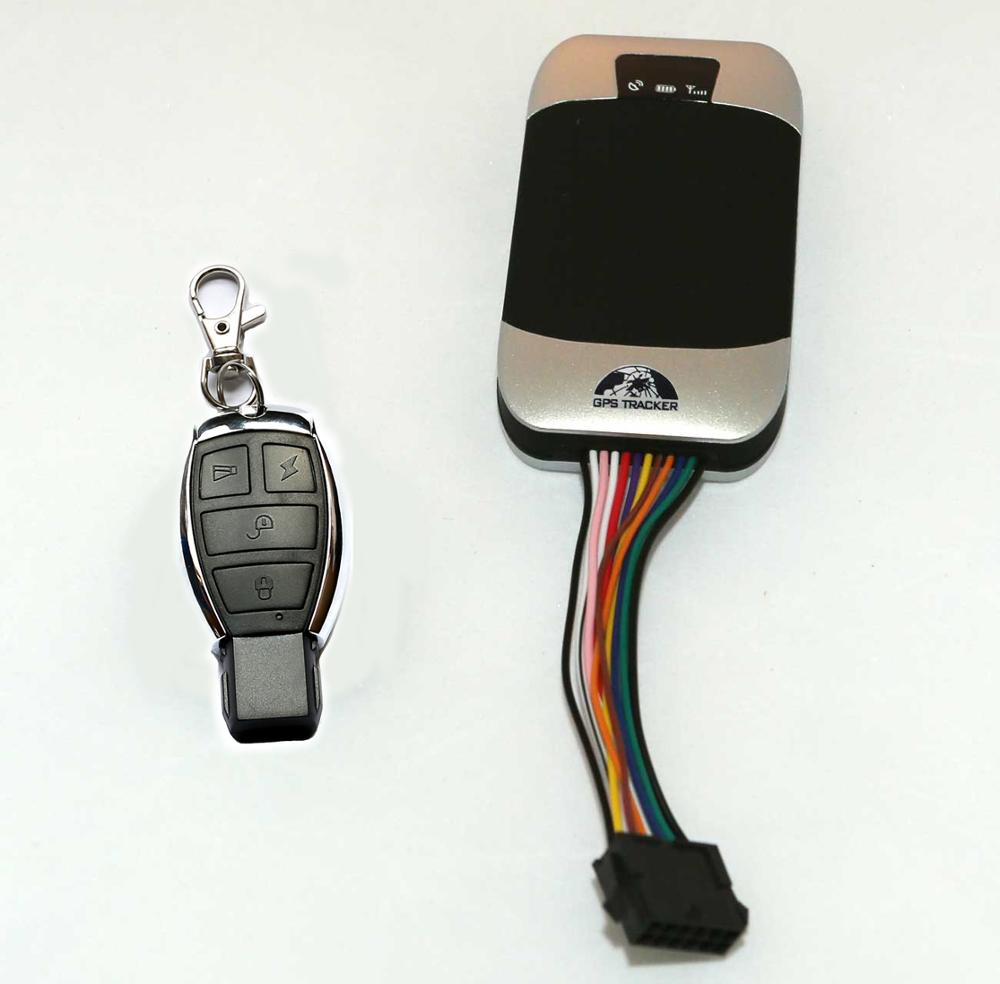

GPS Main Unit GPS303G x 1
Remote Control x 1

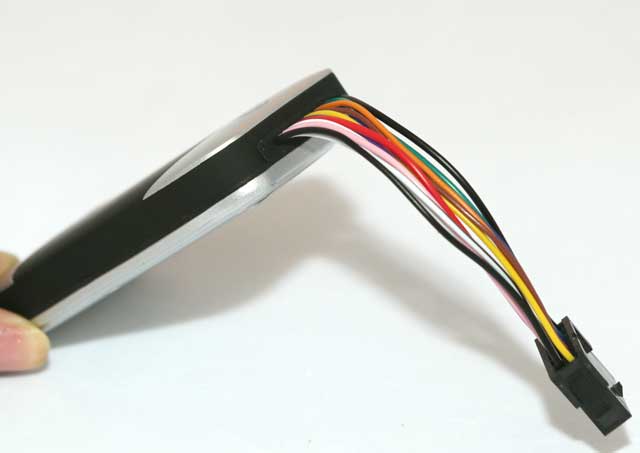

12Pin harness x 1
Relay x 1
microphone x 1
Screwdriver x 1
English User Manual x 1
Coban Web Platform Services Free
No cd disc , CD files available for free download , If you need CD file,Please contact us.

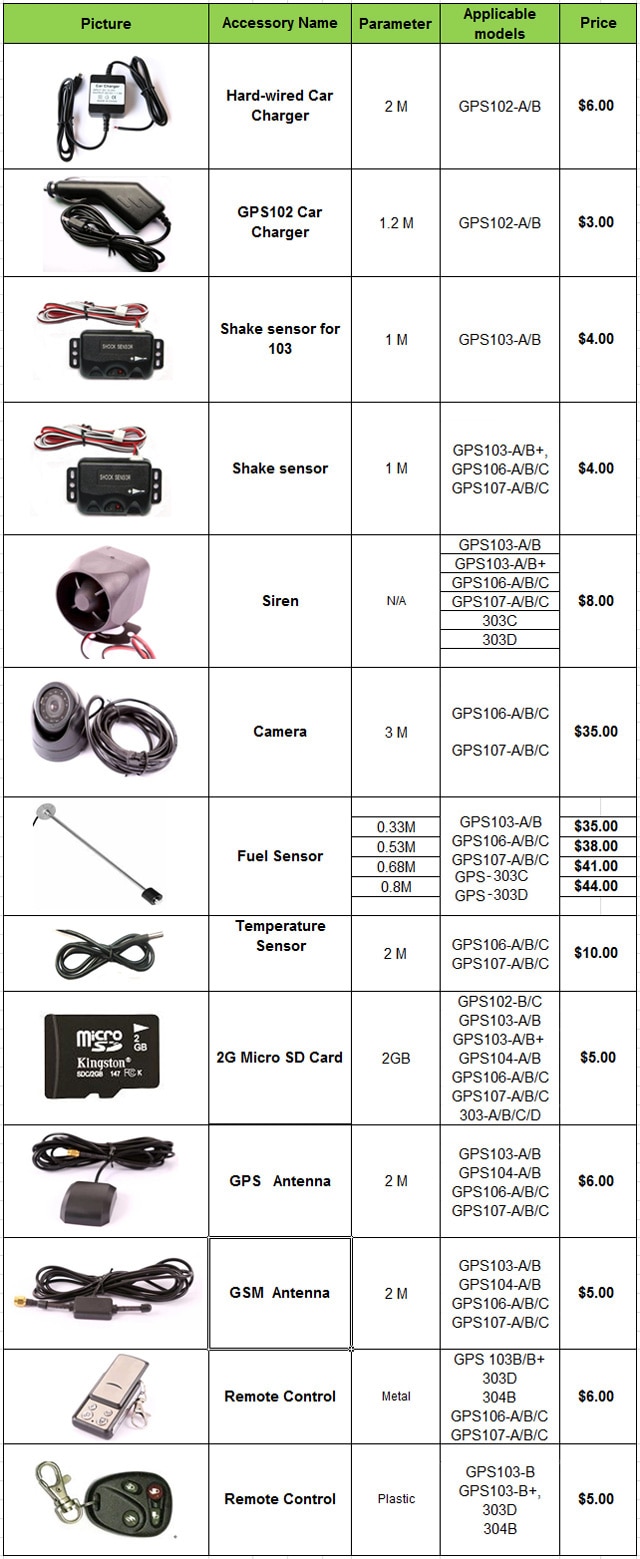

Not include sell box , We canceled the, because it is more convenient through customs, and freight cost savings. if you need the retail box, please contact me. - Optional Accessories:

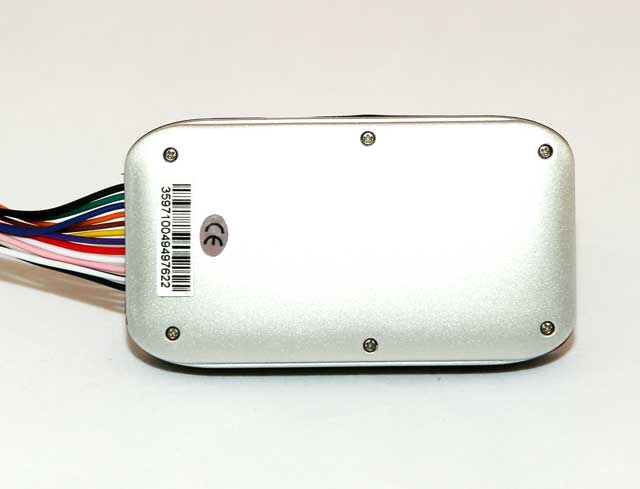

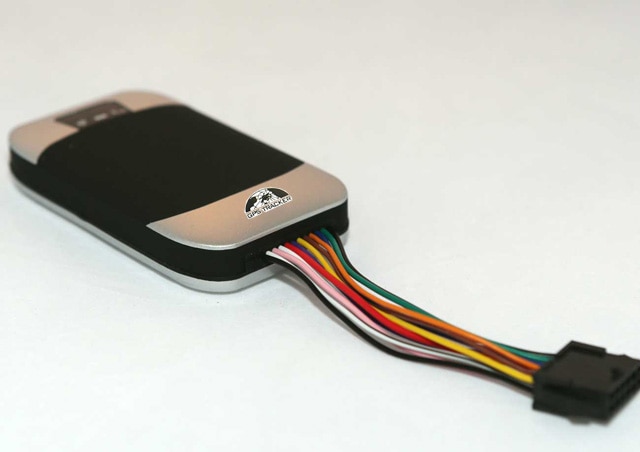

If you need more details information about this device, please contact us via message to get the user guide,thanks! - Item picture:
