Universal 12V Auto Car Alarm Immobilizer Anti Theft System + 2 Remote Controller High Security
This system is an electronic system with the unique characteristic of recognizing the owner of the vehicle and protecting from instruction by not allowing the engine to be turned on.
This system can control the circuit of the vehicle and make sure your vehicle can not be started with a simple wire bridge.
NO STEALING WHILE PARKING, NO ROBBING WHILE DRIVING
Specification:
100% brand new!!!
Voltage: 12V
Alarm Type: Mute
Alarm Range: 50m
Working temperature: -40-100 degree
Alarm Way: off oil / off power / lock the engine
Fitment: Universal for all 12V vehicles
Diagram: Double Stage Immobilizer. Model Number TSK-AR028 designed for 12V cc, 22 milliamps.

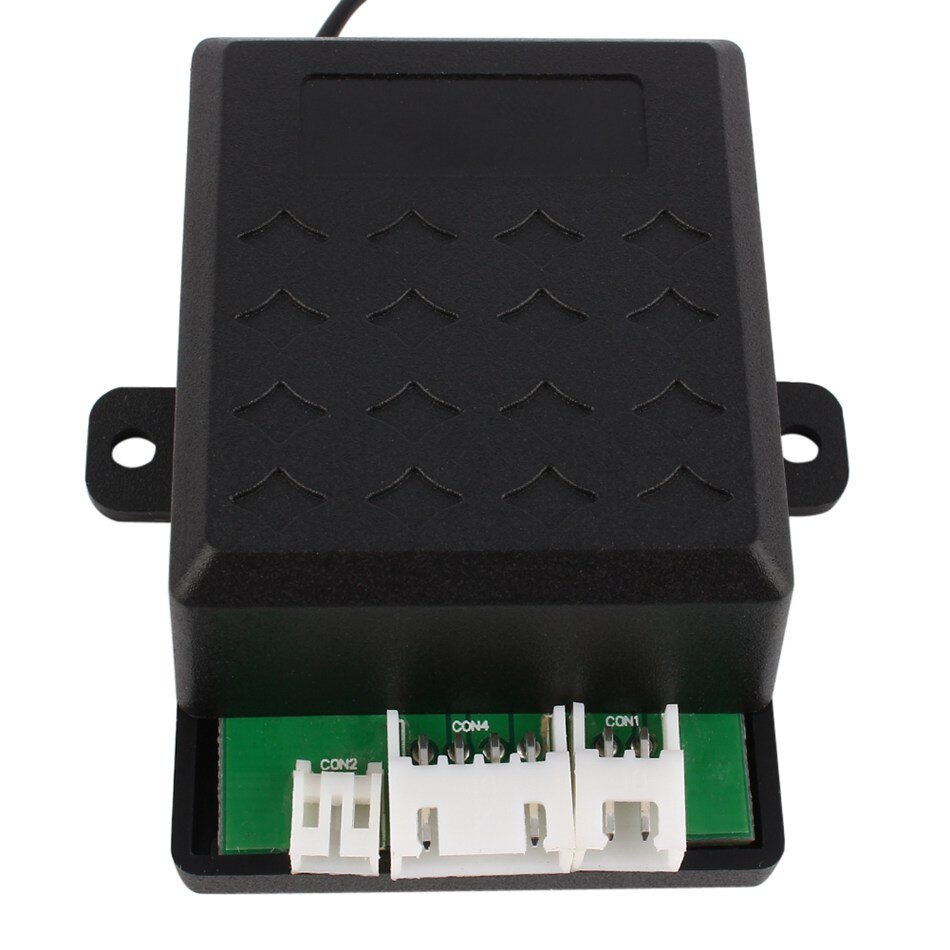

Main Unit size:Length*width*height: 6X 4.1X 2.5CM
LED Light Indicator Instructions:
Red/Green - Alternative - While engine is on
Red - Flashes - First stage activated
Red - Constant - Second stage Activated

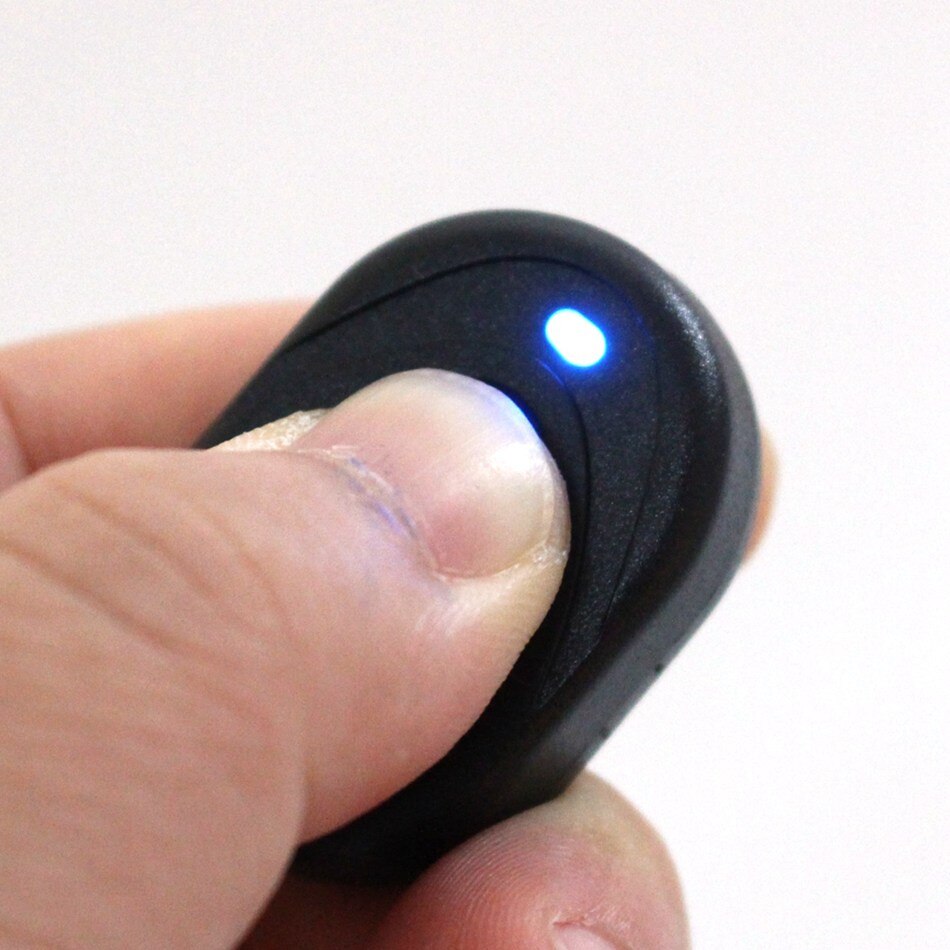

Green - Constant for 2 to 4 seconds - Signal transmitted by the remote
Green - Constant - Learning code mode
None - OFF - System off
A. Remember:
Turn off the transmitter when it is not in use. This will extend battery life.
B. Warning:
Do not touch your transmitter, or do not use if it has been exposed to water or humidity.
C. Caution
- Do not use the transmitter if it is flashing. This means it is out of battery.
- This equipment must be installed by an authorized professional technician.
- Do not hit the transmitter or expose it to heat, water, fire, or extremely hot conditions.
This transmitter does not interfere with any other electronic devices.
Installation: (This equipment must be installed by an authorized professional technician.)
1. Install the main unit inside the vehicle away from moving parts and in a place where it is mot inside.
2. The LED indicator must be hidden and not visible.
3. The emergency button must be hidden.
4. The cable with red/black coloring must be connected to the terminal 86 at the relay and terminal 85 to the positive charge together with terminal 30 and terminal 87A must be connected to the destiny cable.
5. The cable with black/white coloring must connected to terminal 86 at the relay and terminal 85 must be connected to the original cut together with terminal 30 and terminal 87a must be connected to the destiny cable.
Note:
1. (IMPORTANT) Instructions Is Included. Professional Installation Is Highly Recommended
2. Please check the size measurement chart carefully before making payment.
3. Please allow 0.5-1 inch difference due to manual measurement.(1 inch=2.54cm)
4. The color of the actual items may slightly different from the listing images due to different computer screen, thanks for your understanding.

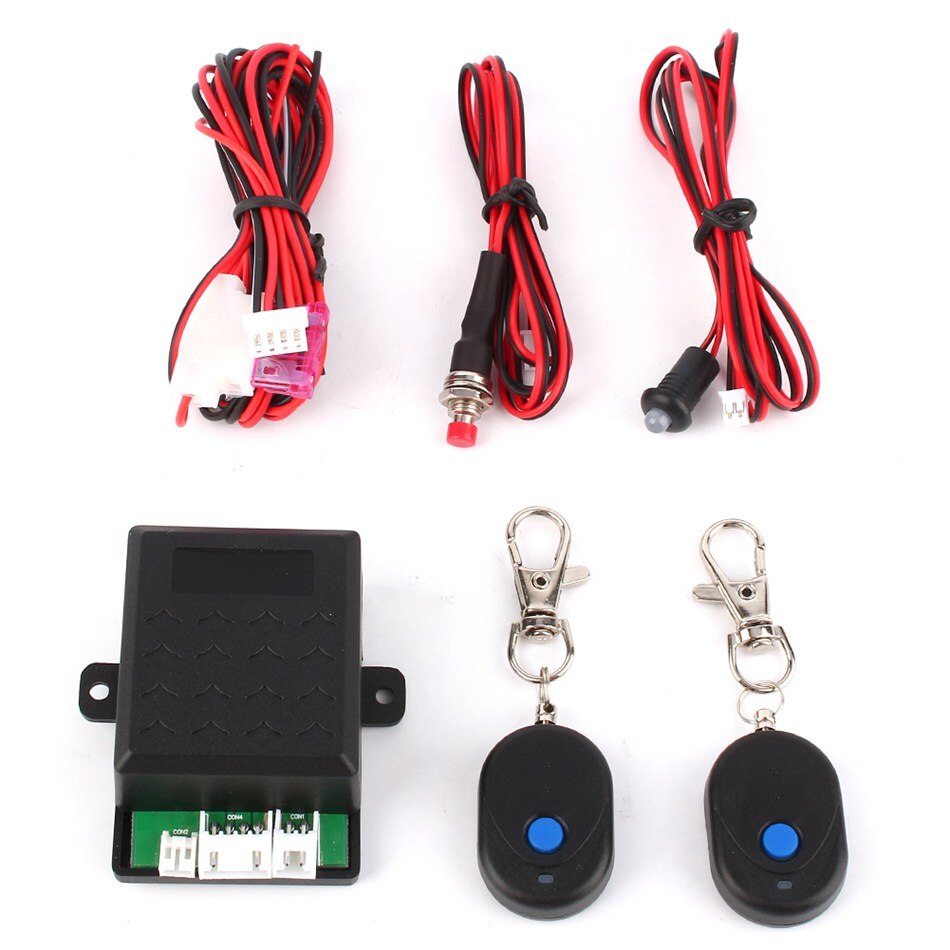

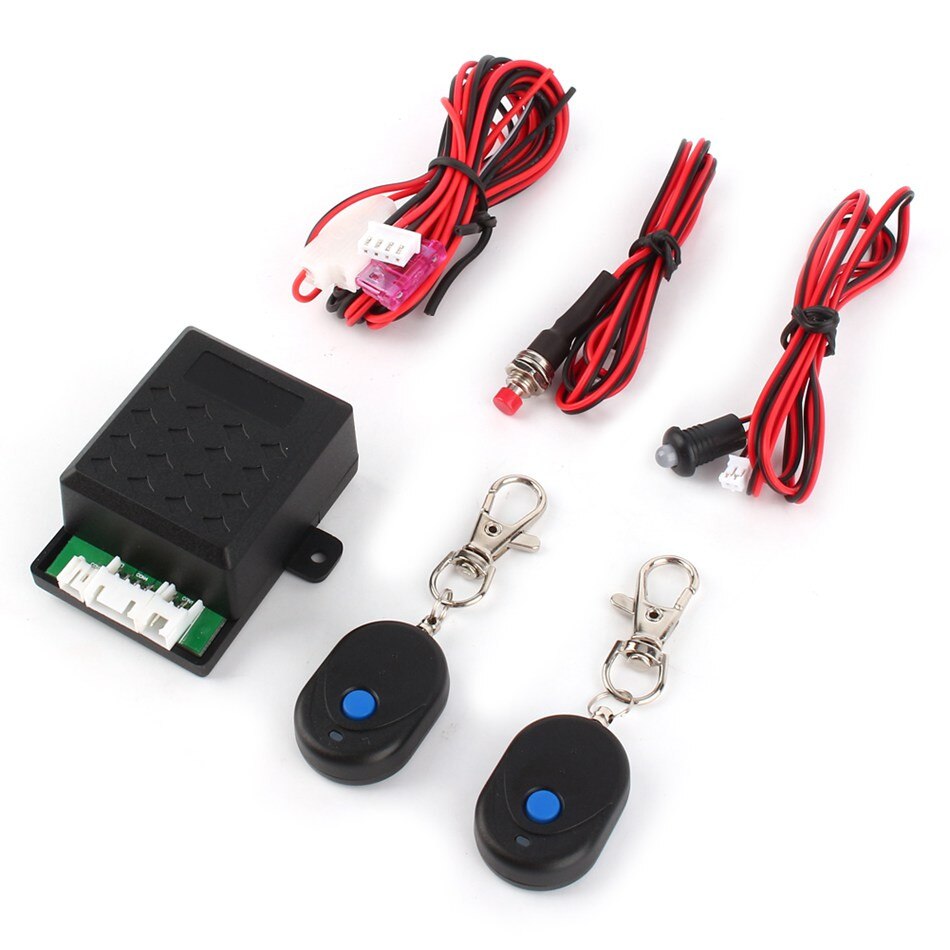

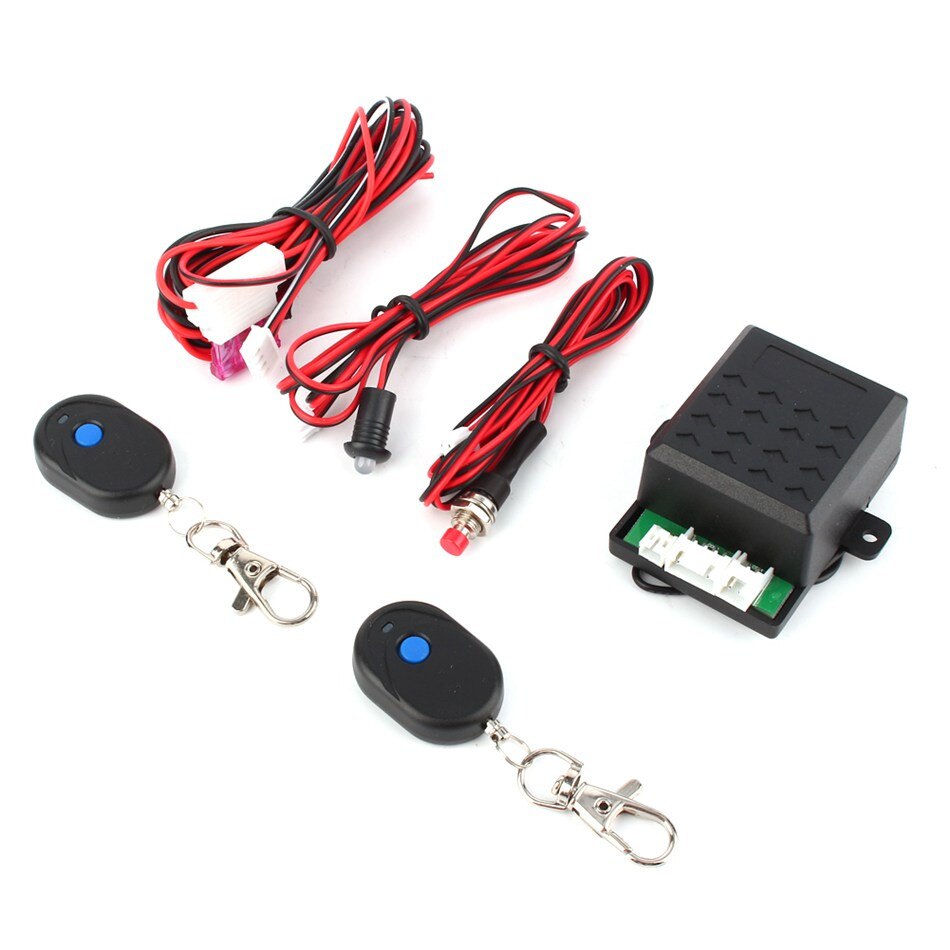

Package included:
1 x Main Control Unit

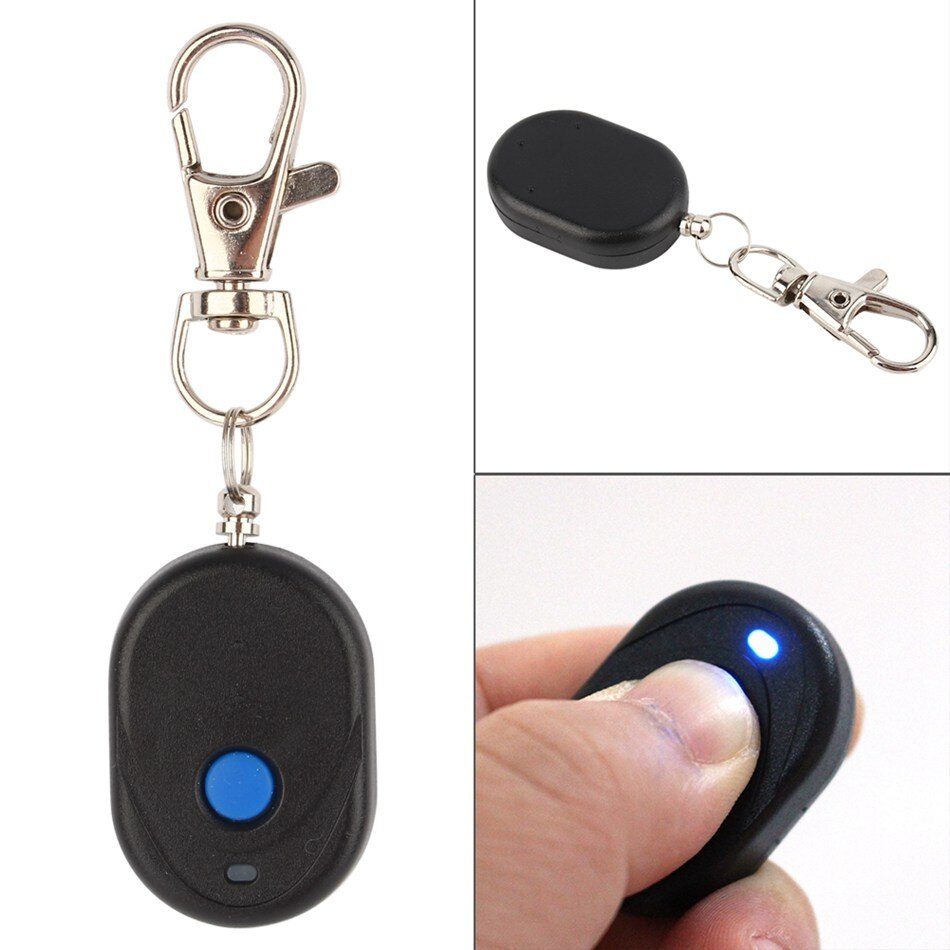

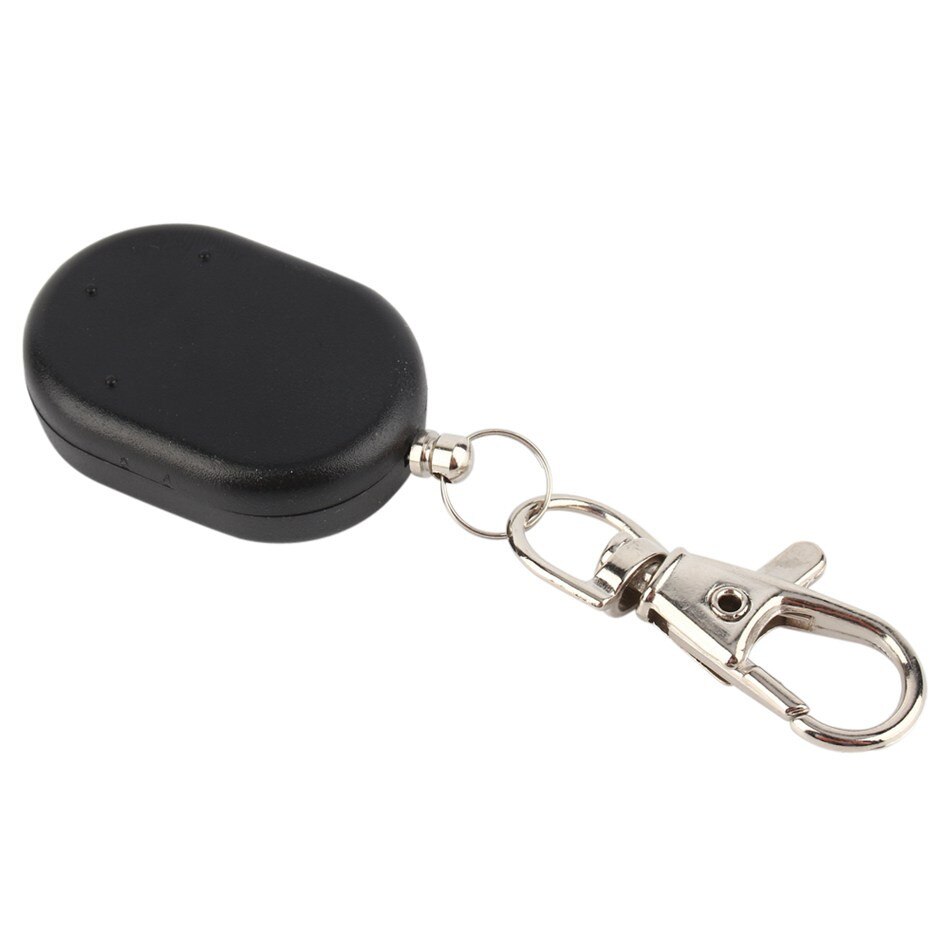

2 x Remote Control
1 x LED connection wire

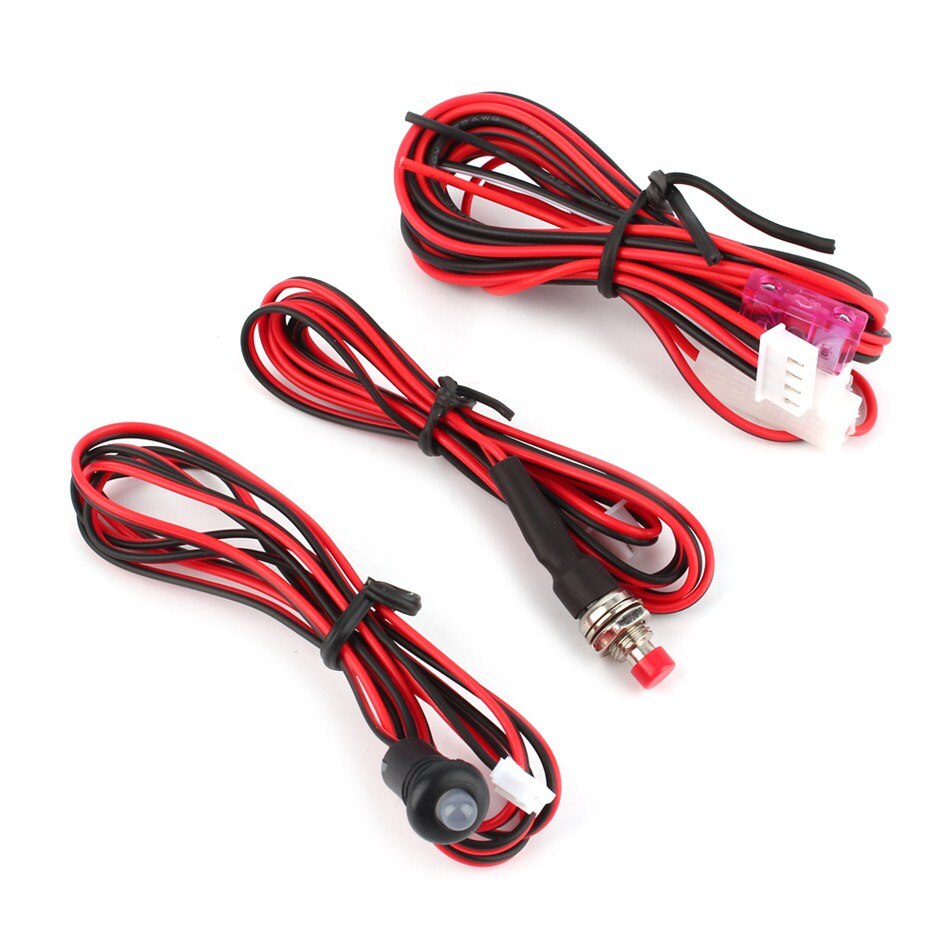

2 x Wiring
1 x Manual
