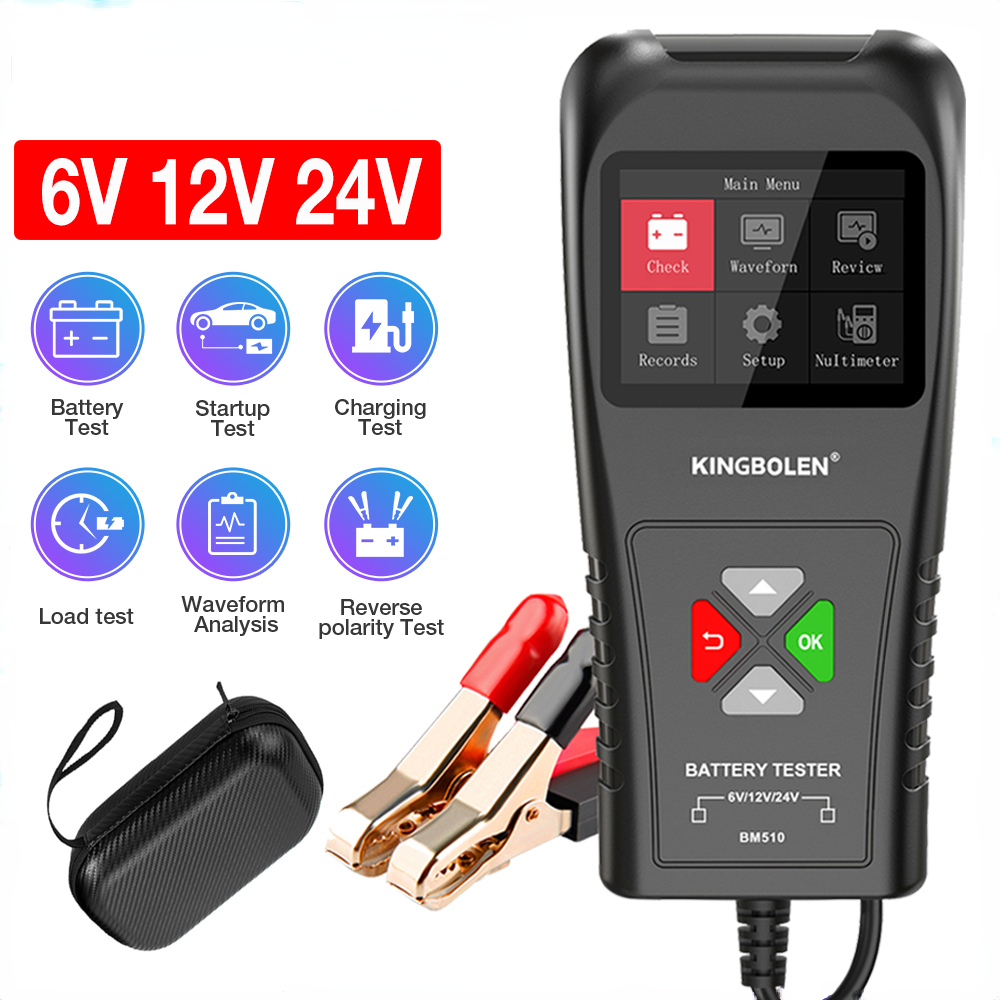

BM510 6V 12V 24V battery tester is a new mid-to-high-end battery test tool launched by KINGBOLEN. BM510 supports battery life test, startup test, charging test, load test, ripple test, waveform monitoring, waveform playback, waveform recording, screenshot, reverse polarity test. Powerful battery detection function to meet the needs of different users.

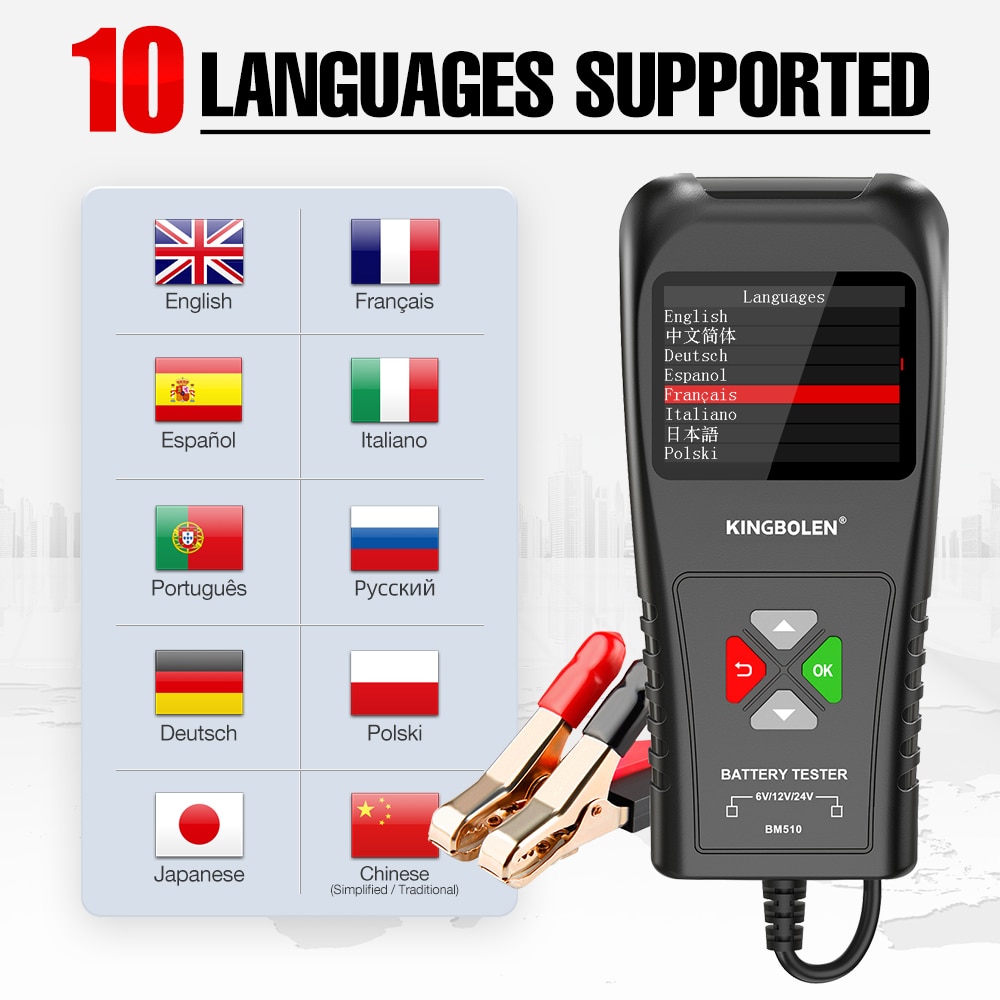

English, French, Spanish, Italian, Portuguese, Russian, German, Polish, Japanese, Simplified Chinese, Traditional Chinese

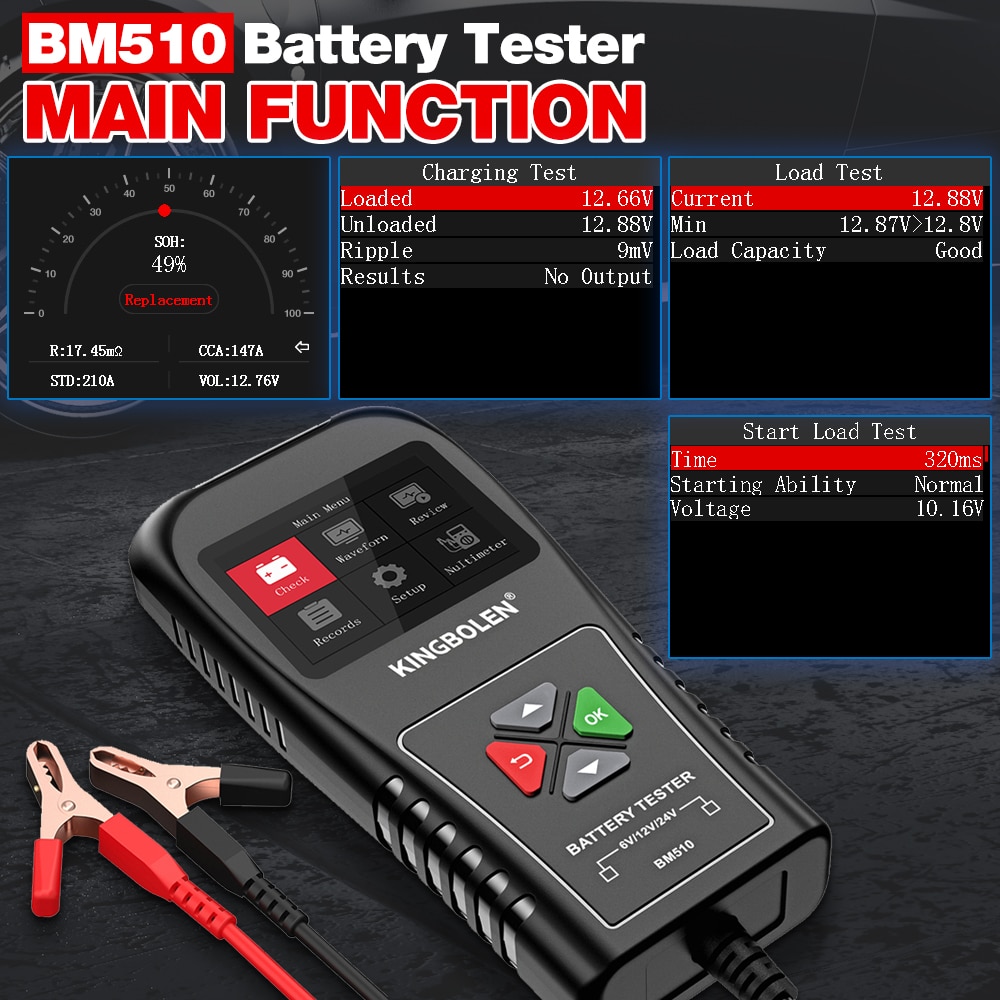

1.【Battery Test】 Life / Voltage / CCA / Internal resistance
2.【Start The Test/Cranking Test】Battery discharge performance
3.【Load Test】 Engine performance

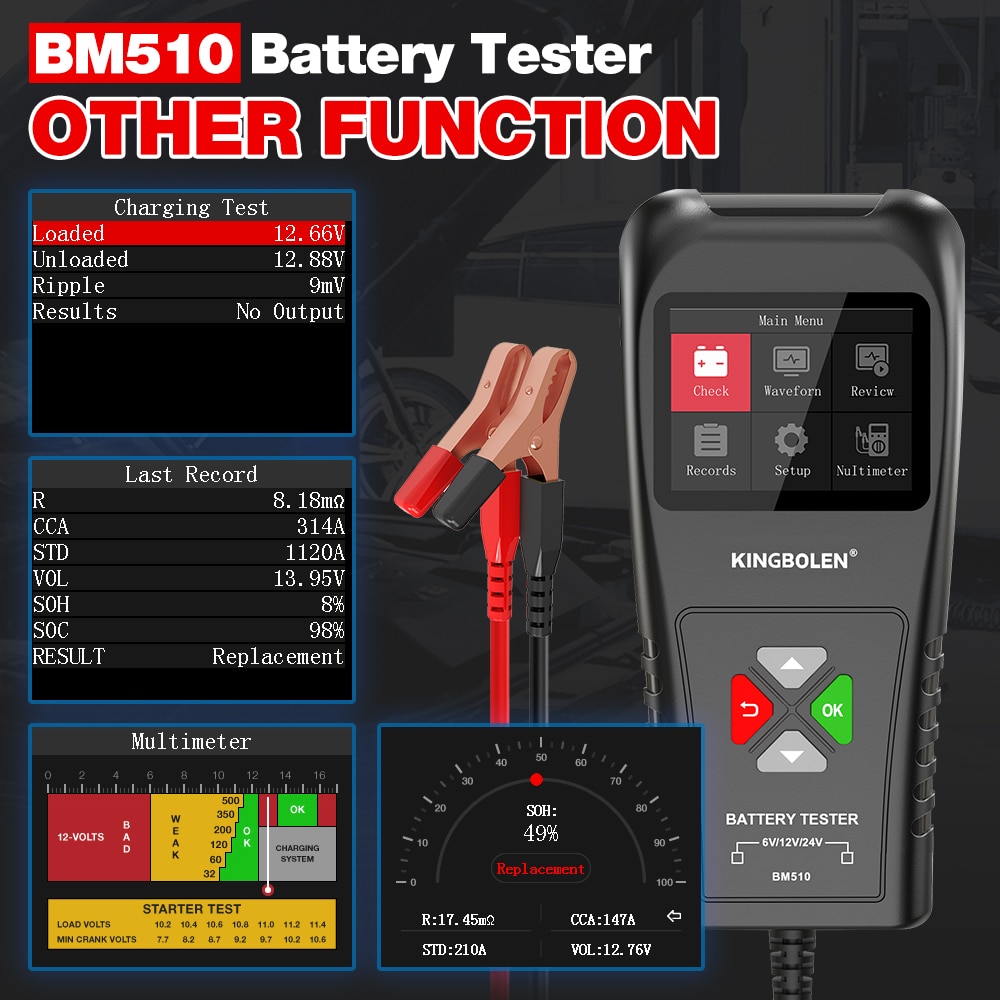

4.【Charging Test】 Engine charging system

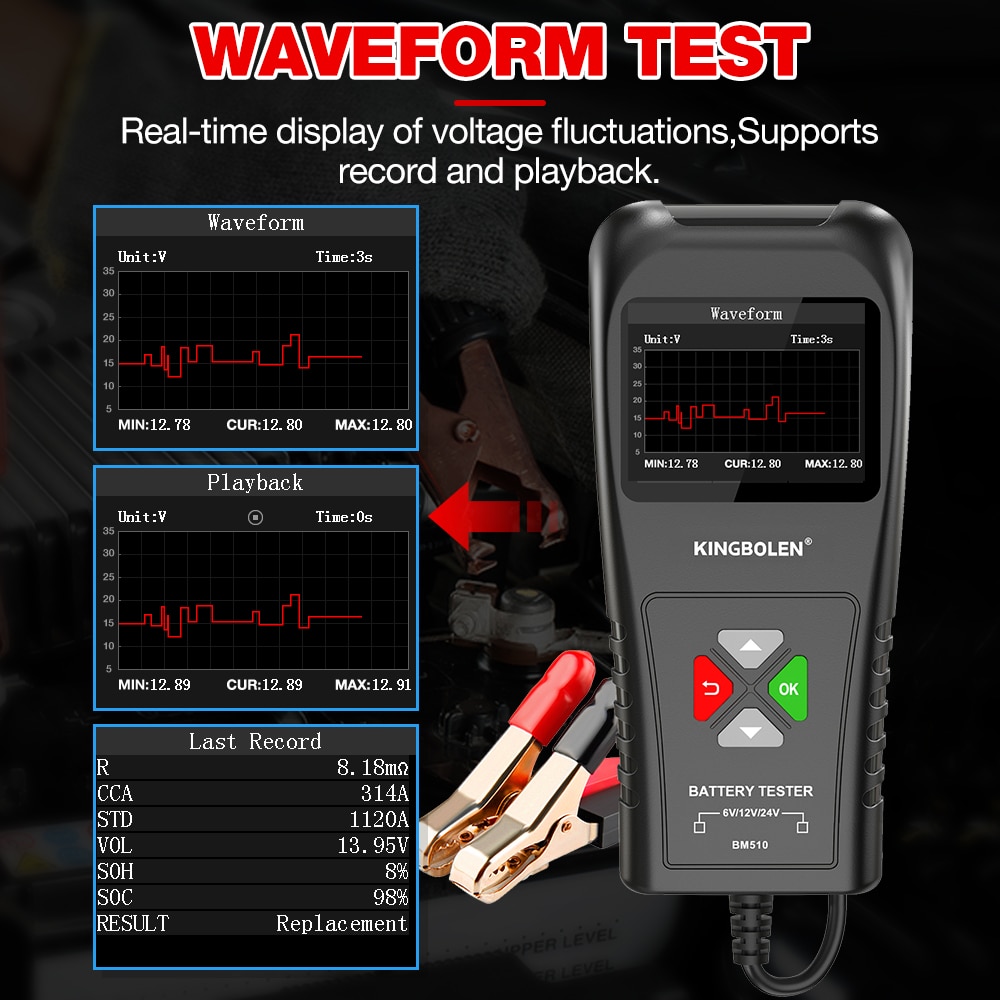

1. Automatic Storage: Can store 10 waveform monitoring records.
2. Waveform Feedback: Can view saved waveform data.
3. One-click clear: Delete all saved waveform data.
Test the charging system of the engine, the smaller the waveform fluctuation, the more stable the voltage, indicating that the battery is in good condition.
Note: If the test result is normal, the battery is charged normally. If the voltage reading is greater than 15.0V (for a 24V system, the reading is greater than 30.00V ), please check the voltage regulator; if the voltage reading is less than 13.3V (for a 24V system, the reading is less than 26.60V ), Please check the connection points, wires and engine.
BM510 does not distinguish between positive and negative poles. Even if the positive and negative poles are connected incorrectly, the diagnosis can be carried out normally, and the battery and equipment will not be damaged.

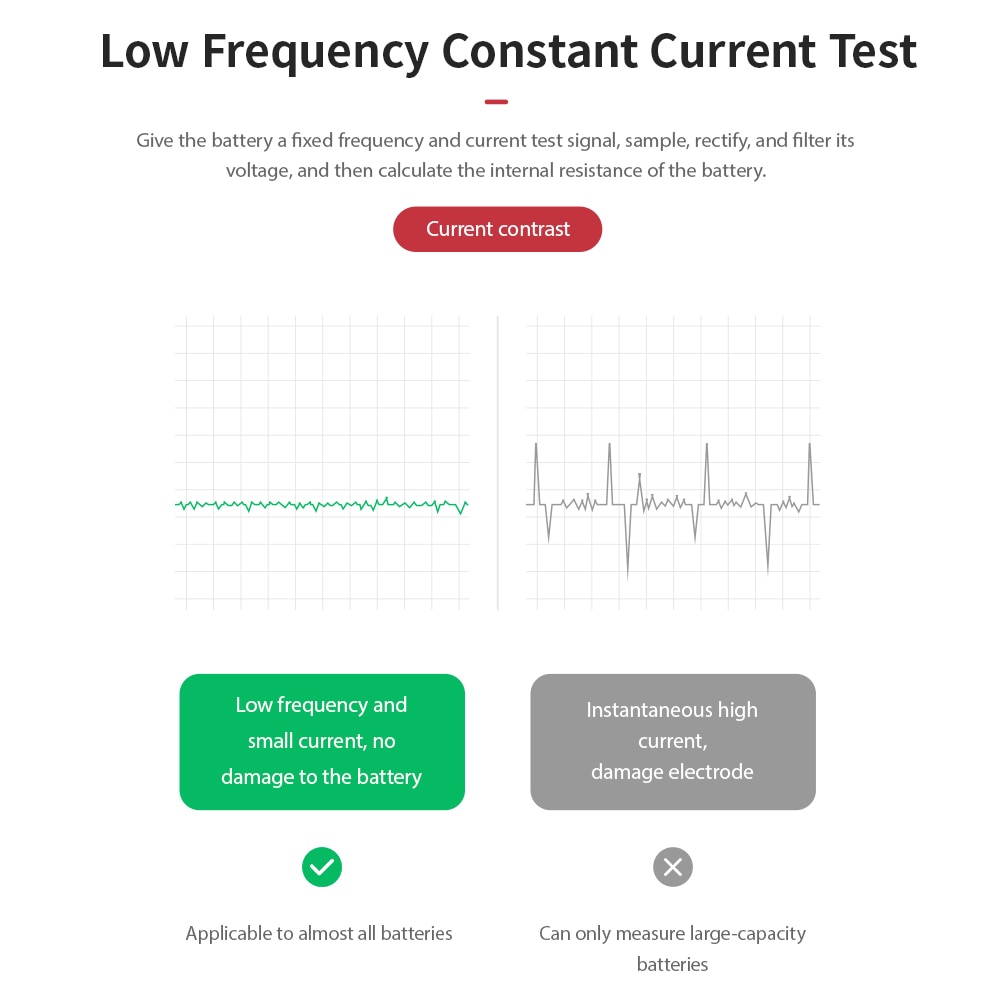

Give the battery a fixed frequency and current test signal, sample, rectify, and filter its voltage, and then calculate the internal resistance of the battery.

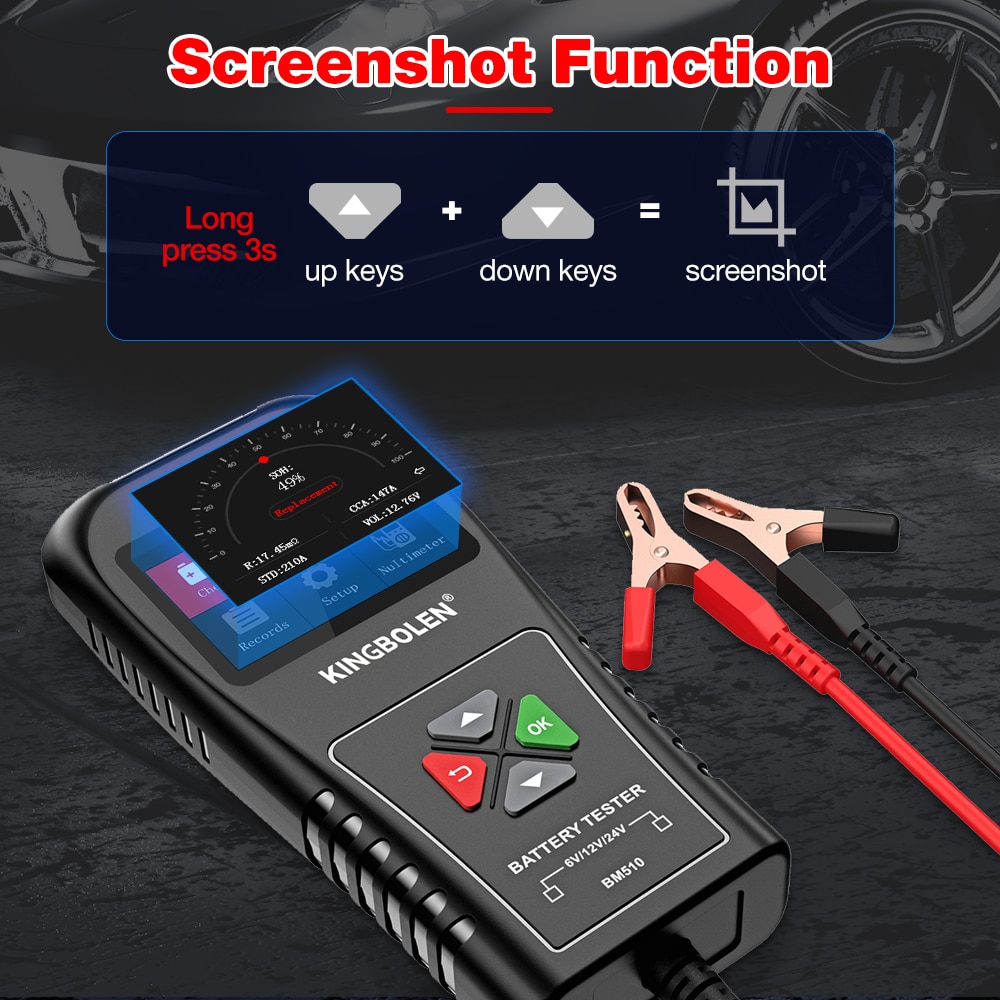

It has a one-click screen capture function with long press "Up" and "Down" button. which is used to capture and save important data, fast and convenient.
( Note: The device can store up to 10 pictures )
It can test 6V/12V/24V three different types of batteries, suitable for a variety of common models and equipment, one machine for multiple purposes.
It supports a variety of battery standards around the world, can test almost all car start-up lead-acid batteries, and has a wide range of applications.
● EPS lead-acid battery;
● Car start battery;
● AGM / EFB start-stop battery ;
● Electric vehicle battery ;
● UPS lead-acid battery ;
● Gel battery
Note: UPS battery/electric vehicle battery/motorcycle battery can only measure internal resistance/power/voltage, not battery life

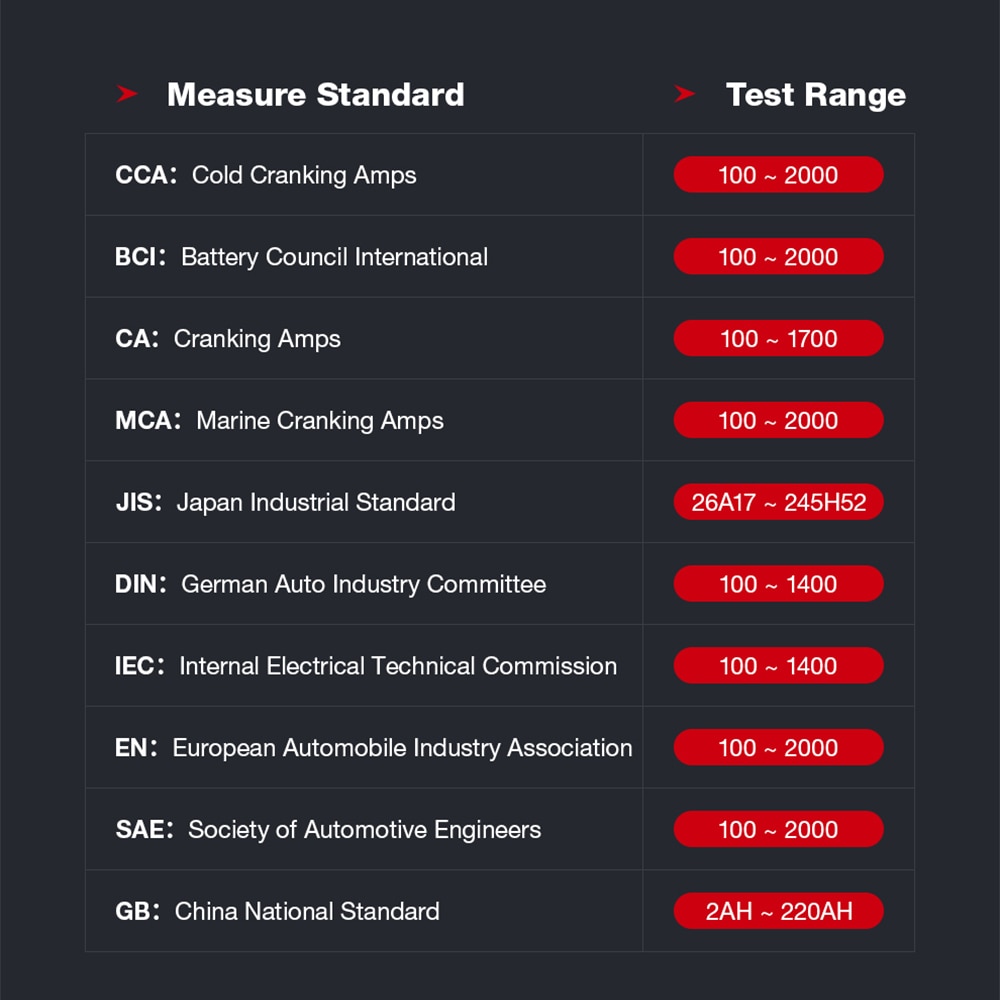

Geometry supports all current common battery standards, and a wide range of tests can meet your various needs.
● CCA (100 - 2000 )
● IEC (100 - 1400 )
● EN (100 - 2000 )
● DIN (100 - 1400 )
● CA (100 - 2000 )
● BCI (100 - 2000 )
● MCA (100 - 2000 )
● SAE (100 - 2000 )
● GB (2AH - 220AH )
● JIS (26A17 - 245H52 )
No need to install driver, the process of update is simple and easy to operate.
High-definition TFT LCD screen display, will not appear ordinary LCD lack of characters and broken strokes, etc., with backlight function.
Selected high-quality environmentally friendly materials, good elasticity, not easy to break, tough and durable.
Screen Size: 2.8inch TFT color Screen
Connection Method: Alligator clips regardless of polarity
Test Range: 6V 12V 24V
Operating Voltage：4.9-32V
Operating Temperature : -20℃-50℃
Product Material: PVC Industrial Material
● 【Non-slip Design】Conducive to one-handed operation.
● 【Integrated Line Machine Design】The interface is stable to prevent falling off and loss, and the wire is strong and not easy to break.

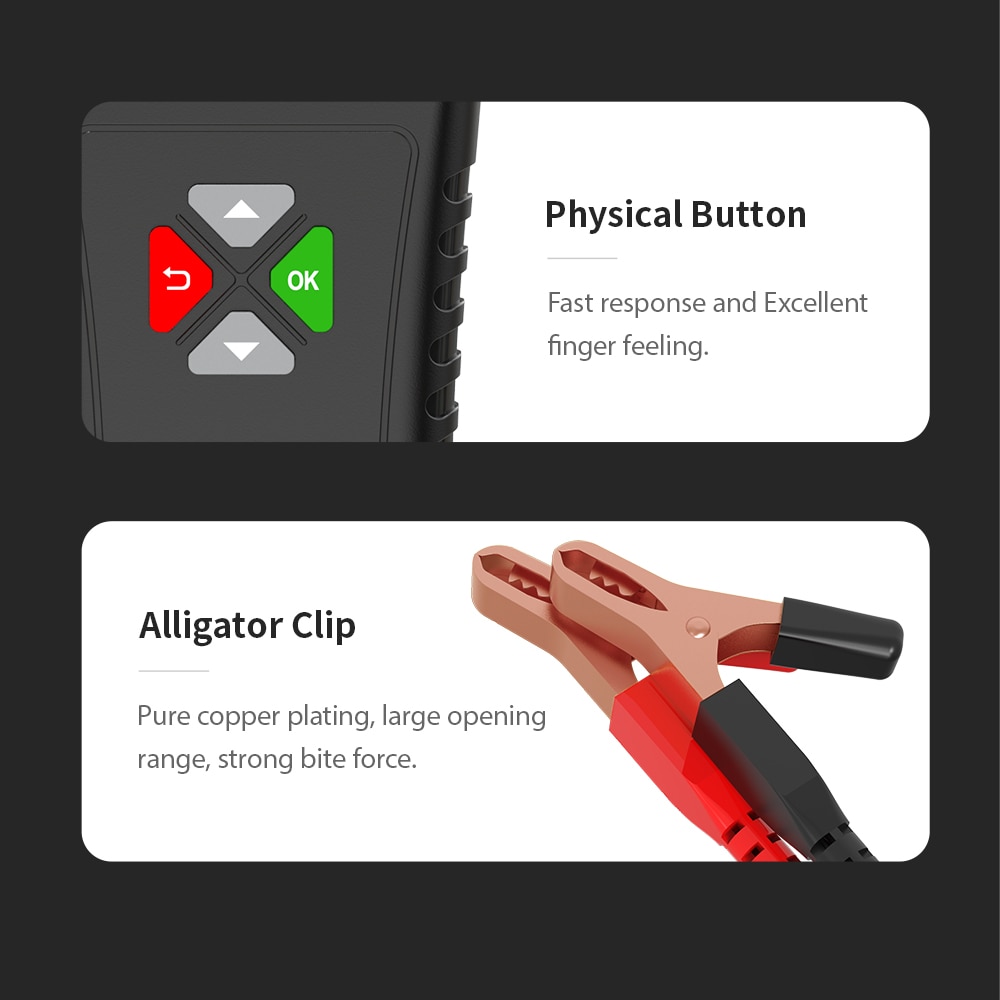

● 【Physical Button】Fast response and Excellent finger feeling.
● 【Alligator Clip】 Pure copper plating, large opening range, strong bite force.

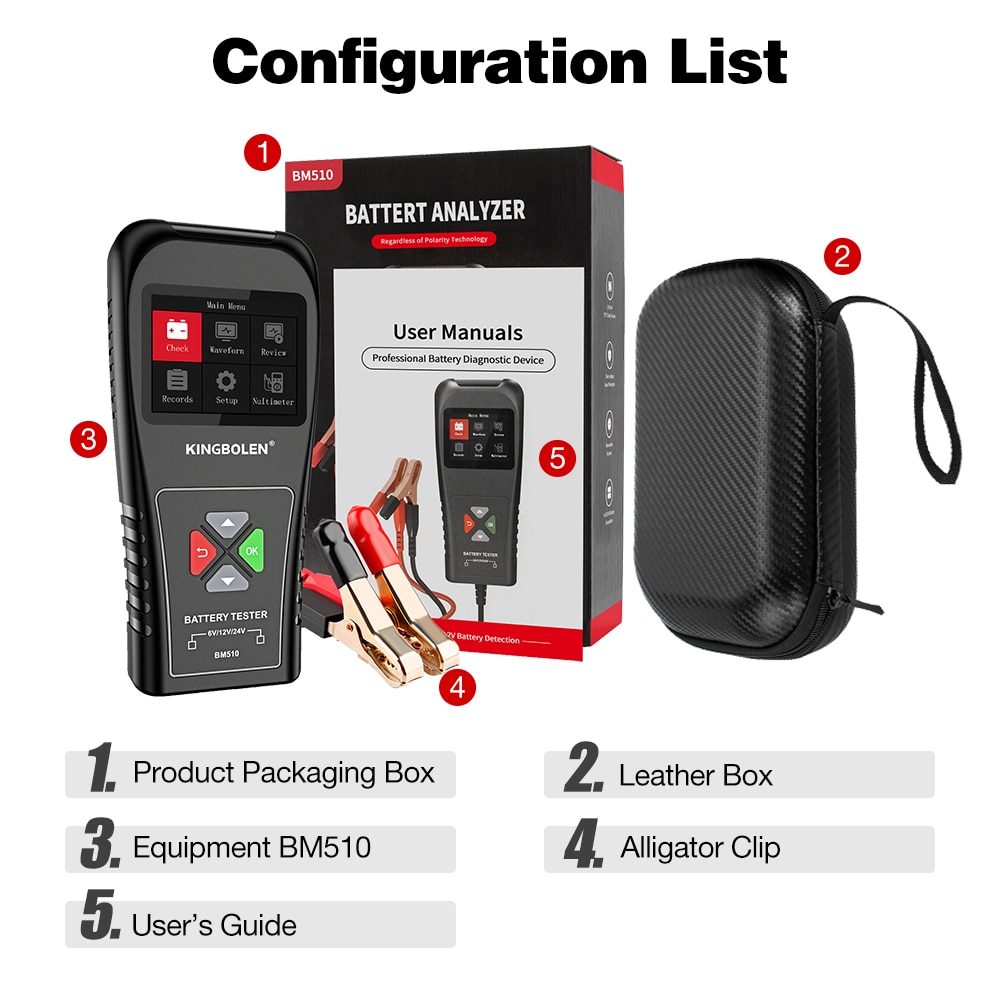

1 x Battery Analyzer BM510 Main Unit
1 x User's Manual
1 x Cartoon Box
1 x Plastic Box
1 x USB Cable
