The cleaning fluid is a cleaning fluid for engine carbon deposits. The test fluid in the glass tube can only be added with industrial alcohol. Please do not add other turbid liquids to avoid impurities in the added liquid, which will prevent the test fluid from being discharged from the glass tube. The equipment is damaged due to human factors, and the buyer cannot enjoy 3 years of free maintenance service, thank you.

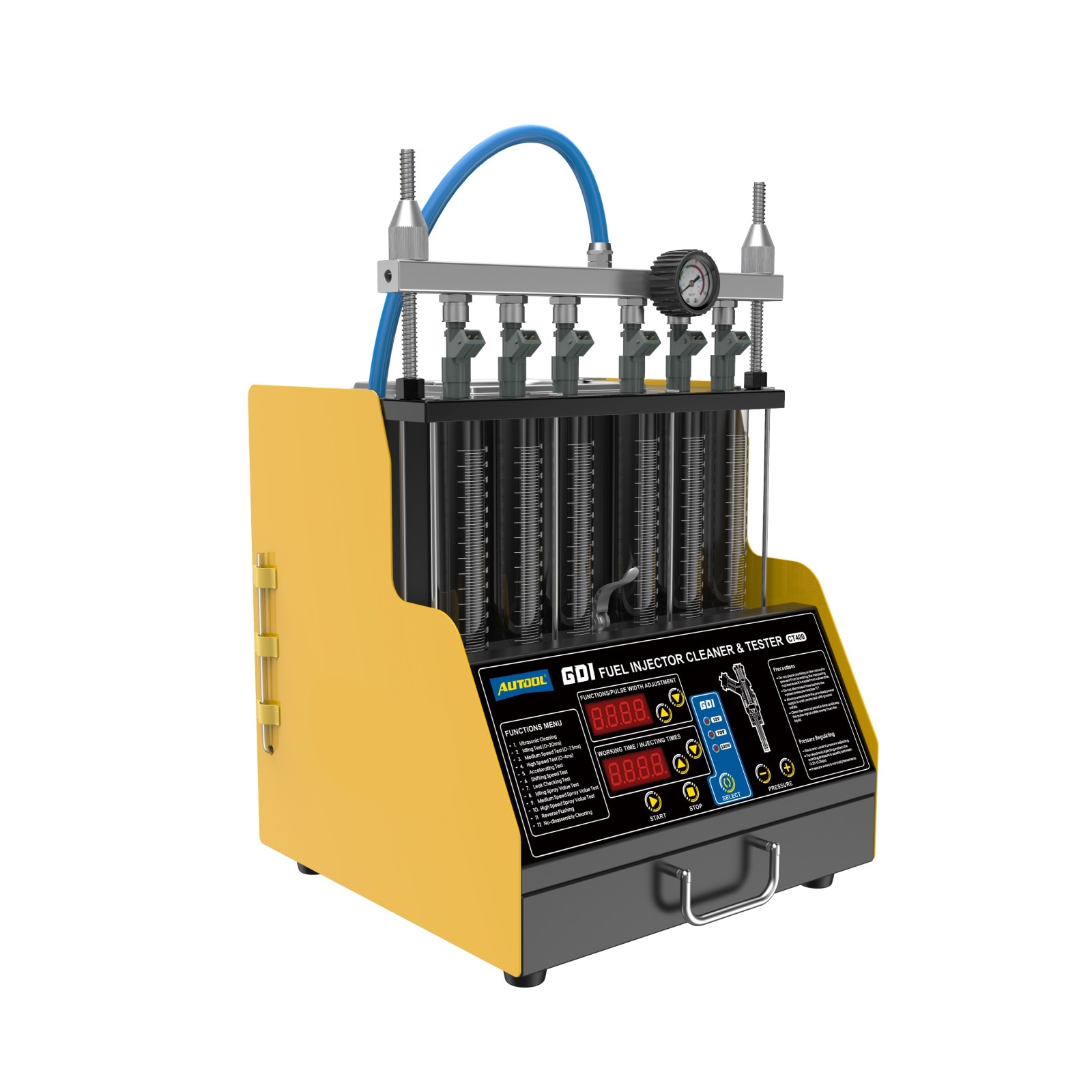

AUTOOL CT400 GDI Fuel Injector 6-cylinder Cleaner and Tester is a great upgrade, which adapts the latest GDI design. It can clean and test standard injectors, EFI, FEI injectors, as well as GDI injectors such as for Mercedes Benz, BMW, Audi, Porsche, Ford, and other direct injection engines. It comes with multi voltages available for GDI injectors, which enables to adapt for different types of injector testing. The machine is the necessary and preferred equipment for the automotive serving and maintenance, research, and teaching training departments.Support for more cars and motorcycles.Can only be used to clean diesel fuel injectors.The cleaning fluid is 3M car injector cleaning fluid, and the test fluid is industrial alcohol.Its working voltage range is 110-230V.

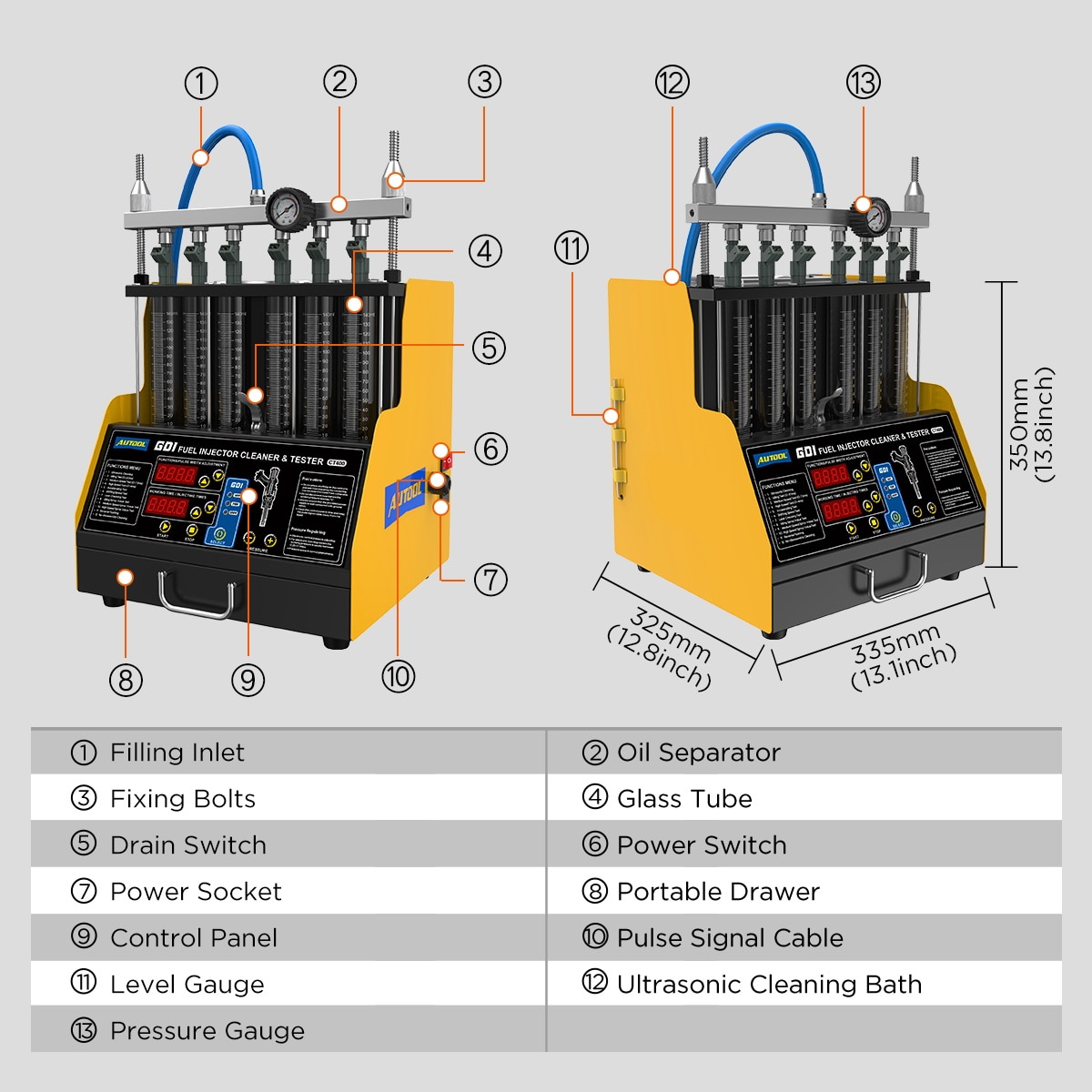

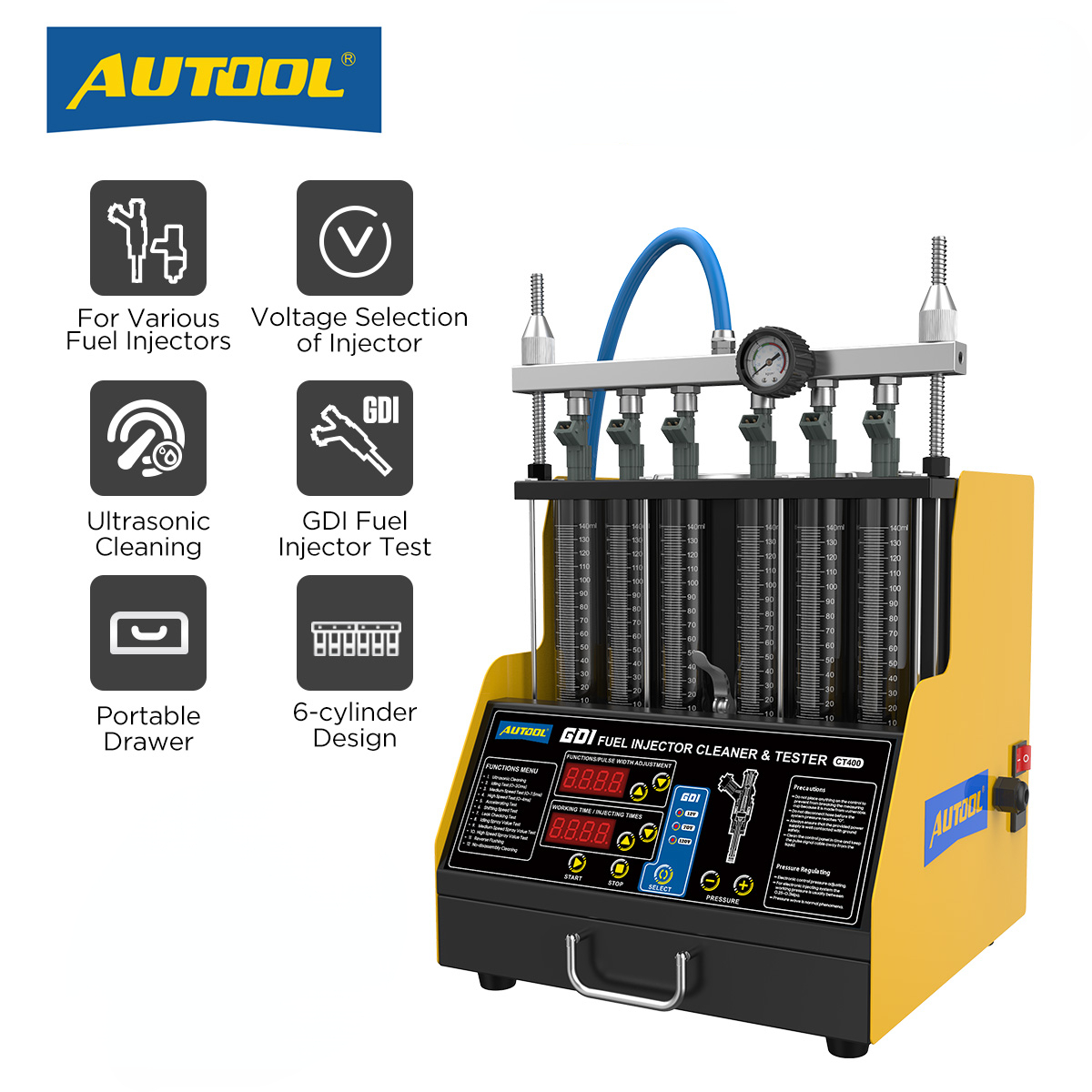

AUTOOL CT400 GDI Fuel Injector Cleaner & Tester Machine Feature

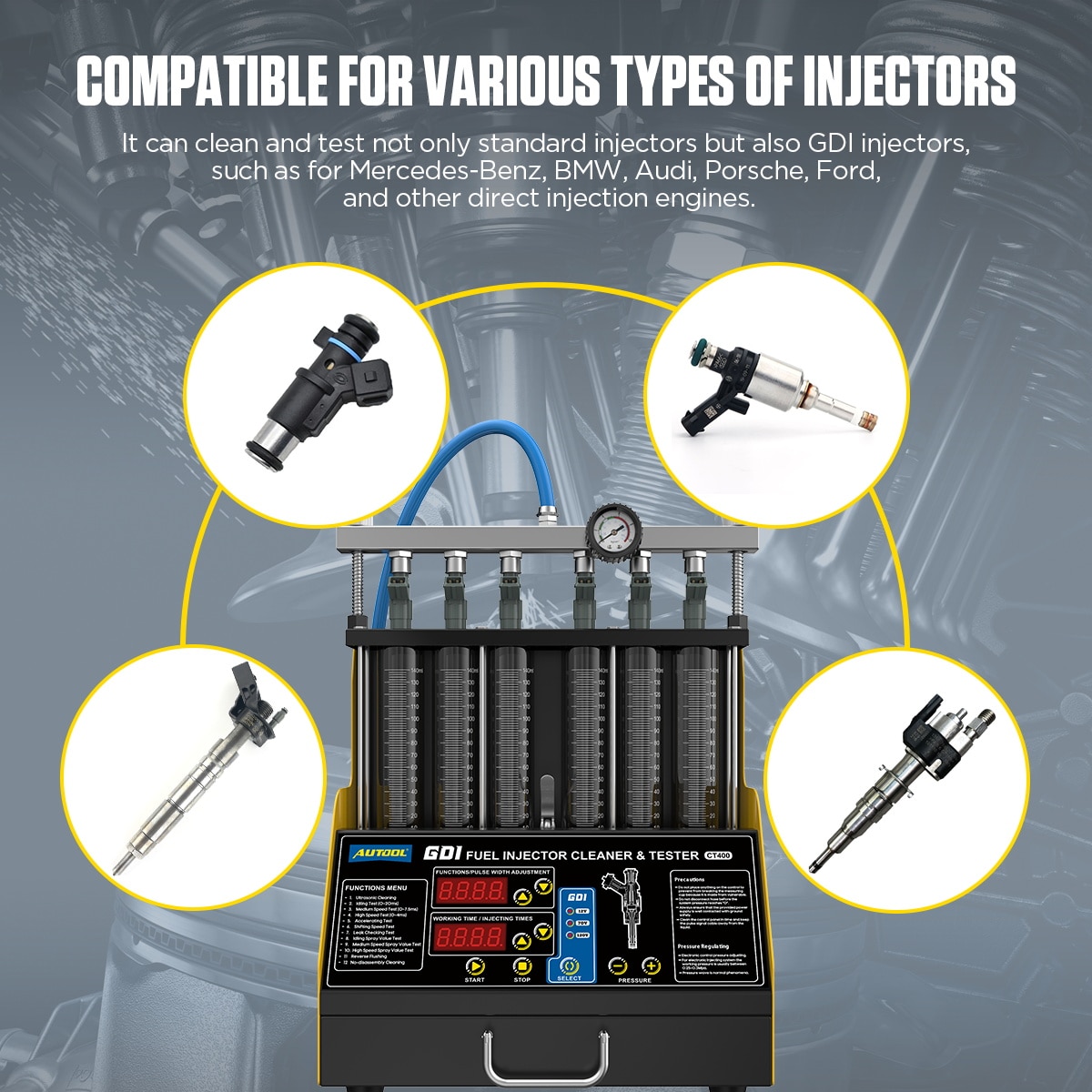

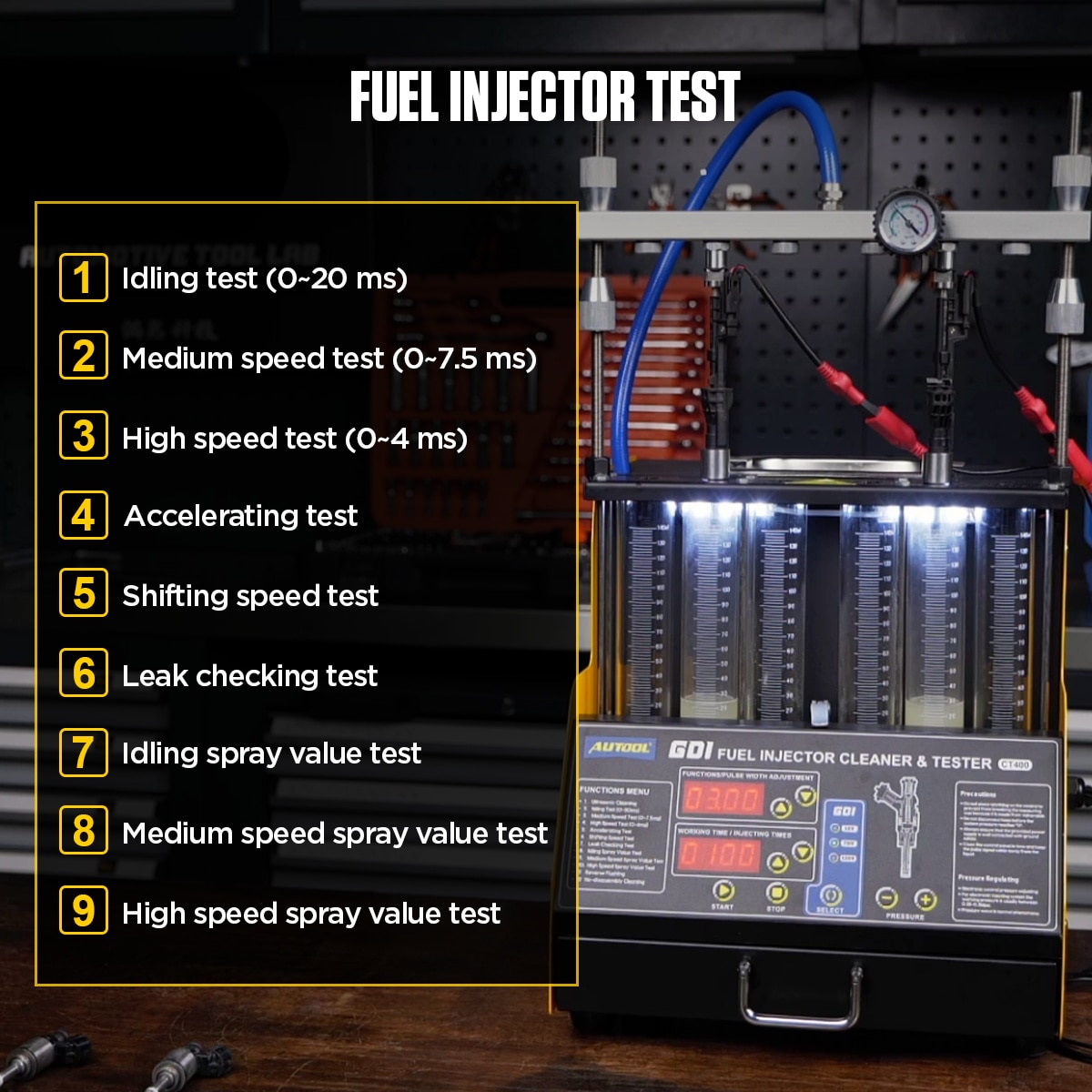

[For GDI, EFI, FEI Injector Cleaning&Test]: AUTOOL CT400 can clean and test not only standard injectors but also GDI injectors, such as for Mercedes-Benz, BMW, Audi, Porsche, Ford, and other direct injection engines.

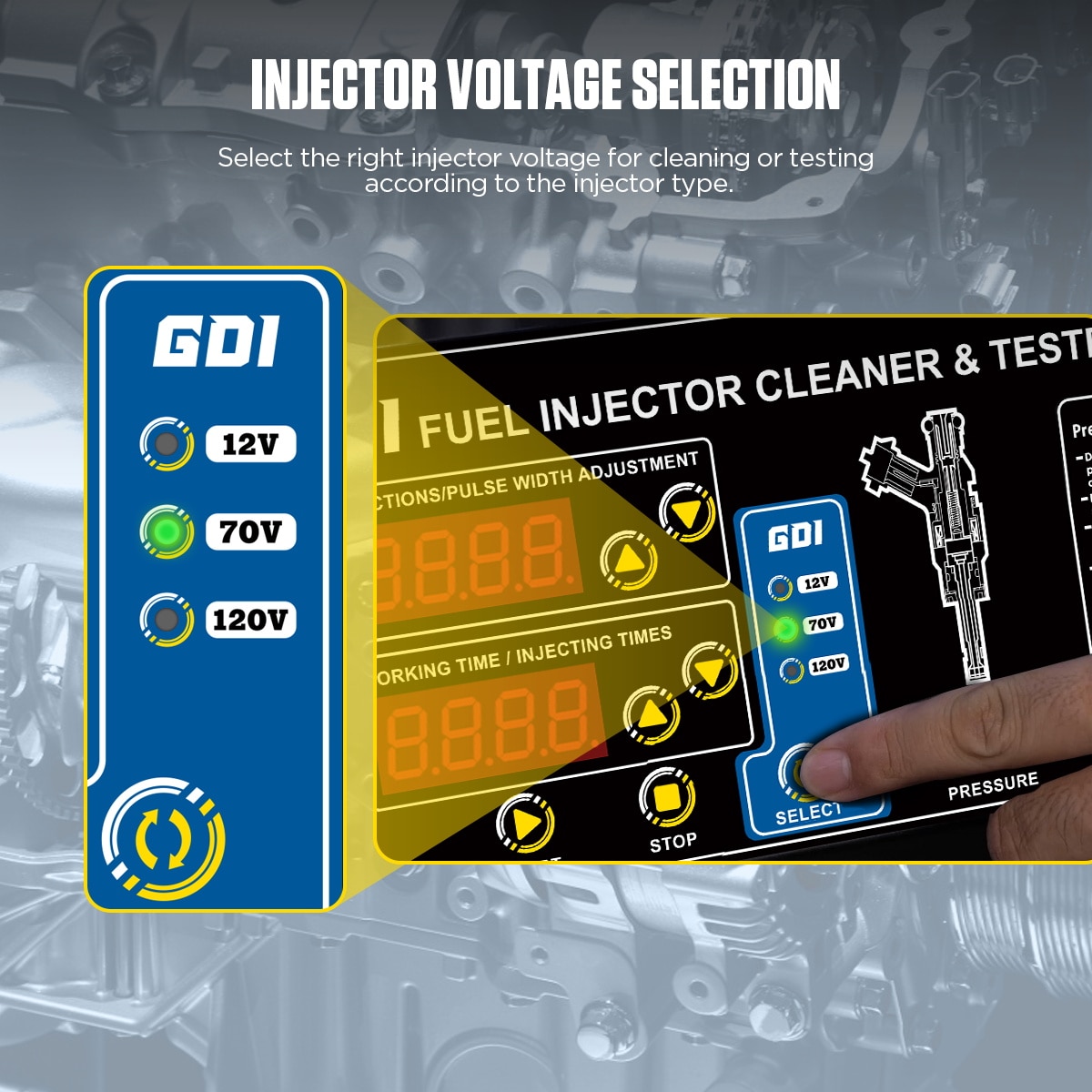

[Multi Voltage Selection]: AUTOOL CT400 GDI Fuel Injector 6-cylinder Cleaner and Tester designs with various types of voltage output (12V, 70V & 120V) to be selected to adapt for different types of injector testing.

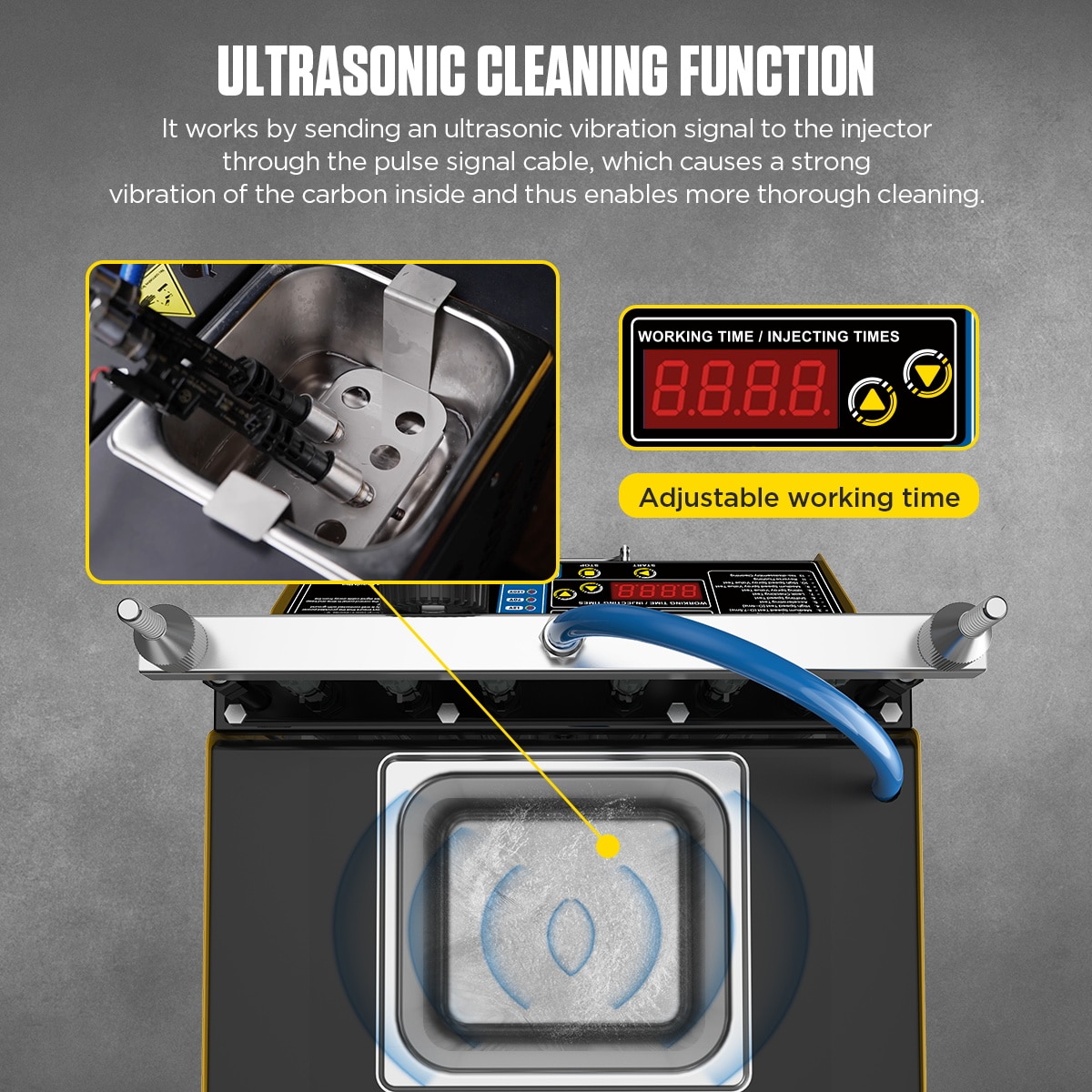

[Upgrade Ultrasonic Cleaning]: Different from other cleaner& tester machines, AUTOO CT400 comes with a cooling fan and thermal protection, and with a power of 60w, its ultrasonic cleaning capacity is significantly enhanced.

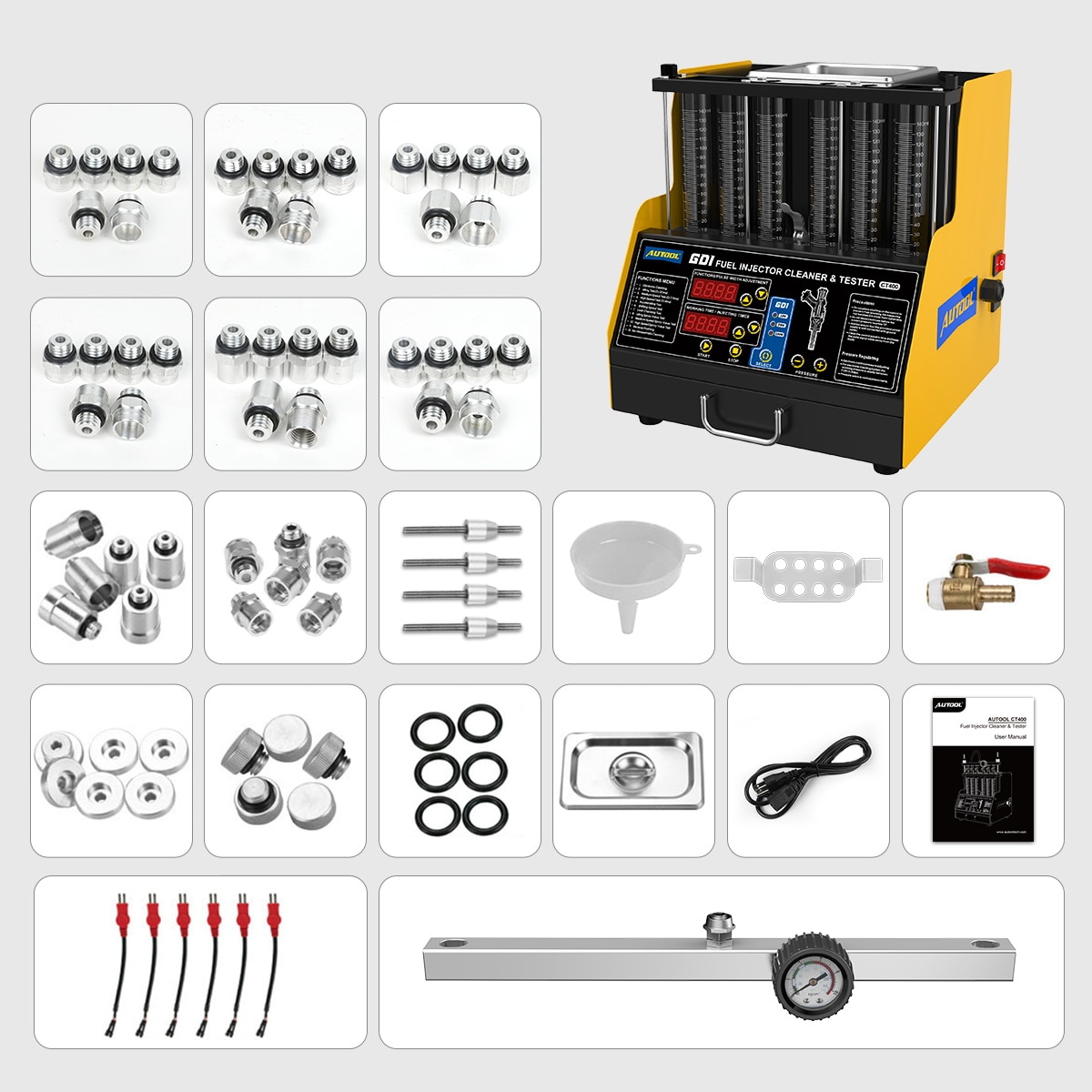

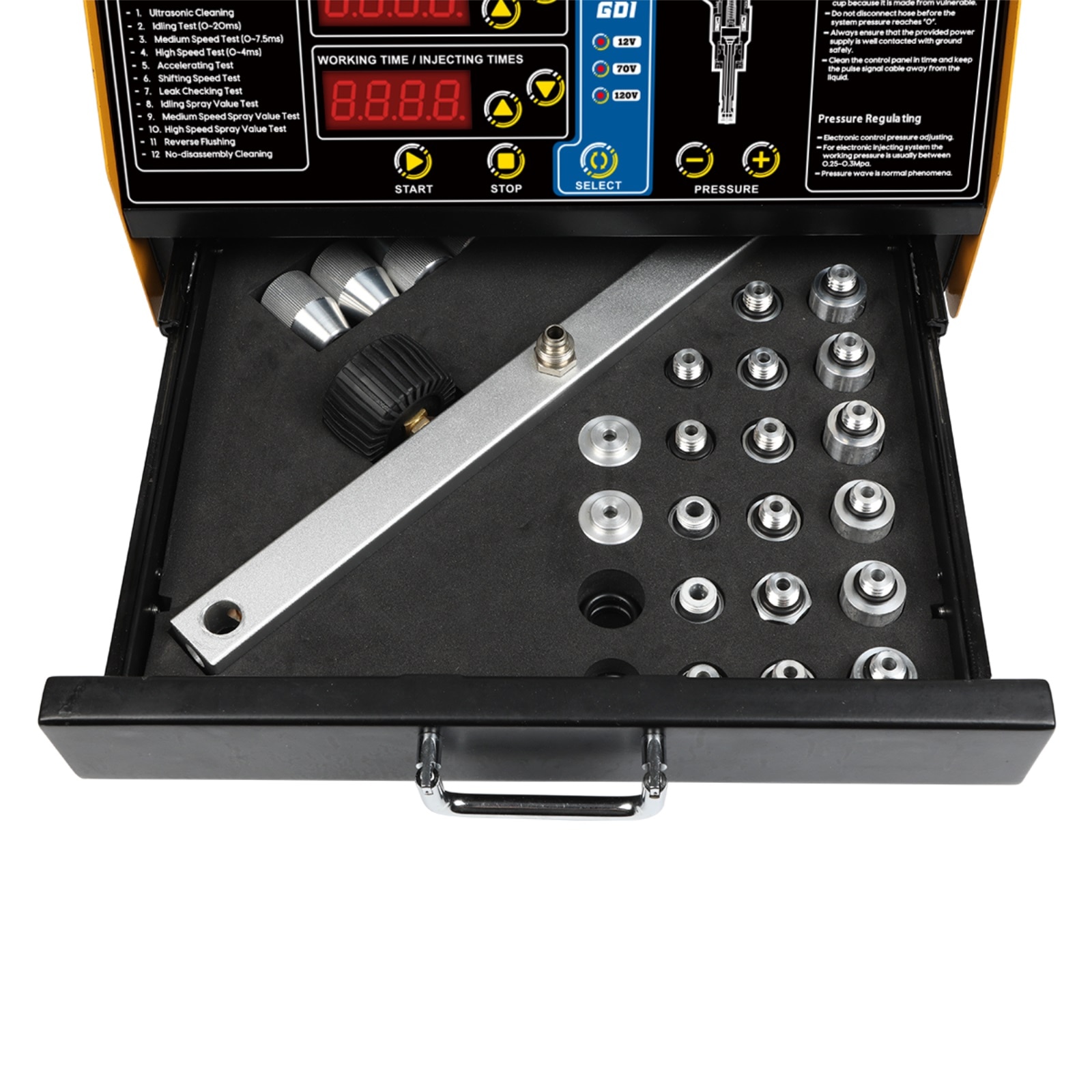

[Various Parts equipped&Portable Drawer ]: It is equipped with a variety of injector accessories for different needs. A portable drawer at the bottom is designed to store a variety of parts and for easy access.

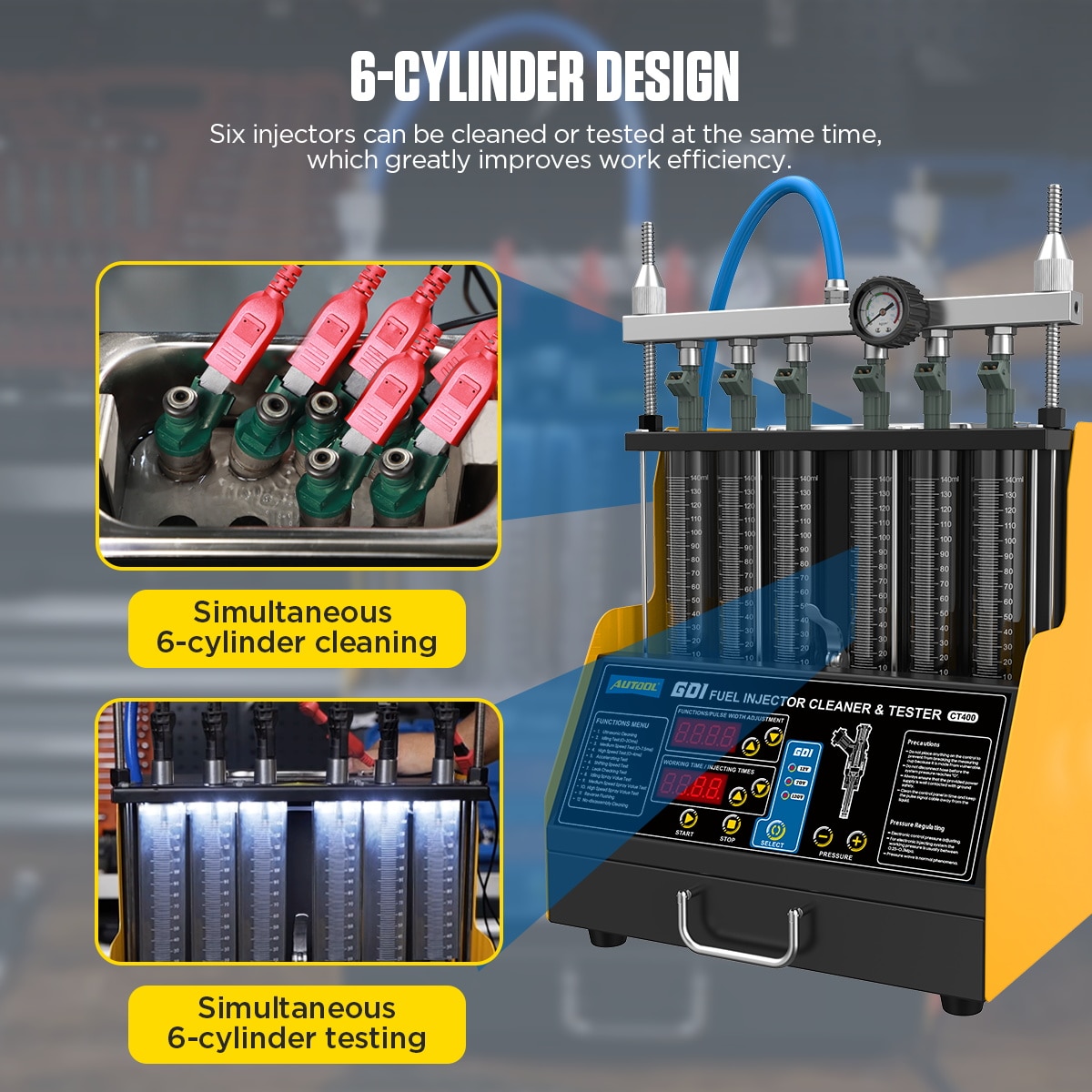

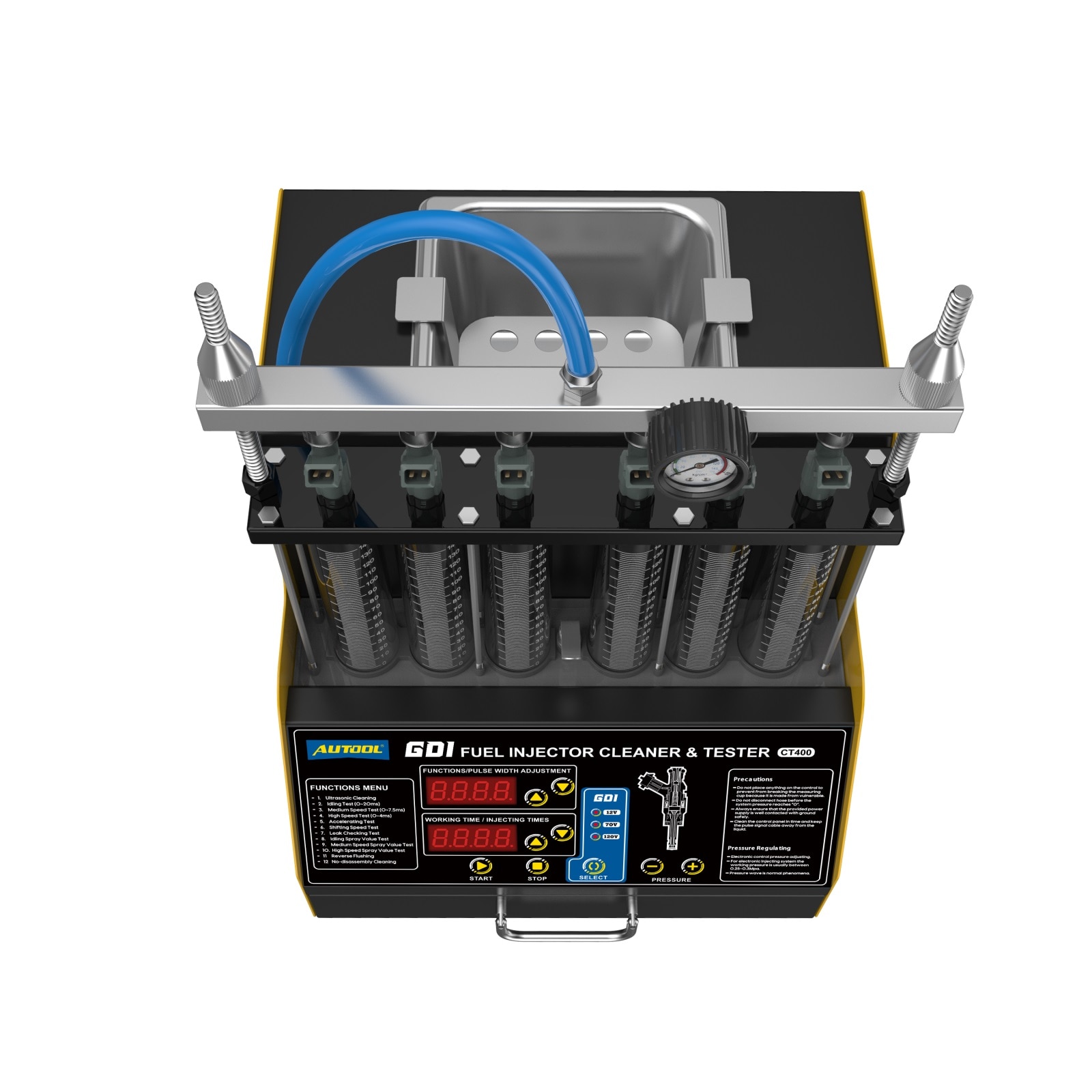

[6-Cylinder & 2 Draining Ports Design]: AUTOOL CT400 can test and clean 6 injectors at the same time for better efficiency; it also has both control valves for cleaning solution draining and test liquid recovery. Very easy and convenient to deal with and no worries about leaving a mess.

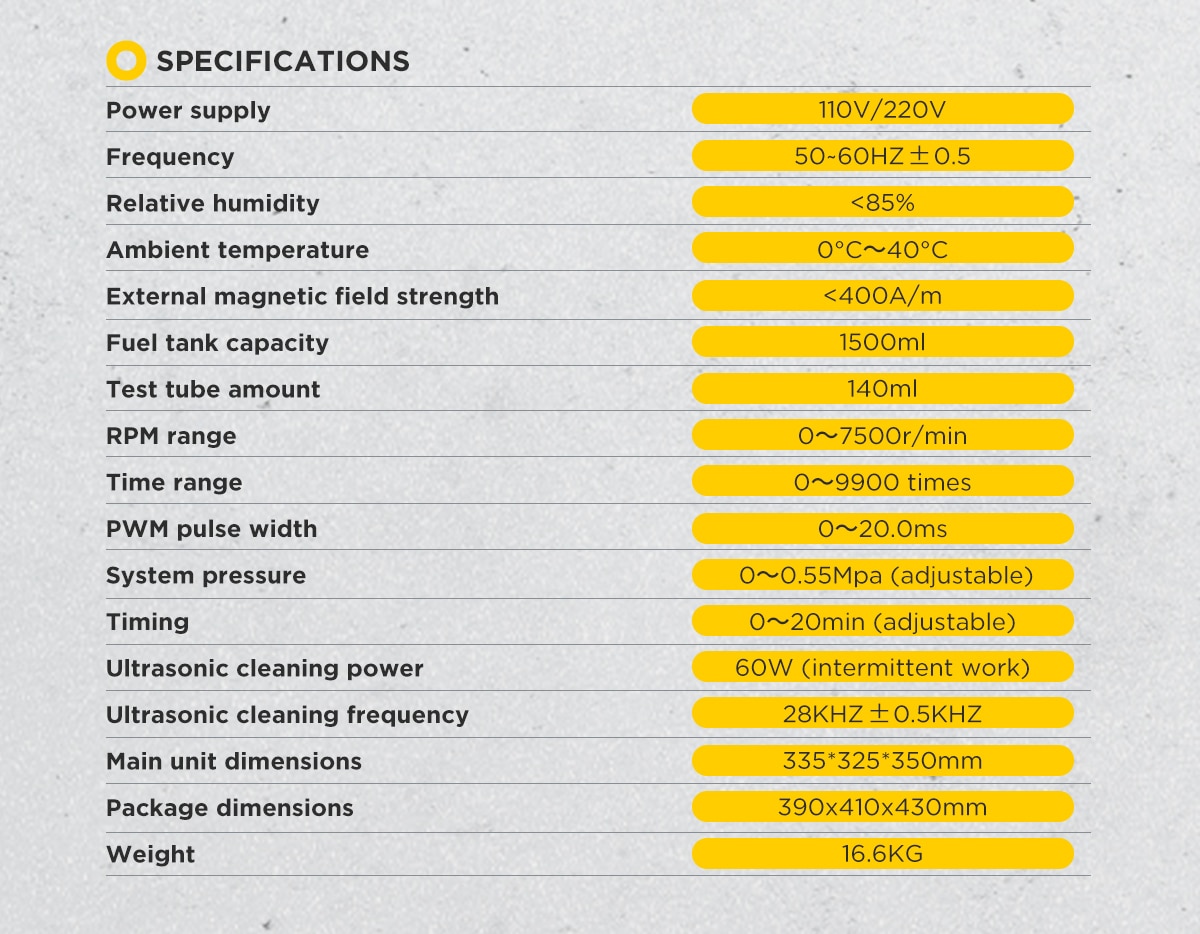

AUTOOL CT400 GDI Fuel Injector Cleaner & Tester Machine Parameter
● Power supply: AC220V±10%
● Frequency: 50-60HZ±0.5
● Relative humidity: <85%
● Ambient temperature: 0℃～＋40℃
● External magnetic field strength: <400A/m
● No open flames are allowed around
Technical parameter
● Fuel tank capacity: 1500 ml
● Test tube amount: 140 ml
● RPM range: 0～7500 r/min
● Time range: 0～9900 times
● PWM pulse width: 0～20.0 ms
● System pressure: 0～0.55Mpa (adjustable)
● Timing: 0～20 minutes adjustable
● Ultrasonic cleaning power: 60W (intermittent work)
● Ultrasonic cleaning frequency: 28 KHZ±0.5 KHZ
● Dimensions: 390mm (length) × 410mm (width) × 430 mm (height)
● Weight: 16.6KG
