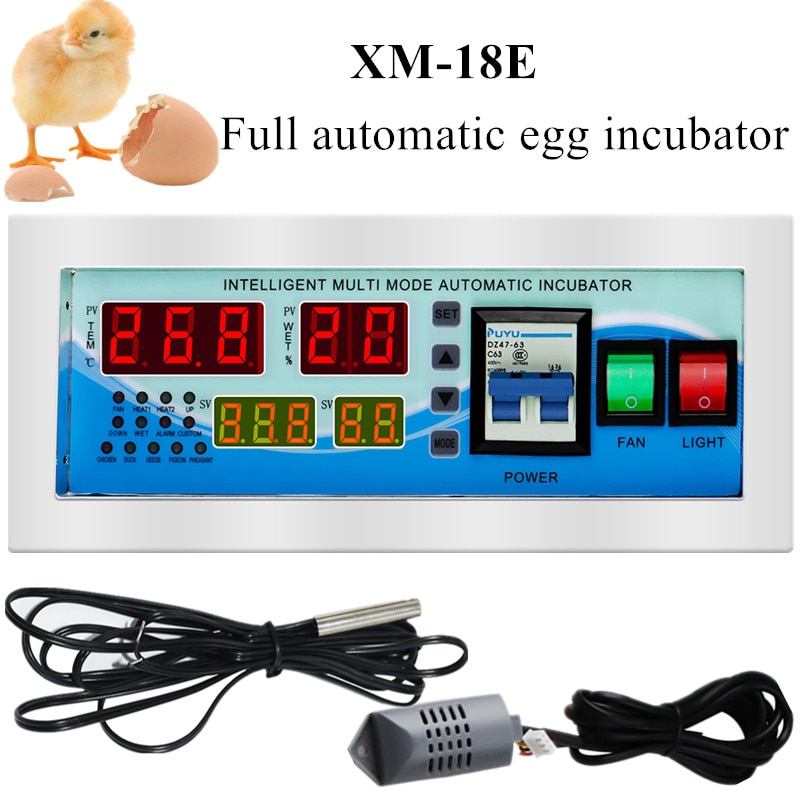

XM-18E Full automatic egg incubator Controller Egg Hatcher Controller Multifunction Controller Temperature Humidity controller

Overview ：

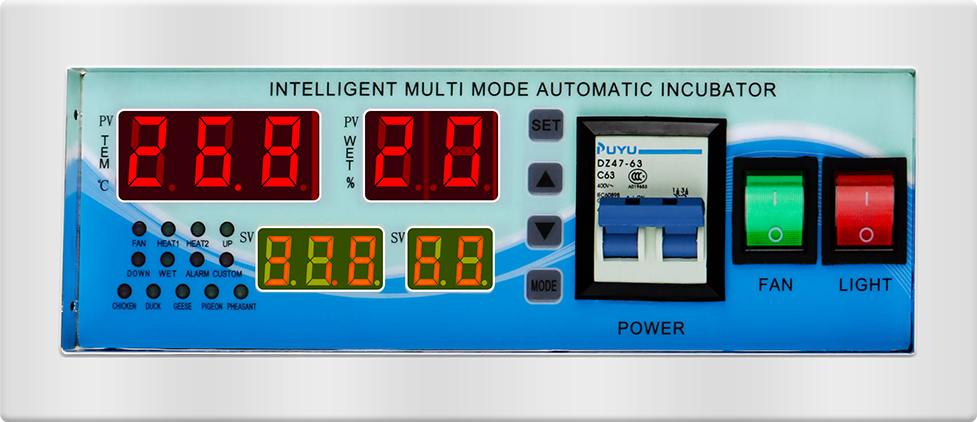

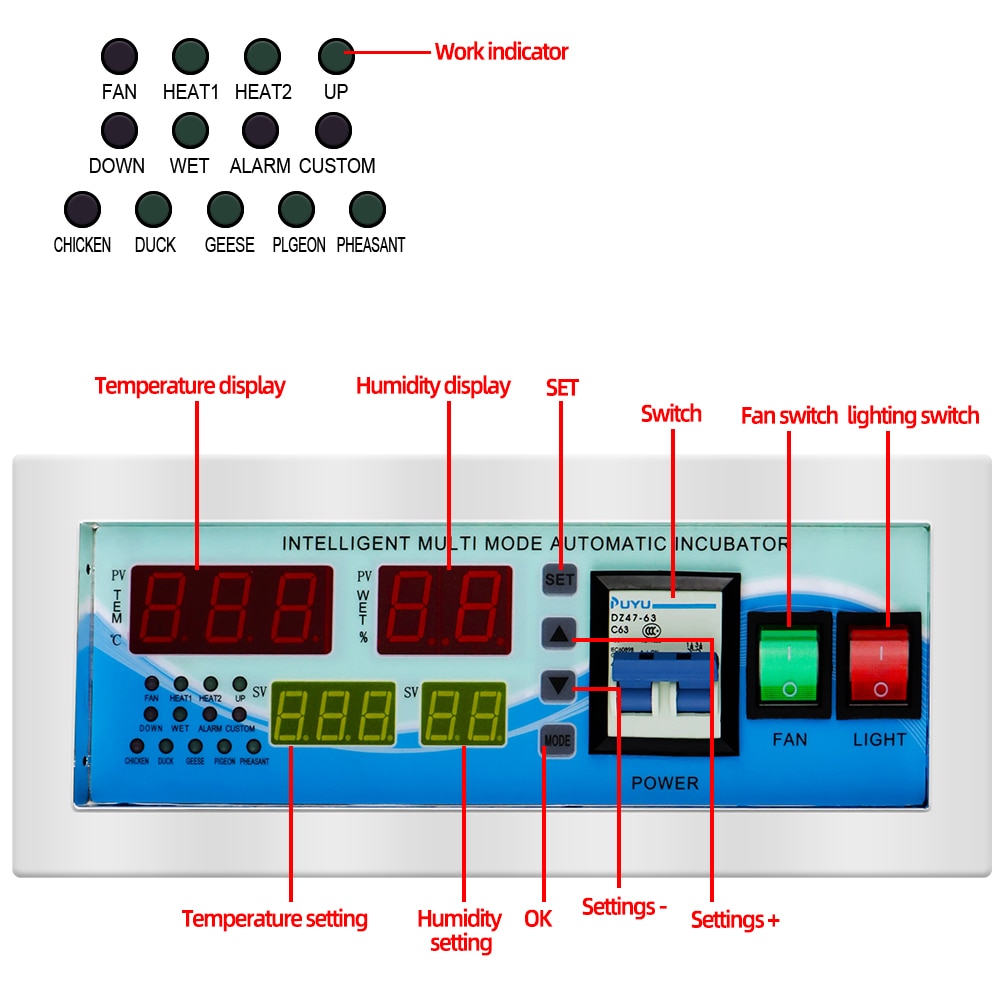

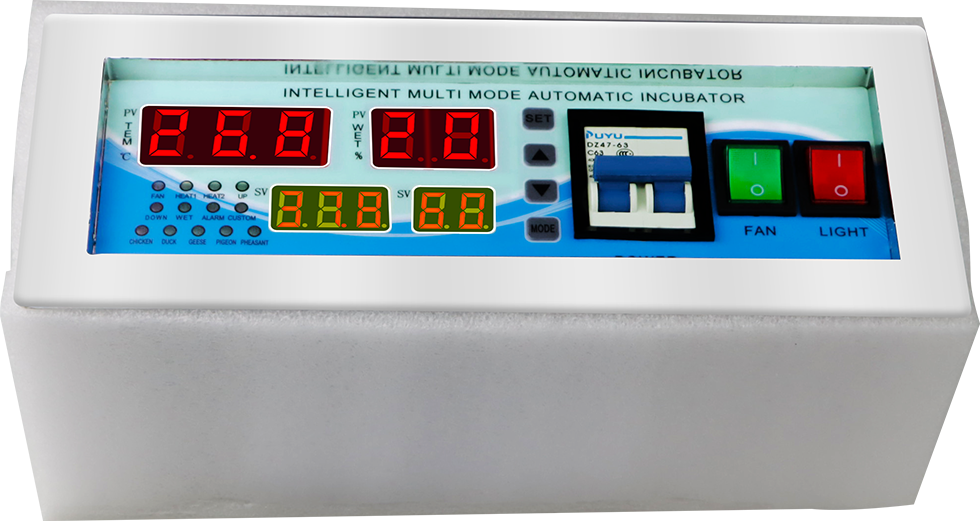

The new generation intelligent humiture incubator controller is a fully-intelligent microcomputer control system designed and developed for incubation industry and it applies the latest microelectronic technology and new type components. It applies the microcomputer chips to have strong anti-interference and high stable performance; the temperature sensor applies the high precision sensor to have high temperature collection precision and wide temperature range; it applies high performance humidity sensor to high precision to effectively ensure the stableness and reliability. It has the design of user-friendly four screens for display including two screens displaying the temperature and humidity of incubator and other two screens displaying the egg turning times and incubation days by pressing the keys and displaying the preset temperature and humidity by pressing the keys. And six kinds of incubation modes for user-definition, chicken, duck, goose, pigeon and blackcock are available for selection.

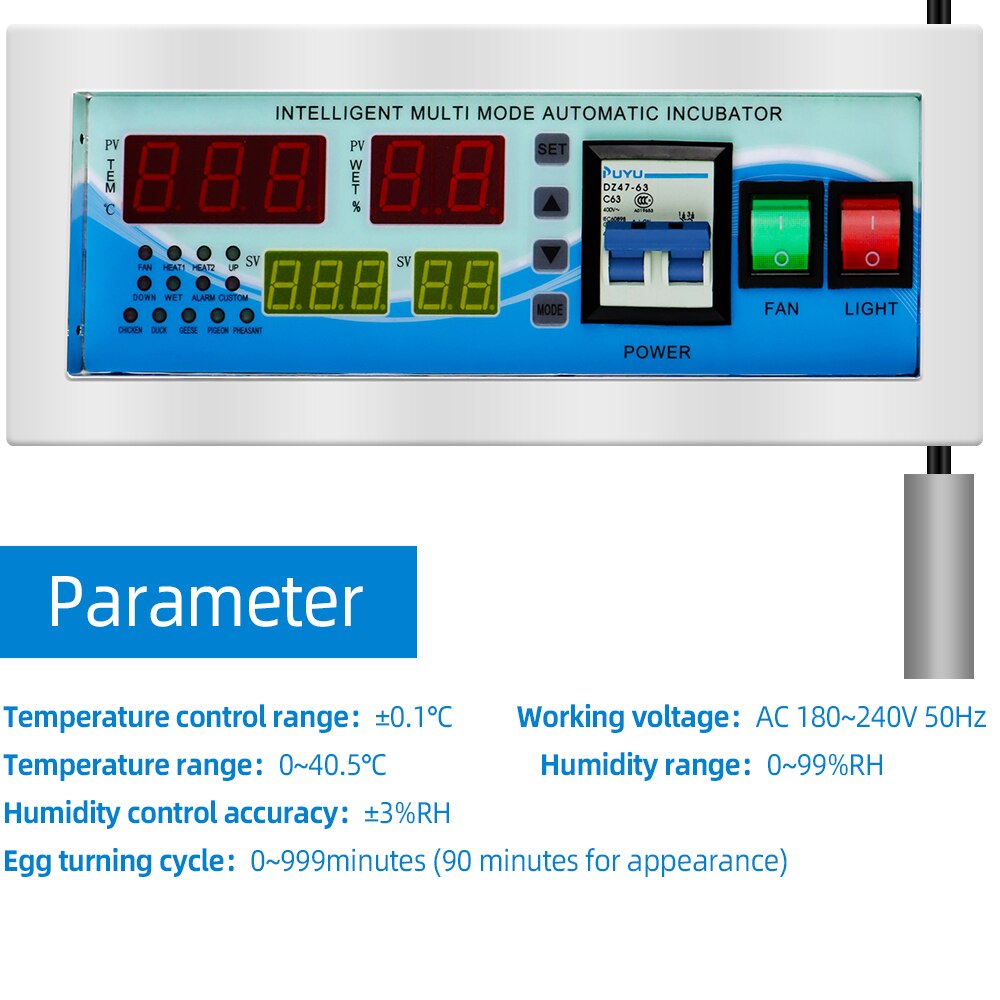

Main Technical Index:

1.Temperature display range: 0~40.5℃

2.Temperature measurement precision: ±0.1℃

3.Humidity display range: 0~99%RH

4.Control release precision: ±3%RH

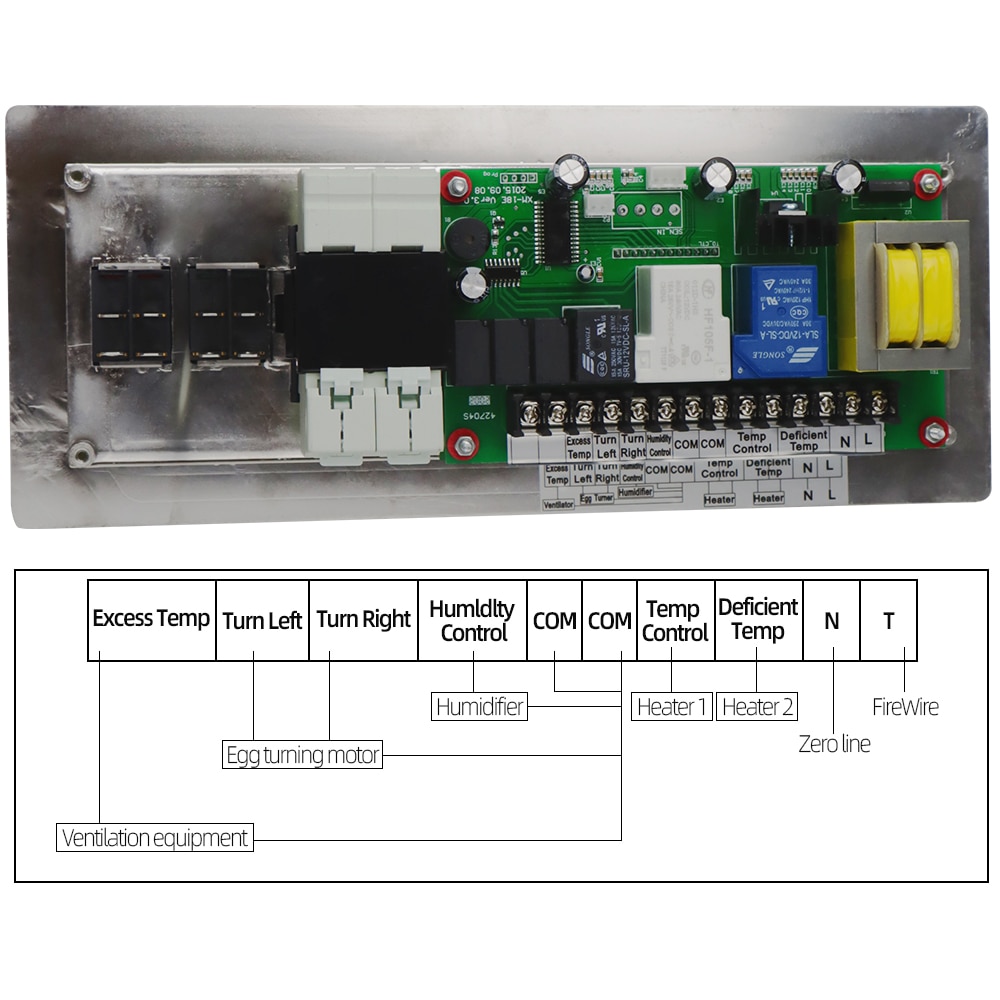

5.Output lines: 6 lines (primary heating, auxiliary heating, exhaust (air exchange), turning left, turning right, humidifying)

6.Output current: primary and auxiliary heating 30A, other output 10A

7.Egg turning times: maximum 999 times

8.Egg turning cycle: 0~999 minutes (default 90 minutes)

9.Egg turning period: 0~999 seconds (default 180 seconds)

10.Air exchange cycle: 0~999 minutes (default 120 minutes)

11.Air exchange period: 0~999 seconds (default 15 seconds)

12.Length of measuring line: about 2 meters

Working Condition:

1.Working voltage: AC 180V~240V,50HZ

2.Relative humidity: less than 85%

3.Ambient temperature: -20℃~70℃

The incubation setting consists of automatic incubation and user-defined incubation.

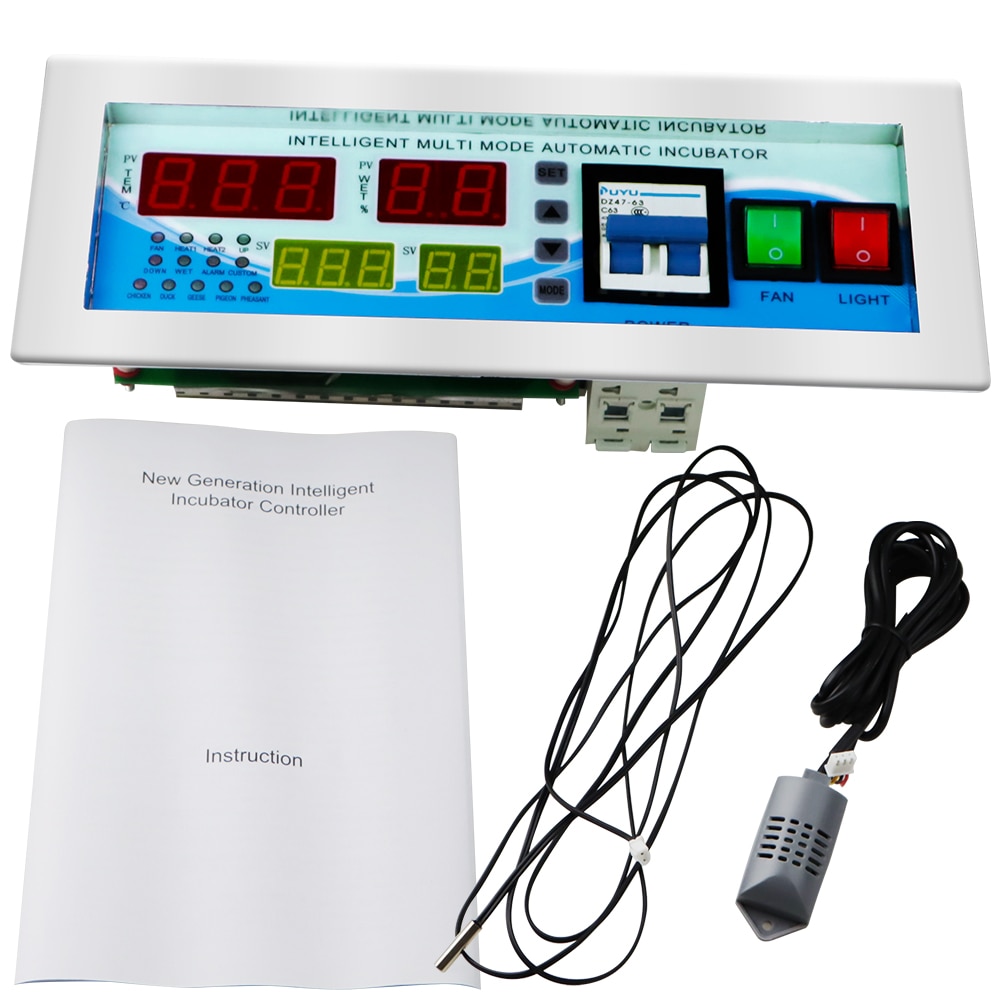

Package Include:

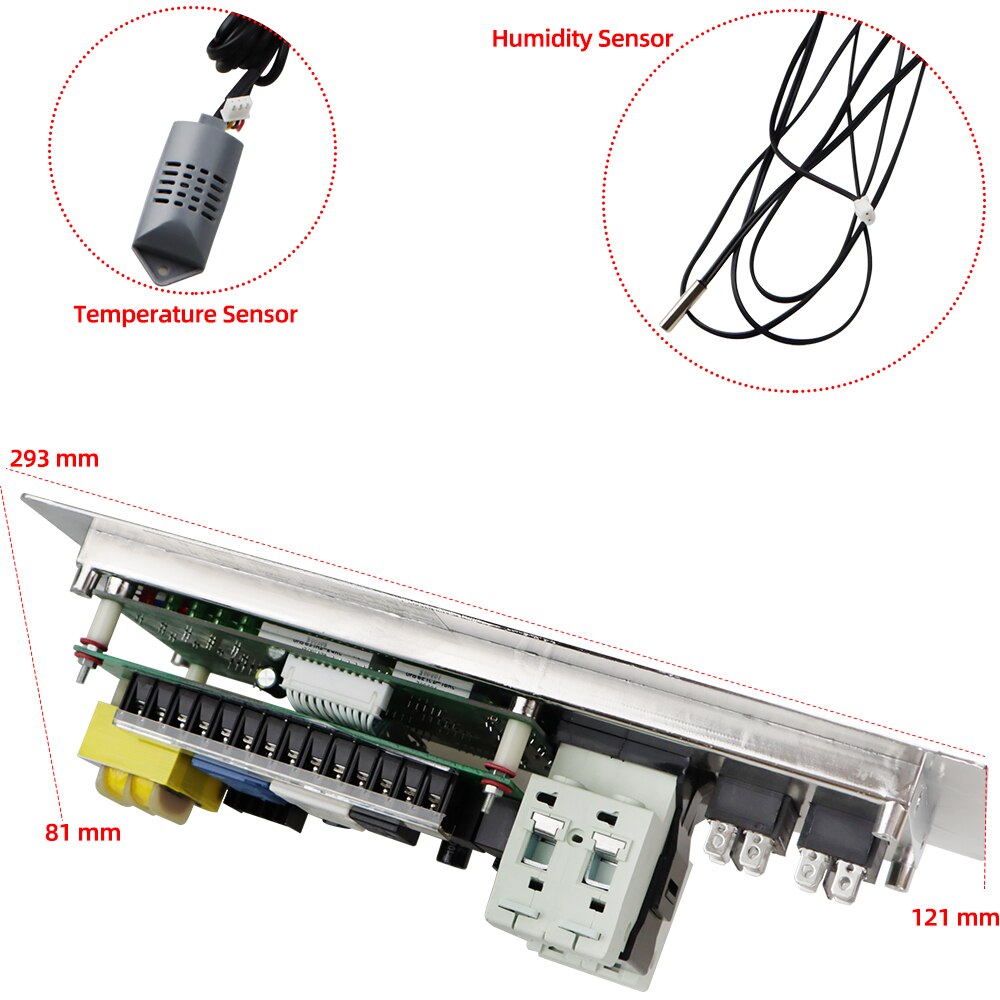

1 x Incubator Controller

1 x Temperature sensor

1 x Humidity sensor

1 x Operational Manual
