ANCEL S1000 Automotive Diagnostic Leak Detector Description:
ANCEL S1000 Car Smoke Leak Detector is a professional auto pipe leak detect tool. It will help us position cars motorcycles leakage on the pipe systems quickly and exactly, such as Intake System Test, Exhaust Systems Test, Crankcase system test，Car Sealing Test, Fuel
Tank System Test, Turbo System Test，Various Pipe Fittings Test.

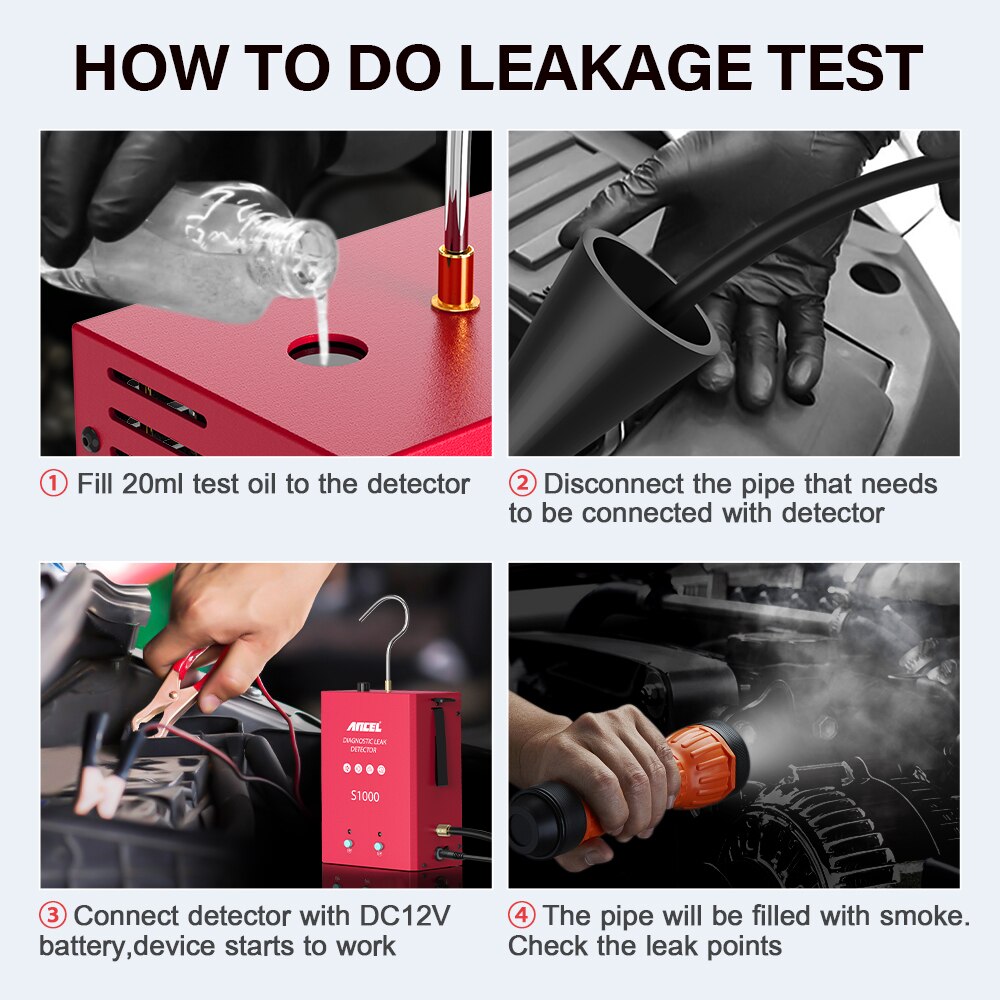

How to do leakage test？
1. Turn OFF the ignition of the vehicle.
LEAK TEST OF VEHICLE SYSTEMS REQUIRES THE ENGINE TO BE OFF
2.Dismantle the air filter and the throttle connections.
3.Clean the inner wall of the intake opening to avoid sharp objects and put the Universal Intake
Adapter into the opening
4.Connect the Power Cord to 12V vehicle battery.
5.Now the Power LED would be ON, if else check the power supply.
6.Introduce the smoke nozzle into the system via the Adapter Cone
7.Press Air Control Switch, wait for 30 seconds until the system is pressurized, and check the
Pressure Gauge & Flow Meter reading for leak status, if the unit is equipped with Pressure Gauge & Flow Meter
8.Press Smoke Control Switch, .unplug and Plug back the smoke nozzle back into the Cone Adapter when there’s obvious smoke coming out of the smoke nozzle
9.The system will be ready for leak check in 2 minutes. Use a bright light torch or working lamp to assist
10.After test, press Smoke Control Switch again to stop the unit from generating smoke and
press Air Control Switch to stop generating pressurized air
11.Collect the Smoke Hose and the Power Cord with the Velcro Straps for storage. Hang the unit or make it stand in UPRIGHT position only. Do NOT lay it down.
ANCEL S1000 ADVANCED TECHNOLOGY
Intake System Test,Exhaust Systems Test,Crankcase system test,Car Sealing Test,Fuel Tank System Test,Turbo System Test,Various Pipe Fittings Test.
ANCEL S1000 Car Smoke Leak Detector Support All of Car Models
For detecting the leakage of pipe systems on cars,motorcycles,snowmobiles,off-road vehlicles,ATVS,light trucks and speedboats,Suitable for all car models
Independent Switch Control Design
AIR MODE----independently controlled built-in air pump
SMOKE MODE---independently controlled smoke generator
SMOKE MODE---independently controlled smoke generator
OVERHEAT & ANTI-FROST PROTECTION
Overheat Protection:When the temperature of the device exceeds 72℃,power protection will be intelligently activated to turn it off.
Anti-frost Protection:The device can also work normally at -20℃
Anti-frost Protection:The device can also work normally at -20℃
Note:
1.When you use this ANCEL S1000 Car Smoke Leak Detector for the first time, fill with 10-20ml oil.Please be careful NOT to beyond this range.
2.The testing liquid : both liquid paraffin and baby oil are OK.
3.Fresh oil can be filled with only when the smoke gets thin, and it can't be filled over 20ml each time.
4.Before filling fresh oil, please pour out the left oil in the detector & replace the detector oil regularly.
5. During the process of leak detection, please keep away from smoke-sensitive parts.
6. Do NOT run the detector over 8 minutes continuously. It needs interval rest.
7. The detector has an intelligent protector, if it exceeds the working limit, such as over 75 ℃, it will automatically turn off the power. In this case, please operate it later.
8.The round part of this detector has temperature, please be careful to avoid burns.
9. If the test pipe needs to be disconnected in the middle, please secure the other side with a rubber stopple.
2.The testing liquid : both liquid paraffin and baby oil are OK.
3.Fresh oil can be filled with only when the smoke gets thin, and it can't be filled over 20ml each time.
4.Before filling fresh oil, please pour out the left oil in the detector & replace the detector oil regularly.
5. During the process of leak detection, please keep away from smoke-sensitive parts.
6. Do NOT run the detector over 8 minutes continuously. It needs interval rest.
7. The detector has an intelligent protector, if it exceeds the working limit, such as over 75 ℃, it will automatically turn off the power. In this case, please operate it later.
8.The round part of this detector has temperature, please be careful to avoid burns.
9. If the test pipe needs to be disconnected in the middle, please secure the other side with a rubber stopple.
Product Structure
Product Size
Product Package:
1*Car Smoke Leak Detector
1*Carton
1*Intake Bladder
1*Smoke Delivery Hose
1*Adapter Cone
1*Intake Bladder Replacement Rubber
1*Power Cord
1*Funnel
1*Hook up
1*Manual in English
1*Carton
1*Intake Bladder
1*Smoke Delivery Hose
1*Adapter Cone
1*Intake Bladder Replacement Rubber
1*Power Cord
1*Funnel
1*Hook up
1*Manual in English
