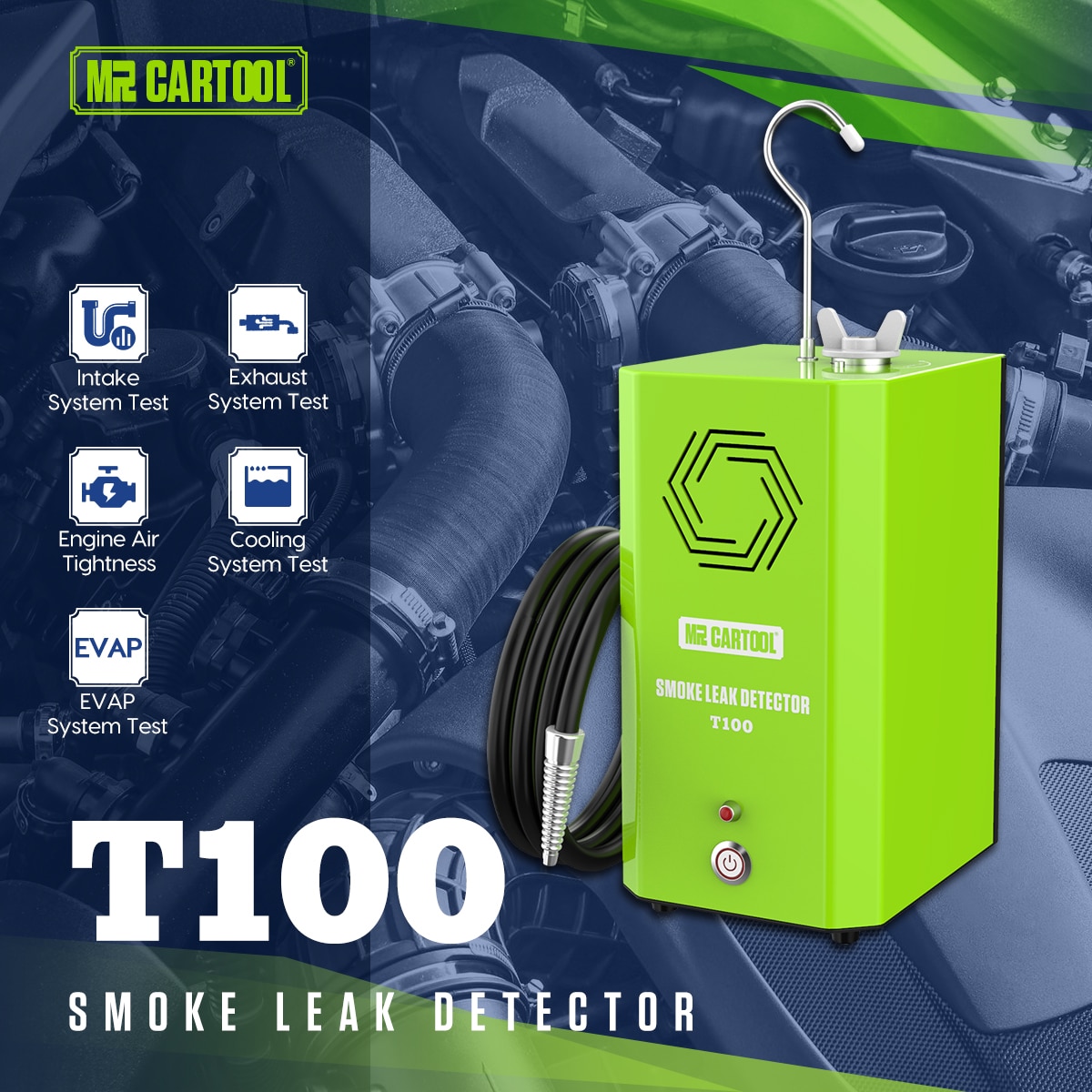

MR CARTOOL T100& T110 automotive smoke leak detector is a specialty tool used with vehicle diagnostic devices to check the tightness of the vehicle pipeline system and find leaks, helping the auto repair technician to quickly and accurately determine whether the fault is caused by the pipeline leaks.

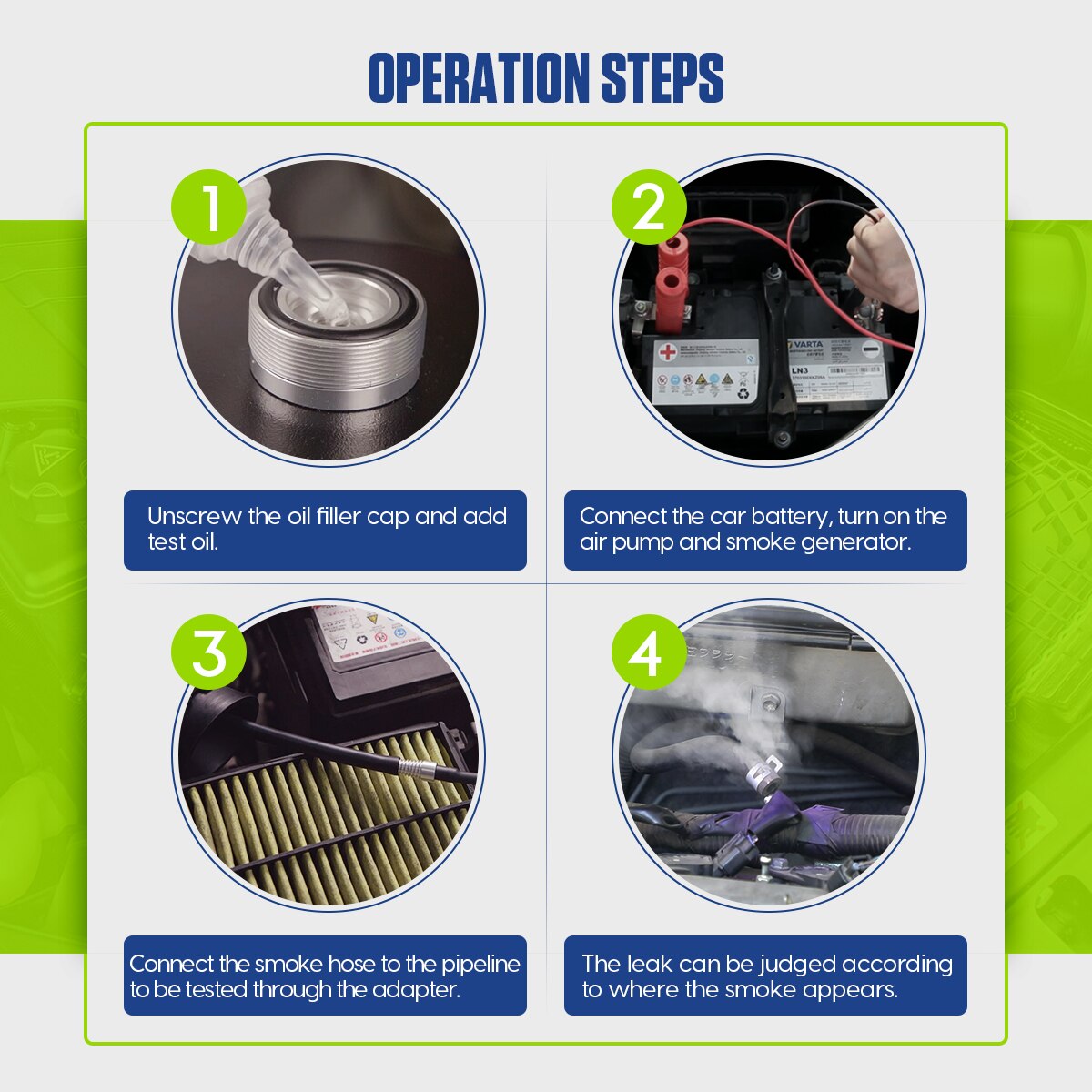

1. Unscrew the oil filler cap and fill it with10ml baby oil into the detector for the first time.
2. Connect the car battery, then turn on the air pump and smoke generator.
3. Connect the smoke hose to the pipeline to be tested through the adapter.
4. In about 10 seconds, the leaks can be found according to where the smoke appears.

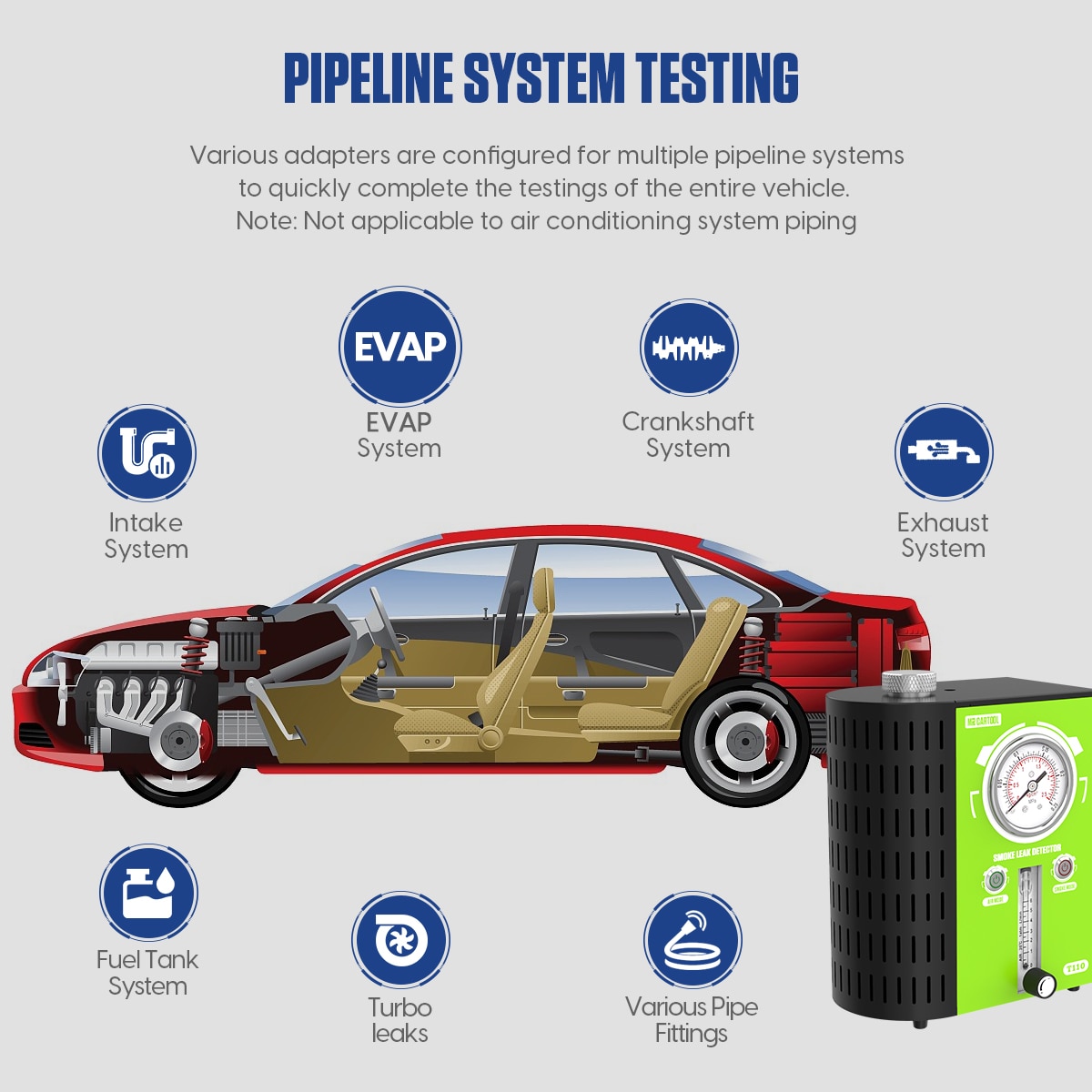

Tightness Test : It can test the tightness and leakage of the tested pipeline under system pressure.
Intake System Test: it can test the air tightness and damage degree of the pipes in the intake system.
Exhaust System Test: it can test the air tightness and damage degree of the pipes in the exhaust system.
EVAP System Test: it can test the leakage of fuel evaporation in the EVAP system.
：
1. FAST SMOKE OUTPUT: Equipped with a built-in air pump and smoke generator. The smoke can be generated within 10 seconds after switch-on with stable and large amount of output.
2. WIDE USAGE: Works on all vehicle models, including detecting the leakage of pipe systems on cars, motorcycles, snowmobiles, off-road vehicles, ATVs, light trucks and speedboats boats.

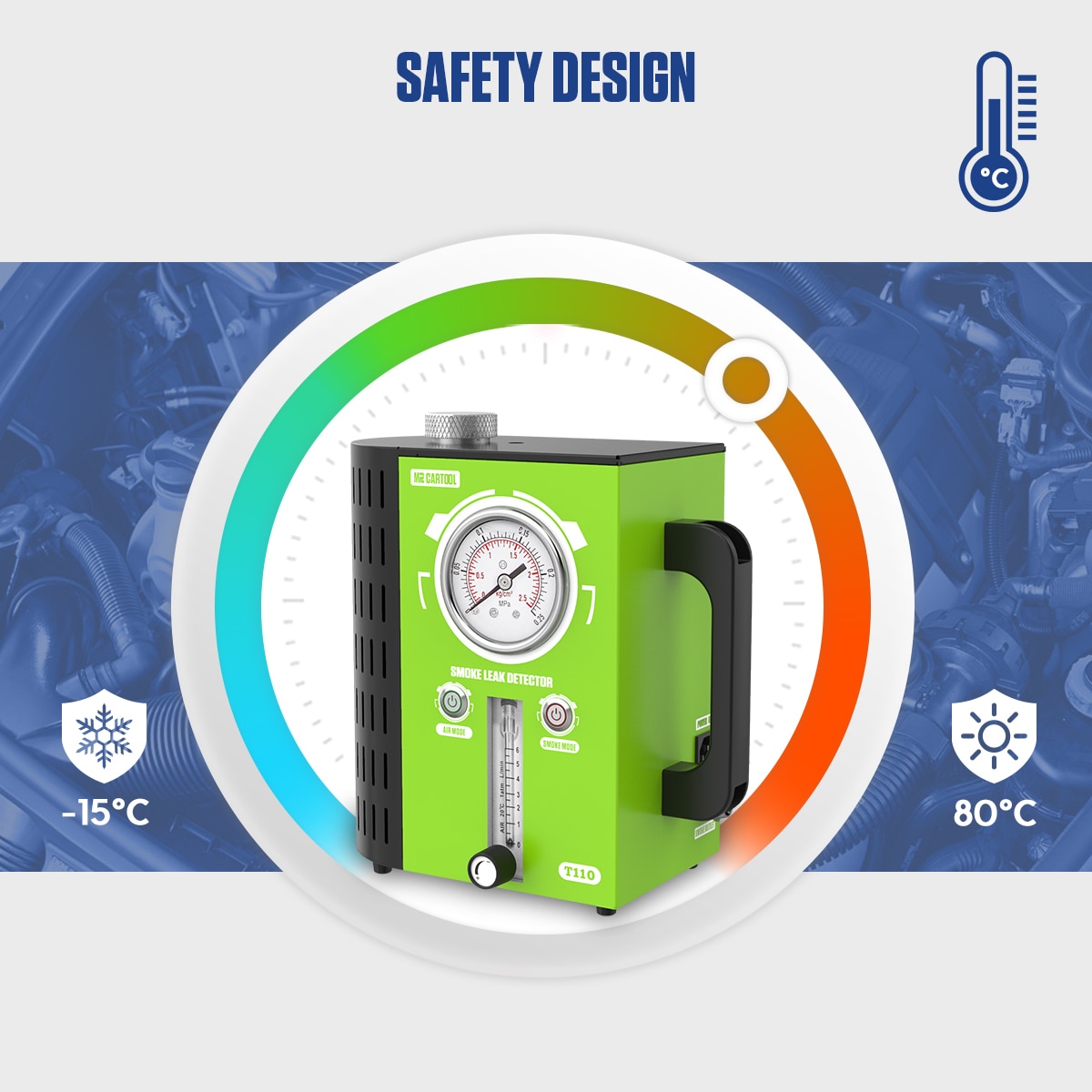

3. SAFETY DESIGN: With built-in overheat and cold-proof protection, it can be used in various environments and operated safely.
4. OUTSTANDING ADVANTAGES: This device features a refreshing look, compact size, light weight and portability, and is easy to use. Perfect for simple pipe leak detection
5. WORRY-FREE SERVICE: Fast and safe delivery; Within 24h professional after-sale team service, 2-year warranty, and lifetime maintenance.

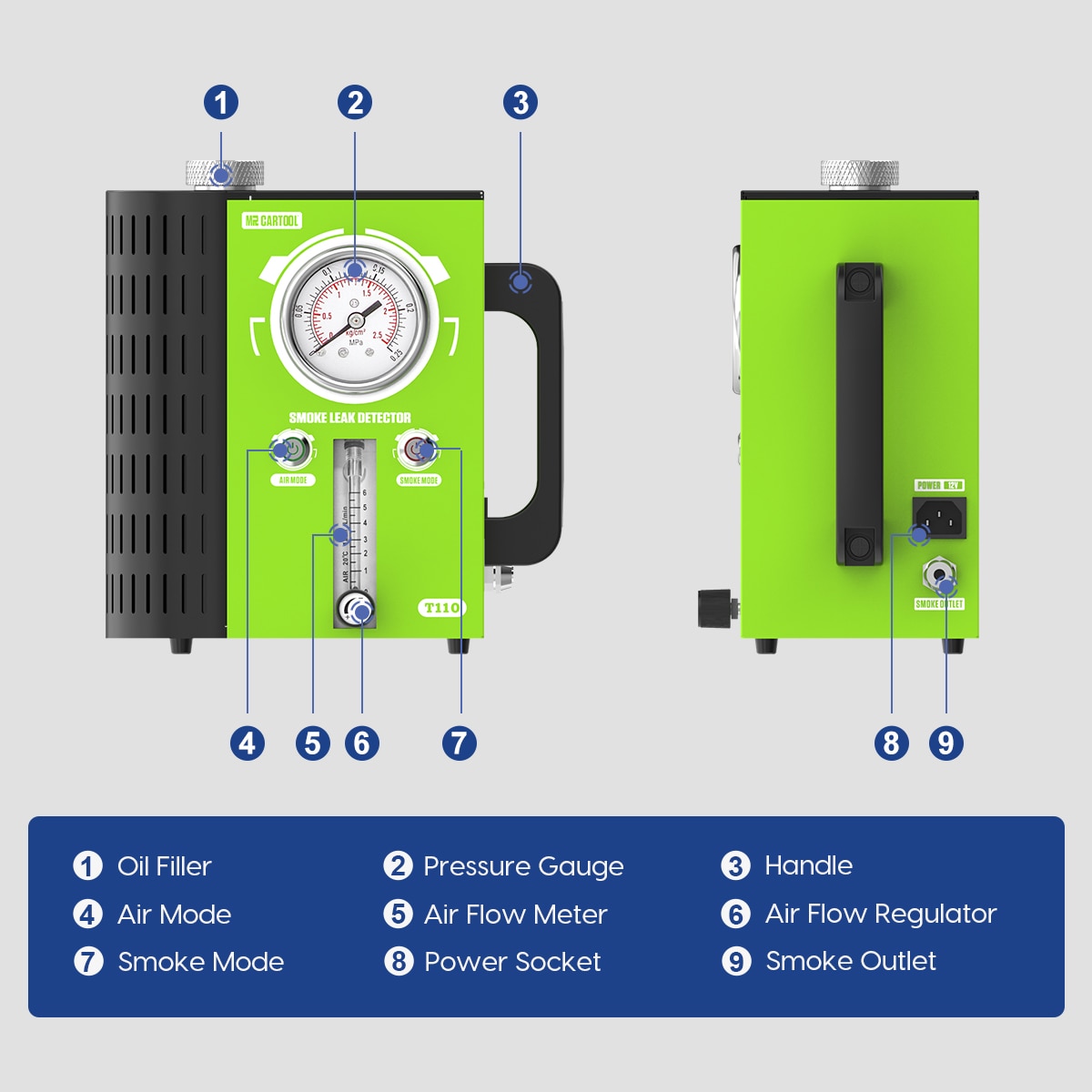

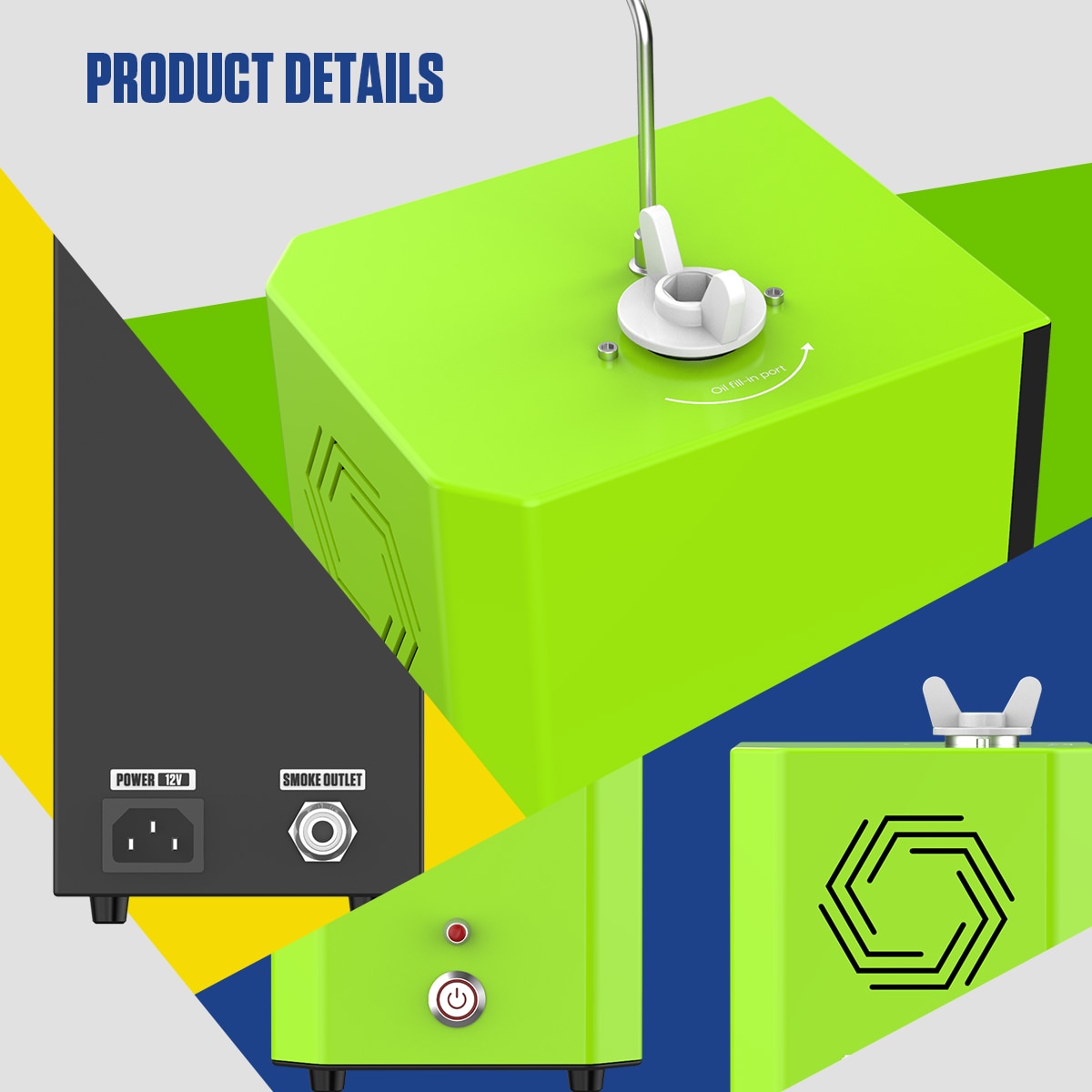

Hook: To hang the detector when detecting.
Working Indicator: It is lit when the detector works
Power Switch: Power it on, and the detector works
Smoke Output Tube: The smoke outlet which connecting with detection port
Power Clamp: To connect with vehicle battery. The voltage is DC12V.
Output pressure：14~16Psi

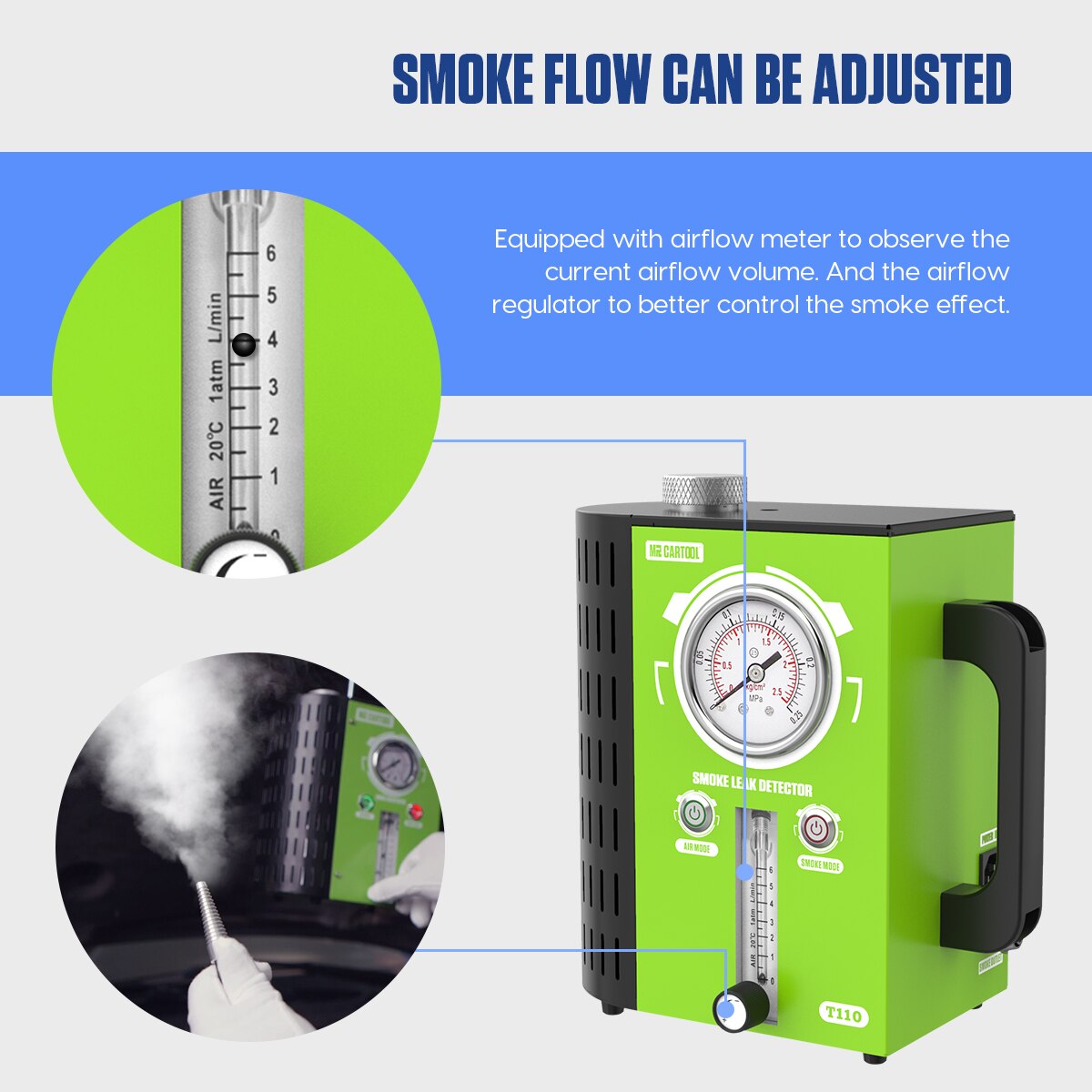

Output flow：6L/Min
Power supply: 12V
Air source: built-in
Test oil capacity： 15ML
Dimensions of the Main Unit : 160x280x190mm
Package Size： 270x270x260mm (T110)
Package weight: 5KG
1.When you use this MR CARTOOL T110 |&T100Car Smoke Leak Detector for the first time, fill with 20ml oil . Please be careful NOT to beyond this range.
2.The testing liquid : both liquid paraffin and baby oil are OK.
3.Fresh oil can be filled with only when the smoke gets thin, and it can’t be filled over 20ml each time.
4.Before filling fresh oil, please pour out the left oil in the detector & replace the detector oil regularly.
5.During the process of leak detection, please keep away from smoke-sensitive parts.
6.Do NOT run the detector over 8 minutes continuously. It needs interval rest.
7.The detector has an intelligent protector, if it exceeds the working limit, such as over 80 ℃, it will automatically turn off the power. In this case, please operate it later.
8.The round part of this detector has temperature, please be careful to avoid burns.
9.If the test pipe needs to be disconnected in the middle, please secure the other side with a rubber stopple.
T110 :
1pc* MRCARTOOL T110automotive smoke leak detector main unit
1pc* Power cord clamp
1pc* Smoke hose
1pc set* Soft rubber hose plug
1pc set* Hard rubber hose plug
1pc* Test oil bottle
1pc* Hook
1pc*Rubber connector part
1pc* EVAP specilal connector & Valve core wrench
1pc* Standard cone adapter
1pc* Universal airbag adapter
1pc* User manual
1pc* MRCARTOOL T100 automotive smoke leak detector main unit
1pc* Power cord clamp
1pc* Smoke hose
1set*Hard rubber hose plug
1pc* Test oil bottle
1pc* EVAP special connector &Valve core wrench
1pc* Rubber connector part
1pc* Standard cone adapter
1pc* Hook
1pc* User manual
