Product description
This Ammonia analyzer is a high-tech Gas quality monitor to measure the Ammonia Gas (NH3) using imported high precision electrochemical principle formaldehyde sensor , single-chip microcomputer technology and high visibility dot matrix LCD. This instrument can continuous quantitative analysis of formaldehyde concentration apparatus , with fast response speed, high precision, of its stability, good repeatability, real time measurement, very suitable for indoor and outdoor environmental monitoring. The apparatus is widely used in metallurgy, power plant, farms, mines, chemical, scientific research, medical, pharmaceutical, environmental protection and other fields.

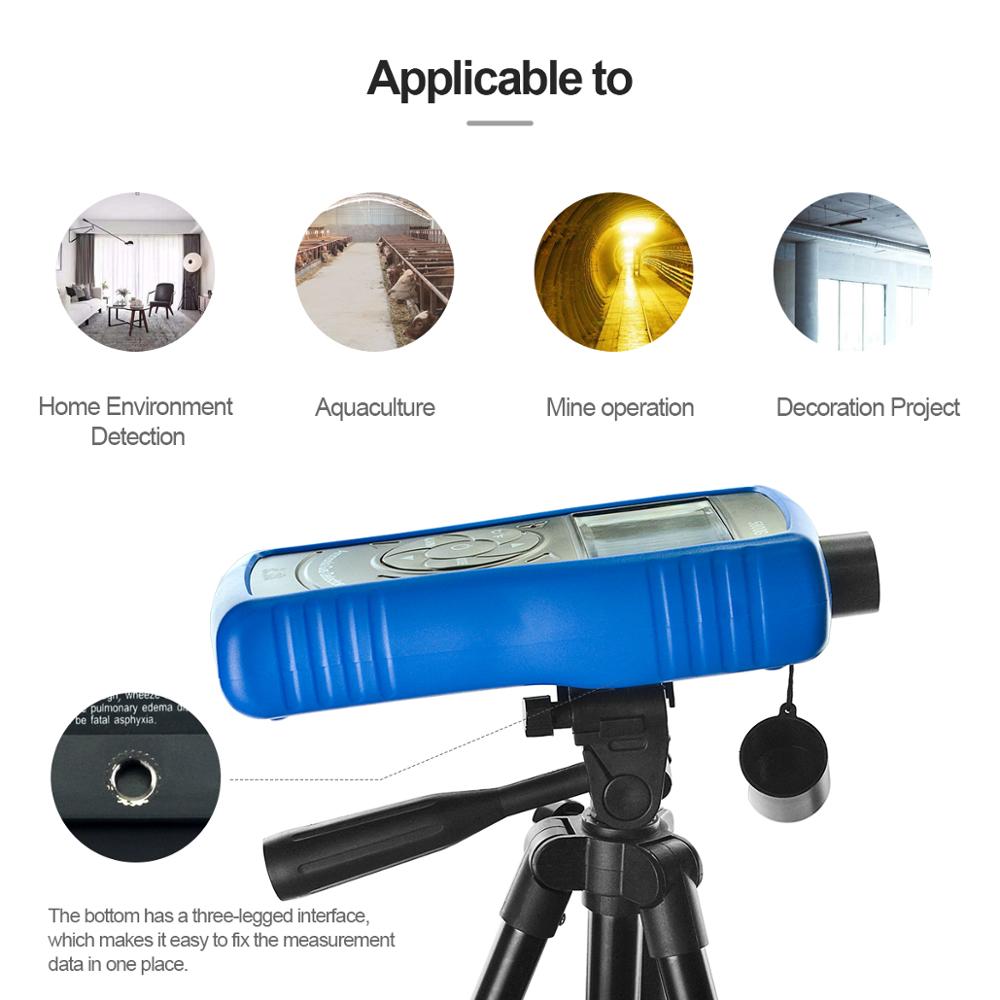

▶USES: Poultry Farms, Pig Farms, Horse Stables, Livestock, Cattle, Landfill, Animal Welfare Shelters, Fish Farms, Waste Management and Feed/Protein optimization and OH&S verification
▶When the first level alarm “AL1” setting value is reached, the indicator light will flash slowly, and the buzzer will sound slowly. When the level alarm “AL2” is set, the indicator will flash rapidly and the buzzer will sound at a fast frequency.

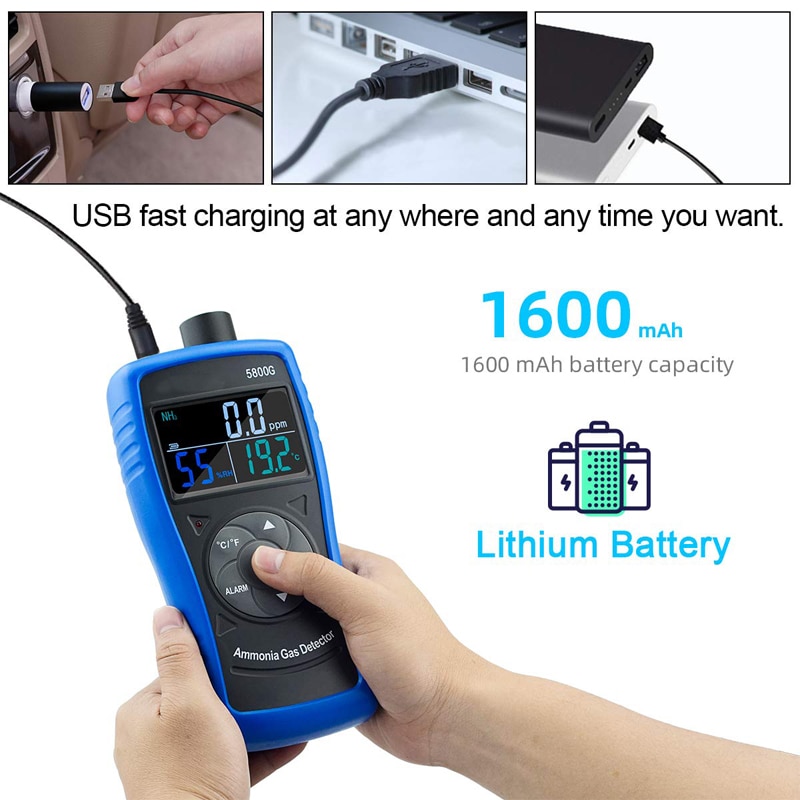

▶1600mAh large capacity rechargeable battery, clear LCD screen with backlight, and easy to use neatly typed buttons.
▶The instrument also comes with temperature and humidity measurement functions that can help you more in your measurement activities.
▶Using an electrochemical principle sensor, the 5800G has an electrochemical principle sensor with a life span of more than two years compared to other 1-year life sensors.

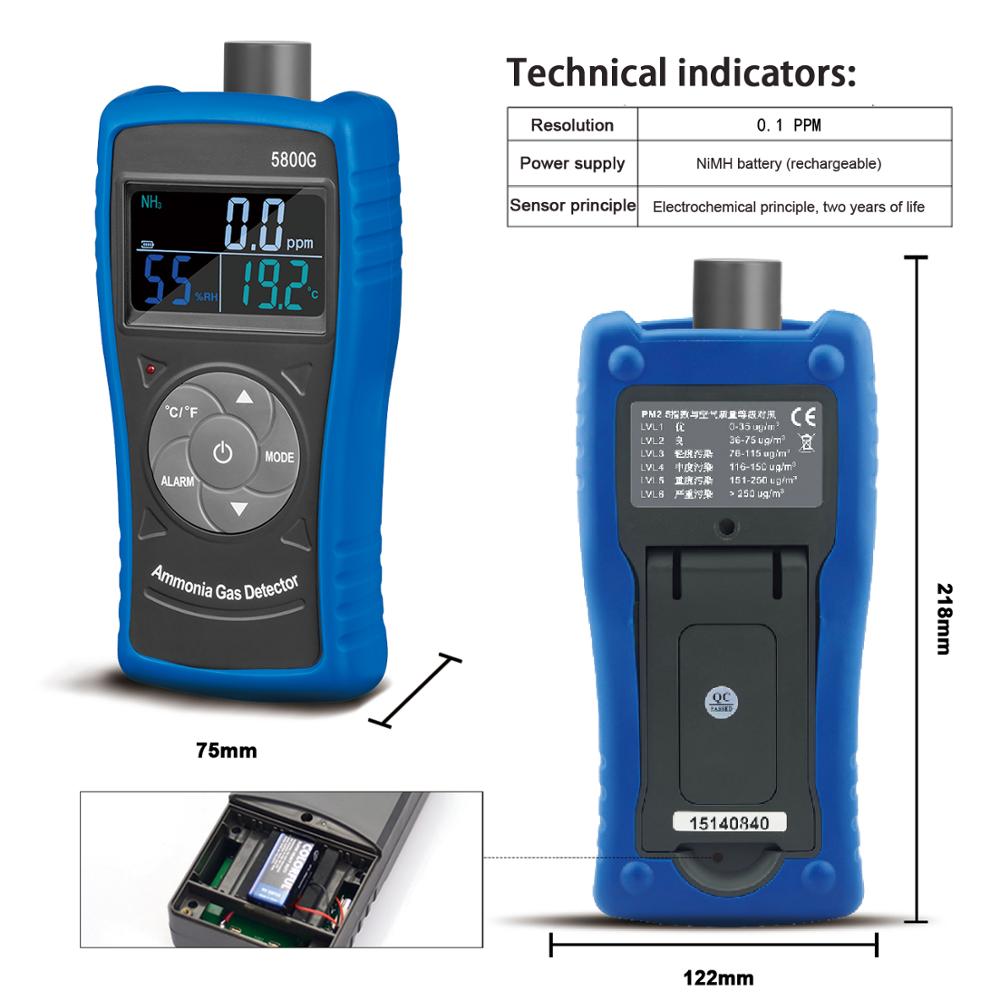

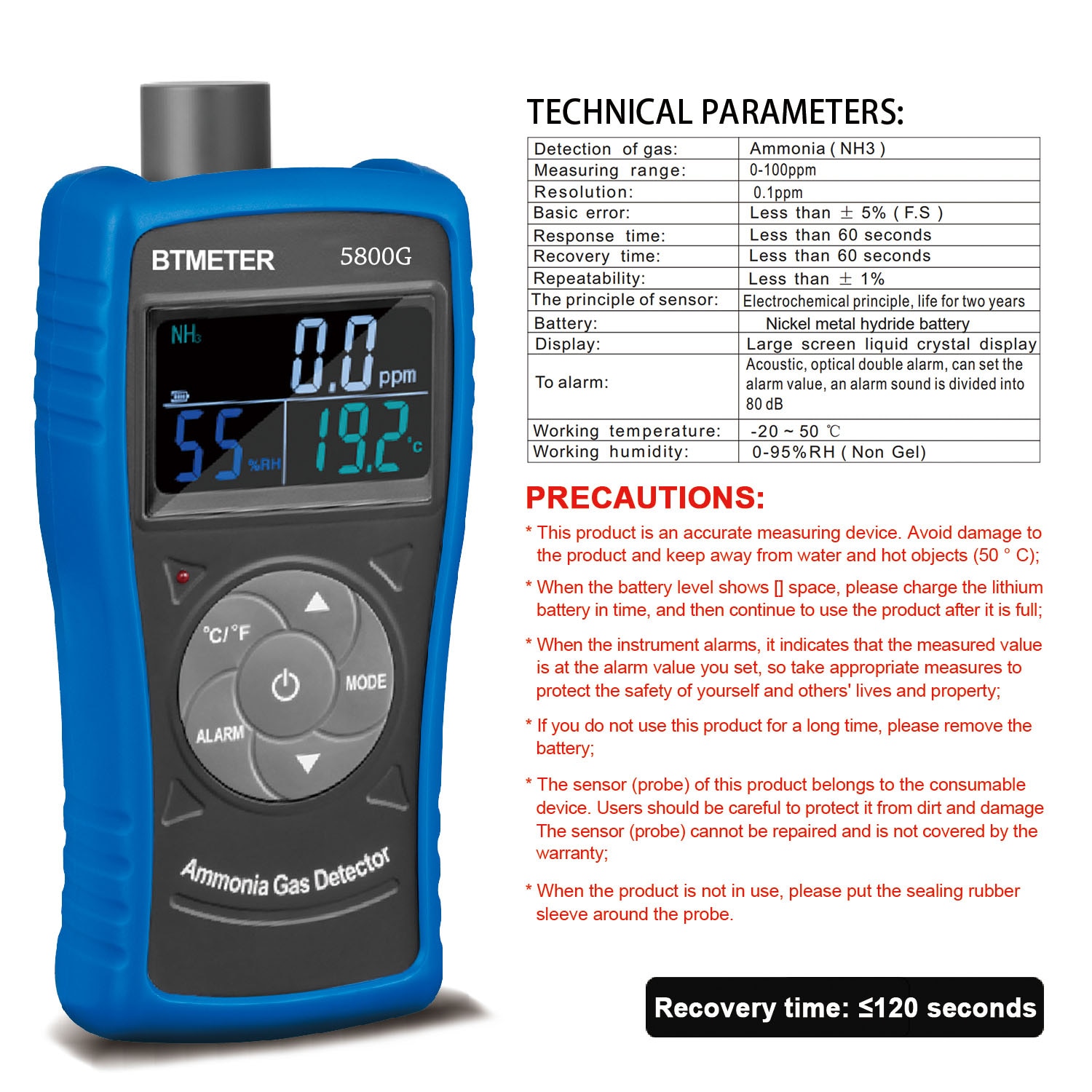

Technical Parameters:
Detection of Gas: Ammonia ( NH3 )
Measuring range: 0-100ppm
Resolution: 0.1ppm
Basic error: Less than ± 5% ( F.S )
Response time: Less than 60 seconds
Recovery time: Less than 60 seconds
Repeatability: Less than ± 1%
The principle of sensor: Electrochemical principle, life for two years ( Replaceable )
Battery: Rechargeable lithium battery (18650 *1 )
Display: Large screen liquid crystal display
To alarm: Acoustic, optical double alarm, can set the alarm value, an alarm sound is divided into 80 dB
Working tem perature: -20 ~ 50 ℃
Working hum idity: 0-95% R H ( Non Gel)

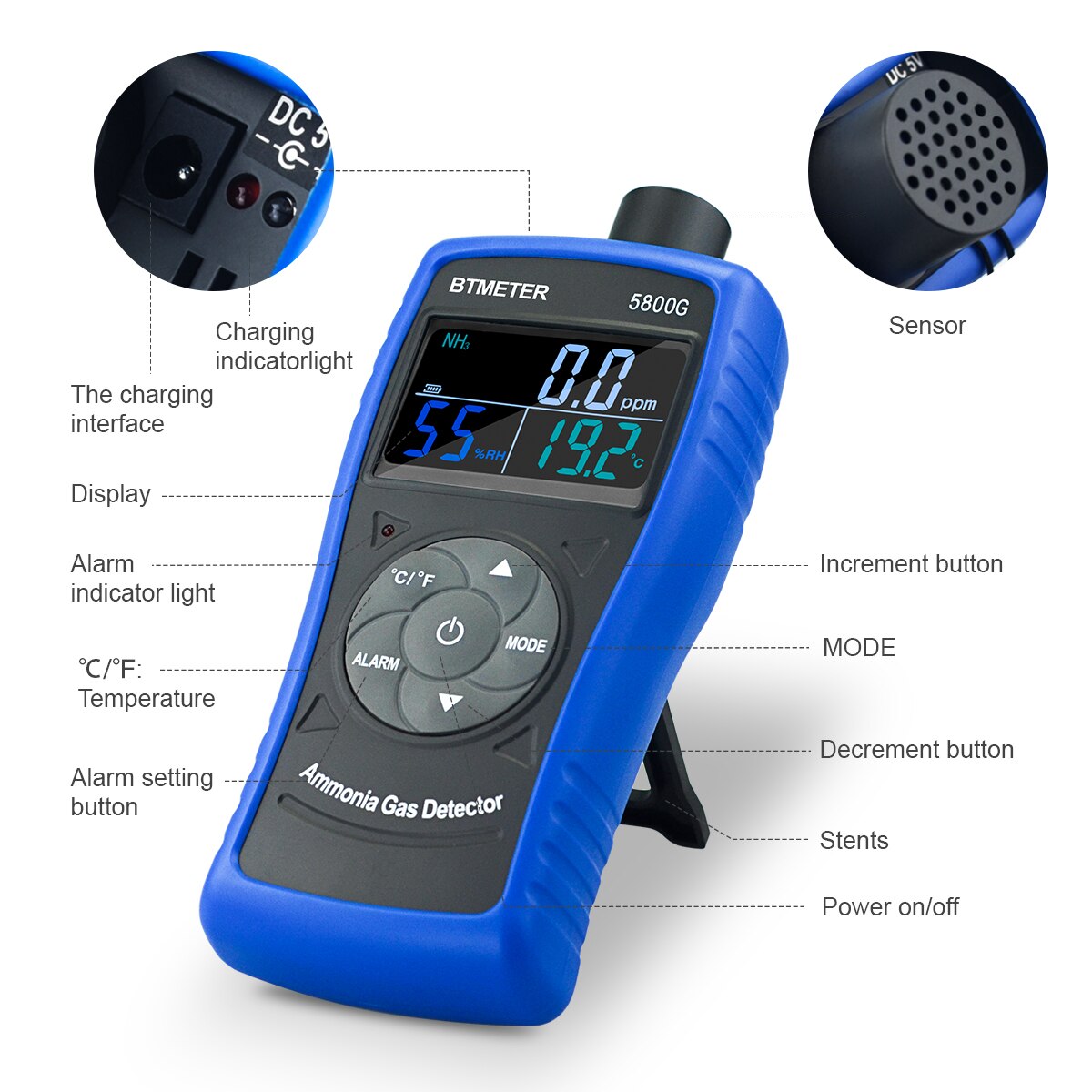

Panel Layout：
☀Power On/Off
☀Increment Button
☀Temperature Unit Select
☀Decrement Button
☀MODE Select
☀Alarm Indicator Light
☀Charging Indicatorlight
☀Alarm Setting Button
☀Display
☀Sensor
☀The Charging Interface
