Yanhua Mini ACDP Module 16: Benz Gearbox Clone and Reflash/Renew
Supported Gearbox Functions
- Support cloning mercedes-Benz (VGS-FDCT / VGS2-FDCT) dual-clutch gearbox.
- Support cloning mercedes-Benz 722.8 (VGS2-FCVT) gearbox.
- Support mercedes-Benz 722.9 second generation (VGS2-NAG2) gearbox refresh/renew.
- Support Mercedes-Benz 722.9 third generation (VGS3-NAG2) gearbox refresh/renew.
Interface Board Connection Method
The special interface board connection method replaces the traditional plugging wire method to prevent plug wires from being inserted in the wrong direction or incorrect location. This design offers a simple, efficient, plug-and-play solution that is safe and reliable.
Example: Renew/Virgin Benz 722.9 VGS3 Gearbox with Yanhua ACDP

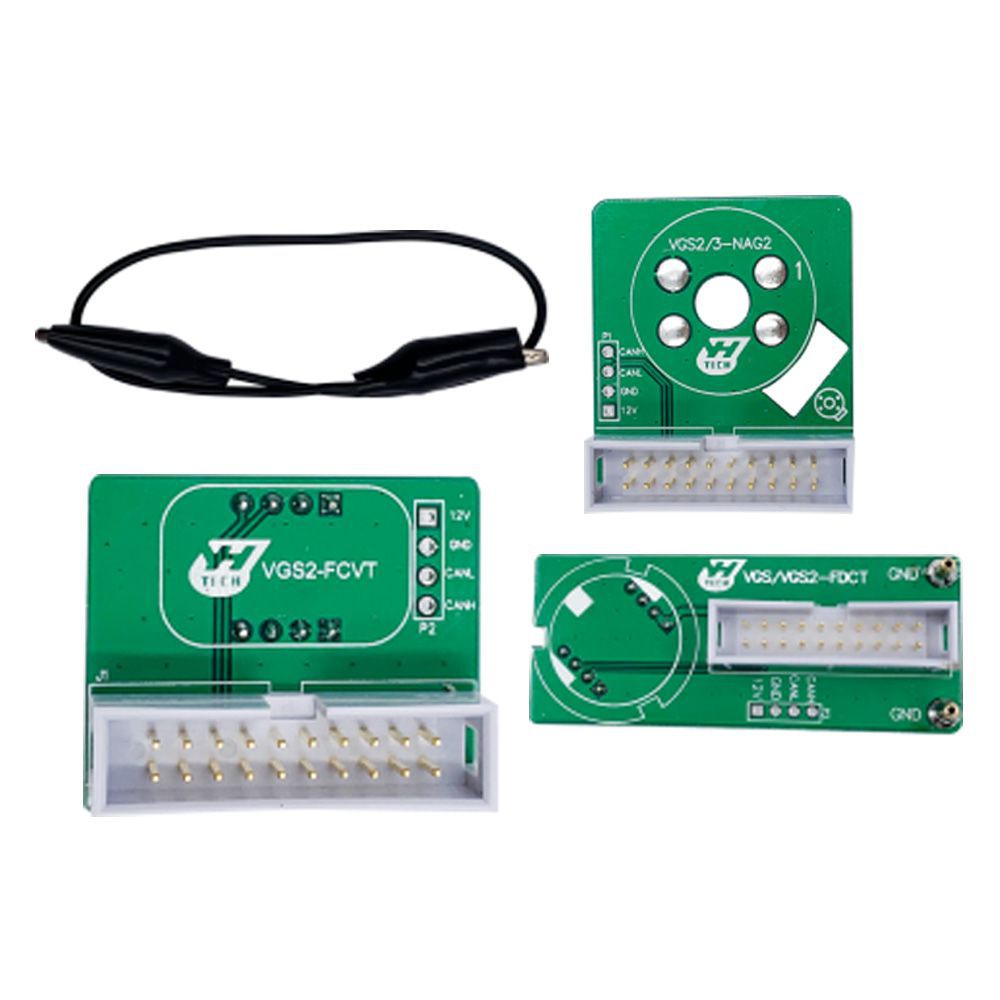

ACDP Mini Configuration List (Module 16)
| Item NO. | Adapters/Parts | Pictures | Quantity | Adapters/Parts Functions |
|---|---|---|---|---|
| 1 | VGS2-FCVT Interface board |  | 1 PC | Applicable to connect MB 722.8 (VGS2-FCVT) gearbox |
| 2 | VGS/VGS2-FDCT Interface board |  | 1 PC | Applicable to connect MB (VGS-FDCT / VGS2-FDCT) dual-clutch gearbox |
| 3 | VGS2/3-NAG2 Interface board |  | 1 PC | Applicable to connect MB 722.9-2/3 (VGS2-NAG2 / VGS3-NAG2) gearbox |
| 3 | GND Cable | 1 PC | Applicable to connect VGS/VGS2-FDCT Interface board and gearbox (for spare) |
