Xhorse Iscancar VAG-MM007 Diagnostic and Maintenance Tool Support Offline Refresh for VW, Audi, Skoda, Seat
Top 11 reasons to get Iscancar VAG-MM007:
1. Support all used accessories replacement for VW, Audi, Skoda, Seat, and Offline refresh all module parameters, no need to be online.2. Basic function: Support controller diagnostic, such as basic setting, channel adaption, read DTC, clear DTC, system login etc.
3. Guide function: There are many commonly used functions. We have simplified the process so you can follow more easily.
4. Special function: change vin, read pin, immo switch, adapt unit module, key learning, fix Audi RB4/RB8 not start, transport mode, sync dashboard time, clear all DTCs and gateway register
5. Support module including: KESSy entry and start permission, BCM electronic control unit, parking / steering assist, ACC automatic distance control, DCC electronic control suspension, gateway, sound system, infotainment system, xenon headlamp, tire pressure monitoring, Driving auxiliary camera and other 28 kinds of modules, with nearly 500 kinds of parameters file.
6. Write data record: When replacing new controller, you must write data record online or the controller will not work correctly. Now you can use this diagnostic tool to write data record offline. And you can active some functions like MKE etc.
7. Essential Function of Refitment and Maintenance: Many functions are very useful for refitment and maintenance, such as controller replacement, throttle adaptation and EPB replace brake pads. In addition, further functions will be added continuously.
8. Built-in database:There’s a built-in database in the diagnostic tool. Users can write data record without online account. It has already supported many controllers, and more data will be continuously added.
9. Online Upgrade: VAG-MM007 can be upgraded through the internet.
10. Technical Support:
Xhorse technical support team is professional and efficient, online technical support for free.
Provide lifelong after-sale perfect service guarantee customer trouble free operation of machine.
Consider about customer feedback suggestion and requirement carefully.
11. Newly Add MQB Mileage Correction Function
Language: English Only
VAG-MM007 V2.2.9 (2018-05-16）
VAG-MM007 V2.2.9 Software Free Download
pls download upgrade kit to update firmware
---------------------------------------------
+1 Simulator
Sniffer all modules data.
Main menu-Module simulation-sniffer data.
Sniffer CAN Bus data.
Main menu-Module simulation-sniffer data;
Load online file.
Main menu-Module simulation-Load online file.
Simulate all modules.
PC sofware-user choose modules.
+2 Read 4th gen IMMO and MQB dashboard key ID。
Main menu-Guide function-17 dashboard。
+3 Golf7 sportsvan ABS code generate.
Main menu-Guide function-03 ABS.
+4 Parameter files
Tiguan_PQ35_05KESSY_5K0959434E。
Golf7_19_5Q0907530M。
MQB_19_5Q0907530AF。
MQB_19_5Q0907530AH。
MQB_19_5Q0907530AJ。
MQB_19_5Q09075330AM。
Tiguan_MQB_14_5Q0907376A
PQ_19_7N0907530BG
AudiS3_19_530AJ
Dynaudio_10channels_5C6035456C
PassatB8_PDC_3Q0919298B
TuranL_19_5Q0907530AM
TuranL_10_5QA919298
Teramont_6C_AreaView
Tiguan_MQB_4B
Tiguan_MQB_6C_AreaView
Tiguan_PDC_5Q0919298C
PassatB8Variant_14_5Q0907376B
SharanGP_3C_5Q0907686B
PassatGP_19_7N0907530BL
NewSuperB_47
leon_fcm_3Q0907338
leon_A5_3Q0980654G
leon_pdc_5QA919294A
leon_44_5Q0909144S
Octavia_A5_5Q0980653G
Octavia_42_5Q4959593E
Octavia_A5_3Q0980654H
Octavia_52_5Q4959592E
Octavia_44_5Q0909144S
octavia_44_5Q0909144T
octavia_3C_5Q0907686B
passatB8_55_7P6907357C
Q3_RMC_8U1035183D
AudiQ5_6C_AreaView4M0907428E
AudiQ5_22_sportdiff_8K0907163B
AudiR8_MXB_4H4907357F,G
Fix others.
VAG MM007 latest update V2.2.3 (2018-02-08)
---------------------------------------------
+add function:
change MQB mileage,support cars:
Audi A3/S3 2014+
Audi Q2
VW Golf7
VW Polo(MQB)
VW Tiguan II
VW Touran II
VW crafter 2017+
VW Passat B8 without virtual cockpit
Skoda Octavia III 2014.07+
Skoda Rapid 2015.06+
Skoda Kodiaq
Skoda Superb III
Seat Ibiza/Ateca/Toledo 2015.06+
Attention
1: This type only support cars with cluster Continental/VDO. JCI type and virtual cockpit was not included.
2: please use upgrade kit, select 2.2.3 version firmware to update.
Read informative post: Xhorse Iscancar VAG-MM007 diagnosis test report (with pictures)

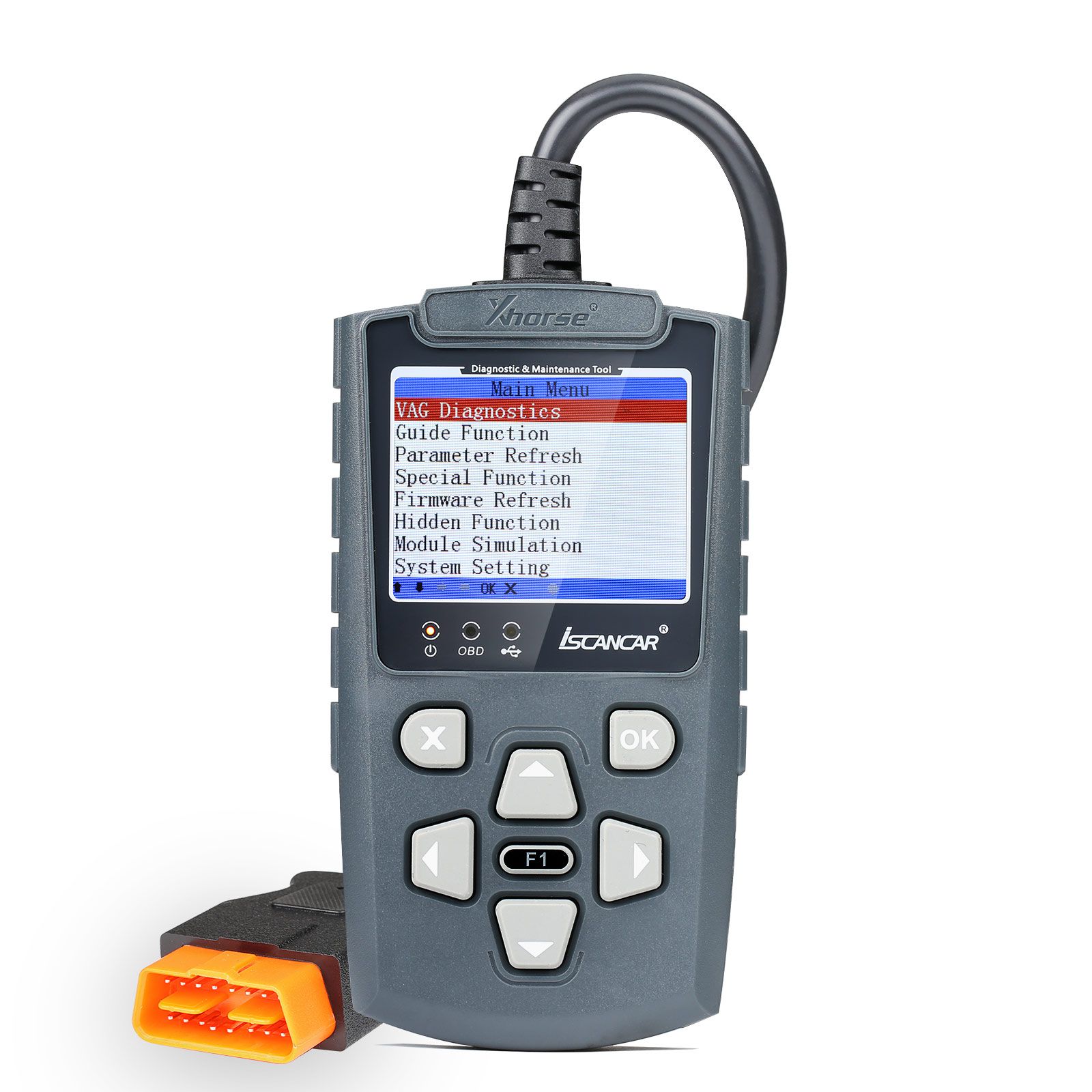

Picture 1: xhorse iscancar main menu
Picture 2: xhorse iscancar hardware version, software version, serial number.
How to use Xhorse Iscancar to write data record:
PQ35 gateway 7N0907530AN: active MKE. after writing data record, you can set MKE on dashboard.
MQB gateway 5Q0907530AJ: active MKE. after writing data record, you can set MKE on dashboard.
PQ35 replace KESSy 5K0959434B: before writing data, there’s a DTC “no basic setting”, the car can’t find keys. After writing data the DTC disappear, the car can find keys.
MQB replace KESSy 5Q0959435A: before writing data, there’s a DTC 10478040(invalid data record), the car can’t find keys. After writing data the DTC disappear, the car can find keys.
MQB front camera 5Q0980653G: before writing data, there’s a DTC 0649 (invalid data record), after writing data the DTC disappear.
MQB new ACC 5Q0907561A: before writing data, there’s a DTC” invalid data record”, after writing data the DTC disappear.
PQ Xenon 5M0907273F: before writing data, there’s a DTC 10478040 (invalid data record), after writing data the DTC disappear.
PQ tire pressure monitor 3AA907273D: before writing data, there’s a DTC 12652550 (invalid data record), the controller don’t work, after writing data the DTC disappear, you can set tire pressure on the dashboard.
MQB new DCC 5Q0907376: before writing date, there’s a DTC 813056 (invalid data record), after writing data the DTC disappear.
MQB parking assistance 5Q0919298K: before writing data, there’s a DTC 10478040 (invalid data record), after writing data the DTC disappear.
VAG-MM007 latest update V2.2.3 (2018-02-08)
---------------------------------------------
+add function:
change MQB mileage,support cars:
Audi A3/S3 2014+
Audi Q2
VW Golf7
VW Polo(MQB)
VW Tiguan II
VW Touran II
VW crafter 2017+
VW Passat B8 without virtual cockpit
Skoda Octavia III 2014.07+
Skoda Rapid 2015.06+
Skoda Kodiaq
Skoda Superb III
Seat Ibiza/Ateca/Toledo 2015.06+
Attention 1: This type only support cars with cluster Continental/VDO. JCI type and virtual cockpit was not included.
2: please use upgrade kit, select 2.2.3 version firmware to update.
Xhorse Iscancar VAG MM-007 Parameters:
Voltage: 5V USB / 12V OBD
LCD resolution: 320×240
USB standard: USB2.0
Working temperature: 0-60°C
OBD line length: 1.5meters
Power consumption: 80mA/12V
Iscancar VAG MM-007 Package including:
1pc x MM-007 Diagnostic and Maintenance Tool
