X-VCI for GM MDI
Top 5 Reasons to Get X-VCI for GM MDI:
1. Version: 7.14.37
2. Online Update: One Year Free Update Online
3. Support System: Windows XP
4. Requires Software Subscription to GM SPS (Service Programming System), Which Must Be Purchased Separately Via the ACDelco Tech Connect Website
5. X-VCI GM MDI (Multiple Diagnostic Interface) for ECU Reprogramming Utilizing J2534. Hardware Kit Only.
Note: The GM MDI will be required to perform diagnostics on selected NAO vehicles for model year 2009. Diagnostic software is scheduled to be released for the GM MDI during the fourth quarter of 2008.
Description:
X-VCI GM MDI (Multiple Diagnostic Interface) for ECU reprogramming utilizing J2534. Hardware kit only.
When diagnostics are introduced, the MDI will also get a remote data record capability. This permits recording data during road test, similar to the Tech 2 Snap Shot function. A trigger switch connector is provided for this purpose. Regulations require programming procedures to be compliant with SAE Recommended Practice J2534. The GM SPS is compliant with SAE Recommended Practice J2534, and the GM MDI is compliant with the portions of SAE J2534 that are applicable for GM vehicles.
In Future, the Tech 2 remains an essential tool through at least the 2010 model year. And X-VCI GM MDI can work with tech2win,it can replace the Tech2.So,V-vci can work with tech2Win and GDS2,It can support all the GM,OPEL,SAAB cars.
Note: Requires software subscription to GM SPS (Service Programming System), which must be purchased separately via the ACDelco Tech Connect website
Hardware Specification:
Processor: 32 BIT high speed ARM processor
Flash: 512KB
RAM: 64KB
Diagnostic Socket: J1962 OBD-II 16 connector
Wired socket: USB2.0/USB1.1 compatible
Light: 4 LED light, indicating work statuses
Power: Vehicle power input: DC 9V-36V, or USB DC 5V
Consumption: Below 1W
Size: L x W x H=166 x 95 x 33(mm)
Working Temperature: -20~ +70 °C
Storage Temperature: -40~ +85 °C

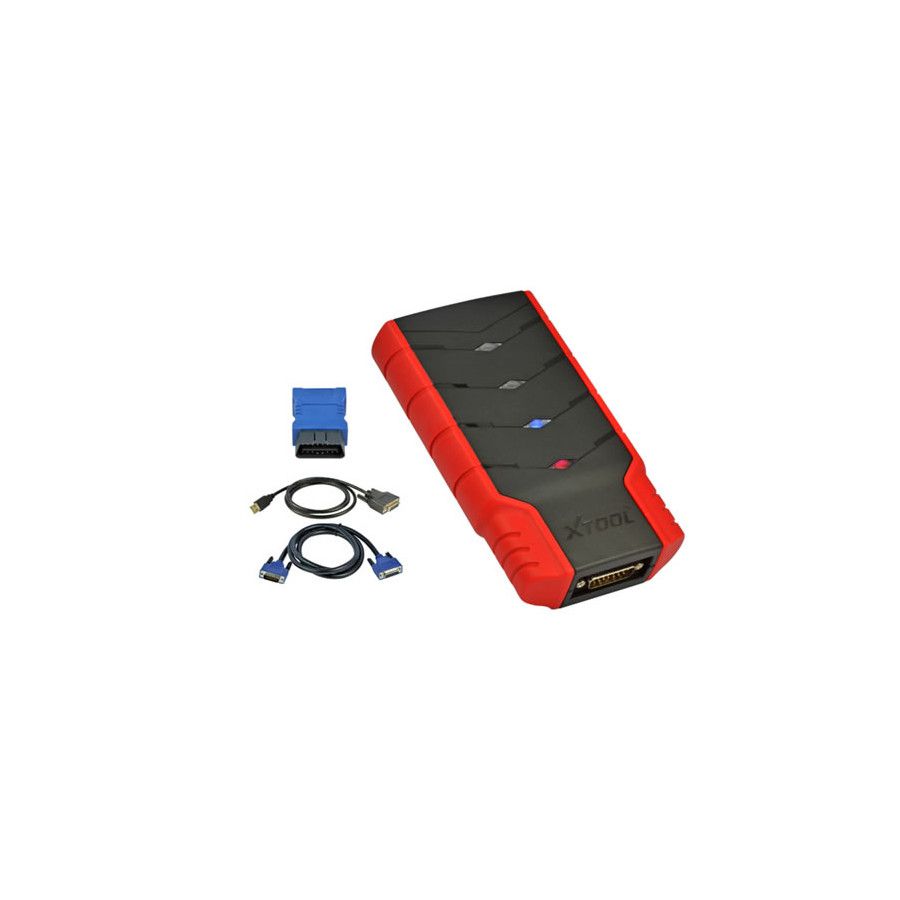

Package including:
1pc x X-VCI GM MDI Main unit
1pc x OBDII 16Pin Adapter
1pc x Main Cable
1pc x USB Cable
