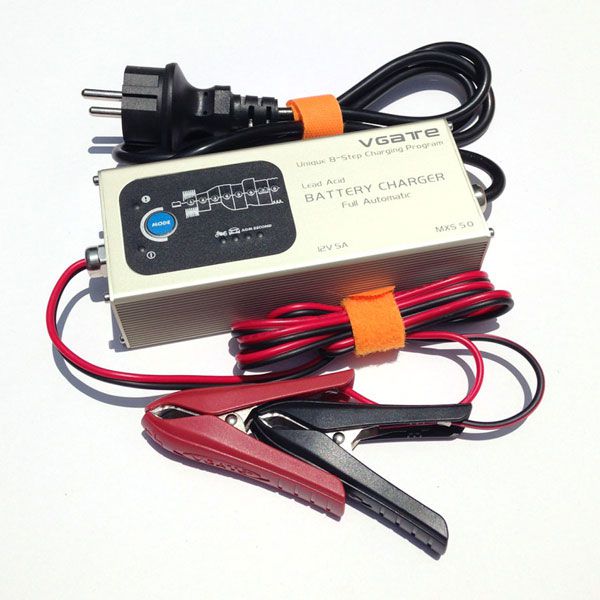

Vgate MXS 5.0 Smart Lead Acid Battery Charger - Fully Automatic 12V 5A with Temperature Compensation Car MXS 5.0
Top 5 reasons to get?Vgate MXS 5.0 Battery Charger:
1.Vgate MXS 5.0 is a fully automatic?"connect and forget" 12V charger?with?8 charging steps?and offers selectable?SMALL BATTERY,?and?NORMAL BATTERYprograms2.The?RECOND and AGM?options operate individually or together in?both SMALL BATTERY and NORMAL BATTERY?programs providing great flexibility for the user.
3.Wide?charging range?on all lead-acid battery types from?1.2Ah up to 110Ah?with additional maintenance capability to 160Ah
4.Splash proof and dust proof.
5.Vgate MXS 5.0 is easy and safe to use,?spark-free, vehicle electronics protected, is?reverse polarity protected and short circuit proof.
Vgate MXS 5.0 Battery Charger Description:
The MXS 5.0 is an advanced microprocessor controlled battery charger with automatic temperature compensation built in providing unrivalled performance on batteries from 1.2Ah up to 110Ah.
The MXS5.0 solves a broad range of battery problems and?it?is the ideal charger for the user with high demands.
Features of the MXS 5.0 include diagnosis of battery condition to establish if it can receive and retain charge, automatic desulphation programmer and a special reconditioning function that will revive and restore deeply discharged and stratified batteries.
AGM mode is perfect for maximizing performance and life of most Stop-Start batteries. The built in temperature compensation ensures
ideal charging performance even in the most extreme conditions. Float/Pulse maintenance makes the MXS 5.0 ideal for long-term maintenance.

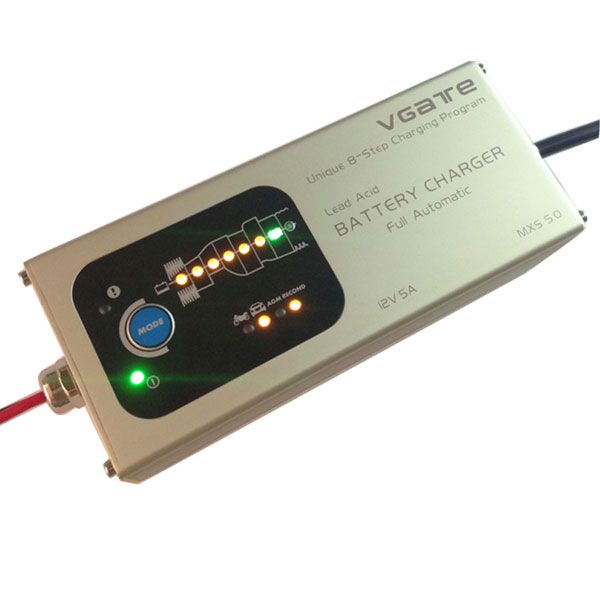

The entire process of battery testing, charging and maintenance is easily followed on the clear LED display.
?
The MXS5.0 solves a broad range of battery problems and?it?is the ideal charger for the user with high demands.
Features of the MXS 5.0 include diagnosis of battery condition to establish if it can receive and retain charge, automatic desulphation programmer and a special reconditioning function that will revive and restore deeply discharged and stratified batteries.
AGM mode is perfect for maximizing performance and life of most Stop-Start batteries. The built in temperature compensation ensures
ideal charging performance even in the most extreme conditions. Float/Pulse maintenance makes the MXS 5.0 ideal for long-term maintenance.
The entire process of battery testing, charging and maintenance is easily followed on the clear LED display.
?
| Volt | 12V |
| Rated Voltage AC | 220–240VAC, 50–60Hz |
| Charging voltage | SMALL, NORMAL: 14.4V, ? ?COLD/AGM: 14.7V, ? ? RECOND: 15.8V |
| Min battery voltage? | 2.0V |
| Charging current | 5A max |
| Current, mains | ?0.6A rms (at full charging current) |
| Back current drain | <1Ah/month |
| Ripple | <4% |
| Ambient temperature | -20°C to +50°C, output power is reduced automatically at high temperatures |
| Charger type | 8 step, fully automatic charging cycle |
| Battery types | All types of 12V lead-acid batteries ?(WET, MF, Ca/Ca, AGM and GEL) |
| Battery capacity | 1.2–110Ah up to 160Ah for maintenance |
| Temperature compensation | Built in charge voltage compensation according to ambient temperature |
| Dimensions | 150 x 65 x 38mm (L x W x H) |
| Weight | 0.6kg |
| Size? | 22*14*8cm |

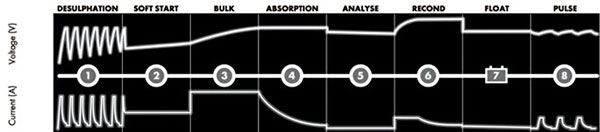

Detailed Unique 8-Step Charging & Maintenance Program as Following
STEP?1?DESULPHATION?Detects?sulphated?batteries.?Pulsing?current?and?voltage,?removes?sulphate?from?the?lead?plates?of?the?battery?restoring?the?battery?capacity.?
STEP?2?SOFT?START?
Tests?if?the?battery?can?accept?charge.?This?step?prevents?that?charging?proceeds?with?a?defect?battery.?
STEP?3?BULK?
Charging?with?maximum?current?until?approximately?80%?battery?capacity.?
STEP?4?ABSORPTION?
Charging?with?declining?current?to?maximize?up?to?100%?battery?capacity.?
STEP?5?ANALYSE?
Tests?if?the?battery?can?hold?charge.?Batteries?that?can?not?hold?charge?may?need?to?be?replaced.?
STEP?6?RECOND?
Choose?the?Recond?program?to?add?the?Recond?step?to?the?charging?process.?
During?the?Recond?step?voltage?increases?to?create?controlled?gassing?in?the?battery.?
Gasing?mixes?the?battery?acid?and?gives?back?energy?to?the?battery.?
STEP?7?FLOAT?
Maintaining?the?battery?voltage?at?the?maximum?level?by?providing?a?constant?voltage?charge.?
STEP?8?PULSE?
Maintaining?the?battery?at?95–100%?capacity.?The?charger?monitors?the?battery?voltage?and?gives?a?pulse?when?necessary?to?keep?the?battery?fully?charged.?

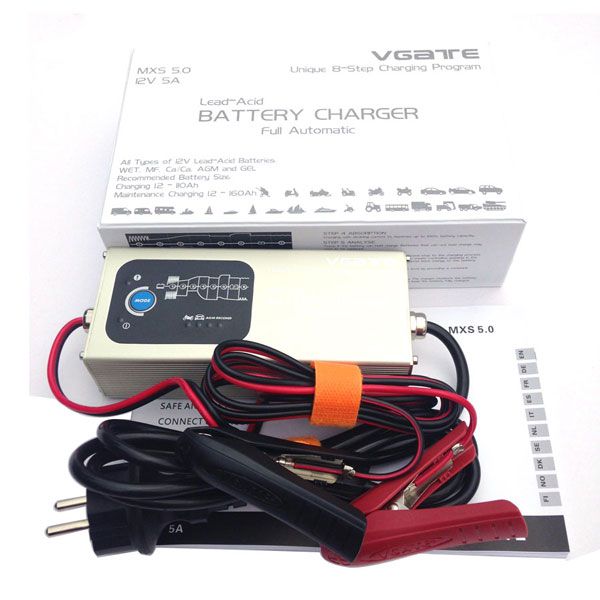

Package include:

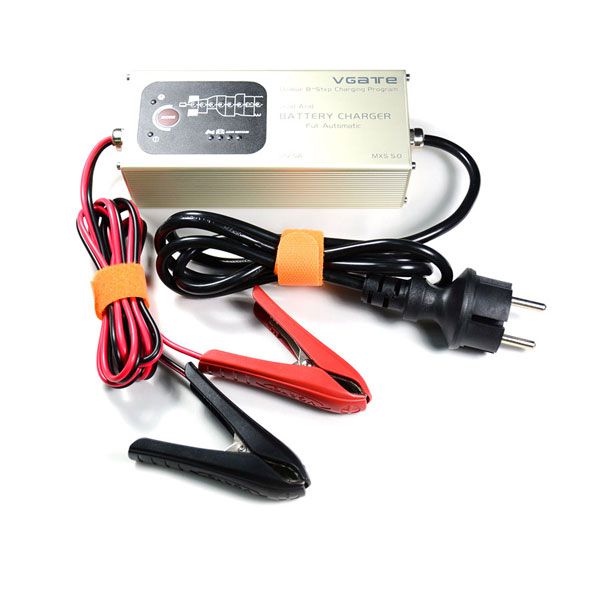

1pc x ?Smart Charger Unit
1pc x ?User Manual
?
