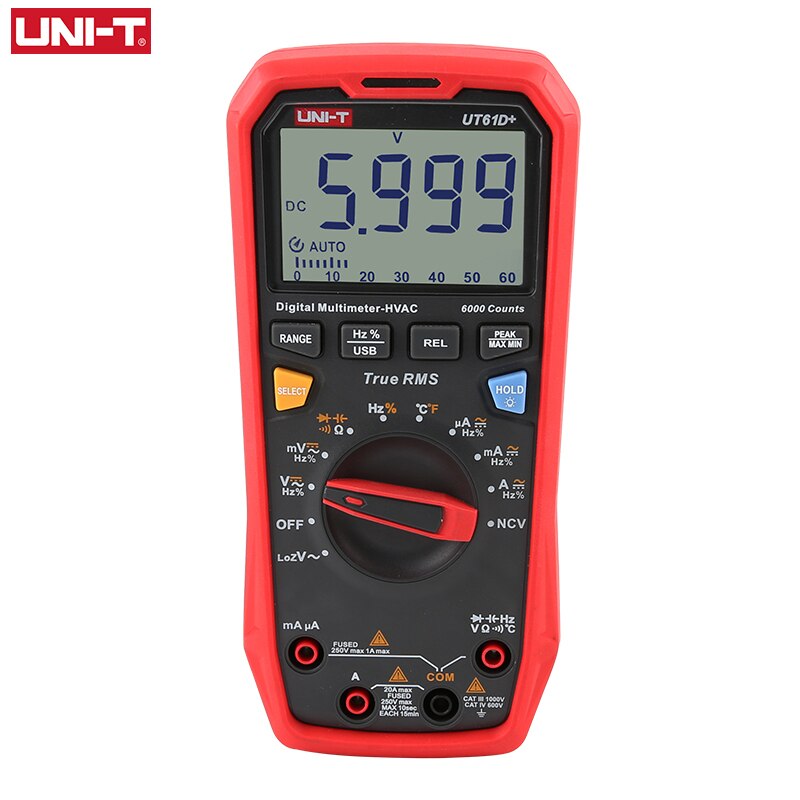

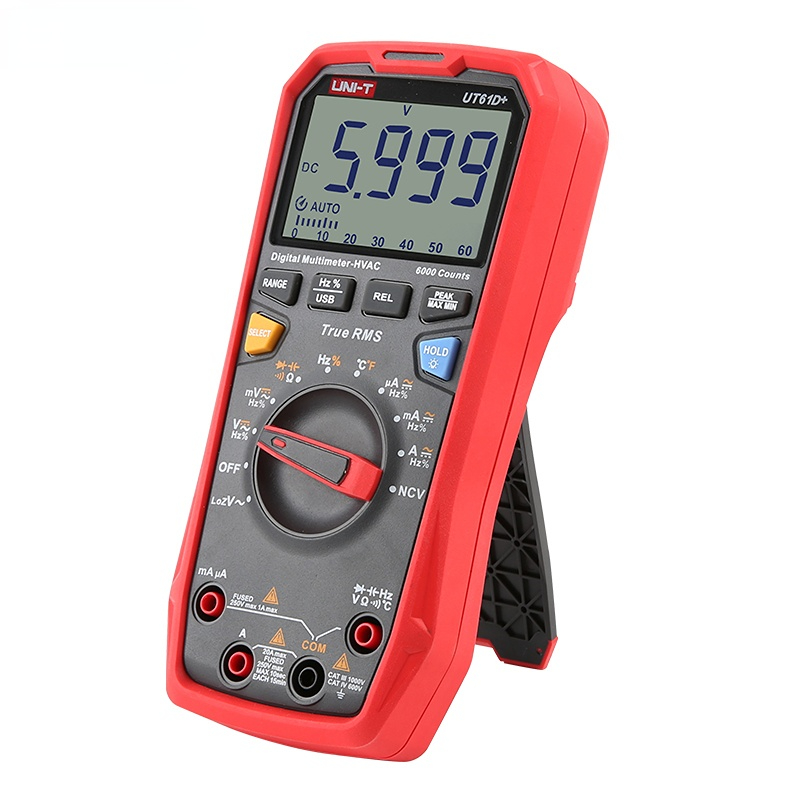

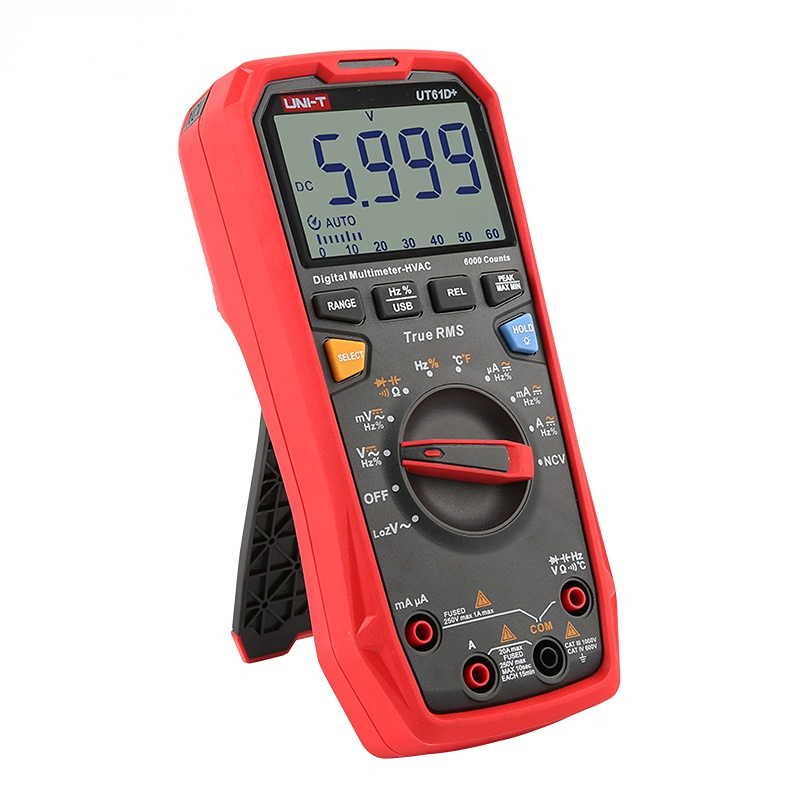

UT61D+ 1000V True RMS Digital Multimeter
UT61+ series are reliable true RMS digital multimeters with display counts 6000 (UT61B+/D+) and 22,000 (UT61E+). It can measure up to 1000V AC/DC.
Equipped with audible and visible alarm, this series can provide warning expecially when measuring high voltage/current and temperature.
Features:
● True RMS
● Data hold/backlight
● Max/Min/Relative mode
● USB communication
● Input protection
● Diode/continuity test
● NCV (audible/visual alarm)
● LoZ ACV
● Peak Hold
UT61+ series are reliable true RMS digital multimeters with display counts 6000 (UT61B+/D+) and 22,000 (UT61E+). It can measure up to 1000V AC/DC.
Equipped with audible and visible alarm, this series can provide warning expecially when measuring high voltage/current and temperature.
Features:
● True RMS
● Data hold/backlight
● Max/Min/Relative mode
● USB communication
● Input protection
● Diode/continuity test
● NCV (audible/visual alarm)
● LoZ ACV
● Peak Hold
| Specifications | Range | UT61D+ |
| Safety ratings | CAT III 1000V/CAT IV 600V | |
| AC voltage (V) | 1000V | ±(1%＋3) |
| DC voltage (V) | 1000V | ±(0.5%＋3) |
| AC current (A) | 20A | ±(1.2%＋5) |
| DC current (A) | 20A | ±(1%＋2) |
| Resistance (Ω) | 60MΩ | ±(1%＋2) |
| Capacitance (F) | 60mF | ±(3%＋5) |
| Frequency (Hz) | 10MHz | ±(0.1%＋4) |
| Duty cycle (%) | 0.1%~99.9% | ±(2%＋5) |
| Temperature (℃/℉) | -40℃~1000℃ | ±(1%＋3) |
| -40℉~1832℉ | ±(1%＋6) | |
| Display count | | 6000 |
| Bandwidth (Hz) | | 40Hz~1kHz |
| LoZ ACV | | √ |
| Peak Hold | | √ |
| Analog bar | | 31 |
| General Characteristics | ||
| Power | 1.5V battery (R03) x 4 (Not included) | |
| Product net weight | 350g | |
| Product size | 190mm x 90mm x 50mm | |

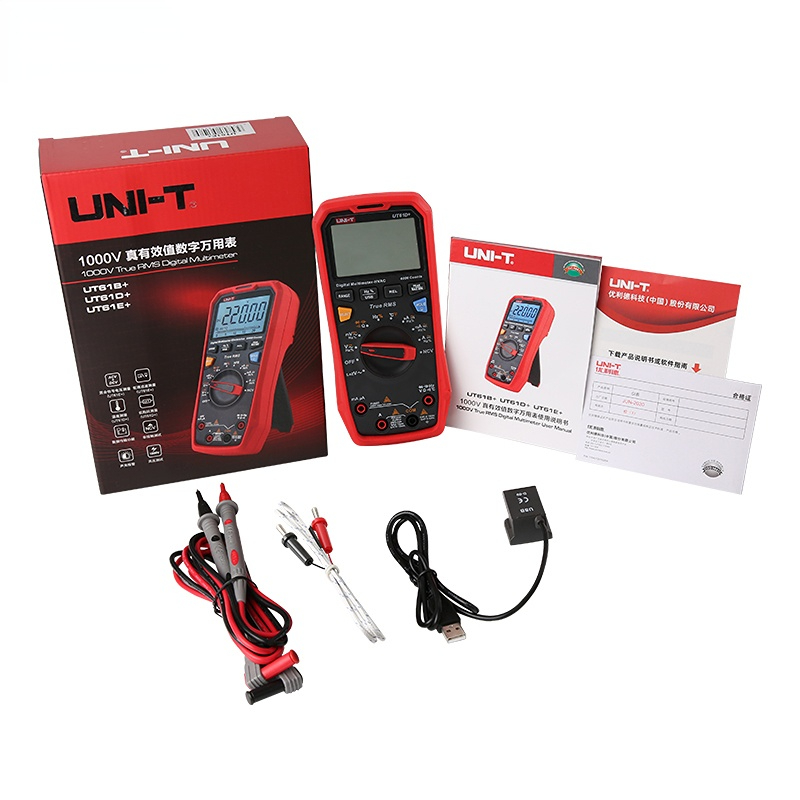

| Standard accessories | gold plated test leads, USB cable, temperature probe, English manual | |
| Standard individual packing | Gift box | |
