TK100 Portable Digital Multifunctional Moisture Meter For Grains,Chemical , Plastic Granule, Soap Powder, Soil
-
The Moisture Meter TK100 is a high-tech testing instrument in our company. The newly designed moisture meter with extensive probes suits to many materials moisture content testing,just as grains,chemical raw material, plastic granule, soap powder, soil, Chinese traditional medicine and other fibre materials.
-
The Moisture Meter TK100 utilizes the relationship between moisture content and electrical resistance to effectively measure the moisture content quickly and accurately.
-
*Display:4 digital LCD
-

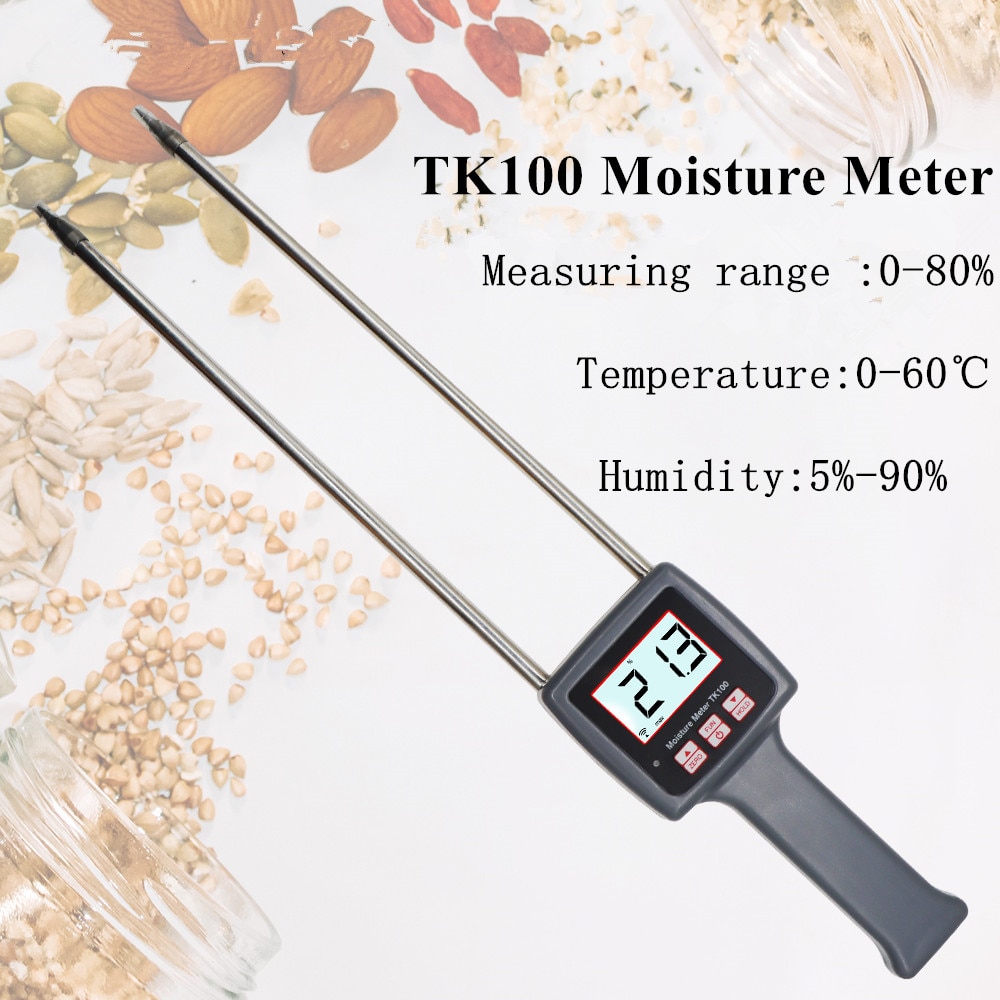

*Measuring range :0-80%
-
*Temperature:0-60
-
*Humidity:5%-90%
-
*Resolusion:0.1
-
*Accuracy: ± 0.5%n
-
*Operation: Electrical Resistance Method, Automatic temperature Compensation
-
*Power supply: 4x1.5 AAA size (UM-4) battery (not including batteries)
-

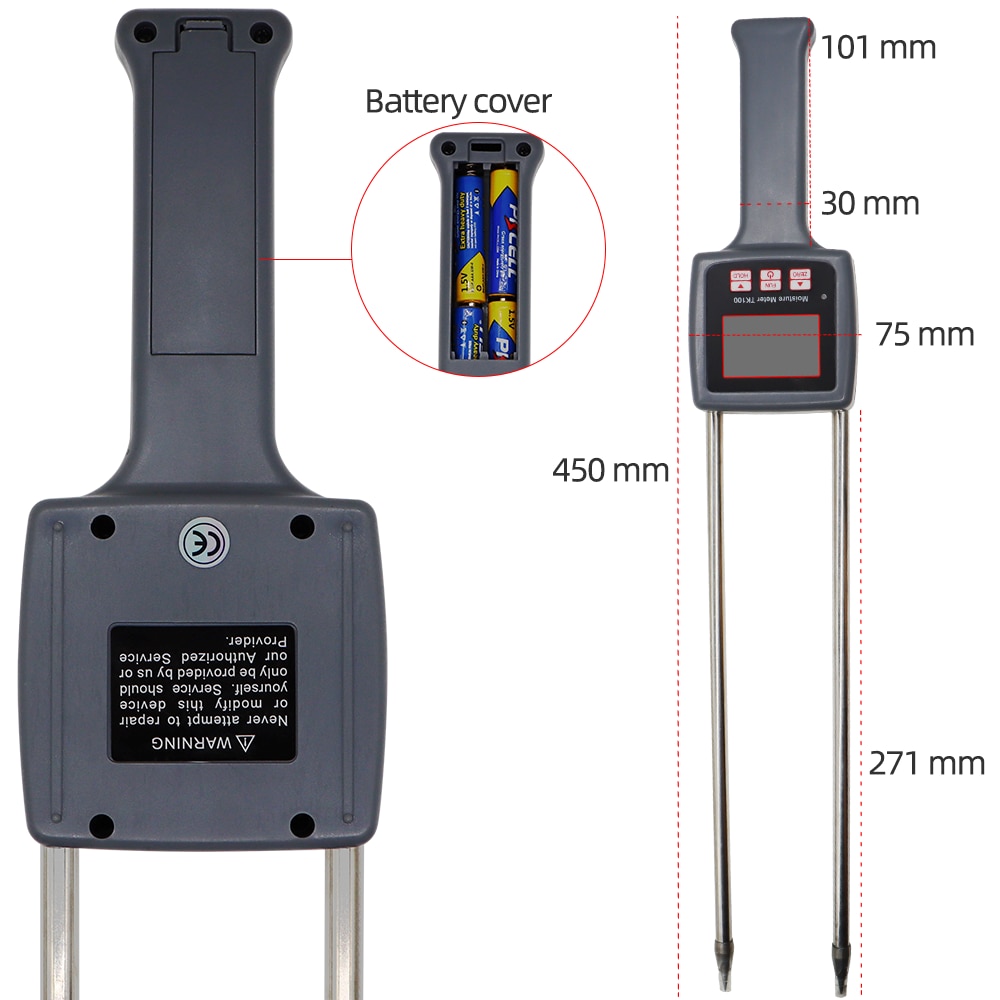

*Dimensions:460mm×75mm×35mm
-
*Weight:203g
-
*Guarantee:1 year
-

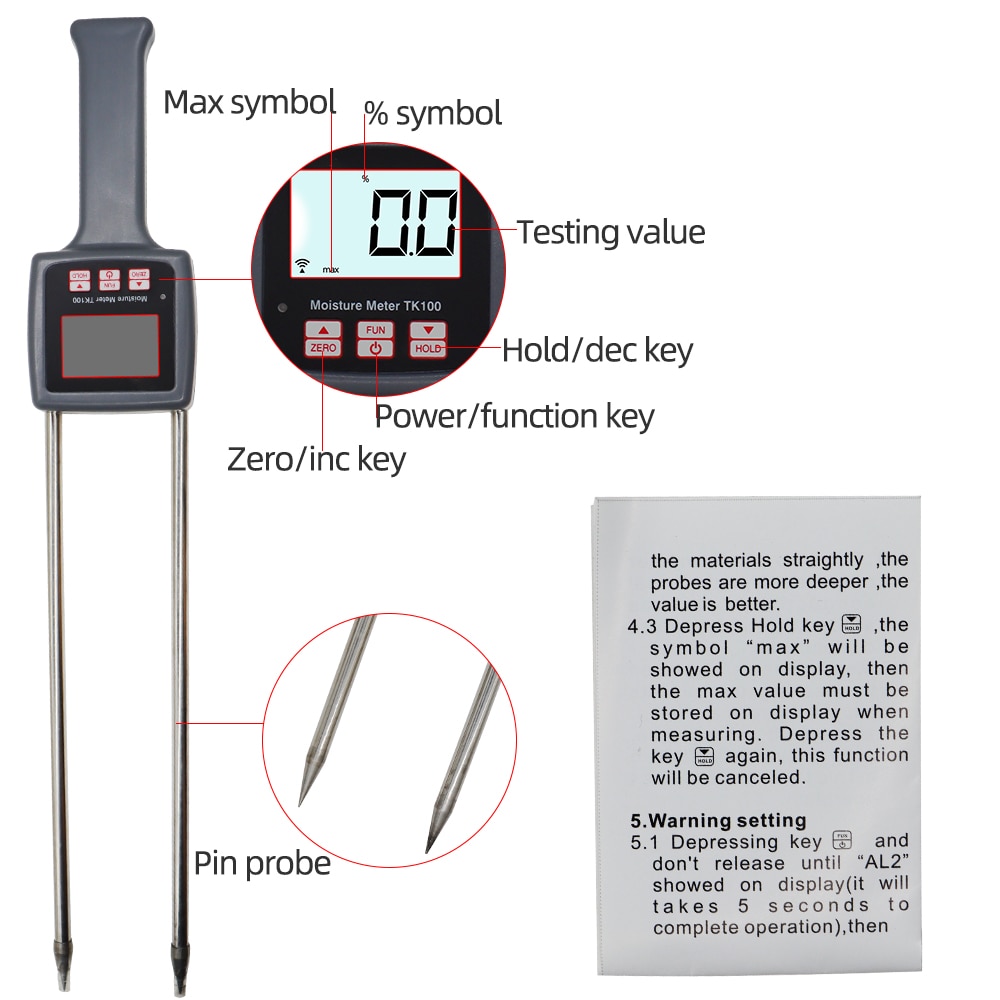

1, press the power button 3-10 boot,
The display shows zero, the measurement symbol is displayed
Shown in the lower left corner of the screen;
On the show is not zero, you need to school
zero. When the test is zero, please let the probe hang
Empty, press the zero key 3-6 to complete the zero.
In the process of zero calibration, the probe can not touch
Touch any object, otherwise the zero is not allowed
Indeed School zero can be eliminated due to ambient temperature
Humidity changes and other factors caused by the measurement
error.
-
2, hand the instrument, the measurement probe will be vertical
Inserted into the measured object, to be digital stable
After the show the value of the sawdust
Of the moisture measurements. Probe inserted deep
The deeper the depth (please try all the probe
Insert), the more accurate the measured value,
The smaller the error.
-
3, press the button 3-11, left on the screen
Side appears "MAX" symbol, measured
The maximum value will remain on the display
On the screen, if canceled, press again
3-11 key can be.
-
4, manually shut down press the button 3-10 straight
To loose when the display appears OFF
Hand to shut down. 5 minutes machine
When the test is in operation, it is automatically turned off
Machine, to achieve energy-saving features.
-
5, replace the battery
When the screen appears low voltage symbols
, Please replace the battery in time. hit
Open the battery cover, according to the positive and negative direction
Fitted with four batteries on the 7th.
-
11, press the 3-10 key do not let go, straight
-
1*TK100
-
1* User Manual
