THINKCAR THINKTOOL PAD 10 OBD2 Automotive Scanner Full System Diagnose Tool 34+Reset Service OBD 2 Car Diagnostic Tools

It is composed of a group of partners who love car modification, are proficient in car maintenance and master mobile Internet technology. 80% of our team meMBers have technical background and have been engaged in technology research and development in related fields for many years.We are committed to the production of the world's smallest OBD products, with most complete functions, the cost control to the extreme, the function to the most perfect. User’s experience is our priority. By launching practical vehicle tools with Internet functions, we build up the "THINKCAR" brand series of products and services.

Topology Mapping displays a system distribution diagram of the vehicle control modules

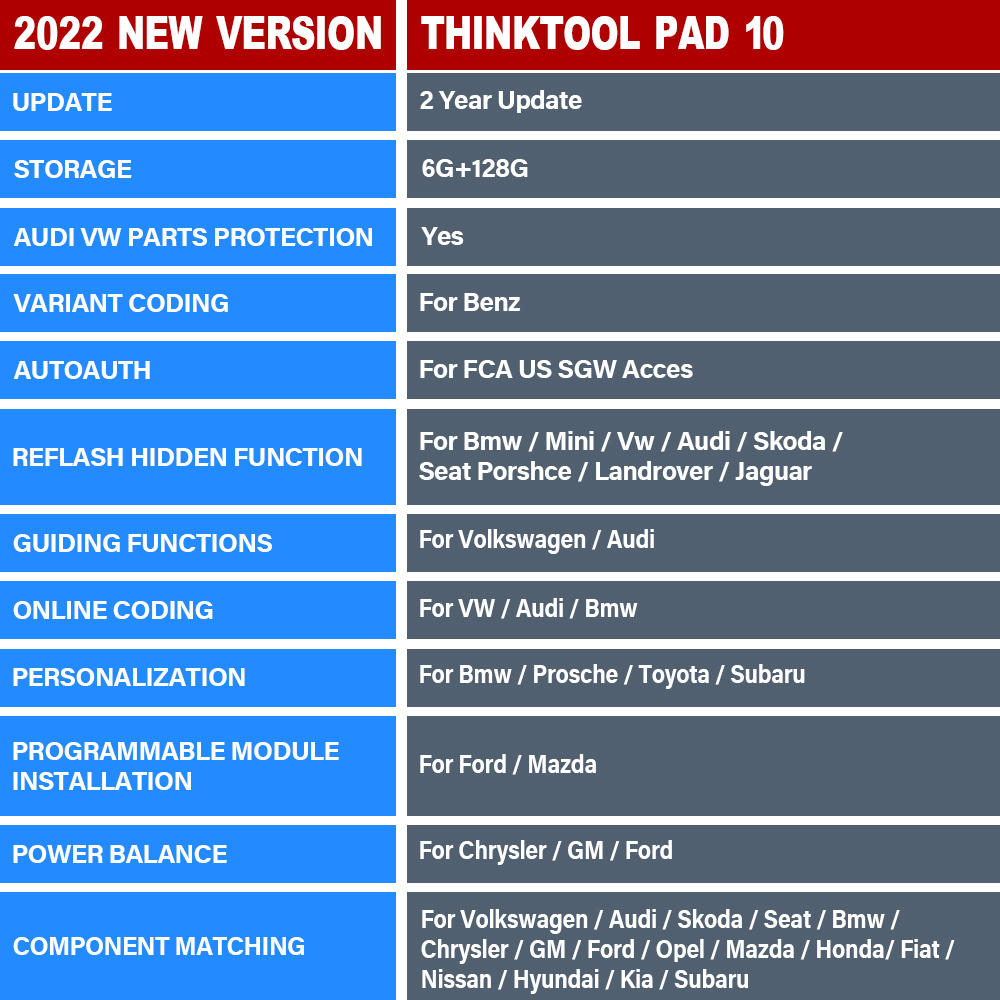

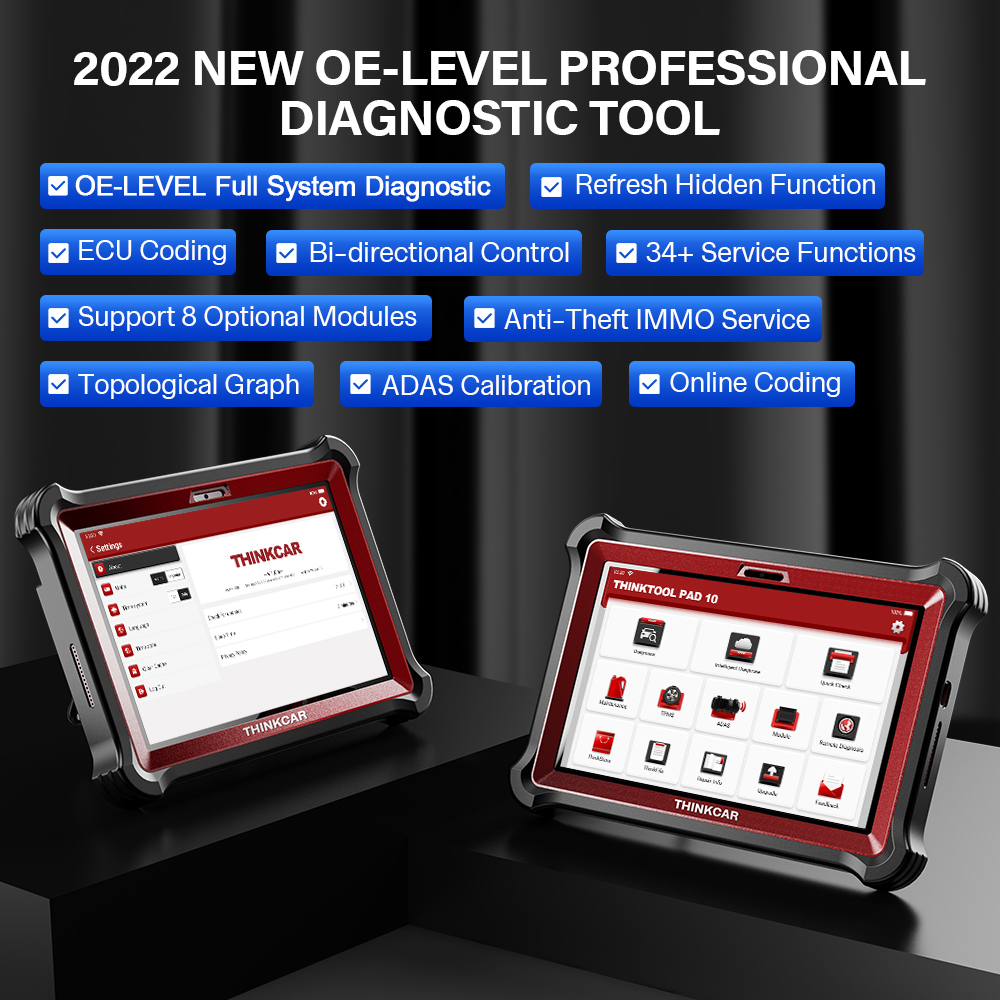

•Advanced ECU coding & Active Tests/Bi-Directional Control/ADAS Calibration/TPMS Programming

•Support CAN FD protocol (you need to buy can fd connector yourself)

•34+ Hot Reset Services

• Support online coding (for Volkswagen, for Audi, for BMW）

• Support offline coding for mercedes-BENZ

• Support guidance function (for Volkswagen,for Audi)

• Support thinkcar ADAS advanced driver assistance system calibration tool

• Support intelligent topology map display, quickly lock system error codes

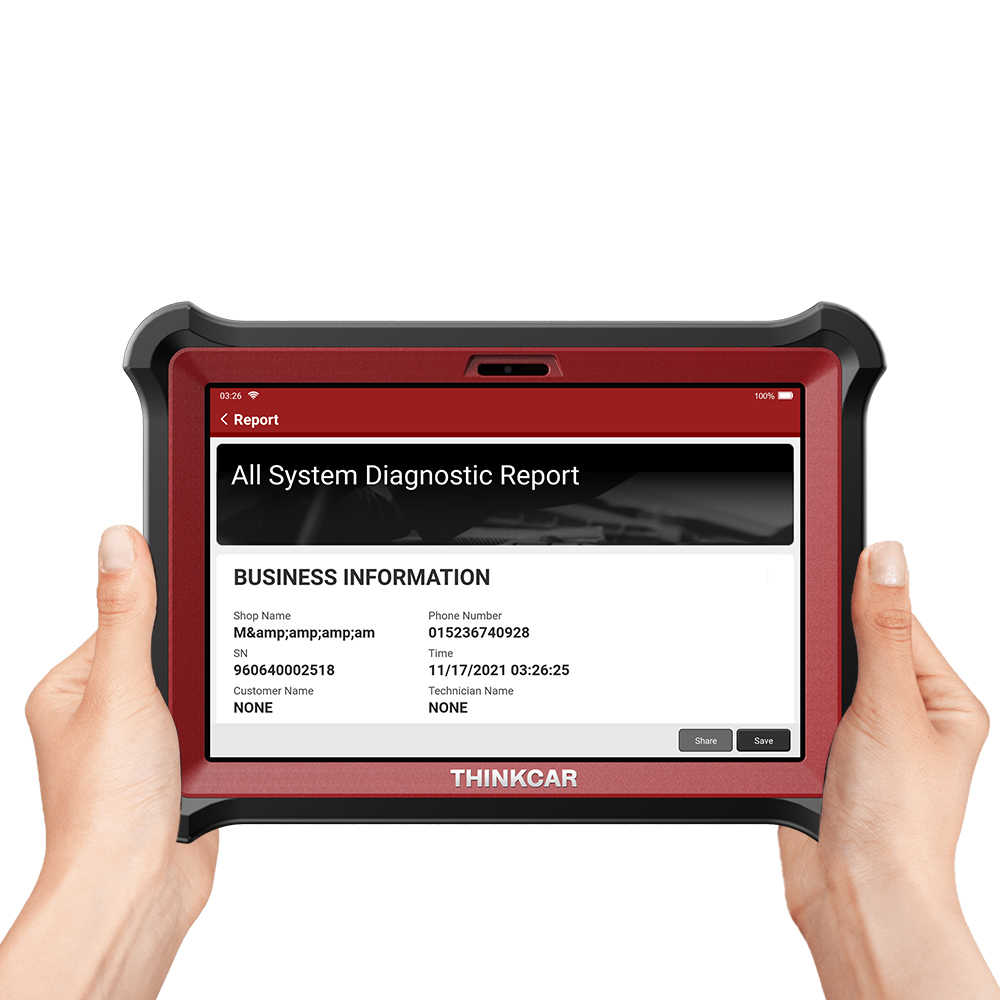

•Diagnostic Report Generate and Share

•120+ Brands, and 10,000+ Models

•Auto VIN & DTCs Lookup

•Data Stream Recording & Screen Recording Function

•One click WiFi free update for 2 years,the old version can still be used after two years, all functions are not affected

•Lifetime free remote technical diagnosis

•Advanced Features:

Tablet with 8.0 MP Pixel Rear Camera, 10-inch HD IPS Touch Screen: A brighter, clearer Screen let you " Deep Dive into Diagnostics"

Andriod 10.0 Operating System: make you smooth operation, Anti-Slip & Anti-Grease protective sleeve design

Brilliant Battery Life: 5100mAh/ 3.8V

6GB RAM / 128GB ROM

Multi-PID Live Data Graphing in 1 Screen: One screen can display 12 data stream (Graphic and textual

NOTE: Topology is not universal to all the vehicles, please check VIN for compatibility before you place order!

12 IN 1 DATA STREAM CHARTS

ThinkTool PAD 10 automotive scan tool can work on 120+ US domestic, European and Asian vehicle makes to scan all available modules like ECM(engine), TCM(Transmission), ABS, SRS(Airbag), Brake System, BCM(Body Control Module), EPS(Eletronic Power Steering), HVAC(heat, ventilation and air conditioning), Radio, TPM and etc to perform OE level diagnostics to read and clear codes, view live data stream, perform active tests, and retrieve ECU information.

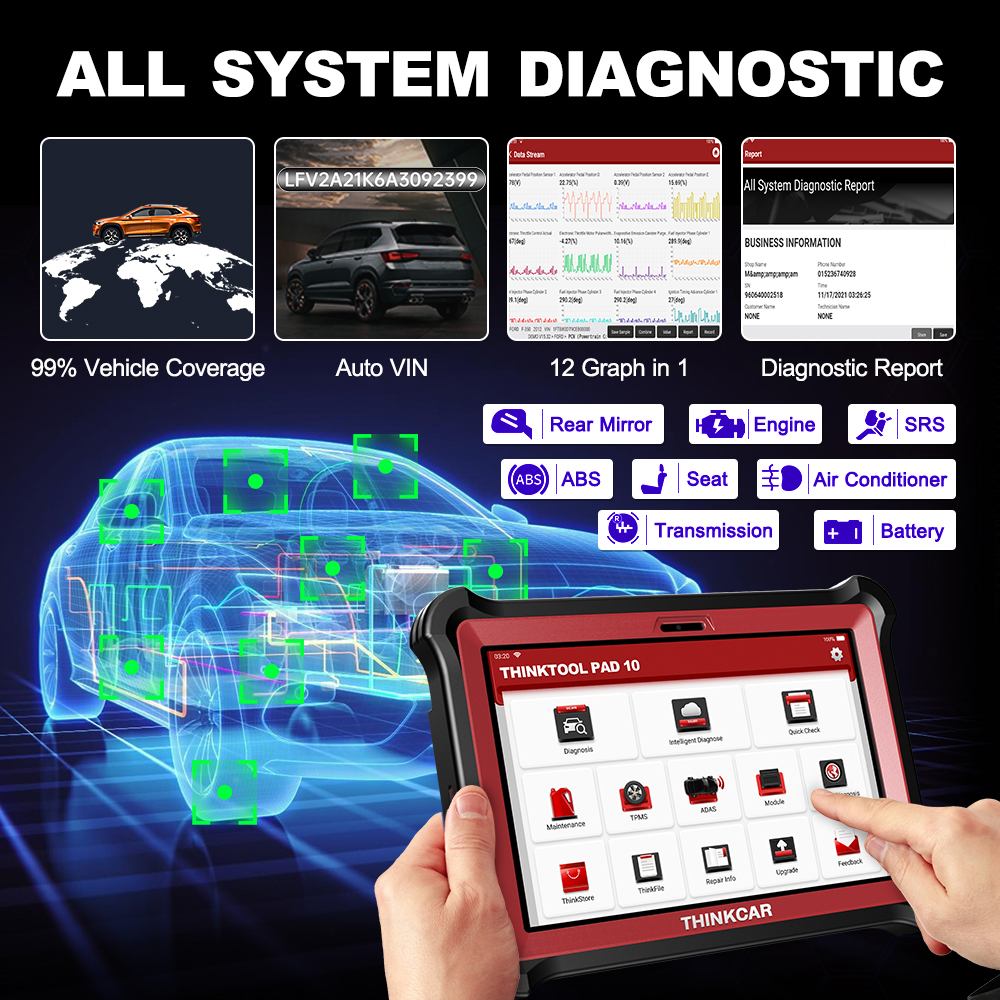

Full system diagnosis of intelligent topograph (identification of normal and fault equipment)

Thinktool PAD 10 read DTCs and data streams, perform active test, ECU Coding .
For instance: Engines/Transmission/Airbags/Immobilizer/Key Coding/ABS/Cruise Control/Instruments/ Self Leveling Suspension systems/Seats/Doors/Gateway/Steering Angle/Air Suspension/Body Systems/Electronic Power Steering & Motor Assisted/Power Steering/Tyre Pressure/Rain Sensors/4WD System/Stabilizer/Intelligent Parking Assist/Door Motors/Audio Systems/Air Conditioning/Tiptronic/Anti Theft/Soft Top/Headlamp Leveling/Central Locking/Automatic Clutch/ DPF Reset/Electric Windows/Plip Programming/Heated Rear Window/Xenon Headlights/Wash Wipe/Fuel Burning Heater/Transfer Box/Seat Memory/Oil Life Service Reset/Sliding Doors/Electronic Throttle/Navigation System/Rollover Sensor/Cruise Control/ Multi Function Steering Wheel/Aux Heating/Electronic Parking Brake/Clutch Electronics and etc.

1.Oil Reset
The lightening of the car maintenance light indicates that the vehicle needs maintenance.Reset the cluster or driving time to zero after the maintenance,so the maintenance light will go out and the system will start a new maintenance cycle.

2.DPF Regeneration
DPF Regeneration is used to clear PM(Particulate Matter)from the DPF filter through continuous coMBustion oxidation mode(such us high temperature heating conbustion,fuel additive or catalyst reduce PM ignition conbustion)to stabilize the filter perfornance.
DPF regeneration may be performed in the following cases:
a)The exhaust back pressure sensor is replaced.
b)The PM trap is removed or replaced
c)The fuel additive nozzle is removed or replaced
d)The cataytic oxidizer is removed or replaced.
e)The DPF regeneration MIL is on and maintenance is performed.
f)The DPF regeneration control module is replaced.

3.AFS(headlamp) Reset
The feature is used to initialize the adaptive headlamp system.According to the aMBient light intensity,the adaptive headlamp system may decide whether to automatically turn on the headlamps,and timely adjust the headlamp lighting angle while monitoring the vehicle speed and body posture.

4.EGR Adaption
This function is used to learn the EGR(Exhaust Gas Recirculation)valve after it is cleaned or replaced.

5.Brake-pad Reset
If the brake pad wears the brake pad sense line,the brake pad sense line sends a signal sense line to the on-board computer to replace the brake pad.After replacing the brake pad,you must reset the brake pad.Otherwise,the car alarms.
Reset must be performed in the following cases:
a)The brake pad and brake pad wear sensor are replaced.
b)The brake pad indicator lamp is on.
c)The brake pad sensor circuit is short,which is recovered.
d)The servo motor is replaced.

6.IMMO Service
To prevent the car being used by unauthorized keys,the anti-theft key matching function must be performed so that the immoblizer control system on the car identifies and authorizes remote control keys to normally use the car.When the ingnition switch key,ignition switch,combined instrument panel,ECU,BCM,or remote control battery is replaced,anti-theft key matching must be performed.

7.Windows Calibration
This feature is designed to perform door window matching to recover ECU initial memory,and recover the automatic ascending and descending function of power window.

8.Coolant Bleeding
Use this function to activate the electronic water pump before venting the cooling system.

9.Steering Angle Reset
To reset the steering angle,first find the relative zero point position for the car to drive in straight line.Taking this position as reference,the ECU can calculate the accurate angle for left and right steering.After replacing the steering angle position sensor ,replacing steering mechanical parts(such as steering gearbox,steering column,end tie rod,steering knuckle),performing four-wheel alignment,or recovering car body,you must reset the steering angle.

10.Injector Coding
Writing injector actual code or rewrite code in the ECU to the injector code of the corresponding cylinder so as to more accurately control or correct cylinder injection quantity.After the ECU or injector is replaced,injector code of each cylinder must be confirmed or re-coded so that cylinder can better indentify injectors to accurately control fuel injection.

11.Seat Calibration
This function is applied to match the seats with memory function that are replaced and repaired.

12.Transport Mode
In order to reduce power consumption,the following functions may be disabled,including limiting the vehicle speed,not waking up the door opening network,and disabling the remote control key,etc.At this time,the transport mode needs to be deactivated to restore the vehicle to normal.

13.Battery Matching
This function enables you to perform a resetting operation on the monitoring unit of vehicle battery,in which the original low battery fault information will be cleared and battery matching will be done.
Battery matching must be performed in the following cases:
a)Main battery is replaced.Battery matching must be performed to clear original low battery information and prevent the related control module from detecting false information.If the related control module detects false information,it will invalidate some electric auxiliary functios,such as automatic start&stop function,sunroof without one-key trigger function,power window without automatic function.
b)Battery monitoring sensor.Battery matching is performed to re-match the control module and motoring sensor to detect battery power usage more accurately,which can avoid an error message displaying on the instrument panel.

14.Airbag Reset
This function resets the airbag data to clear the airbag collision fault indicator.When the vehicle collides and the airbag deploys,the corresponding fault code of the colision data appears,the airbag indicator lights up,and the fault code can't be cleared.Since the data inside the airbag computor is disposable,it is required that all new accessories must be ewplaced,but after performing this function,the data of the airbag computer can be recovered and the fault code can be cleared,the airbag light will go out,and the airbag computer can continue to use.

15.Tyre Reset
This function is used to set the size parameters of the modified or replaced tire.

16.Cluster Reset
a)cluster reset is to coopy,write,or rewrite the value of kilometers in the chip of cluster by using a car diagnostic computer and data cable,so that the cluster shows the actual cluster.
b)Usually when the cluster is not correct due to the damaged vehicle speed sensor or cluster failure,it is necessary to do cluster reset after maintenance.

17.ABS Bleeding
When the ABS contain air,the ABS bleeding function must be performed to bleed the brake system to restore ABS brake sensitivity.If the ABS computer,ABS pump,brake master cylinder,brake cylinder,brake line,or brake fluid is replaced,the ABS bleeding function must be performed.

18.Gear Learning
The crankshaft position sensor learns crankshaft gear machining tolerance and saves to the computerto more accurately diagnose engine misfires. lf gear learning is not performed for a car equipped withDelphi engine, the MlL turns on after the engine is started.The diagnostic device detects the DTC P1336'gear not learned'. In this case, you must use the diagnostic device to perform gear learning for the car.After gear learning is successful, the MIL turns off. After the engine ECU, crankshaft position sensor, orcrankshaft flywheel is replaced, or the DTC 'gear not learned" is present, gear learning must be performed.

19.Language Change
This function is used to change the system language of the vehicle central control panel.

20.Adblue Reset
After the diesel exhaust treatment fluid (car urea) is replaced or filled up,urea reset operation is required.

21.Elec. Throtle Adaption
Elec. Throttle Adaption is to utilize the car decoder to initialize the throttle actuator so that the learningvalue of the ECU returns to the initial state.By doing these, the movement of the throttle (or idle motor)can be more accurately controlled, thus adjust the intake volume.


22.Suspension Matching
This function can adjust the height of the body.When replacing the body height sensor in the air suspension system,or coontrol module or when the vehicle level is incorrect,you need to perform this function to adjust the body height sensor for level calibration.

23.A/F Reset
This function is applied to set or learn Air/Fuel ratio parameters.

24.Nox Sensor Reset
Nox sensor is a sensor used to detect the content of nitrogen oxides (NOx)in engine exhaust.If the NOx fault is re-initialized and the NOx catalytic converter is replaced,it is necessary to reset the catalytic converter learned value stored in the engine ECU.

25.TPMS Reset
After the tire pressure MIL turns on and maintenance is performed, the tire pressure resetting functionmust be performed to reset tire pressure and turn off the tire pressure MIL.Tire pressure resetting mustbe performed after maintenance is performed in the following cases: tire pressure is too low, tire leaks, tirepressure monitoring device is replaced or installed, tire is replaced, tire pressure sensor is damaged,andtire is replaced for the car with tire pressure monitoring function.


26.A/T Learning
This function can complete the gearbox self-learning to improve gear shifting quality. When the gearbox isdisassembled or repaired (after some of the car battery is powered off), it will lead to shift delay or impactproblem. In this case, this function needs to be done so that the gearbox can automatically compensateaccording to the driving conditions so as to achieve more comfortable and better shift quality.


27.Sunroof Initialization
This function can set the sunroof lock off,closed when it rains,sliding/tilting sunroof memory function,temperature threshold outside the car etc.

28.Stop/Start Reset
This function is used to open or close the automatic start-stop function via setting the hidden function in ECU(provided that the vehicle has a hidden function and supported by hardware)

29. Motor angular position sensor calibration

30. Engine power balance

31. High-voltage battery health inspection

32. Smart Cruise Control Calibration

33. Automatic air conditioning initialization

34. GPF regeneration (particle trap regeneration)

Real-time scanning of lane line and the information of the vehicle ahead.When the vehicle deviates from the original lane or is too close to the vehicle in front,the system can quikly detect and judge,and sound an alarm to remind the driver,so as to avoid deviating from the lane or braking in time.A traffic accident occurred.

The advanced coding function is used to re-flash the vehicle control modules, which allows you to update the computer software on the vehicle to the latest version, as well as to reprogram adaptive data for certain components after making repairs or replacements, providing solutions for the issues of drivability, fuel efficiency, power loss, fault codes, durability of mechanical parts etc

Active Test capability and is capable of performing Active Tests to access vehicle-specific subsystems and component tests. The tester outputs commands to the ECU to drive the actuators in order to determine the integrity of the system or parts by reading the ECU data, or by monitoring the operation of the actuators.

NOTE:need to buy thinkcar G1 sensor in separately

There is no complicated operation, and there will be a full operation prompt when starting up

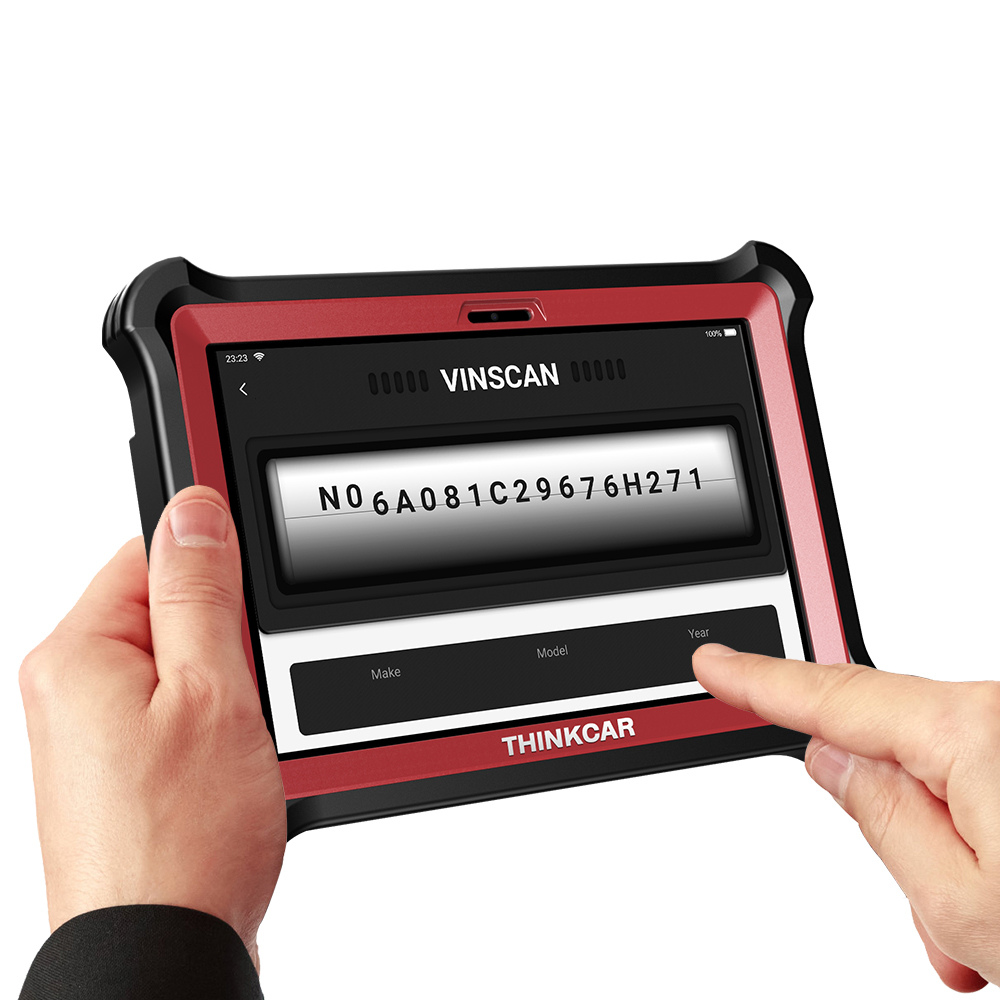

This OBD2 scanner uses Auto VIN technology, to provide quick and accurate car identification in one touch, without the manual input of vehicle make, model, and year data. After that, this scan tool will lead to diagnostics where you can choose the systems to scan.

As well as providing a diagnostic report, it is convenient for you to compare the condition of the car at different times

English, German, Italian, Japanese, Russian, French, Spanish, Portuguese, Polish, Turkish, Dutch, Hungarian, Chinese(traditional)

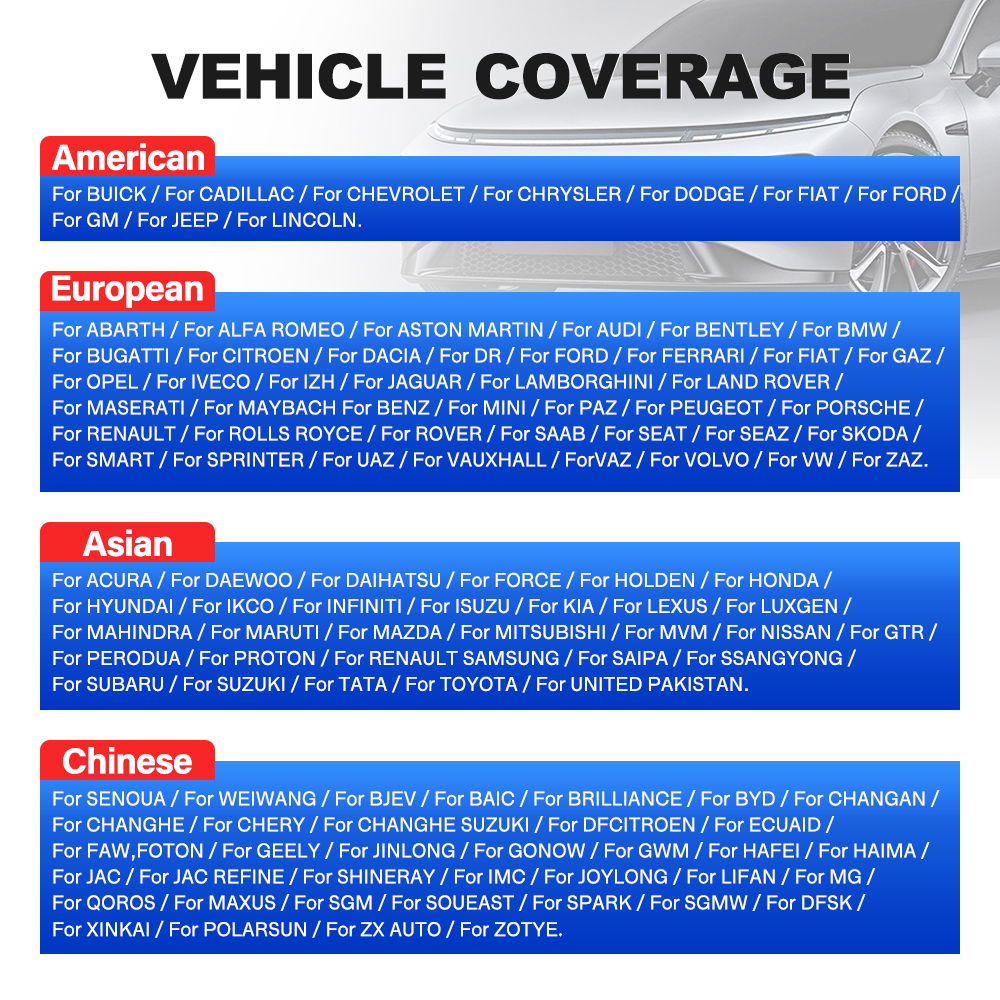

American:for BUICK,for CADILLAC,for CHEVROLET,

for CGRYSLER,for DODGE,for FORD

for GM,for JEEP,for LINCOLN


European:for ABARTH,for ALFA ROMEO,for ASTON MARTIN

for AUDI,for BENTLEY,for BMW

for BUGATTI,for CITROEN,for DACIA

for DR,for FORD(EUROPE),for FERRARI

for FIAT,for GAZ,for OPEL(SOUTH AFRICA)

for IVECO,for IZH,for JAGUAR

for LAMBORGHINI,for LANCIA,for LAND ROVER

for MASERATI,for MAYBACH,for mercedes-BENZ,

for MINI,for OPEL,for PAZ

for PEUGEOT,for PORSCHE,for RENAULT

for ROLLS ROYCE,for ROVER,for SAAB

for SEAT,for SEAZ,for SKODA

for SMART,for SPRINTER,for VAUXHALL

for VOLVO,for VW


Asian:for ACURA,for DAEWOO,for DAIHATSU

for HONDA,for HYUNDAI,for IKCO

for INFINITI,for ISUZU,for KIA

for LEXUS,for LUXGEN,for MAHINDRA

for MARUTI,for MAZDA,for MITSUBISHI

for MVM,for NISSAN,for GTR(NISSAN)

for PERODUA,for PROTON,for SAMSUNG

for RENAULT SAMSUNG,for SAIPA

for SSANGYONG,for SUBARU,for SUZUKI

for TATA,for ISUZU(THAILAND),for TOYOTA

for UNITED PAKISTAN


Chinese:for SENOUA(BAIC),for WEIWANG(BAIC),for BJEV

for BAIC,for BRILLIANCE,for BYD

for CHANGAN,for CHANGHE,for BUICK(CHINA)

for CHERY,for CHANCHE SUZUKI

for DFCITROEN,for ECUAID,for FAW(TIANJIN,

for FOTON,for GEELY,for JINLONG

for GONOW,for GWM,for HAFEI

for HAIMA,for JAC,for JAC REFINE

for SHIERAY,for JMC,for JOYLONG

for LIFAN,for MG(SAIC),for QOROS

for MAXUS,for SGM,for SOUEAST

for SPARK,for SGMW,for DFSK

for XINKAI,for POLARSUN,for ZX AUTO,for ZOTYE


Russian:for UAZ,for VAZ,for ZAZ


Brazil:for Fiat,for GM


Malaysia:for PERODUA,for PROTON


India:for MARUTI,for MAHINDRA,for TATA


Austrilia:for HOLDEN,for FORD

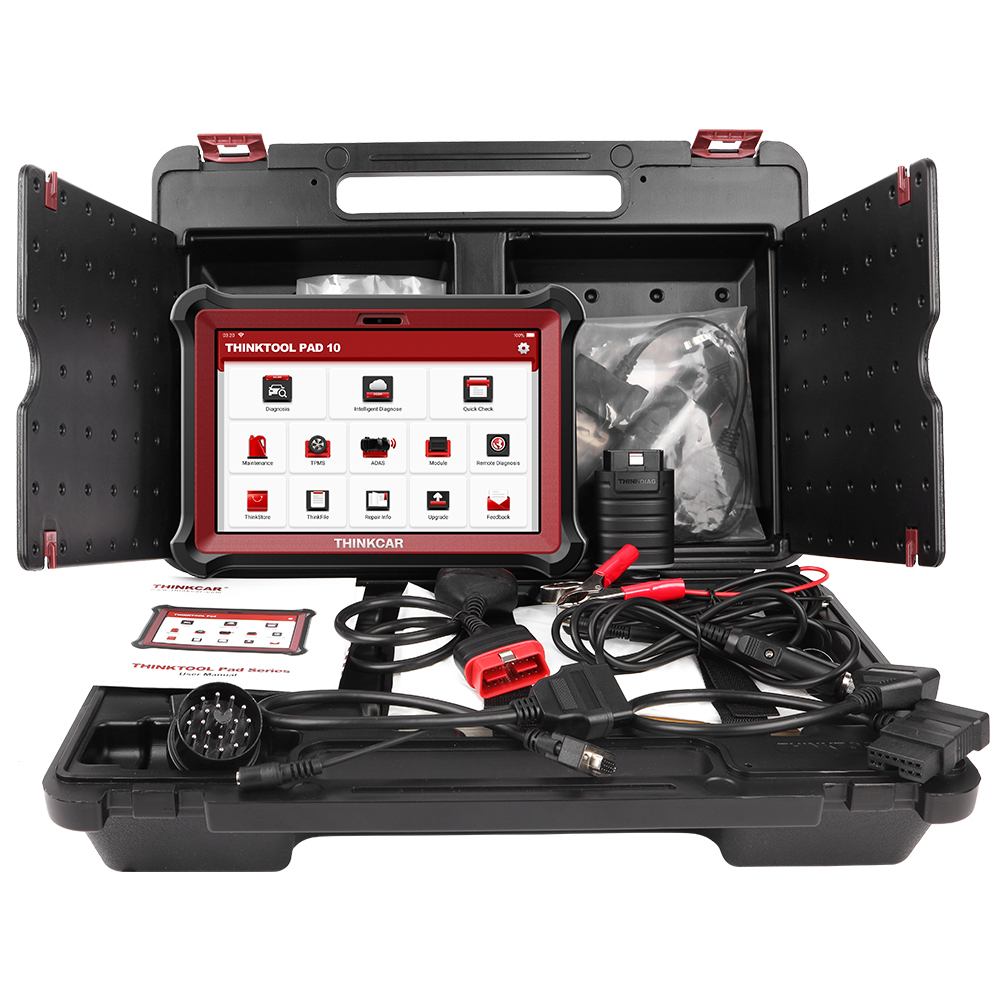

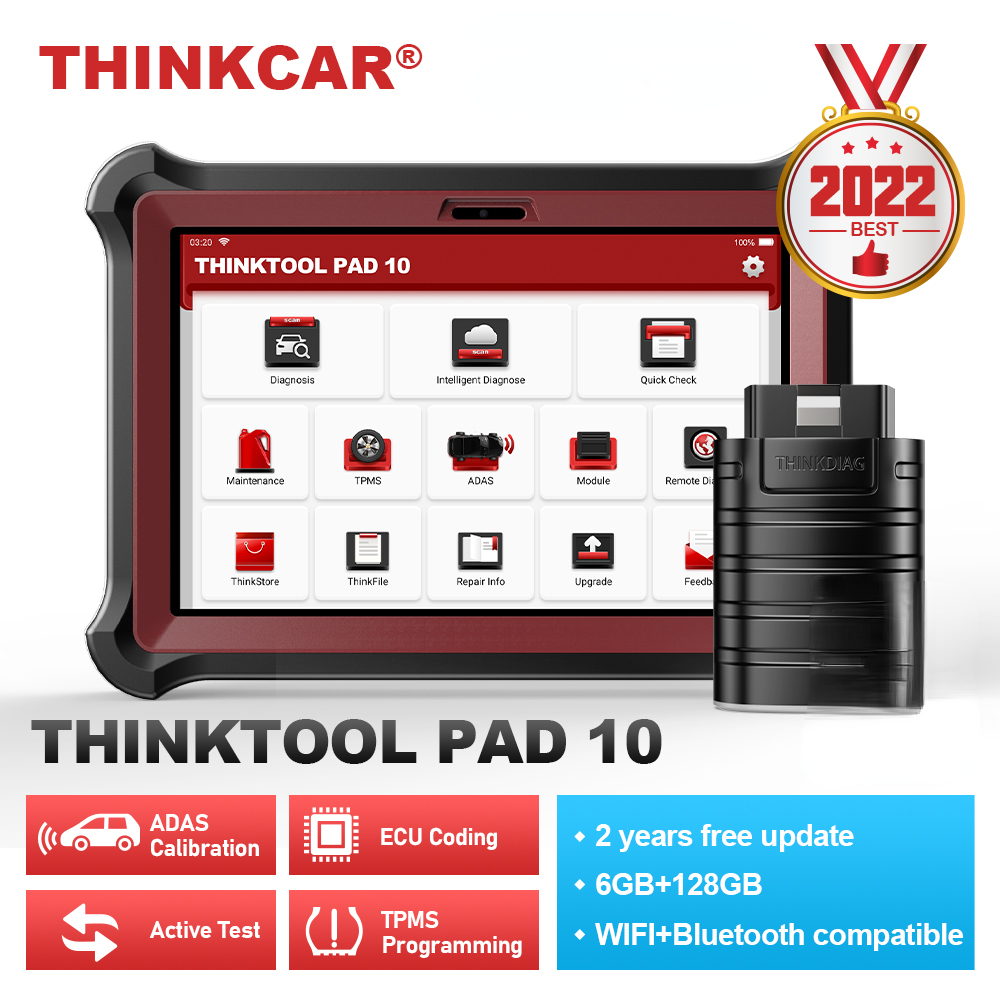

1.THINKCAR THINKTOOL PAD 10
2.VCI
3.BZ-38
4.TA-22
5.Clipper Cable(LCDSS)
6.Cigarette lighter Cord
7.TA-17
8.G/V-12
9.Fuse(AC250V/5A,5*20MM)*4PCS
10.Fuse(AC250V/5A,6*30MM)*2PCS
11.B-20
12.CR-6
13.Charging Cable(Type C USB)
14.NN-14+16
15.HA-3
16.Three in one plug(US,UK,EU plug)
17.OBD 1 Adaptor
18.FT-3
19.M/H-12+16
20.Diagnostic Extension Cable
21.Password Letter
22.User Manual
23.Packing list
