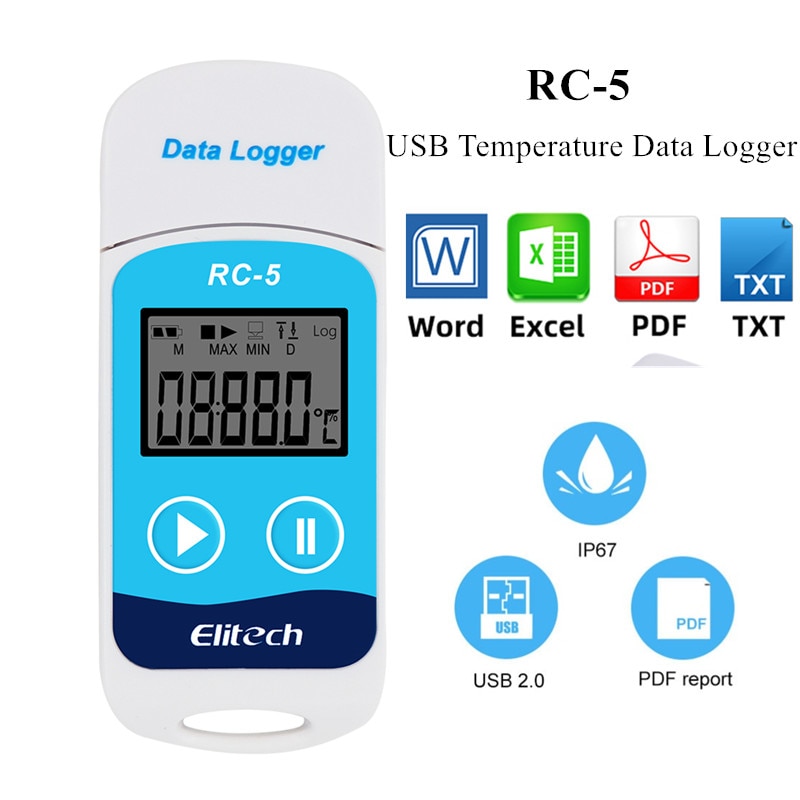

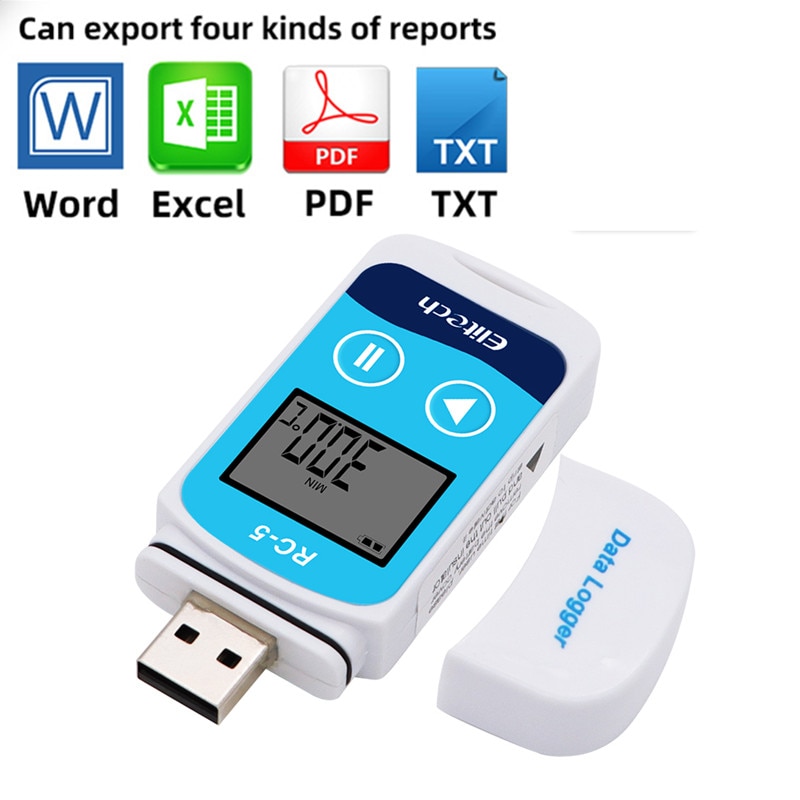

RC-5 tempu04 tempu03 USB Temperature Data Logger High-precision Datalogger Recorder 32000 reading Point Temperature Recorder for Warehouse Storage, Refrigerated Transport, Laboratory

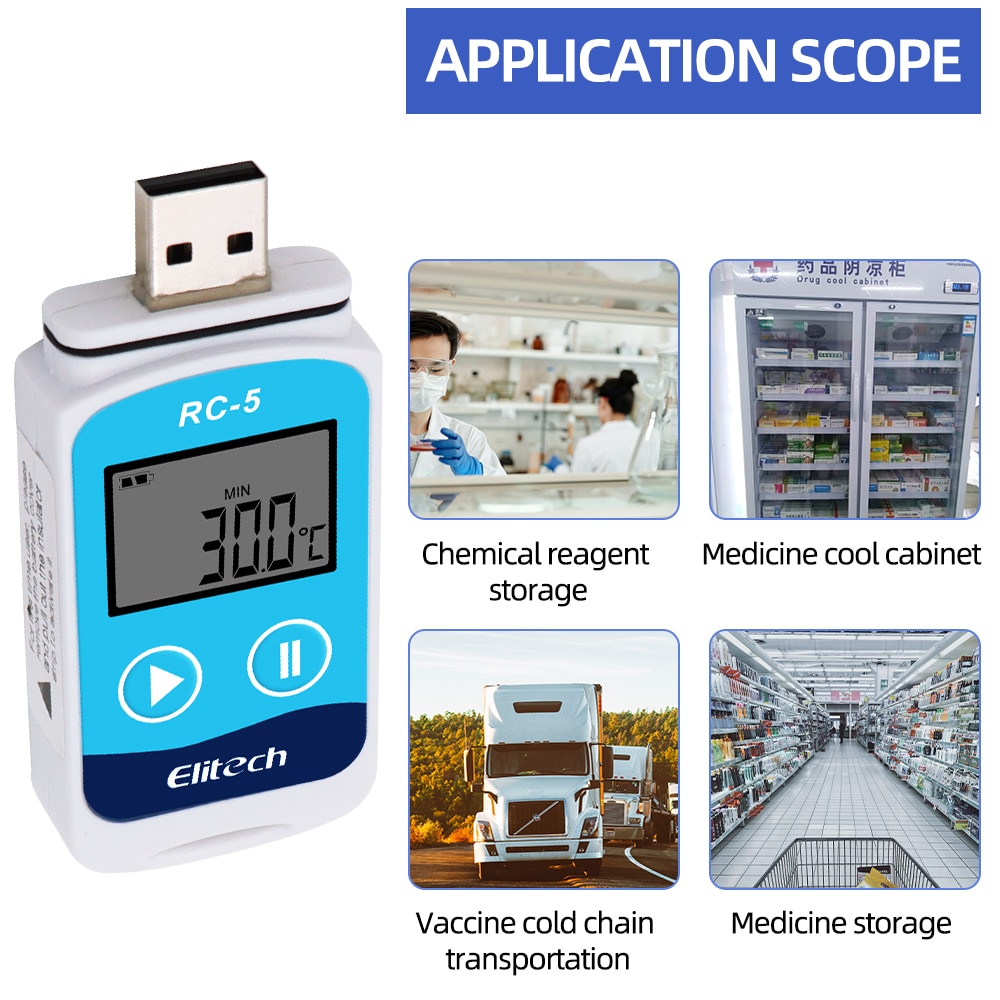

This date logger is mainly used for temperature recording during storage and transportation of foodstuff, medicine, chemicals and other products, especially widely used in all links of warehousing, logistics and cold chain, such as refrigerated containers, refrigerated trucks, refrigerated package, cold storage, laboratory, etc.
-

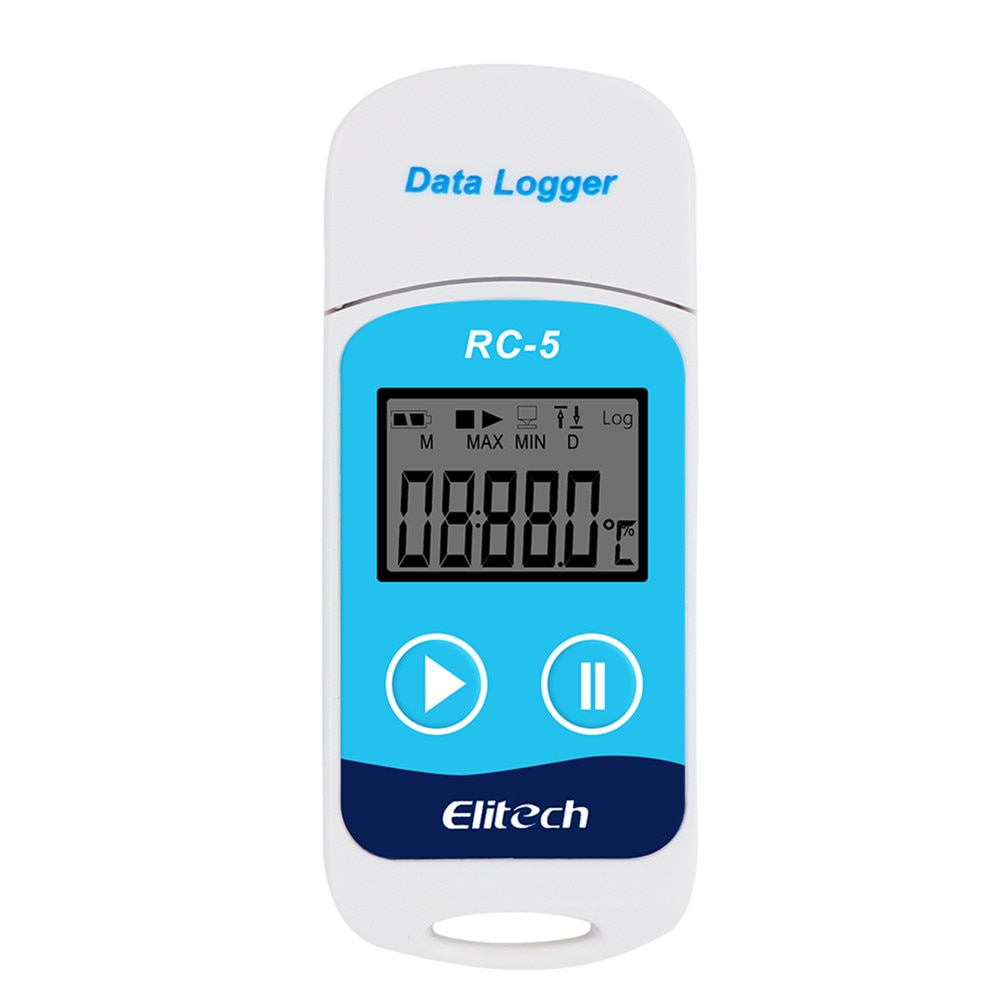

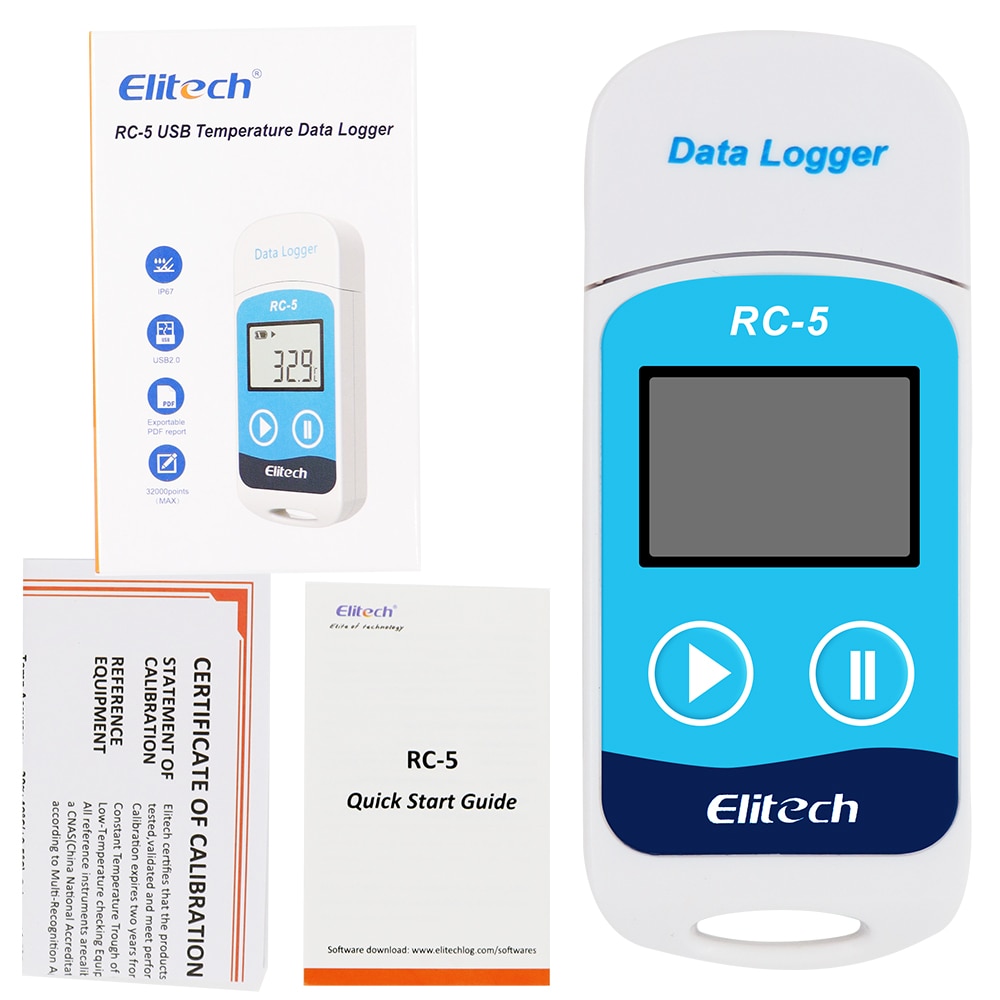

Model:RC-5
-
Type: Digital Temperature Data Logger
-
Power supply: Built-in wide temperature CR2032 button battery or USB interface
-

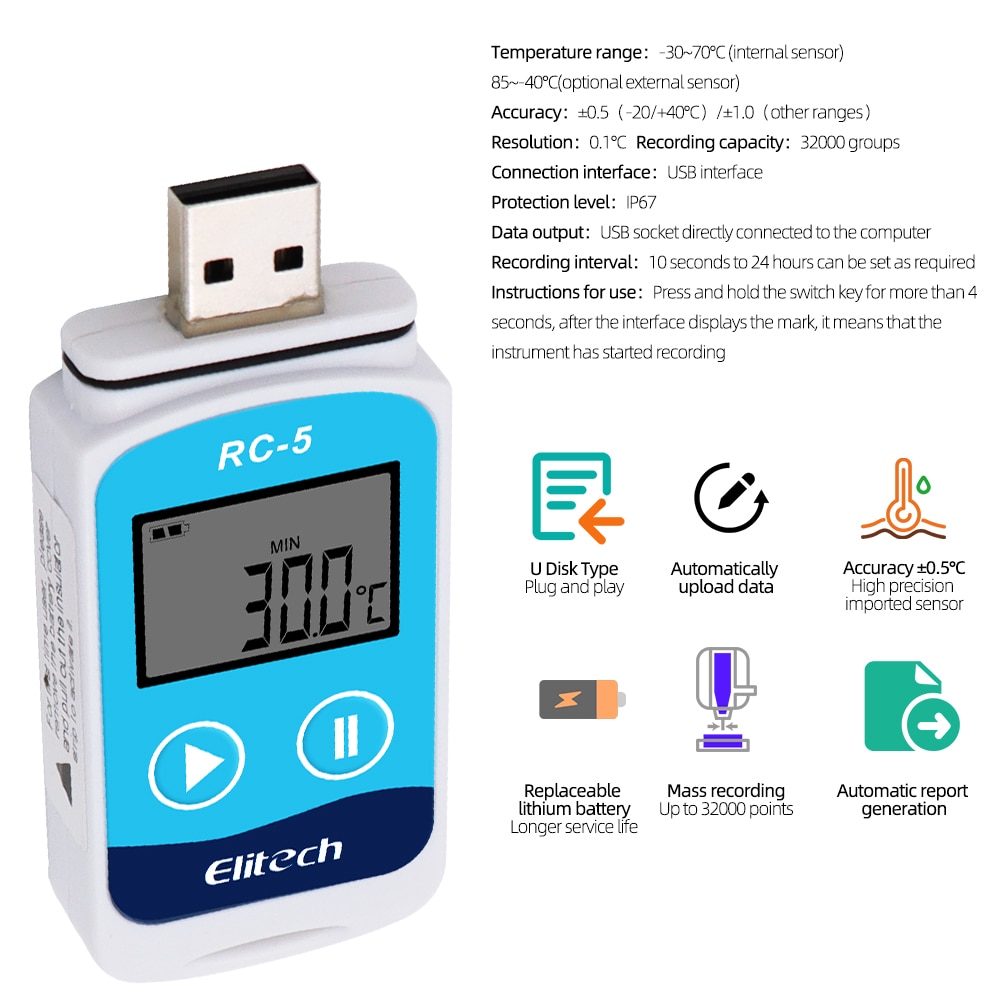

Temperature range: -30°C ~ 70°C
-
Temperature measurement accuracy: -20 °C ~ 40 °C Within the temperature range, the accuracy is ± 0.5 °C; the remaining ± 1 °C
-

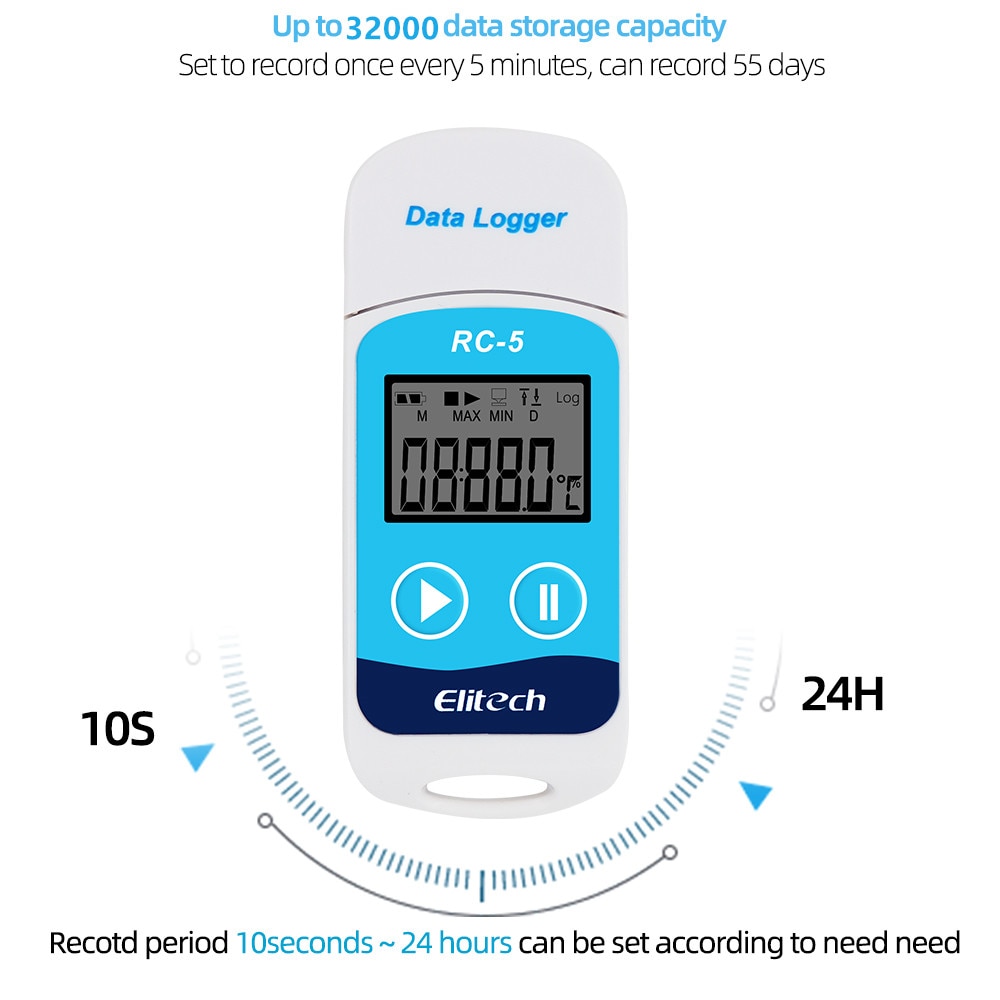

Recording capacity: 32000 sets
-
Record interval: 10 seconds to 24 hours can be set as needed
-
Resolution: 0.1 °C
-
Sensor: Built-in NTC thermistor
-
Data Interface: USB Interface
-

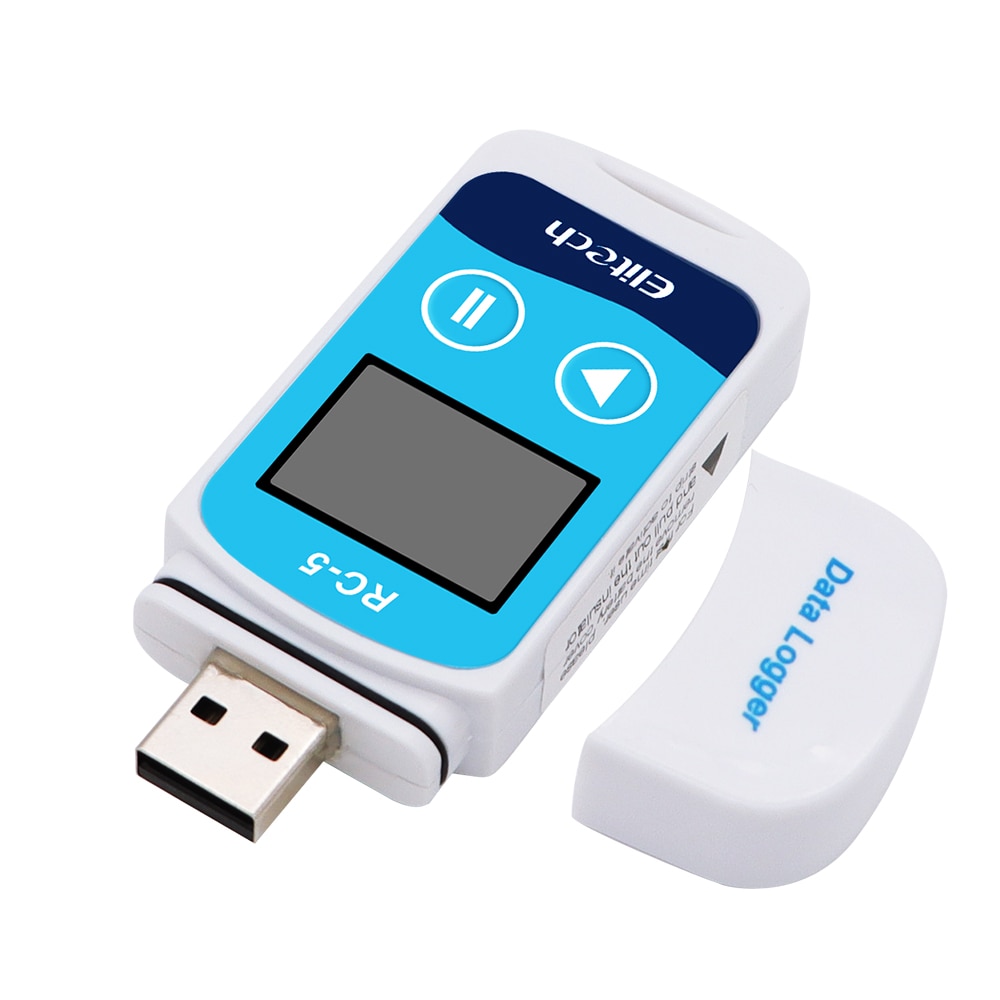

Data output: USB socket directly connected to the computer
-
Protection class: IP67
-
Product Size: 80 x 33 x 14(mm)
-

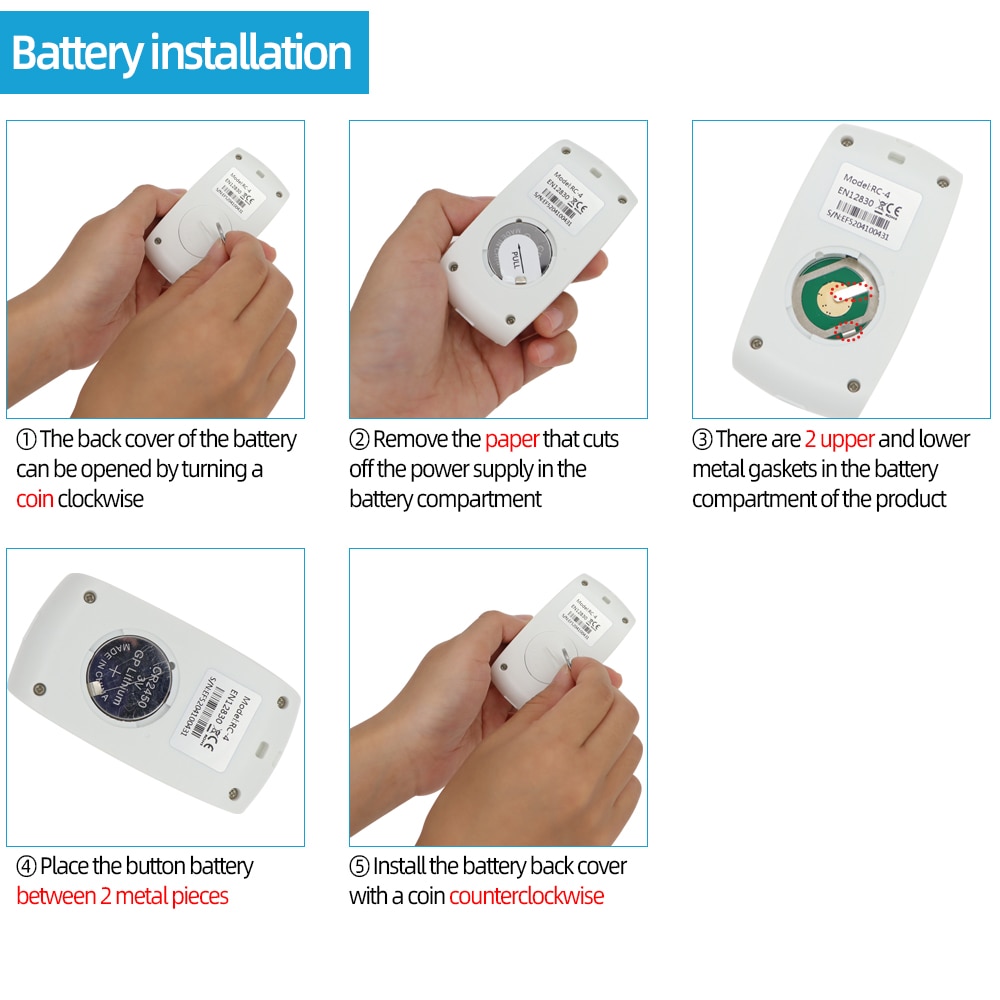

Use battery: CR2032 button battery（not include )
-
Please store the logger in indoor environment.
-
Do not use the logger in corrosive liquid or excessive heat environment.
-
If this is the first time you use the logger,it is suggested to connect the logger to a computer to sync the time.
-
Please dispose or handle the waste logger properly by local legislation.
TempU 04 USB Temp Data Logger Temperature data Logger Recorder Recording Meter with 32,000 Capacity PDF Report Record Instrument 40% OFF
Product Introduction:
The device is mainly used to moniter the temperature of food,medicine,and other products during storange and tramsportation.After recording,insert it into the USB port of PC,it will automatically generate reports without any driver.
Features:
1. Multi-use temperature measuring and recording.
2. Widely measuring range,high accuracy and large data memory .
3. Statistics available on LCD screen.
4. No software needed to generate PDF and CSV temperature report.
5. Parameter programmable by configure software.
Specifications:
-
Color: White + Black
-
Material: ABS
-
Temperature Unit: ℃ / ℉ (set through computer)
-
Temperature Range: -30~+60℃ / -22~+140℉
-
Temperature Resolution: 0.1℃
-
Temperature Accuracy: -20~+40℃, ±0.5℃, others, ±1.0℃
-
Export Format: CSV / PDF
-
Memory Capacity: 32,000
-
Protection Grade: IP65
-
Recording Options: Delayed or Push-To-Start Logging
-
Interval: 10 seconds to 18 hours adjustable [Default: 10 mins]
-
Start Delay: Programmable (0~254 mins) [Default: 30 mins]
-
Alarm Delay: Programmable (0~960mins) [Default: 10 mins]
-
Report Generation: Simultaneously generate PDF report and CSV file
-
Connect Interface: USB 2.0
-
Power Supply: 1 * 3.0V CR2032 Lithium Battery (Not Included)
-
Operation Temperature: -30~60℃ (-22~140℉)
-
Item Size: Approx. 89 * 36 * 16m / 3.5 * 1.4 * 0.6in
-
Item Weight: Approx. 30g / 1.1oz (Without Battery)
-
Package Size: Approx. 15.2 * 10.3 * 3cm / 6.0 * 4.1 * 1.2in
-
Package Weight: Approx. 60g / 3.5oz
Package List:
1 * Temperature Data Logger
1 * User Manual(English)
TempU03 USB Temp & Humidity Data Logger Reusable RH TEMP Data Logger Recorder Humiture Recording Meter with 32,000 Capacity 40% OFF
Product Introduction:
This intelligent temperature and humidity data logger is provided with a high-accuracy temperature & humidity sensor. It's widely used for temperature recording during storage and transportation of foodstuff, medicine, chemicals and other products, especially widely used in all kinds of warehouse management, logistics and cold chain, such as refrigerated containers, refrigerated package, cold storage, laboratory, etc.
Features:
1. Simultaneously measure and automatically record temperature & humidity with reusable use.
2. LCD display, convenient for customers to see data and working status of recorder. Maximum data logging of 32,000 points.
3. Wide measuring range - Humidity 0% - 85%RH, Temp -30℃ - +60℃, high accuracy and large data memory.
4. Automatically generates PDF report and CSV file, no software needed to export data.
5. Programmable software for logging parameters, alarm limits and start delay.
6. Storage of data and the data can be read, saved and printed by PC data management software in the format of CSV/PDF.
7. Widely used for the temperature & humidity recording of warehouse management, logistics transportation, cold chain, etc .
Specifications:
-
Color: White + Black
-
Material: ABS
-
Temperature Unit: ℃ / ℉ (set through computer)
-
Temperature Range: -30~+60℃ / -22~+140℉
-
Temperature Resolution: 0.1℃
-
Temperature Accuracy: -20~+40℃, ±0.5℃, others, ±1.0℃
-
Humidity Range: 0% ~ 85%RH
-
Humidity Resolution: 0.1%RH
-
Humidity Accuracy: ±3.0%RH
-
Export Format: CSV / PDF
-
Memory Capacity: 32,000
-
Recording Options: Delayed or Push-To-Start Logging
-
Interval: 10 seconds to 18 hours adjustable [Default: 10 mins]
-
Start Delay: Programmable (0~254 mins) [Default: 30 mins]
-
Alarm Delay: Programmable (0~960mins) [Default: 10 mins]
-
Alarm Range: Programmable high or low alarm limit for each channel [Default: <2℃ or >8℃, <40%RH or >80%RH]
-
Report Generation: Simultaneously generate PDF report and CSV file
-
Connect Interface: USB 2.0
-
Power Supply: 1 * 3.0V CR2032 Lithium Battery (Not Included)
-
Operation Temperature: -30~60℃ (-22~140℉)
-
Item Size: Approx. 89 * 36 * 16m / 3.5 * 1.4 * 0.6in
-
Item Weight: Approx. 30g / 1.1oz (Without Battery)
-
Package Size: Approx. 15.2 * 10.3 * 3cm / 6.0 * 4.1 * 1.2in
-
Package Weight: Approx. 60g / 3.5oz
Package List:
1 * Temperature and Humidity Data Logger
1 * User Manual(English)
