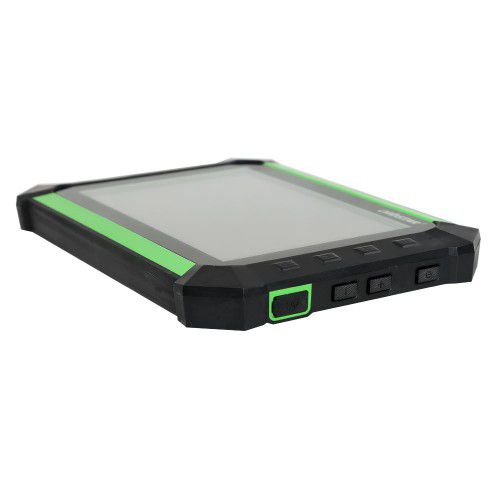

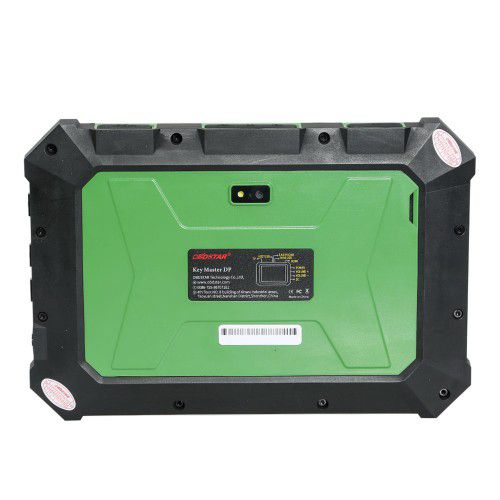

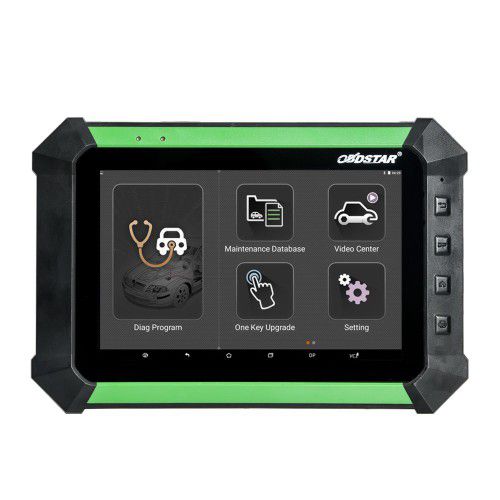

OBDSTAR X300 DP/Key Master PAD Andriod Tablet Key Programmer Standard Configuration
Software Update: One Key Upgrade, Free Update for One Year,after that, it will cost 170USD/yearLanguage: English (default), Turkish, Thai, Portuguese, French, Russian. If you need to change language, please buy SP283-S.
OBDSTAR X300 DP Key ProgrammerStandard Configuration :Immobilizer+ Odometer Adjustment+ EEPROM/PIC Adapter +OBDII+TOYOTA G & H Chip All Keys Lost
If you need more function ,please choose X300DP Full Configuration:Immobilizer+ Odometer Adjustment+ EEPROM/PIC Adapter+ OBDII+ ABS+ TPS+ SRS Reset+ TPMS(Low Tire) Reset+ Steering Angle Reset+ CVT Learning/Value Reset+ EPB+ Oil/service Reset+ Battery Matching+ Diagnosis (Japanese and Korean Serials)
X300 DP Standard version is the first tablet of OBDSTAR, which has reached a higher level in Key Programming and diagnosis. Inheriting from OBDSTAR professional auto programming and advanced diagnosing technology, X300 DP is characterized by covering wide range of vehicles, featuring powerful function, and providing superior quality. Meanwhile, taking advantage of Android system, X300 DP integrates more application and service, such as Maintenance Database, remote assistant, and One Key Update etc.
OBDSTAR X300 DP Key Programmer User Manual
All in one, nothing is impossible!
OBDSTAR Key Master DP/X300 DP is a convenient device, combining Android system, immobilizer, diagnose and special function, which closely follows the global trend and greatly meets the demand of users. In addition, abundant and powerful maintenance database and car testing video have realized easier operation and real success. Furthermore, Remote guide strengthens the communication between end users and technicians, without worries about after -sell service.

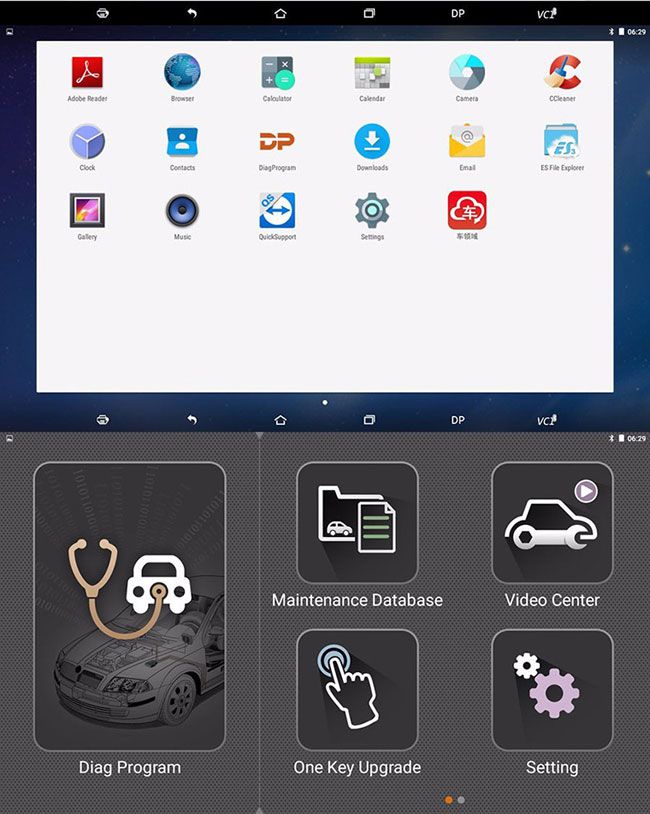

Android system is equipped with clear and user-friendly interface.
Diagnostic function strengthens professionalism in auto Key Programming.
Large amount of videos help users to operate it easily.
Maintenance database offers more powerful data.
Remote guide achieves zero distance between users and technicians.
Report center helps mutual improvement of terminal experience and technology.
One key upgrade realizes with one click.
Industrial design ensures that the tool works stably under tough environment, such as high or low temperatures.
Multi-language environment can be applied in different countries and areas

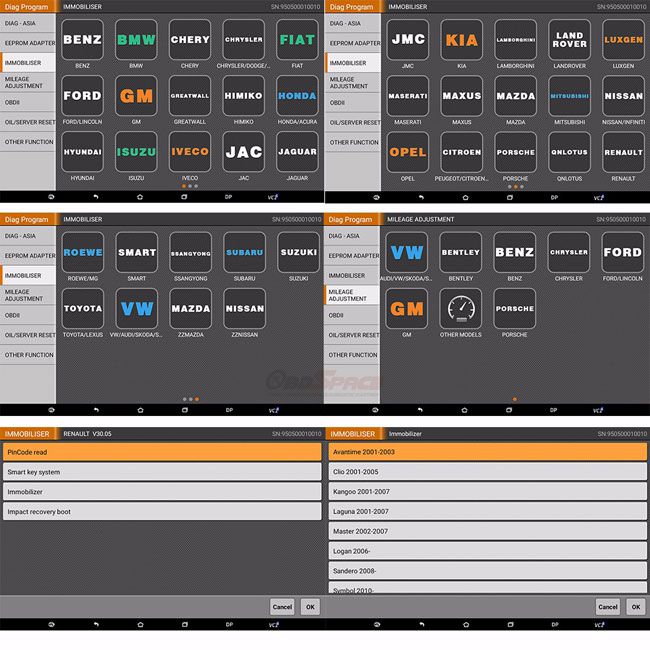

OBDSTAR Key Master DP Standard Version Vehicle Coverage:
BENZ, BESTURN, BMW, CHANGHE, CHERY, CHRYSLER(CHRYSLER/DODGE/JEEP), DFFENGSHEN, DFPV, FAW, FIAT, FORD/LINCOLN, GEELY/HUAPU/SQYL, GM(BUICK/CADILLAC/CHEVROLET/GMC/HUMMER), GREATWALL, HAWTAI, HIMIKO, HNMAZDA, HONDA/ACURA, HONGQI, HYUNDAI, ISUZU, JAC, JAGUAR, KIA, LANDROVER, LIEBAO, LUFENG, LUXGEN, MASERATI, MAZDA, MITSUBISHI, NISSAN/INFINITI, OPEL, PEUGEOT/CITROEN, PORSCHE, PROTON, QQROS, RENAULT, ROEWE/MG, SGMW, SMART, SSANGYONG, SUBARU, SUZUKI, TJFAW, TOYOTA/LEXUS, VW/AUDI/SKODA/SEAT, YOUNGLOTUS, ZZMAZDA, ZZNISSAN;Note: There would be some difference to software in different countries. If you need more specific information, pls feel free to contact us or our distributors in your area.
OBDSTAR X300 DP Standard Version Features:
Read and clear fault codes;Clear key memory;
Program keys, proximity keys, smart key, flip keys;
Program after-market and OEM keys;
Display live data;
Component actuation;
Read keys from immobilizer memory
New ECU programming;
New mechanical key number programming;
Vehicle identification Key Programming;
Reset ECU& Reset immobilizer;
New remote controller programming;
Immo PINCODE reader;
Mileage adjustment via OBD;
With full and strong database for the most important vehicle makes;

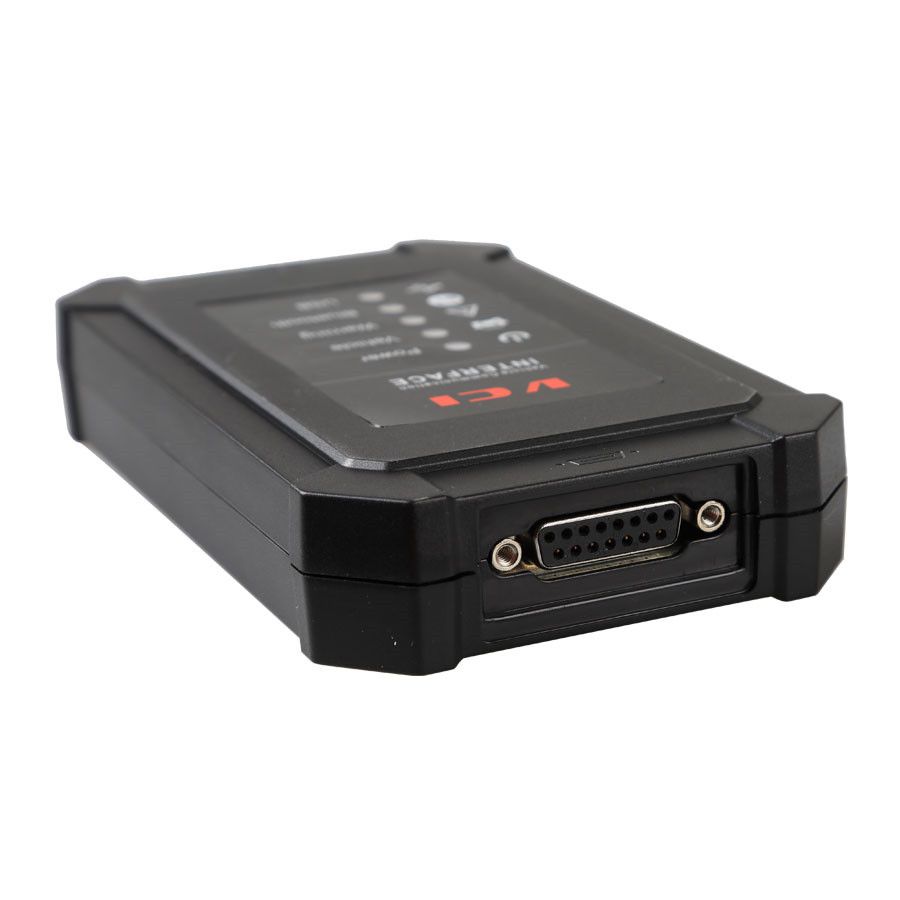

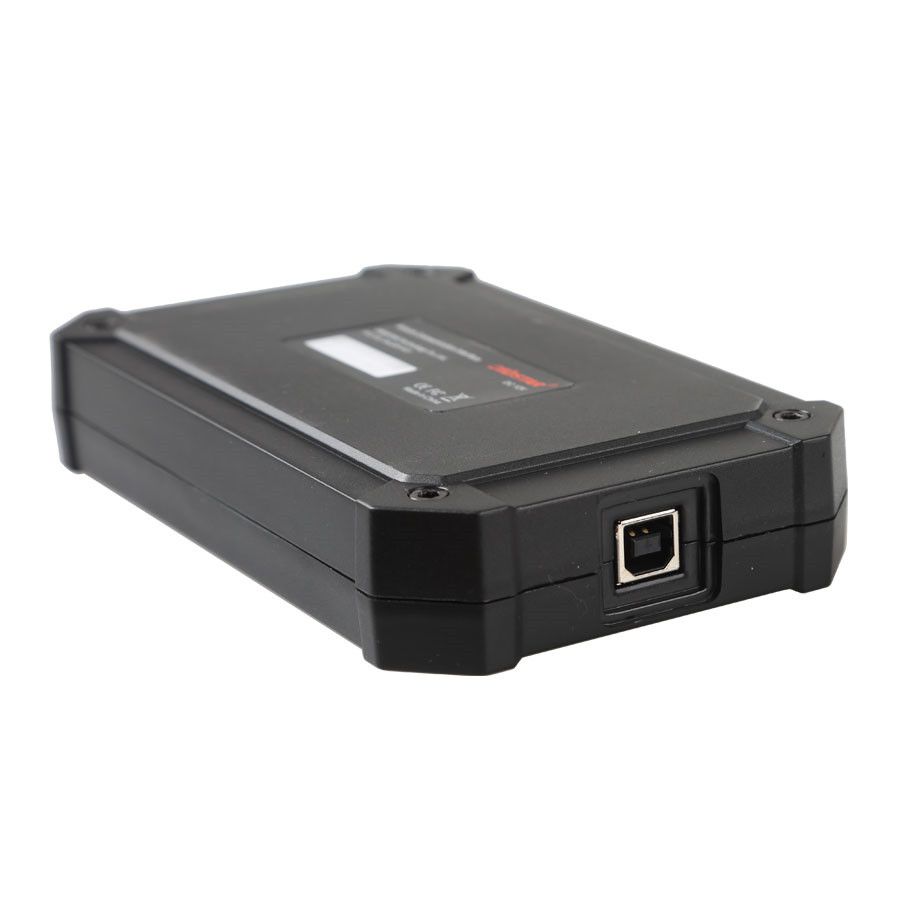

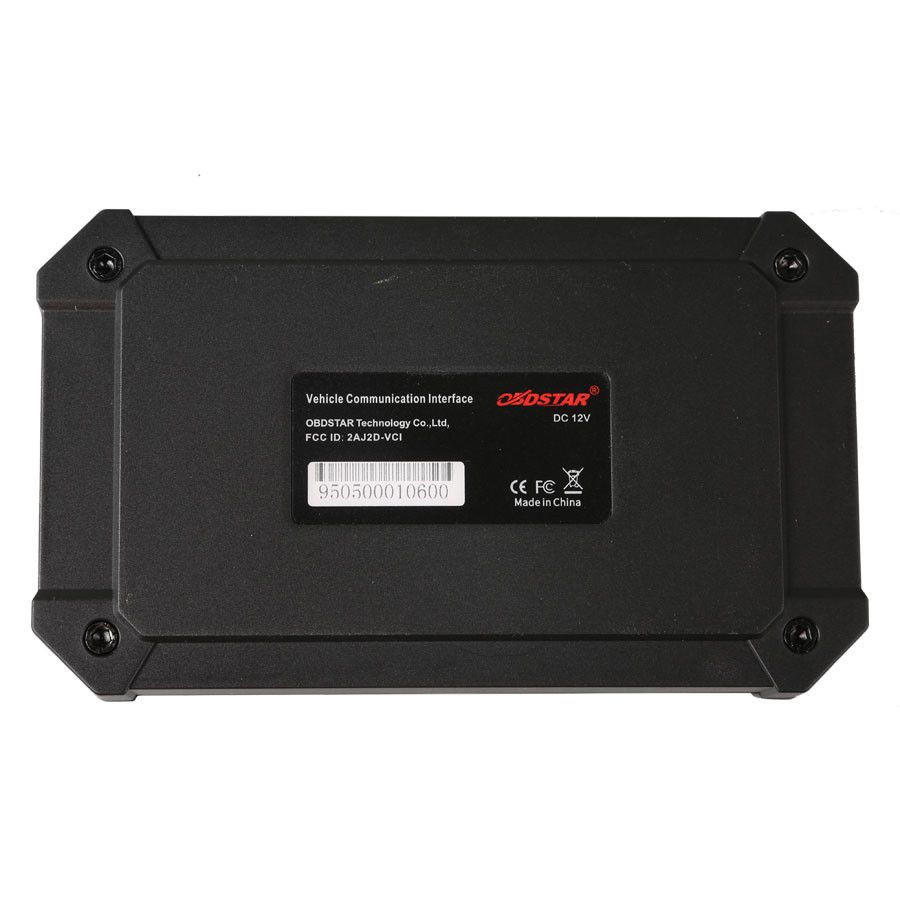

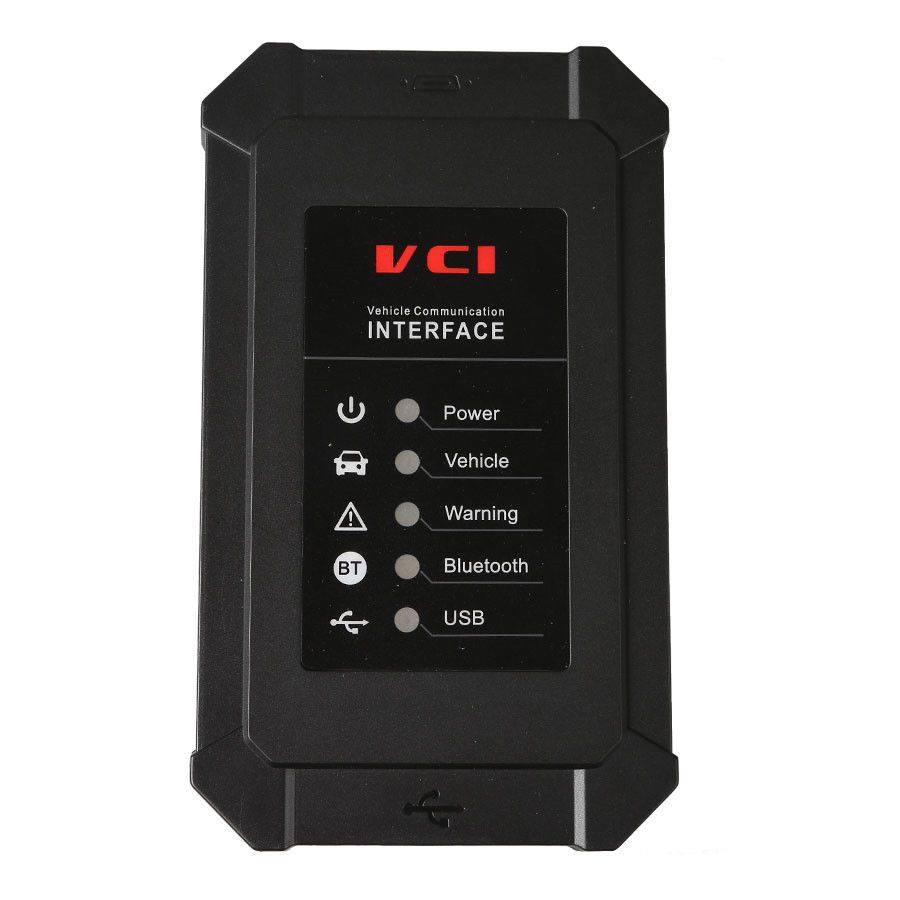

VCI diagnose
One key upgrade via wifi
Remote assistance
Built-in repair video
Report center
EEPROM chip read and immobilizer initialization;
EEPROM/PIC adapter
OBDII
Diagnosis
OBDSTAR X300 DP Free Update BMW FEM/BDC key programming (Jan. 17th, 2018)
X300 DP BMW FEM/BDC Key Programming
Function:
BMW FEM/BDC
1.Key Programming
●Key Information
●Key Programming Preprocessing
Step 1: Code data backup
Step 2: EEPROM Original Data Backup
Step3: Service Mode Data Generation
Step 4:Service Mode Writing
Step 5: FEM/BDC Module Programming
Step 6: EEPROM Original Data Recovering
Step 7: Code Data Recovering
●Key Adding
●Key Delecting
●Function Introduction
● Operation Guide
2. Other Function
● Key enable
● Key disable
● Key status
●Key frequency
●INS reading
●DTC reading
●DTC delecting
BMW FEM/BDC key Programming Supported list:
Series Chassis Year
1 F20/F21 2011-2017
2 F22/F23/F45/F46 2014-2017
3/GT F34/F35 2012-2017
4 F30/F31/F32/F33/F36 2014-2017
X5 F15 2014-2017
X6 F16 2014-2017
Odometer Reset：
1. K line odometer reset Model(M2) for AUDI/VW/SKODA/SEAT are added.
2. VW Golf 7 models are added.
3. Chassis W169 for BENZ A serial by OBD are added.
4. Chassis W245 for BENZ B serial by OBD are added.
5. Chassis W204 for BENZ C serial by OBD are added.
6. Chassis W209 for BENZ CLK serial by OBD are added.
7. Chassis W207(E-COUPE) for BENZ CLK serial by OBD are added.
8. Chassis W218 for BENZ CLS serial by OBD are added.
9. Chassis W212 for BENZ E serial by OBD are added.
10. Chassis X204 for BENZ GLK serial by OBD are added.
11. Chassis R197 for BENZ SLC serial by OBD are added.

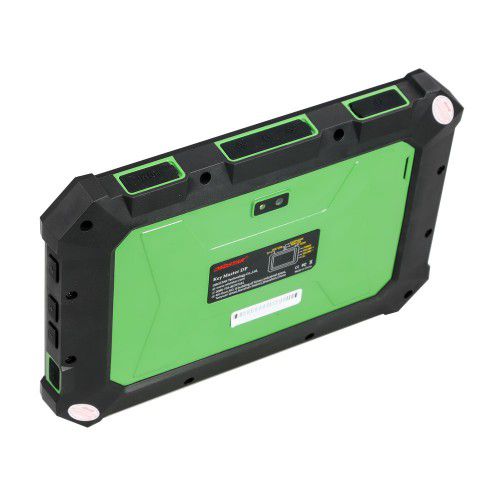

OBDSTAR X300 DP Android Tablet Key Programmer Configuration:
| Operating system: Android 5.1 | Resolution: 1280*800 |
| CPU: Samsung Exynos4418 A9 Qual Core ARM Cortex A9 1.4GHz | Bluetooth: Yes |
| Battery: 7400mAh | WiFi: Yes |
| RAM: 2G | Camera: rear camera 5 mega-pixel |
| SD Card: 32G MicroSD (TF) Card | Operating temperature range: -10℃～55℃(14℉～131℉) |
| Storage space:Flash 16G | Storage temperature range: -20℃～70℃ (-4℉～158℉) |
| Screen size:7 inch | Weight: 700g |
| HDMI: Avaliable | Dimension: 215*147*30 |
| Touch screen type: Capacitive | Shell: Three proofing and industrial-grade shell with rubber coating |
OBDSTAR Key Master DP Standard Version Packing List:
X300 DP Tablet Computer Standard Version5V DC Adapter Power
12V DV Adapter Power
Adapter
Adapter Board
USB Cable

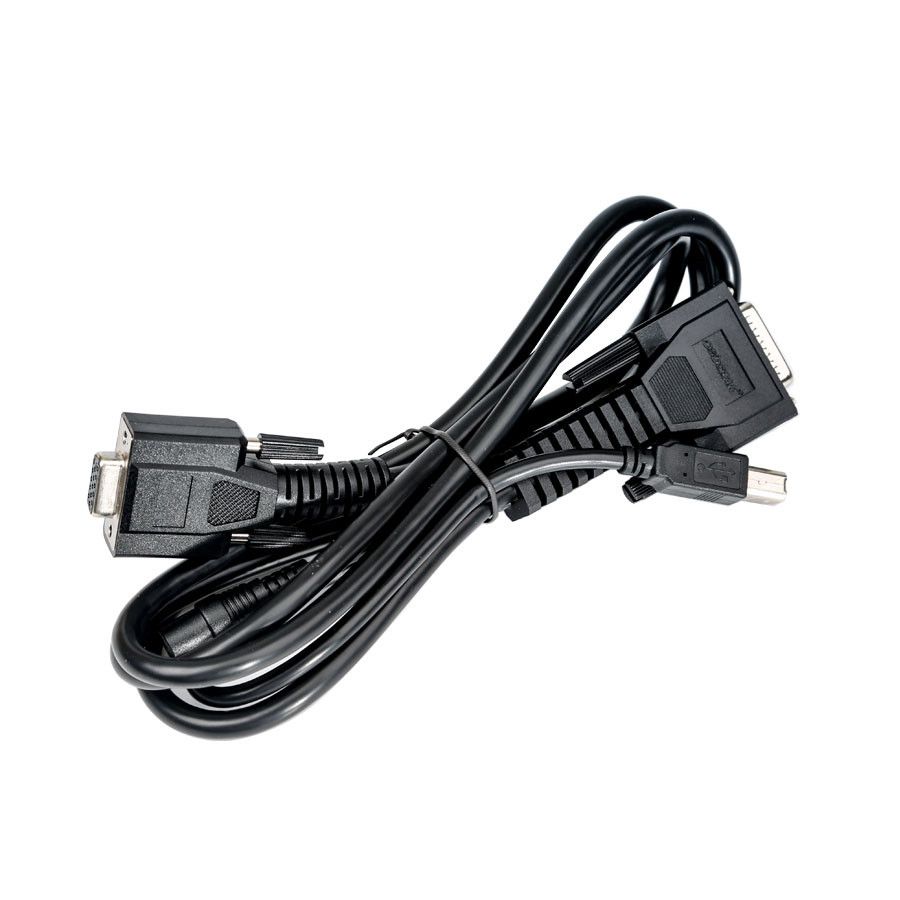

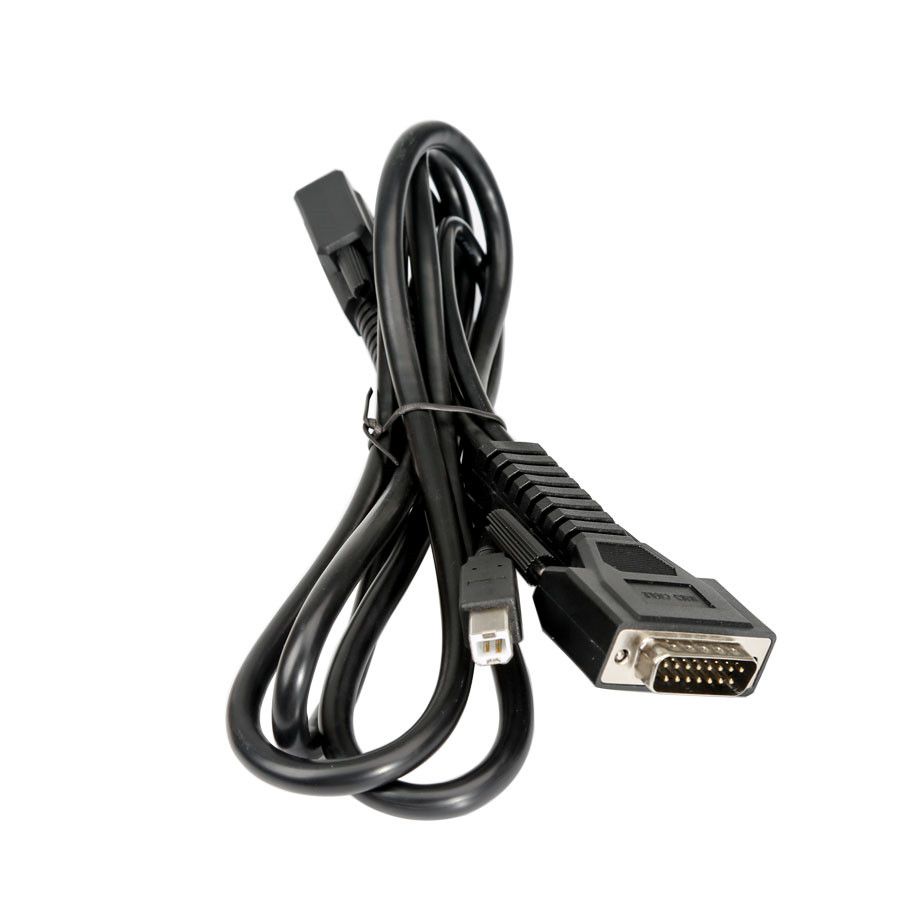

OBD15P Main Cable
Pin adapter
HONDA-3
HYUNDAI/KIA-10

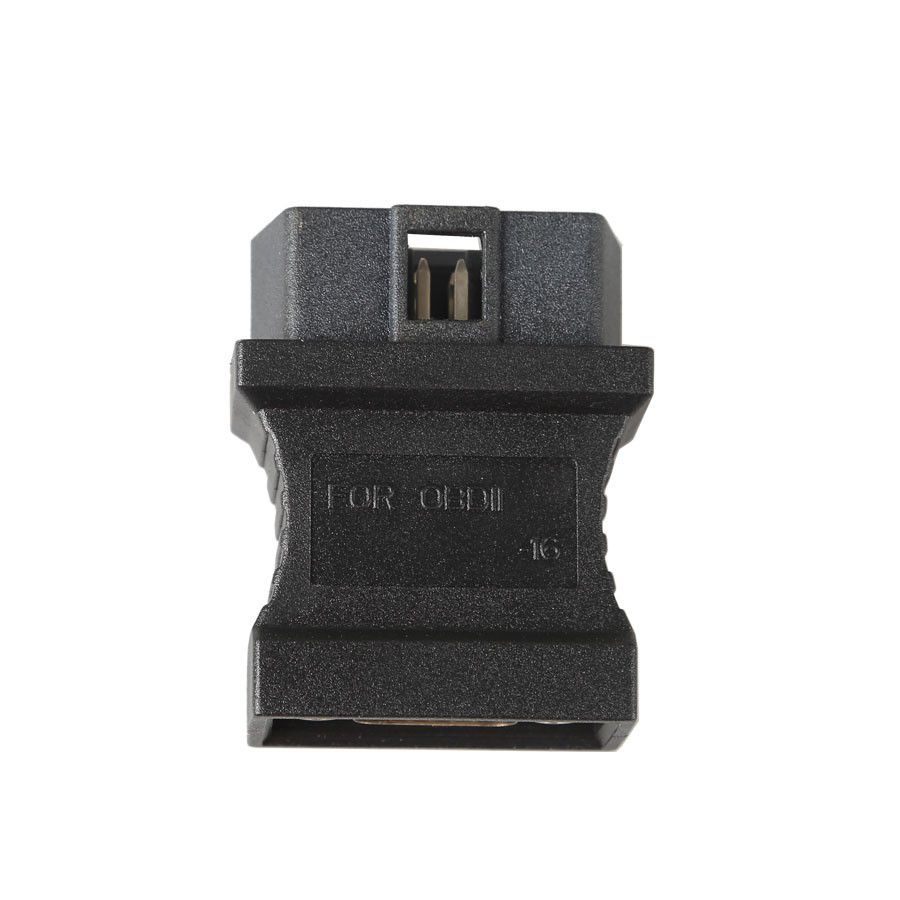

OBD II-16
KIA-20
Product Certification
User's Manual
Warm Notice :
Please charge for the pad according to instruction manual when the battery is low.
Please charge with 5V power provided by our company or the other companies. Never use power more than 5V to charge to advoid any damages of the machine.
Please kindly note above warning.
FAQ before order:
1. Vehicle Linking Error?
A communication error occurs if the scan tool fails to communicate with the vehicle’s ECU (Engine Control Unit). You need to do the following to check up:
Verify that the ignition is ON.
Check if the scan tool’s connector is securely connected to the vehicle’s DLC.
Verify that the vehicle is OBD2 compliant.
Turn the ignition off and wait for about 10 seconds. Turn the ignition back to on and continue the testing.
Verify the control module is not defective.
2. Operating Error?
If the scan tool freezes, then an exception occurs or the vehicle’s ECU (Engine Control Unit) is too slow to respond to requests. You need to do the following to reset the tool:
Reset the scan tool.
Turn the ignition off and wait for about 10 seconds. Turn the ignition back to on and continue the testing.
3. Scan tool doesn’t power up?
If the scan tool won’t power up or operates incorrectly in any other way, you need to do the following to check up:
Check if the scan tool’s connector is securely connected to the vehicle’s DLC;
Check if the DLC pins are bent or broken. Clean the DLC pins if necessary.
Check vehicle battery to make sure it is still good with at least 8.0 volts.
