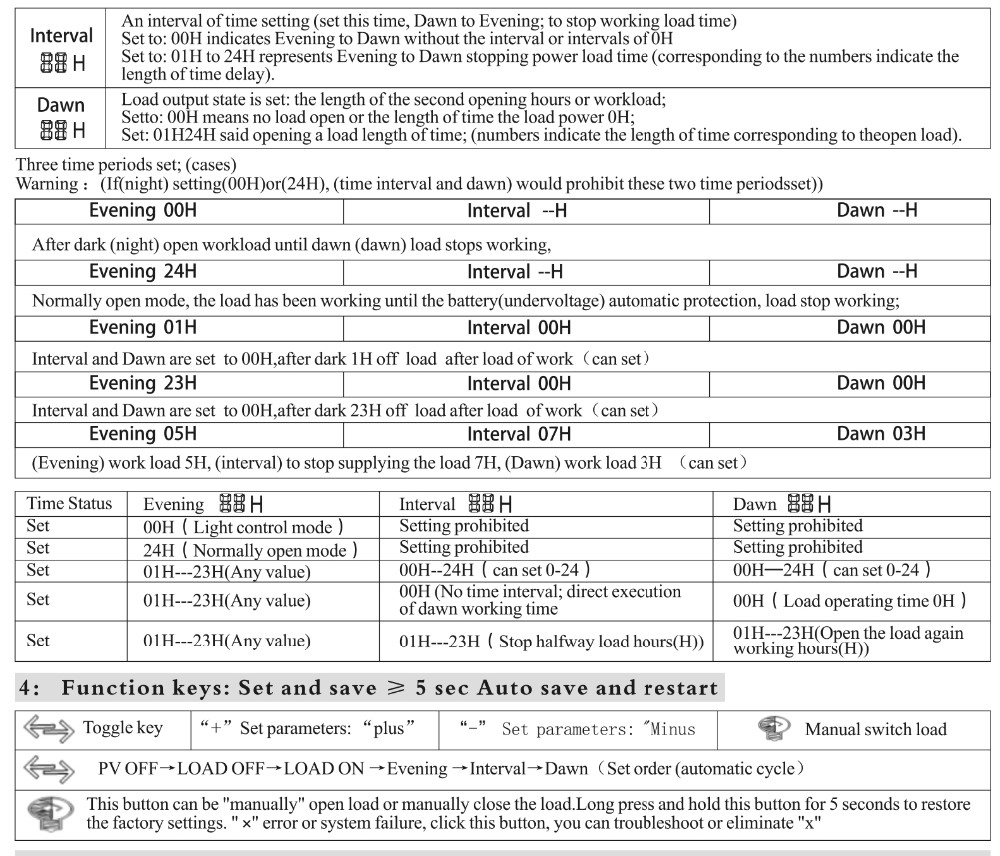

This is a three-time controller into the evening(evening)working time,an interval of rest or pause time,Dawn working time(morning light function),the user can according to their needs,set a different time.
A:time(evening working)B:time(Pause working)C:time(dawn working)
This is a compatible MPPT charge controller PWM intelligent/efficient/energy saving,he not only has efficient MPPT controller charging function to automatically track the maximum power point,10%-30% higher than the ordinary controller chargingefficiency,also has standby energy saving,more than 30% energy than ordinary controller,the standby power consumption of only 10mA-15mA.
Note:It is high qualitycompatible MPPT + PWM Solar Controllers ,not 100% Ture MPPT
1.Product introduction:
"T"series of an intelligent,multi-purpose solar charge controller
| LCD Screen display | Battery reverse discharge protection |
| Simple(and more time control) operation | Battery reverse polarity protection |
| PWM charing mode+MPPT | Battery under voltage protection |
| Parameter user can reset | Overload,short-circuit protection |
| A key to open and close the load | Automatic Temperature compensation function |
| A key to restore the factory setting | USB 5V charge(current 1500mA/1.5A)Optional |

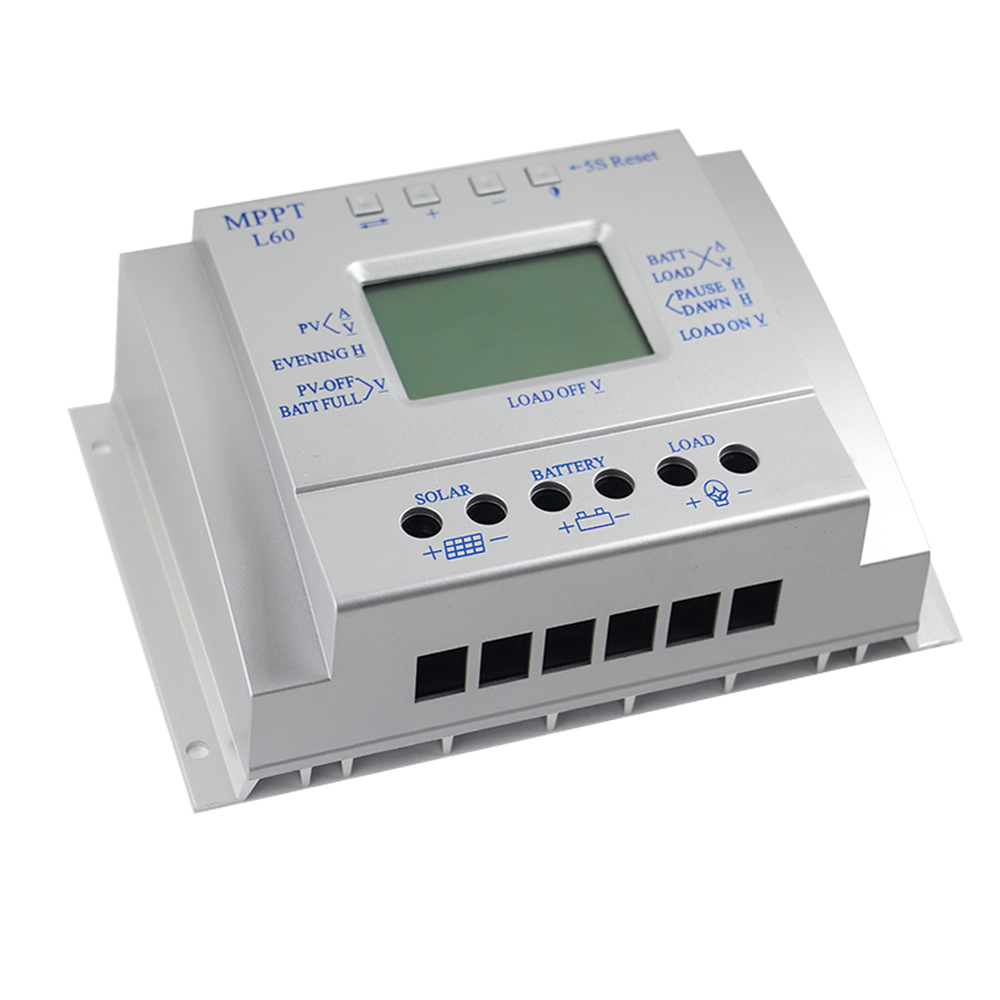

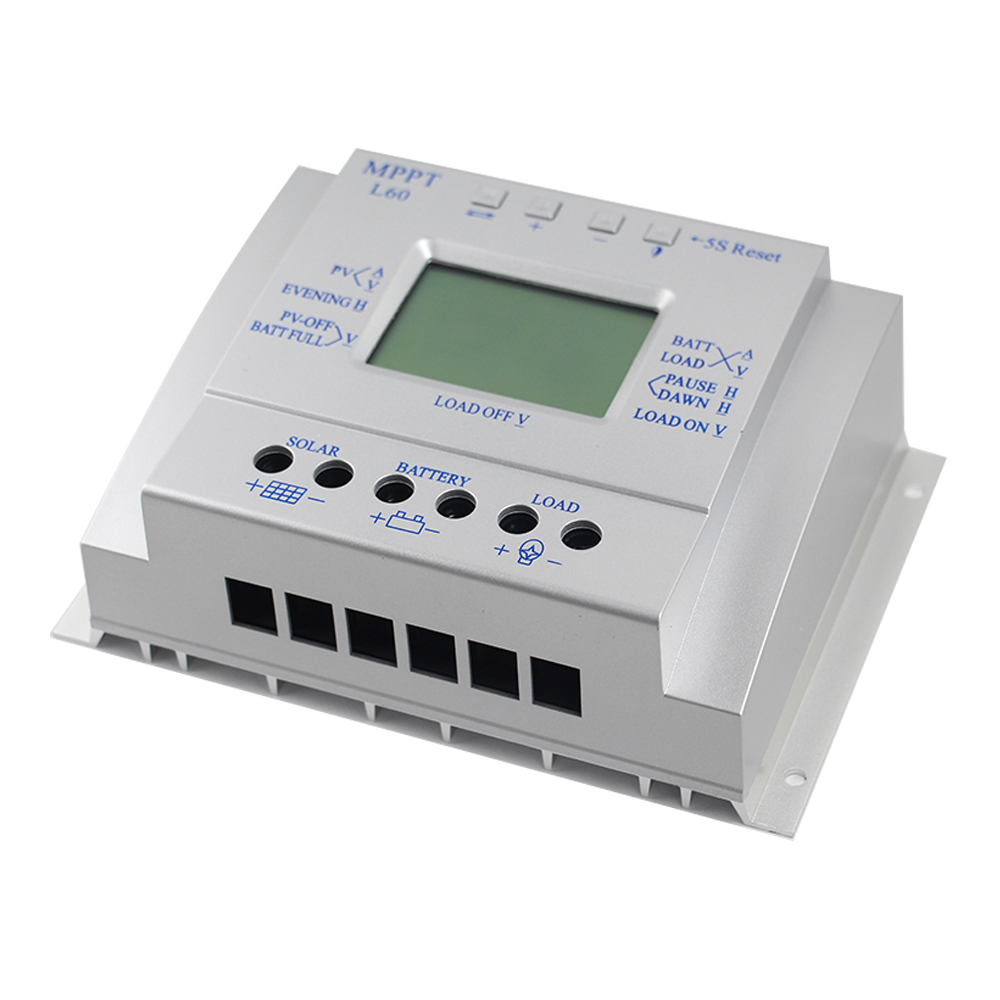

2.Packing Including
1pcs 60A Solar Controller MPPT L60
1pcs Temperature Sensor
1pcs English User Manual

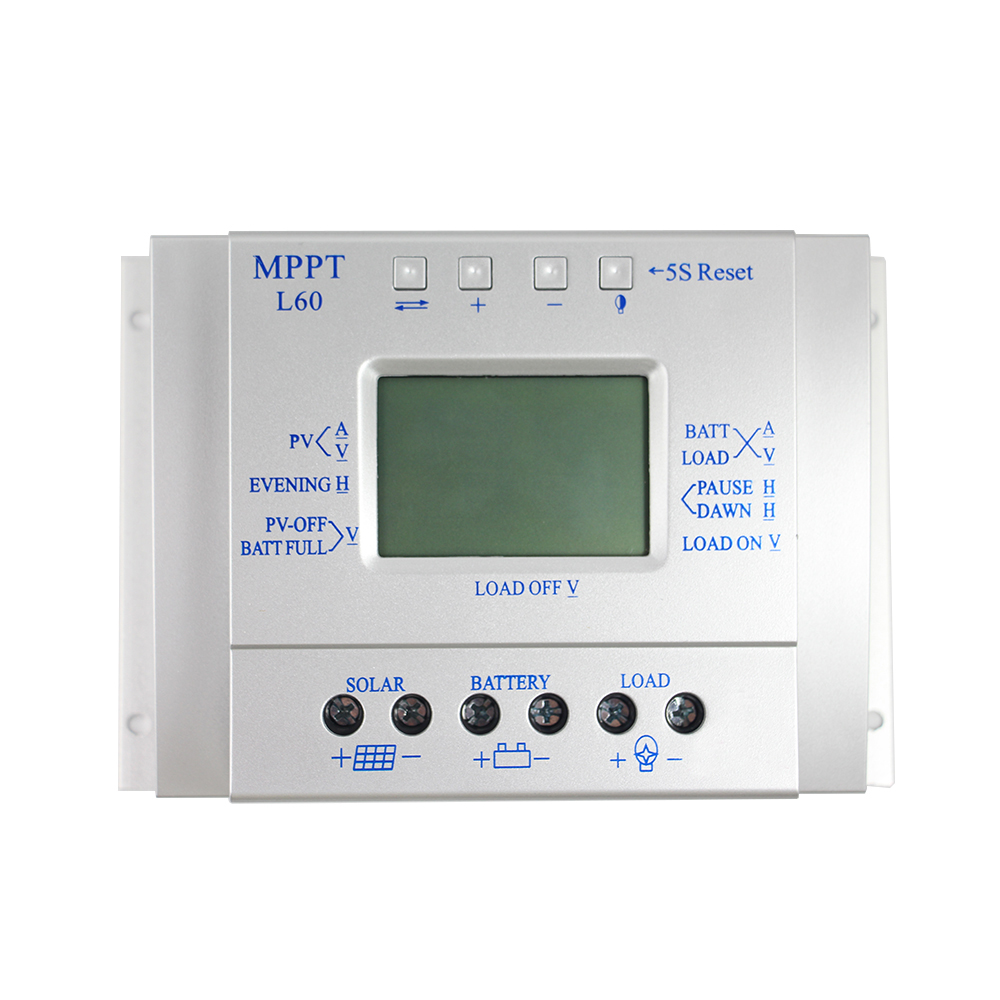

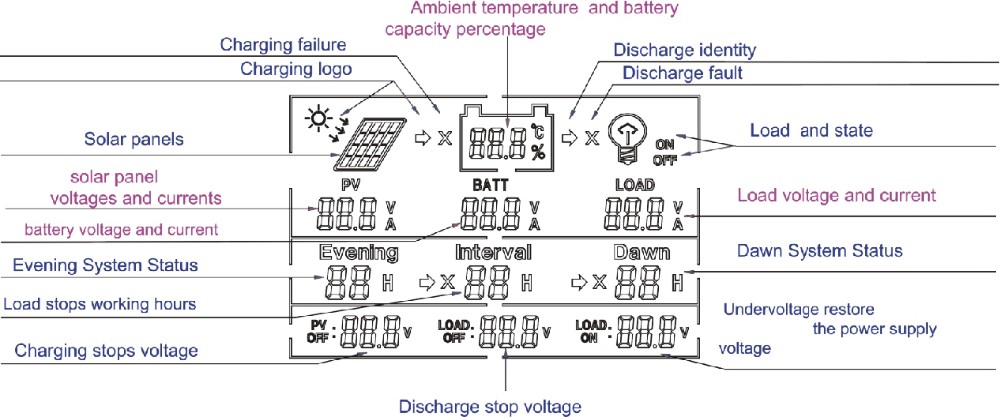

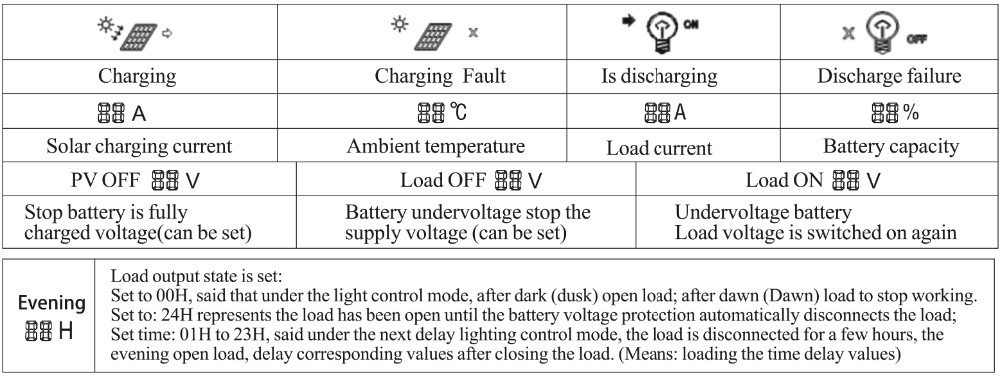

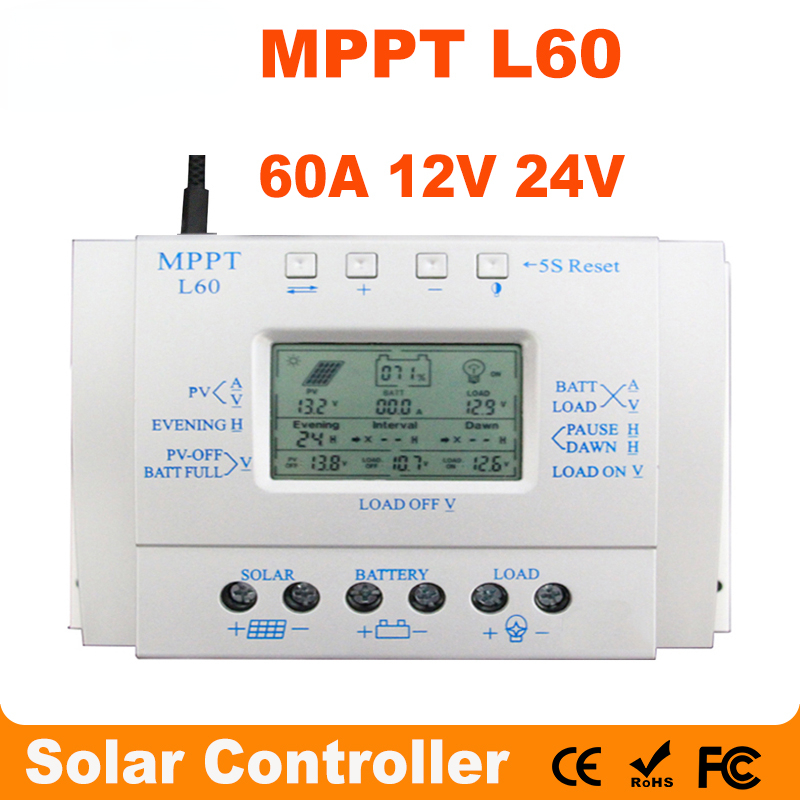

3.LCD Operating interface description :
4.Parameter table:
| Parameters/Model | MPPT T-10 | MPPT T-20 | MPPT T-30 | MPPT T-40 | MPPT T-60 | MPPT T-80 |
| Maximum Power Current | 12A | 20A | 30A | 40A | 60A | 80A |
| Installation Lin(mm2) | 4mm2 | 8mm2 | 10mm2 | 12mm2 | 16mm2 | 20mm2 |
| Installaton Line(AWG) | 10#(AWG) | 8#(AWG) | 7#(AWG) | 6#(AWG) | 4#(AWG) | 2#(AWG) |
| Weight | 280g | 300g | 475g | 500g | 800g | 900g |
| Peak power of solar cell panel (Max Wp) | 130W | 260W | 380W | 500W | 800W | 1000W |
| Battery capacity configuration | 100AH | 200AH | 300AH | 400AH | 600AH | 800AH |
| Dimensions | 143*89*46(mm) | 187*97*61(mm) | 188*128*61(mm) | |||
| Battery float voltage | 13.8V(12V system)/27.6V(24V system) | |||||
| Battery (under voltage) protection | 10.6V(12V system)/21.2V(24V system) | |||||
| Battery(under voltage)recovery voltage | 12.6V(12V system)/25.2V(24V system) | |||||
| System load loss:<=13mA | Loop Buck;<=100mV | |||||
| Operation Temperature :-10degC~60degC | Storage Temperature :-30degC~-70degC | |||||
| Operation Temperature :<=90%,No condensation | Temperature compensation :-4mV/Cell/degC | |||||
| Maximum open circuit voltage of the solar panel | 18V~24V(12V system) 36V~48V(24V system) | |||||
| Solar Panel maximum open circuit voltage | <=48V | |||||
| Link | ||||||
5.Installation
1.Ready Qi installation tools and materials,and cable.Please matching suitable cable
2.Ensure that the current desity<4A/mm2 That will help reduce the line pressure drop.check the installation site meets the relevant safety requirements,avoid damp,dusty,flammable,explosive and corrosive gases
3.Install the controller fixed to the vertical plane,see Section V mounting aperture and hole spacing.In order to ensure a good controller cooling conditions,the controller on the bottom of each reserved 10cm space

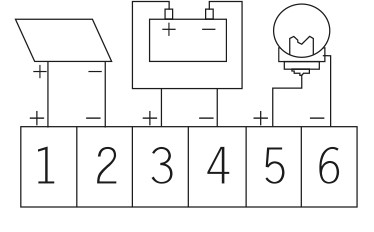

4.As shown on the right wiring sequense:load,battery,solar Battery plate is connected to the controller to be taken to ensure that the load,battery,The polarity of the solar cell panel and controller
5. Before use:external temperature sensor probe into the left of the controller temperature probe interface probe placed in similar battery temperature.(Line extensive must be build-in devices of the external temperature probe coextensive Otherwise,the controller will control parameters of the temperature compensation of the error
6.Warning:In order to prevent accidents from occurring,install:non-professionals can not be engaged in loading and unloading operations
6.Charging Problem Solution:
-
No proper installation of solar panels cable polarity(ldquo+rdquordquo-rdquo) Removing the polarity,you can re-install the correct
-
More than the rated power of solar panels to reduce solar panel power does not exceed the rated power controller discharge Problem Solution
-
Removing the load is not properly connected to the load,re-install the correct
-
More than the rated load power to reduce load power,the controller does not exceed the rated power
-
Instantaneous starting current is too large,the battery capacity is too small,the replacement of high-capacity batteries,button troubleshooting
-
Wire Cable polarity loose or too square and increase retightening bold cable
-
All keys can troubleshoot faults,press 5 seconds to restore factory settings.
