Specifications:
Test battery type: Lead-acid cell, EFB, AGM, GEL
Support: All 12V engine starter lead-acid batteries
Testing Standard: CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE and GB
Bluetooth: Android 4.3; iOS 9.0
Test Range: CCA 100 - 2000
Working Voltage: 10-16V
Working Current: ＜10 mA
Cable length: 13.78 inches
PACKAGE LIST:
1*BT MOBILE Wireless Battery Tester
1*User Manual
Multiple Languages：
English, Japanese, Spanish, German, Russian, Italian, Portuguese.
Notice:
Always read the safety features section in the manual carefully to ensure optimum safety.
Warranty:
12-month warranty for any quality problems
Tips:
Feel free to get technical support via email/Q&A, or hotline on our official site, Facebook or Twitter.

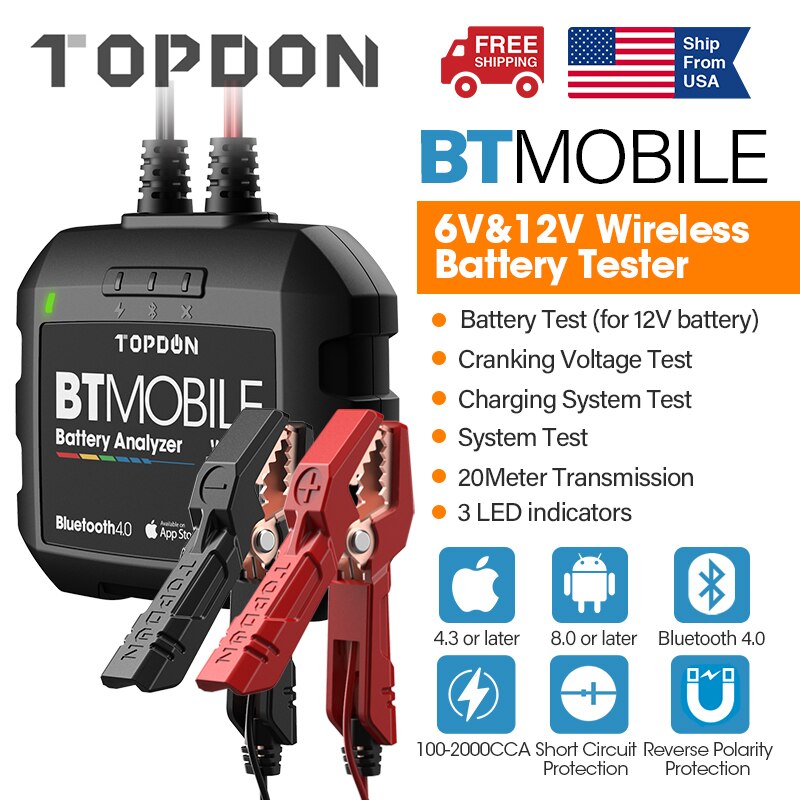

Description:

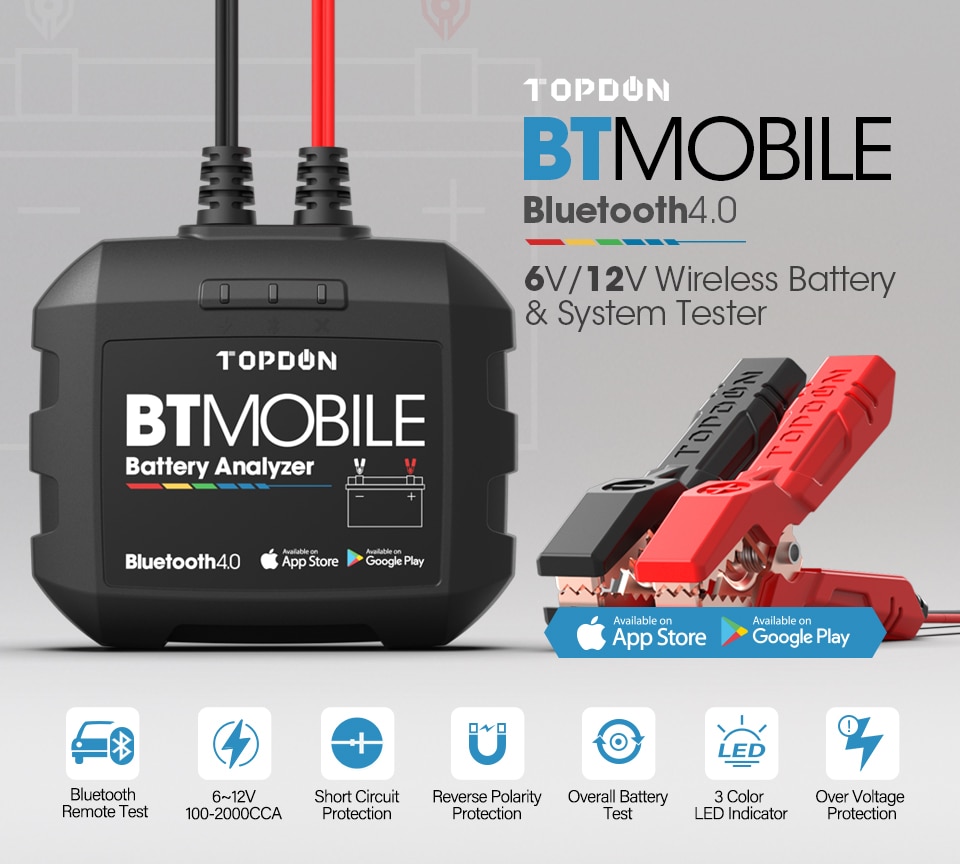

BTMobile, as a TOPDON new-released Bluetooth wireless automotive battery tester, combines the most advanced conductance testing technology to give users accurate test results of battery condition, starting and charging system, with reverse polarity protection, etc., to be a quick, safe and easy battery test solution for technicians, professionals, and DIYers.
1.Your Battery Doctor
Simply download and install the TOPDON BTMobile App from Apple Store / Google Play to smartphones or tablets (iOS 8.0 & Android 4.3, or above), and sync BTMobile Battery Tester, to experience the most advanced testing technology for 6~12V lead-acid batteries (100-2000 CCA) including regular flooded, AGM flat plate, AGM spiral, GEL and EFB; covering 10 major rating standards: CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, GB.
Bullet Point:
2. Wireless Tester
Linger throughout the workspace with this wireless battery tester to have an overall analysis of batteries health, via its precise and fast Battery Test, Cranking Voltage Test, Charging System Test, without losing a connection. Suitable for checking batteries in motor vehicles, light Trucks, RVs, boats, SUVs, ATVs and even law tractors.
3. Fast & Accurate

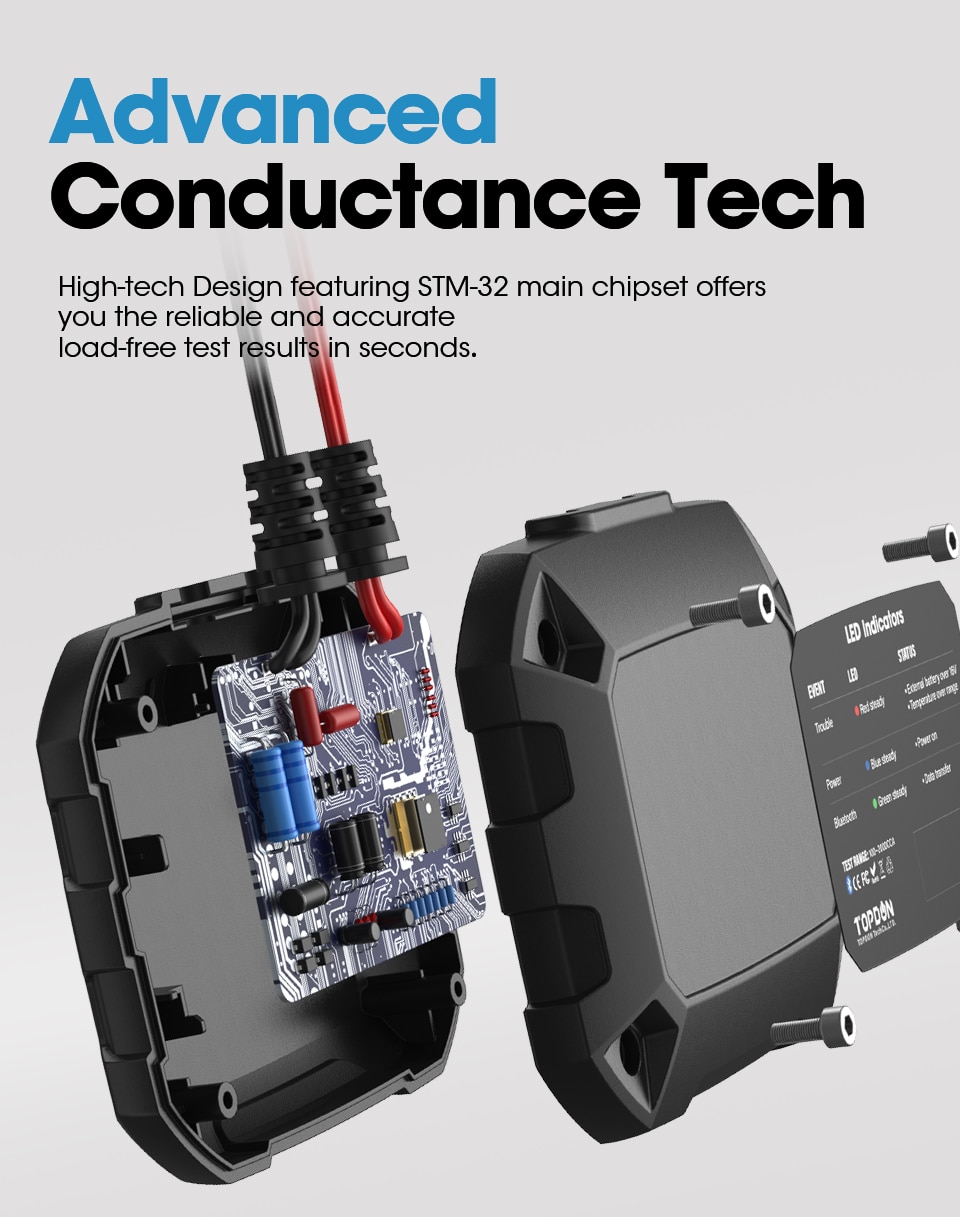

Starring STM-32 main chipset and the advanced conductance testing technology, TOPDON BTMobile offers you the reliable and accurate load-free test results in seconds, with no need of fully recharging the battery.
4. Safe & Reliable
Afraid of the electric shock, and the potential damage to the batteries? BTMobile is specially designed with Short-Circuit, Reverse Polarity, and Over Voltage Protection, to ensure an ultra-safe operation during battery testing.
5. Innovative & Compact
Unique smart 3 LED indicators tell the battery status directly whether it is good, bad, or need to recharge. Even a beginner can use this portable tester to reveal everything about 6~12V batteries.
6. Standard Testing Range:
CCA: 100-2000
BCI: 100-2000
CA: 100-2000
MCA: 100-2000
JIS: 26A17--245H52
DIN: 100-1400
IEC: 100-1400
EN: 100-2000
SAE: 100-2000
GB: 30Ah-220Ah

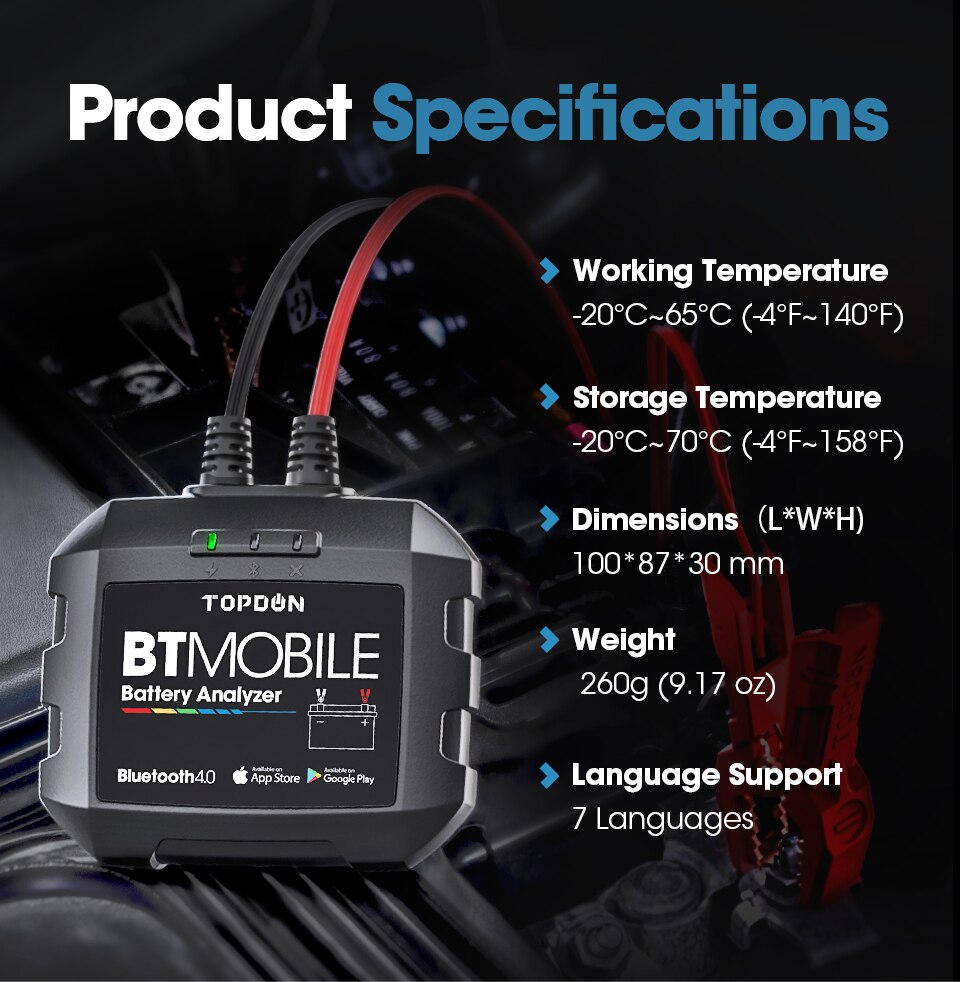

SPECIFICATIONS:
Working Temperature: -20°C~65°C (-4°F~140°F)
Storage Temperature: -20°C~70°C (-4°F~158°F)
Dimensions: 100*87*30 mm (3.94*3.43*1.18 inches)
Weight: 260g (9.17 oz)
FEATURES:
TOPDON BTMobile, Takes Productivity to the Next Level
By keeping a close eye on 6~12V battery status, and fix potential problems before they arise, this car battery tester is a handy tool to ensure your batteries are always working at an optimum level:
1. Easy to use and will enable you to check the battery status with ease and simplicity.
2. Works with BT Mobile app (iOS 8.0 & Android 4.3, or above), with wireless Bluetooth 4.0 connection, which make your work easier as you will be able to diagnose from a distance.
3. Advanced conductive way to test. No need for a fully charged battery before the test.
4. Provide functions to check battery health, alternator’s charging, and starter’s cranking conditions.
5. Compatible with 6~12V batteries as Regular Flooded, AGM Flat Plate, AGM Sprial, GEL, and EFB.
6. Much wider test range (100-2000 CCA) and more accurate test results compared to others.
7. Tests all battery rating systems - CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, GB.
8. Premium quality copper clip and wire keep guarantee to maintain stable communication all throughout the testing process.
9. 8 language settings (English, Japanese, Spanish, German, French, Italian, Portuguese, Polish.)

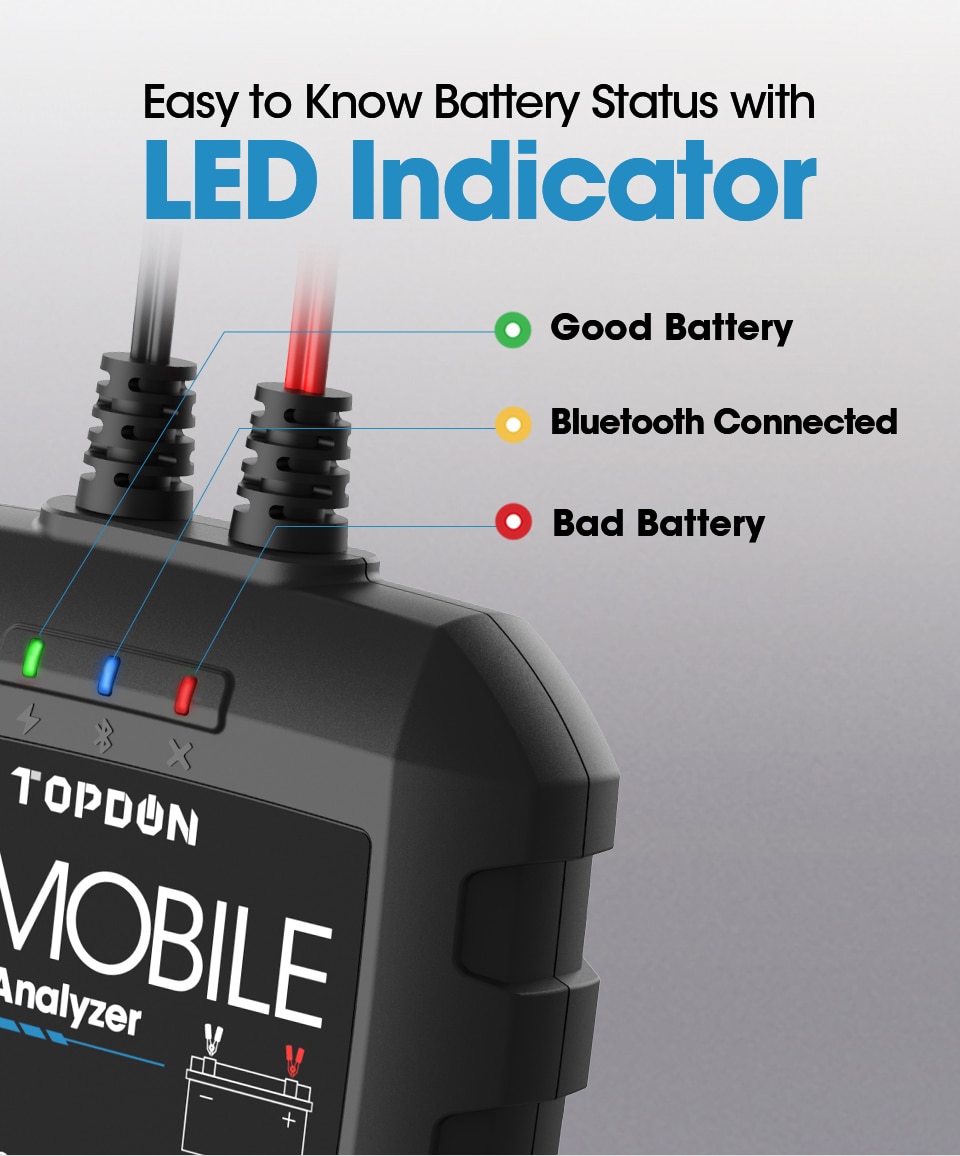

10. 3 LED indicators (Blue: Bluetooth Connected; Green: Power; Red: Trouble)
11. Quick and accurate. The reliable tester offers results in just 10 seconds.
12. Small and compact. The tester is a handy device and a brilliant addition to any automotive toolbox.
What can BT MOBILE do to help you?
This is a minor investment to save you from a potential headache of being stranded unexpectedly, and will gift you massive benefits in the future.
1. Help you avoid the inconvenience of a roadside breakdown.
2. Help you keep a close eye on battery function and fix potential problems before they arise.
3. Help you check the battery status quickly and without spending too much on mechanic fees.
4. Ensure your batteries are always working at an optimum level.
5. Ensure your batteries will bring a reliable cold-weather starting.
6. Enable you to determine whether your automotive battery needs a jump start, or to be changed.
7. Lengthen the lifespan of your battery and enable you to fix problems quickly.
8. and more …

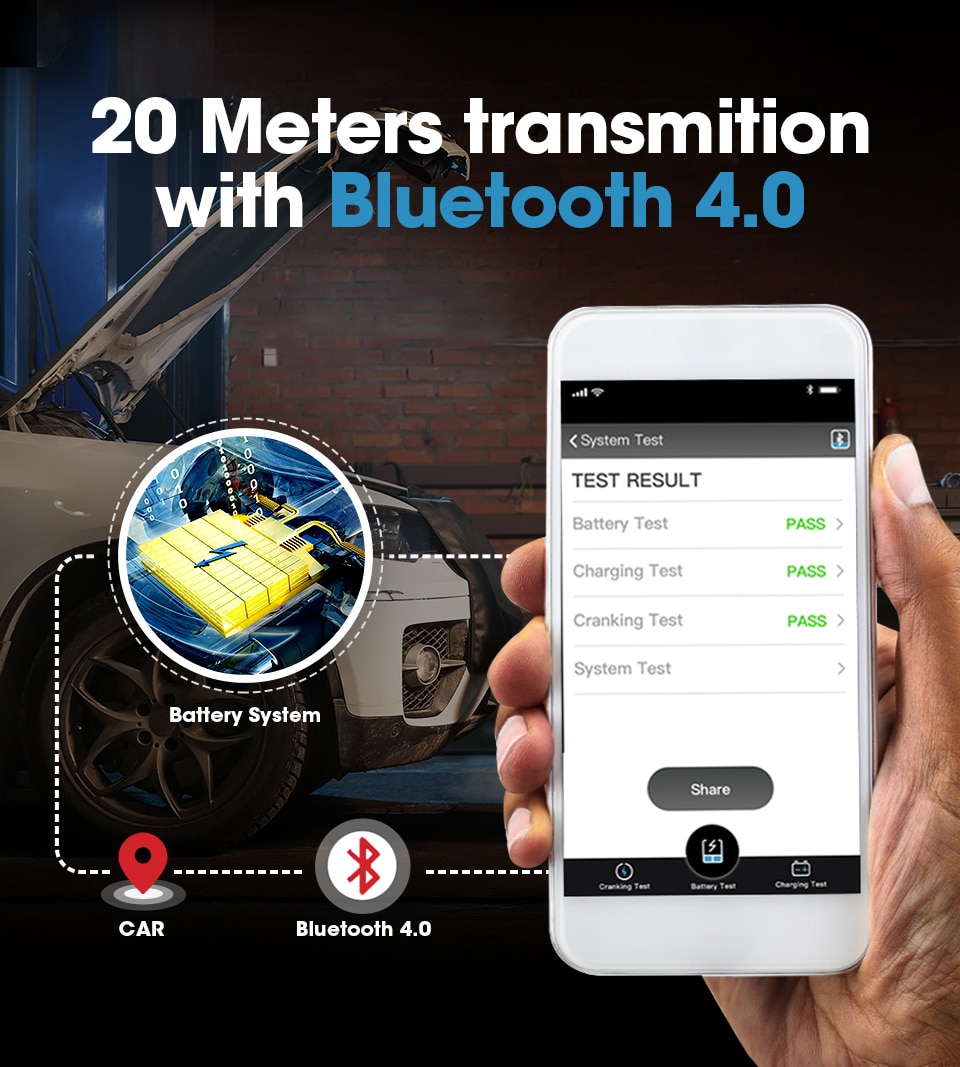

Wireless Battery Tester, No Strings Attached
You can now use your tablets or smartphones as dependable testers (iOS 8.0 & Android 4.3, or above), and you can work on your battery but still perform other duties meanwhile, with the fast and stable wireless Bluetooth 4.0 connection, making TOPDON BTMobile be flexible and very convenient to use in a busy garage.
Also, the free BT Mobile app is part of the appeal of this tester. No longer does a clunky interface suffice, the APP expects color-coordinated presentations that would look good in the software interface.
Advanced Conductive Way, No Need to be Fully Charged
Without the need of bringing the battery to full discharge, as the old school way to test a battery, the TOPDON BTMobile boasts the rapid and safe conductive measurement as the most advanced method to determine the ability of a battery.
The main advantages of conductance testing include:
1. Can test batteries that are low or almost completely discharged;
So the test can be done with the battery in the vehicle and without disconnecting the terminals.
2. Can be repeated multiple times on the same battery without draining the battery (unlike a traditional load test, which pulls out a lot of amps);
So saves time because there’s no need to recharge the battery before or after testing.
(: As a battery ages, its internal components gradually wear out through corrosion, disintegration, shedding, electrolyte dry out, and other mechanisms. When this happens, conductance is unable to be restored and declines as the battery degrades, leading to failure.
The conductive measurement utilizes the loss of conductance to quickly gauge the condition of lead acid starting and standby batteries in service.)

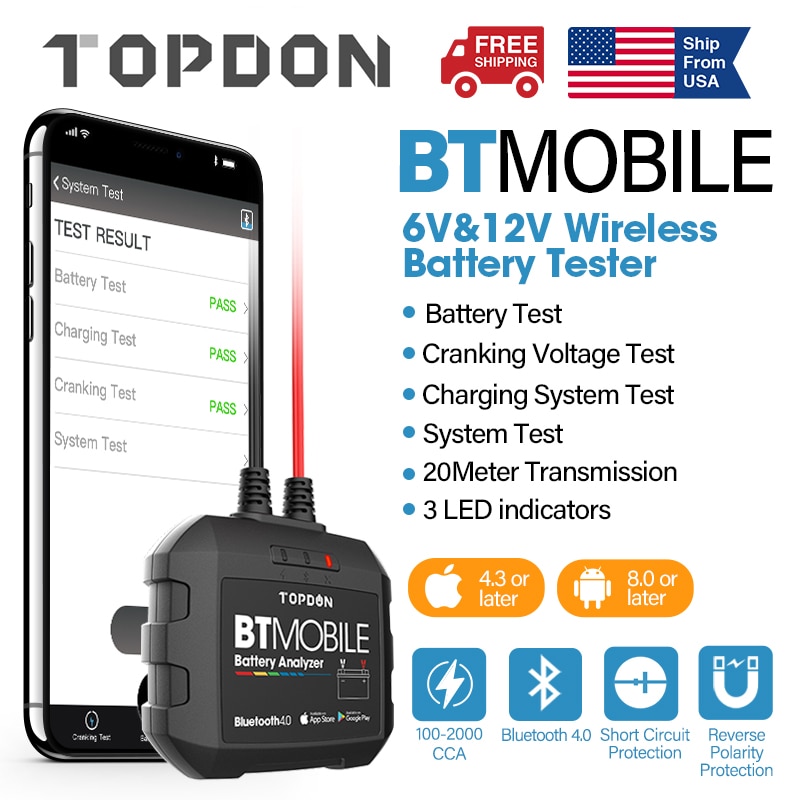

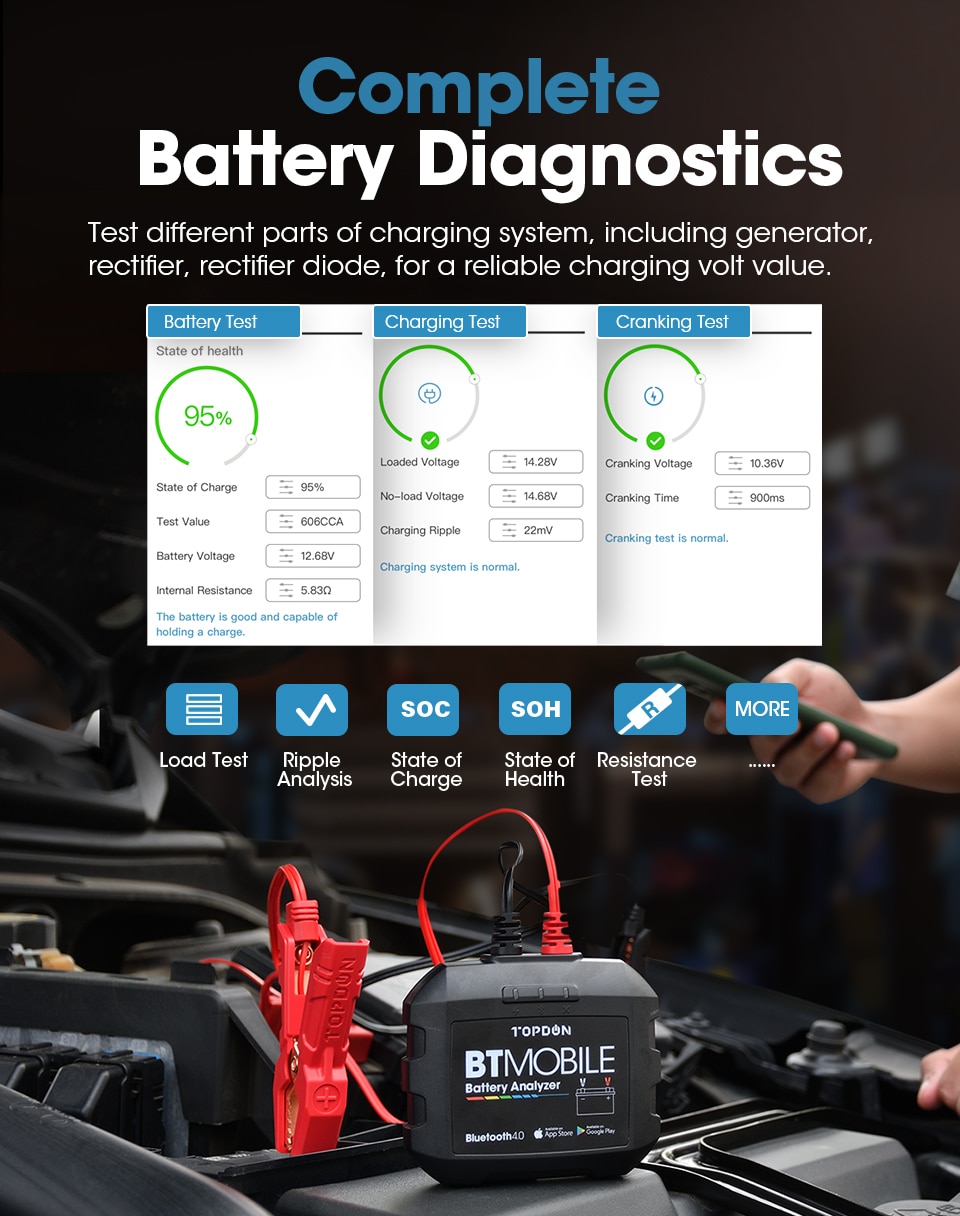

FUNCTIONS:
1. Battery Test (for 12V battery): Display SOH (State of Health), SOC (State of Charge), Voltage, Current, Rating, and the readable analysis results on App:
① Display SOH (State of Health, %): Represents a measure of the battery’s ability to store and deliver electrical energy, compared with a fresh battery.
② Display SOC (State of Charge, %): Expressed as a percentage of its rated capacity, a measure of its condition to assess the potential energy.
③ Display Battery Internal Resistance Value (mΩ): The lower the internal resistance, the more current the battery can output. The value above 15 milliohms indicates a broken battery (12V).

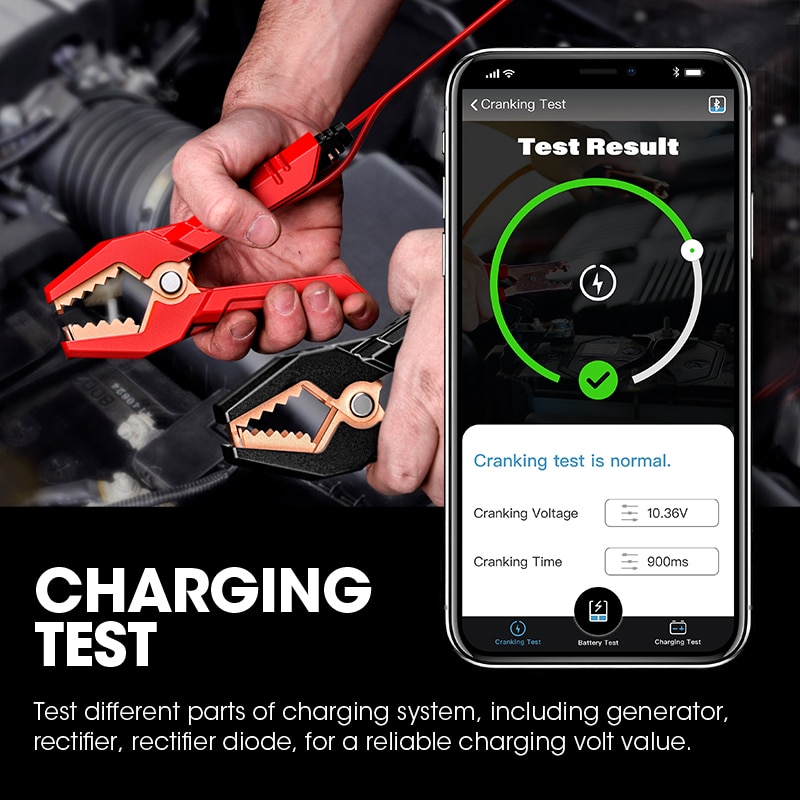

2. Cranking Voltage Test: Analyze the actual cranking voltage, and the cranking time to help you quickly figure out the whole state of the starting system
① Cranking Voltage (Normally a Cranking Voltage value lower than 9.6V is regarded as abnormal.)
② Cranking Time.
3. Charging System Test: Test different parts of charging system, including generator, rectifier, rectifier diode etc., for a reliable charging volt value.
① Loaded Voltage.
② No-load Voltage.
③ Charging Ripple.
4. System Test (Overall Test for Battery): Takes some of the guidance away, and offer an accurate insight into batteries’ status, if you are not sure about the battery type and its CCA value.
① Battery Test.
② Cranking Test.
③ Charging Test.

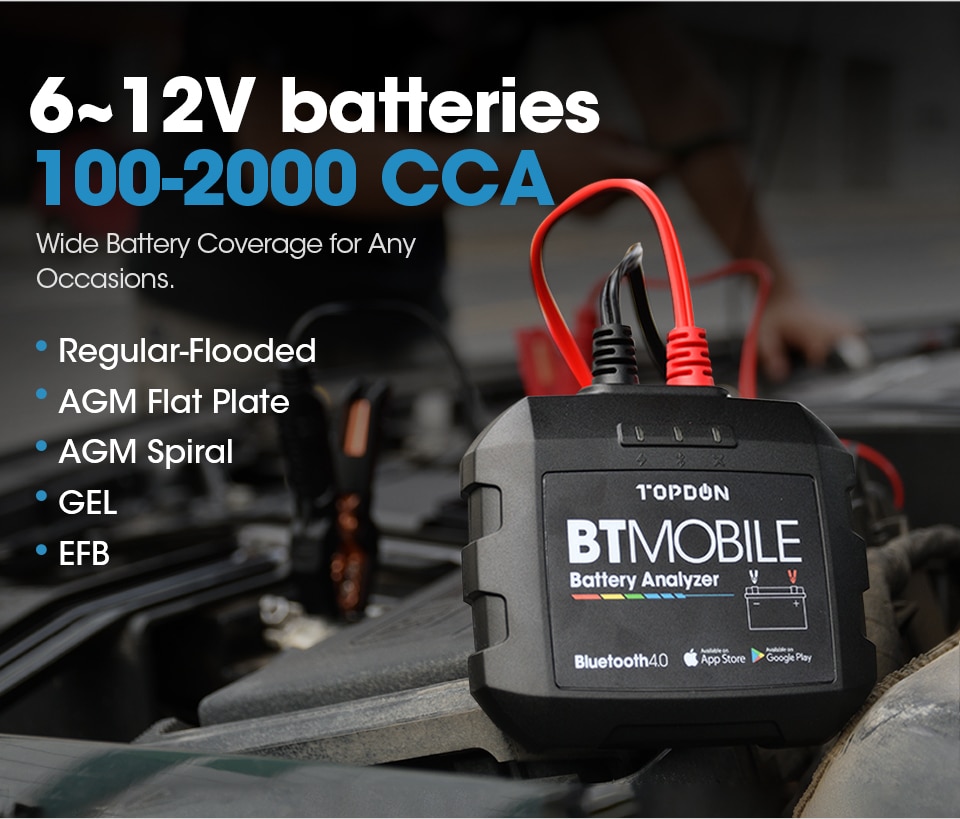

Wide Battery Coverage, Portable Tool in Any Occasions
TOPDON BTMobile helps you test batteries of many different kinds:
① Wide range from 100 CCA to 2000 CCA, to give a super accurate CCA reading.
② 6~12 Volts Regular Flooded, AGM Flat Plate, AGM Sprial, GEL, and EFB batteries.
It is thus a great all-rounder, and is able to test the battery condition for:
- Motor Vehicles
- Light Trucks
- RVs
- Boats
- SUVs
- ATVs
- Law Tractors etc.

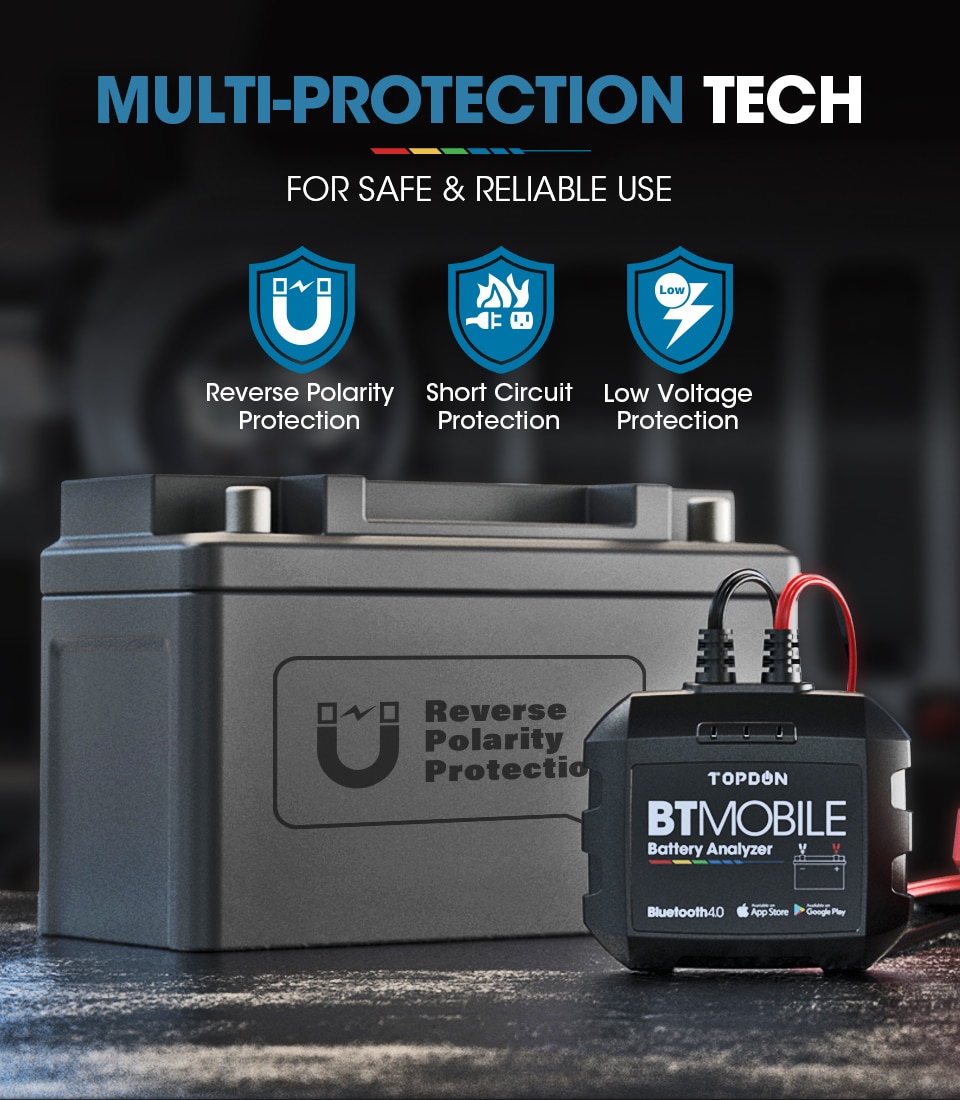

Safety Protections, Intimate Guardian during Test
1. Short-Circuit Protection (Sparkle-Proof):
This ensures an ultra-safe status during operation.
2. Reverse Polarity Protection:
Prevent the damage to vehicle electronics and the danger involved, if the reverse polarity faults occurs while battery testing.
3. Over Voltage Protection:
Prevent excessive voltage beyond the acceptance, against the damage to the electronic components.
