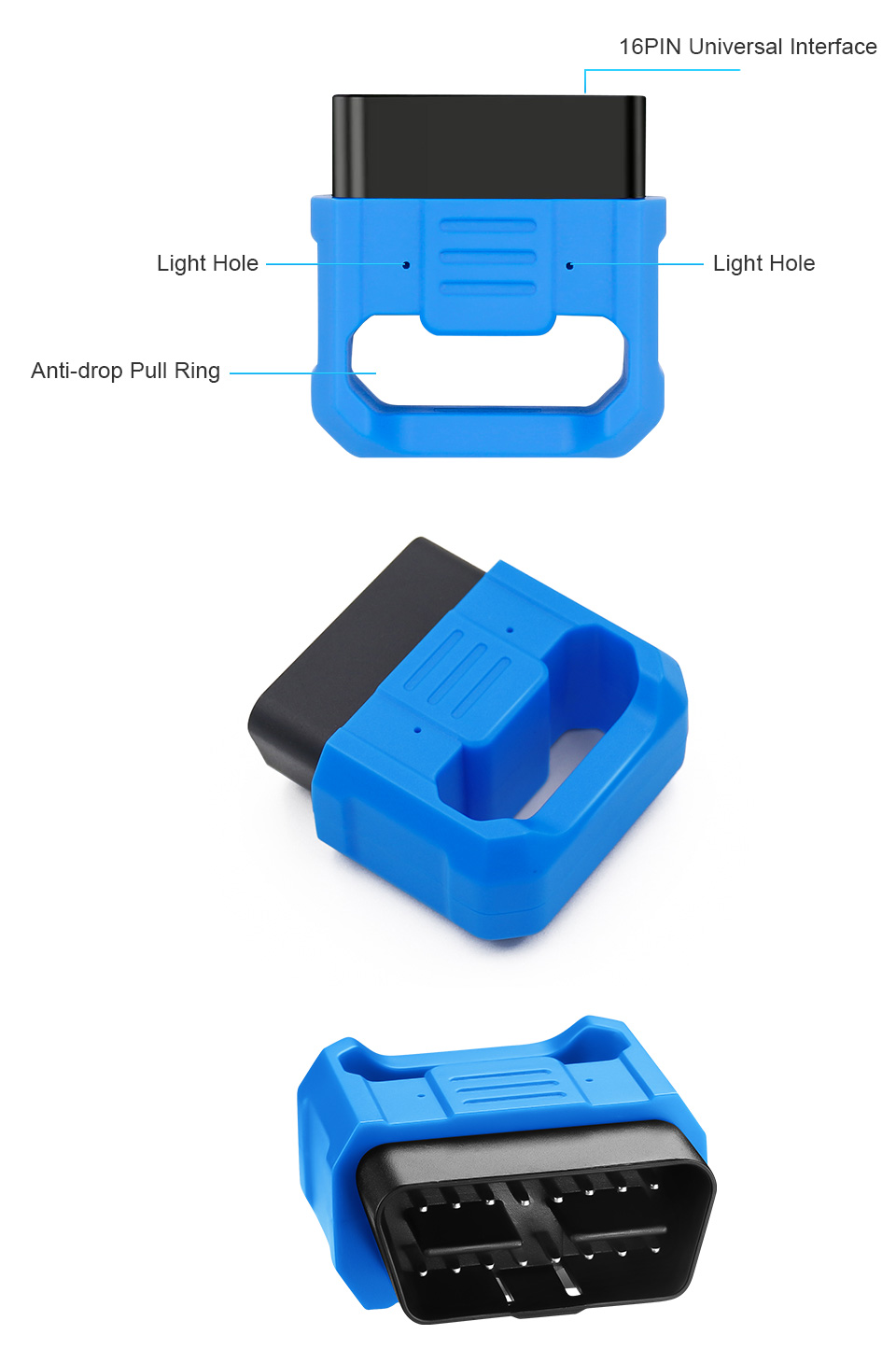

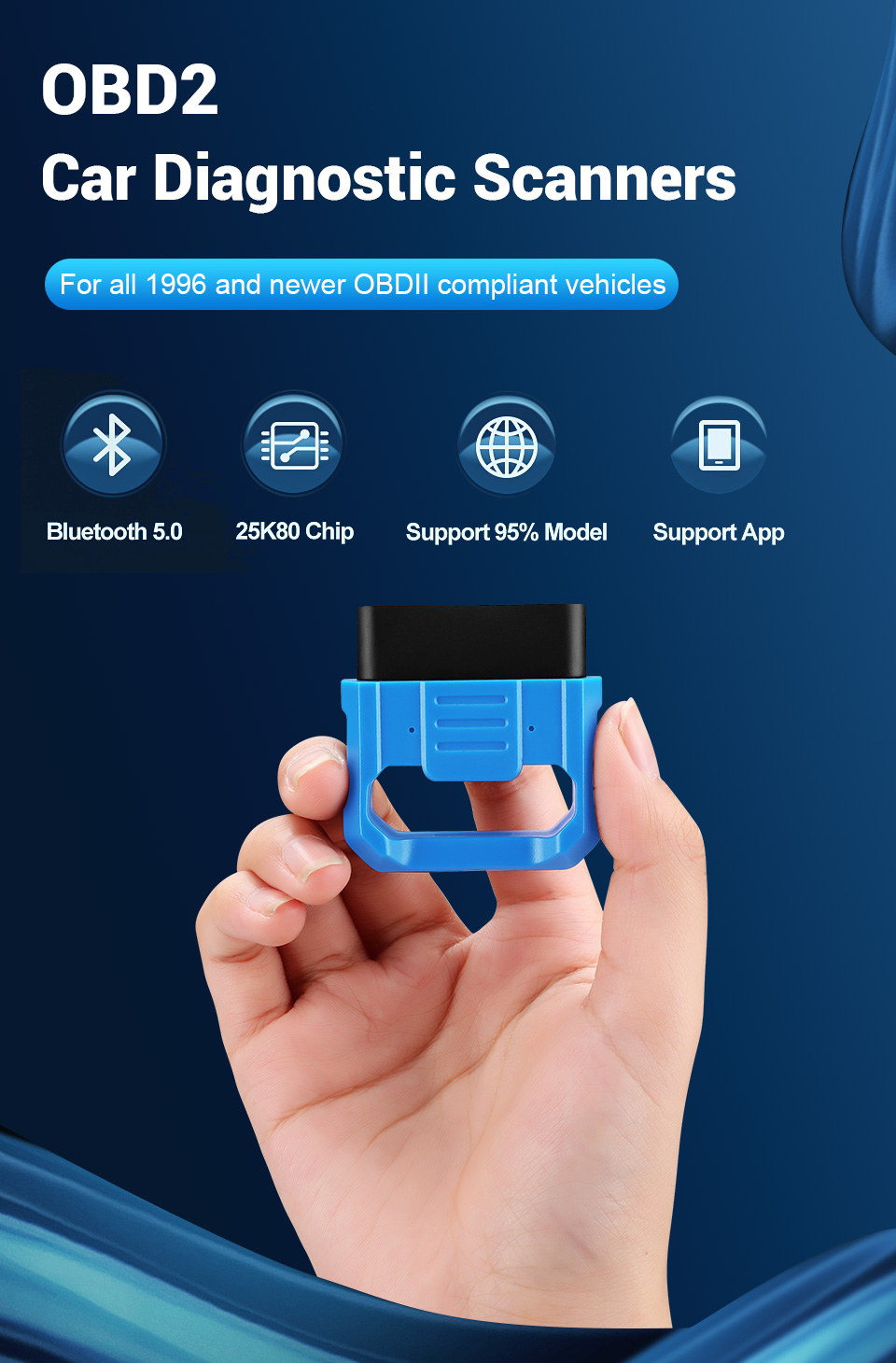

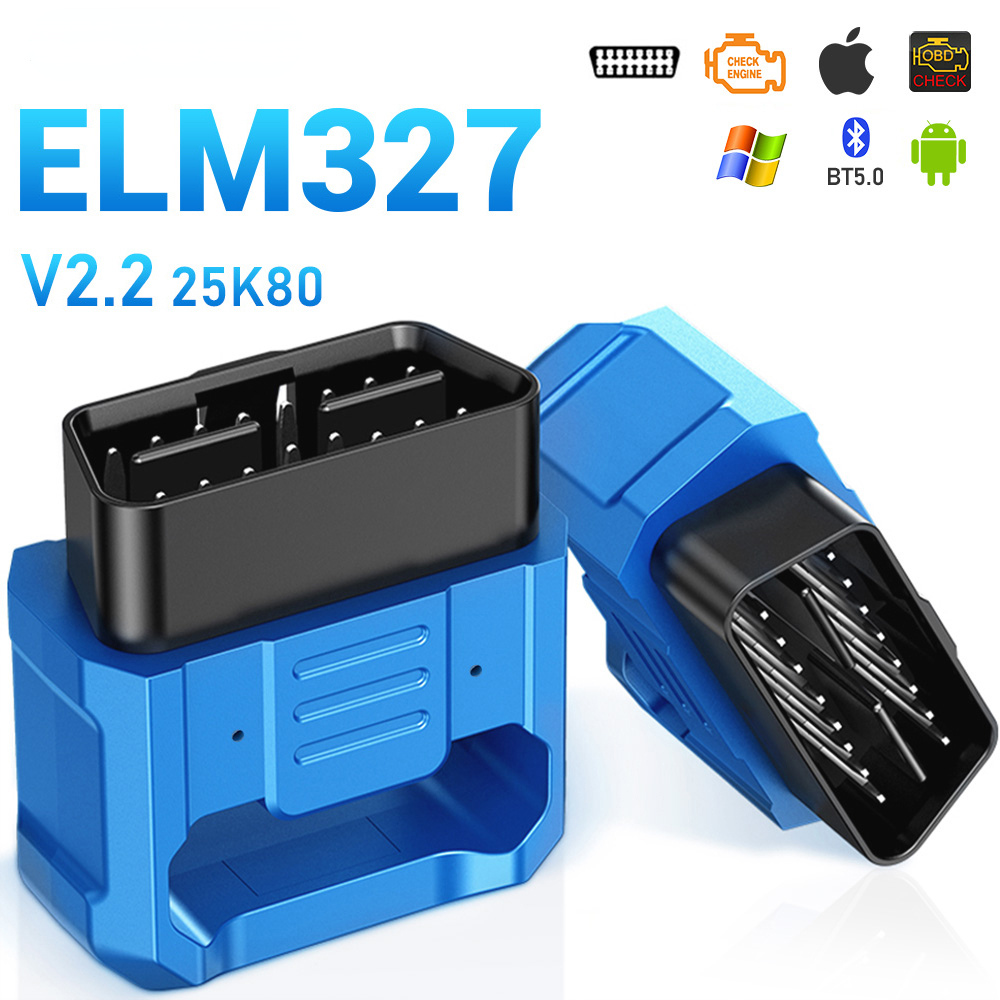

Mini OBD II Car Diagnostic Scanner OBD2 Auto Code Reader V018 ELM327 V2.2 Bluetooth 5.0 Repair Tools For Android/IOS

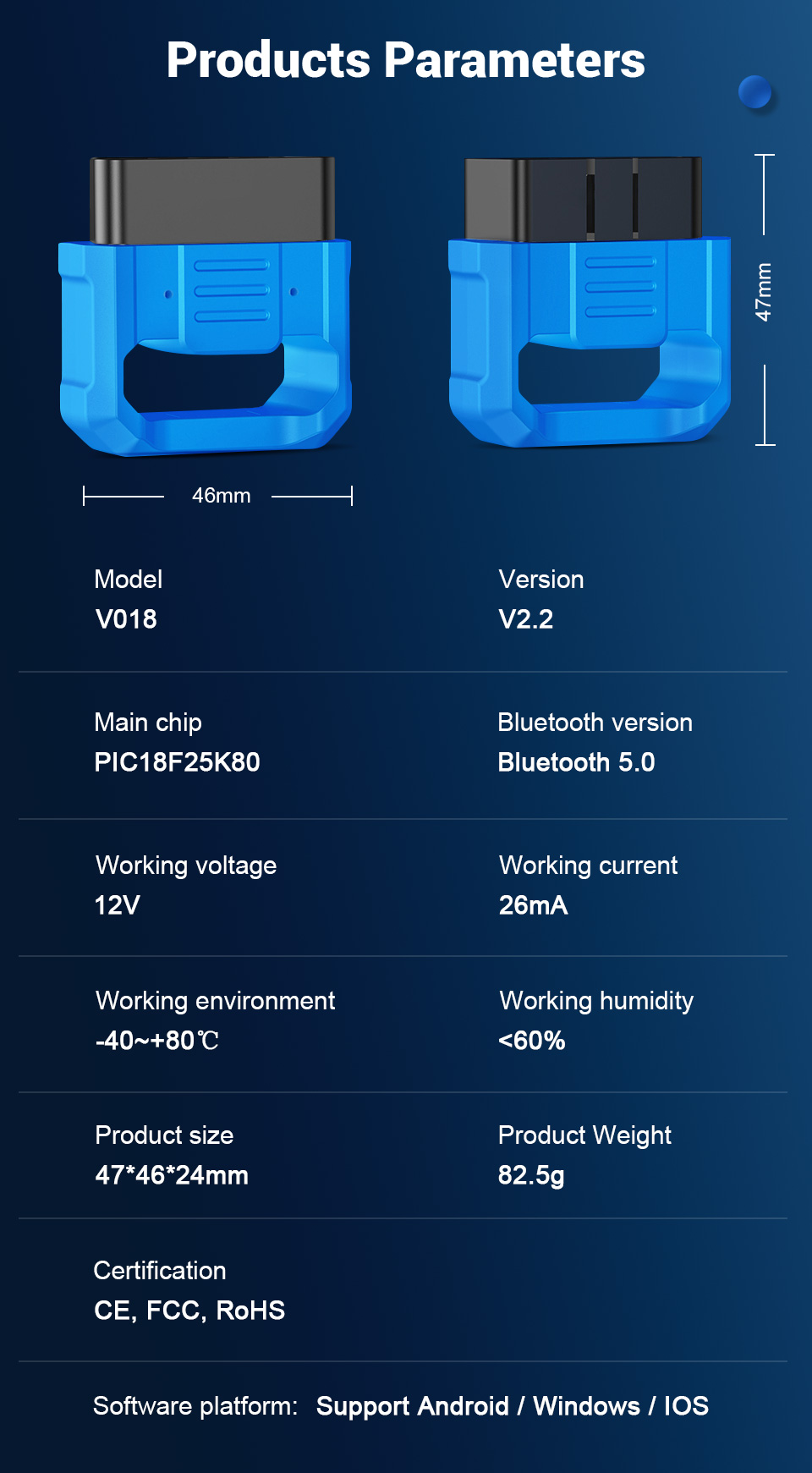

Specification:
Model: V018
Version: V2.2
Communication method: Bluetooth 5.0
Chip：PIC18F25K80
Working voltage: 12V
Working current: 26mA
Operating environment: -40~+80 C
Working humidity: <60%
Supported protocol:
SAE J1850 PWM (41.6Kbaud)
SAE J1850 VPW (10.4Kbaud)
ISO9141-2(5 baud init, 10.4Kbaud)
ISO14230-4 KWP (5 baud init, 10.4 Kbaud) 5. ISO14230-4 KWP (fast init, 10.4 Kbaud)
ISO15765-4 CAN (11bit ID, 500 Kbaud)
ISO15765-4 CAN (29bit ID, 500 Kbaud)
ISO15765-4 CAN (11bit ID, 250 Kbaud)
ISO15765-4 CAN (29bit ID, 250 Kbaud)

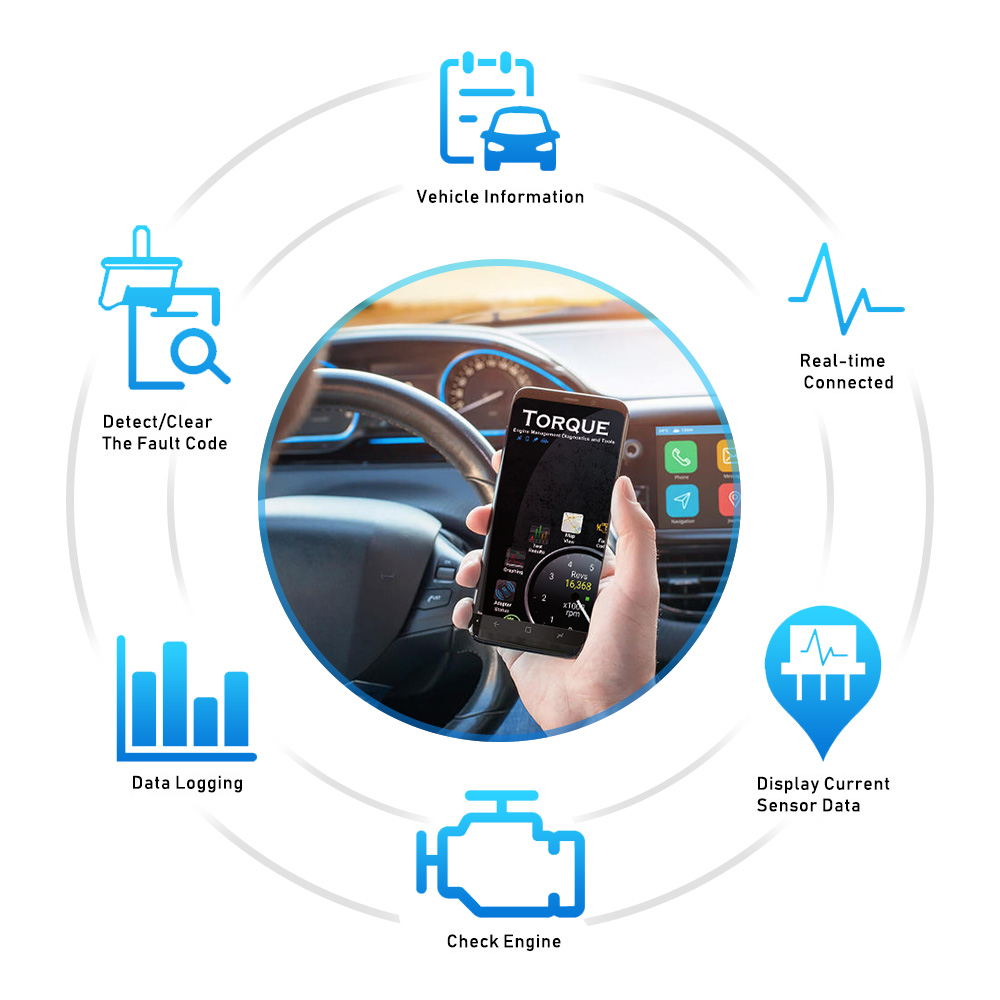

Cruise dashboard (according to the actual APP display effect):
RPM
Average fuel consumption
Speed
Coolant temperature
Calculate load value
Form mileage
Instantaneous fuel consumption
Driving time
Itinerary analysis (according to the actual APP display effect)
Current trip analysis
Cumulative trip analysis
Trip record
Itinerary analysis
Vehicle detection (according to the actual APP display effect) snapshot detection:
Automatically detect the basic state of the vehicle
Whole vehicle inspection
Vehicle available sensors support reading detection
Oxygen sensor detection
Tracking detection:
Idle speed stability detection
Fuel consumption tracking and testing
Electronic control system ignition detection
Reasons To Get Super MINI ELM327 V2.2:

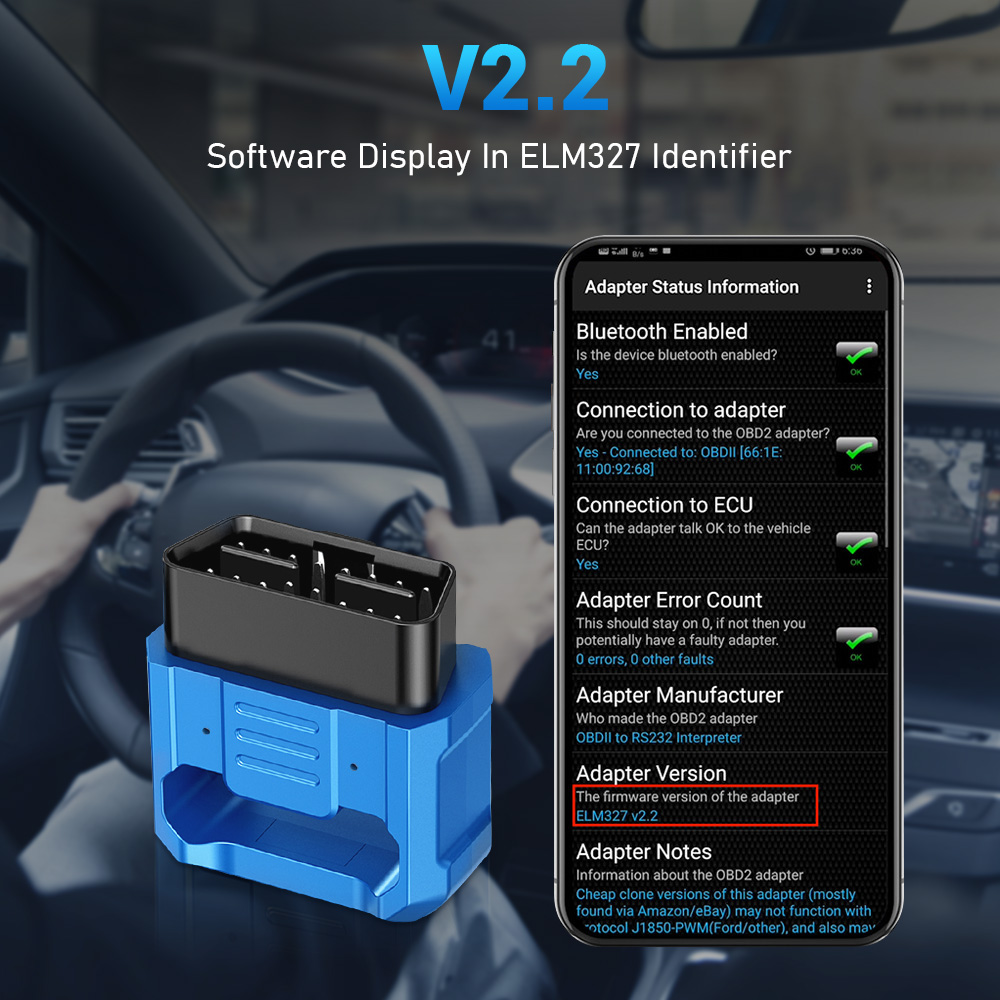

Software Version: latest Version
Hardware Version: V2.2
Works with all OBD-II compliant vehicle
Support Four operating platforms (IOS, Android, Symbian, Windows)

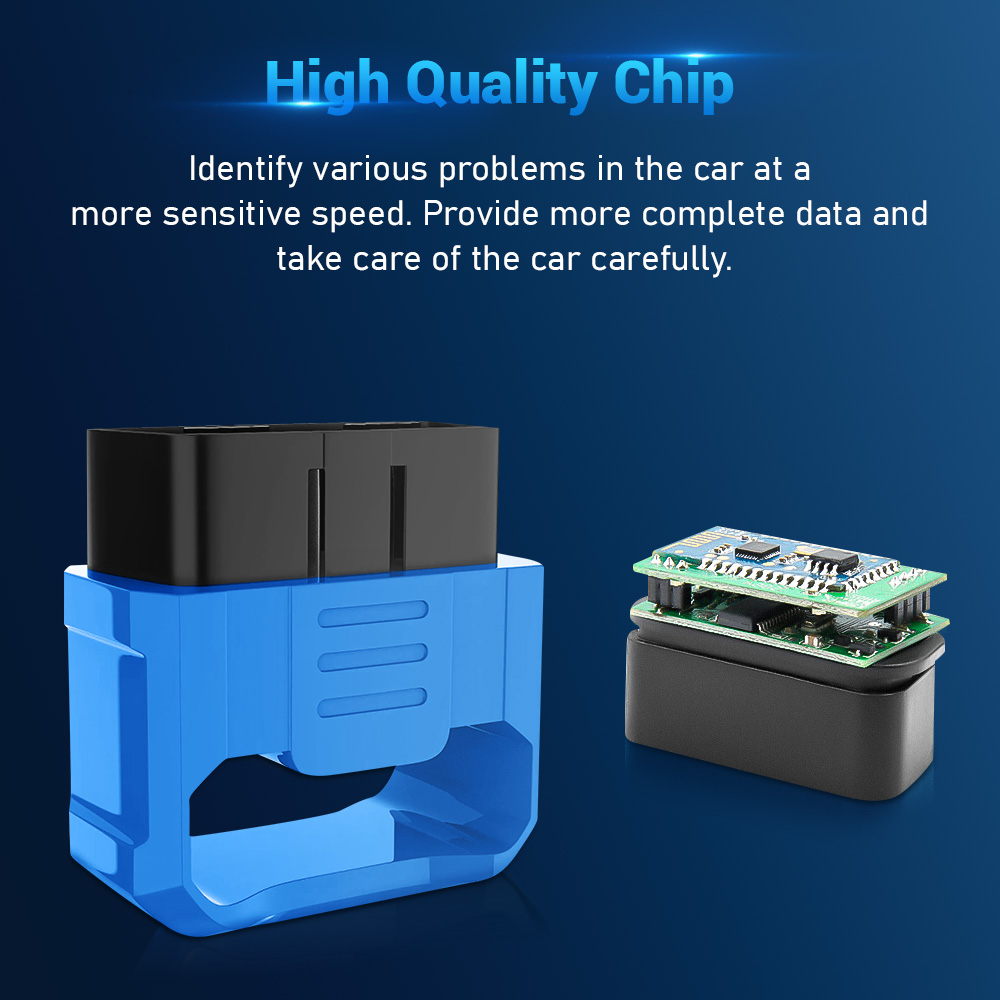

PIC18F25K80 Chip
Software Address:

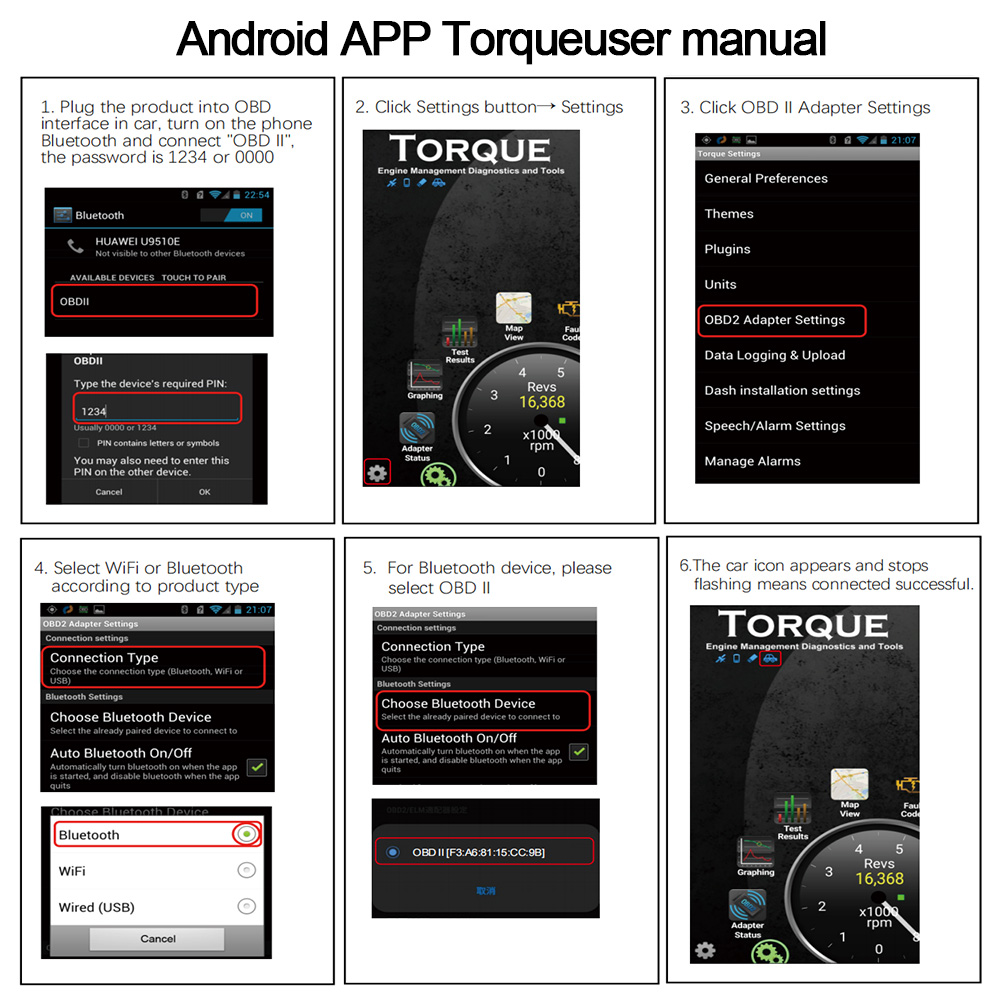

Android: ELM327 dentifier/Torgue/Dashcommand/Auto Doctor
PC: Scanmaster(www.elm327.com)

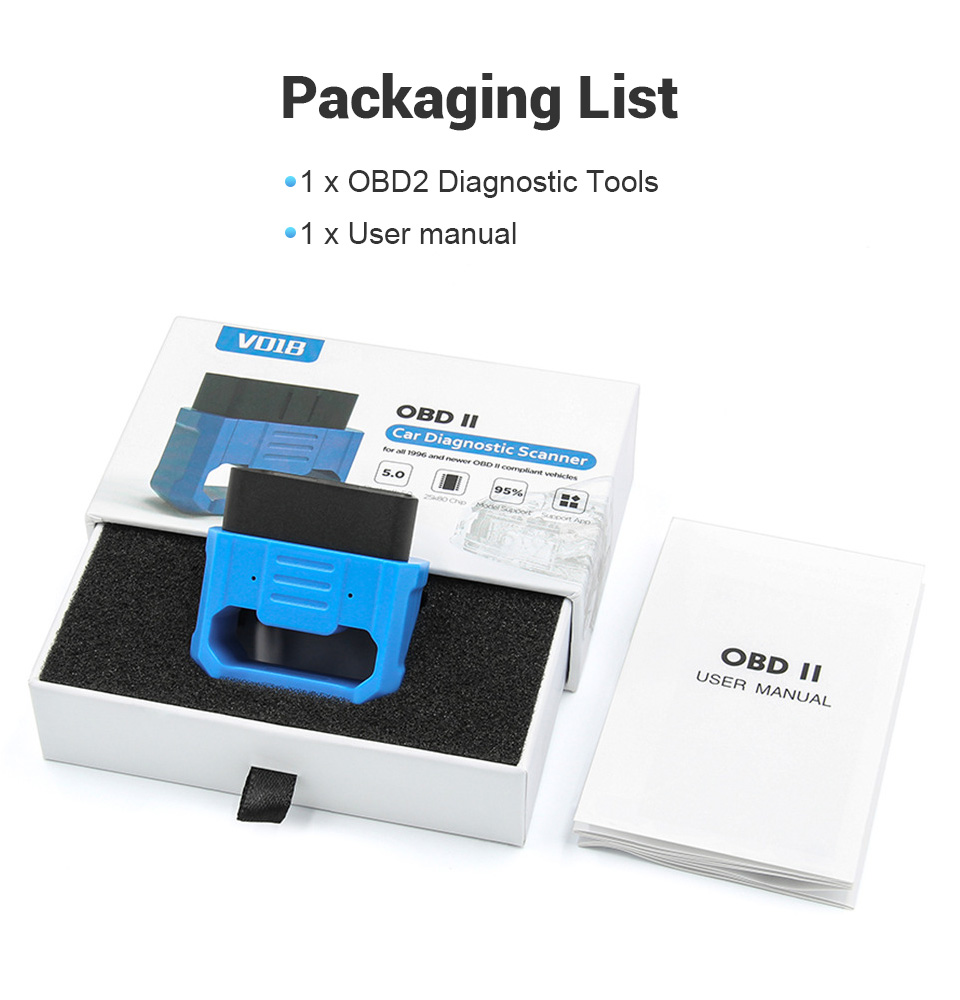

Package included:
1 x OBDII

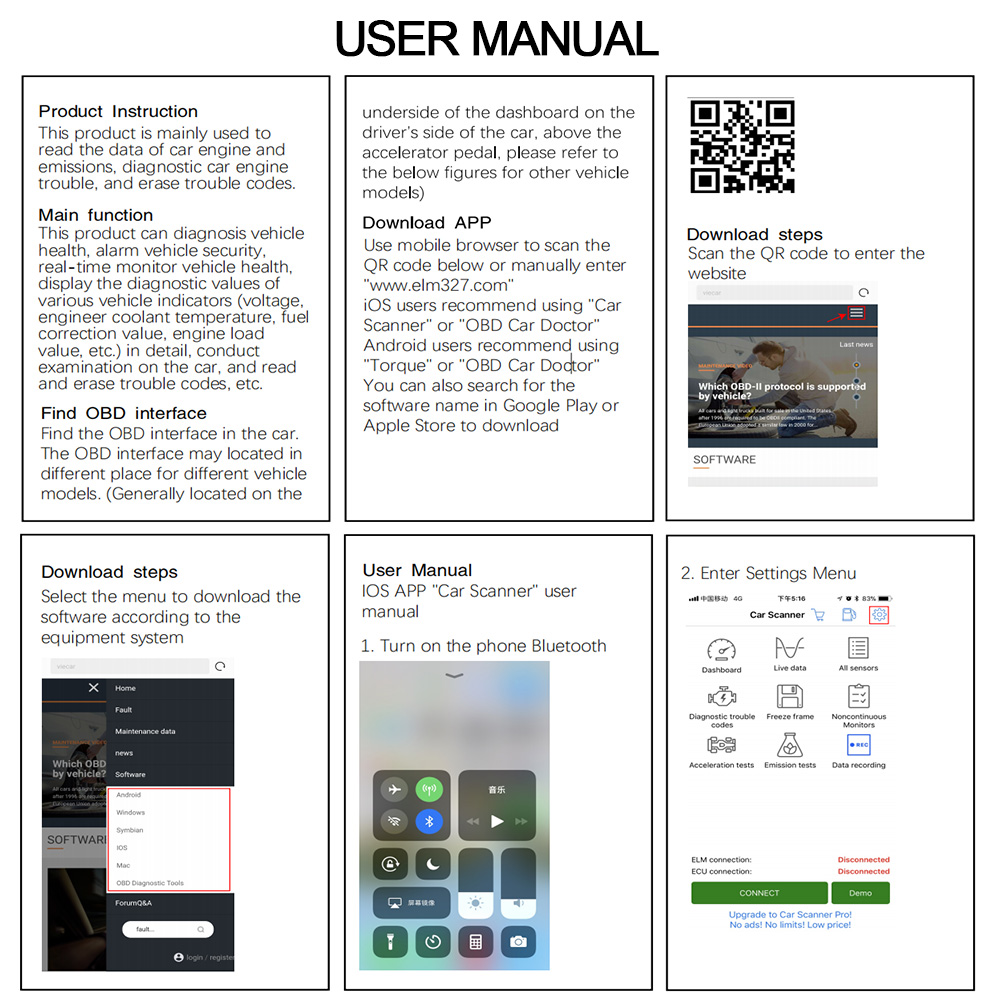

1 x User manual
