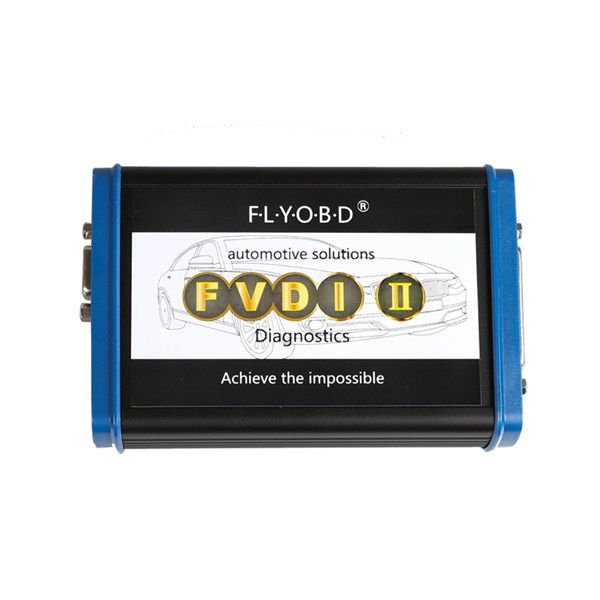

FVDI2 ABRITES Commander for FORD
Top 6 Reasons to Get FVDI2 FORD:
1. Software Version: V4.9
2. Languages: English/ German/ Spanish/ French/ Portuguese/ Russian/ Italian/ Danish/ Czech/ Bulgarian/ Croatian/ Greek/ Hungarian/ Polish/ Romanian/ Slovenian/ Swedish/ Turkish/ Brazilian
3. Buy FORD software get Hyundai/Kia/Tag Key Tool Software Free
4. FVDI2 ABRITES Commander for FORD is a software for diagnostic of FORD vehicles over CAN bus. It provide abilities for Incode calculations, key programming and mileage recalibration.
5. Update: Before update, you need advise the FVDI2 ID first, we will check if the ID is in the update list which can be update by email, if not in the list, can not do it yourself. you need send back the multiplexer to us for updating. and you need pay for the shipping cost of it
6. Promotion: Buy this FVDI2 Commander, you also can get free 20 Digit Nissan Pin Code Calculator Software.
Note:
1. When use this 20 Digit Nissan Pin Code Calculator, you need connect the software dongle and FVDI2 host, and you must Close FVDI2 Software when use this calculator.
1. When use this 20 Digit Nissan Pin Code Calculator, you need connect the software dongle and FVDI2 host, and you must Close FVDI2 Software when use this calculator.
2. SupportS Windows XP system only.
FVDI2 Commander Software Installation Video
More Techincal Support for FVDI2

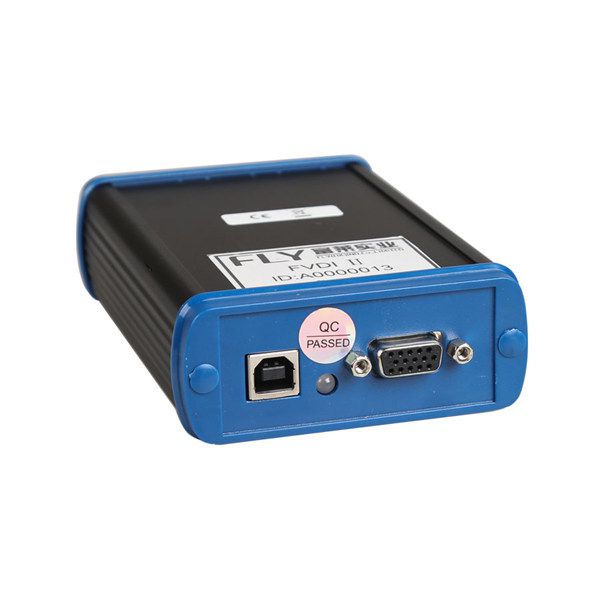

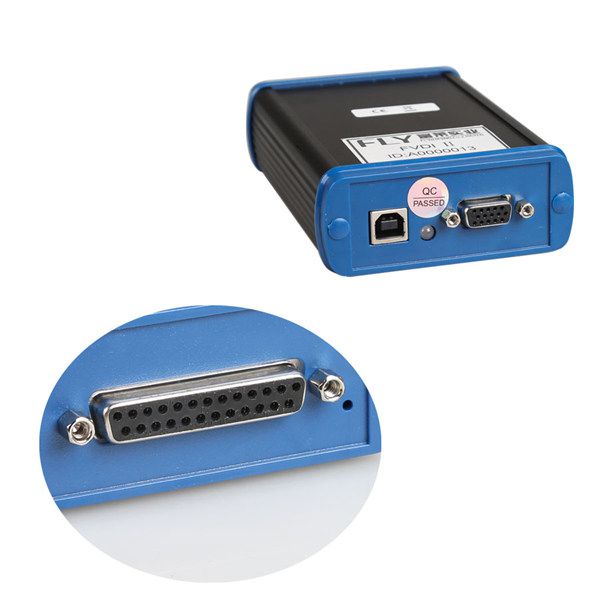

FVDI2 Connection for Authorization:
When obtaining authorization, please operate according to the following steps strictly:
Step 1. Connect the Softdog to FVDI2. Do not connect Softdog to the computer, otherwise the green light of Softdog or red light will be on, and result in authorization failure.
Step 2. Use USB cable to connect FVDI2 and the computer, but do not connect FVDI2 to the car. Wait until FVDI2 green light flashing and Softdog red light on, then you will get authorization successfully. If FVDI2 red light on or Softdog green/red flashing, it shows abnormal, please repeat the above steps to connect again.
After get authorization for FVDI2, follow the next steps to connect.
Step 1. Connect the Softdog to FVDI2 (Note: do not connect Softdog to the computer).
Step 2. Use USB cable to connect FVDI2 and the computer. Wait until FVDI2 green light flash and Softdog red light on, then connect Softdog USB cable to the computer. During the procedure, the Softdog red light keeps on (Note: do not connect FVDI2 to the car)
Step 3. Till the above 2 steps work well, connect FVDI2 to the car.
FVDI2 ABRITES Commander for Ford Standard Functions:
1. For all electronic control units reading identification data
2. For all electronic control units read error (DTCs)
3. For all electronic control units clear error (DTCs)
4. Device scan
5. Data Display / Measured values
6. Fuel Injector Correction Factors
7. Speed Limiter - Modify dealer set speed on Ford Transit MK6(2000-2006) and MK7(2006+)
8. Set RPM Controller mode and associated engine speed - Ford Transit MK6(2000-2006) and MK7(2006+)
9. Programmable Module Installation - With PMI you can safety to replace original ECU with used or new one. PMI transfers internal data from original ECU to replacement one. If original ECU is not available, you can obtain data from Ford Global database.
10. Ford/Mazda PCM Read/Write flash memory:
- EDC16C3 - 1.4/1.6 TDCI
- EDC16C34 - 1.4/1.6 TDCI
- SID804 - 1.8/2.0 TDCI
- SID206 - 1.8/2.0 TDCI
- Denso 1MB - Mazda 5/6 - 2.0D
11. Fuel Injection Pump (FIP) Initialization - Bosch VP44 Diesel pump :
Focus I 1.8 TDDi - 1999 - 2001
Connect 1.8 TDDi - 1999 - 2001
Tourneo connect 1.8 TDDi 2003-2004
Transit 2.0 TDDi - 1999-2002
Mondeo 2.0 TDDi - 2000-2003
Mondeo 2.2 TDDi - 2000-2003
Fiesta IV 1.8 TD - 2000-2002
Fiesta Courier IV 1.8 TD - 2000-2002
KEY LEARNING BY OBDII WITHOUT NEED FROM A IN/OUT CODES:
Focus II 2004
Transit Connect 2007+
Transit 2006+
Tourneo Connect
Mondeo IV 2007+
Fiesta V (CAN)
Fiesta VI 2008+
KA 2002-2008 (CAN)
Galaxy III 2006+
C-MAX
Fusion
S-MAX
Kuga
Mazda 2 2006+
Mazda 3 2006+
Mazda 6 2006+
Explorer, Expedition, Ranger, Mariner, Mountaineer, F150, Fx50, Ex50 - 2005-2009
Escape 2006-2011
Edge, Flex 2006-2010
Lincoln - MKS, MKX,MKT.MKZ 2006-2010
Mileage Recalibration by OBDII:
Ford Focus II 2004+
Transit Connect 2007+
Tourneo Connect
Mondeo IV High Line 2007+
Fiesta (CAN)
Galaxy III 2006+
C-MAX
Fusion
S-MAX
Kuga
Crown Victoria 2006+
Escape 2006+
Flex 2006+
E150-E350 2006+
F150-F350 2006+
Freestar 2006+
Freestyle 2006+
Mustang 2006+
Edge
Focus USA 2005+
Fiesta USA 2010+
Explorer 2004+
Expedition 2004+
Ranger 2004+
Grand Marquis 2006+
Town Car 2005+
F150 2005+
Fx50 2005+
Ex50 2005+
Flex 2007+
Edge 2007+
Fusion USA 2006+
FVDI2 Commander Service Functions:
Reset The Powertrain COntrol module ( PCM ) Learned values
Reset The Exhaust Gas Temperature value
Initialize the Exhaust Gas Related component
Reset Keep Alive Memory ( KAM )
Reset the Diesel Particulate Filter ( DPF ) Learned Values
Reset the Water in Fuel ( WIF ) Warning Indicator
Reset the Knock Sensor Learned Values
Reset the Fuel Metering Valve Learned Values
Reset the Intake Air Throttle Valve Learned Values
Reset the Exhaust Gas Recirculation ( EGR ) Valve Learned Values
Reset the Differential Pressure Sensor Learned Values
Fuel Injector Correction Factors
Relearn Vehicle Data
Reset the Mass Air Flow ( MAF ) Sensor Learned Values
Reset the Fuel Pressure Relief Valve Open Count Learned Value
Reset the Fuel Pressure Relief Valve Open Duration Learned Value
Ford FVDI2 Commander Special Functions:
INCODE calculator for FORD, MAZDA, Jaguar, Land Rover, MERCURY, LINCOLN
Ford Focus; C-MAX; S-MAX; Fusion; Mondeo; Kuga; Galaxy; Transit; Tourneo Conect; Ka; Fiesta; Taurus;
Crown Victoria; Thunderbird; ZX2; Mustang; GT; Edge; Escape; Explorer; Expedition; Ranger; Super Duty; Freestar
Mazda 2/Demio; Mazda3/Axela; Mazda5/Premacy; Mazda6/Atenza; Mazda8/MPV; CX-7; CX-9; Biante; Carol; AZ-Wagon; AZ-Offroad; Spiano/Scrum Vagon; Verisa; MX-5; Biante; Tribute
Mercury Grand Marquis; Mariner; Sable; Milan; Mountaineer; Marauder; Montego; Monterey
Lincoln Zephyr/MKZ; LS; Town Car; MKS; Aviator; Mark LT; MKT; Navigator; MKX; Blackwood
Land Rover Discovery; Range Rover Defender; Freelander; Range Rover Sport
Jaguar X-Type; XK/XKR; S-Type; XF/XFR; XJ8/XJR
Software display:
