Foxwell I80Max 10.1'' Android Diagnostic System Universal Car Diagnostic Tool Full System Immo/Abs/Epb/Sas/Dpf/Oil Reset Auto Diagnostic Tools

Foxwell i80Max, featuring multitasking Android 8.1 operating system, 10.1inch LCD touchscreen, fast quadcore processor, extensive coverage and OE-level diagnosis, is built for maximum convenience and efficiency during diagnosis and service work.

Item No. COBD211225

4.46 stars, 13 reviews.

In Stock

Price:: US$6,297.00/ piece

Discount Price:: US$2,199.00/ piece 65%

Quantity:

Shipping:: Express Shipping Service
Estimated delivery time: 3-15 working days.See details »
Returns:: Return for refund within 7 days,buyer pays return shipping.Read details »
Support:: Online Chat Ask a question

Description

The newly released Foxwell i80Max, featuring multitasking Android 8.1 operating system, 10.1inch LCD touchscreen, fast quadcore processor, extensive coverage and OE-level diagnosis, is built for maximum convenience and efficiency during diagnosis and service work.

Foxwell I80Max Features and Benefits:
- Fast boot-up and multitasking with the latest Android 8.1 operation systems
- Vehicle coverage for more than 90 US, Asian and European vehicle makes and more will be continuously updated
- Works on all electronic systems
- Automatic VIN reading upon connection to the vehicle for intelligent diagnosis
- Auto Scan function scans vehicle systems in just seconds
- Views live vehicle sensors data in text, graph and gauge formats
- Live data self learning and alarms when live data over range
- Records and plays back data-logs to catch intermittent failures
- Supports professional Pre-scan report and Post-scan report
- Supports bi-directional controls, actuation test, control module coding and all other diagnostic functions
- 26 special functions available, including Oil Reset, EPB, BRT, AT Transmission, DPF, Gear Learn, Injector Coding, Odometer, SAS,
TPMS, TPS, ABS Bleeding etc.
- Key coding for several vehicles
- Supports VCI remote diagnosis
- Three years Free Update to have latest bug fixes, new vehicles and functionalities
- Compatible with Oscilloscope, Videoscope and Wireless Printer
- One touch update via WIFI and One key complaint
- Unique debug log collection feature - allows for much faster fixes for bugs and failures
- Instant support available from Foxwell technical team
- Ergonomic design and ruggedly built for professional workshop use

Specification

item	value
Type	Engine Analyzer
Applicable Models	latest 2020/2021 car models
Place of Origin	China
Brand Name	Foxwell
Model Number	Foxwell I80Max
Warranty	2Years
Display	10.1" diagonal, daylight readable color LCD screen; 1920x1200 pixel
Touch With Gloves	Supported
Operating System	Android system
CPU	Quad-Core, 1.8GHZ
Memory/SSD Hard Drive	2G+64G
Camera	13 megapixels rear-facing, with LED flashlight
Battery	10000mAh/3.7V , lithium-polymer battery
Protocols	ISO9141-2, ISO14230-2, ISO15765-4, K/L lines,Double K lines,SAE-J1850 VPW, SAE-J1850PWM, CAN ISO 11898, High-speed, Middle-speed, Low-speed and Single-wire CAN, KW81, KW82, GM UART, UART Echo Byte Protocol, TP2.0, TP16, SAE J1939, SAE J1708, Fault-Tolerant CAN

Packing & Delivery

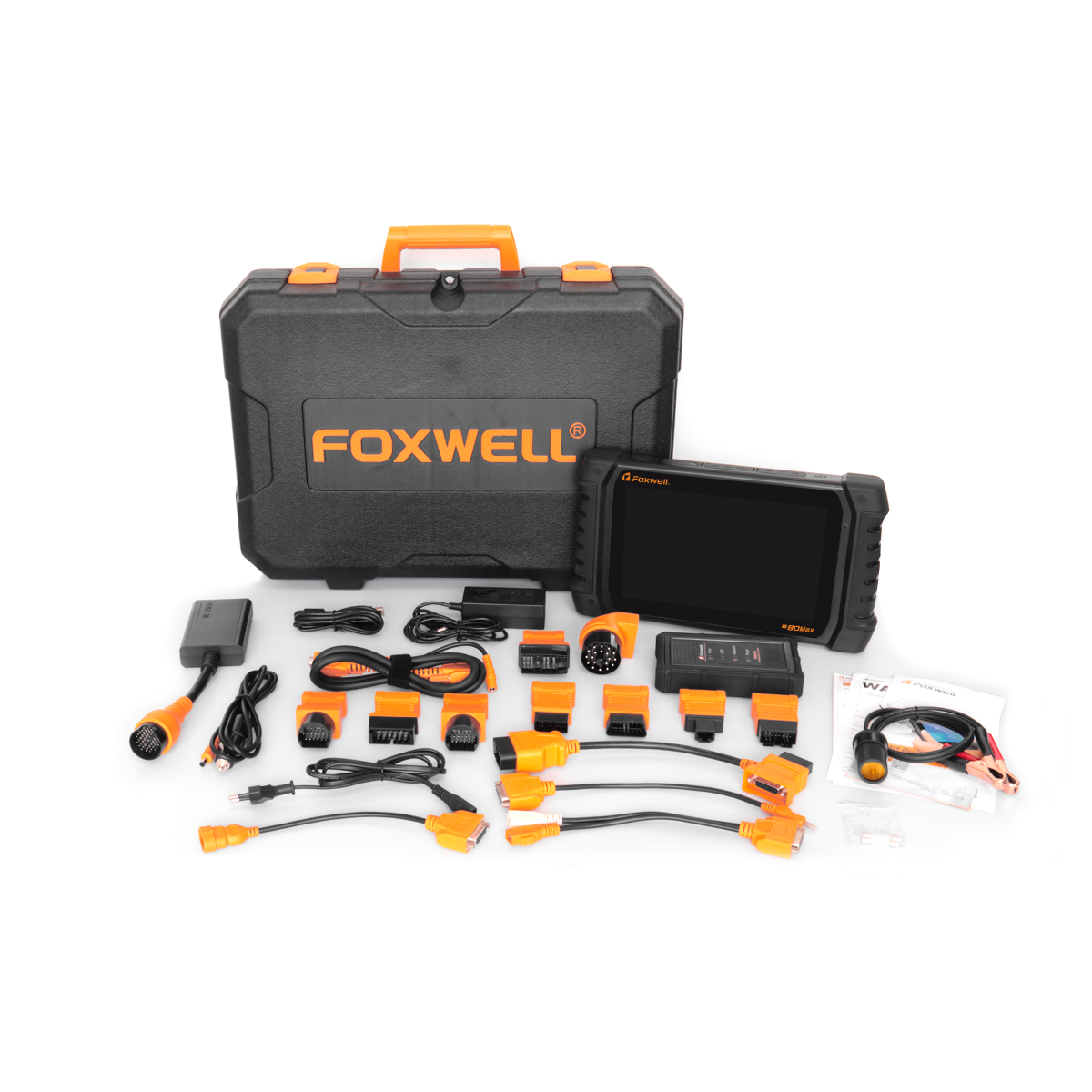

Kit Inludes

i80Max Main Unit
VCI Dongle
USB Cable for VCI
Diagnostic Cable
OBDIl Adapter
Audi 4 Pin Adapter
Mercedes Benz 38 Pin Adapter
Toyota 22 Pin Adapter
Fiat 3 Pin Adapter
GM/Daewoo 12 Pin Adapter
PSA 2 Pin Adapter
Kia 20 Pin Adapter
Honda 3 Pin Adapter

Nissan 14 Pin Adapter
Mitsubishi 12+16 Pin Adapter
BMW 20 Pin Adapter
Toyota 17 Pin Adapter
Mazda 17 Pin Adapter
AC/DC External Power Cable
Clipper Cable
Cigarette Lighter
Lighter Fuse
Quick Start Guide
Warranty card

User's ManualNissan 14 Pin Adapter

Mitsubishi 12+16 Pin Adapter
BMW 20 Pin Adapter
Toyota 17 Pin Adapter
Mazda 17 Pin Adapter
AC/DC External Power Cable
Clipper Cable
Cigarette Lighter
Lighter Fuse
Quick Start Guide
Warranty card

User's Manual
