FCAR F3-M Gasoline Car Scanner OBD2 Diagnostic Tool Mini Version
FCAR F3-M Feature:
F3-M, as the mini version of F3-W, can test the global mainstream gasoline, Built-in high and low speed CAN-BUS, one diagnostic connector can test all the CAN-BUS vehicles.Support almost all OBD-II protocols.FCAR F3-M Details:
Shipping Weight: 5 KGShipping: This item is also available for shipping to different countries.
Item model number: F3-M
FCAR F3-M Supported System:
Engine, ABS,Transmission,Airbag, Body Electronic equipment,Anti-theft System,Power Steering,Cruise System,Instrument System, Gateway, Air-Conditioning System, Sound System, Light System...FCAR F3-M Supported Functions:
Readout DTC, Readout Engine Model, Readout Computer Edition Information, Readout System parameter number, Readout Data Stream,Clear DTC,Component test,Compression Test,Maintenance Help,Study on line and so on.FCAR F3-M Host Parameters:
| 1 | CPU | SAMSUNG ARM2410A，203MHZ |
| 2 | SD card interface | insert/ pull out high-capacity SD card |
| 3 | Work Power | DC9-28v/3A |
| 4 | Port | DB15 |
| 5 | Memory | 8G |
| 6 | Display | 8-inch TFT LCD touch display true color |
| 7 | Resolution | 800X600, 16 bit true color |
| 8 | Print model | 58mm thermo printer |

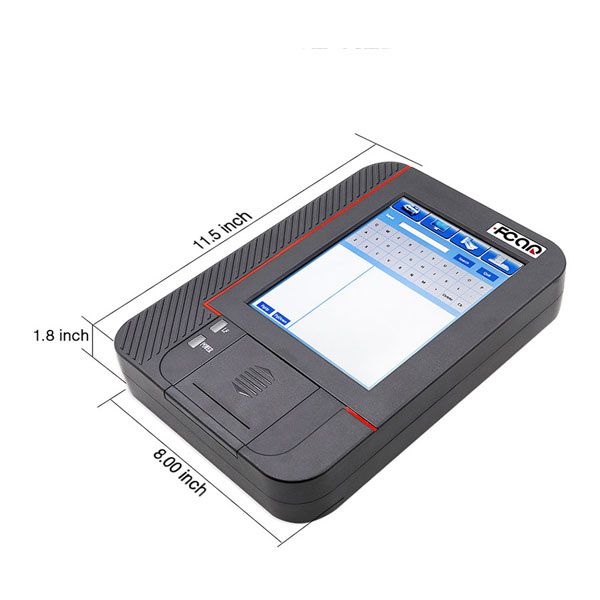

| 9 | External Dimension | 290.7×207.3×45mm |
| 10 | Storage temperature | -30~45℃ |
| 11 | Operating Temperature | -10~45℃ |
| 12 | Humidity | <90℃ |

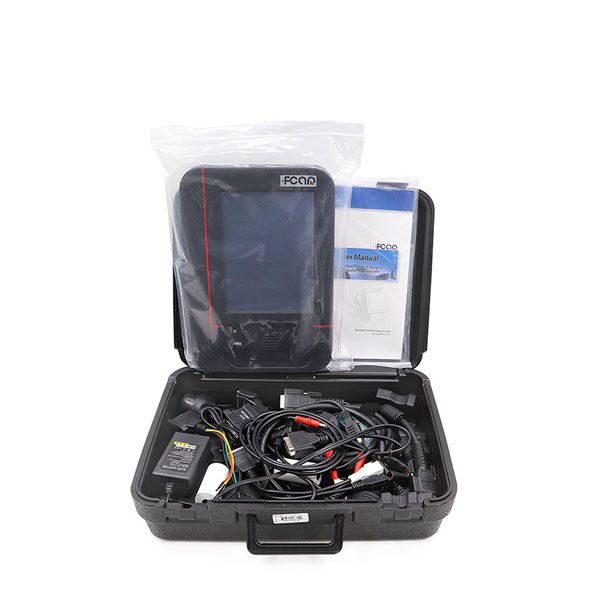

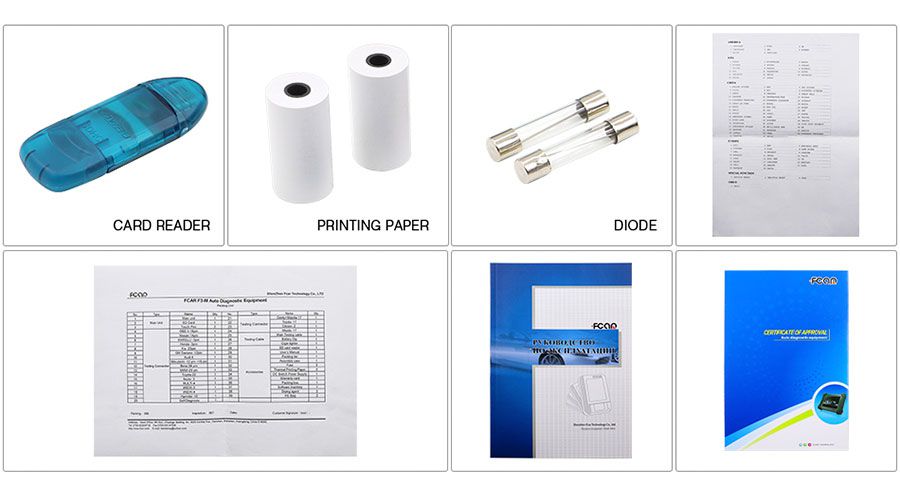

Package List:
1pc x FCAR F3-M Main Unit,
1pc x Main Testing Cables,
1pc x OBD2 connector,
1pc x SD Card,
1pc x Card Reader and others.

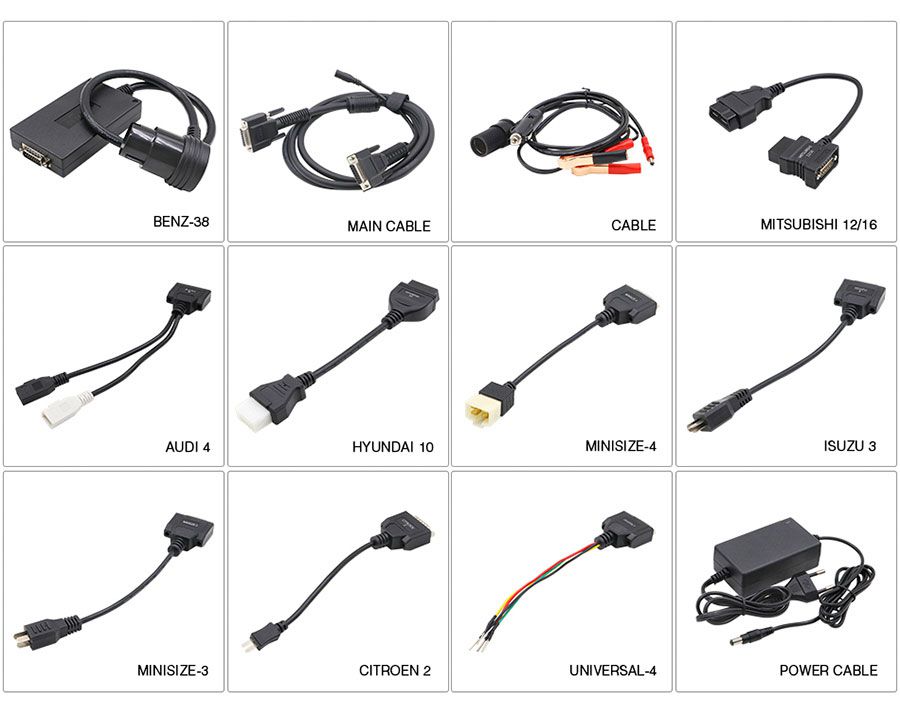

1pc x BENZ-38
1pc x MAIN Cable
1pc x cable
1pc x MITSUBISHI 12/16
1pc x Audi 4
1pc x HYUNDAI 10
1pc x MINISIZE-4
1pc x ISUZU 3
1pc x MINISIZE-3
1pc x CITROEN 2
1pc x UNIVERSAL-4
1pc x POWER CABL

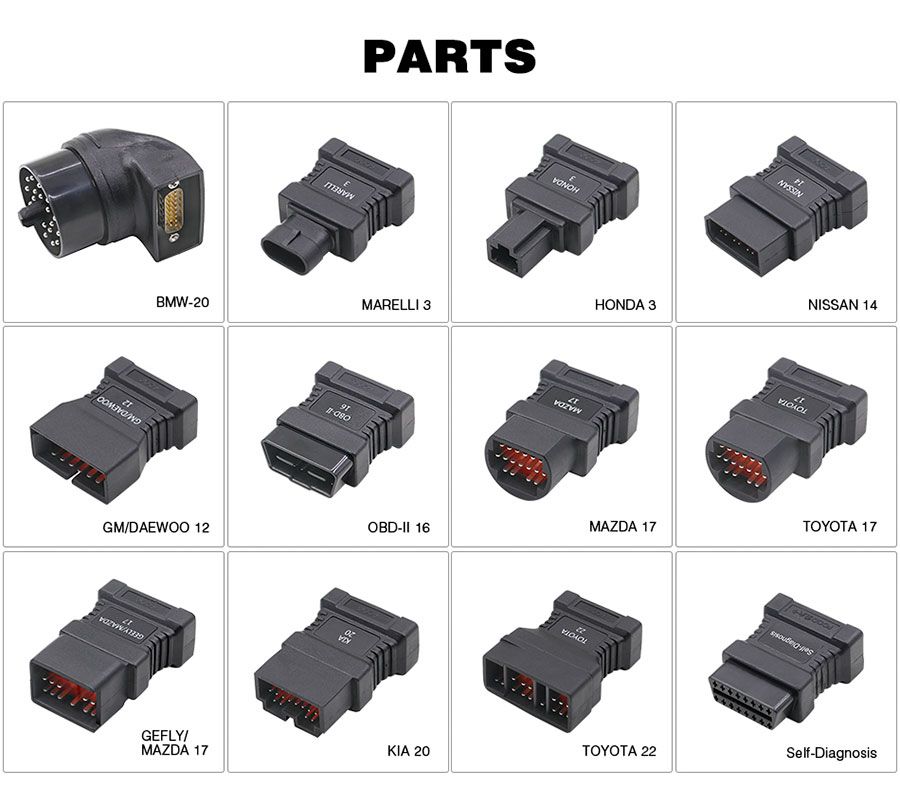

1pc x BMW-20
1pc x MARELLI 3
1pc x HONDA 3
1pc x NISSAN 14
1pc x GM/DAEWOO 12
1pc x OBDII 16
1pc x MAZDA 17
1pc x TOYOTA 17
1pc x GEFLY/MAZDA 17
1pc x KIA 20
1pc x TOYOTA 22
1pc x Self-Diagnosis
